FORD BRONCO 1996 5.G Owners Manual

131
*
[FV31101(B F )05/95]
RWARNING
A seatback which is folded forward even
a small degree may not lock properly in
the event of a sudden stop or collision.
[FV43500(B )01/89]
Rear Flip Fold Seat
[FV43600(B )01/89]
To fold the seat forward:
[FV43700(B )01/89]
1. The seat back latch is at the lower rear right
hand side of the seat. Lift the latch handle to
unlock the seat back.
[FV43800(B )03/90]
2. Fold the seat back over the seat cushion
until it locks into place.
[FV43900(B )03/90]
3. Unlock the seat from the floor striker by
lifting the seat latch handle at the center rear
edge of the seat.
[FV44000(B )03/90]
4. Lift the seat and fold forward.
[FV44100(B )12/89]
To remove and reinstall the rear flip-fold
seat:
[FV44200(B )01/89]
1. Remove the torque rod by releasing it from
the right hand floor bracket (by pushing
forward and up).
[FV44300(B )01/89]
2. Remove the pin spring retainers and the pins
from both the floor brackets.
[FV44400(B )01/89]
3. Remove the seat assembly from your Bronco.
Reverse this procedure to install the rear
flip-fold seat.
[FV44500(B )05/90]
NOTE: It is important that you do not damage
the seat belt hardware while removing
or installing the rear flip-fold seat.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

132 [FV44600(B )01/89]
half page art:0020238-AAssembly for installing and removing the rear seat
*
[FV45901(B F )05/93]
Tilt Slide Seat
*
[FV46020(B F )05/93]
With the seatback tilted forward, the tilt slide
seat can be moved forward to provide additional
entry space to access the rear seat compartment
of the vehicle.
*
[FV46025(B F )05/94]
To operate the tilt slide seat:
*
[FV46030(B F )05/93]
1. Lift the seatback release lever on the
outboard side of the seat cushion to unlock
the slide mechanism and the seatback.
*
[FV46035(B F )03/93]
2. Push the seat assembly forward to provide
entry space to the rear seat compartment of
the vehicle.
*
[FV46043(B F )08/94]
RWARNING
Do not place objects behind or under the
front seat which can prevent the seat from
returning to the locked position.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

133
*
[FV46045(B F )05/93]

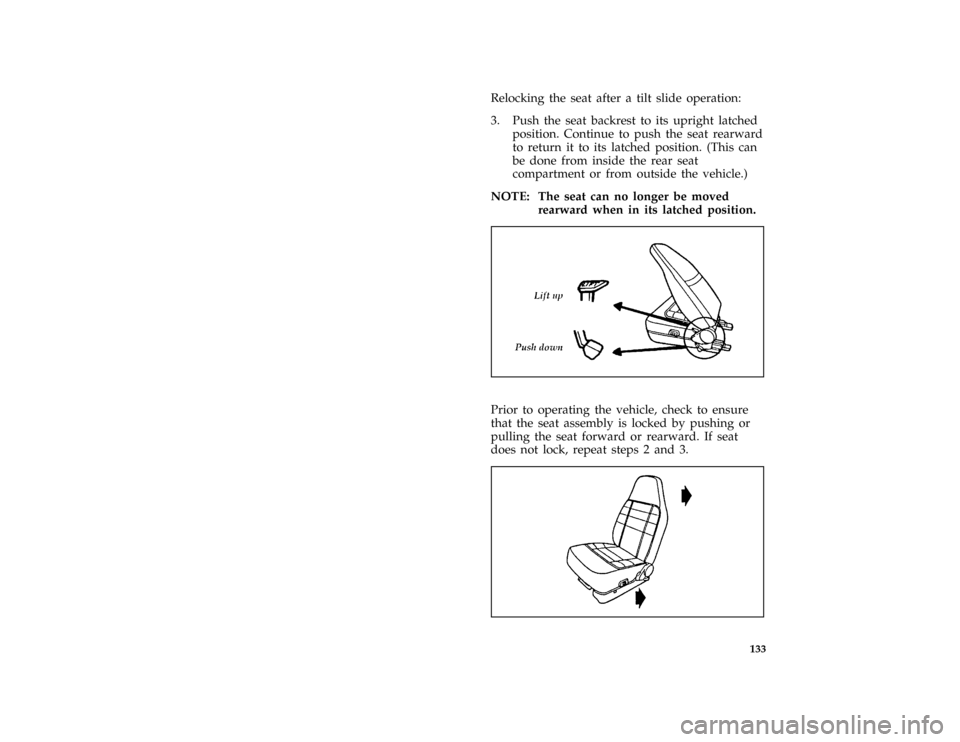

Relocking the seat after a tilt slide operation:
*
[FV46051(B F )05/93]
3. Push the seat backrest to its upright latched
position. Continue to push the seat rearward
to return it to its latched position. (This can
be done from inside the rear seat
compartment or from outside the vehicle.)
*
[FV46053(B F )10/94]
NOTE: The seat can no longer be moved
rearward when in its latched position.
*
[FV46055(B F )07/94]
one third page art:0021018-B
*
[FV46065(B F )05/95]
Prior to operating the vehicle, check to ensure
that the seat assembly is locked by pushing or
pulling the seat forward or rearward. If seat
does not lock, repeat steps 2 and 3.
*
[FV46070(B F )07/94]
one third page art:0021019-B
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

134
*
[FV46075(B F )03/93]

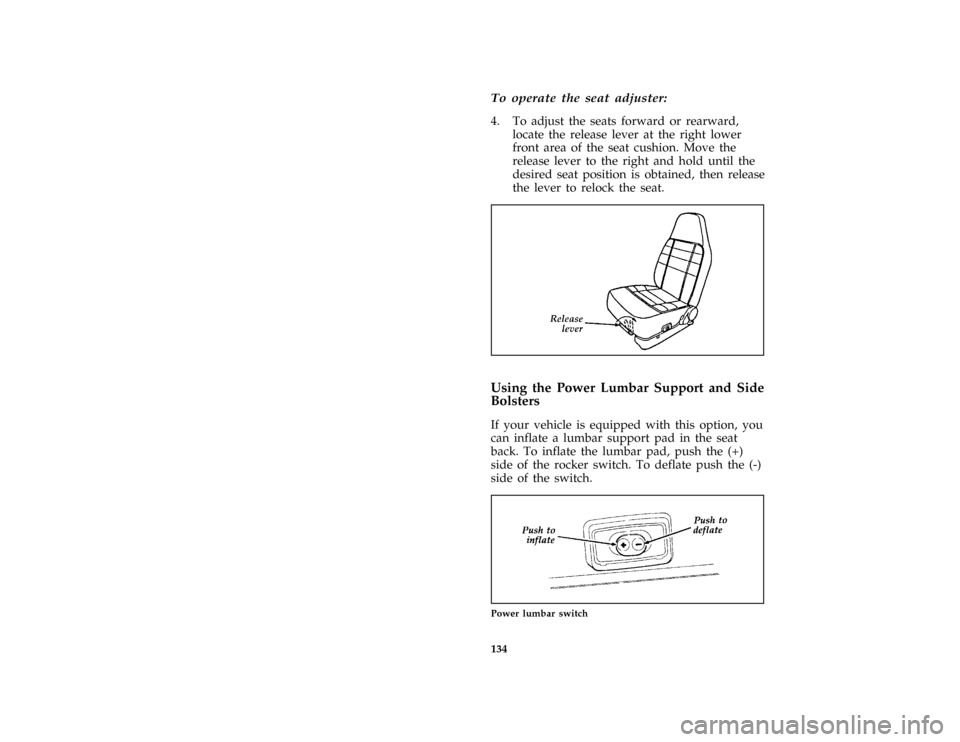

To operate the seat adjuster:
*
[FV46080(B F )05/93]
4. To adjust the seats forward or rearward,
locate the release lever at the right lower
front area of the seat cushion. Move the
release lever to the right and hold until the
desired seat position is obtained, then release
the lever to relock the seat.
*
[FV46085(B F )07/94]
one third page art:0021020-B
*
[FV47000(BEF )03/94]
Using the Power Lumbar Support and Side
Bolsters
*
[FV47400(BEF )12/91]
If your vehicle is equipped with this option, you
can inflate a lumbar support pad in the seat
back. To inflate the lumbar pad, push the (+)
side of the rocker switch. To deflate push the (-)
side of the switch.
*
[FV47500(BEF )06/92]
quarter page art:0020860-B
Power lumbar switch
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

135
*
[FV47600(BEF )04/95]
Cleaning the Seats
*
[FV47620(BEF )05/95]
Leather and vinyl
*
[FV47625(BEF )05/95]
For routine cleaning, wipe the surface with a
soft, damp cloth. For more thorough cleaning,
wipe the surface with a leather and vinyl cleaner
or a mild soap.
*
[FV47630(BEF )04/95]
Wipe the surface with a damp, soft cloth, then
dry and buff with a dry, soft cloth.
*
[FV47640(BEF )04/95]
Fabric
*
[FV47650(BEF )04/95]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[FV47660(BEF )04/95]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
*
[FV50000(BEF )01/95]
Mirrors
*
[FV50200(BEF )03/91]
With the door closed and the seat adjusted for
comfort and proper vehicle control, move the
mirrors for best view by tilting up or down, left
or right. Do not adjust the mirrors while the
vehicle is in motion.
*
[FV50325(BEF )05/95]
RWARNING
Make sure you can see clearly through the
rearview mirror at all times. Do not allow
anything to block your vision. If you can't
see through the mirror, you could be
involved in an accident and injure
yourself or others.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

136 %
*
[FV50700(B F )01/95]

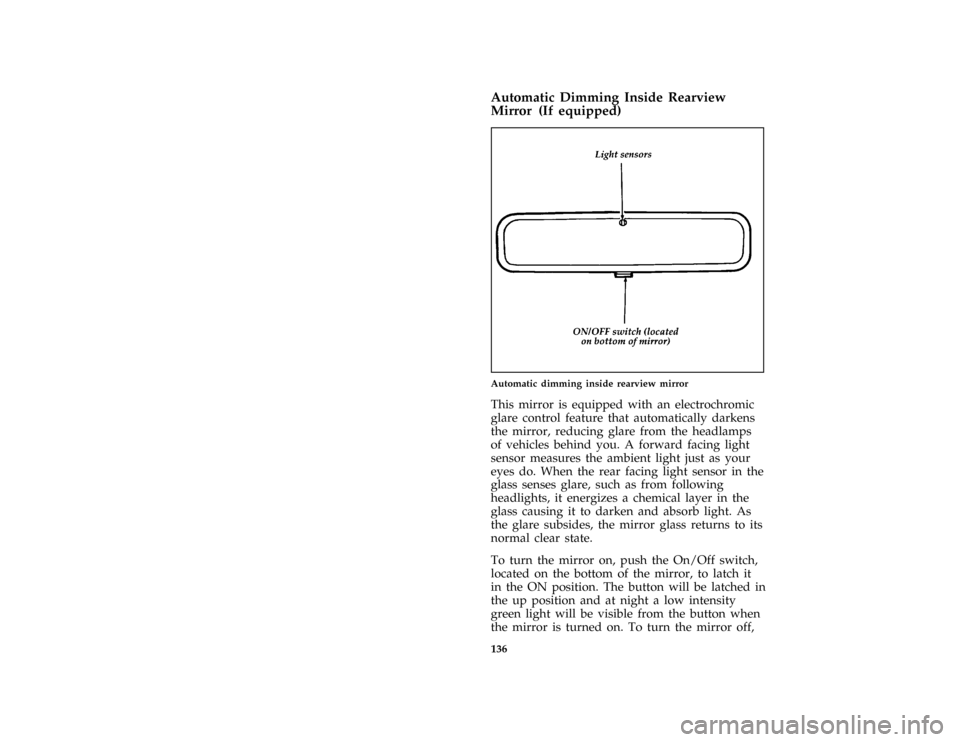

Automatic Dimming Inside Rearview
Mirror (If equipped)
*
[FV50850(B F )03/93]
half page art:0021008-A
Automatic dimming inside rearview mirror
*
[FV50900(B F )03/93]
This mirror is equipped with an electrochromic
glare control feature that automatically darkens
the mirror, reducing glare from the headlamps
of vehicles behind you. A forward facing light
sensor measures the ambient light just as your
eyes do. When the rear facing light sensor in the
glass senses glare, such as from following
headlights, it energizes a chemical layer in the
glass causing it to darken and absorb light. As
the glare subsides, the mirror glass returns to its
normal clear state.
*
[FV51050(B F )03/94]
To turn the mirror on, push the On/Off switch,
located on the bottom of the mirror, to latch it
in the ON position. The button will be latched in
the up position and at night a low intensity
green light will be visible from the button when
the mirror is turned on. To turn the mirror off,
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

137
push the On/Off switch again and the button
will unlatch shutting off the light and the mirror
will be off.
*
[FV51100(B F )03/93]
DemonstrationÐ The mirror's operation may
be demonstrated by simulating glare as follows:
*
[FV51200(B F )03/94]
1. Cover the forward facing sensor, located on
the right side of the mirror back, with a
dark (preferably black) cloth. Hold the dark
cloth over the sensor until you notice the
mirror glass start to darken to the non-glare
state. If the surrounding lighting conditions
are too dark it may be necessary to shine
additional lighting, such as from a flashlight,
on the rearward sensor located on the glass
face.
*
[FV51400(B F )03/93]
2. Remove the cloth (and shut off the flashlight
if applicable) and the glass will return to the
clear reflective stage.
*
[FV51500(B F )01/95]
One important safety feature is that the mirror
automatically returns to the normal position
whenever the vehicle is placed in R (Reverse)
(when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror
when backing up.
*
[FV52900(BEF )12/89]
Outside Mirrors (Manual Control)
*
[FV53000(BEF )10/89]
Adjust outside mirrors with the door closed and
the seat adjusted for comfort and proper vehicle
control. Move the mirrors for best view by
tilting up or down, left or right.
*
[FV53100(BEF )03/95]
On vehicles equipped with fold-away mirrors,
the mirrors should be folded rearward into the
body position before entering automatic car
wash systems.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

138
*
[FV53300(B F )12/91]

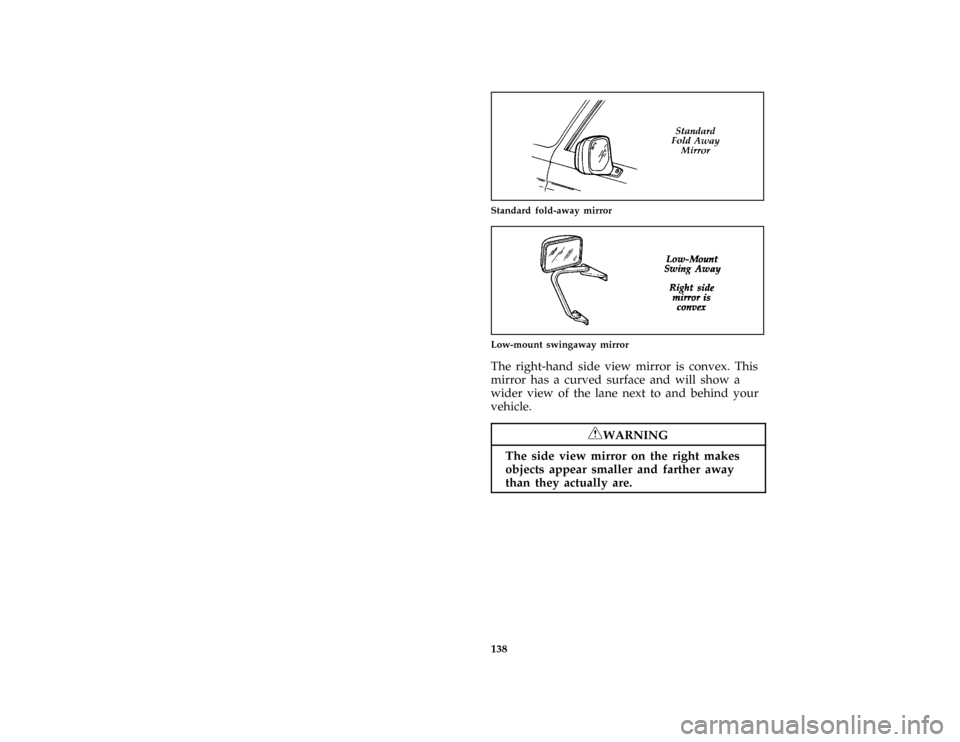

quarter page art:0020900-B
Standard fold-away mirror
[FV53800(B )05/90]
quarter page art:0020324-B
Low-mount swingaway mirror
*
[FV54000(B )12/91]
The right-hand side view mirror is convex. This
mirror has a curved surface and will show a
wider view of the lane next to and behind your
vehicle.
*
[FV54400(BEF )05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

139
*
[FV54500(BEF )08/91]
Dual Electric Remote Control Mirrors
(If equipped)
*
[FV54600(BEF )08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(BEF )06/94]
1. Find the control switch in the driver's door
panel.
*
[FV55000(BEF )06/94]
2. Select the right or left mirror by moving the
selector switch to R or L.
*
[FV55200(BEF )06/94]
3. Move the control knob in the direction you
want to move the mirror.
*
[FV55400(BEF )06/94]
4. Return the selector switch to the middle
position to keep the mirror in place.
*
[FV55700(B F )12/91]

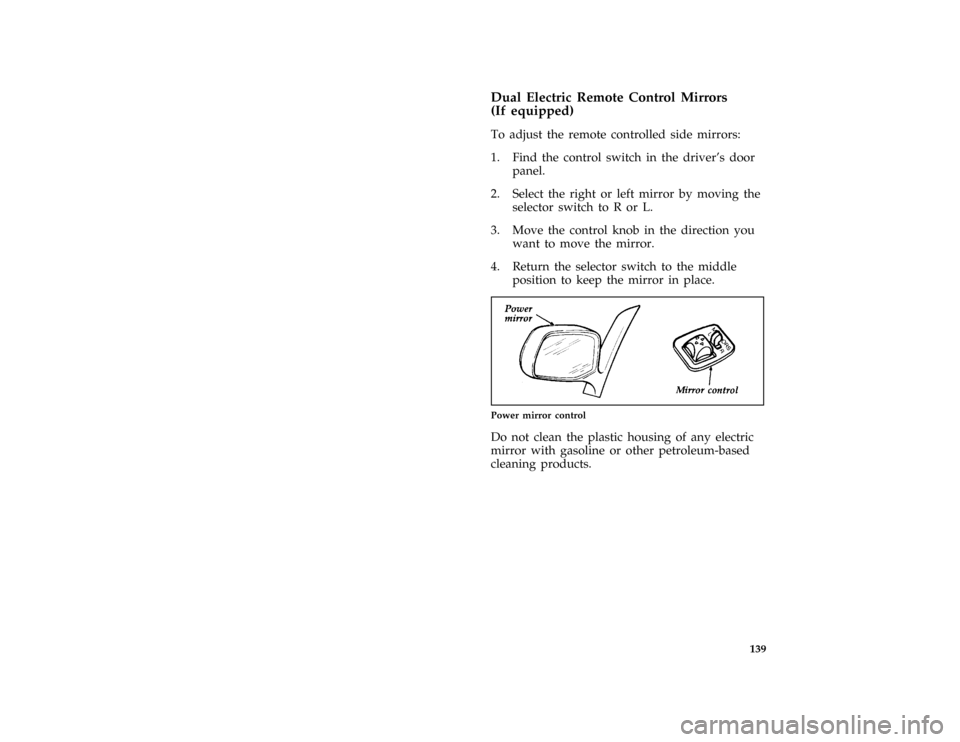

quarter page art:0020886-A
Power mirror control
*
[FV55900(BEF )12/91]
Do not clean the plastic housing of any electric
mirror with gasoline or other petroleum-based
cleaning products.
File:ltfvb.ex
Update:Fri Jun 9 15:28:41 1995

140
*
[FV59400(BEF )01/95]

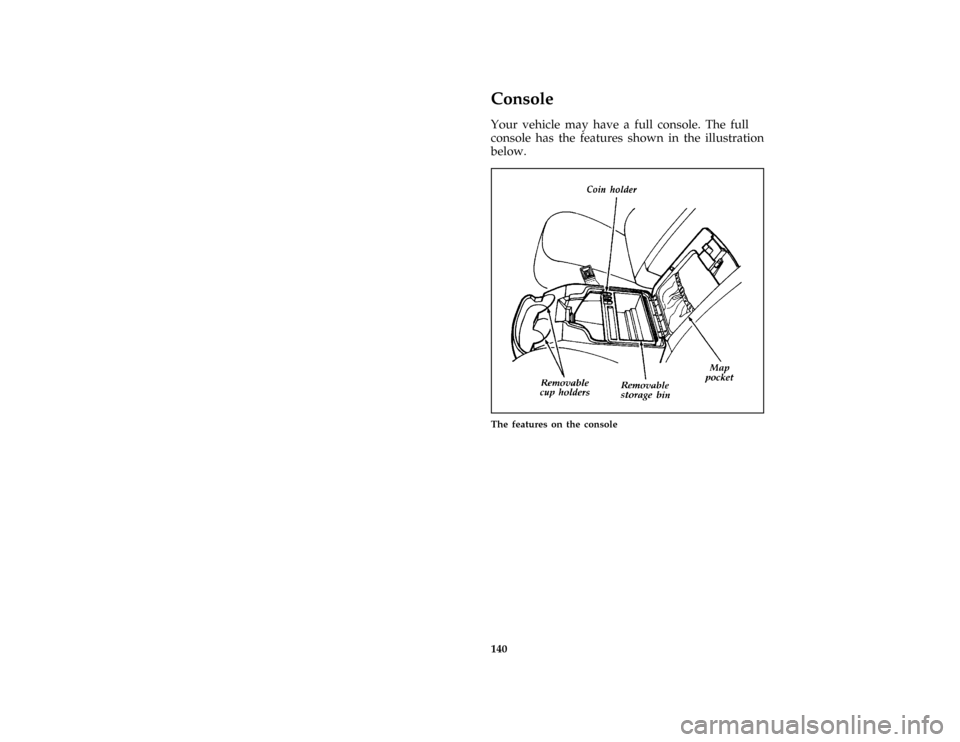

Console
*
[FV59500(BEF )12/91]
Your vehicle may have a full console. The full
console has the features shown in the illustration
below.
*
[FV60100(B F )12/91]
half page art:0020683-C
The features on the console
