FORD BRONCO 1996 5.G Owners Manual

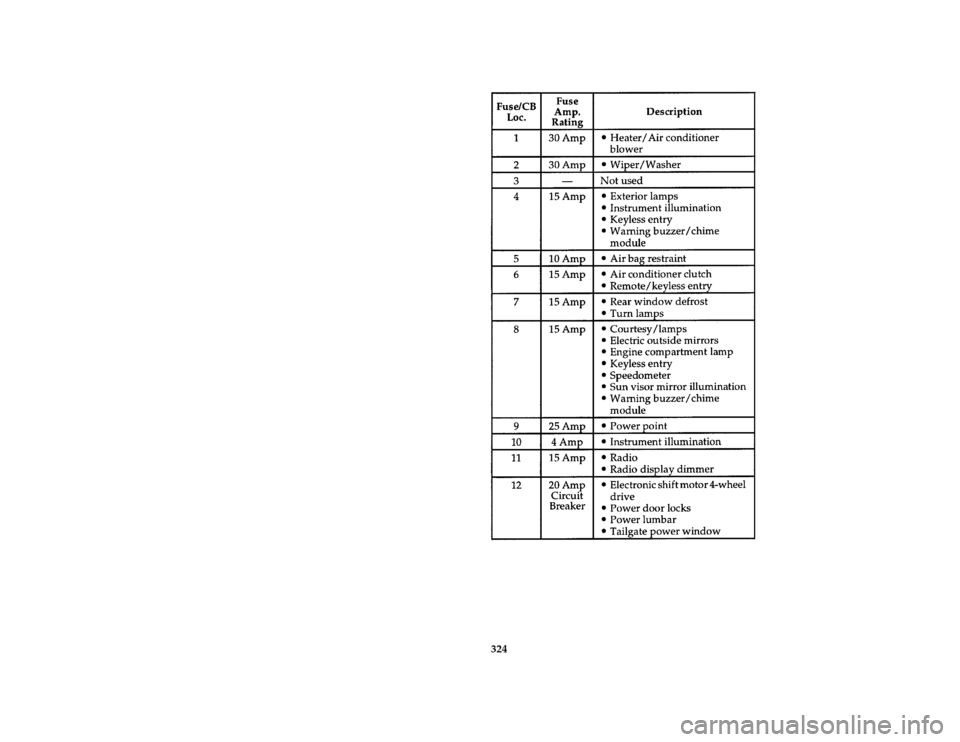

324 [SV40120(B )05/95]
thirty-six pica chart:0020993-E
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

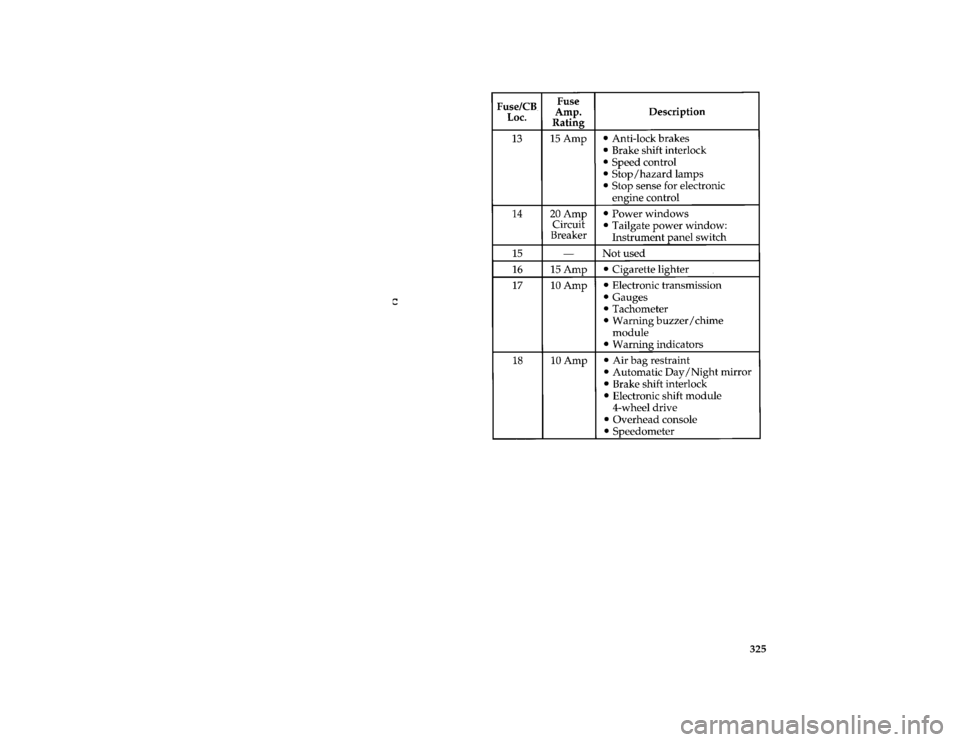

325 [SV40140(B )05/94]
twenty-eight pica chart:0020994-C
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

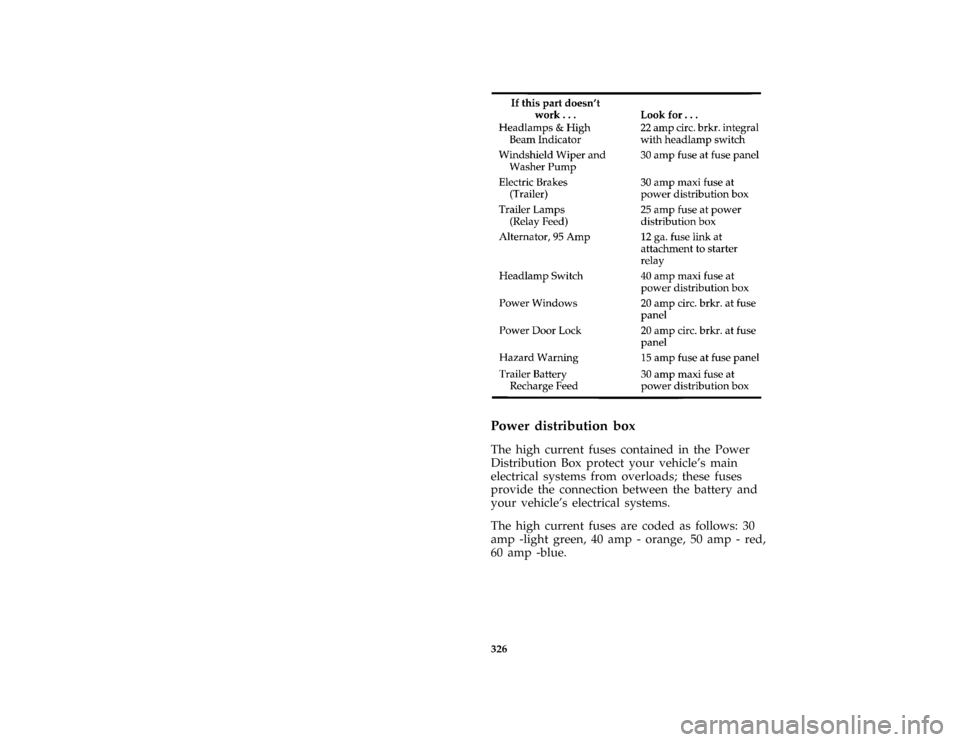

326 [SV40700(B )05/94]
twenty-two pica chart:0020396-F
*
[SV41300( ALL)10/92]
Power distribution box
*
[SV41400( ALL)10/92]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[SV41500( ALL)10/92]
The high current fuses are coded as follows: 30
amp -light green, 40 amp - orange, 50 amp - red,
60 amp -blue.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

327
*
[SV41600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV41620( ALL)05/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[SV41700( ALL)03/93]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[SV41800( ALL)04/95]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[SV41900( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

328
*
[SV42150(B F )07/94]
three fourths page art:0020840-F
Power distribution box
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

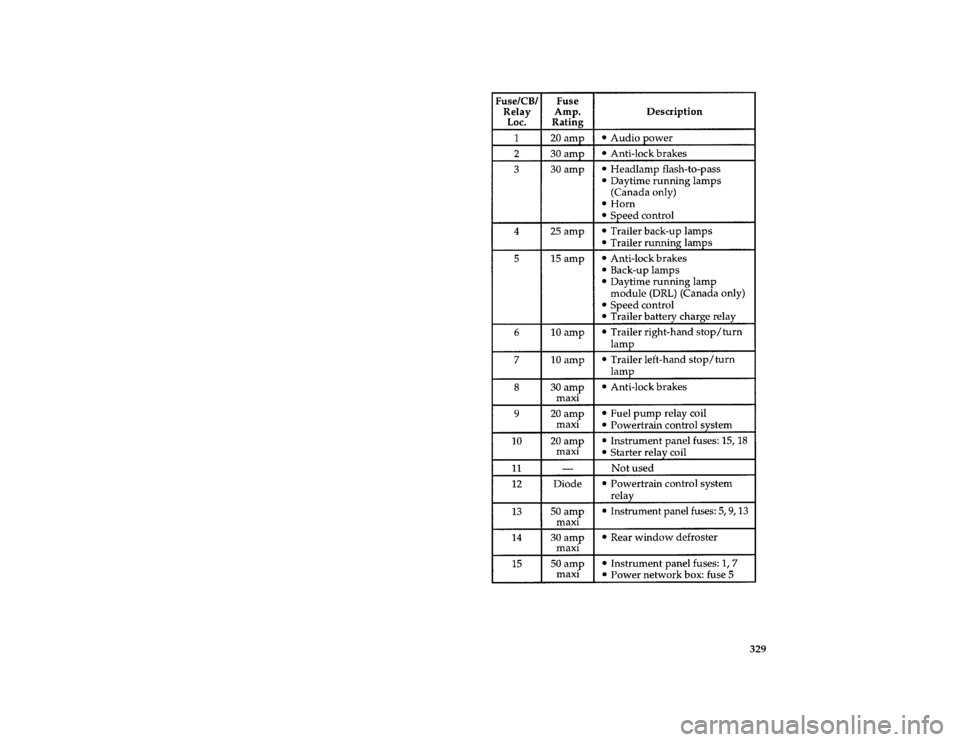

329 [SV42153(B )04/95]
thirty-six pica chart:0021004-C
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

330 [SV42154(B )04/95]
twenty-eight pica chart:0021009-C
%*
[SV42200( ALL)05/95]
Checking and Replacing Fuses
*
[SV42300( ALL)02/95]
If you need to check a fuse, follow these steps:
*
[SV42800(B F )03/91]
1. In order to find the fuse panel, you must
first remove the cover from the lower edge
of the instrument panel. You can do this by
pulling on handle to disengage the fasteners.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

331
*
[SV42900(B F )03/91]
one third page art:0020475-B
Fuse panel cover
*
[SV43300( ALL)10/94]
2. On the fuse panel cover, find the number of
the fuse you want to check. The diagram on
the cover tells you where to locate the fuse
on the panel.
*
[SV43350(B FM)10/92]
The underside of the cover also contains a
fuse pulling tool in case you need to replace
a blown fuse.
*
[SV43400( ALL)10/92]
3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse is blown and should be replaced.
*
[SV43500( ALL)10/92]
quarter page art:0020405-A
The side view of a fuse
*
[SV43600( ALL)10/92]
4. Replace the fuse with one that has the right
amperage rating (see previous chart).
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

332
*
[SV43700( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
*
[SV43800( ALL)10/92]
5. Put the fuse panel cover back on.
*
[SV44000( ALL)05/93]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
%*
[SV44100( ALL)03/95]
Circuit Breakers
*
[SV44200(BEF )03/95]
If you need to check a circuit breaker on the
fuse panel, seeChecking and replacing fusesto
find out how to locate the fuse panel. Otherwise,
locate the circuit breaker according to the
instructions on the charts given earlier in this
chapter.
*
[SV44300( ALL)02/95]
Since you need diagnostic equipment to check
whether a circuit breaker works and such
equipment comes with instructions, we do not
discuss how to check circuit breakers.
*
[SV44400( ALL)10/92]
However, you should know that the circuit
breakers will reset themselves and allow the
electrical parts to work again once the overload
on the circuit is removed. If the circuit breakers
continue to cut off electricity, have your vehicle's
electrical system checked.
*
[SV44500( ALL)02/95]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995

333
%*
[SV44600(BEF )03/95]
Lights and Bulb Replacement
*
[SV44700(BEF )01/95]
It is a good idea to check the operation of the
following lights frequently:
*
[SV44800(BEF )01/95]
q
headlamps
*
[SV44900(BEF )01/95]
q
tail lamps
*
[SV45000(BEF )01/95]
q
brakelamps
*
[SV45050(BEF )02/95]
q
high-mount brakelamp
*
[SV45100(BEF )01/95]
q
hazard flasher
*
[SV45200(BEF )01/95]
q
turn signals
*
[SV45300(BEF )01/95]
q
license plate lamp
%*
[SV45400(BEF )01/95]
The alignment of your headlamps should be
checked if:
*
[SV45500(BEF )01/95]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[SV45600(BEF )01/95]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[SV45700(BEF )01/95]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
