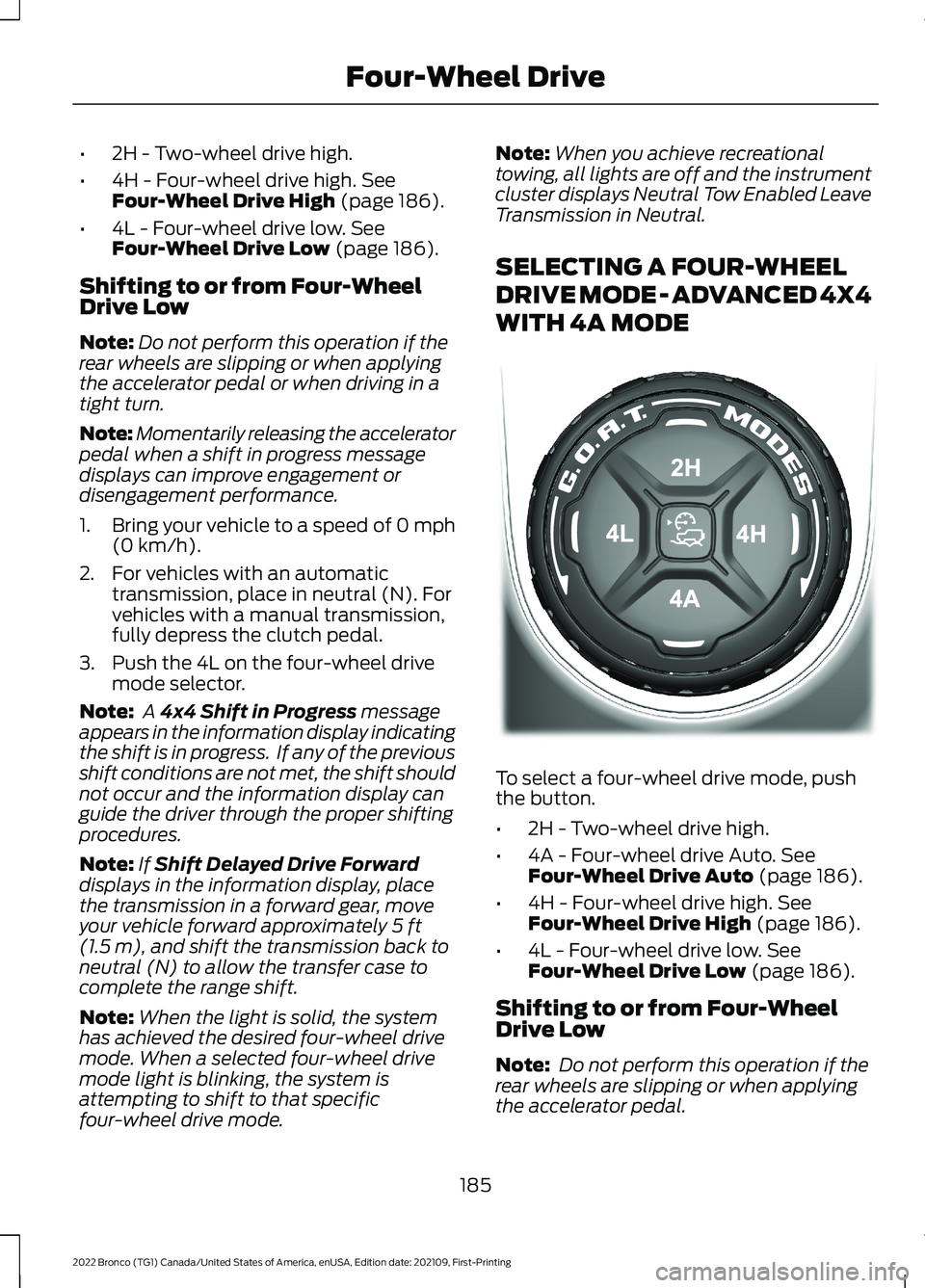

•2H - Two-wheel drive high.
•4H - Four-wheel drive high. SeeFour-Wheel Drive High (page 186).
•4L - Four-wheel drive low. SeeFour-Wheel Drive Low (page 186).
Shifting to or from Four-WheelDrive Low
Note:Do not perform this operation if therear wheels are slipping or when applyingthe accelerator pedal or when driving in atight turn.
Note:Momentarily releasing the acceleratorpedal when a shift in progress messagedisplays can improve engagement ordisengagement performance.
1.Bring your vehicle to a speed of 0 mph(0 km/h).
2.For vehicles with an automatictransmission, place in neutral (N). Forvehicles with a manual transmission,fully depress the clutch pedal.
3.Push the 4L on the four-wheel drivemode selector.
Note: A 4x4 Shift in Progress messageappears in the information display indicatingthe shift is in progress. If any of the previousshift conditions are not met, the shift shouldnot occur and the information display canguide the driver through the proper shiftingprocedures.
Note:If Shift Delayed Drive Forwarddisplays in the information display, placethe transmission in a forward gear, moveyour vehicle forward approximately 5 ft(1.5 m), and shift the transmission back toneutral (N) to allow the transfer case tocomplete the range shift.
Note:When the light is solid, the systemhas achieved the desired four-wheel drivemode. When a selected four-wheel drivemode light is blinking, the system isattempting to shift to that specificfour-wheel drive mode.
Note:When you achieve recreationaltowing, all lights are off and the instrumentcluster displays Neutral Tow Enabled LeaveTransmission in Neutral.
SELECTING A FOUR-WHEEL
DRIVE MODE - ADVANCED 4X4
WITH 4A MODE
To select a four-wheel drive mode, pushthe button.
•2H - Two-wheel drive high.
•4A - Four-wheel drive Auto. SeeFour-Wheel Drive Auto (page 186).
•4H - Four-wheel drive high. SeeFour-Wheel Drive High (page 186).
•4L - Four-wheel drive low. SeeFour-Wheel Drive Low (page 186).
Shifting to or from Four-WheelDrive Low
Note: Do not perform this operation if therear wheels are slipping or when applyingthe accelerator pedal.
185
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFour-Wheel DriveE324543

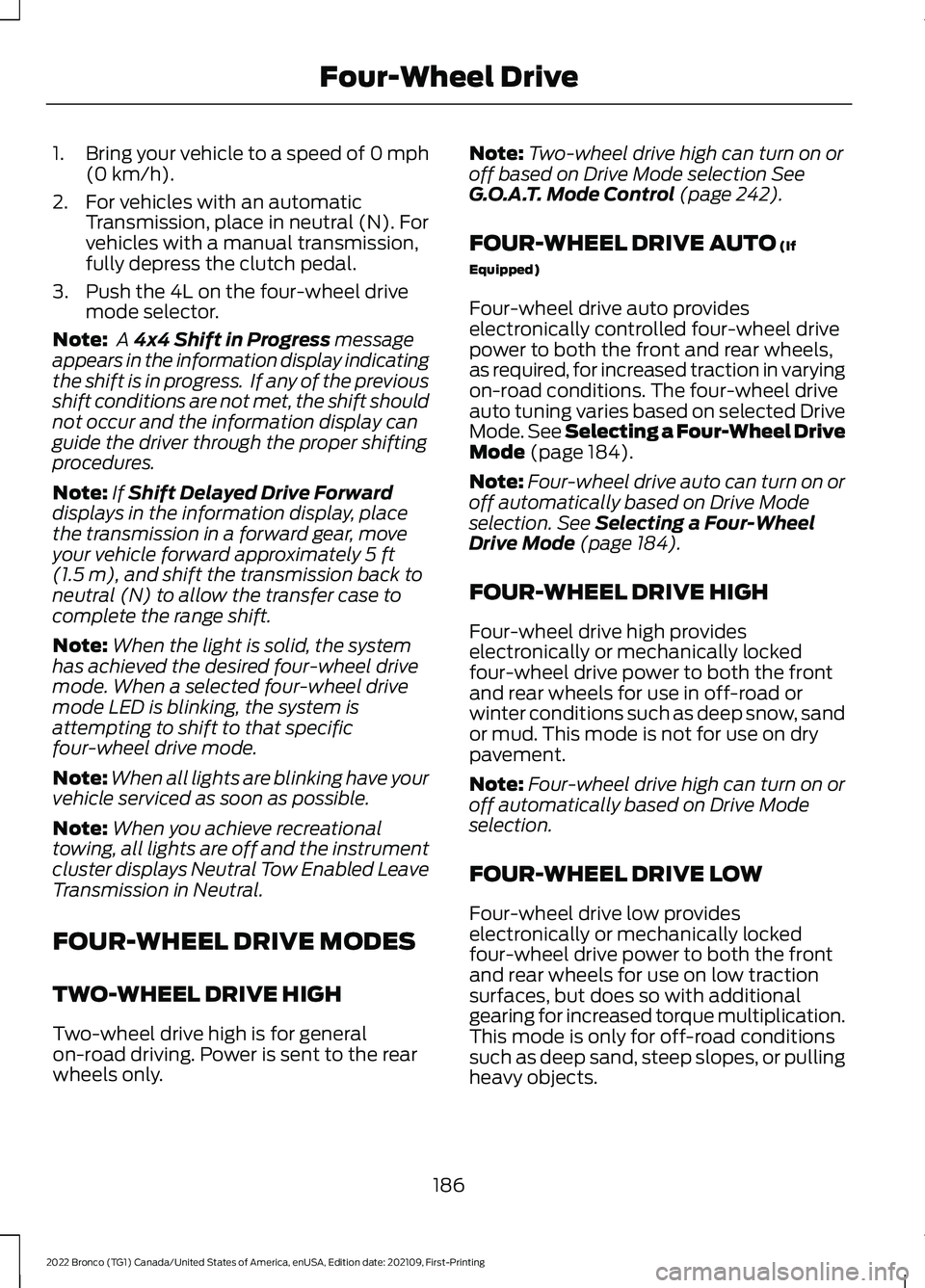

1.Bring your vehicle to a speed of 0 mph(0 km/h).
2.For vehicles with an automaticTransmission, place in neutral (N). Forvehicles with a manual transmission,fully depress the clutch pedal.
3.Push the 4L on the four-wheel drivemode selector.
Note: A 4x4 Shift in Progress messageappears in the information display indicatingthe shift is in progress. If any of the previousshift conditions are not met, the shift shouldnot occur and the information display canguide the driver through the proper shiftingprocedures.
Note:If Shift Delayed Drive Forwarddisplays in the information display, placethe transmission in a forward gear, moveyour vehicle forward approximately 5 ft(1.5 m), and shift the transmission back toneutral (N) to allow the transfer case tocomplete the range shift.
Note:When the light is solid, the systemhas achieved the desired four-wheel drivemode. When a selected four-wheel drivemode LED is blinking, the system isattempting to shift to that specificfour-wheel drive mode.
Note:When all lights are blinking have yourvehicle serviced as soon as possible.
Note:When you achieve recreationaltowing, all lights are off and the instrumentcluster displays Neutral Tow Enabled LeaveTransmission in Neutral.
FOUR-WHEEL DRIVE MODES
TWO-WHEEL DRIVE HIGH
Two-wheel drive high is for generalon-road driving. Power is sent to the rearwheels only.
Note:Two-wheel drive high can turn on oroff based on Drive Mode selection SeeG.O.A.T. Mode Control (page 242).
FOUR-WHEEL DRIVE AUTO (If
Equipped)
Four-wheel drive auto provideselectronically controlled four-wheel drivepower to both the front and rear wheels,as required, for increased traction in varyingon-road conditions. The four-wheel driveauto tuning varies based on selected DriveMode. See Selecting a Four-Wheel DriveMode (page 184).
Note:Four-wheel drive auto can turn on oroff automatically based on Drive Modeselection. See Selecting a Four-WheelDrive Mode (page 184).
FOUR-WHEEL DRIVE HIGH
Four-wheel drive high provideselectronically or mechanically lockedfour-wheel drive power to both the frontand rear wheels for use in off-road orwinter conditions such as deep snow, sandor mud. This mode is not for use on drypavement.
Note:Four-wheel drive high can turn on oroff automatically based on Drive Modeselection.
FOUR-WHEEL DRIVE LOW
Four-wheel drive low provideselectronically or mechanically lockedfour-wheel drive power to both the frontand rear wheels for use on low tractionsurfaces, but does so with additionalgearing for increased torque multiplication.This mode is only for off-road conditionssuch as deep sand, steep slopes, or pullingheavy objects.
186
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFour-Wheel Drive

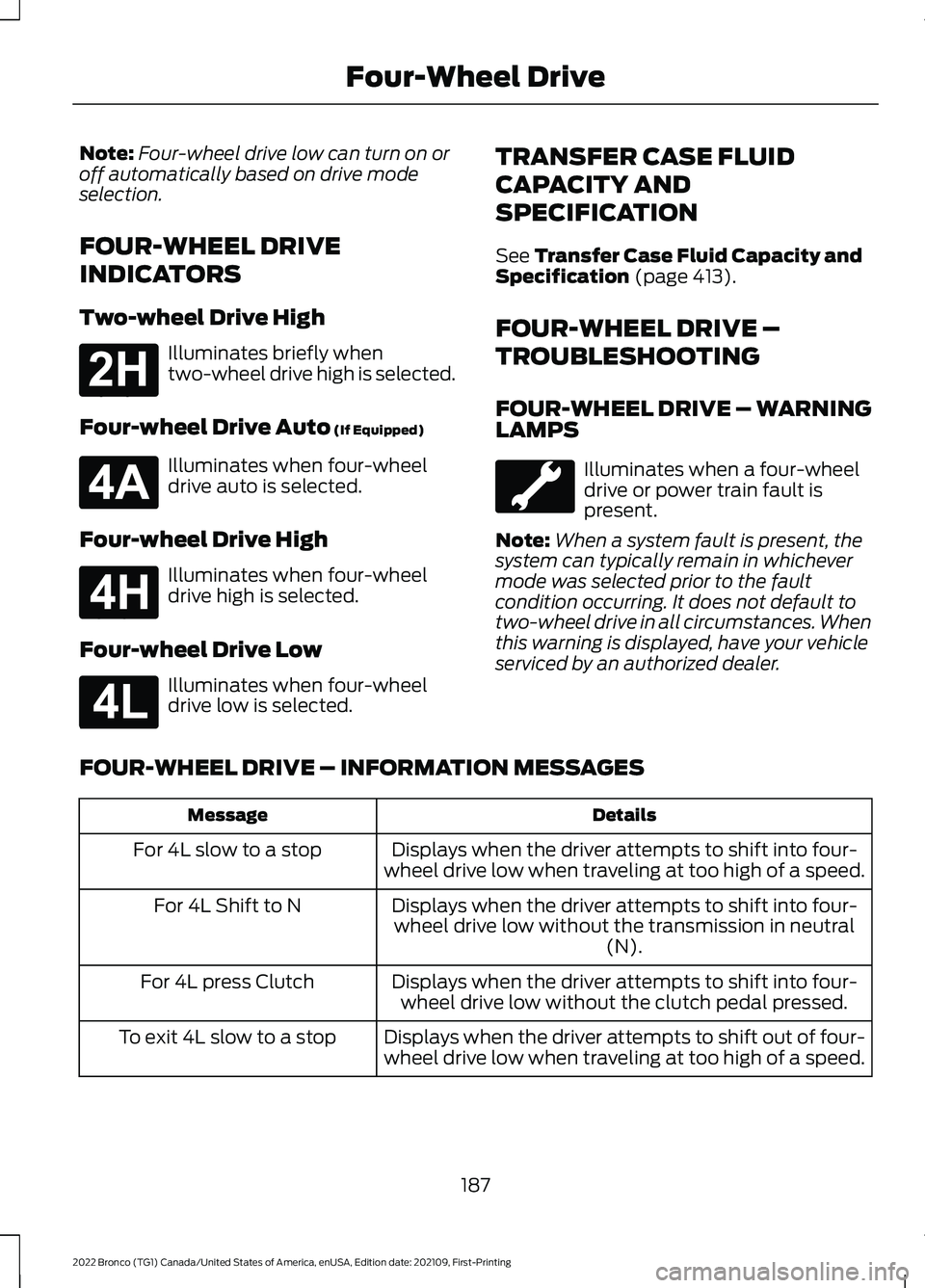

Note:Four-wheel drive low can turn on oroff automatically based on drive modeselection.
FOUR-WHEEL DRIVE
INDICATORS
Two-wheel Drive High
Illuminates briefly whentwo-wheel drive high is selected.
Four-wheel Drive Auto (If Equipped)
Illuminates when four-wheeldrive auto is selected.
Four-wheel Drive High
Illuminates when four-wheeldrive high is selected.
Four-wheel Drive Low
Illuminates when four-wheeldrive low is selected.
TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION
See Transfer Case Fluid Capacity andSpecification (page 413).
FOUR-WHEEL DRIVE –
TROUBLESHOOTING
FOUR-WHEEL DRIVE – WARNINGLAMPS
Illuminates when a four-wheeldrive or power train fault ispresent.
Note:When a system fault is present, thesystem can typically remain in whichevermode was selected prior to the faultcondition occurring. It does not default totwo-wheel drive in all circumstances. Whenthis warning is displayed, have your vehicleserviced by an authorized dealer.
FOUR-WHEEL DRIVE – INFORMATION MESSAGES
DetailsMessage
Displays when the driver attempts to shift into four-wheel drive low when traveling at too high of a speed.For 4L slow to a stop
Displays when the driver attempts to shift into four-wheel drive low without the transmission in neutral(N).
For 4L Shift to N
Displays when the driver attempts to shift into four-wheel drive low without the clutch pedal pressed.For 4L press Clutch
Displays when the driver attempts to shift out of four-wheel drive low when traveling at too high of a speed.To exit 4L slow to a stop
187
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFour-Wheel DriveE181778 E181781 E181779 E181780

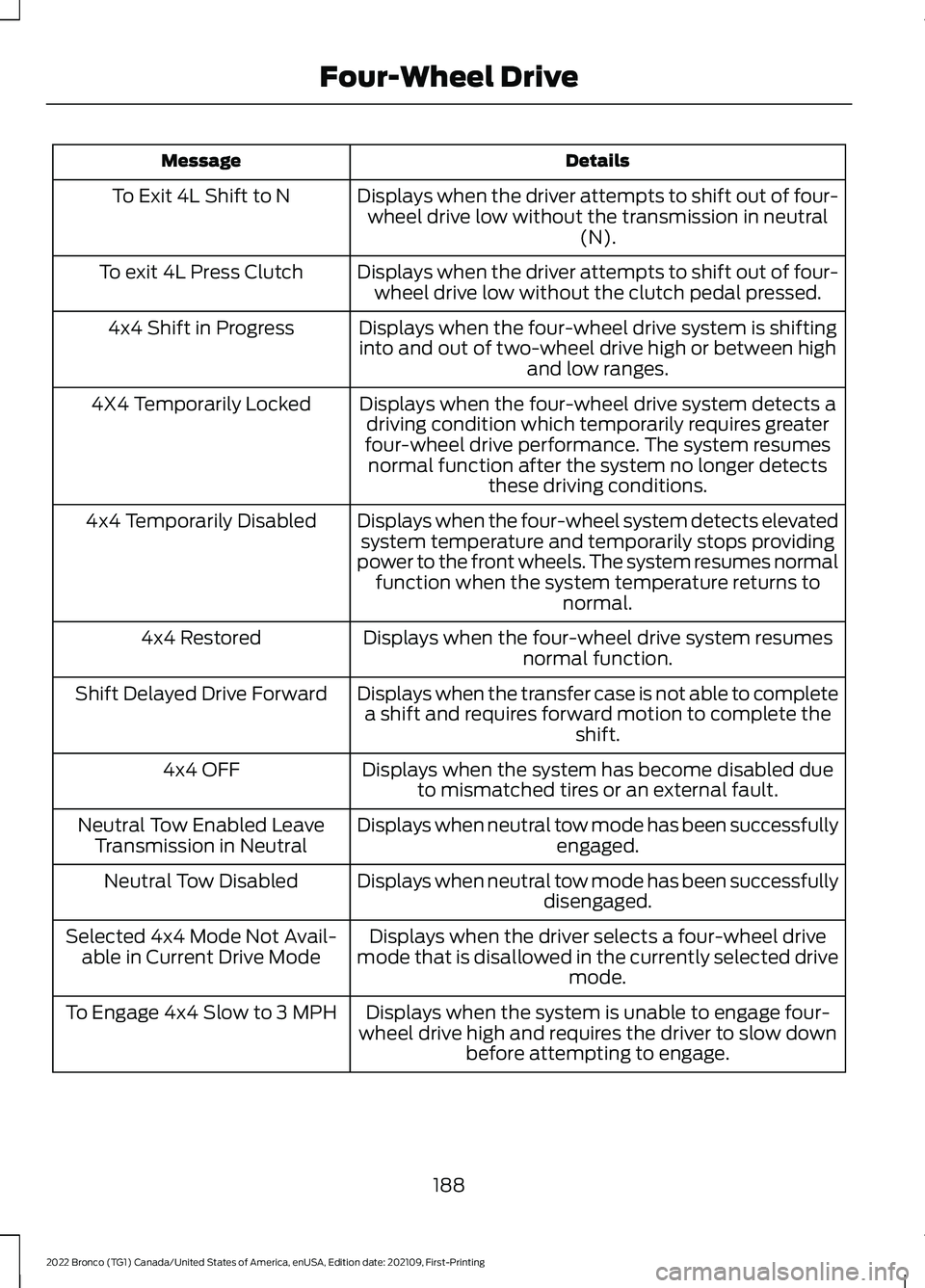

DetailsMessage
Displays when the driver attempts to shift out of four-wheel drive low without the transmission in neutral(N).
To Exit 4L Shift to N
Displays when the driver attempts to shift out of four-wheel drive low without the clutch pedal pressed.To exit 4L Press Clutch
Displays when the four-wheel drive system is shiftinginto and out of two-wheel drive high or between highand low ranges.
4x4 Shift in Progress
Displays when the four-wheel drive system detects adriving condition which temporarily requires greaterfour-wheel drive performance. The system resumesnormal function after the system no longer detectsthese driving conditions.
4X4 Temporarily Locked
Displays when the four-wheel system detects elevatedsystem temperature and temporarily stops providingpower to the front wheels. The system resumes normalfunction when the system temperature returns tonormal.
4x4 Temporarily Disabled
Displays when the four-wheel drive system resumesnormal function.4x4 Restored
Displays when the transfer case is not able to completea shift and requires forward motion to complete theshift.
Shift Delayed Drive Forward
Displays when the system has become disabled dueto mismatched tires or an external fault.4x4 OFF
Displays when neutral tow mode has been successfullyengaged.Neutral Tow Enabled LeaveTransmission in Neutral
Displays when neutral tow mode has been successfullydisengaged.Neutral Tow Disabled
Displays when the driver selects a four-wheel drivemode that is disallowed in the currently selected drivemode.
Selected 4x4 Mode Not Avail-able in Current Drive Mode
Displays when the system is unable to engage four-wheel drive high and requires the driver to slow downbefore attempting to engage.
To Engage 4x4 Slow to 3 MPH
188
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFour-Wheel Drive

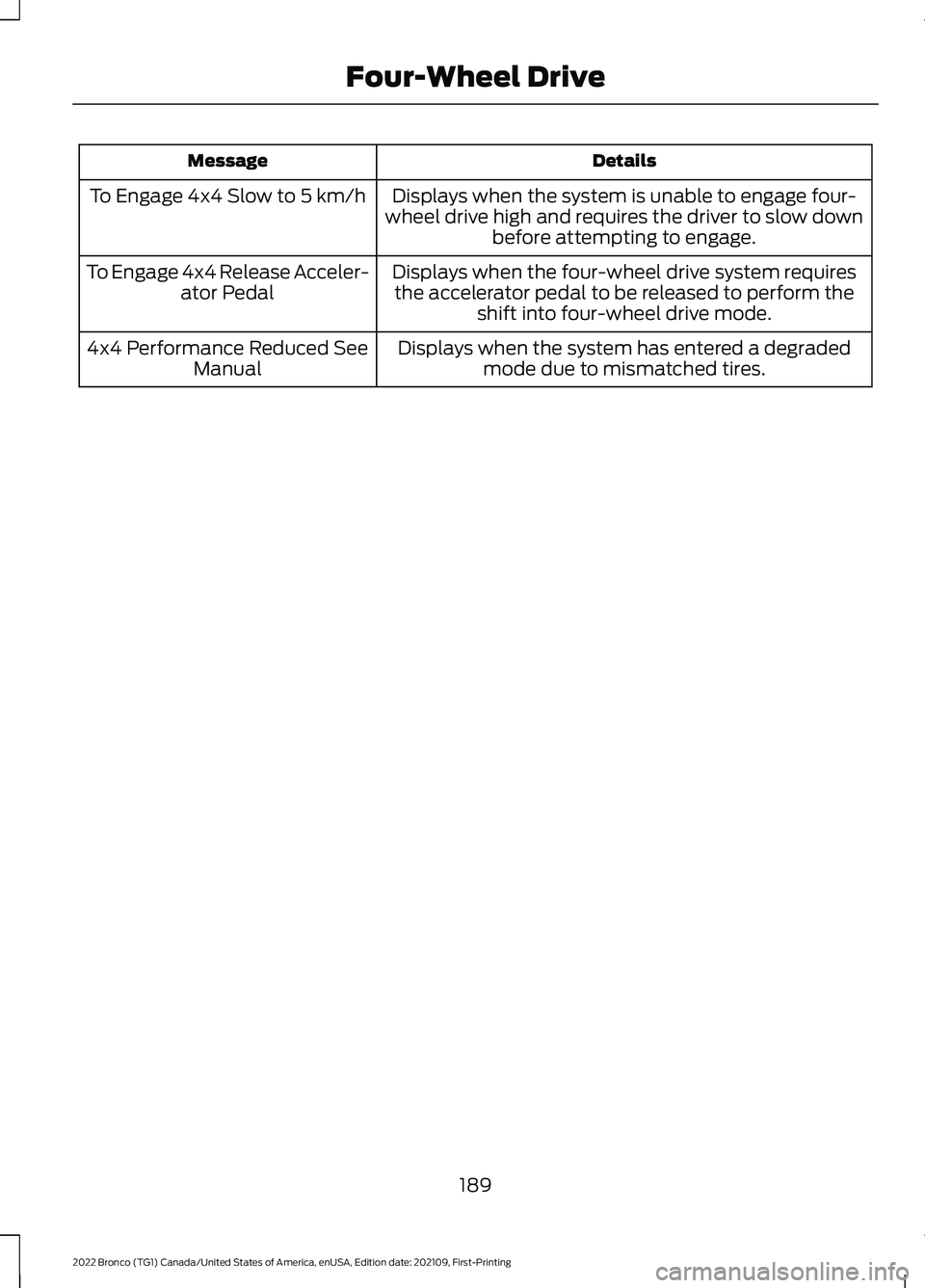

DetailsMessage
Displays when the system is unable to engage four-wheel drive high and requires the driver to slow downbefore attempting to engage.
To Engage 4x4 Slow to 5 km/h
Displays when the four-wheel drive system requiresthe accelerator pedal to be released to perform theshift into four-wheel drive mode.
To Engage 4x4 Release Acceler-ator Pedal
Displays when the system has entered a degradedmode due to mismatched tires.4x4 Performance Reduced SeeManual
189
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFour-Wheel Drive

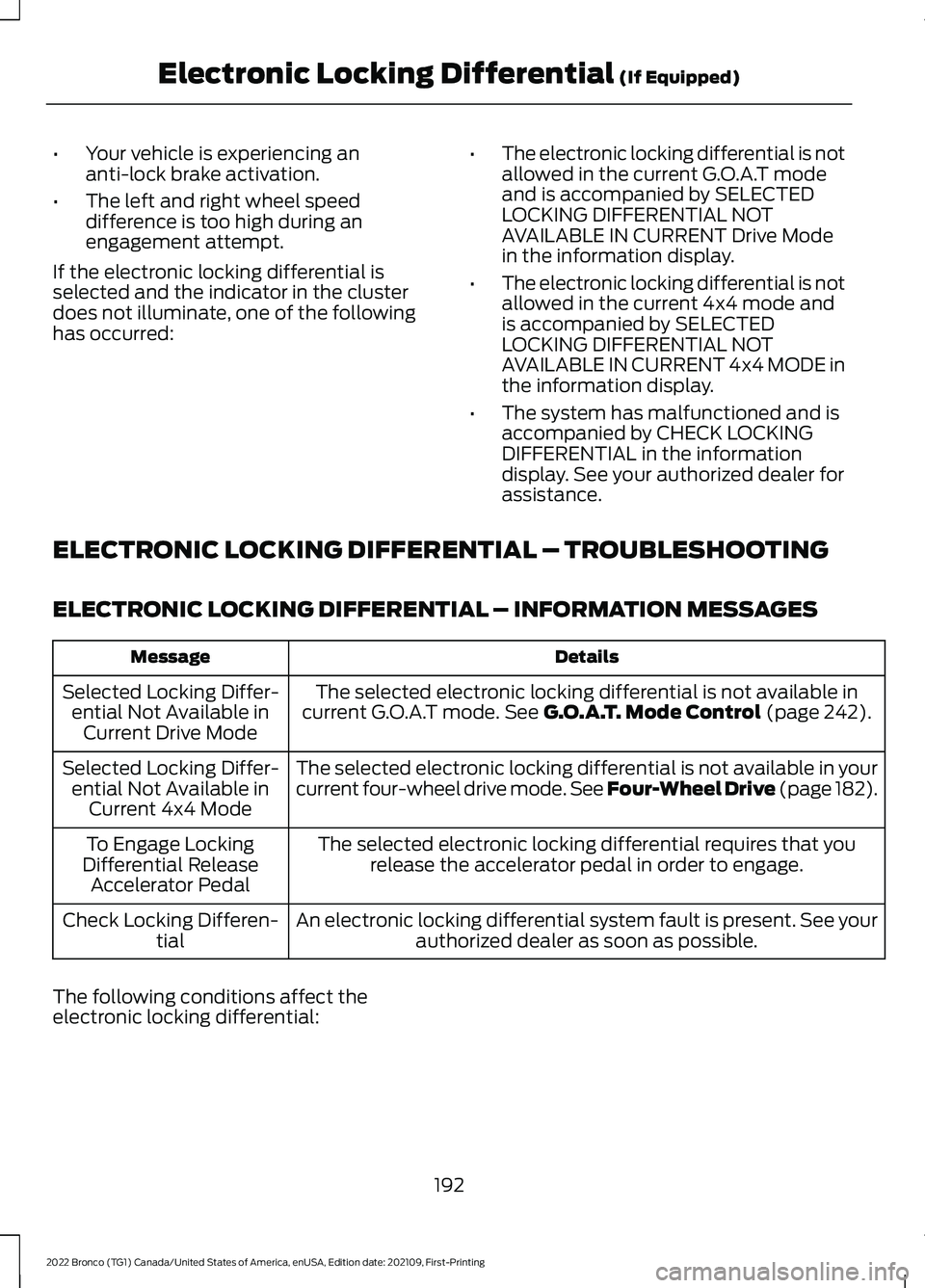

•Your vehicle is experiencing ananti-lock brake activation.
•The left and right wheel speeddifference is too high during anengagement attempt.
If the electronic locking differential isselected and the indicator in the clusterdoes not illuminate, one of the followinghas occurred:
•The electronic locking differential is notallowed in the current G.O.A.T modeand is accompanied by SELECTEDLOCKING DIFFERENTIAL NOTAVAILABLE IN CURRENT Drive Modein the information display.
•The electronic locking differential is notallowed in the current 4x4 mode andis accompanied by SELECTEDLOCKING DIFFERENTIAL NOTAVAILABLE IN CURRENT 4x4 MODE inthe information display.
•The system has malfunctioned and isaccompanied by CHECK LOCKINGDIFFERENTIAL in the informationdisplay. See your authorized dealer forassistance.
ELECTRONIC LOCKING DIFFERENTIAL – TROUBLESHOOTING
ELECTRONIC LOCKING DIFFERENTIAL – INFORMATION MESSAGES
DetailsMessage
The selected electronic locking differential is not available incurrent G.O.A.T mode. See G.O.A.T. Mode Control (page 242).Selected Locking Differ-ential Not Available inCurrent Drive Mode
The selected electronic locking differential is not available in yourcurrent four-wheel drive mode. See Four-Wheel Drive (page 182).Selected Locking Differ-ential Not Available inCurrent 4x4 Mode
The selected electronic locking differential requires that yourelease the accelerator pedal in order to engage.To Engage LockingDifferential ReleaseAccelerator Pedal
An electronic locking differential system fault is present. See yourauthorized dealer as soon as possible.Check Locking Differen-tial
The following conditions affect theelectronic locking differential:
192
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingElectronic Locking Differential (If Equipped)

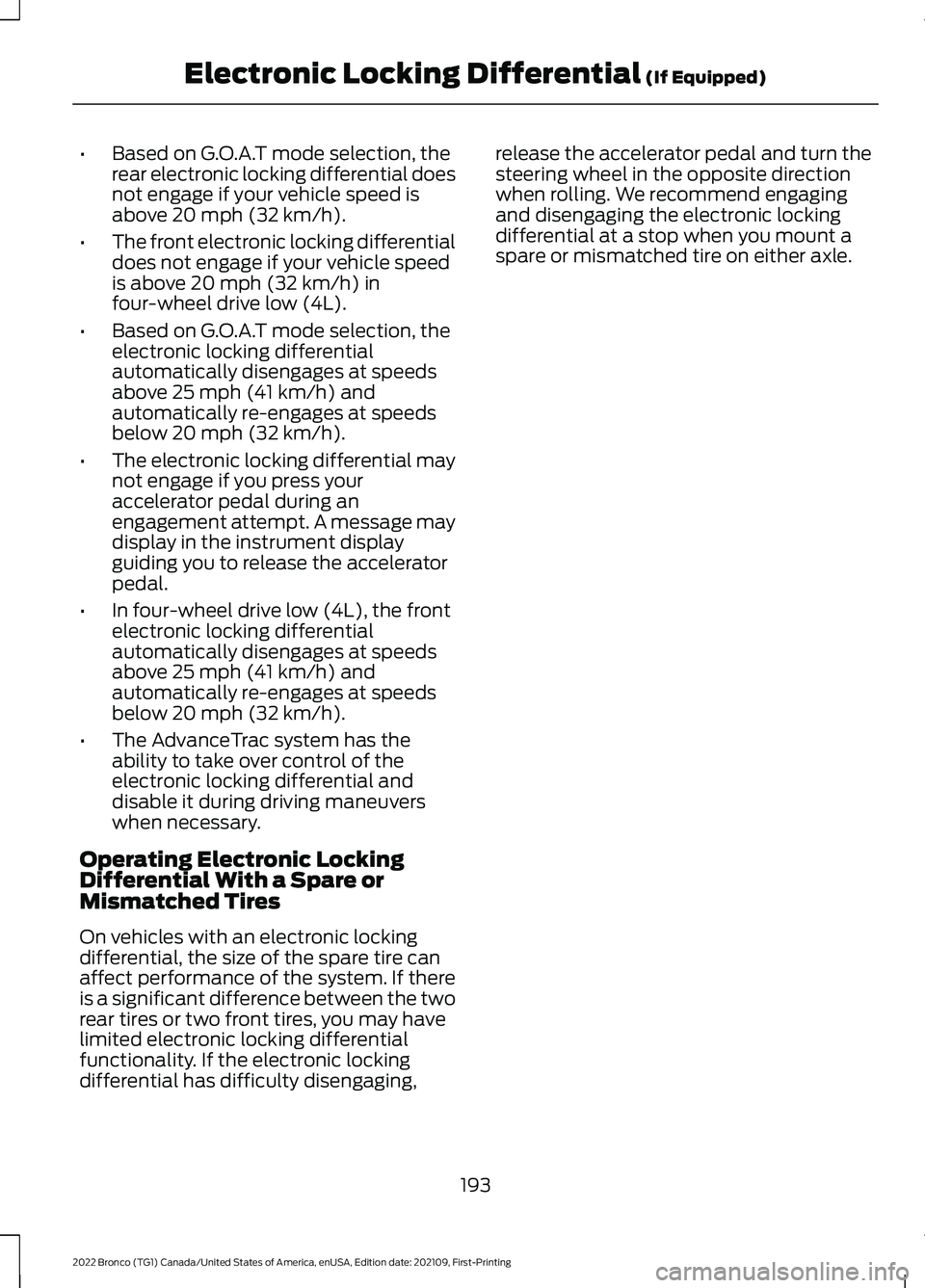

•Based on G.O.A.T mode selection, therear electronic locking differential doesnot engage if your vehicle speed isabove 20 mph (32 km/h).
•The front electronic locking differentialdoes not engage if your vehicle speedis above 20 mph (32 km/h) infour-wheel drive low (4L).
•Based on G.O.A.T mode selection, theelectronic locking differentialautomatically disengages at speedsabove 25 mph (41 km/h) andautomatically re-engages at speedsbelow 20 mph (32 km/h).
•The electronic locking differential maynot engage if you press youraccelerator pedal during anengagement attempt. A message maydisplay in the instrument displayguiding you to release the acceleratorpedal.
•In four-wheel drive low (4L), the frontelectronic locking differentialautomatically disengages at speedsabove 25 mph (41 km/h) andautomatically re-engages at speedsbelow 20 mph (32 km/h).
•The AdvanceTrac system has theability to take over control of theelectronic locking differential anddisable it during driving maneuverswhen necessary.
Operating Electronic LockingDifferential With a Spare orMismatched Tires
On vehicles with an electronic lockingdifferential, the size of the spare tire canaffect performance of the system. If thereis a significant difference between the tworear tires or two front tires, you may havelimited electronic locking differentialfunctionality. If the electronic lockingdifferential has difficulty disengaging,
release the accelerator pedal and turn thesteering wheel in the opposite directionwhen rolling. We recommend engagingand disengaging the electronic lockingdifferential at a stop when you mount aspare or mismatched tire on either axle.
193
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingElectronic Locking Differential (If Equipped)

WHAT IS HILL START ASSIST
Hill Start Assist makes it easier for you topull away when your vehicle is on a slopewithout using the parking brake.
HOW DOES HILL START
ASSIST WORK
When the system activates, your vehicleremains stationary for a few seconds afteryou release the brake pedal. This gives youtime to move your foot from the brakepedal to the accelerator pedal. The brakesrelease when the engine has developedsufficient torque to prevent your vehiclefrom rolling down the slope.
The system activates when your vehicle isin any forward gear and facing uphill, orwhen your vehicle is in reverse (R) andfacing downhill.
HILL START ASSIST
PRECAUTIONS
WARNING: The system does notreplace the parking brake. When youleave your vehicle, always apply theparking brake.
WARNING: You must remain inyour vehicle when the system turns on.At all times, you are responsible forcontrolling your vehicle, supervising thesystem and intervening, if required.Failure to take care may result in the lossof control of your vehicle, seriouspersonal injury or death.
WARNING: The system will turnoff if a malfunction is apparent. Failureto take care may result in the loss ofcontrol of your vehicle, serious personalinjury or death.
SWITCHING HILL START
ASSIST ON AND OFF -
MANUAL TRANSMISSION
You can switch hill start assist on and offon the touchscreen:
1.Press Features on the touchscreen.
2.Press Driver Assistance.
3.Switch Hill Start Assist on or off.
Note:The system remembers the lastsetting when you start your vehicle.
SWITCHING HILL START
ASSIST ON AND OFF -
AUTOMATIC TRANSMISSION
Hill start assist is active when you switchthe ignition on. You cannot switch thesystem on or off.
HILL START ASSIST –
TROUBLESHOOTING
HILL START ASSIST –INFORMATION MESSAGES
ActionMessage
Displays whensystem is not avail-able. Have yourvehicle checked assoon as possible.
Hill Start Assist NotAvailable
201
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingHill Start Assist

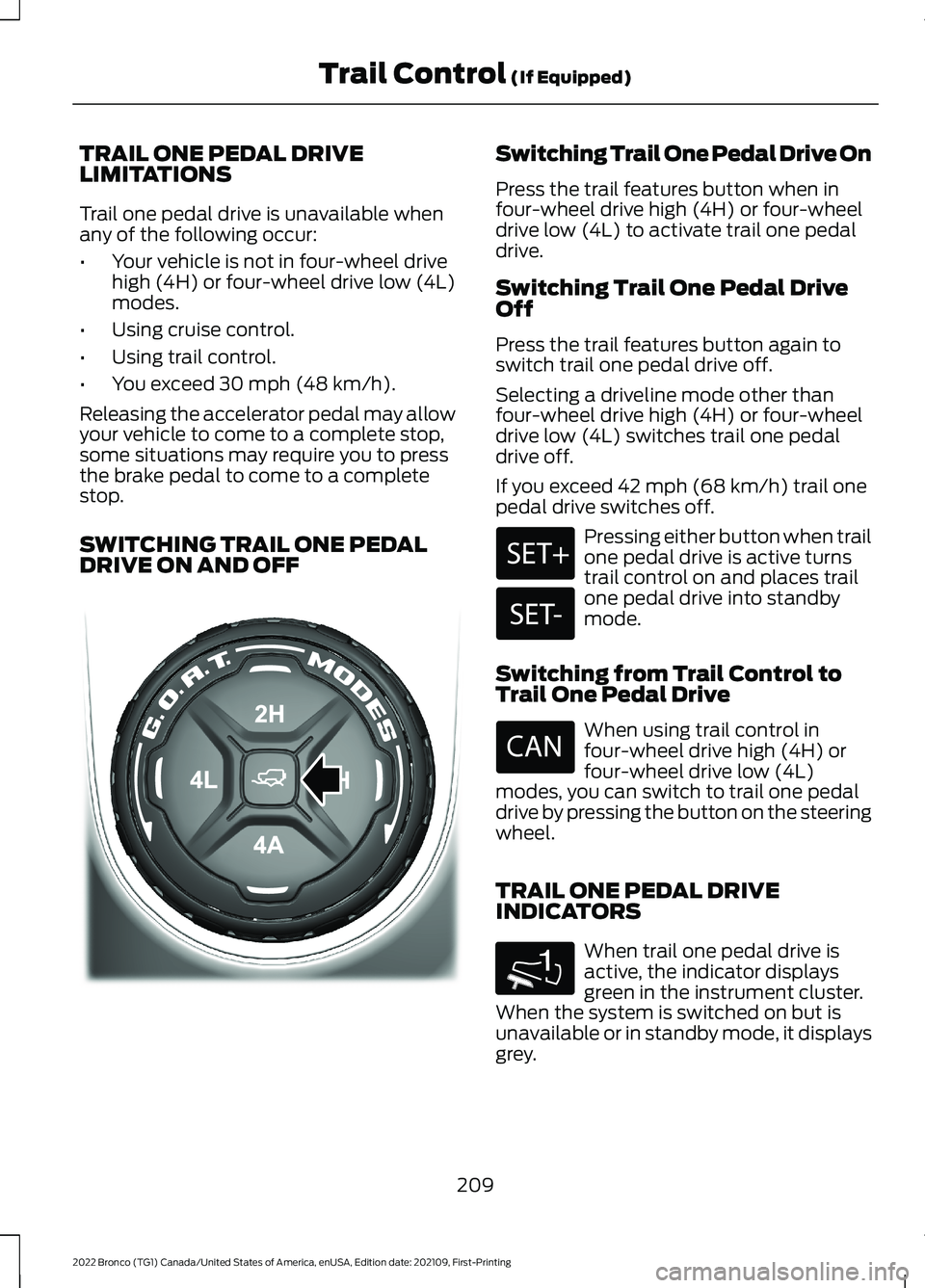

TRAIL ONE PEDAL DRIVELIMITATIONS
Trail one pedal drive is unavailable whenany of the following occur:
•Your vehicle is not in four-wheel drivehigh (4H) or four-wheel drive low (4L)modes.
•Using cruise control.
•Using trail control.
•You exceed 30 mph (48 km/h).
Releasing the accelerator pedal may allowyour vehicle to come to a complete stop,some situations may require you to pressthe brake pedal to come to a completestop.
SWITCHING TRAIL ONE PEDALDRIVE ON AND OFF
Switching Trail One Pedal Drive On
Press the trail features button when infour-wheel drive high (4H) or four-wheeldrive low (4L) to activate trail one pedaldrive.
Switching Trail One Pedal DriveOff
Press the trail features button again toswitch trail one pedal drive off.
Selecting a driveline mode other thanfour-wheel drive high (4H) or four-wheeldrive low (4L) switches trail one pedaldrive off.
If you exceed 42 mph (68 km/h) trail onepedal drive switches off.
Pressing either button when trailone pedal drive is active turnstrail control on and places trailone pedal drive into standbymode.
Switching from Trail Control toTrail One Pedal Drive
When using trail control infour-wheel drive high (4H) orfour-wheel drive low (4L)modes, you can switch to trail one pedaldrive by pressing the button on the steeringwheel.
TRAIL ONE PEDAL DRIVEINDICATORS
When trail one pedal drive isactive, the indicator displaysgreen in the instrument cluster.When the system is switched on but isunavailable or in standby mode, it displaysgrey.
209
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingTrail Control (If Equipped)E343599 1E328584

TRAIL ONE PEDAL DRIVE – TROUBLESHOOTING (IF EQUIPPED)
TRAIL ONE PEDAL DRIVE – INFORMATION MESSAGES
ActionMessage
Displays when trail one pedal drive is active,use the SET+ or SET- to switch to trailcontrol.
Trail 1-Pedal Drive Active Use SET Buttonfor Trail Control
Displays when you switch trail one pedaldrive off.Trail Control with Trail 1- Pedal Drive Off
Trail control is in a driveline state notsupported for trail one pedal drive. Set aspeed to activate trail control or change thedriveline state to four-wheel drive high (4H)or four-wheel drive low (4L) modes toactive trail one pedal drive.
Trail Control Enabled Use SET button toSet Speed Trail 1-Pedal Drive Available in4H or 4L
210
