RESETTING THE ENGINE OILCHANGE REMINDER
Use the information display controls onthe steering wheel to reset the oil changereminder.
From the main menu scroll to:
Action and DescriptionMessage
Press the right arrow button,then from this menu scrollto the following message.
Settings
Press the right arrow button,then from this menu scrollto the following message.
Conveni-ence
Press the right arrow button,then from this menu scrollto the following message.
Oil LifeReset
Press and hold the OKbutton until the instrumentcluster displays thefollowing message.
Hold OK toReset
Reset Successful
When the oil changereminder resets the instru-ment cluster displays 100%.
Remaining Life
{00}%
If the instrument clusterdisplays one of the followingmessages, repeat theprocess.
Not Reset
Reset Cancelled
ENGINE OIL CAPACITY ANDSPECIFICATION
For filling information, please refer to theCapacities and Specifications section ofyour owner's manual. See Engine OilCapacity and Specification (page 405).
CHECKING THE COOLANT
When the engine is cold, check theconcentration and level of the coolant atthe intervals listed in the scheduledmaintenance information. See ScheduledMaintenance (page 459).
Note:Make sure that the coolant level isbetween the minimum and maximum markson the coolant reservoir.
Note: Coolant expands when it is hot. Thelevel may extend beyond the MAX mark.
If the coolant level is at or below theminimum mark, add prediluted coolantimmediately.
Maintain coolant concentration within48% to 50%, which equates to a freezepoint between -29°F (-34°C) and -35°F(-37°C). Coolant concentration should bechecked using a refractometer. We do notrecommend the use of hydrometers orcoolant test strips for measuring coolantconcentration.
Adding Coolant
WARNING: Keep your hands andclothing clear of the cooling fan.
324
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenance

Multi-Point Inspection
Windshield for cracks, chips or pitsFor oil and fluid leaks
Washer spray and wiper operationHalf-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer.2If your vehicle has a temporary mobility kit, check the tire sealant expiration Use By dateon the canister. Replace as needed.
Be sure to ask your dealership serviceadvisor or technician about the multi-pointvehicle inspection. It is a comprehensiveway to perform a thorough inspection ofyour vehicle. Your checklist gives youimmediate feedback on the overallcondition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Oil Change Reminder
Your vehicle comes with an oil changereminder that determines when you shouldchange the engine oil based on how youuse your vehicle.
When to Expect the OIL CHANGE REQUIRED Message
Vehicle Use and ExampleInterval
Normal
7,500–10,000 mi(12,000–16,000 km)
Normal commuting with highway drivingNo, or moderate, load or towingFlat to moderately hilly roadsNo extended idling
Severe
5,000–7,500 mi(8,000–12,000 km)
Moderate to heavy load or towingMountainous or off-road conditionsExtended idlingExtended hot or cold operation
Extreme3,000–5,000 mi(5,000–8,000 km)Maximum load or towingExtreme hot or cold operation
462
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingScheduled Maintenance

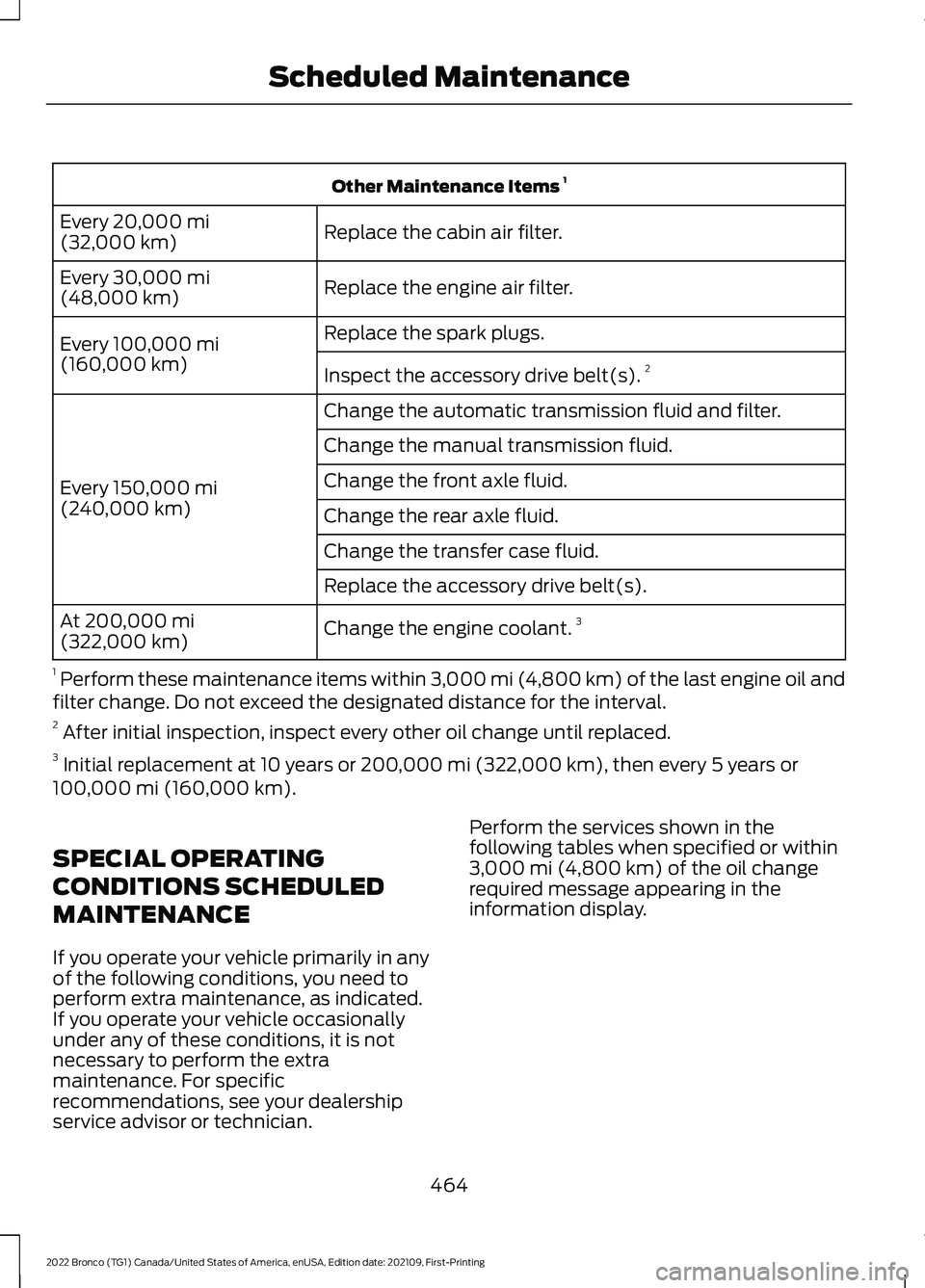

Other Maintenance Items 1
Replace the cabin air filter.Every 20,000 mi(32,000 km)
Replace the engine air filter.Every 30,000 mi(48,000 km)
Replace the spark plugs.Every 100,000 mi(160,000 km)Inspect the accessory drive belt(s).2
Change the automatic transmission fluid and filter.
Every 150,000 mi(240,000 km)
Change the manual transmission fluid.
Change the front axle fluid.
Change the rear axle fluid.
Change the transfer case fluid.
Replace the accessory drive belt(s).
Change the engine coolant.3At 200,000 mi(322,000 km)
1 Perform these maintenance items within 3,000 mi (4,800 km) of the last engine oil andfilter change. Do not exceed the designated distance for the interval.2 After initial inspection, inspect every other oil change until replaced.3 Initial replacement at 10 years or 200,000 mi (322,000 km), then every 5 years or100,000 mi (160,000 km).
SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
If you operate your vehicle primarily in anyof the following conditions, you need toperform extra maintenance, as indicated.If you operate your vehicle occasionallyunder any of these conditions, it is notnecessary to perform the extramaintenance. For specificrecommendations, see your dealershipservice advisor or technician.
Perform the services shown in thefollowing tables when specified or within3,000 mi (4,800 km) of the oil changerequired message appearing in theinformation display.
464
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingScheduled Maintenance

Driver Alert – Troubleshooting................270Driver Alert – Information Messages..........270Driving Economically.................................299Driving Hints..................................................290Off-Road Driving...............................................290
E
Electric Parking Brake AudibleWarning.........................................................199Electric Parking Brake.................................198Electric Parking Brake –Troubleshooting.............................................199Electric Parking Brake –Troubleshooting........................................199Electric Parking Brake – InformationMessages........................................................200Electric Parking Brake – WarningLamps................................................................199Electric Power Steering..............................219Electric Power Steering Precautions...........219How Does Electric Power SteeringWork....................................................................219Electromagnetic Compatibility..............533Electronic Locking Differential................190Electronic Locking Differential –Troubleshooting.............................................192Electronic Locking DifferentialIndicators.......................................................191Electronic Locking Differential –Troubleshooting.........................................192Electronic Locking Differential –Information Messages.................................192Emergency Call Limitations.......................68Emergency Call Requirements.................68Emergency Call System Data....................25Emergency Towing........................................311Emission Law................................................530Enabling Apps on an AndroidDevice...........................................................444Enabling Apps on an iOS Device...........444Enabling Remote Start................................115End User License Agreement.................505Engine Block Heater....................................153Engine Block Heater Precautions.................153How Does the Engine Block HeaterWork....................................................................153Using the Engine Block Heater......................154
Engine Coolant TemperatureGauge............................................................108Engine Oil Capacity and Specification -2.3L EcoBoost™.......................................405Engine Oil Capacity and Specification -2.7L EcoBoost™.......................................406Engine Oil........................................................323Adding Engine Oil...............................................323Checking the Engine Oil Level.......................323Engine Oil Capacity andSpecification...................................................324Engine Oil Dipstick Overview.........................323Resetting the Engine Oil ChangeReminder..........................................................324Engine Specifications - 2.3LEcoBoost™.................................................401Engine Specifications - 2.7LEcoBoost™.................................................402Evasive Steering Assist.............................266Evasive Steering Assist Limitations............267Switching Evasive Steering Assist On andOff.......................................................................267What Is Evasive Steering Assist...................266Event Data.........................................................23Export Unique Options...............................531Exterior Bulbs................................................334Changing a Rear Lamp Bulb.........................336Exterior Bulb Specification Chart................334Removing a Rear Lamp Assembly..............335Exterior Lamps................................................95Exterior Lamp Audible Warning......................97Exterior Lamp Indicators...................................96Switching the Daytime Running Lamps Onand Off................................................................95Switching the Front Fog Lamps On andOff.........................................................................96Switching the Spot Lamps On andOff.........................................................................96Switching the Turn Signal Lamps On andOff.........................................................................95Exterior Lighting Control.............................94Exterior Lighting.............................................94Autolamps..............................................................95Automatic High Beam Control.......................98Automatic High Beam Control –Troubleshooting............................................100Exterior Lamps......................................................95Exterior Zone Lighting.........................................97
542
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingIndex
