Page 14 of 562
What Is the Maximum Loaded TrailerWeight.........................................................272
What Is the Gross Combined WeightRating..........................................................272
Calculating Payload...................................274
Calculating the Load Limit......................274
Roof Rack.......................................................276
Fender Anchor Points................................279
Rear Cargo Area
Rear Cargo Area Anchor Points............280
Connecting a Trailer
Connecting a Trailer Precautions..........281
Connecting a Trailer....................................281
Connecting a Trailer – Troubleshooting........................................................................282
Towing a Trailer
Towing a Trailer Precautions..................283
Trailer Brake Precautions.........................283
Towing a Trailer Limitations...................284
Loading Your Trailer...................................284
Trailer Towing Hints - ManualTransmission............................................284
Trailer Towing Hints - AutomaticTransmission............................................285
Launching or Retrieving a Boat orPersonal Watercraft..............................286
Towing Weights and Dimensions.........287
Towing a Trailer – Troubleshooting......288
Trailer Sway Control
How Does Trailer Sway Control Work........................................................................289
Trailer Sway Control Precautions.........289
Switching Trailer Sway Control On andOff................................................................289
Driving Hints
Off-Road Driving........................................290
Cold Weather Precautions......................298
Breaking-In...................................................298
Driving Economically................................299
Floor Mats.....................................................299
Crash and BreakdownInformation
Roadside Assistance..................................301
Switching the Hazard Flashers On andOff................................................................302
Jump Starting the Vehicle.......................302
Post-Crash Alert System.........................304
Post Impact Braking.................................304
Automatic Crash Shutoff........................305
Recovery Towing.........................................305
Transporting the Vehicle..........................307
Towing Your Vehicle
Towing Your Vehicle Precautions.........308
Recreationally Towing Your Vehicle -Manual Transmission...........................308
Recreationally Towing Your Vehicle -Automatic Transmission.....................309
Emergency Towing.......................................311
Towing Your Vehicle – Troubleshooting..........................................................................311
Fuses
Fuse Precautions.........................................312
Under Hood Fuse Box................................312
Body Control Module Fuse Box..............316
Identifying Fuse Types...............................319
Fuses – Troubleshooting..........................319
Maintenance
Maintenance Precautions.......................320
Opening and Closing the Hood.............320
Under Hood Overview - 2.3L EcoBoost™.........................................................................321
Under Hood Overview - 2.7L EcoBoost™........................................................................322
10
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingTable of Contents
Page 316 of 562
FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
312
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFusesE329461 E329462

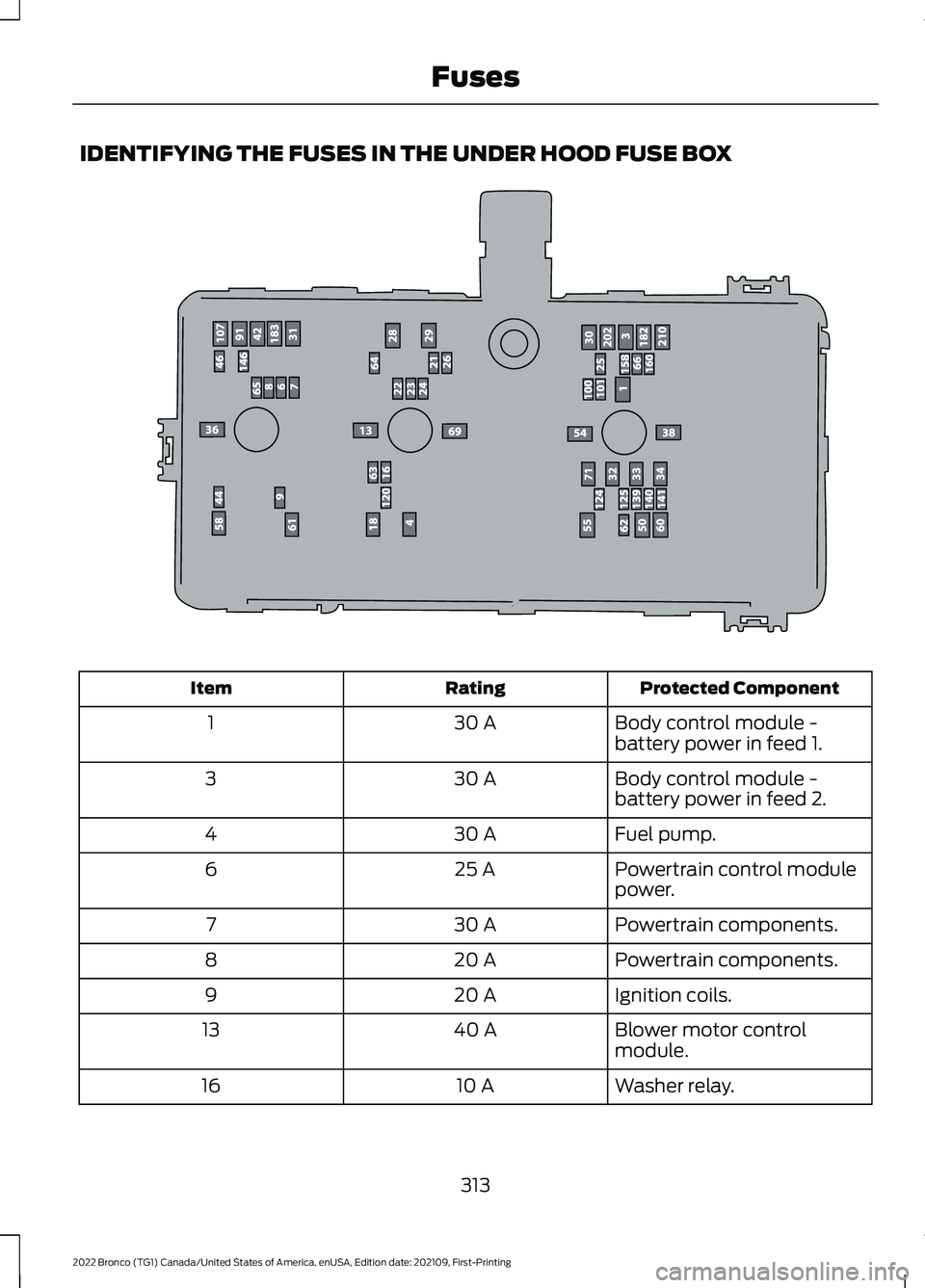

Page 317 of 562
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected ComponentRatingItem
Body control module -battery power in feed 1.30 A1
Body control module -battery power in feed 2.30 A3
Fuel pump.30 A4
Powertrain control modulepower.25 A6
Powertrain components.30 A7
Powertrain components.20 A8
Ignition coils.20 A9
Blower motor controlmodule.40 A13
Washer relay.10 A16
313
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFusesE330939

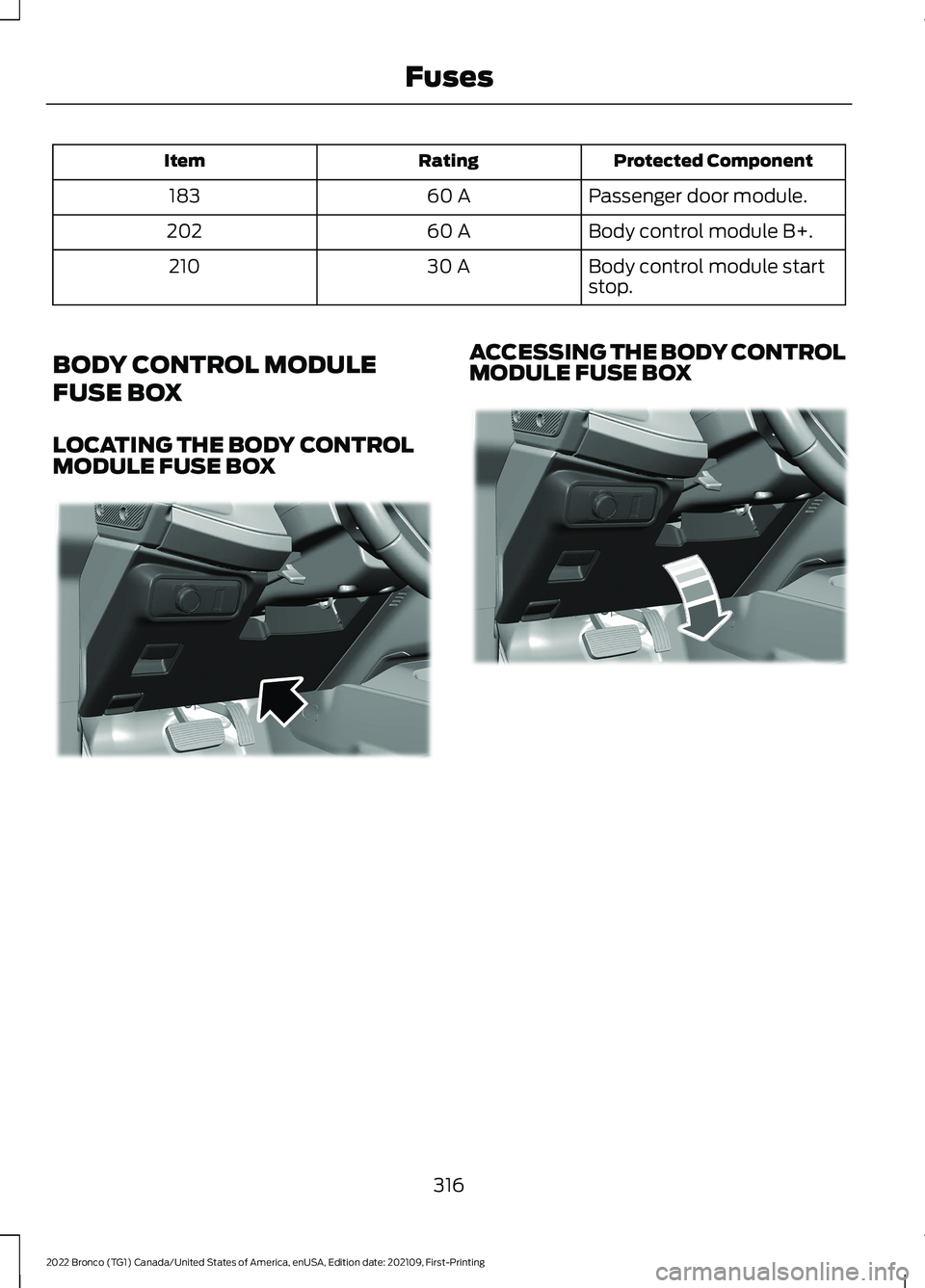

Page 320 of 562
Protected ComponentRatingItem
Passenger door module.60 A183
Body control module B+.60 A202
Body control module startstop.30 A210
BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
316
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFusesE357889 E357960
Page 321 of 562
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentRatingItem
Not used.—1
Power windows.10 A2DC/AC inverter.
Exterior mirrors.7.5 A3Wireless charging module.
Not used (spare).20 A4
Not used.—5
Anti-theft alarm horn.10 A6
Not used.10 A7
Not used (spare).5 A8
Not used (spare).5 A9
Not used.—10
Not used.—11
Climate control.7.5 A12Gateway module.
317
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFusesE145984
Page 326 of 562
Engine oil filler cap. See Adding Engine Oil (page 323).D
Brake fluid reservoir. See Locating the Brake Fluid Reservoir (page 194).E
Engine compartment fuse box. See Locating the Under Hood Fuse Box (page312).F
Battery. See Changing the 12V Battery (page 331).G
Air filter assembly. See Changing the Engine Air Filter (page 328).H
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
Engine coolant reservoir. See Checking the Coolant (page 324).A
Windshield washer fluid reservoir. See Adding Washer Fluid (page 93).B
Engine oil filler cap. See Adding Engine Oil (page 323).C
Engine oil dipstick. See Engine Oil Dipstick Overview (page 323).D
Brake fluid reservoir. See Locating the Brake Fluid Reservoir (page 194).E
Engine compartment fuse box. See Locating the Under Hood Fuse Box (page312).F
322
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenanceE339862
Page 458 of 562
WHAT ARE THE AUXILIARY
SWITCHES
The auxiliary switchboard on the overheadconsole makes aftermarket customizationeasier with six prewired switchesconnected to the power distribution box.Each circuit is individually fused forconnection of electrical accessories.
For maximum vehicle performance, keepthe following information in mind whenadding accessories or equipment to yourvehicle:
•When adding accessories, equipment,passengers and luggage to yourvehicle, do not exceed the total weightcapacity of the vehicle or of the frontor rear axle (GVWR or GAWR asindicated on the safety compliancecertification label). Ask an authorizeddealer for specific weight information.
•It is your responsibility to ensure thatany equipment you have fittedcomplies with applicable locallegislation.
•An authorized dealer needs to installmobile communication systems.Improper installation may harm theoperation of your vehicle, particularlyif the manufacturer did not design themobile communication systemspecifically for automotive use.
•If you or an authorized dealer add anyelectrical or electronic accessories orcomponents not produced by us toyour vehicle, you may adversely affectbattery performance and durability. Inaddition, you may also adversely affectthe performance of the other electricalsystems in the vehicle.
LOCATING THE AUXILIARY
SWITCHES
The switches are labeled AUX 1 throughAUX 6. They only operate when the ignitionis in the on position or in the off positionwhen Delay Accessory is active, whetherthe engine is running or not. Werecommend that you leave the enginerunning to maintain battery charge whenusing the switches for an extended time orwhen using higher current drawaccessories. When a switch is turned on,the indicator light on the switch illuminatesand the circuit provides power to thedevice wired to that switch.
LOCATING THE AUXILIARY
SWITCH WIRING
There are six powered circuits and fivenon-powered circuits.
454
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingAuxiliary Switches (If Equipped)E220728
Page 459 of 562
Circuits from under hood fuse box. See Locating the Under Hood Fuse Box(page 312).A
Circuits to interior right-hand cowl side.B
Circuit to front grille.C
Circuit to right-hand visor.D
Circuit to right-hand rear quarter panel.E
Circuits from the under hood fuse box (A)are powered. All other circuits (B-E) arenot connected at either end.
Additional information on fuse and relaylocations is available. See Fuses (page312). See your authorized dealer for service.
455
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingAuxiliary Switches (If Equipped)E343821
Page 460 of 562
IDENTIFYING THE AUXILIARY SWITCH WIRING
The relays are coded as follows:
FuseWire SizeWire ColorPower DistributionBox
30A1.5 mm²YellowAUX 1
15A1.5 mm²Green/BrownAUX 2
10A0.75 mm²Violet/GreenAUX 3
10A0.75 mm²BrownAUX 4
10A0.75 mm²Blue/OrangeAUX 5
10A0.75 mm²Yellow/OrangeAUX 6
Non-powered circuits:
Note:The non-powered circuits correspond with the auxiliary switch wiring graphic. SeeLocating the Auxiliary Switch Wiring (page 454).
Wire SizeWire ColorLocationNon-powered Circuit
1.5 mm²Brown/WhitePassenger compart-mentB1
1.5 mm²WhitePassenger compart-mentB2
1.5 mm²Violet/GrayFront grilleC
1.5 mm²Gray/OrangeRight-hand visorD
1.5 mm²White/OrangeRight-hand rearquarter panelE
456
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingAuxiliary Switches (If Equipped)
