display FORD BRONCO 2022 Owners Manual

Headlamps......................................................94
Headlamps – Troubleshooting................94
Autolamps.......................................................95
Exterior Lamps...............................................95
Exterior Zone Lighting..................................97
Automatic High Beam Control................98
Automatic High Beam Control –Troubleshooting......................................100
Interior Lighting
Switching All of the Interior Lamps Onand Off.........................................................101
Switching the Front Interior Lamps Onand Off.........................................................101
Switching the Rear Interior Lamps Onand Off.........................................................101
Interior Lamp Function...............................101
Adjusting the Instrument Panel LightingBrightness..................................................102
Ambient Lighting.........................................102
Interior Lighting – Troubleshooting......102
Windows
Opening and Closing the Windows......103
Global Opening............................................103
Window Bounce-Back..............................103
Locking the Rear Window Controls......104
Interior Mirror
Interior Mirror Precautions.......................105
Manually Dimming the Interior Mirror.........................................................................105
Auto-Dimming Interior Mirror.................105
Exterior Mirrors
Adjusting the Exterior Mirrors.................106
Folding the Exterior Mirrors.....................106
Instrument Cluster
Instrument Cluster Overview..................107
Tachometer...................................................107
Speedometer................................................107
Fuel Gauge.....................................................107
Engine Coolant Temperature Gauge........................................................................108
Transmission Fluid Temperature Gauge........................................................................108
Turbo Boost Gauge - 2.3L EcoBoost™........................................................................108
What Is the Information Bar...................108
What Are the Instrument ClusterWarning Lamps.......................................108
Instrument Cluster Warning Lamps.....109
What Are the Instrument ClusterIndicators.....................................................110
Instrument Cluster Indicators..................110
Instrument Cluster Display
Using the Instrument Cluster DisplayControls........................................................113
Instrument Cluster Display Main Menu..........................................................................113
Trip Computer................................................114
Personalized Settings.................................114
Remote Start
What Is Remote Start.................................115
Remote Start Precautions........................115
Remote Start Limitations..........................115
Enabling Remote Start...............................115
Remotely Starting and Stopping theVehicle..........................................................115
Remote Start Remote Control Indicators..........................................................................116
Remote Start Settings................................116
Climate Control - VehiclesWith: AutomaticTemperature Control
Identifying the Climate Control Unit......118
Switching Climate Control On and Off..........................................................................118
3
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingTable of Contents

Motorcraft Parts - 2.3L EcoBoost™.....403
Motorcraft Parts - 2.7L EcoBoost™.....404
Engine Oil Capacity and Specification -2.3L EcoBoost™.....................................405
Engine Oil Capacity and Specification -2.7L EcoBoost™.....................................406
Cooling System Capacity andSpecification - 2.3L EcoBoost™......408
Cooling System Capacity andSpecification - 2.7L EcoBoost™......409
Fuel Tank Capacity....................................409
Air Conditioning System Capacity andSpecification.............................................410
Washer Fluid Specification......................410
Manual Transmission Fluid Capacity andSpecification..............................................411
Clutch Fluid Capacity and Specification.........................................................................412
Automatic Transmission Fluid Capacityand Specification....................................412
Brake Fluid Specification..........................412
Transfer Case Fluid Capacity andSpecification.............................................413
Front Axle Fluid Capacity andSpecification.............................................414
Rear Axle Fluid Capacity andSpecification.............................................414
Vehicle Identification
Vehicle Identification Number...............416
Connected Vehicle
What Is a Connected Vehicle..................417
Connected Vehicle Requirements.........417
Connected Vehicle Limitations...............417
Connecting the Vehicle to a MobileNetwork.......................................................417
Connecting the Vehicle to a Wi-FiNetwork.......................................................417
Connected Vehicle – Troubleshooting.........................................................................418
Vehicle Wi-Fi Hotspot
Creating a Vehicle Wi-Fi Hotspot.........420
Changing the Vehicle Wi-Fi HotspotName or Password................................420
Vehicle Wi-Fi Hotspot – Troubleshooting.........................................................................421
Audio System
Audio System Precautions......................422
Identifying the Audio Unit........................422
Switching the Audio Unit On and Off........................................................................422
Selecting the Audio Source....................422
Playing or Pausing the Audio Source........................................................................422
Adjusting the Volume................................423
Switching Shuffle Mode On and Off........................................................................423
Switching Repeat Mode On and Off........................................................................423
Setting a Memory Preset.........................423
Muting the Audio........................................423
Adjusting the Sound Settings................423
Setting the Clock and Date.....................424
AM/FM Radio...............................................424
Switching the Display On and Off........425
Digital Radio.................................................425
Satellite Radio.............................................426
Audio System – Troubleshooting.........429
Center Display Overview
Center Display Precautions....................433
Center Display Limitations......................433
Status Bar......................................................433
Feature Bar...................................................434
Information On Demand Screen -Vehicles With: 12.3 Inch Screen.........435
Voice Interaction
What is Voice Interaction........................436
Voice Interaction Examples....................436
12
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingTable of Contents

MOBILE DEVICE DATA
If you connect a mobile device to yourvehicle, you can display data from yourdevice on the touchscreen for example,music and album art. You can share yourvehicle data with mobile apps on yourdevice through the system. See AppRequirements (page 444).
The mobile apps function operates by yourconnected device sending data to us in theUnited States. The data is encrypted andincludes, for example, the vehicleidentification number of your vehicle, theSYNC module serial number, odometer,enabled apps, usage statistics anddebugging information. We retain it onlyas long as necessary to provide the service,to troubleshoot, for continuousimprovement and to offer you productsand services that may be of interest to youaccording to your preferences and whereallowed by law.
If you connect a cell phone to the system,the system creates a profile that links tothat cell phone. The cell phone profileenables more mobile features and efficientoperation. The profile contains, forexample data from your phonebook, readand unread text messages and call history,including history of calls when your cellphone was not connected to the system.
If you connect a media device, the systemcreates and retains a media device indexof supported media content. The systemalso records a short diagnostic log ofapproximately 10 minutes of all recentsystem activity.
The cell phone profile, media device indexand diagnostic log remain in your vehicleunless you delete them and are generallyaccessible only in your vehicle when youconnect your cell phone or media device.If you no longer plan to use the system oryour vehicle, we recommend you use themaster reset function to erase the storedinformation. See Performing a MasterReset (page 451).
System data cannot be accessed withoutspecial equipment and access to yourvehicle's module.
For additional information about ourprivacy policy, refer to the local Fordwebsite.
Note:To find out if your vehicle hasconnectivity technology, visitwww.FordConnected.com.
EMERGENCY CALL SYSTEM
DATA
When the emergency call system is active,it may disclose to emergency services thatyour vehicle has been in a crash involvingthe deployment of an airbag or activationof the fuel pump shut-off. Certain versionsor updates to the emergency call systemmay also be capable of electronically orverbally disclosing to emergency servicesoperators your vehicle location or otherdetails about your vehicle or crash to assistemergency services operators to providethe most appropriate emergency services.If you do not want to disclose thisinformation, do not activate the emergencycall system.
Note:You cannot deactivate emergencycall systems that are required by law.
25
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingData Privacy

STEERING WHEEL - VEHICLES WITH: CRUISE CONTROL,
VEHICLES WITHOUT: LANE KEEPING AID
See Setting the Cruise Control Speed (page 232).A
See Switching Cruise Control On and Off (page 232).B
See Using the Instrument Cluster Display Controls (page 113).C
See What is Voice Interaction (page 436).D
See Using the Instrument Cluster Display Controls (page 113).E
See Playing or Pausing the Audio Source (page 422).F
See Adjusting the Volume (page 423).G
See Resuming the Set Speed (page 233).H
26
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingVisual SearchABEDCFGHE331277

STEERING WHEEL - VEHICLES WITH: ADAPTIVE CRUISE
CONTROL
See Setting the Adaptive Cruise Control Speed (page 237).A
See Setting the Adaptive Cruise Control Gap (page 238).B
See Switching the Lane Keeping System On and Off (page 250).C
See Using the Instrument Cluster Display Controls (page 113).D
See What is Voice Interaction (page 436).E
See Using the Instrument Cluster Display Controls (page 113).F
See Playing or Pausing the Audio Source (page 422).G
See Adjusting the Volume (page 423).H
See Resuming the Set Speed (page 239).I
27
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingVisual SearchACBFEDGHIE347990

STEERING WHEEL - VEHICLES WITH: CRUISE CONTROL/LANE
KEEPING AID
See Setting the Cruise Control Speed (page 232).A
See Switching Cruise Control On and Off (page 232).B
See Switching the Lane Keeping System On and Off (page 250).C
See Using the Instrument Cluster Display Controls (page 113).D
See What is Voice Interaction (page 436).E
See Using the Instrument Cluster Display Controls (page 113).F
See Playing or Pausing the Audio Source (page 422).G
See Adjusting the Volume (page 423).H
See Resuming the Set Speed (page 233).I
28
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingVisual SearchACBFEDGHIE347991

This system monitors all seating positionsand provides audio and graphic feedback.
SEATBELT REMINDERINDICATORS
This lamp illuminates if you donot fasten your seatbelt whenyou switch the ignition on. Thelamp switches off when you fasten yourseatbelt or about one minute has elapsed.
When the initial warning expires for thedriver, more warnings are provided for thedriver and front passenger. This lampilluminates if you or your front passengerdo not fasten the seatbelt buckle and thevehicle speed exceeds 6 mph (9.7 km/h).
Note:To avoid inadvertent warnings, donot place large objects on the seat.
This lamp illuminates when you switch theignition on, identifying the number ofseating positions with fastened buckles. Itilluminates again when a seating positionchanges from unfastened to fastened.
This warning displays if an occupantunfastens the rear seatbelt buckle or itbecomes unfastened.
Note:If a rear seat is unoccupied, or anoccupant never fastens the seatbelt buckleto begin with, the warning will not display.
Note:Front seating positions appear in thiswarning display. Warnings for unfastenedfront seatbelt buckles appear in the initialwarning lamp.
Note:Vehicles with two doors do not havea rear center seating position.
Seatbelt Status
To view the seatbelt status, use theinformation display controls on thesteering wheel.
55
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingSeatbeltsE71880 E352172 E352170 E352171

WHAT IS 911 ASSIST
911 Assist is a SYNC system feature thatcan call for help.
For more information, visitwww.owner.ford.com.
EMERGENCY CALL
REQUIREMENTS
WARNING: Do not wait for 911Assist to make an emergency call if youcan do it yourself. Dial emergencyservices immediately to avoid delayedresponse time which could increase therisk of serious injury or death after acrash. If you do not hear 911 Assist withinfive seconds of the crash, the system orphone may be damaged ornon-functional.
WARNING: Always place yourphone in a secure location in your vehicleso it does not become a projectile or getdamaged in a crash. Failure to do so maycause serious injury to someone ordamage the phone which could prevent911 Assist from working properly.
WARNING: Unless the 911 Assistsetting is set on before a crash, thesystem will not dial for help which coulddelay response time, potentiallyincreasing the risk of serious injury ordeath after a crash.
•SYNC is powered and working properlyat the time of the incident andthroughout feature activation and use.
•The 911 Assist feature must be set onbefore the incident.
•You must pair and connect aBluetooth® enabled and compatiblecell phone to SYNC.
•A connected Bluetooth® enabledphone must have the ability to makeand maintain an outgoing call at thetime of the incident.
•A connected Bluetooth® enabledphone must have adequate networkcoverage, battery power and signalstrength.
•The vehicle must have battery powerand be located in the U.S., Canada orin a territory in which 911 is theemergency number.
Note:If any user sets 911 Assist to on or off,that setting applies for all paired phones. If911 Assist is off and the phone connectedto SYNC, an icon displays on the status bar.
Note:Every phone operates differently.While SYNC 911 Assist works with mostcellular phones, some may have troubleusing this feature.
EMERGENCY CALL
LIMITATIONS
The SYNC 911 Assist feature only operatesin the U.S., Canada or in a territory in which911 is the emergency number. The followingare limitations of this feature:
•Your cellular phone or 911 Assisthardware sustains damage in a crash.
•The vehicle's battery or the SYNCsystem has no power.
•The phone(s) thrown from your vehicleare the ones paired and connected tothe system.
68
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-Printing911 Assist

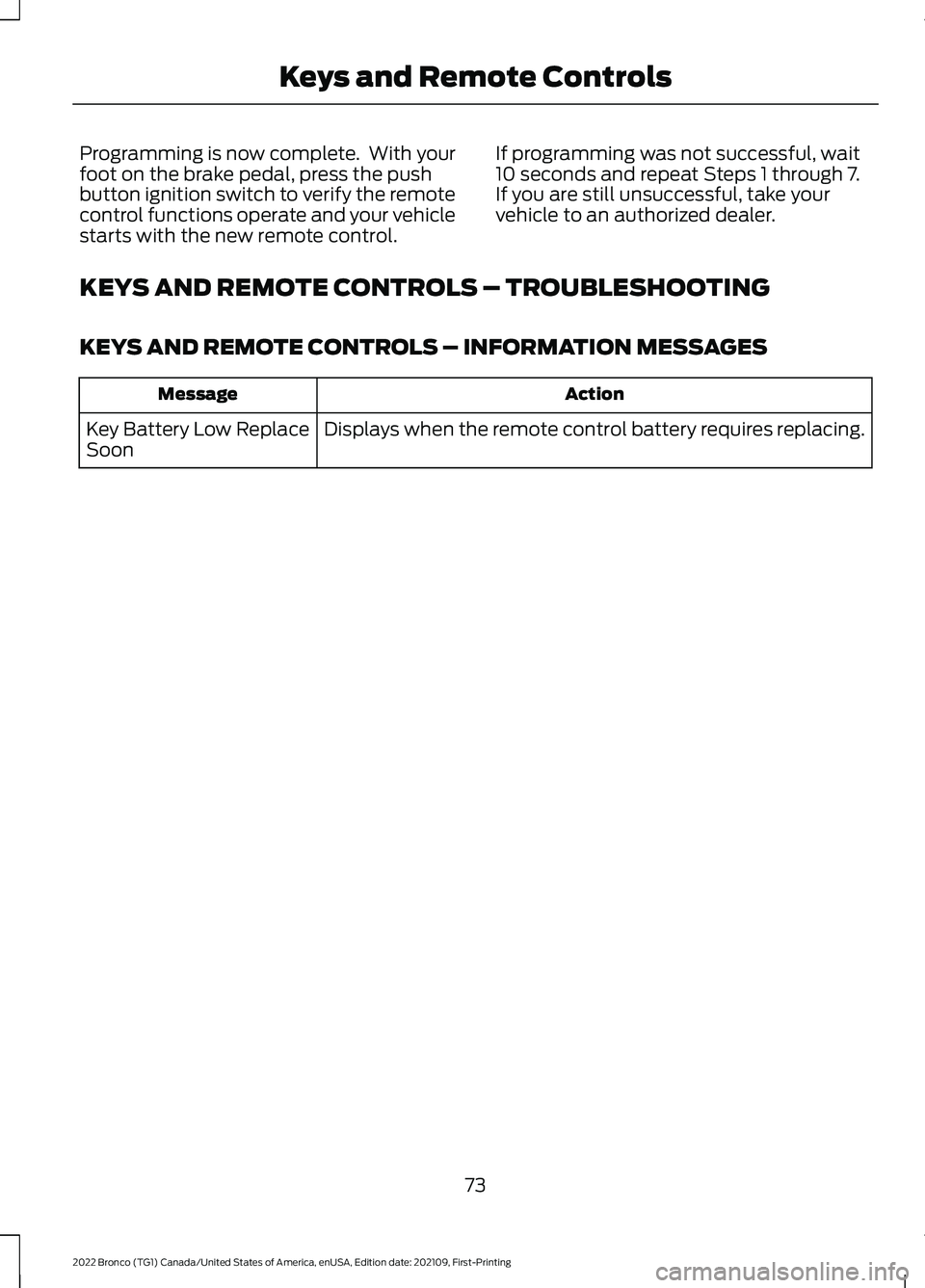

Programming is now complete. With yourfoot on the brake pedal, press the pushbutton ignition switch to verify the remotecontrol functions operate and your vehiclestarts with the new remote control.
If programming was not successful, wait10 seconds and repeat Steps 1 through 7.If you are still unsuccessful, take yourvehicle to an authorized dealer.
KEYS AND REMOTE CONTROLS – TROUBLESHOOTING
KEYS AND REMOTE CONTROLS – INFORMATION MESSAGES
ActionMessage
Displays when the remote control battery requires replacing.Key Battery Low ReplaceSoon
73
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingKeys and Remote Controls

WHAT IS MYKEY
MyKey allows you to program keys withrestricted driving modes to promote gooddriving habits.
MYKEY SETTINGS
NON-CONFIGURABLE MYKEYSETTINGS
Seatbelt Reminder or Belt-Minder™
MyKey mutes the audio system until thefront seat passengers buckle the front seatbelts.
Note:If your vehicle includes an AM/FMradio or a very basic audio system, then theradio may not mute.
Satellite Radio (If Equipped)
Some Satellite radio channels haverestricted access to adult radio content.
Early Low Fuel
The low fuel level warning lamp turns onearlier.
Driving and Parking Aids
You cannot configure settings for parkingaids, blind spot information system, andcross traffic alert. These systems turn onwhen the vehicle turns on, and you cannotswitch them off with a MyKey.
You cannot configure settings forpre-collision assist and lane keeping. Thesesystems turn on when the vehicle turns on,but you can switch them off with a MyKey.
A new destination in the navigation systemcan only be set using voice commandswhen using a MyKey, and with your vehiclemoving.
Note:MyKey drivers may be able to switchthe lane departure warning feature off, butthis feature turns back on automaticallywith every new key cycle.
CONFIGURABLE MYKEYSETTINGS
You can configure the following settingsafter creating a MyKey. See Creating aMyKey (page 75).
Speed Limit
WARNING: Do not set MyKeymaximum speed limit to a limit that willprevent the driver from maintaining asafe speed considering posted speedlimits and prevailing road conditions. Thedriver is always responsible to drive inaccordance with local laws andprevailing conditions. Failure to do socould result in accident or injury.
You can set a speed limit for your vehicle.Warning messages appear in theinformation display and a tone sounds ifyour vehicle reaches the set speed. Youcannot override the set speed when usinga MyKey.
Speed Minder
You can set a speed reminder for yourvehicle. Warning messages appear in theinformation display and a tone sounds ifyour vehicle exceeds the set speed.
Audio System Volume Limit
The audio system maximum volumereduces. A message appears in theinformation display if you attempt toexceed the volume limit. Automaticvolume control turns off.
74
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMyKey™
