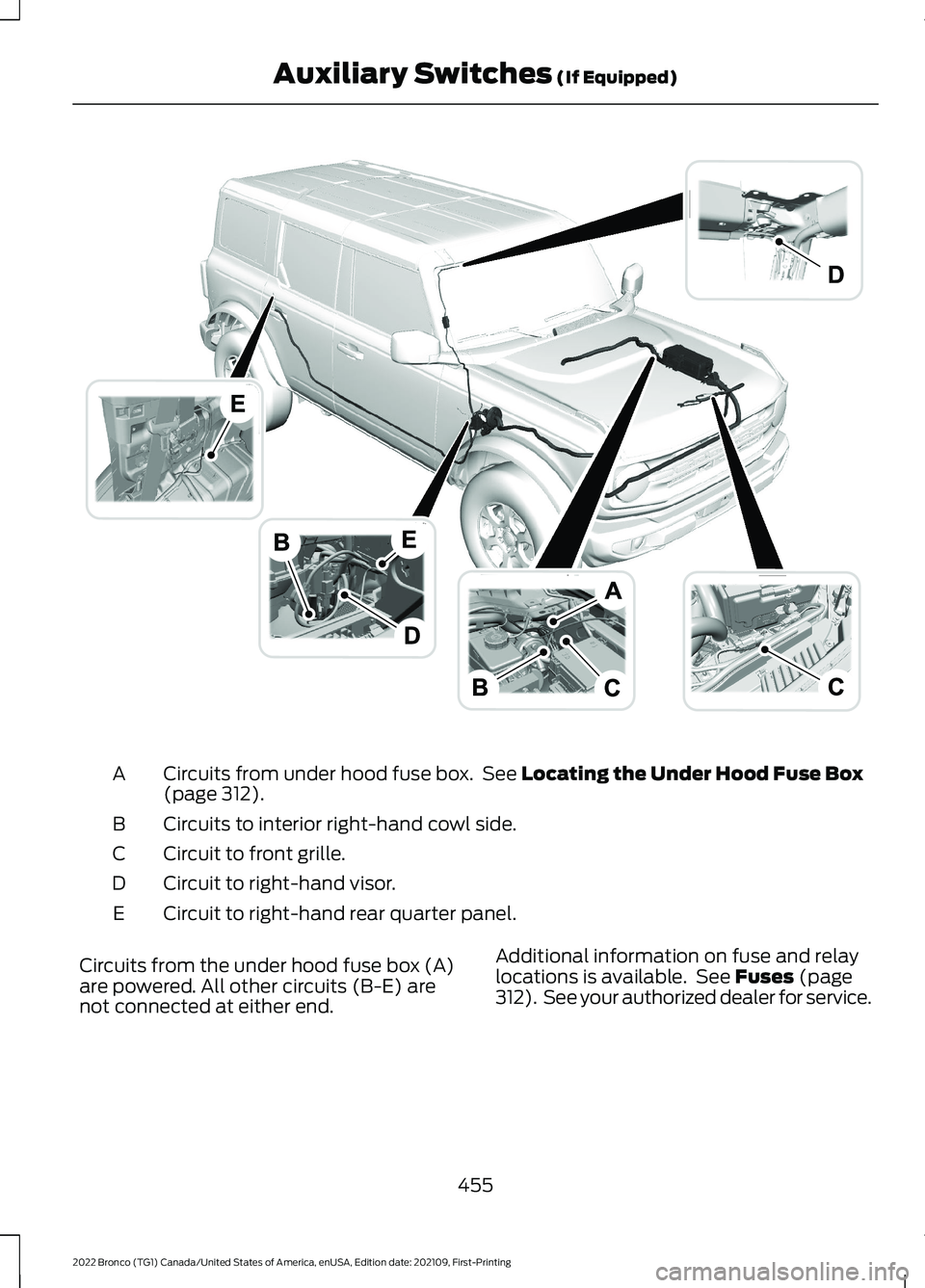

Circuits from under hood fuse box. See Locating the Under Hood Fuse Box(page 312).A
Circuits to interior right-hand cowl side.B
Circuit to front grille.C
Circuit to right-hand visor.D
Circuit to right-hand rear quarter panel.E
Circuits from the under hood fuse box (A)are powered. All other circuits (B-E) arenot connected at either end.
Additional information on fuse and relaylocations is available. See Fuses (page312). See your authorized dealer for service.
455
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingAuxiliary Switches (If Equipped)E343821

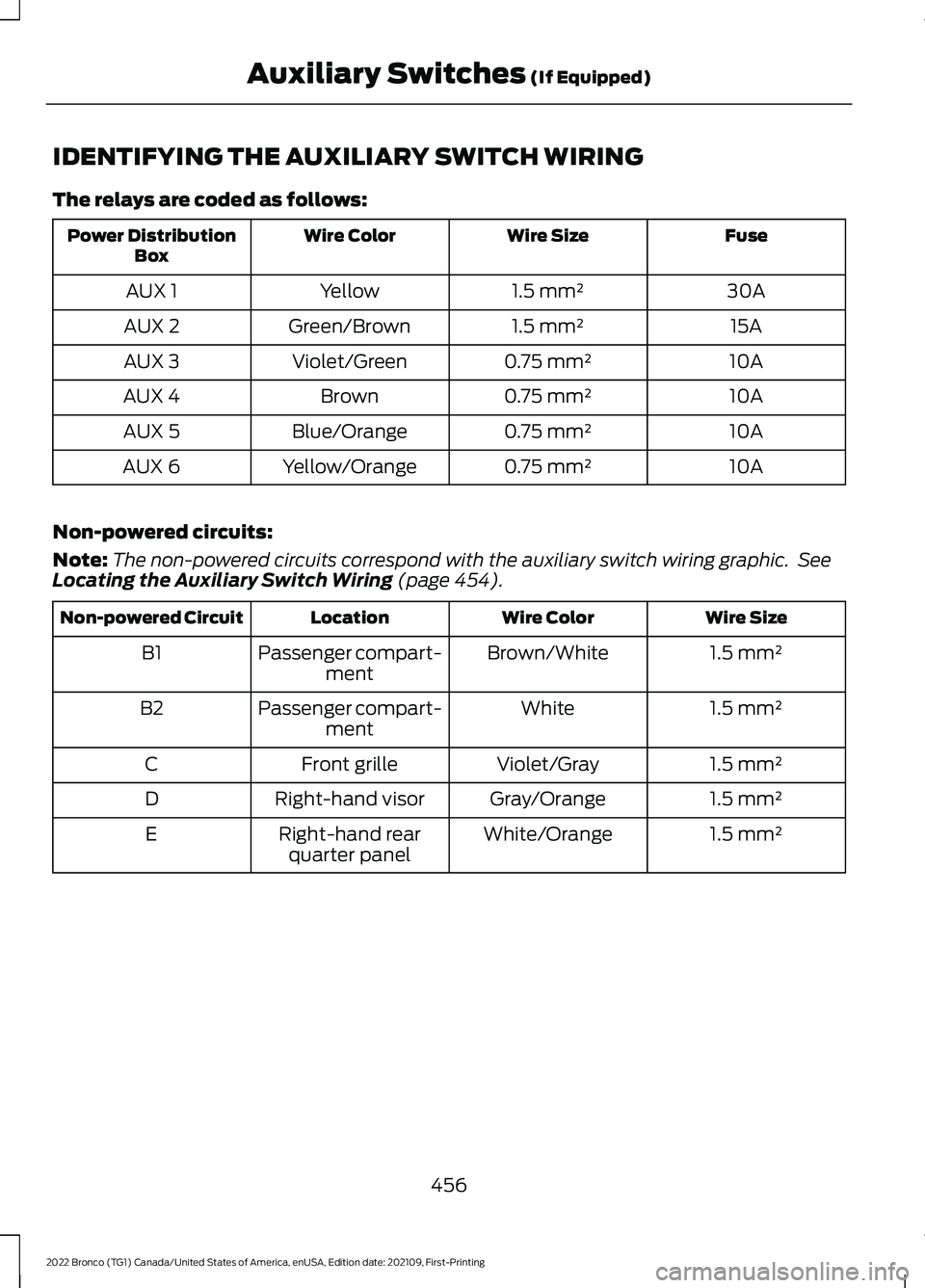

IDENTIFYING THE AUXILIARY SWITCH WIRING
The relays are coded as follows:
FuseWire SizeWire ColorPower DistributionBox
30A1.5 mm²YellowAUX 1
15A1.5 mm²Green/BrownAUX 2
10A0.75 mm²Violet/GreenAUX 3
10A0.75 mm²BrownAUX 4
10A0.75 mm²Blue/OrangeAUX 5
10A0.75 mm²Yellow/OrangeAUX 6
Non-powered circuits:
Note:The non-powered circuits correspond with the auxiliary switch wiring graphic. SeeLocating the Auxiliary Switch Wiring (page 454).
Wire SizeWire ColorLocationNon-powered Circuit
1.5 mm²Brown/WhitePassenger compart-mentB1
1.5 mm²WhitePassenger compart-mentB2
1.5 mm²Violet/GrayFront grilleC
1.5 mm²Gray/OrangeRight-hand visorD
1.5 mm²White/OrangeRight-hand rearquarter panelE
