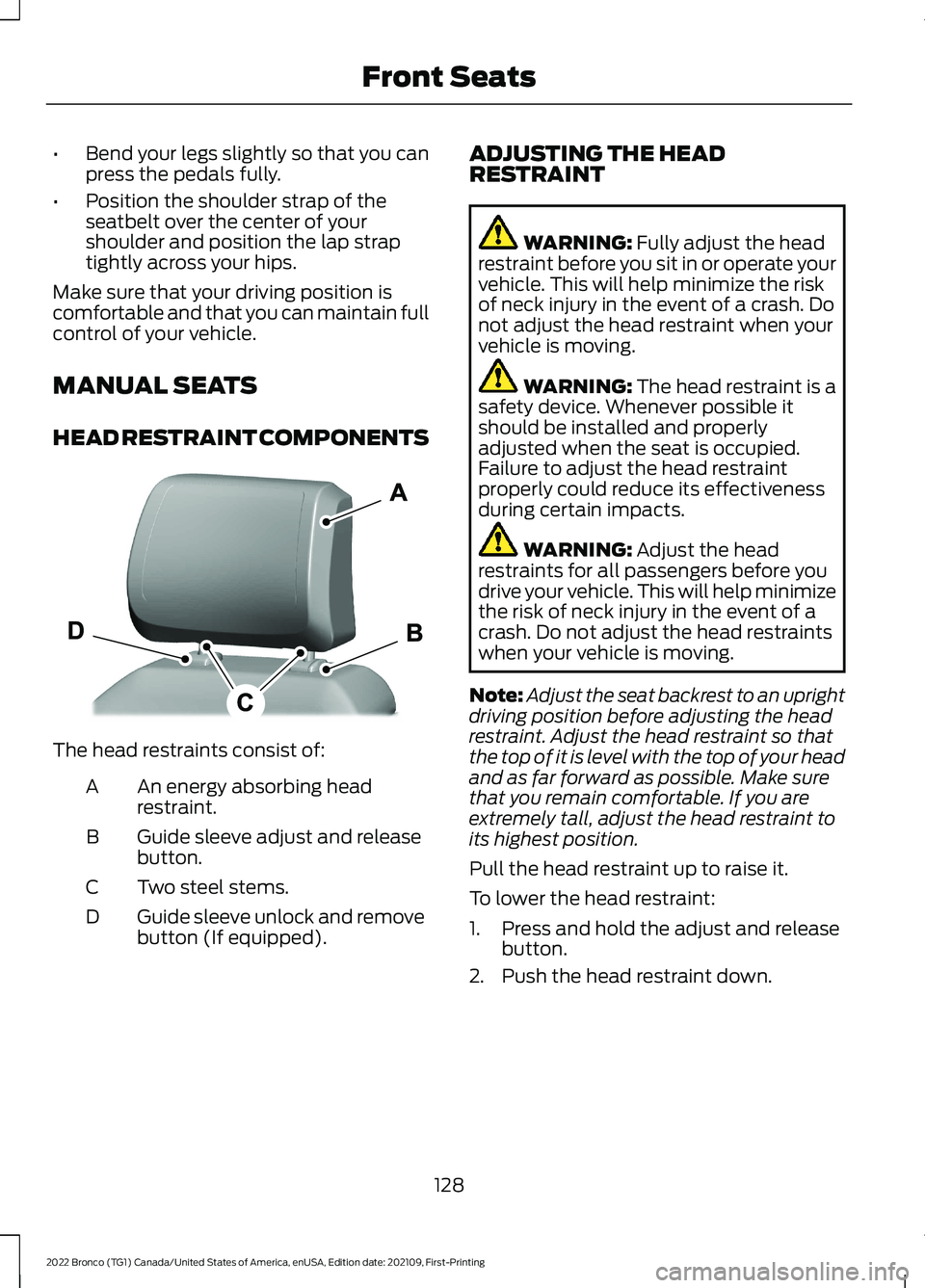

•Bend your legs slightly so that you canpress the pedals fully.
•Position the shoulder strap of theseatbelt over the center of yourshoulder and position the lap straptightly across your hips.
Make sure that your driving position iscomfortable and that you can maintain fullcontrol of your vehicle.
MANUAL SEATS
HEAD RESTRAINT COMPONENTS
The head restraints consist of:
An energy absorbing headrestraint.A
Guide sleeve adjust and releasebutton.B
Two steel stems.C
Guide sleeve unlock and removebutton (If equipped).D
ADJUSTING THE HEADRESTRAINT
WARNING: Fully adjust the headrestraint before you sit in or operate yourvehicle. This will help minimize the riskof neck injury in the event of a crash. Donot adjust the head restraint when yourvehicle is moving.
WARNING: The head restraint is asafety device. Whenever possible itshould be installed and properlyadjusted when the seat is occupied.Failure to adjust the head restraintproperly could reduce its effectivenessduring certain impacts.
WARNING: Adjust the headrestraints for all passengers before youdrive your vehicle. This will help minimizethe risk of neck injury in the event of acrash. Do not adjust the head restraintswhen your vehicle is moving.
Note:Adjust the seat backrest to an uprightdriving position before adjusting the headrestraint. Adjust the head restraint so thatthe top of it is level with the top of your headand as far forward as possible. Make surethat you remain comfortable. If you areextremely tall, adjust the head restraint toits highest position.
Pull the head restraint up to raise it.
To lower the head restraint:
1.Press and hold the adjust and releasebutton.
2.Push the head restraint down.
128
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFront SeatsE308298

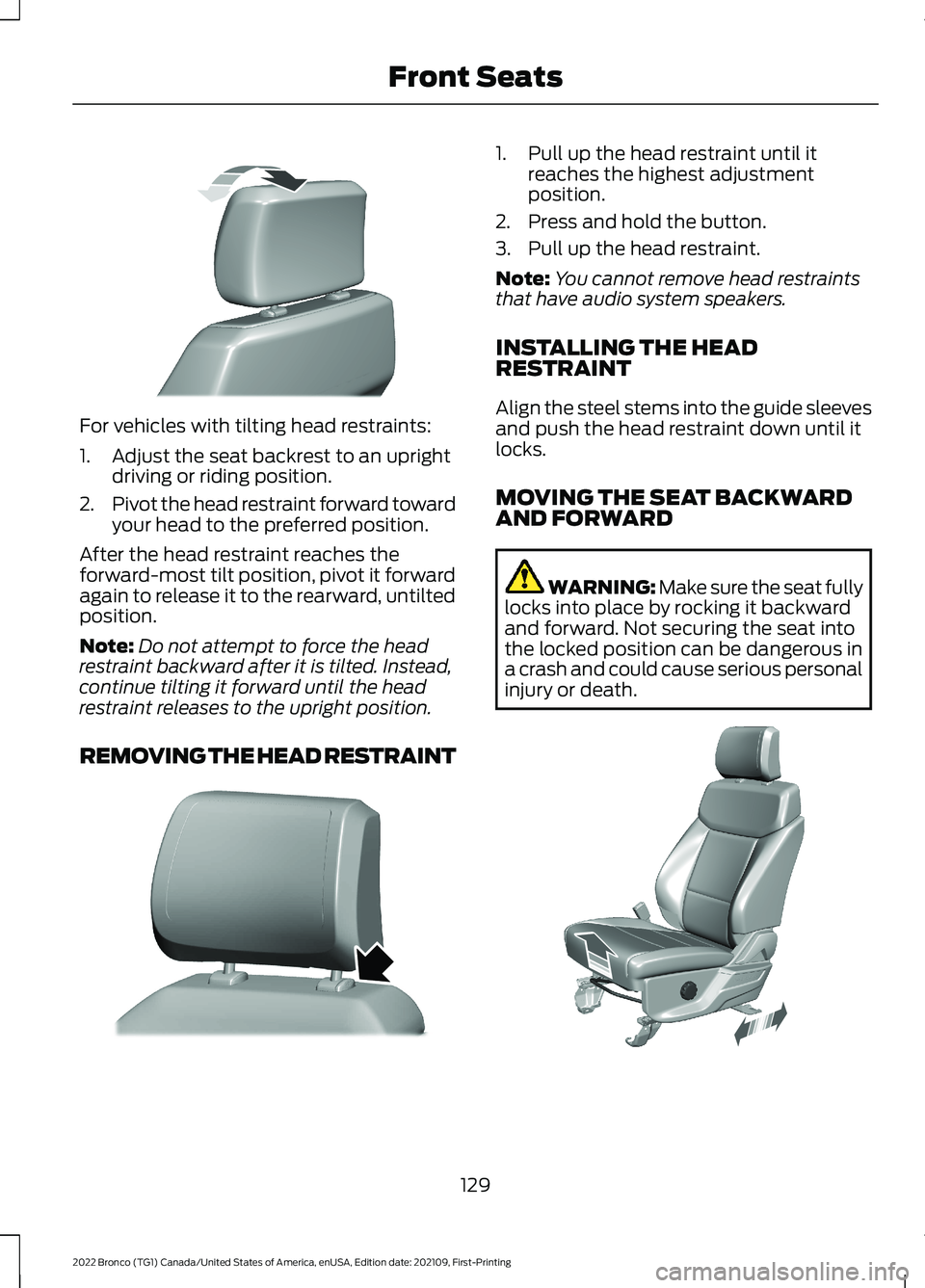

For vehicles with tilting head restraints:
1.Adjust the seat backrest to an uprightdriving or riding position.
2.Pivot the head restraint forward towardyour head to the preferred position.
After the head restraint reaches theforward-most tilt position, pivot it forwardagain to release it to the rearward, untiltedposition.
Note:Do not attempt to force the headrestraint backward after it is tilted. Instead,continue tilting it forward until the headrestraint releases to the upright position.
REMOVING THE HEAD RESTRAINT
1.Pull up the head restraint until itreaches the highest adjustmentposition.
2.Press and hold the button.
3.Pull up the head restraint.
Note:You cannot remove head restraintsthat have audio system speakers.
INSTALLING THE HEADRESTRAINT
Align the steel stems into the guide sleevesand push the head restraint down until itlocks.
MOVING THE SEAT BACKWARDAND FORWARD
WARNING: Make sure the seat fullylocks into place by rocking it backwardand forward. Not securing the seat intothe locked position can be dangerous ina crash and could cause serious personalinjury or death.
129
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFront SeatsE327919 E327503 E308316

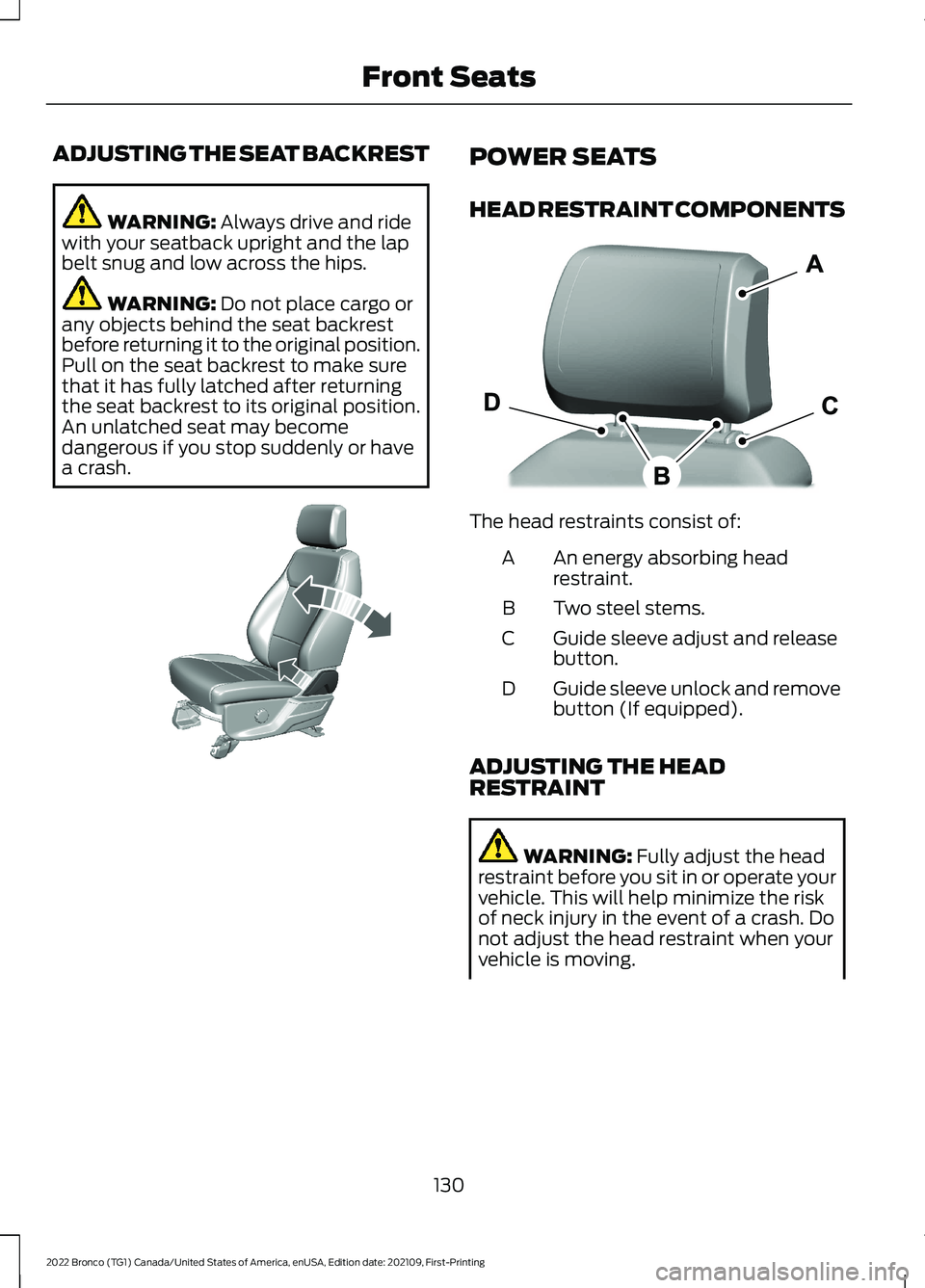

ADJUSTING THE SEAT BACKREST
WARNING: Always drive and ridewith your seatback upright and the lapbelt snug and low across the hips.
WARNING: Do not place cargo orany objects behind the seat backrestbefore returning it to the original position.Pull on the seat backrest to make surethat it has fully latched after returningthe seat backrest to its original position.An unlatched seat may becomedangerous if you stop suddenly or havea crash.
POWER SEATS
HEAD RESTRAINT COMPONENTS
The head restraints consist of:
An energy absorbing headrestraint.A
Two steel stems.B
Guide sleeve adjust and releasebutton.C
Guide sleeve unlock and removebutton (If equipped).D
ADJUSTING THE HEADRESTRAINT
WARNING: Fully adjust the headrestraint before you sit in or operate yourvehicle. This will help minimize the riskof neck injury in the event of a crash. Donot adjust the head restraint when yourvehicle is moving.
130
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFront SeatsE327922 E327921

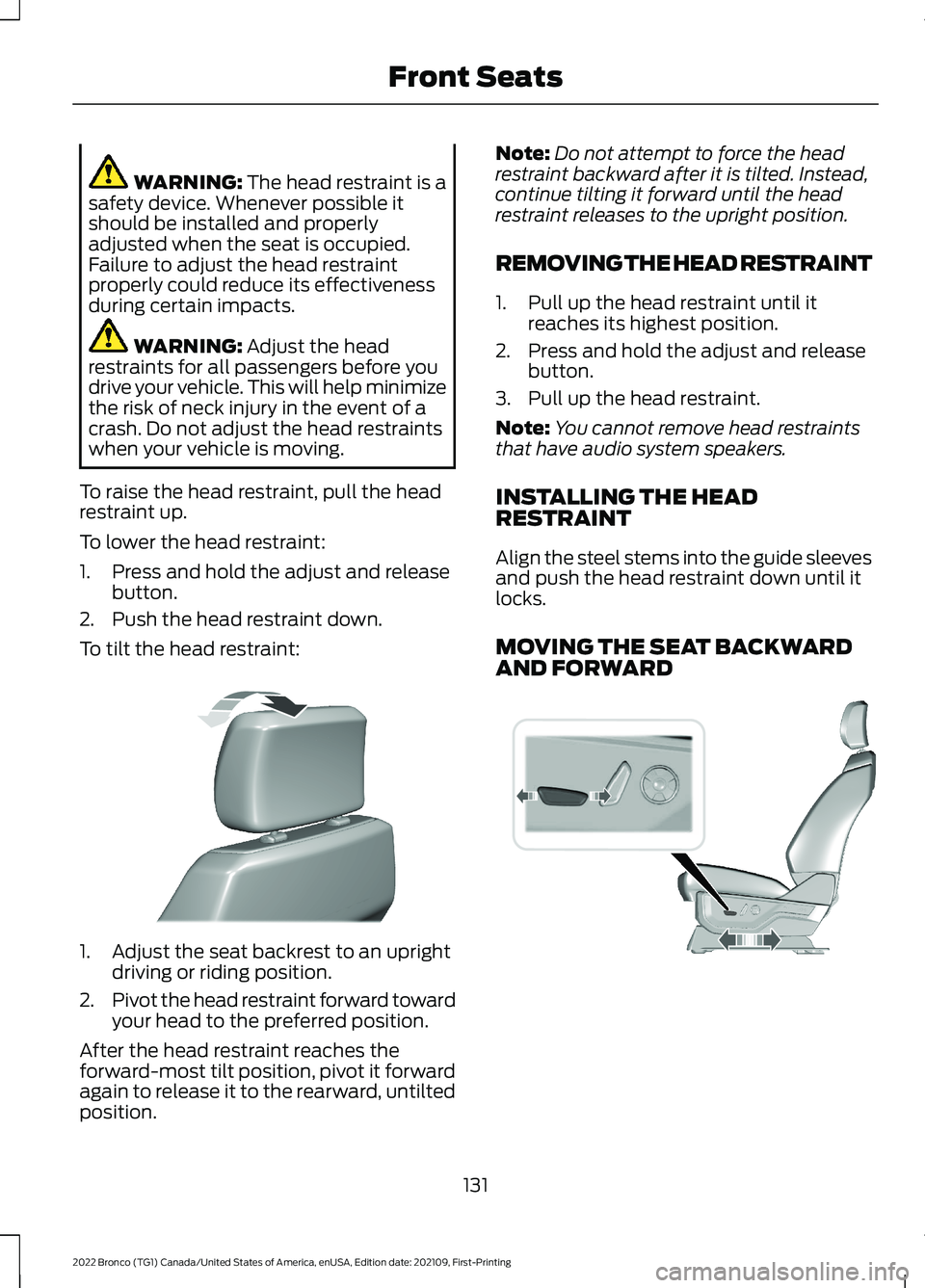

WARNING: The head restraint is asafety device. Whenever possible itshould be installed and properlyadjusted when the seat is occupied.Failure to adjust the head restraintproperly could reduce its effectivenessduring certain impacts.
WARNING: Adjust the headrestraints for all passengers before youdrive your vehicle. This will help minimizethe risk of neck injury in the event of acrash. Do not adjust the head restraintswhen your vehicle is moving.
To raise the head restraint, pull the headrestraint up.
To lower the head restraint:
1.Press and hold the adjust and releasebutton.
2.Push the head restraint down.
To tilt the head restraint:
1.Adjust the seat backrest to an uprightdriving or riding position.
2.Pivot the head restraint forward towardyour head to the preferred position.
After the head restraint reaches theforward-most tilt position, pivot it forwardagain to release it to the rearward, untiltedposition.
Note:Do not attempt to force the headrestraint backward after it is tilted. Instead,continue tilting it forward until the headrestraint releases to the upright position.
REMOVING THE HEAD RESTRAINT
1.Pull up the head restraint until itreaches its highest position.
2.Press and hold the adjust and releasebutton.
3.Pull up the head restraint.
Note:You cannot remove head restraintsthat have audio system speakers.
INSTALLING THE HEADRESTRAINT
Align the steel stems into the guide sleevesand push the head restraint down until itlocks.
MOVING THE SEAT BACKWARDAND FORWARD
131
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingFront SeatsE327919 E308339

MANUAL SEATS
HEAD RESTRAINT COMPONENTS
Rear Seat Outermost Head Restraints(4-Door)
Rear Seat Center Head Restraint(4-Door)
The head restraints consist of:
An energy absorbing headrestraint.A
Two steel stems.B
Guide sleeve adjust and releasebutton.C
Guide sleeve unlock and removebutton (If equipped).D
Fold button (If equipped).E
Rear Seat Outermost Head Restraints(2-Door)
The head restraints consist of:
An energy absorbing headrestraint.A
Two steel stems.B
Fold strap.C
ADJUSTING THE HEADRESTRAINT
4-Door
Pull the head restraint up to raise it.
To lower the head restraint:
1.Press and hold the adjust and releasebutton.
2.Push the head restraint down.
Press the fold button to fold the headrestraint.
134
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRear SeatsE330418 E342165 ABCE333887

2-Door
Pull the strap to fold the head restraintrearward.
REMOVING THE HEAD RESTRAINT
1.Pull up the head restraint until itreaches its highest position.
2.Press and hold the adjust and releasebutton and the unlock and removebutton.
3.Pull up the head restraint.
Note:The head restraints are notremovable on 2-door vehicles.
INSTALLING THE HEADRESTRAINT
Align the steel stems into the guide sleevesand push the head restraint down until itlocks.
ADJUSTING THE SEAT BACKREST
WARNING: Do not place cargo orany objects behind the seat backrestbefore returning it to the original position.Pull on the seat backrest to make surethat it has fully latched after returningthe seat backrest to its original position.An unlatched seat may becomedangerous if you stop suddenly or havea crash.
Note:The rear seats are not adjustable on2-door vehicles.
4-Door
Pull the lever up to fold the seat backrestfully forward.
Note:Make sure that the area under theseat is free of objects before folding thebackrest.
To return the seat backrest to the uprightposition, rotate it up until it locks.
Note:To store the removable doors, theseat backrest must be in the uprightposition.
To recline the seat backrest to the optimalseating position, pull the lever up and pushthe backrest rearward.
FOLDING THE SEATS
WARNING: Do not drive yourvehicle with a seat that is unlatched orin the folded position. Failure to followthis instruction could result in personalinjury or death in the event of a suddenstop or crash.
WARNING: Do not adjust a seat orrelease a seat floor latch when thevehicle is moving. Failure to follow thisinstruction could result in personal injuryor death in a sudden stop or crash.
135
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRear SeatsE327939

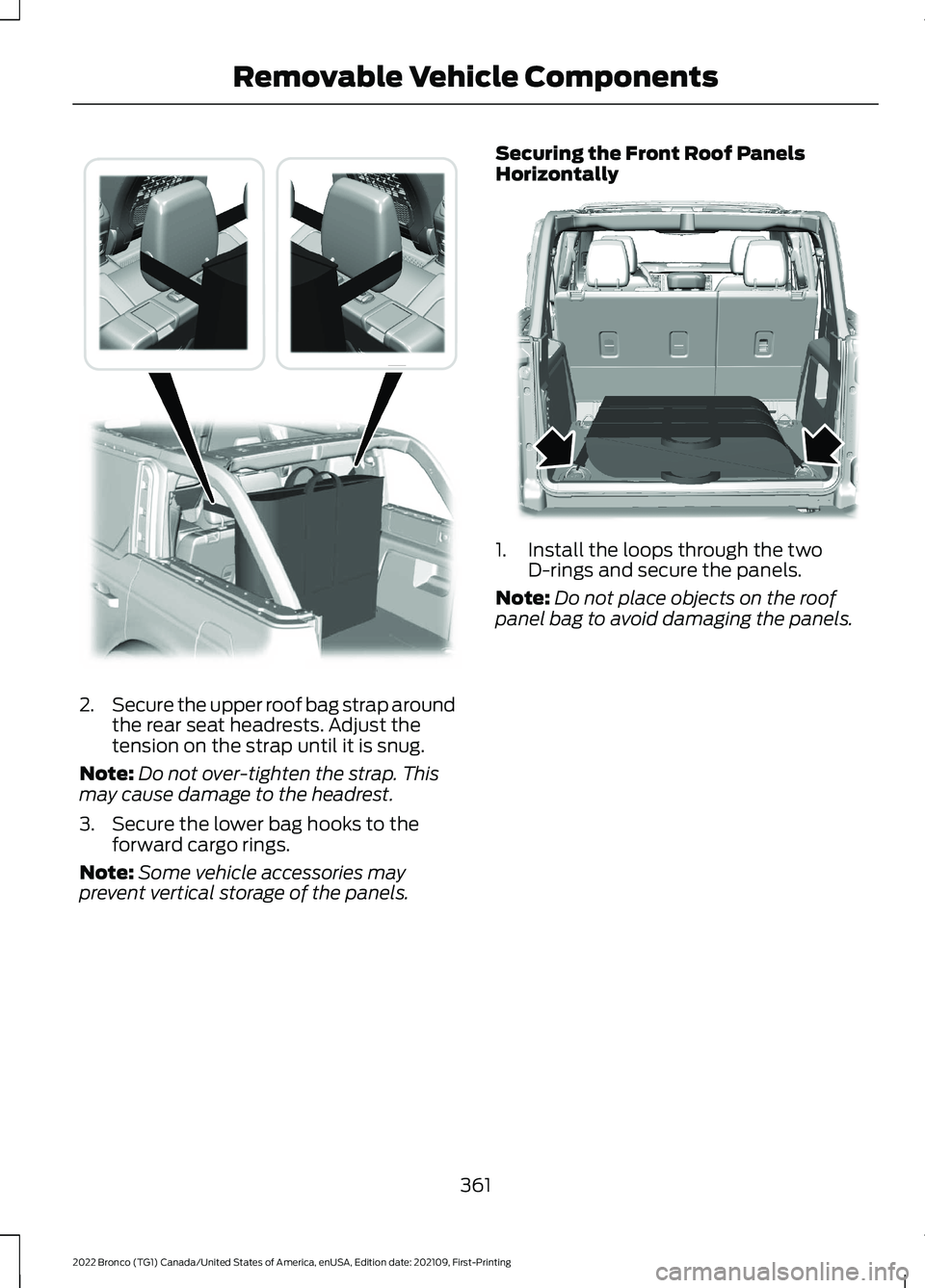

2.Secure the upper roof bag strap aroundthe rear seat headrests. Adjust thetension on the strap until it is snug.
Note:Do not over-tighten the strap. Thismay cause damage to the headrest.
3.Secure the lower bag hooks to theforward cargo rings.
Note:Some vehicle accessories mayprevent vertical storage of the panels.
Securing the Front Roof PanelsHorizontally
1.Install the loops through the twoD-rings and secure the panels.
Note:Do not place objects on the roofpanel bag to avoid damaging the panels.
361
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE340967 E346658

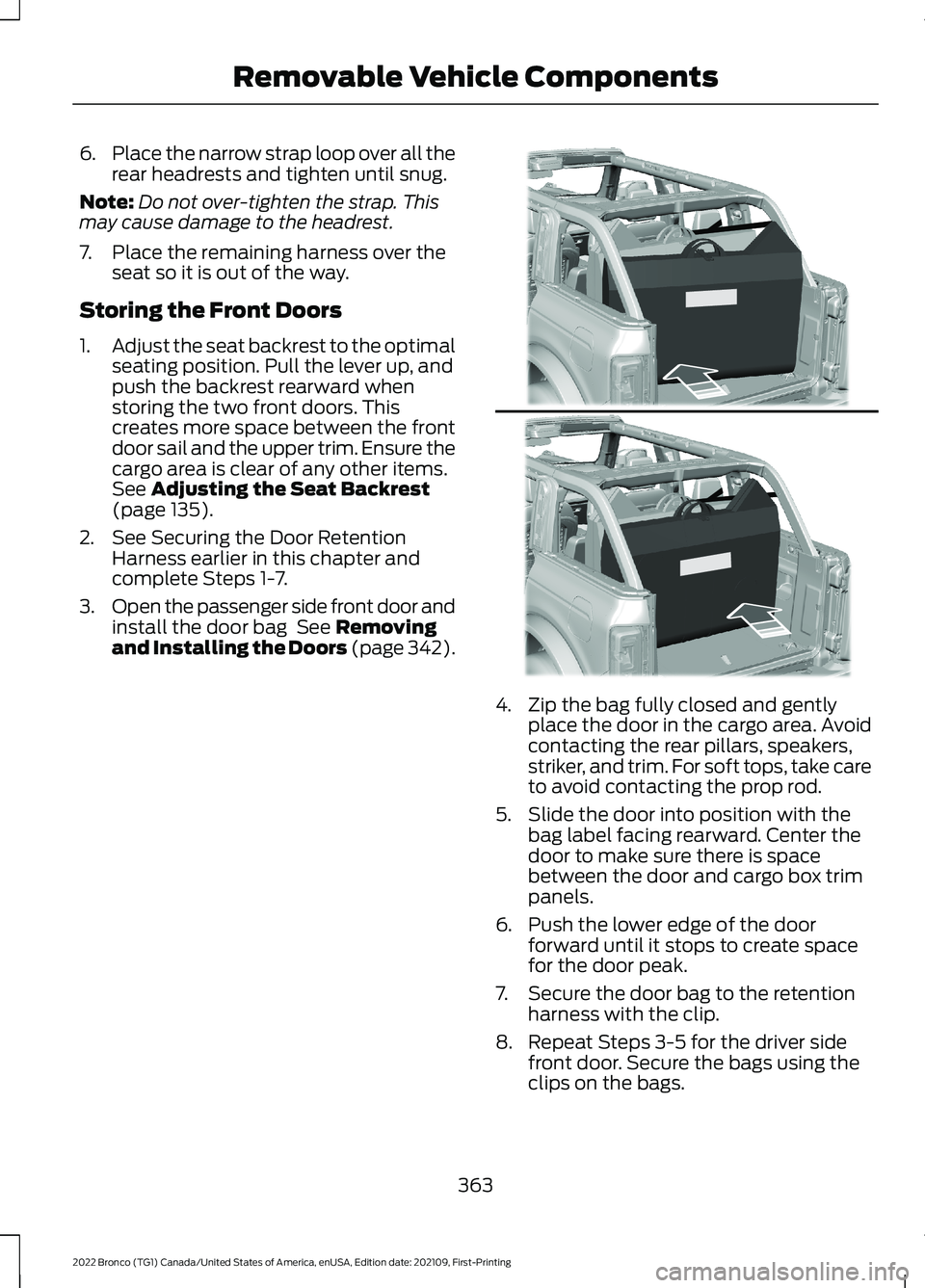

6.Place the narrow strap loop over all therear headrests and tighten until snug.
Note:Do not over-tighten the strap. Thismay cause damage to the headrest.
7.Place the remaining harness over theseat so it is out of the way.
Storing the Front Doors
1.Adjust the seat backrest to the optimalseating position. Pull the lever up, andpush the backrest rearward whenstoring the two front doors. Thiscreates more space between the frontdoor sail and the upper trim. Ensure thecargo area is clear of any other items.See Adjusting the Seat Backrest(page 135).
2.See Securing the Door RetentionHarness earlier in this chapter andcomplete Steps 1-7.
3.Open the passenger side front door andinstall the door bag See Removingand Installing the Doors (page 342).
4.Zip the bag fully closed and gentlyplace the door in the cargo area. Avoidcontacting the rear pillars, speakers,striker, and trim. For soft tops, take careto avoid contacting the prop rod.
5.Slide the door into position with thebag label facing rearward. Center thedoor to make sure there is spacebetween the door and cargo box trimpanels.
6.Push the lower edge of the doorforward until it stops to create spacefor the door peak.
7.Secure the door bag to the retentionharness with the clip.
8.Repeat Steps 3-5 for the driver sidefront door. Secure the bags using theclips on the bags.
363
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE346666

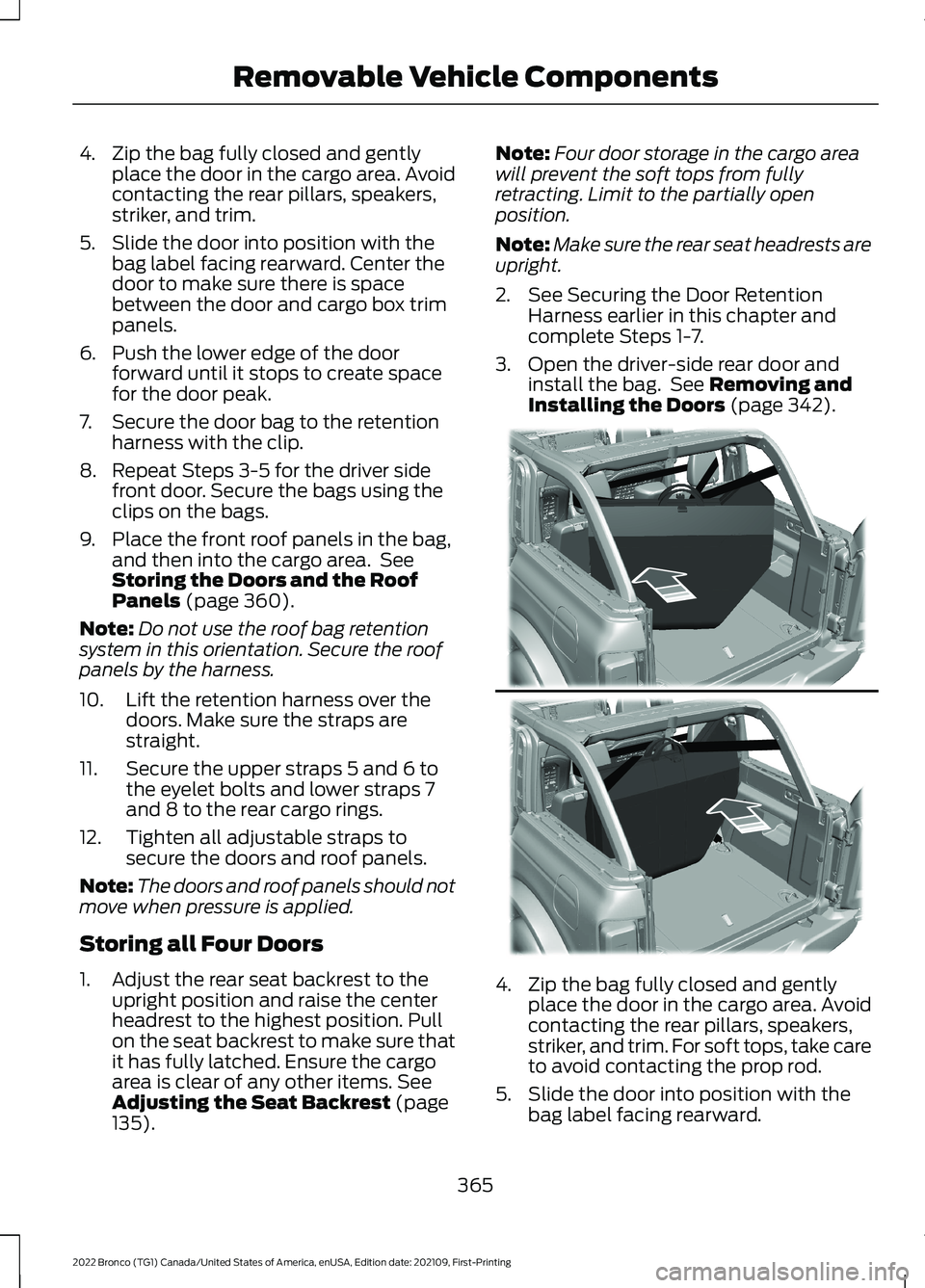

4.Zip the bag fully closed and gentlyplace the door in the cargo area. Avoidcontacting the rear pillars, speakers,striker, and trim.
5.Slide the door into position with thebag label facing rearward. Center thedoor to make sure there is spacebetween the door and cargo box trimpanels.
6.Push the lower edge of the doorforward until it stops to create spacefor the door peak.
7.Secure the door bag to the retentionharness with the clip.
8.Repeat Steps 3-5 for the driver sidefront door. Secure the bags using theclips on the bags.
9.Place the front roof panels in the bag,and then into the cargo area. SeeStoring the Doors and the RoofPanels (page 360).
Note:Do not use the roof bag retentionsystem in this orientation. Secure the roofpanels by the harness.
10.Lift the retention harness over thedoors. Make sure the straps arestraight.
11.Secure the upper straps 5 and 6 tothe eyelet bolts and lower straps 7and 8 to the rear cargo rings.
12.Tighten all adjustable straps tosecure the doors and roof panels.
Note:The doors and roof panels should notmove when pressure is applied.
Storing all Four Doors
1.Adjust the rear seat backrest to theupright position and raise the centerheadrest to the highest position. Pullon the seat backrest to make sure thatit has fully latched. Ensure the cargoarea is clear of any other items. SeeAdjusting the Seat Backrest (page135).
Note:Four door storage in the cargo areawill prevent the soft tops from fullyretracting. Limit to the partially openposition.
Note:Make sure the rear seat headrests areupright.
2.See Securing the Door RetentionHarness earlier in this chapter andcomplete Steps 1-7.
3.Open the driver-side rear door andinstall the bag. See Removing andInstalling the Doors (page 342).
4.Zip the bag fully closed and gentlyplace the door in the cargo area. Avoidcontacting the rear pillars, speakers,striker, and trim. For soft tops, take careto avoid contacting the prop rod.
5.Slide the door into position with thebag label facing rearward.
365
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingRemovable Vehicle ComponentsE338915

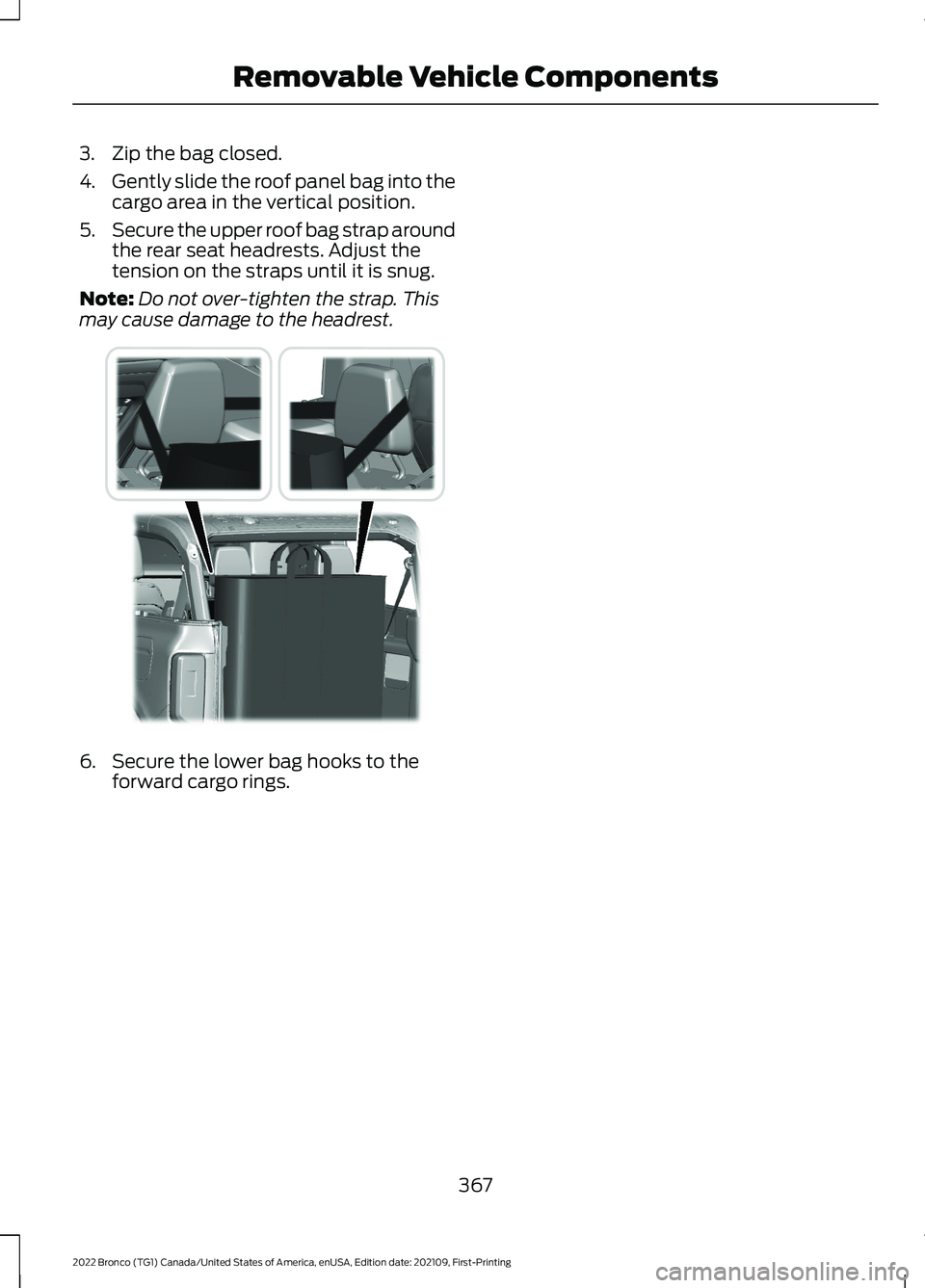

3.Zip the bag closed.
4.Gently slide the roof panel bag into thecargo area in the vertical position.
5.Secure the upper roof bag strap aroundthe rear seat headrests. Adjust thetension on the straps until it is snug.
Note:Do not over-tighten the strap. Thismay cause damage to the headrest.
6.Secure the lower bag hooks to theforward cargo rings.
367
