Engine Oil.......................................................323
Checking the Coolant...............................324
Changing the Engine Air Filter...............328
Changing the Fuel Filter...........................329
12V Battery....................................................329
12V Battery – Troubleshooting..............330
Changing the 12V Battery.........................331
Adjusting the Headlamps........................333
Exterior Bulbs...............................................334
Interior Bulbs................................................336
Drive Belt Routing - 2.3L EcoBoost™........................................................................336
Drive Belt Routing - 2.7L EcoBoost™........................................................................337
Removable VehicleComponents
Removable Windows................................338
Removable Doors.......................................342
Removable Roof Panels..........................350
Removable Hard Top................................354
Removable Soft Top.................................354
Removable Fenders..................................358
Storing the Doors and the Roof Panels -4-Door........................................................360
Storing the Roof Panels - 2-Door.........366
Vehicle Care
Cleaning Products.....................................368
Cleaning the Exterior.................................368
Cleaning the Interior....................................371
Repairing Minor Paint Damage..............373
Waxing Your Vehicle...................................373
Storing Your Vehicle
Preparing Your Vehicle for Storage......374
Removing Your Vehicle From Storage........................................................................375
Wheel and Tire Information
Locating the Tire label..............................376
Department of Transportation UniformTire Quality Grades................................376
Information on the Tire Sidewall...........377
Glossary of Tire Terminology.................382
Tire Replacement Requirements.........383
Using Snow Chains....................................385
Tire Care
Checking the Tire Pressures...................387
Inflating the Tires........................................387
Inspecting the Tire for Wear...................388
Inspecting the Tire for Damage............388
Inspecting the Wheel Valve Stems......389
Tire Rotation................................................389
Tire Pressure MonitoringSystem
What Is the Tire Pressure MonitoringSystem........................................................391
Tire Pressure Monitoring SystemOverview.....................................................391
Tire Pressure Monitoring SystemPrecautions...............................................392
Tire Pressure Monitoring SystemLimitations................................................392
Viewing the Tire Pressures......................393
Tire Pressure Monitoring System –Troubleshooting......................................393
Changing a Road Wheel
Changing a Flat Tire..................................395
Wheel Nuts..................................................400
Capacities and Specifications
Engine Specifications - 2.3L EcoBoost™........................................................................401
Engine Specifications - 2.7L EcoBoost™........................................................................402
11
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingTable of Contents

CHECKING THE MANUAL
TRANSMISSION FLUID LEVEL
Transmission fill level is 0.16 in (4 mm)from oil fill plug.
CHECKING THE CLUTCH FLUID
LEVEL
1.Check the system for any visual leaksbefore continuing.
2.Make sure the clutch pedal is in themost upward position.
3.Remove the cap and diaphragm andinspect the fluid level. To avoidcontamination, make sure the reservoircap remains in place and fullytightened unless you are checking thefluid level.
4.Reinstall the reservoir cap anddiaphragm.
Only use fluid that meets ourspecifications. See Capacities andSpecifications (page 401).
Note:A fluid level on the step line in thereservoir is within the normal operatingrange and there is no need to add fluid. Afluid level not in the normal operating rangecould compromise the performance of thesystem. Have your vehicle checkedimmediately.
MANUAL TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION
See Manual Transmission FluidCapacity and Specification (page 411).
CLUTCH FLUID CAPACITY AND
SPECIFICATION
See Capacities and Specifications(page 401).
176
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingManual TransmissionE339771 E310419

Battery. See Changing the 12V Battery (page 331).G
Air filter assembly. See Changing the Engine Air Filter (page 328).H
ENGINE OIL
ENGINE OIL DIPSTICK OVERVIEW
Minimum.A
Nominal.B
Maximum.C
CHECKING THE ENGINE OIL LEVEL
1.Make sure that your vehicle is on levelground.
2.Check the oil level before starting theengine, or switch the engine off afterwarming up and wait 10 minutes forthe oil to drain into the oil pan.
3.Remove the dipstick and wipe it witha clean, lint-free cloth.
4.Reinstall the dipstick and make sure itis fully seated.
5.Remove the dipstick again to check theoil level.
Note:If the oil level is between themaximum and minimum marks, the oil levelis acceptable. Do not add oil.
6.If the oil level is at the minimum mark,immediately add oil.
7.Reinstall the dipstick. Make sure it isfully seated.
Note:The oil consumption of new enginesreaches its normal level after approximately3,000 mi (5,000 km).
ADDING ENGINE OIL
WARNING: Do not remove the fillercap when the engine is running.
WARNING: Do not add engine oilwhen the engine is hot. Failure to followthis instruction could result in personalinjury.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that thevehicle warranty may not cover.
1.Clean the area surrounding the engineoil filler cap before you remove it.
2.Remove the engine oil filler cap.
3.Add engine oil that meets ourspecifications. See Capacities andSpecifications (page 401).
4.Reinstall the engine oil filler cap. Turnit clockwise until you feel a strongresistance.
Note: Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Immediately soak up any oil spillagewith an absorbent cloth.
323
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenanceE270482

RESETTING THE ENGINE OILCHANGE REMINDER
Use the information display controls onthe steering wheel to reset the oil changereminder.
From the main menu scroll to:
Action and DescriptionMessage
Press the right arrow button,then from this menu scrollto the following message.
Settings
Press the right arrow button,then from this menu scrollto the following message.
Conveni-ence
Press the right arrow button,then from this menu scrollto the following message.
Oil LifeReset
Press and hold the OKbutton until the instrumentcluster displays thefollowing message.
Hold OK toReset
Reset Successful
When the oil changereminder resets the instru-ment cluster displays 100%.
Remaining Life
{00}%
If the instrument clusterdisplays one of the followingmessages, repeat theprocess.
Not Reset
Reset Cancelled
ENGINE OIL CAPACITY ANDSPECIFICATION
For filling information, please refer to theCapacities and Specifications section ofyour owner's manual. See Engine OilCapacity and Specification (page 405).
CHECKING THE COOLANT
When the engine is cold, check theconcentration and level of the coolant atthe intervals listed in the scheduledmaintenance information. See ScheduledMaintenance (page 459).
Note:Make sure that the coolant level isbetween the minimum and maximum markson the coolant reservoir.
Note: Coolant expands when it is hot. Thelevel may extend beyond the MAX mark.
If the coolant level is at or below theminimum mark, add prediluted coolantimmediately.
Maintain coolant concentration within48% to 50%, which equates to a freezepoint between -29°F (-34°C) and -35°F(-37°C). Coolant concentration should bechecked using a refractometer. We do notrecommend the use of hydrometers orcoolant test strips for measuring coolantconcentration.
Adding Coolant
WARNING: Keep your hands andclothing clear of the cooling fan.
324
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingMaintenance

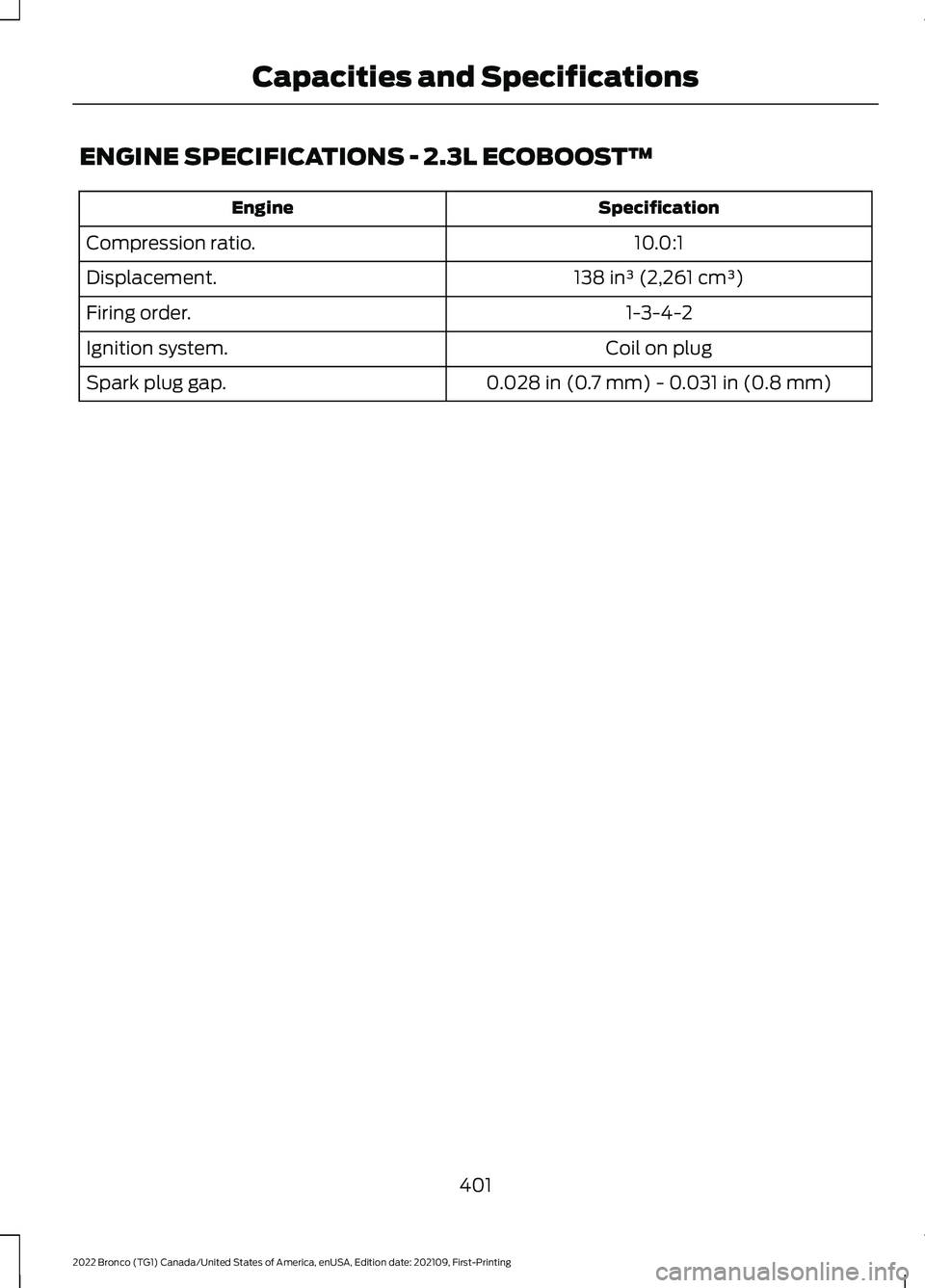

ENGINE SPECIFICATIONS - 2.3L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
138 in³ (2,261 cm³)Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
401
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingCapacities and Specifications

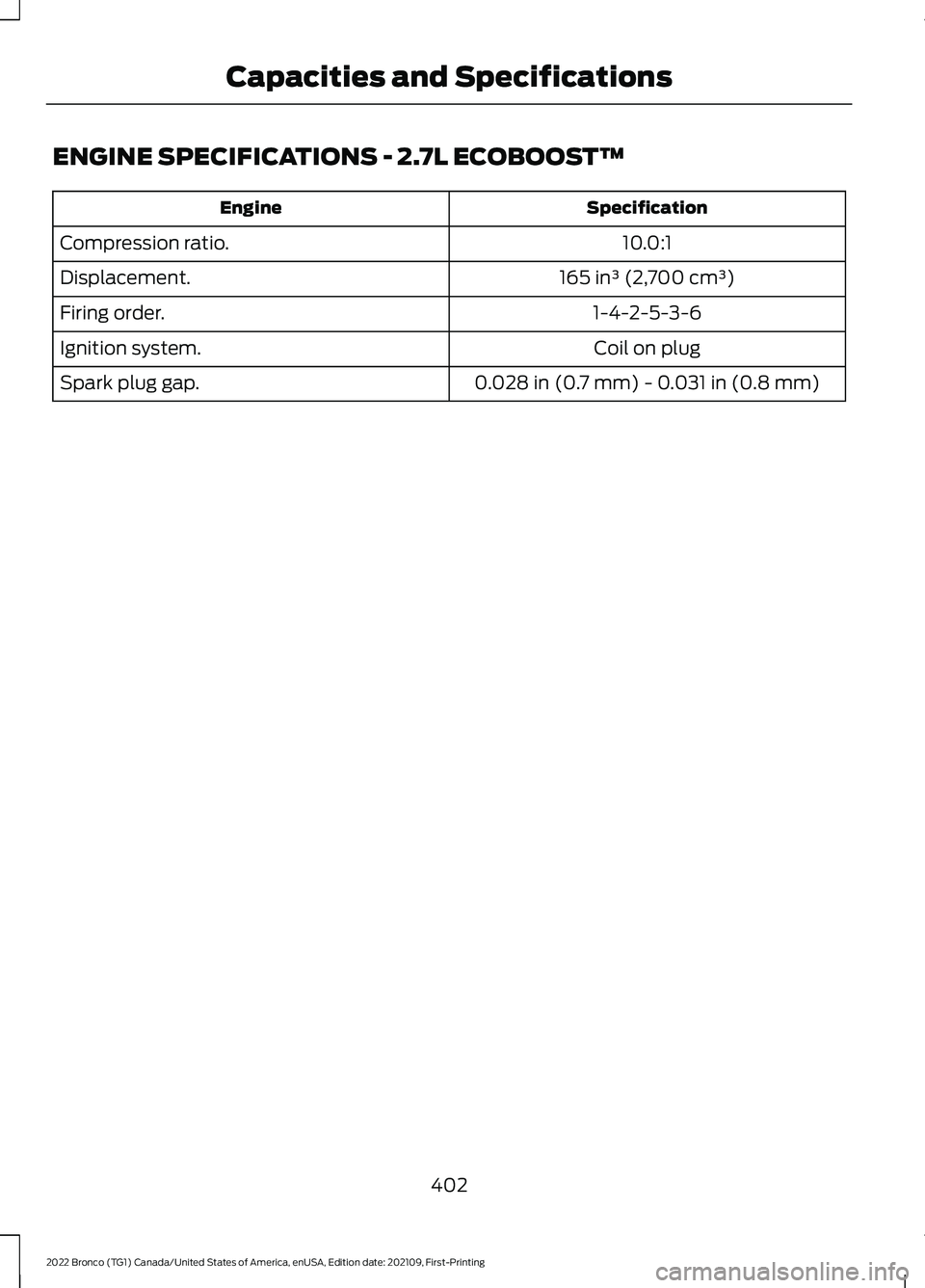

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
165 in³ (2,700 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
402
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingCapacities and Specifications

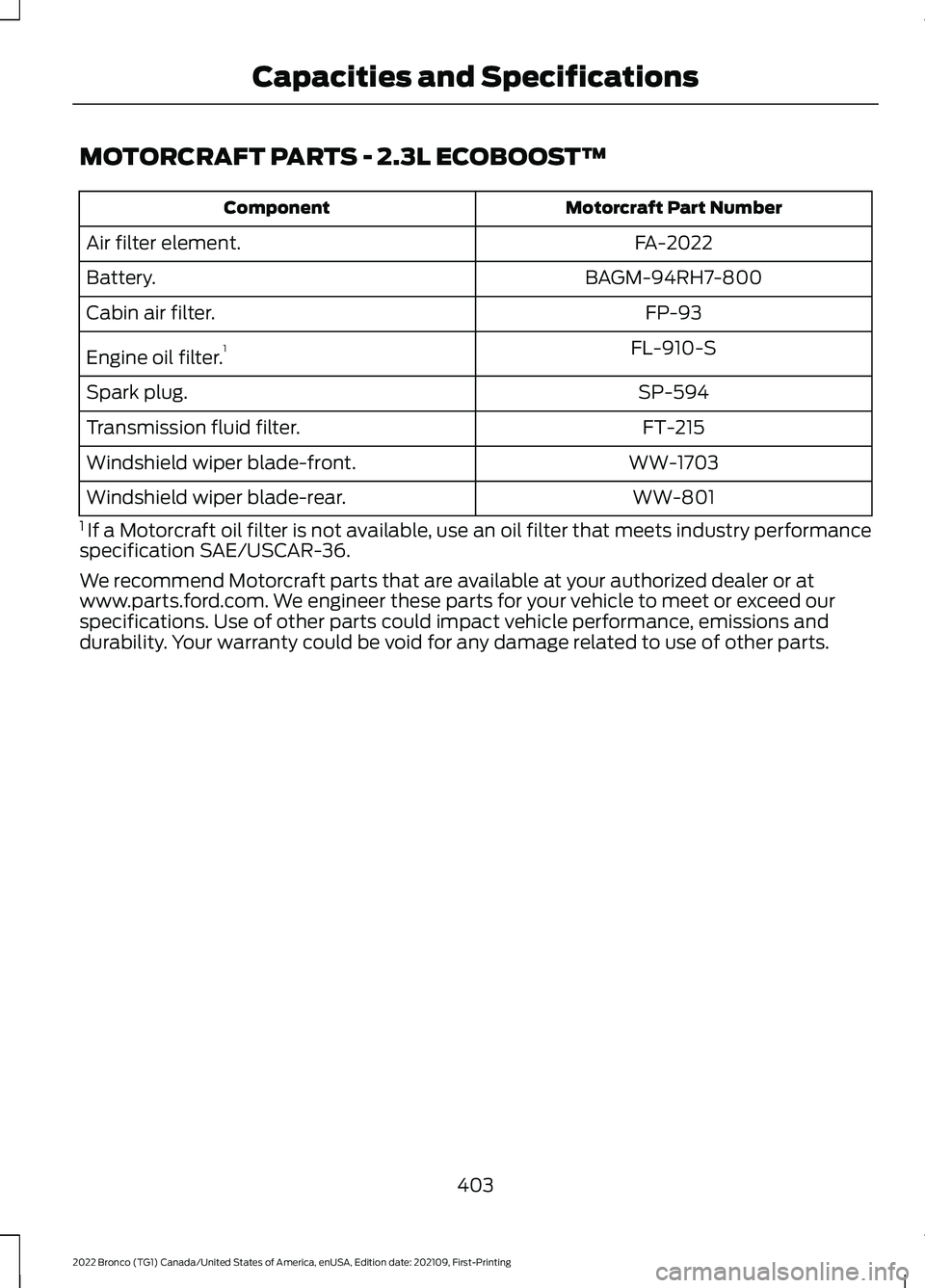

MOTORCRAFT PARTS - 2.3L ECOBOOST™
Motorcraft Part NumberComponent
FA-2022Air filter element.
BAGM-94RH7-800Battery.
FP-93Cabin air filter.
FL-910-SEngine oil filter.1
SP-594Spark plug.
FT-215Transmission fluid filter.
WW-1703Windshield wiper blade-front.
WW-801Windshield wiper blade-rear.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.parts.ford.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
403
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingCapacities and Specifications

MOTORCRAFT PARTS - 2.7L
ECOBOOST™
If a Motorcraft oil filter is not available, usean oil filter that meets industryperformance specificationSAE/USCAR-36.
Motorcraft Part NumberComponent
FA-2022Air filter element.
BAGM-94RH7-800Battery.
FP-93Cabin air filter.
FL-2062-AEngine oil filter.1
SP-594Spark plug.
FT-215Transmission fluid filter.
WW-1703Windshield wiper blade-front.
WW-801Windshield wiper blade-rear.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.parts.ford.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
404
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingCapacities and Specifications

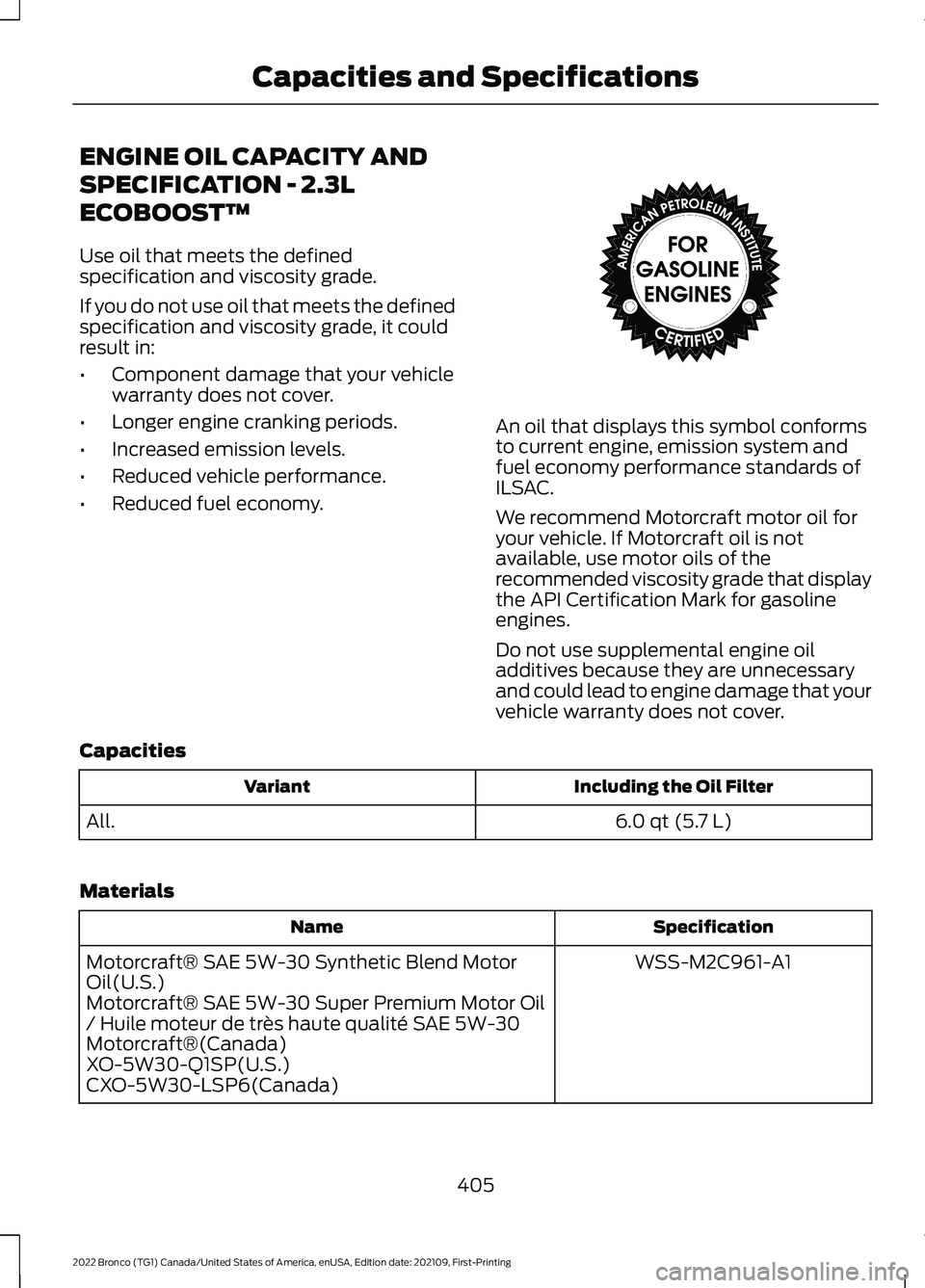

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.3L
ECOBOOST™
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft motor oil foryour vehicle. If Motorcraft oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
6.0 qt (5.7 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
405
2022 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202109, First-PrintingCapacities and SpecificationsE142732

Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,
we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
406
