remote start FORD BRONCO 2023 Owners Manual

Checking the Seatbelts..............................65
Seatbelt Extensions.....................................66
Personal Safety System™
What Is the Personal Safety System...........................................................................67
How Does the Personal Safety SystemWork...............................................................67
Personal Safety System Components...........................................................................67
Airbags
How Do the Front Airbags Work.............68
How Do the Side Airbags Work...............68
How Does the Safety Canopy™ Work..........................................................................69
Airbag Precautions.......................................70
Properly Adjusting the Driver and FrontPassenger Seats.........................................71
Children and Airbags.....................................71
Front Passenger Sensing System............72
Crash Sensors and Airbag Indicator.......75
Disposing of Airbags....................................76
911 Assist
What Is 911 Assist...........................................77
How Does 911 Assist Work..........................77
Emergency Call Requirements.................77
Emergency Call Limitations......................78
Keys and Remote Controls
Remote Control Limitations......................79
Using the Remote Control.........................79
Removing the Key Blade............................80
Sounding the Panic Alarm........................80
Locating Your Vehicle..................................80
Changing the Remote Control Battery..........................................................................80
Replacing a Lost Key or Remote Control...........................................................................81
Programming the Remote Control.........82
Keys and Remote Controls –Troubleshooting........................................83
MyKey™
What Is MyKey...............................................84
MyKey Settings..............................................84
Creating a MyKey..........................................85
Programming a MyKey...............................86
Clearing All MyKeys......................................86
Checking MyKey System Status.............86
Using MyKey With Remote StartSystems........................................................86
MyKey – Troubleshooting..........................86
Doors and Locks
Operating the Doors From Outside YourVehicle..........................................................88
Operating the Doors From Inside YourVehicle..........................................................88
Autounlock......................................................88
Autolock...........................................................89
Mislock..............................................................89
Doors and Locks – Troubleshooting..........................................................................89
Keyless Entry
What Is Keyless Entry...................................91
Keyless Entry Limitations............................91
Keyless Entry Settings..................................91
Using Keyless Entry.......................................91
Keyless Entry – Troubleshooting.............92
Tailgate
Tailgate Precautions....................................93
Opening the Tailgate...................................93
Closing the Tailgate......................................93
Locking and Unlocking the Tailgate.......93
Slide Out Tailgate.........................................95
Tailgate – Troubleshooting.......................95
2
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMTable of Contents

Instrument Cluster Indicators -Excluding: Raptor......................................121
Instrument Cluster Indicators - Raptor.........................................................................123
Instrument Cluster Display
Using the Instrument Cluster DisplayControls.......................................................126
Instrument Cluster Display Main Menu -Excluding: Raptor....................................126
Instrument Cluster Display Main Menu -Raptor...........................................................127
Trip Computer...............................................127
Customizing the Instrument ClusterDisplay..........................................................127
Personalized Settings................................128
Remote Start
What Is Remote Start................................129
Remote Start Precautions.......................129
Remote Start Limitations.........................129
Enabling Remote Start..............................129
Remotely Starting and Stopping theVehicle.........................................................129
Remote Start Remote Control Indicators.........................................................................130
Remote Start Settings..............................130
Climate Control - VehiclesWith: AutomaticTemperature Control
Identifying the Climate Control Unit......131
Switching Climate Control On and Off..........................................................................131
Switching Recirculated Air On and Off..........................................................................131
Switching Air Conditioning On and Off..........................................................................131
Switching Maximum Defrost On and Off..........................................................................131
Switching Maximum Cooling On and Off..........................................................................131
Switching the Heated Rear Window Onand Off.........................................................132
Setting the Blower Motor Speed...........132
Switching the Heated Mirrors On and Off.........................................................................132
Setting the Temperature...........................132
Directing the Flow of Air............................132
Auto Mode......................................................133
Climate Control Hints................................134
Climate Control - VehiclesWith: Manual TemperatureControl
Identifying the Climate Control Unit.....136
Switching Climate Control On and Off.........................................................................136
Switching Recirculated Air On and Off.........................................................................136
Switching Air Conditioning On and Off.........................................................................136
Switching Maximum Defrost On and Off.........................................................................136
Switching Maximum Cooling On and Off.........................................................................136
Switching the Heated Rear Window Onand Off.........................................................137
Setting the Blower Motor Speed............137
Switching the Heated Mirrors On and Off.........................................................................137
Setting the Temperature...........................137
Directing the Flow of Air............................138
Climate Control Hints................................138
Interior Air Quality
What Is the Cabin Air Filter......................139
Replacing the Cabin Air Filter..................139
Front Seats
Front Seat Precautions.............................140
Sitting in the Correct Position................140
Manual Seats.................................................141
Power Seats...................................................143
4
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMTable of Contents

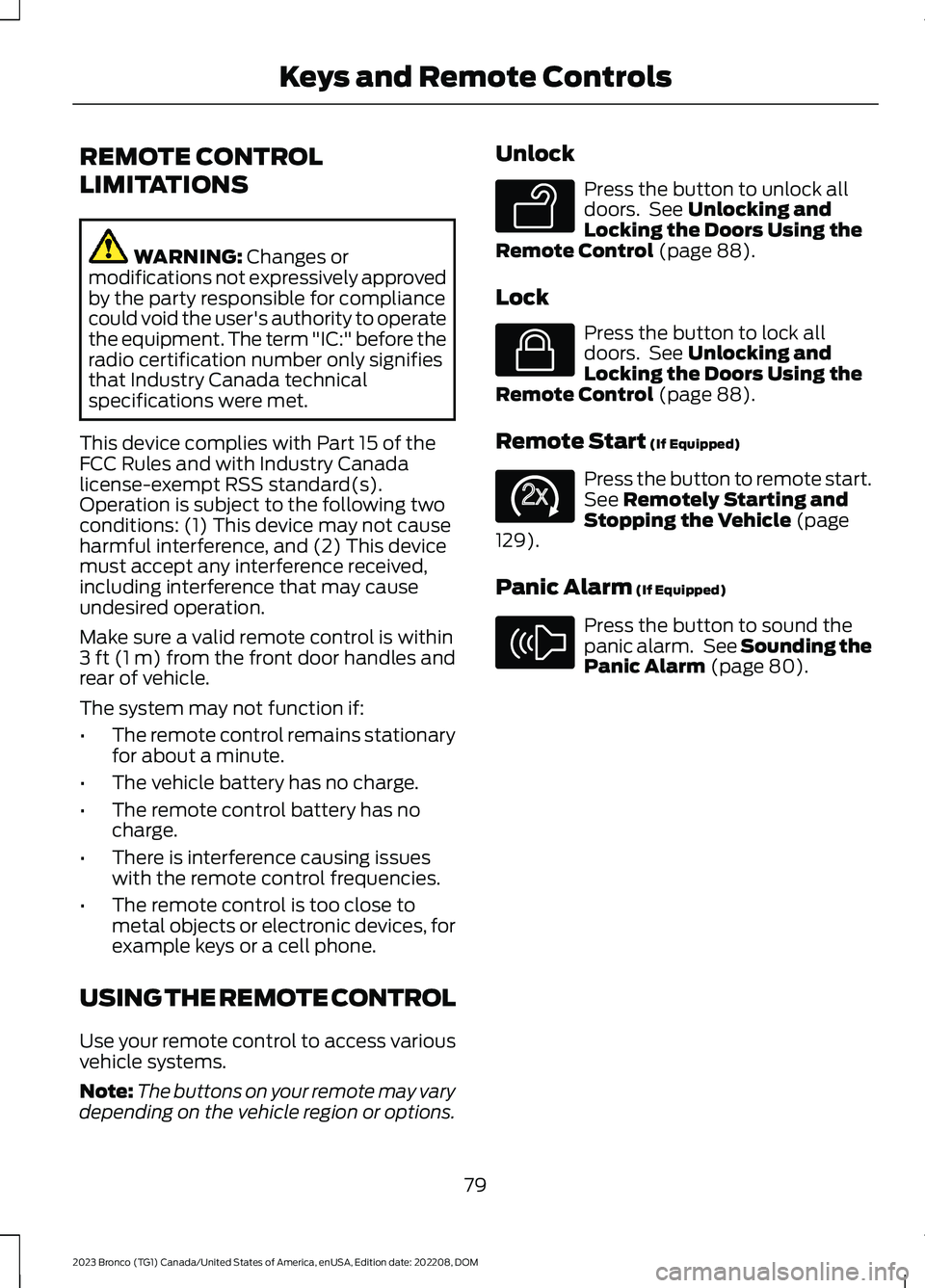

REMOTE CONTROL
LIMITATIONS
WARNING: Changes ormodifications not expressively approvedby the party responsible for compliancecould void the user's authority to operatethe equipment. The term "IC:" before theradio certification number only signifiesthat Industry Canada technicalspecifications were met.
This device complies with Part 15 of theFCC Rules and with Industry Canadalicense-exempt RSS standard(s).Operation is subject to the following twoconditions: (1) This device may not causeharmful interference, and (2) This devicemust accept any interference received,including interference that may causeundesired operation.
Make sure a valid remote control is within3 ft (1 m) from the front door handles andrear of vehicle.
The system may not function if:
•The remote control remains stationaryfor about a minute.
•The vehicle battery has no charge.
•The remote control battery has nocharge.
•There is interference causing issueswith the remote control frequencies.
•The remote control is too close tometal objects or electronic devices, forexample keys or a cell phone.
USING THE REMOTE CONTROL
Use your remote control to access variousvehicle systems.
Note:The buttons on your remote may varydepending on the vehicle region or options.
Unlock
Press the button to unlock alldoors. See Unlocking andLocking the Doors Using theRemote Control (page 88).
Lock
Press the button to lock alldoors. See Unlocking andLocking the Doors Using theRemote Control (page 88).
Remote Start (If Equipped)
Press the button to remote start.See Remotely Starting andStopping the Vehicle (page129).
Panic Alarm (If Equipped)
Press the button to sound thepanic alarm. See Sounding thePanic Alarm (page 80).
79
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMKeys and Remote ControlsE138629 E138623 E138625 E138624

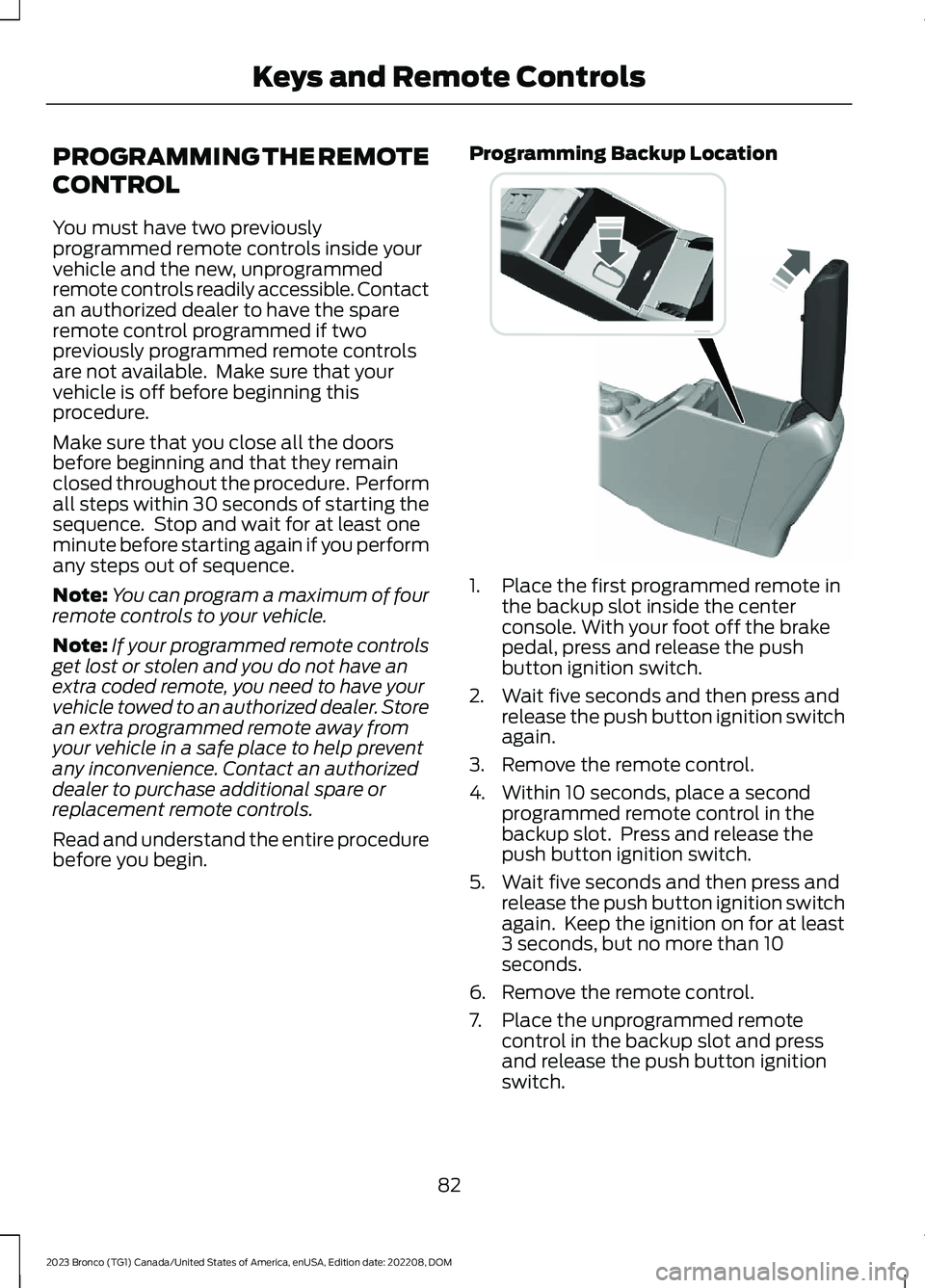

PROGRAMMING THE REMOTE
CONTROL
You must have two previouslyprogrammed remote controls inside yourvehicle and the new, unprogrammedremote controls readily accessible. Contactan authorized dealer to have the spareremote control programmed if twopreviously programmed remote controlsare not available. Make sure that yourvehicle is off before beginning thisprocedure.
Make sure that you close all the doorsbefore beginning and that they remainclosed throughout the procedure. Performall steps within 30 seconds of starting thesequence. Stop and wait for at least oneminute before starting again if you performany steps out of sequence.
Note:You can program a maximum of fourremote controls to your vehicle.
Note:If your programmed remote controlsget lost or stolen and you do not have anextra coded remote, you need to have yourvehicle towed to an authorized dealer. Storean extra programmed remote away fromyour vehicle in a safe place to help preventany inconvenience. Contact an authorizeddealer to purchase additional spare orreplacement remote controls.
Read and understand the entire procedurebefore you begin.
Programming Backup Location
1.Place the first programmed remote inthe backup slot inside the centerconsole. With your foot off the brakepedal, press and release the pushbutton ignition switch.
2.Wait five seconds and then press andrelease the push button ignition switchagain.
3.Remove the remote control.
4.Within 10 seconds, place a secondprogrammed remote control in thebackup slot. Press and release thepush button ignition switch.
5.Wait five seconds and then press andrelease the push button ignition switchagain. Keep the ignition on for at least3 seconds, but no more than 10seconds.
6.Remove the remote control.
7.Place the unprogrammed remotecontrol in the backup slot and pressand release the push button ignitionswitch.
82
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMKeys and Remote Controls E327286

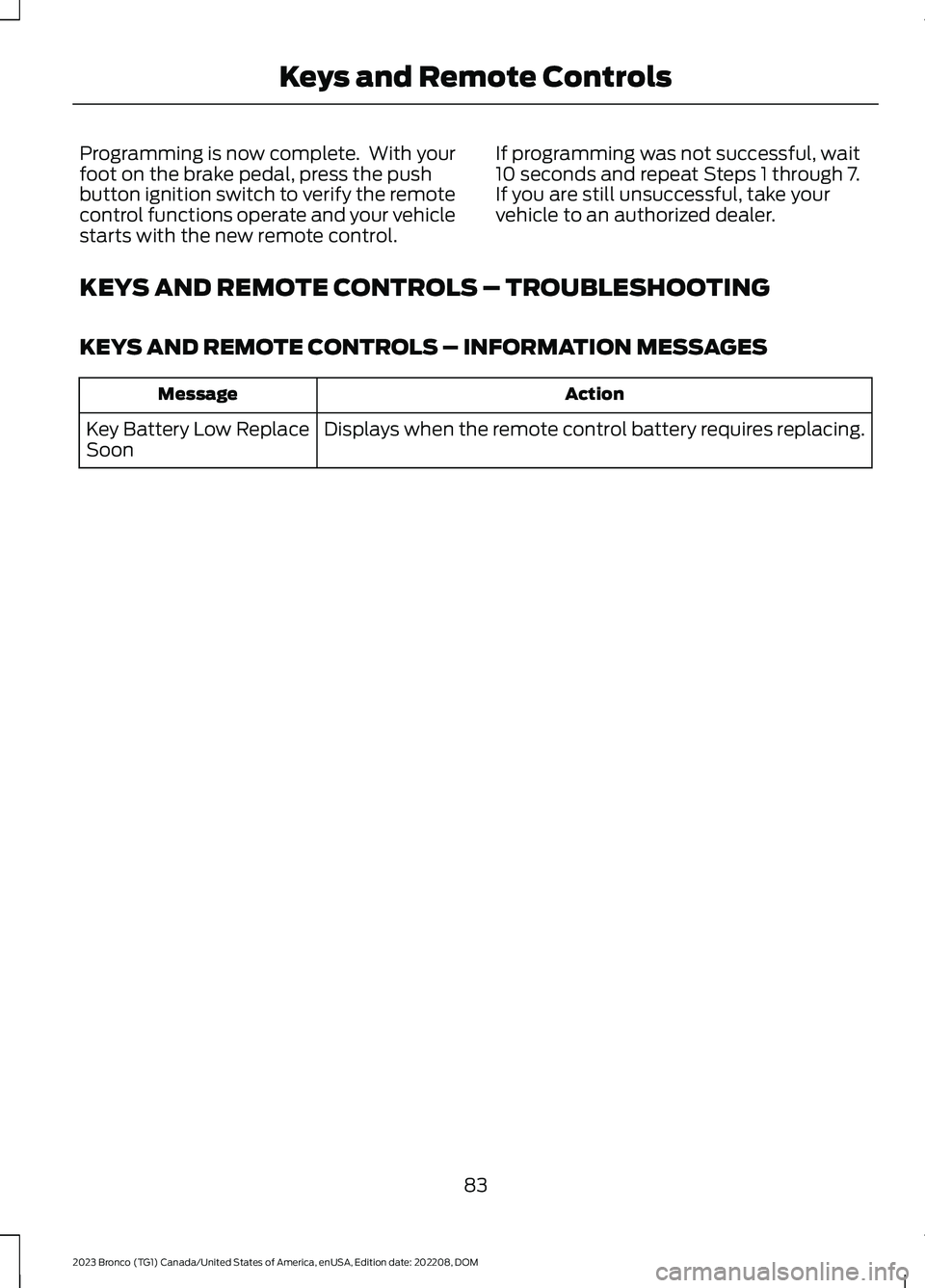

Programming is now complete. With yourfoot on the brake pedal, press the pushbutton ignition switch to verify the remotecontrol functions operate and your vehiclestarts with the new remote control.
If programming was not successful, wait10 seconds and repeat Steps 1 through 7.If you are still unsuccessful, take yourvehicle to an authorized dealer.
KEYS AND REMOTE CONTROLS – TROUBLESHOOTING
KEYS AND REMOTE CONTROLS – INFORMATION MESSAGES
ActionMessage
Displays when the remote control battery requires replacing.Key Battery Low ReplaceSoon
83
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMKeys and Remote Controls

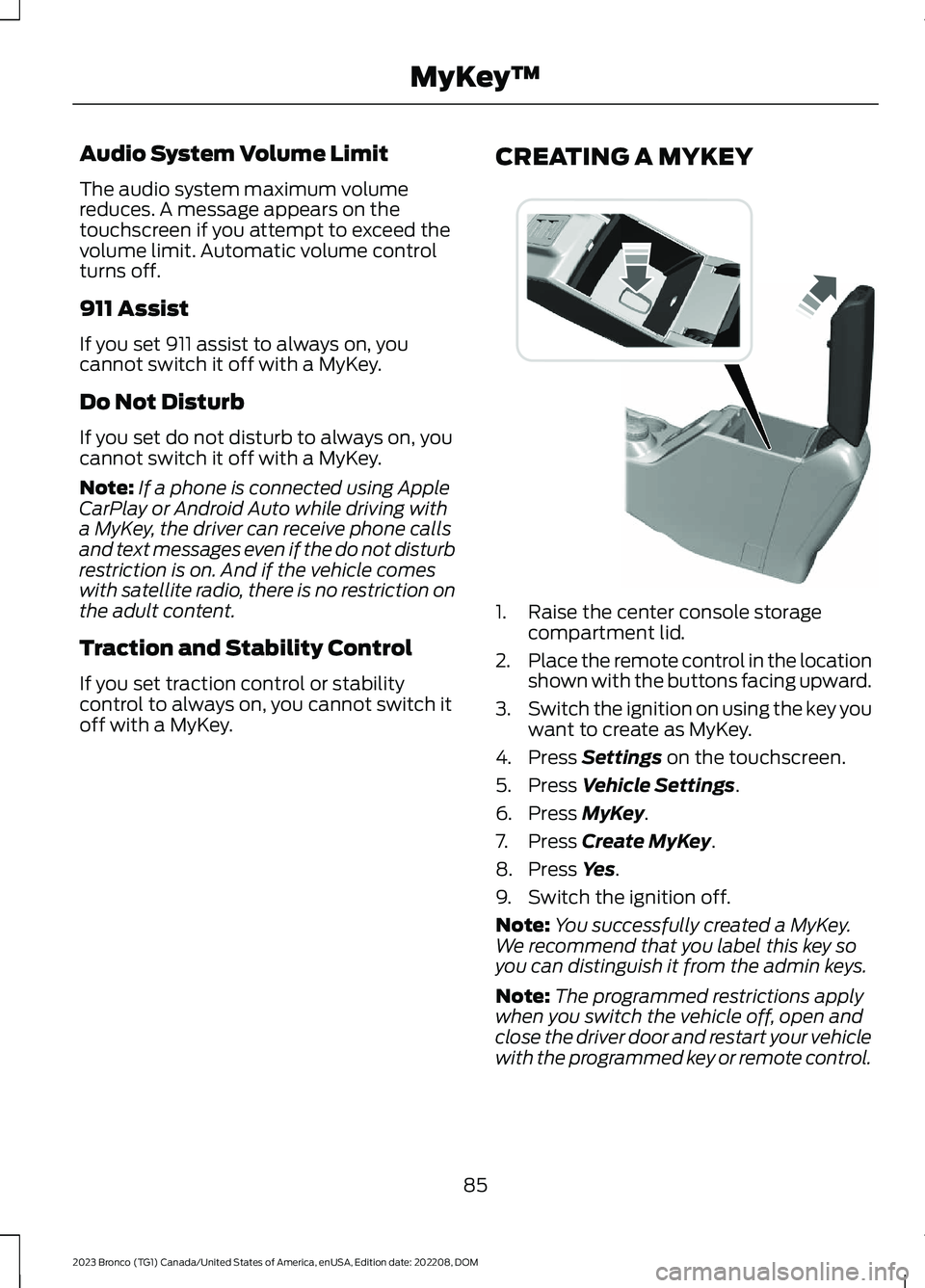

Audio System Volume Limit
The audio system maximum volumereduces. A message appears on thetouchscreen if you attempt to exceed thevolume limit. Automatic volume controlturns off.
911 Assist
If you set 911 assist to always on, youcannot switch it off with a MyKey.
Do Not Disturb
If you set do not disturb to always on, youcannot switch it off with a MyKey.
Note:If a phone is connected using AppleCarPlay or Android Auto while driving witha MyKey, the driver can receive phone callsand text messages even if the do not disturbrestriction is on. And if the vehicle comeswith satellite radio, there is no restriction onthe adult content.
Traction and Stability Control
If you set traction control or stabilitycontrol to always on, you cannot switch itoff with a MyKey.
CREATING A MYKEY
1.Raise the center console storagecompartment lid.
2.Place the remote control in the locationshown with the buttons facing upward.
3.Switch the ignition on using the key youwant to create as MyKey.
4.Press Settings on the touchscreen.
5.Press Vehicle Settings.
6.Press MyKey.
7.Press Create MyKey.
8.Press Yes.
9.Switch the ignition off.
Note:You successfully created a MyKey.We recommend that you label this key soyou can distinguish it from the admin keys.
Note:The programmed restrictions applywhen you switch the vehicle off, open andclose the driver door and restart your vehiclewith the programmed key or remote control.
85
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMMyKey™ E327286

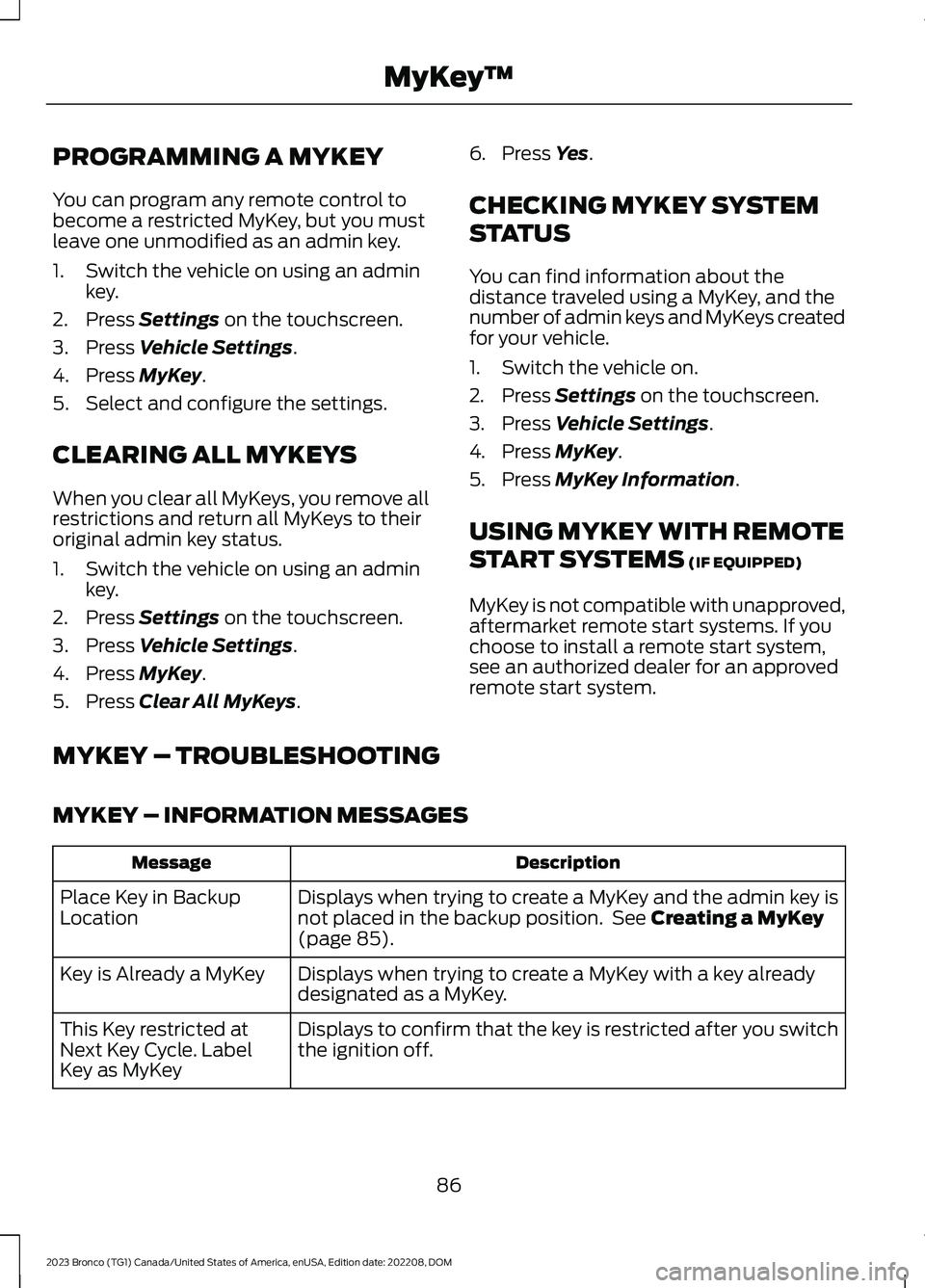

PROGRAMMING A MYKEY
You can program any remote control tobecome a restricted MyKey, but you mustleave one unmodified as an admin key.
1.Switch the vehicle on using an adminkey.
2.Press Settings on the touchscreen.
3.Press Vehicle Settings.
4.Press MyKey.
5.Select and configure the settings.
CLEARING ALL MYKEYS
When you clear all MyKeys, you remove allrestrictions and return all MyKeys to theiroriginal admin key status.
1.Switch the vehicle on using an adminkey.
2.Press Settings on the touchscreen.
3.Press Vehicle Settings.
4.Press MyKey.
5.Press Clear All MyKeys.
6.Press Yes.
CHECKING MYKEY SYSTEM
STATUS
You can find information about thedistance traveled using a MyKey, and thenumber of admin keys and MyKeys createdfor your vehicle.
1.Switch the vehicle on.
2.Press Settings on the touchscreen.
3.Press Vehicle Settings.
4.Press MyKey.
5.Press MyKey Information.
USING MYKEY WITH REMOTE
START SYSTEMS (IF EQUIPPED)
MyKey is not compatible with unapproved,aftermarket remote start systems. If youchoose to install a remote start system,see an authorized dealer for an approvedremote start system.
MYKEY – TROUBLESHOOTING
MYKEY – INFORMATION MESSAGES
DescriptionMessage
Displays when trying to create a MyKey and the admin key isnot placed in the backup position. See Creating a MyKey(page 85).
Place Key in BackupLocation
Displays when trying to create a MyKey with a key alreadydesignated as a MyKey.Key is Already a MyKey
Displays to confirm that the key is restricted after you switchthe ignition off.This Key restricted atNext Key Cycle. LabelKey as MyKey
86
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMMyKey™

AUTOLOCK
WHAT IS AUTOLOCK
Autolock is a locking feature that locksyour vehicle doors when you start driving.
AUTOLOCK REQUIREMENTS
Autolock locks all the doors when all of thefollowing occur:
•All doors are closed.
•The ignition is on.
•Your vehicle reaches a speed greaterthan 12 mph (20 km/h).
MISLOCK
WHAT IS MISLOCK
Mislock is a locking feature that warns youif your vehicle has not locked.
MISLOCK LIMITATIONS
When you press the lock button once, theturn signals do not flash if:
•Any door or the tailgate is open.
•The hood is open.
If you switch mislock off, the horn does notsound if you press the lock button on theremote control when a door is open.
SWITCHING MISLOCK ON ANDOFF
1.Press Settings on the touchscreen.
2.Press Vehicle Settings.
3.Press Locks.
4.Switch Mislock Chirp on or off.
DOORS AND LOCKS –
TROUBLESHOOTING
DOORS AND LOCKS – WARNINGLAMPS
Door Ajar Warning Lamp
Illuminates when you switch theignition on and remains on if anydoor or the hood is open.
DOORS AND LOCKS – INFORMATION MESSAGES
ActionMessage
Displays if a door is open. Fully close the door.Driver Door Ajar
Passenger Door Ajar
Rear Left Door Ajar
Rear Right Door Ajar
Displays if a hood is open. Fully close the hood.Hood Ajar
89
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMDoors and LocksE249859

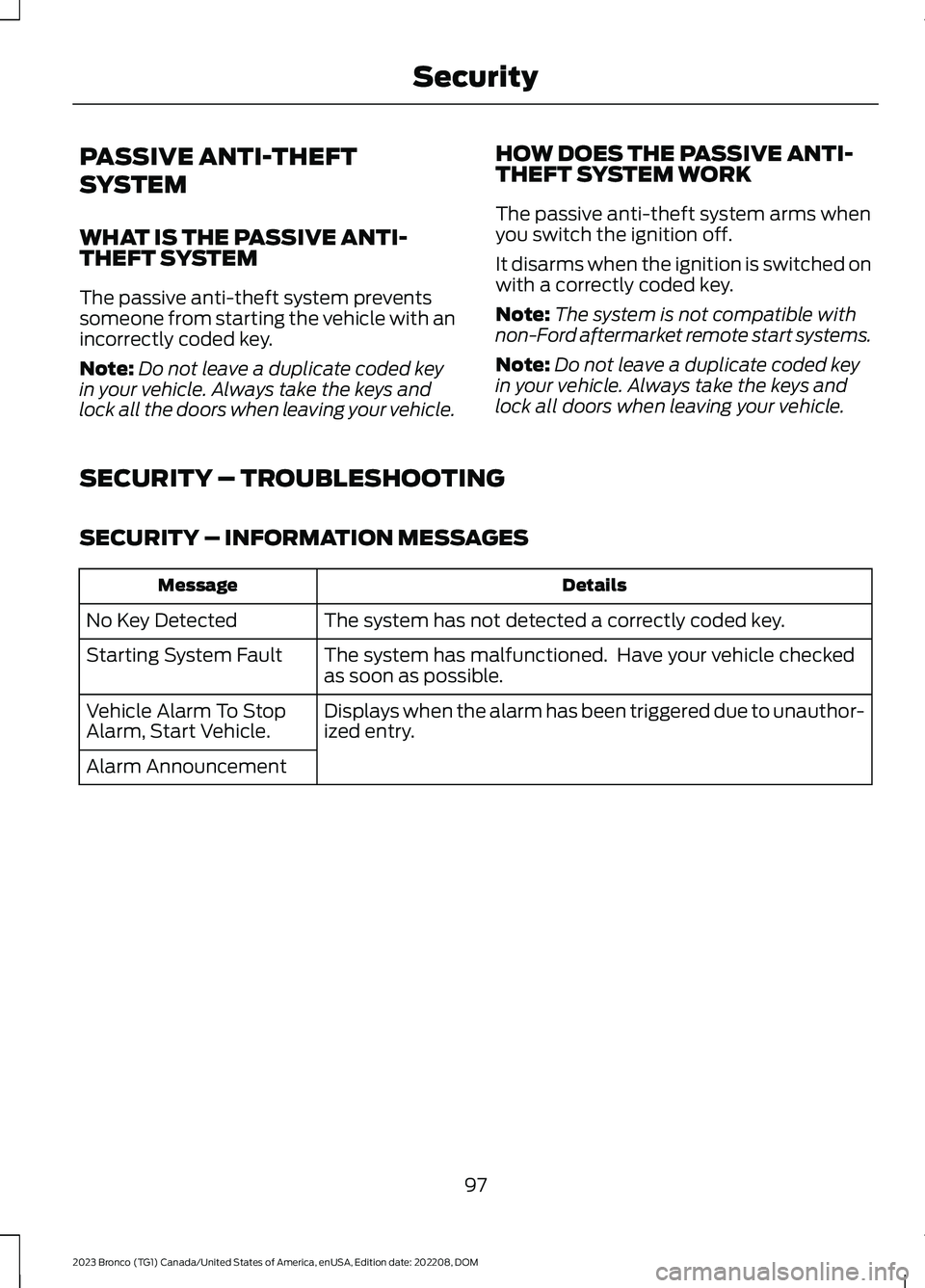

PASSIVE ANTI-THEFT
SYSTEM
WHAT IS THE PASSIVE ANTI-THEFT SYSTEM
The passive anti-theft system preventssomeone from starting the vehicle with anincorrectly coded key.
Note:Do not leave a duplicate coded keyin your vehicle. Always take the keys andlock all the doors when leaving your vehicle.
HOW DOES THE PASSIVE ANTI-THEFT SYSTEM WORK
The passive anti-theft system arms whenyou switch the ignition off.
It disarms when the ignition is switched onwith a correctly coded key.
Note:The system is not compatible withnon-Ford aftermarket remote start systems.
Note:Do not leave a duplicate coded keyin your vehicle. Always take the keys andlock all doors when leaving your vehicle.
SECURITY – TROUBLESHOOTING
SECURITY – INFORMATION MESSAGES
DetailsMessage
The system has not detected a correctly coded key.No Key Detected
The system has malfunctioned. Have your vehicle checkedas soon as possible.Starting System Fault
Displays when the alarm has been triggered due to unauthor-ized entry.Vehicle Alarm To StopAlarm, Start Vehicle.
Alarm Announcement
97
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMSecurity

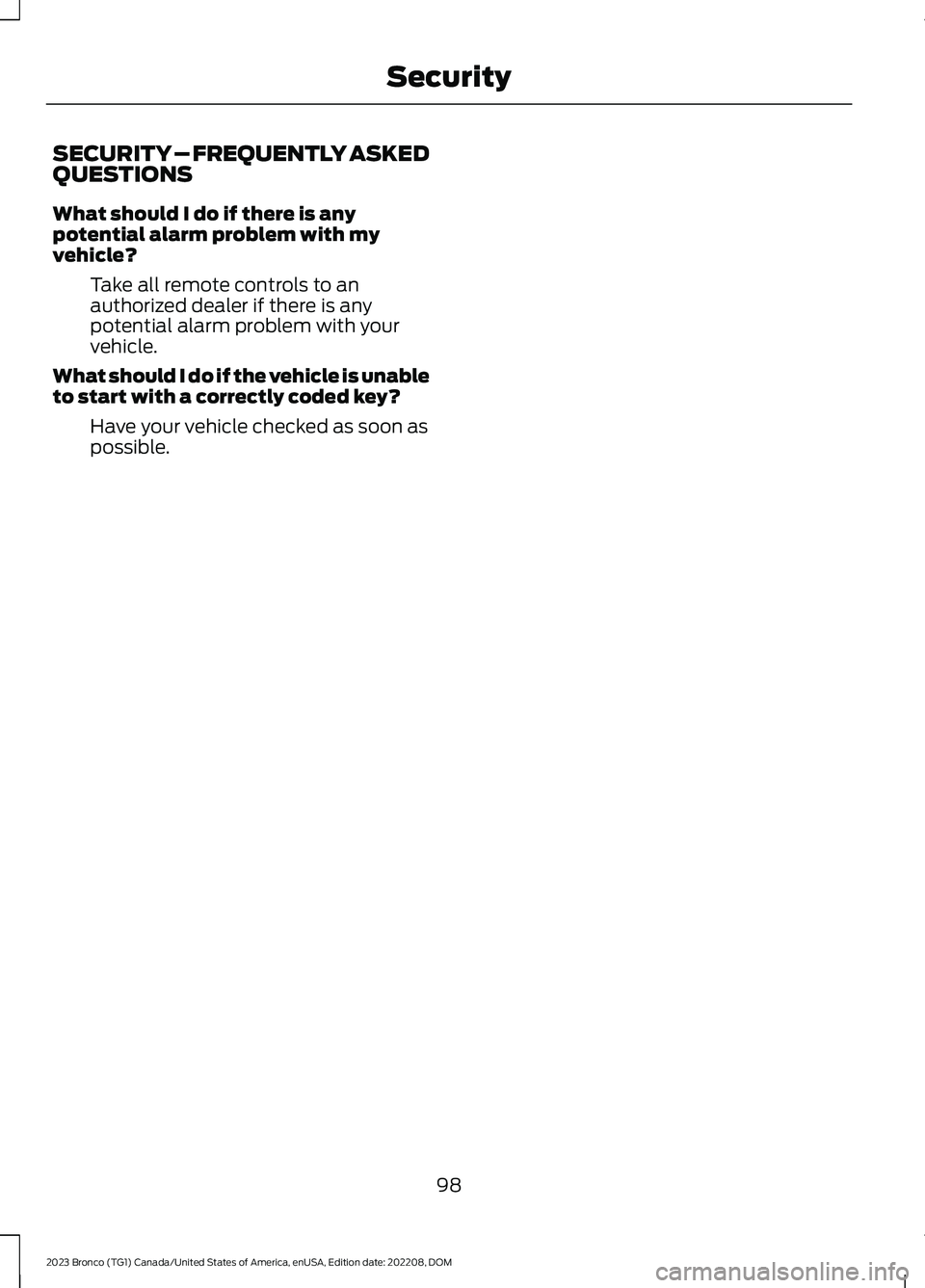

SECURITY – FREQUENTLY ASKEDQUESTIONS
What should I do if there is anypotential alarm problem with myvehicle?
Take all remote controls to anauthorized dealer if there is anypotential alarm problem with yourvehicle.
What should I do if the vehicle is unableto start with a correctly coded key?
Have your vehicle checked as soon aspossible.
98
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMSecurity
