4.Pull both latches toward you andremove the fuse box.
5.Turn the fuse box over and open thelid.

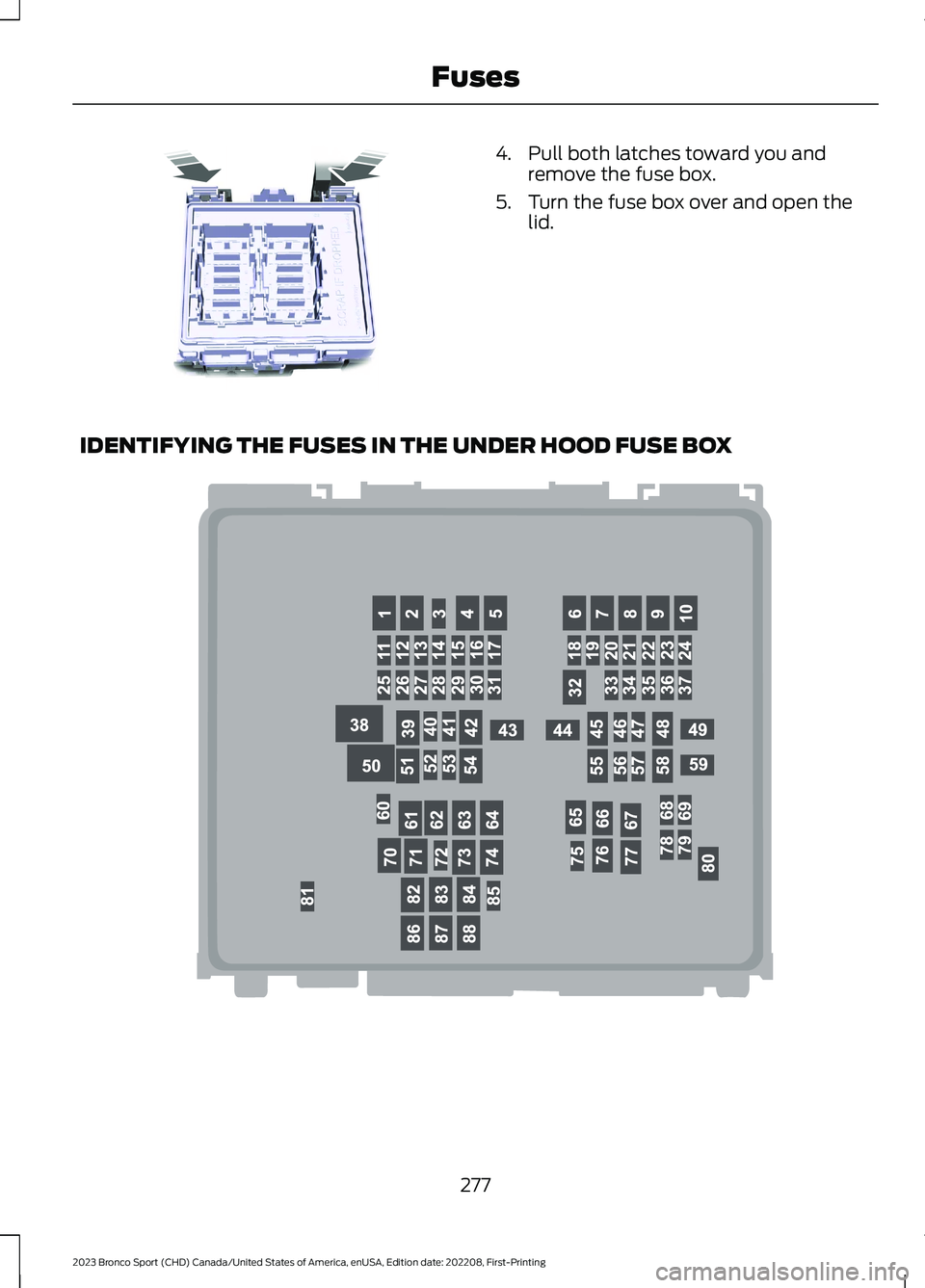

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
277
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFusesE253693 E292669

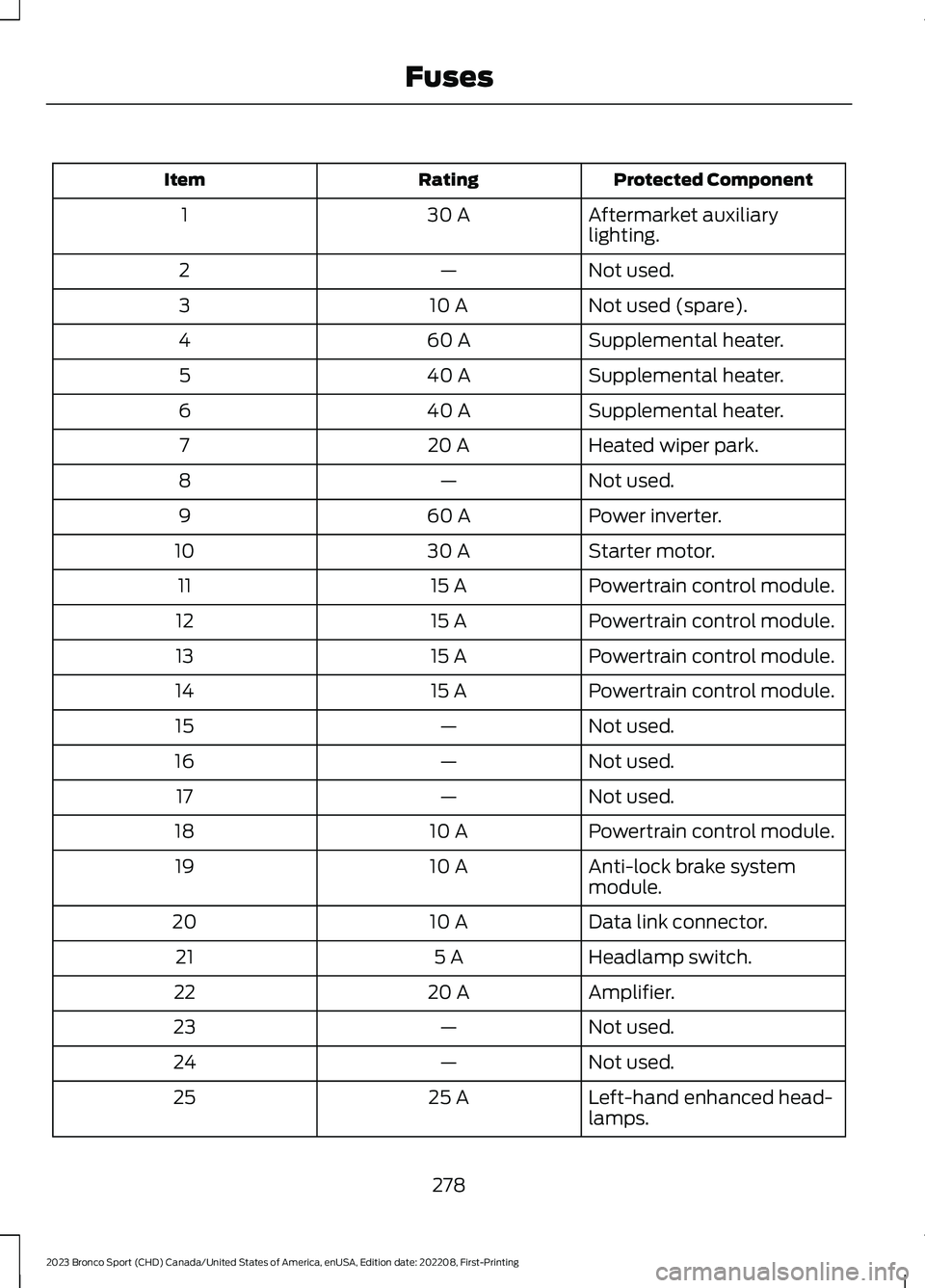

Protected ComponentRatingItem
Aftermarket auxiliarylighting.30 A1
Not used.—2
Not used (spare).10 A3
Supplemental heater.60 A4
Supplemental heater.40 A5
Supplemental heater.40 A6
Heated wiper park.20 A7
Not used.—8
Power inverter.60 A9
Starter motor.30 A10
Powertrain control module.15 A11
Powertrain control module.15 A12
Powertrain control module.15 A13
Powertrain control module.15 A14
Not used.—15
Not used.—16
Not used.—17
Powertrain control module.10 A18
Anti-lock brake systemmodule.10 A19
Data link connector.10 A20
Headlamp switch.5 A21
Amplifier.20 A22
Not used.—23
Not used.—24
Left-hand enhanced head-lamps.25 A25
278
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFuses

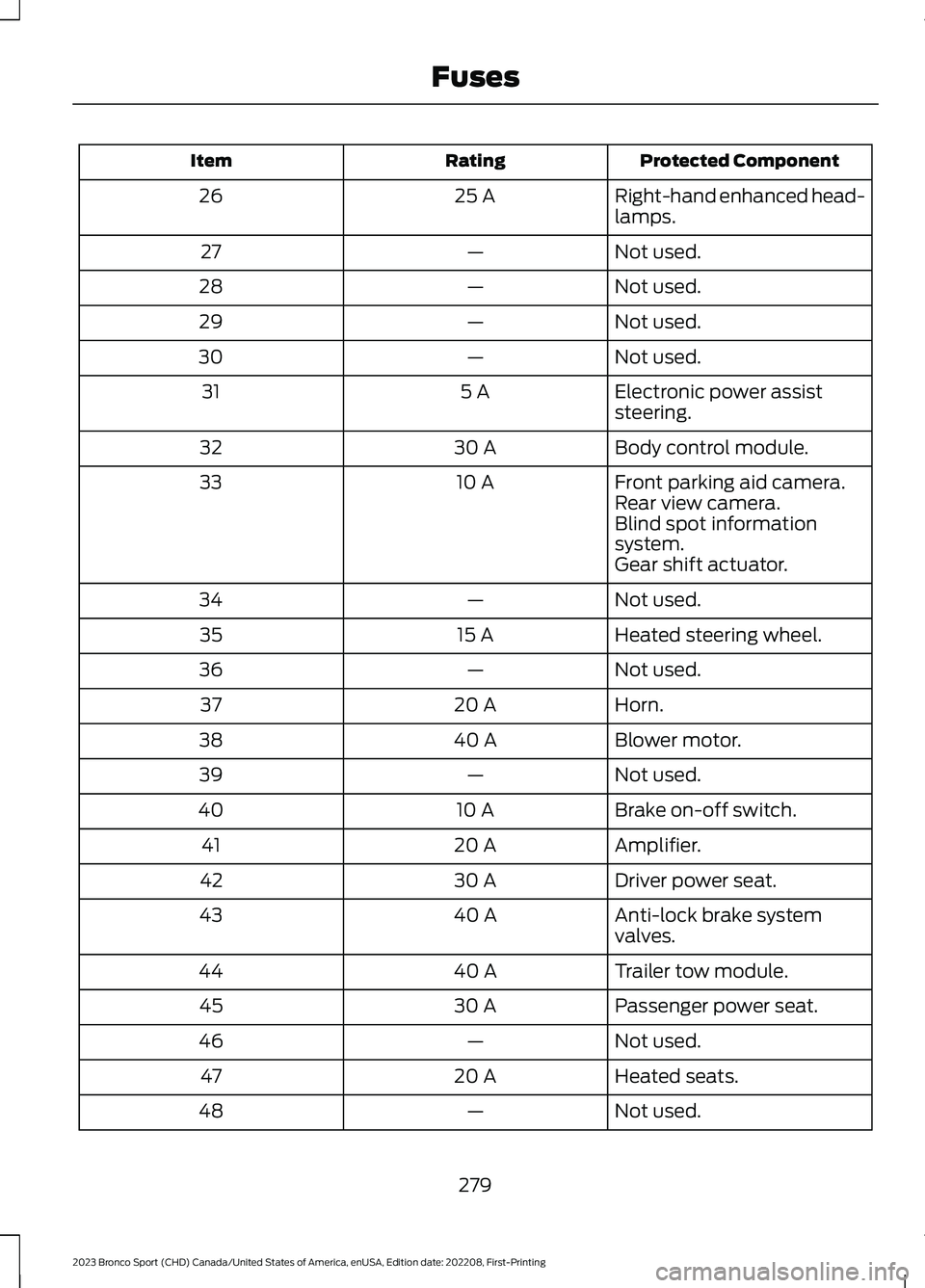

Protected ComponentRatingItem
Right-hand enhanced head-lamps.25 A26
Not used.—27
Not used.—28
Not used.—29
Not used.—30
Electronic power assiststeering.5 A31
Body control module.30 A32
Front parking aid camera.10 A33Rear view camera.Blind spot informationsystem.Gear shift actuator.
Not used.—34
Heated steering wheel.15 A35
Not used.—36
Horn.20 A37
Blower motor.40 A38
Not used.—39
Brake on-off switch.10 A40
Amplifier.20 A41
Driver power seat.30 A42
Anti-lock brake systemvalves.40 A43
Trailer tow module.40 A44
Passenger power seat.30 A45
Not used.—46
Heated seats.20 A47
Not used.—48
279
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFuses

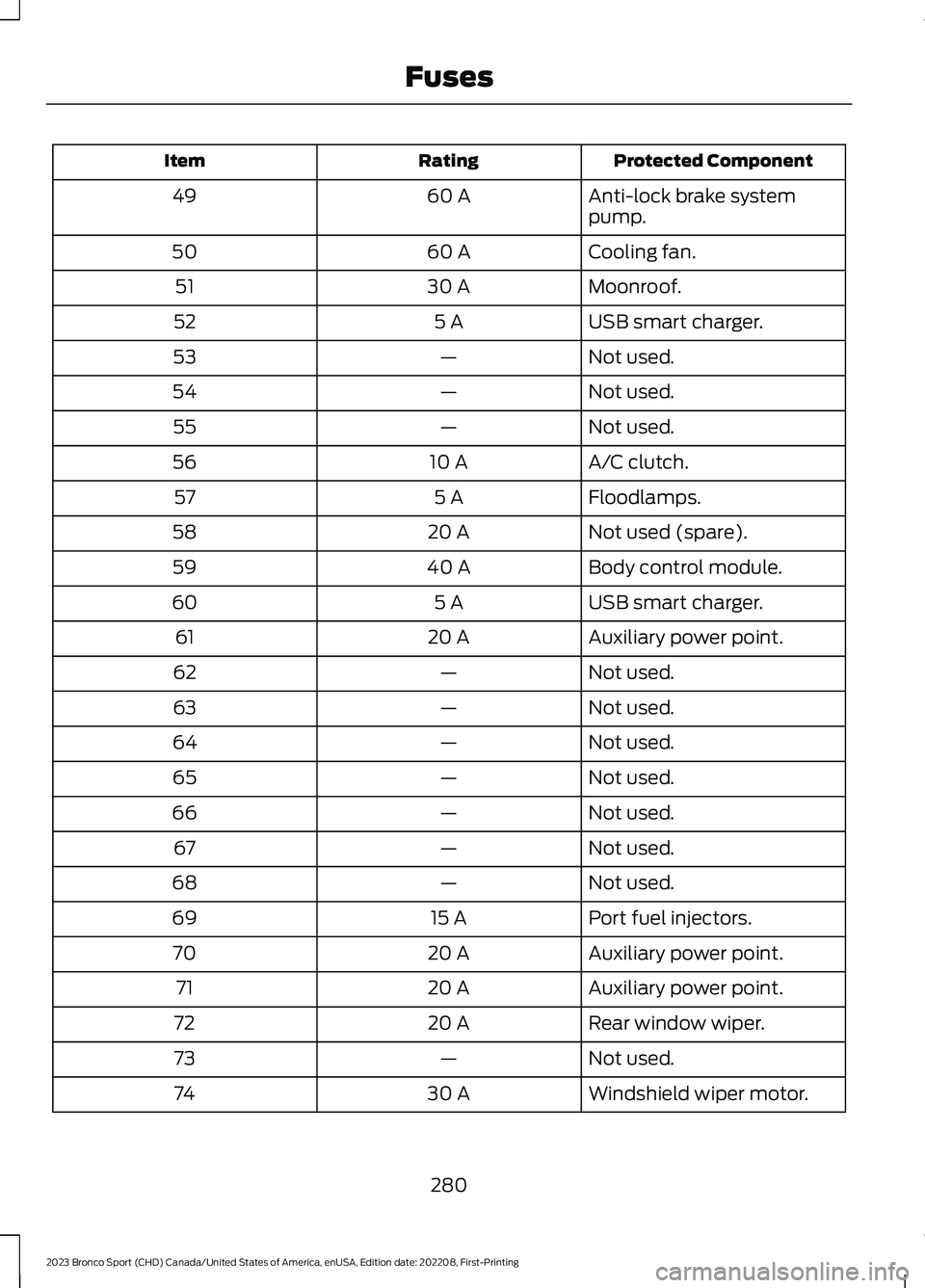

Protected ComponentRatingItem
Anti-lock brake systempump.60 A49
Cooling fan.60 A50
Moonroof.30 A51
USB smart charger.5 A52
Not used.—53
Not used.—54
Not used.—55
A/C clutch.10 A56
Floodlamps.5 A57
Not used (spare).20 A58
Body control module.40 A59
USB smart charger.5 A60
Auxiliary power point.20 A61
Not used.—62
Not used.—63
Not used.—64
Not used.—65
Not used.—66
Not used.—67
Not used.—68
Port fuel injectors.15 A69
Auxiliary power point.20 A70
Auxiliary power point.20 A71
Rear window wiper.20 A72
Not used.—73
Windshield wiper motor.30 A74
280
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFuses

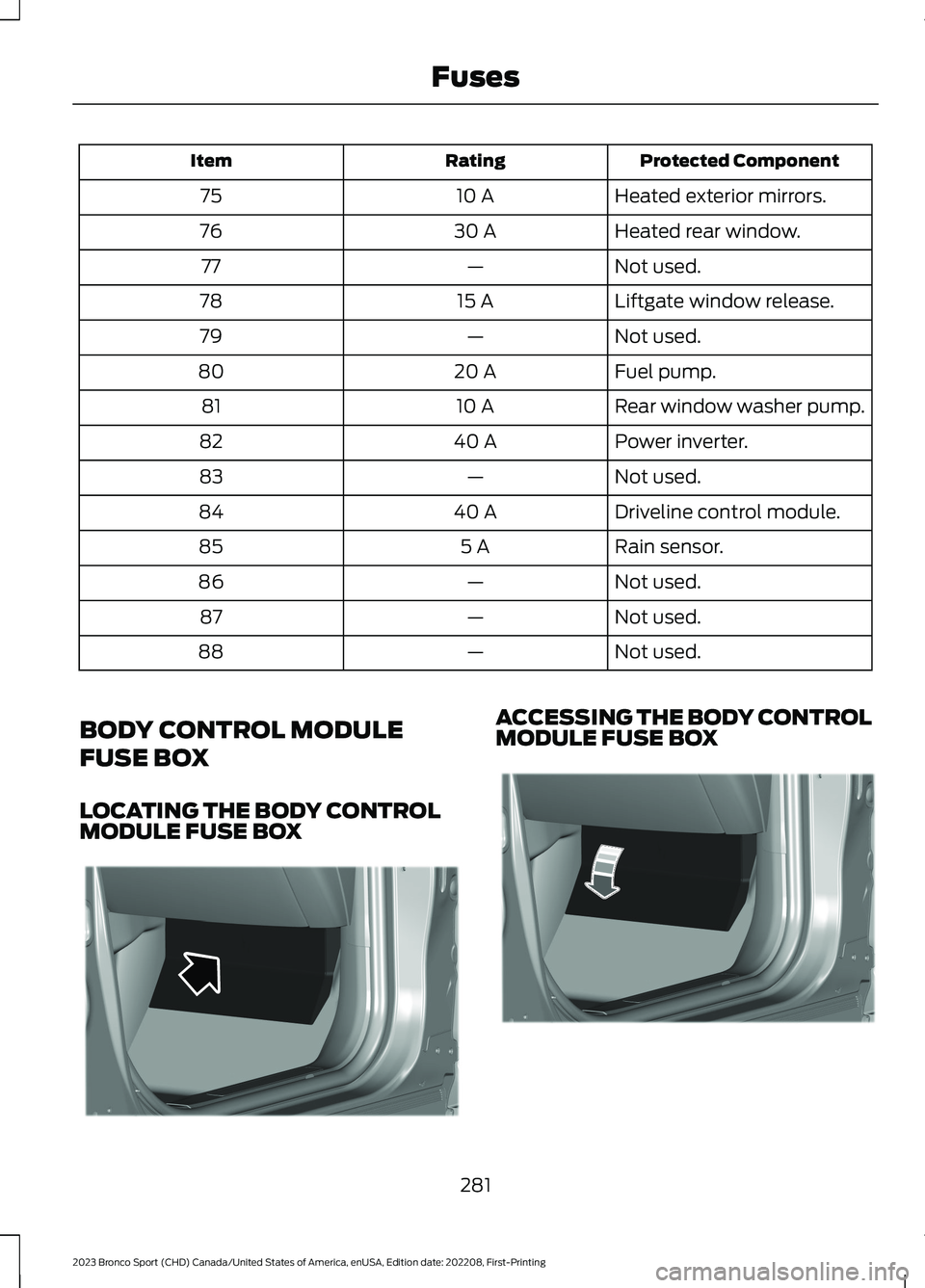

Protected ComponentRatingItem
Heated exterior mirrors.10 A75
Heated rear window.30 A76
Not used.—77
Liftgate window release.15 A78
Not used.—79
Fuel pump.20 A80
Rear window washer pump.10 A81
Power inverter.40 A82
Not used.—83
Driveline control module.40 A84
Rain sensor.5 A85
Not used.—86
Not used.—87
Not used.—88
BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
281
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFusesE329070 E329071

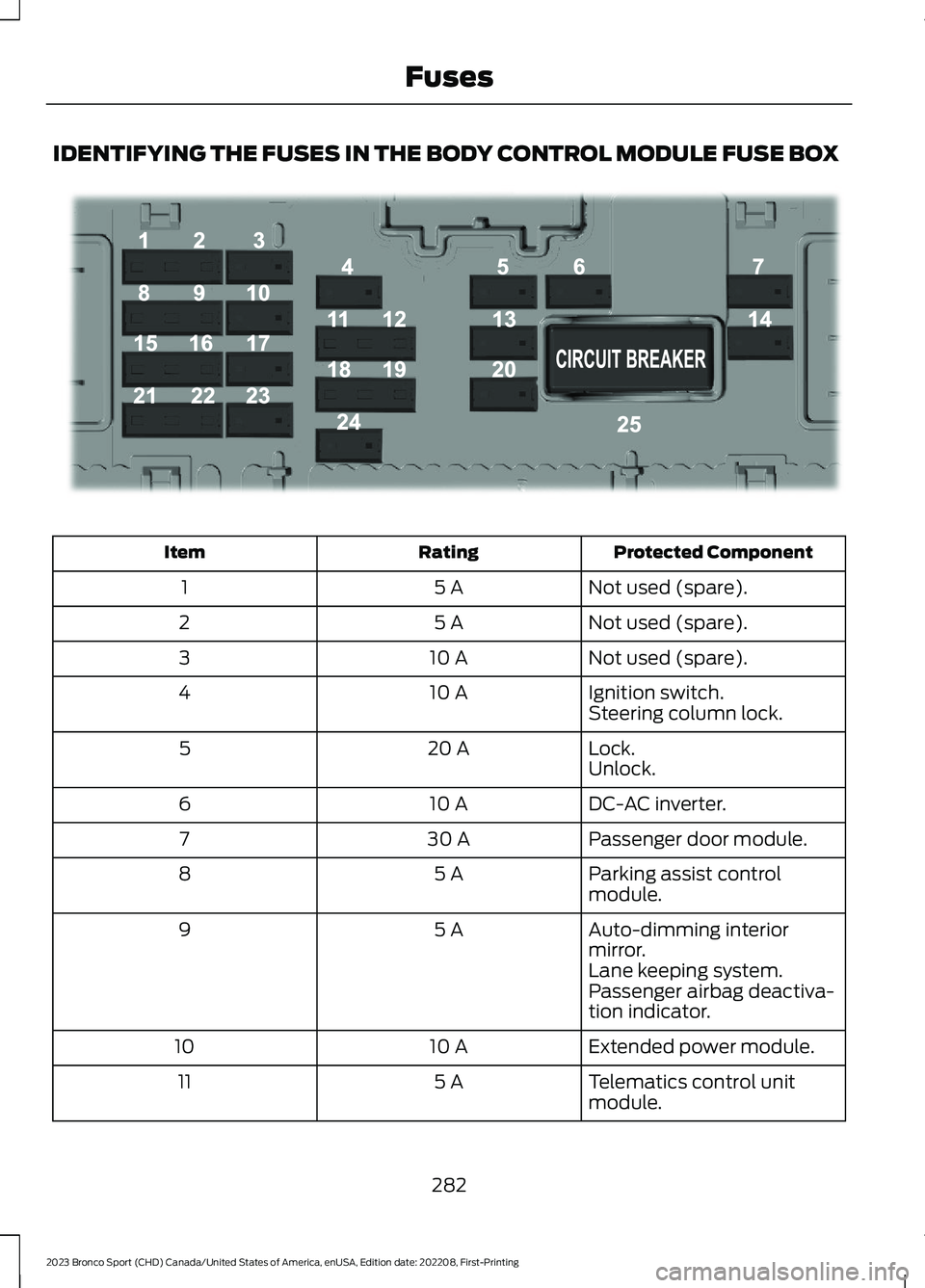

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentRatingItem
Not used (spare).5 A1
Not used (spare).5 A2
Not used (spare).10 A3
Ignition switch.10 A4Steering column lock.
Lock.20 A5Unlock.
DC-AC inverter.10 A6
Passenger door module.30 A7
Parking assist controlmodule.5 A8
Auto-dimming interiormirror.5 A9
Lane keeping system.Passenger airbag deactiva-tion indicator.
Extended power module.10 A10
Telematics control unitmodule.5 A11
282

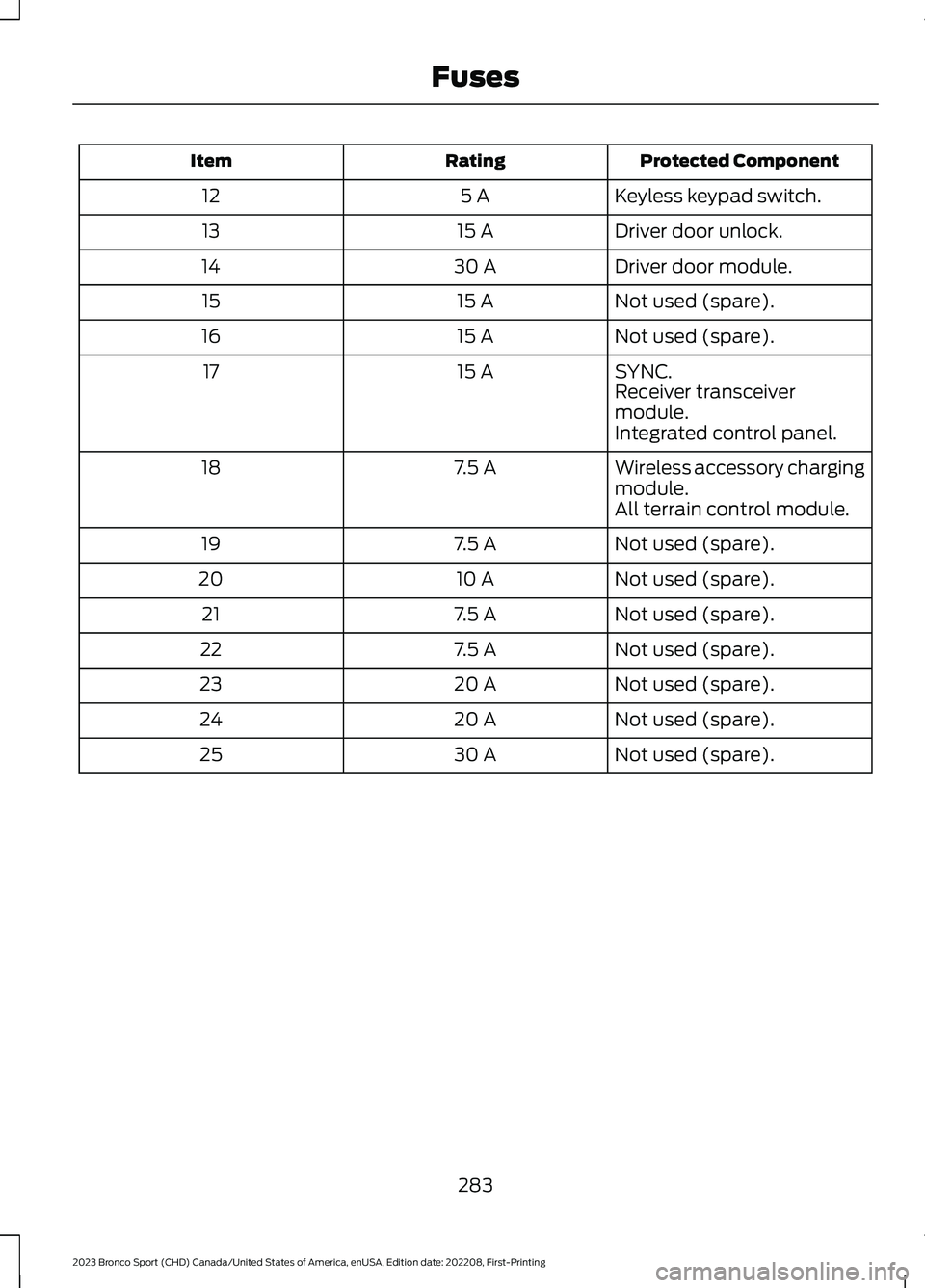

2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFusesE293328

Protected ComponentRatingItem
Keyless keypad switch.5 A12
Driver door unlock.15 A13
Driver door module.30 A14
Not used (spare).15 A15
Not used (spare).15 A16
SYNC.15 A17Receiver transceivermodule.Integrated control panel.
Wireless accessory chargingmodule.7.5 A18
All terrain control module.
Not used (spare).7.5 A19
Not used (spare).10 A20
Not used (spare).7.5 A21
Not used (spare).7.5 A22
Not used (spare).20 A23
Not used (spare).20 A24
Not used (spare).30 A25
283
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFuses

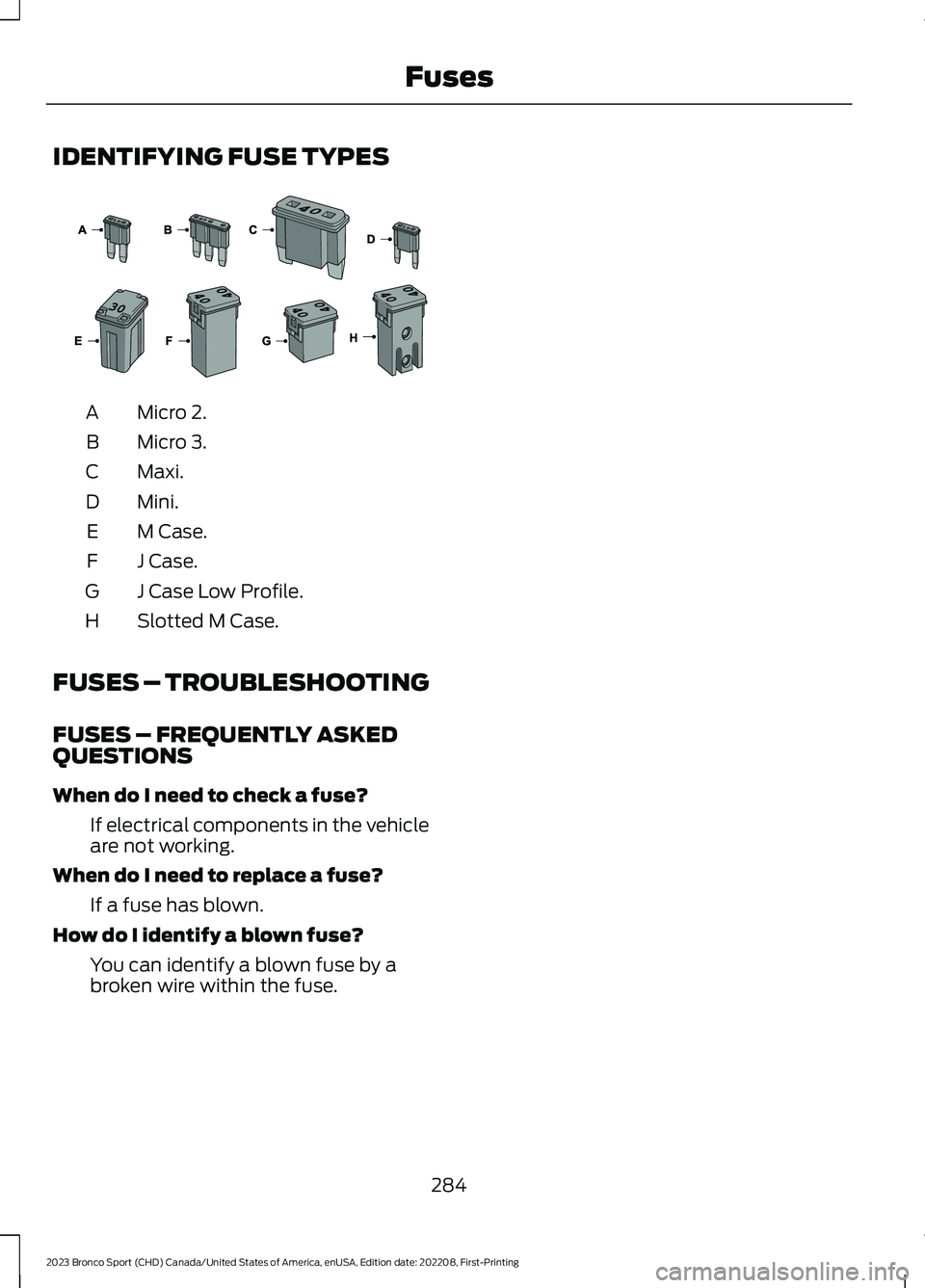

IDENTIFYING FUSE TYPES
Micro 2.A
Micro 3.B
Maxi.C
Mini.D
M Case.E
J Case.F
J Case Low Profile.G
Slotted M Case.H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKEDQUESTIONS
When do I need to check a fuse?
If electrical components in the vehicleare not working.
When do I need to replace a fuse?
If a fuse has blown.
How do I identify a blown fuse?
You can identify a blown fuse by abroken wire within the fuse.
284
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFuses E267379

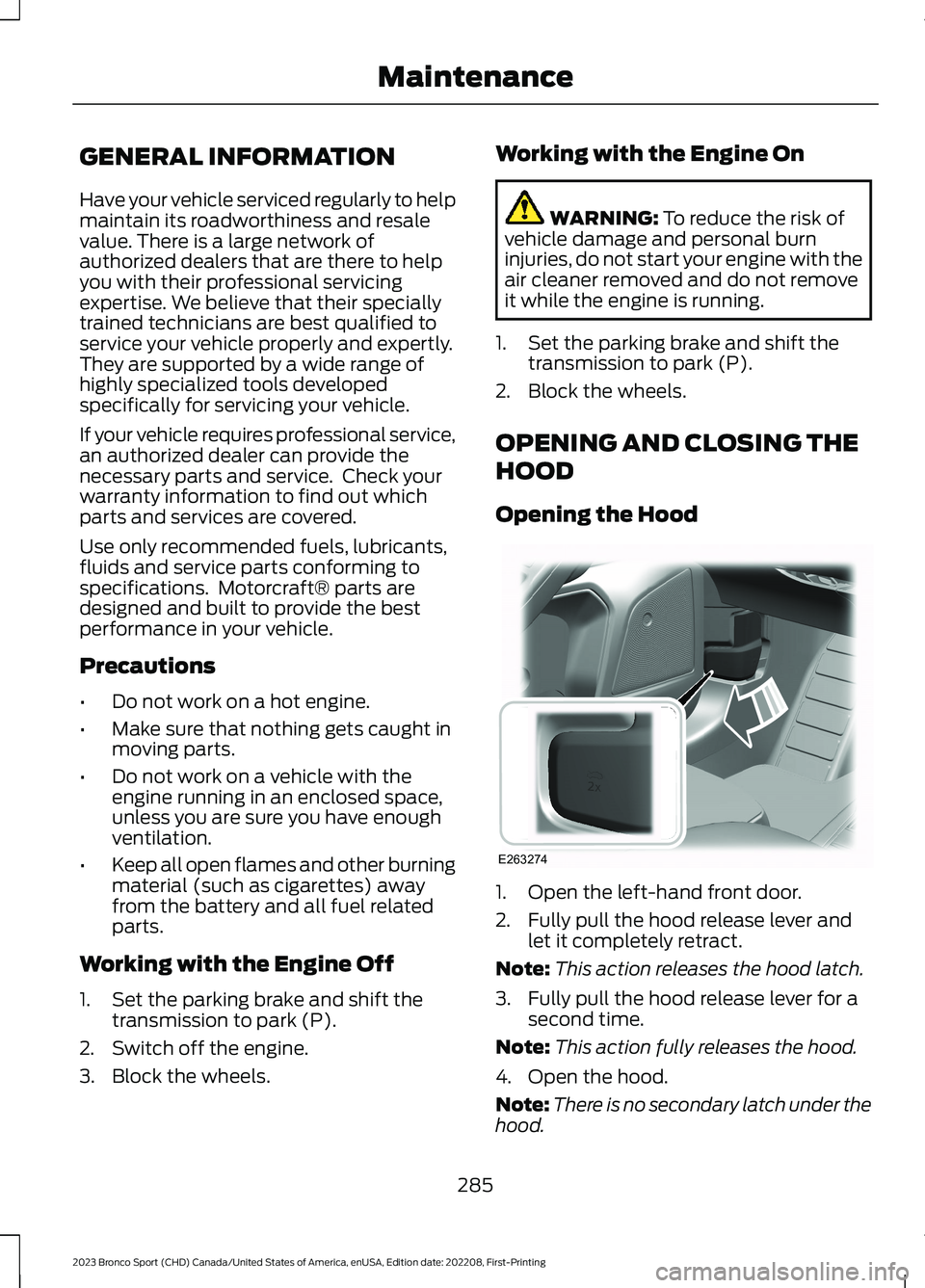

GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network ofauthorized dealers that are there to helpyou with their professional servicingexpertise. We believe that their speciallytrained technicians are best qualified toservice your vehicle properly and expertly.They are supported by a wide range ofhighly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out whichparts and services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. Motorcraft® parts aredesigned and built to provide the bestperformance in your vehicle.
Precautions
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with theengine running in an enclosed space,unless you are sure you have enoughventilation.
•Keep all open flames and other burningmaterial (such as cigarettes) awayfrom the battery and all fuel relatedparts.
Working with the Engine Off
1.Set the parking brake and shift thetransmission to park (P).
2.Switch off the engine.
3.Block the wheels.
Working with the Engine On
WARNING: To reduce the risk ofvehicle damage and personal burninjuries, do not start your engine with theair cleaner removed and do not removeit while the engine is running.
1.Set the parking brake and shift thetransmission to park (P).
2.Block the wheels.
OPENING AND CLOSING THE
HOOD
Opening the Hood
1.Open the left-hand front door.
2.Fully pull the hood release lever andlet it completely retract.
Note:This action releases the hood latch.
3.Fully pull the hood release lever for asecond time.
Note:This action fully releases the hood.
4.Open the hood.
Note:There is no secondary latch under thehood.
285
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingMaintenanceE263274

Closing the Hood
WARNING: Make sure that you fullylatch the hood before driving. Failure to
follow this instruction could result inpersonal injury or death.
1.Lower the hood and allow it to dropunder its own weight for the last10–14 in (25–35 cm).

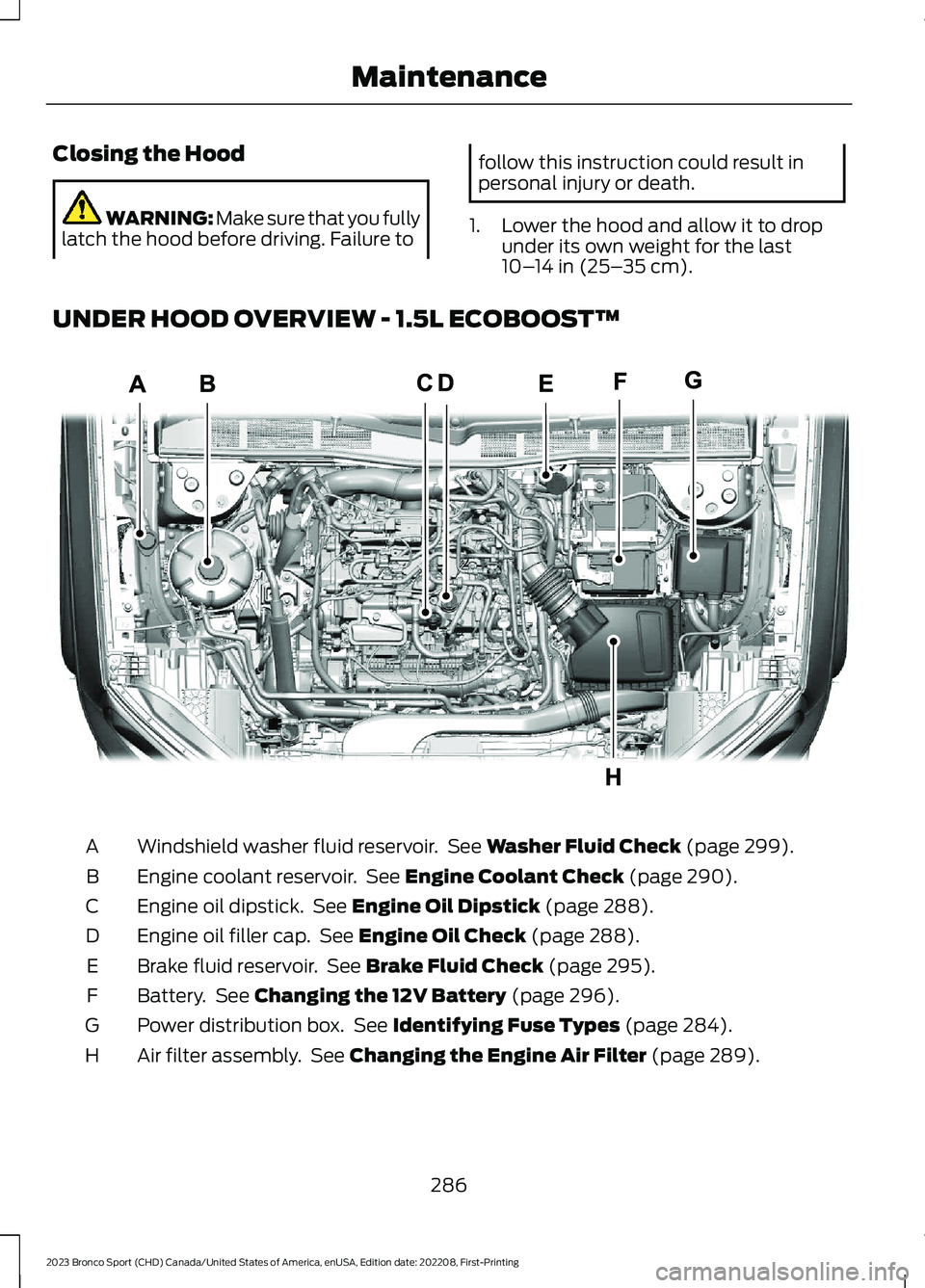

UNDER HOOD OVERVIEW - 1.5L ECOBOOST™
Windshield washer fluid reservoir. See Washer Fluid Check (page 299).A
Engine coolant reservoir. See Engine Coolant Check (page 290).B
Engine oil dipstick. See Engine Oil Dipstick (page 288).C
Engine oil filler cap. See Engine Oil Check (page 288).D
Brake fluid reservoir. See Brake Fluid Check (page 295).E
Battery. See Changing the 12V Battery (page 296).F
Power distribution box. See Identifying Fuse Types (page 284).G
Air filter assembly. See Changing the Engine Air Filter (page 289).H
286
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingMaintenanceE331992
