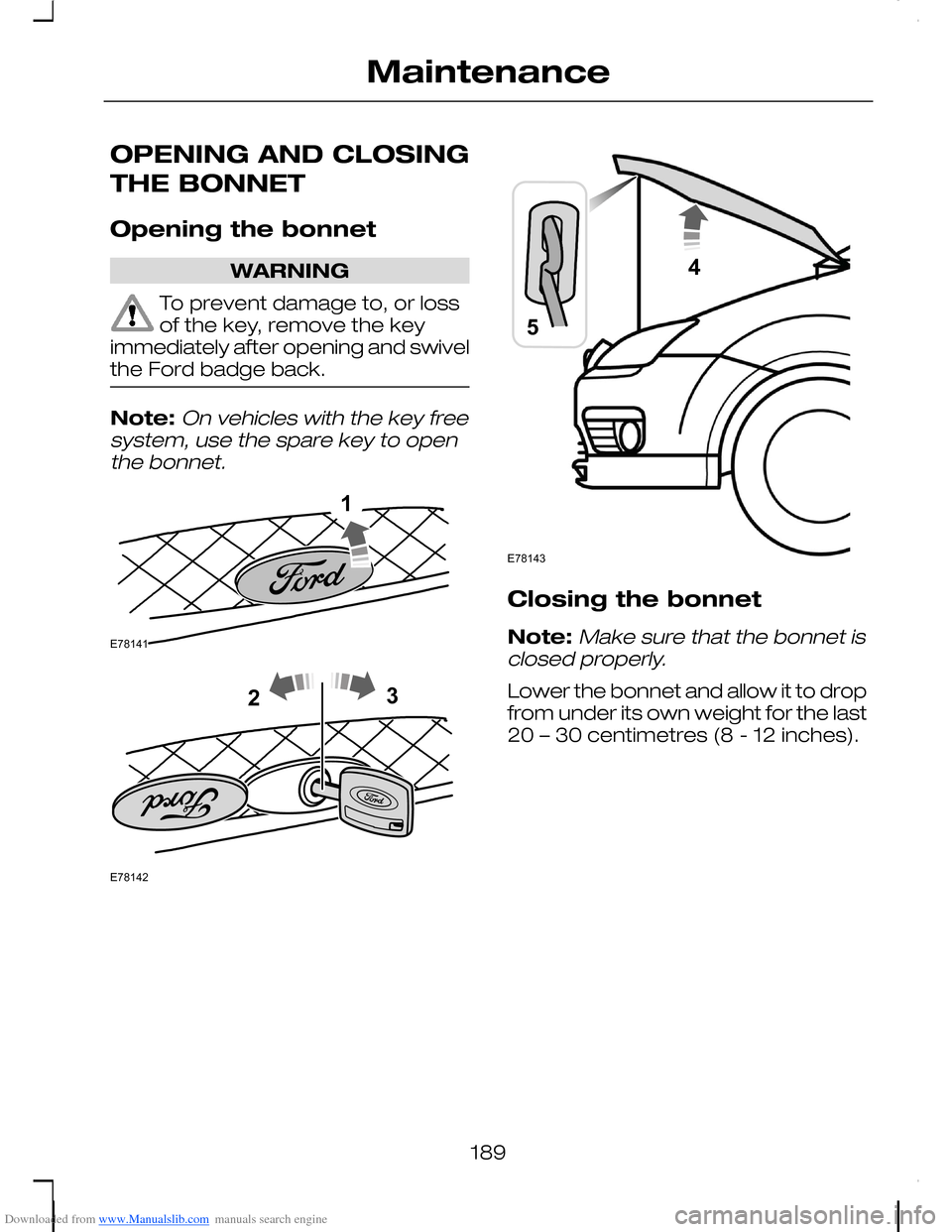

Downloaded from www.Manualslib.com manuals search engine OPENING AND CLOSING
THE BONNET
Opening the bonnet
WARNING
To prevent damage to, or lossof the key, remove the keyimmediately after opening and swivelthe Ford badge back.
Note:On vehicles with the key freesystem, use the spare key to openthe bonnet.
Closing the bonnet
Note:Make sure that the bonnet isclosed properly.
Lower the bonnet and allow it to dropfrom under its own weight for the last20 – 30 centimetres (8 - 12 inches).
189
MaintenanceE781411 E7814223 E7814354

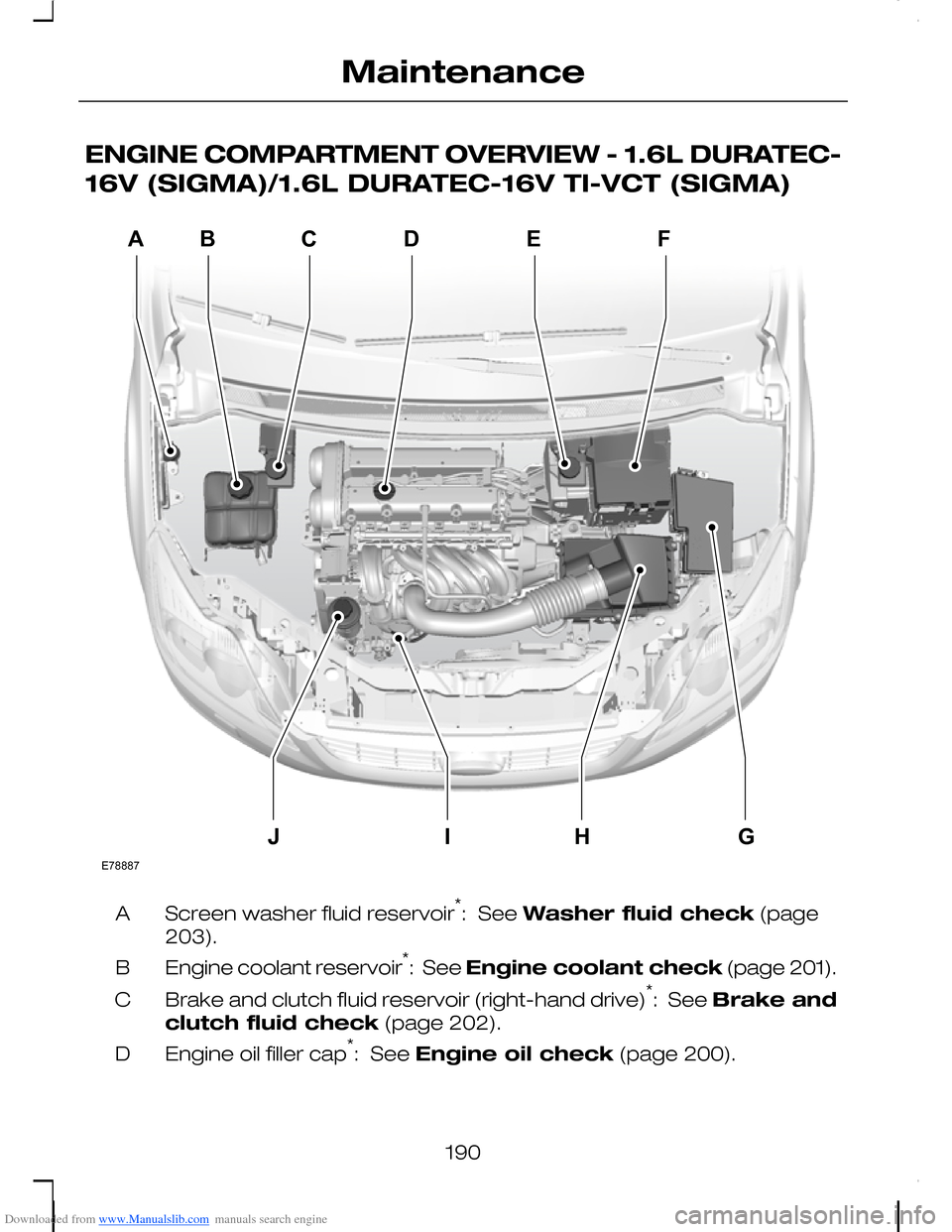

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW - 1.6L DURATEC-
16V (SIGMA)/1.6L DURATEC-16V TI-VCT (SIGMA)
Screen washer fluid reservoir*: See Washer fluid check (page
203).
A
Engine coolant reservoir*: See Engine coolant check (page 201).B
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and
clutch fluid check (page 202).
C
Engine oil filler cap*: See Engine oil check (page 200).D
190
MaintenanceIJFEDCBAHGE78887

Downloaded from www.Manualslib.com manuals search engine Brake and clutch fluid reservoir (left-hand drive)*: See Brake and
clutch fluid check (page 202).
E
Battery: See Vehicle battery (page 209).F
Auxiliary fuse box: See Fuses (page 176).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine oil check (page 200).I
Power steering fluid reservoir: See Power steering fluid check(page 202).J
*For easy identification, filler caps and the engine oil dipstick are marked in
colour.
191
Maintenance

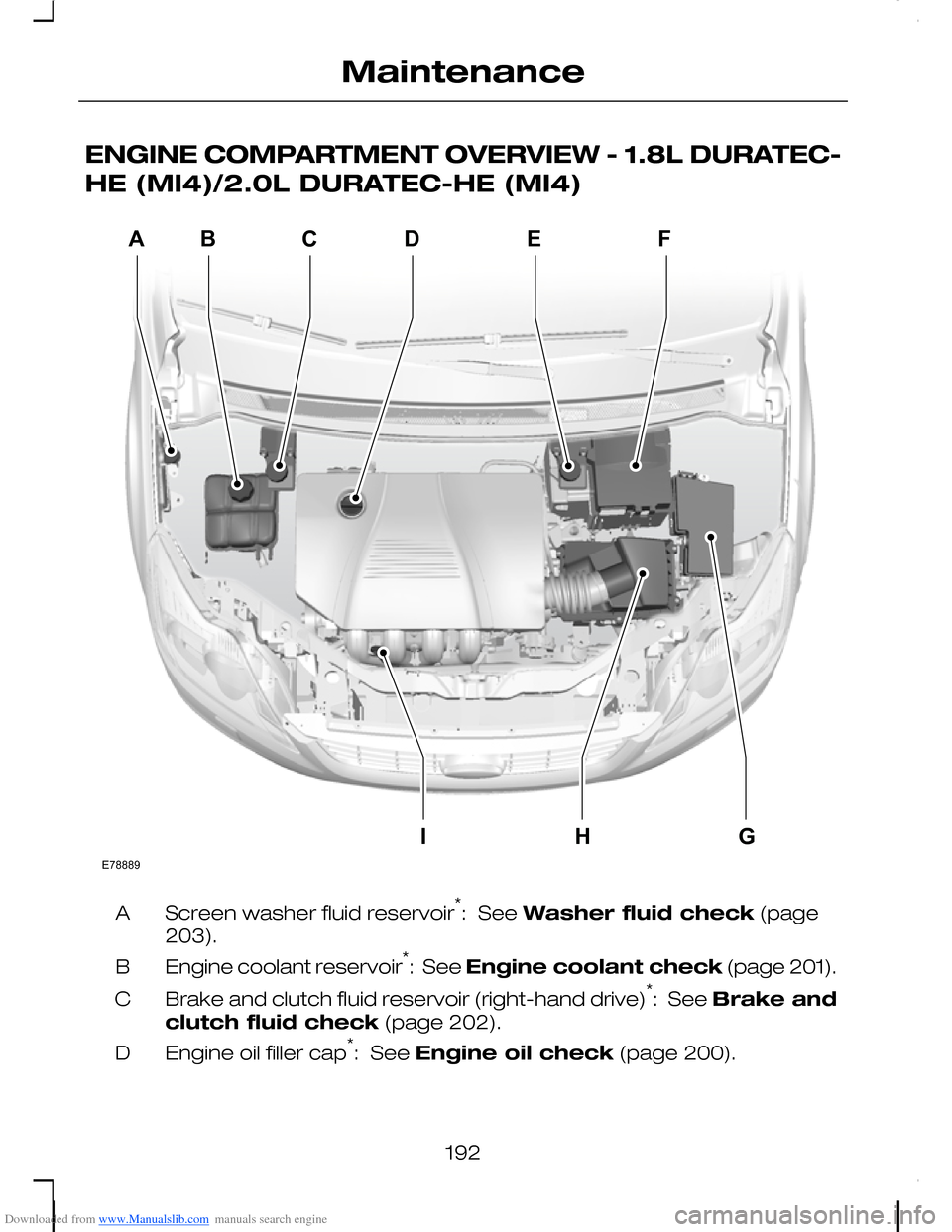

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW - 1.8L DURATEC-
HE (MI4)/2.0L DURATEC-HE (MI4)
Screen washer fluid reservoir*: See Washer fluid check (page
203).
A
Engine coolant reservoir*: See Engine coolant check (page 201).B
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and
clutch fluid check (page 202).
C
Engine oil filler cap*: See Engine oil check (page 200).D
192
MaintenanceE78889IFEDCBAHG

Downloaded from www.Manualslib.com manuals search engine Brake and clutch fluid reservoir (left-hand drive)*: See Brake and
clutch fluid check (page 202).
E
Battery: See Vehicle battery (page 209).F
Auxiliary fuse box: See Fuses (page 176).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine oil check (page 200).I
*For easy identification, filler caps and the engine oil dipstick are marked in
colour.
193
Maintenance

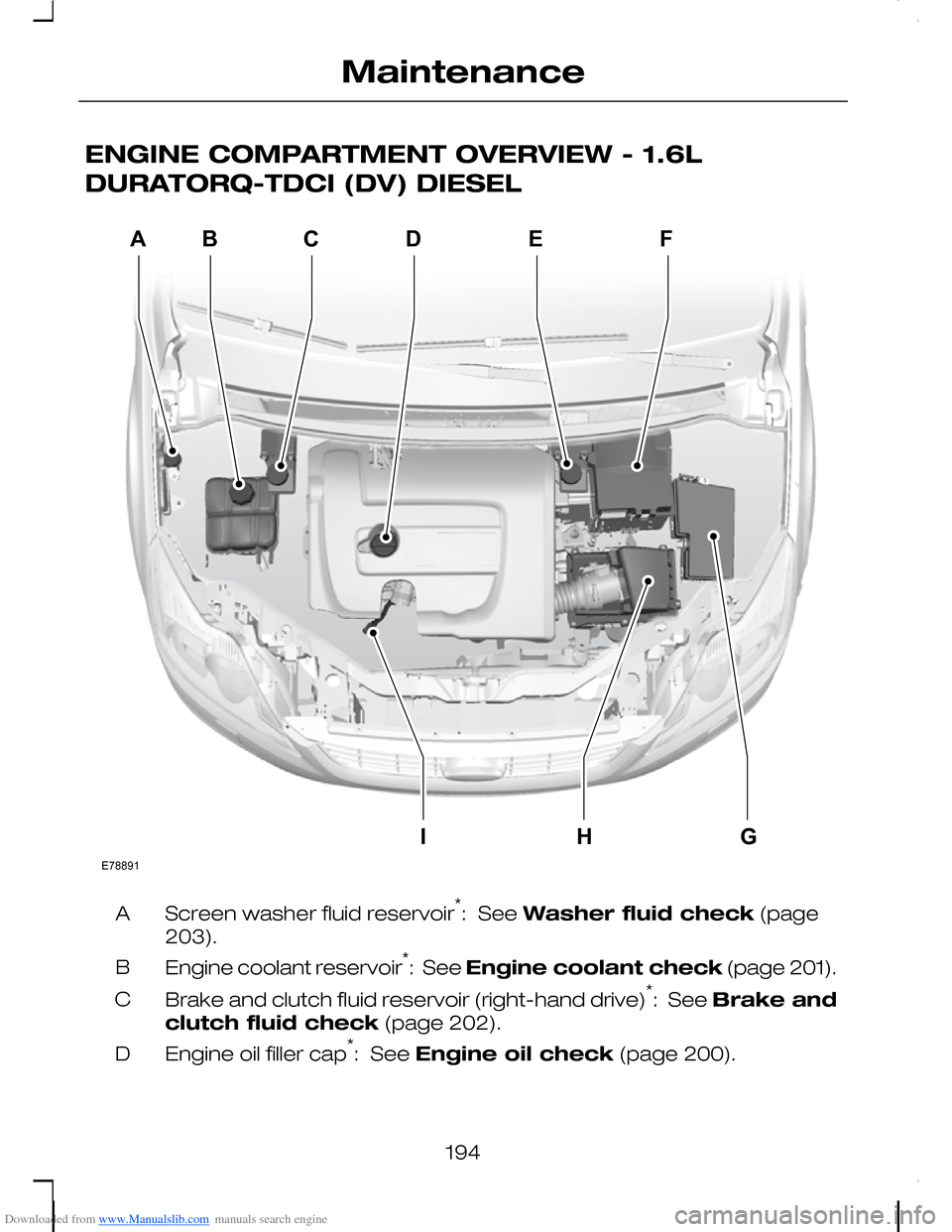

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW - 1.6L
DURATORQ-TDCI (DV) DIESEL
Screen washer fluid reservoir*: See Washer fluid check (page
203).
A
Engine coolant reservoir*: See Engine coolant check (page 201).B
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and
clutch fluid check (page 202).
C
Engine oil filler cap*: See Engine oil check (page 200).D
194
MaintenanceE78891IFEDCBAHG

Downloaded from www.Manualslib.com manuals search engine Brake and clutch fluid reservoir (left-hand drive)*: See Brake and
clutch fluid check (page 202).
E
Battery: See Vehicle battery (page 209).F
Auxiliary fuse box: See Fuses (page 176).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine oil check (page 200).I
*For easy identification, filler caps and the engine oil dipstick are marked in
colour.
195
Maintenance

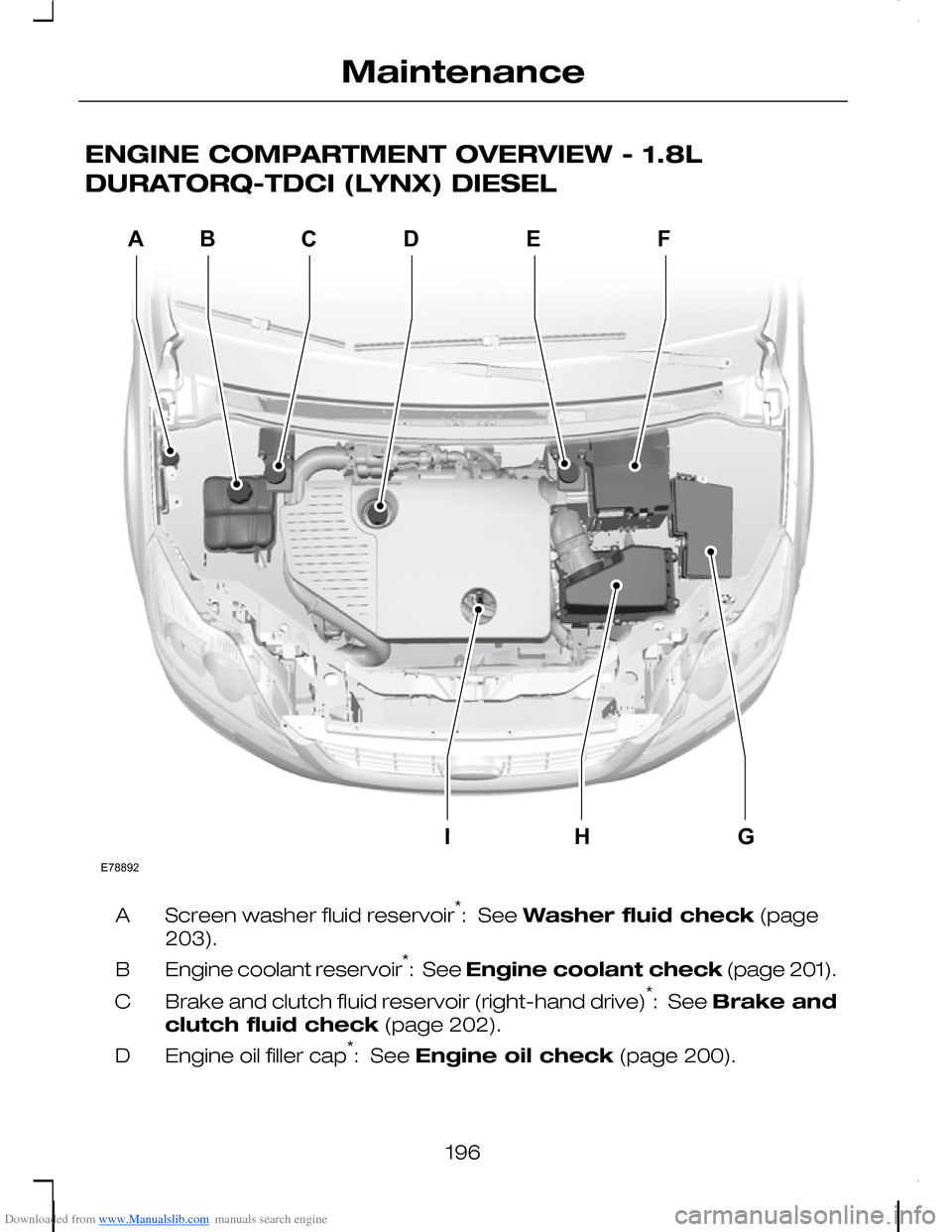

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW - 1.8L
DURATORQ-TDCI (LYNX) DIESEL
Screen washer fluid reservoir*: See Washer fluid check (page
203).
A
Engine coolant reservoir*: See Engine coolant check (page 201).B
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and
clutch fluid check (page 202).
C
Engine oil filler cap*: See Engine oil check (page 200).D
196
MaintenanceE78892IFEDCBAHG

Downloaded from www.Manualslib.com manuals search engine Brake and clutch fluid reservoir (left-hand drive)*: See Brake and
clutch fluid check (page 202).
E
Battery: See Vehicle battery (page 209).F
Auxiliary fuse box: See Fuses (page 176).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine oil check (page 200).I
*For easy identification, filler caps and the engine oil dipstick are marked in
colour.
197
Maintenance

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW - 2.0L
DURATORQ-TDCI (PUMA) DIESEL
Screen washer fluid reservoir*: See Washer fluid check (page
203).
A
Engine coolant reservoir*: See Engine coolant check (page 201).B
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and
clutch fluid check (page 202).
C
Engine oil filler cap*: See Engine oil check (page 200).D
198
MaintenanceE78893IFEDCBAHG
