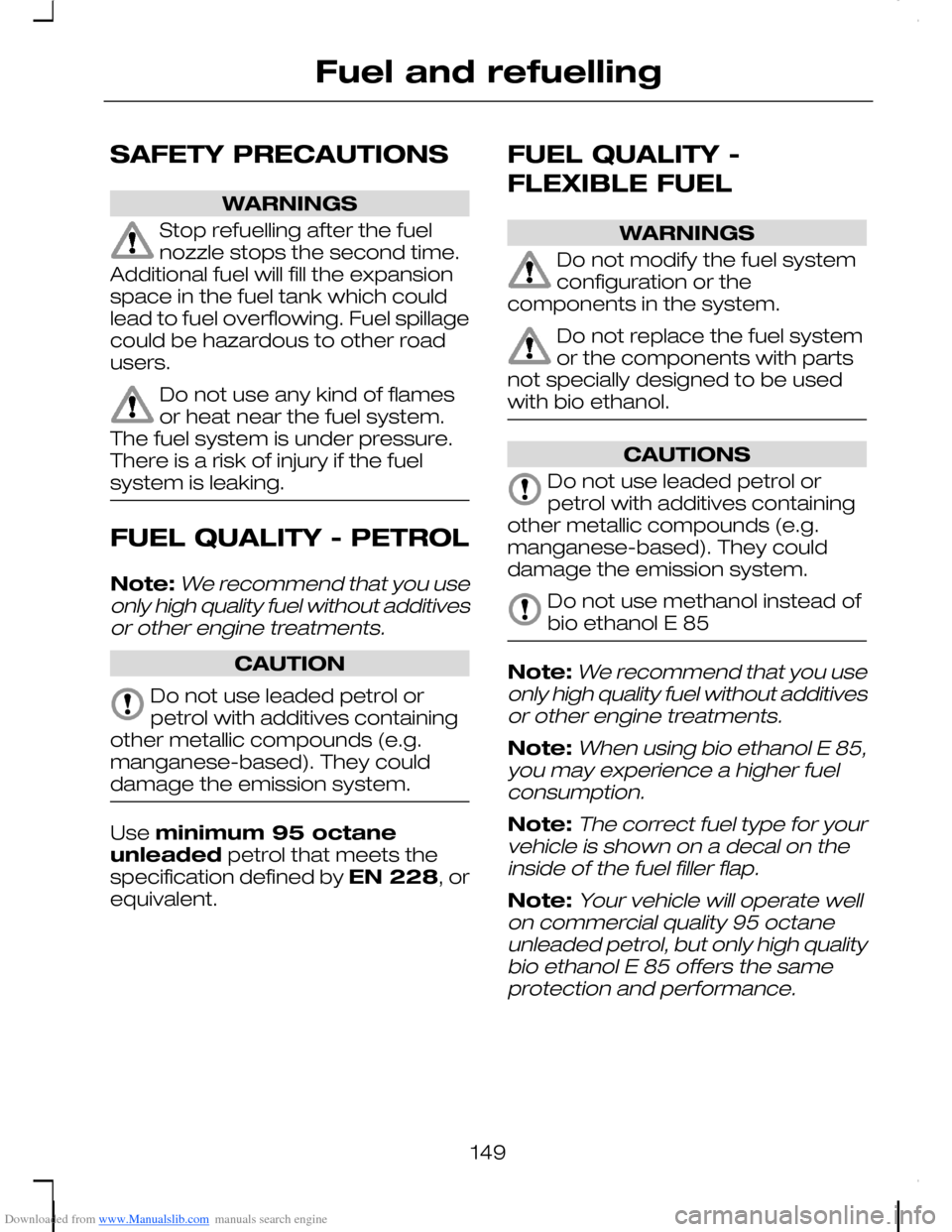

Downloaded from www.Manualslib.com manuals search engine SAFETY PRECAUTIONS
WARNINGS
Stop refuelling after the fuelnozzle stops the second time.Additional fuel will fill the expansionspace in the fuel tank which couldlead to fuel overflowing. Fuel spillagecould be hazardous to other roadusers.
Do not use any kind of flamesor heat near the fuel system.The fuel system is under pressure.There is a risk of injury if the fuelsystem is leaking.
FUEL QUALITY - PETROL
Note:We recommend that you useonly high quality fuel without additivesor other engine treatments.
CAUTION
Do not use leaded petrol orpetrol with additives containingother metallic compounds (e.g.manganese-based). They coulddamage the emission system.
Use minimum 95 octaneunleaded petrol that meets thespecification defined by EN 228, orequivalent.
FUEL QUALITY -
FLEXIBLE FUEL
WARNINGS
Do not modify the fuel systemconfiguration or thecomponents in the system.
Do not replace the fuel systemor the components with partsnot specially designed to be usedwith bio ethanol.
CAUTIONS
Do not use leaded petrol orpetrol with additives containingother metallic compounds (e.g.manganese-based). They coulddamage the emission system.
Do not use methanol instead ofbio ethanol E 85
Note:We recommend that you useonly high quality fuel without additivesor other engine treatments.
Note:When using bio ethanol E 85,you may experience a higher fuelconsumption.
Note:The correct fuel type for yourvehicle is shown on a decal on theinside of the fuel filler flap.
Note:Your vehicle will operate wellon commercial quality 95 octaneunleaded petrol, but only high qualitybio ethanol E 85 offers the sameprotection and performance.
149
Fuel and refuelling

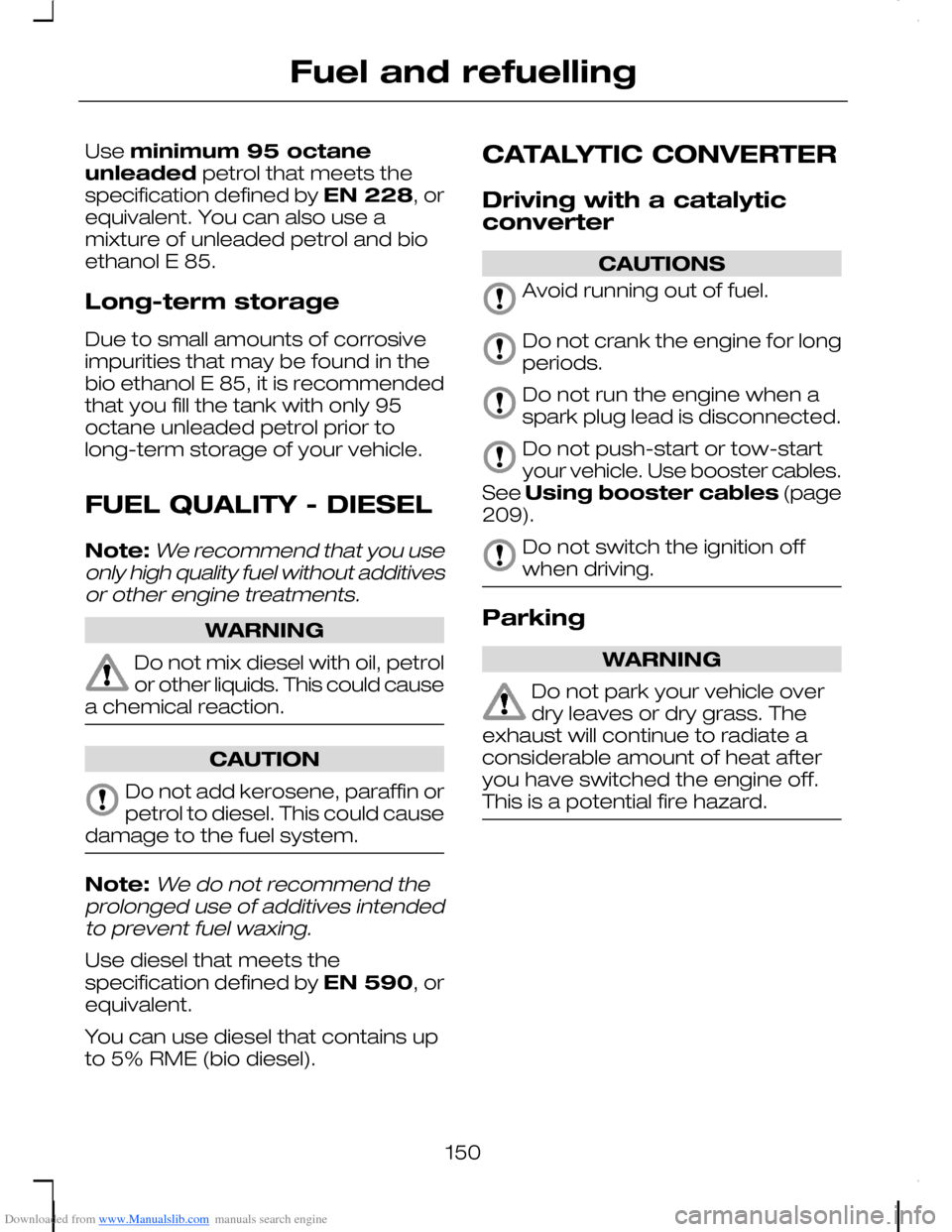

Downloaded from www.Manualslib.com manuals search engine Use minimum 95 octaneunleaded petrol that meets thespecification defined by EN 228, orequivalent. You can also use amixture of unleaded petrol and bioethanol E 85.
Long-term storage
Due to small amounts of corrosiveimpurities that may be found in thebio ethanol E 85, it is recommendedthat you fill the tank with only 95octane unleaded petrol prior tolong-term storage of your vehicle.
FUEL QUALITY - DIESEL
Note:We recommend that you useonly high quality fuel without additivesor other engine treatments.
WARNING
Do not mix diesel with oil, petrolor other liquids. This could causea chemical reaction.
CAUTION
Do not add kerosene, paraffin orpetrol to diesel. This could causedamage to the fuel system.
Note:We do not recommend theprolonged use of additives intendedto prevent fuel waxing.
Use diesel that meets thespecification defined by EN 590, orequivalent.
You can use diesel that contains upto 5% RME (bio diesel).
CATALYTIC CONVERTER
Driving with a catalyticconverter
CAUTIONS
Avoid running out of fuel.
Do not crank the engine for longperiods.
Do not run the engine when aspark plug lead is disconnected.
Do not push-start or tow-startyour vehicle. Use booster cables.See Using booster cables (page209).
Do not switch the ignition offwhen driving.
Parking
WARNING
Do not park your vehicle overdry leaves or dry grass. Theexhaust will continue to radiate aconsiderable amount of heat afteryou have switched the engine off.This is a potential fire hazard.
150
Fuel and refuelling

Downloaded from www.Manualslib.com manuals search engine FUEL FILLER FLAP
Note:Central locking also locks andunlocks the fuel filler flap. See Locks(page 40).
Open the flap fully until it engages.Turn the fuel filler cap anti-clockwise.
When the filler cap is removed, ahissing noise may be heard. This isnormal and should be disregarded.
To close, turn the cap clockwise untilit clicks.
REFUELLING
CAUTION
Do not attempt to start theengine if you have filled the fueltank with the incorrect fuel. This coulddamage the engine. Have the systemchecked by a properly trainedtechnician immediately.
FUEL CONSUMPTION
The CO2 and fuel consumptionfigures are derived from laboratorytests according to EEC Directive80/1268/EEC and subsequentamendments and are carried out byall vehicle manufacturers.
They are intended as a comparisonbetween makes and models ofvehicles. They are not intended torepresent the real world fuelconsumption you may get from yourvehicle. Real world fuel consumptionis governed by many factorsincluding; driving style, high speeddriving, stop/start driving, airconditioning usage, the accessoriesfitted and towing etc.
Your Ford dealer can give you adviceon improving your fuel consumption.
151
Fuel and refuellingE78089

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Fuel consumption figures
CO2 emis-sionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1646.9 (40.9)5.7 (49.6)8.9 (31.7)1.6 l Duratec, Stage III/IV,Axle ratio: 4.06
1626.8 (41.5)5.5 (51.4)8.9 (31.7)1.6 l Duratec Ti-VCT,Stage IV, Axle ratio: 4.06
1697.1 (39.8)5.6 (50.4)9.6 (29.4)1.8 l Duratec-HE, StageIII/IV, Axle ratio: 4.06
1847.7 (36.7)6.0 (47.1)10.6 (26.6)1.8 l Duratec-HE, StageIV, Durashift CVT, Axleratio: 5.19
1747.3 (38.7)5.6 (50.4)10.0 (28.3)2.0 l Duratec-HE, StageIII/IV, Manual, Axle ratio:4.07
1948.1 (34.9)6.2 (45.6)11.3 (25.0)2.0 l Duratec-HE, StageIV, Automatic, Axle ratio:4.20
1274.8 (58.9)4.1 (68.9)6.0 (47.1)1.6 l Duratorq-TDCi 66kW (90 PS), Stage IV,Axle ratio: 3.41
1294.9 (57.6)4.1 (68.9)6.3 (44.8)1.6 l Duratorq-TDCi 80kW (109 PS), Stage III/IV,Axle ratio: 3.41
1535.7 (49.6)4.9 (57.6)7.1 (39.8)
1.6 l Duratorq-TDCi 80kW (109 PS), Stage III,Durashift CVT, Axle ratio:4.33
152
Fuel and refuelling

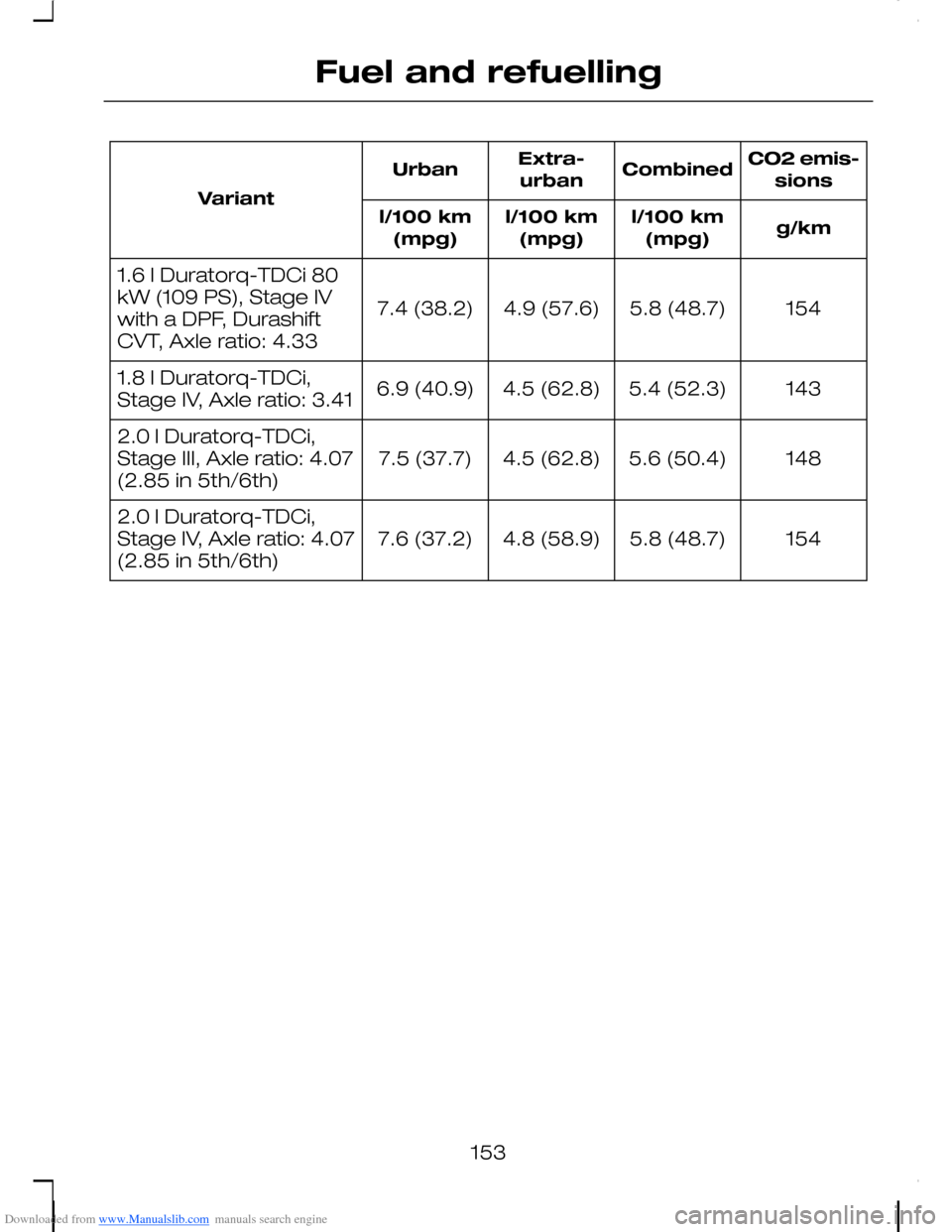

Downloaded from www.Manualslib.com manuals search engine CO2 emis-sionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1545.8 (48.7)4.9 (57.6)7.4 (38.2)
1.6 l Duratorq-TDCi 80kW (109 PS), Stage IVwith a DPF, DurashiftCVT, Axle ratio: 4.33
1435.4 (52.3)4.5 (62.8)6.9 (40.9)1.8 l Duratorq-TDCi,Stage IV, Axle ratio: 3.41
1485.6 (50.4)4.5 (62.8)7.5 (37.7)2.0 l Duratorq-TDCi,Stage III, Axle ratio: 4.07(2.85 in 5th/6th)
1545.8 (48.7)4.8 (58.9)7.6 (37.2)2.0 l Duratorq-TDCi,Stage IV, Axle ratio: 4.07(2.85 in 5th/6th)
153
Fuel and refuelling

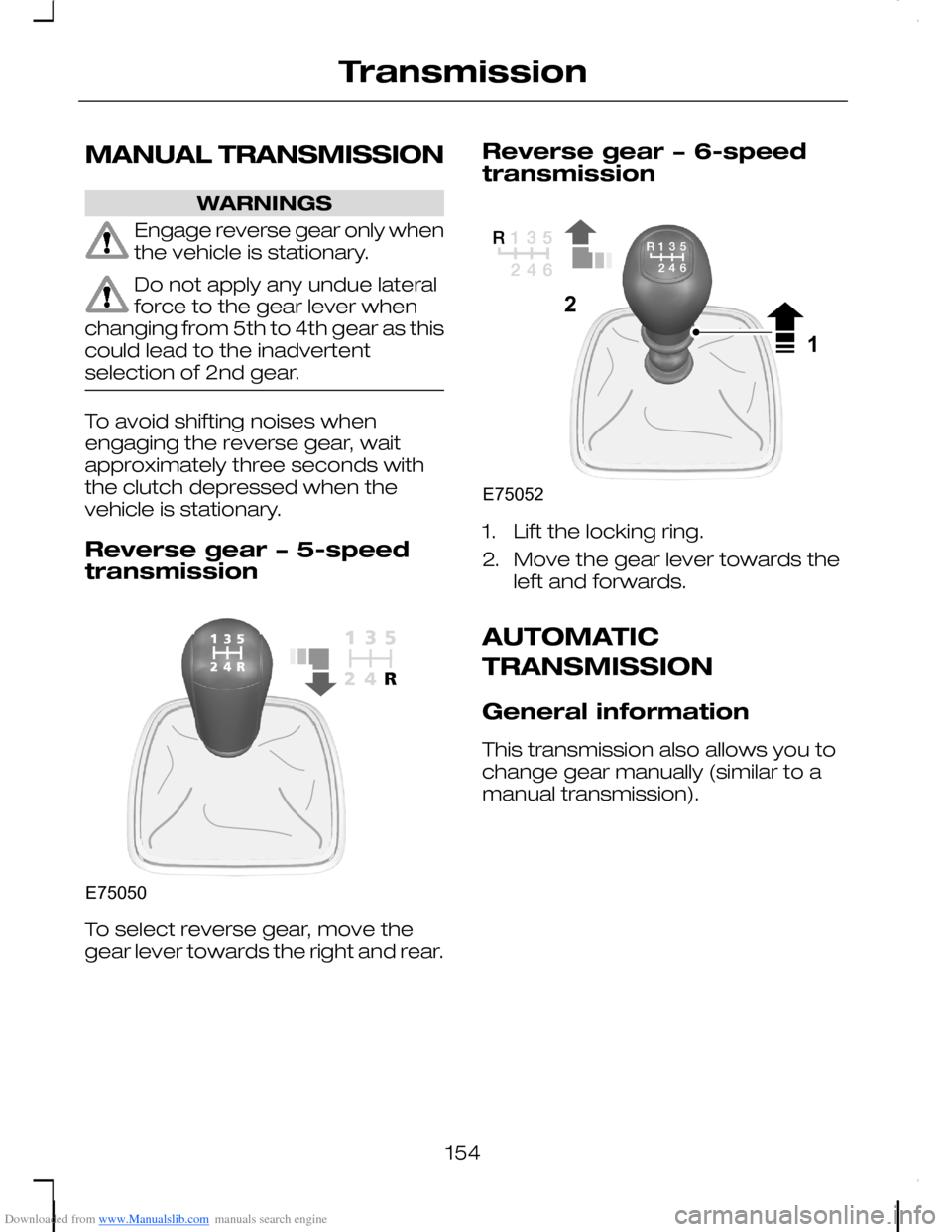

Downloaded from www.Manualslib.com manuals search engine MANUAL TRANSMISSION
WARNINGS
Engage reverse gear only whenthe vehicle is stationary.
Do not apply any undue lateralforce to the gear lever whenchanging from 5th to 4th gear as thiscould lead to the inadvertentselection of 2nd gear.
To avoid shifting noises whenengaging the reverse gear, waitapproximately three seconds withthe clutch depressed when thevehicle is stationary.
Reverse gear − 5-speedtransmission
To select reverse gear, move thegear lever towards the right and rear.
Reverse gear − 6-speedtransmission
1.Lift the locking ring.
2.Move the gear lever towards theleft and forwards.
AUTOMATIC
TRANSMISSION
General information
This transmission also allows you tochange gear manually (similar to amanual transmission).
154
TransmissionE75050 E7505221

Downloaded from www.Manualslib.com manuals search engine Selector lever positions
ParkP
ReverseR
NeutralN
DriveD
Manual shiftingM
WARNING
Apply the brakes before movingthe selector lever and keepthem applied until you are ready tomove off.
Note:A cold engine has a higher idlespeed. This will increase thetendency for your vehicle to creepwhen you have selected a drive gear.
Press the button on the selector leverto select reverse and park.
The selector lever position will beshown in the information display.
Park
WARNINGS
Select park only when yourvehicle is stationary.
Apply the parking brakeand select park beforeleaving your vehicle. Make surethat the selector lever is latched inposition.
Note:An audible warning will soundif you open the driver's door and youhave not selected park.
Note:The battery saver willdeactivate the warning chime after aperiod of time.
In this position, power is nottransmitted to the drive wheels andthe transmission is locked. You canstart the engine with the selectorlever in this position.
Reverse
WARNING
Select reverse only when yourvehicle is stationary and theengine is at idle speed.
Neutral
In this position, power is nottransmitted to the drive wheels butthe transmission is not locked. Youcan start the engine with the selectorlever in this position.
155
TransmissionE78310

Downloaded from www.Manualslib.com manuals search engine Drive
Select drive to shift automaticallythrough the forward gears.
Manual shifting
Note:A shift will occur only whenthe vehicle speed and the enginespeed are appropriate.
Select manual shifting to shiftmanually through the forward gears.Push the selector lever forwards toshift down and pull it backwards toshift up.
WARNING
Do not hold the selector leverpermanently in – or +.
Gears can be skipped by moving theselector lever repeatedly at shortintervals.
Manual mode also provides akickdown function. See Kickdown.
The transmission will automaticallydownshift when the engine speed istoo low and upshift when to high.
Drive modes
The transmission will select theappropriate gear for optimumperformance based on ambienttemperature, road gradient, vehicleload and driver input.
Hints on driving with anautomatic transmission
Moving off
WARNING
It is not possible to tow-start orpush-start a vehicle fitted withan automatic transmission. SeeUsing booster cables (page 209).
1.Release the parking brake.
2.Release the brake pedal andpress the accelerator pedal.
Stopping
1.Release the accelerator pedal andpress the brake pedal.
2.Apply the parking brake.
Kickdown
Press the accelerator pedal fully withthe selector lever in the drive positionto select the next lowest gear foroptimum performance. Release theaccelerator pedal when you nolonger require kickdown.
Emergency park positionrelease lever
Use the lever to move the selectorlever from the park position in theevent of an electrical malfunction orif your vehicle has a flat battery.
156
Transmission

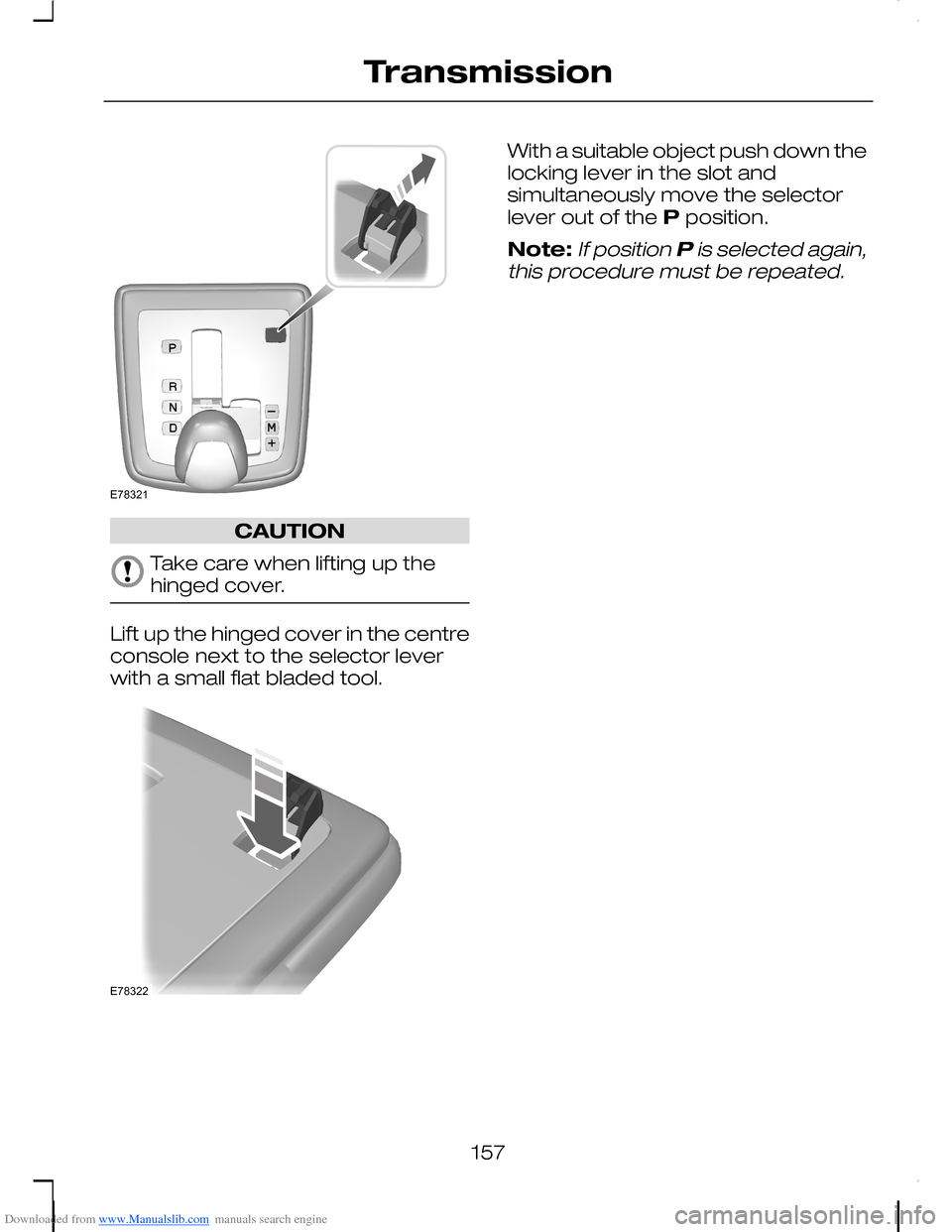

Downloaded from www.Manualslib.com manuals search engine CAUTION
Take care when lifting up thehinged cover.
Lift up the hinged cover in the centreconsole next to the selector leverwith a small flat bladed tool.
With a suitable object push down thelocking lever in the slot andsimultaneously move the selectorlever out of the P position.
Note:If position P is selected again,this procedure must be repeated.
157
TransmissionE78321 E78322

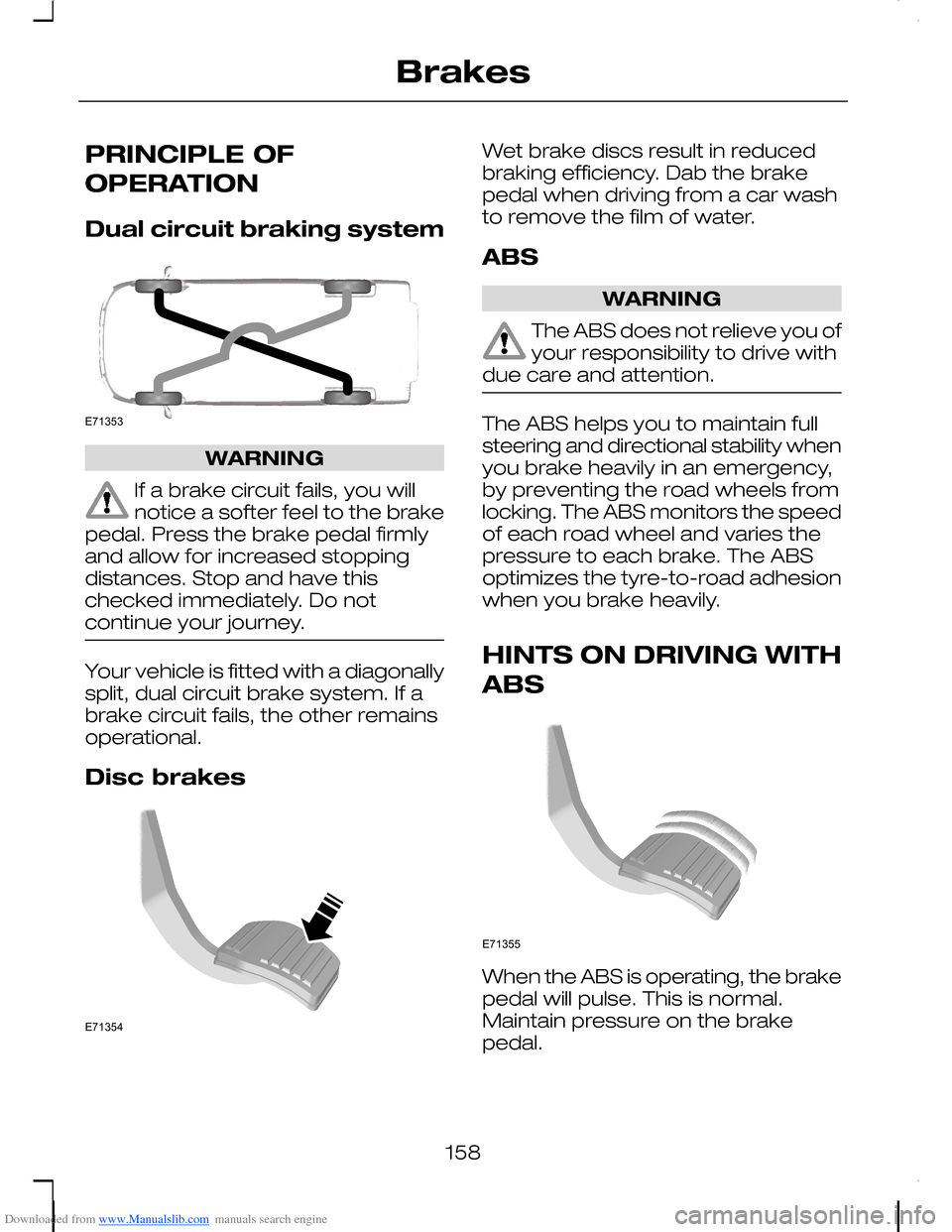

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF
OPERATION
Dual circuit braking system
WARNING
If a brake circuit fails, you willnotice a softer feel to the brakepedal. Press the brake pedal firmlyand allow for increased stoppingdistances. Stop and have thischecked immediately. Do notcontinue your journey.
Your vehicle is fitted with a diagonallysplit, dual circuit brake system. If abrake circuit fails, the other remainsoperational.
Disc brakes
Wet brake discs result in reducedbraking efficiency. Dab the brakepedal when driving from a car washto remove the film of water.
ABS
WARNING
The ABS does not relieve you ofyour responsibility to drive withdue care and attention.
The ABS helps you to maintain fullsteering and directional stability whenyou brake heavily in an emergency,by preventing the road wheels fromlocking. The ABS monitors the speedof each road wheel and varies thepressure to each brake. The ABSoptimizes the tyre-to-road adhesionwhen you brake heavily.
HINTS ON DRIVING WITH
ABS
When the ABS is operating, the brakepedal will pulse. This is normal.Maintain pressure on the brakepedal.
158
BrakesE71353 E71354 E71355
