FORD C MAX 2008 1.G Owners Manual

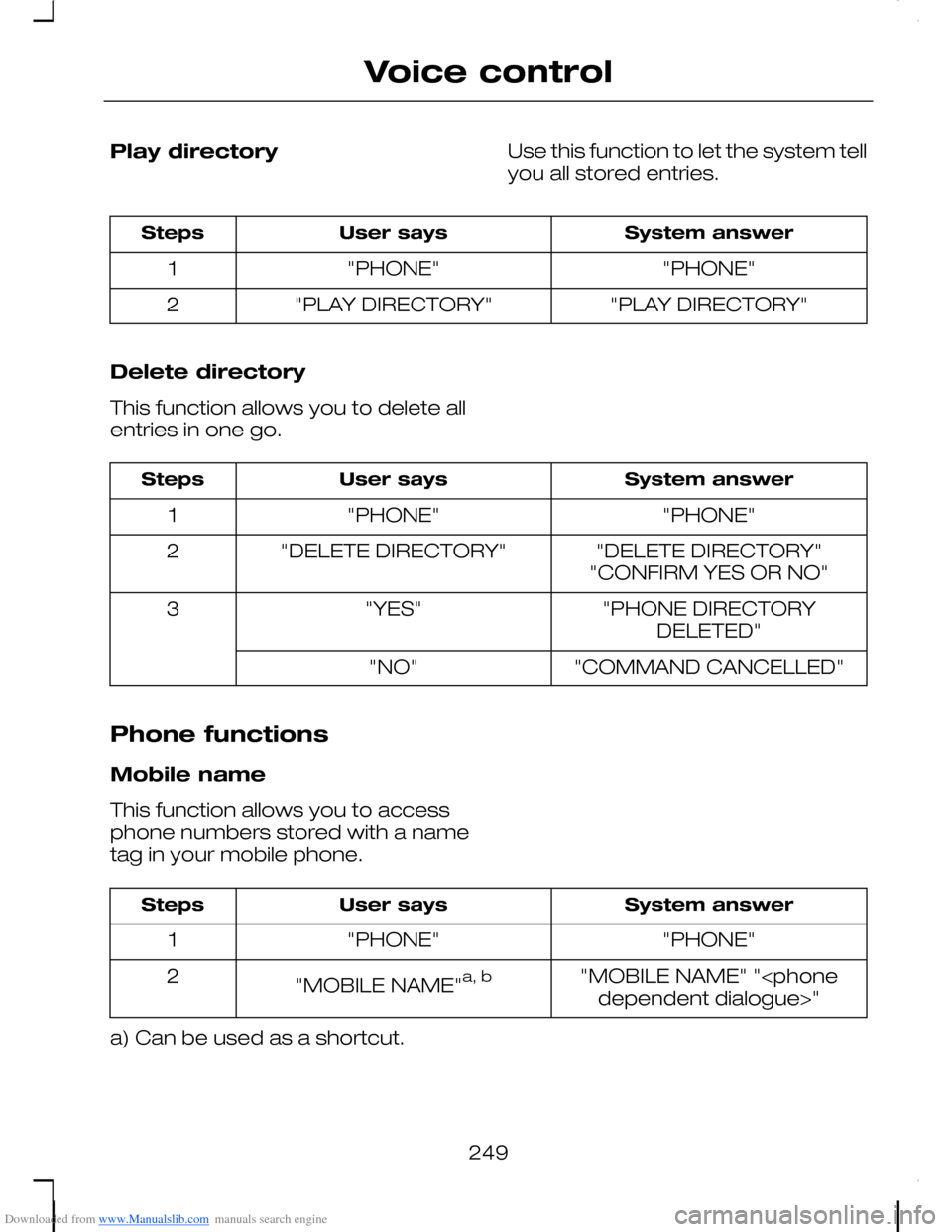

Downloaded from www.Manualslib.com manuals search engine Play directoryUse this function to let the system tellyou all stored entries.
System answerUser saysSteps
"PHONE""PHONE"1
"PLAY DIRECTORY""PLAY DIRECTORY"2
Delete directory
This function allows you to delete allentries in one go.
System answerUser saysSteps
"PHONE""PHONE"1
"DELETE DIRECTORY""DELETE DIRECTORY"2"CONFIRM YES OR NO"
"PHONE DIRECTORYDELETED""YES"3
"COMMAND CANCELLED""NO"
Phone functions
Mobile name
This function allows you to accessphone numbers stored with a nametag in your mobile phone.
System answerUser saysSteps
"PHONE""PHONE"1
"MOBILE NAME" """MOBILE NAME"a, b2
a) Can be used as a shortcut.
249
Voice control

Downloaded from www.Manualslib.com manuals search engine b) Only when the mobile phone is fitted with Bluetooth and voice control(dependant on the mobile phone).
Dial number
Phone numbers can be dialled aftergiving the name tag voice command.
System answerUser saysSteps
"PHONE""PHONE"1
"NUMBER PLEASE""DIAL NUMBER"a2
"""3CONTINUE?"
"DIALLING""DIAL"4
""CORRECTION"CONTINUE?"
a) Can be used as a shortcut.
Dial name
Phone numbers can be dialled aftergiving the name tag voice command.
System answerUser saysSteps
"PHONE""PHONE"1
"NAME PLEASE""DIAL NAME"a2
"DIAL """3"CONFIRM YES OR NO"
"DIALLING""YES"4
"COMMAND CANCELLED""NO"
a) Can be used as a shortcut.
250
Voice control

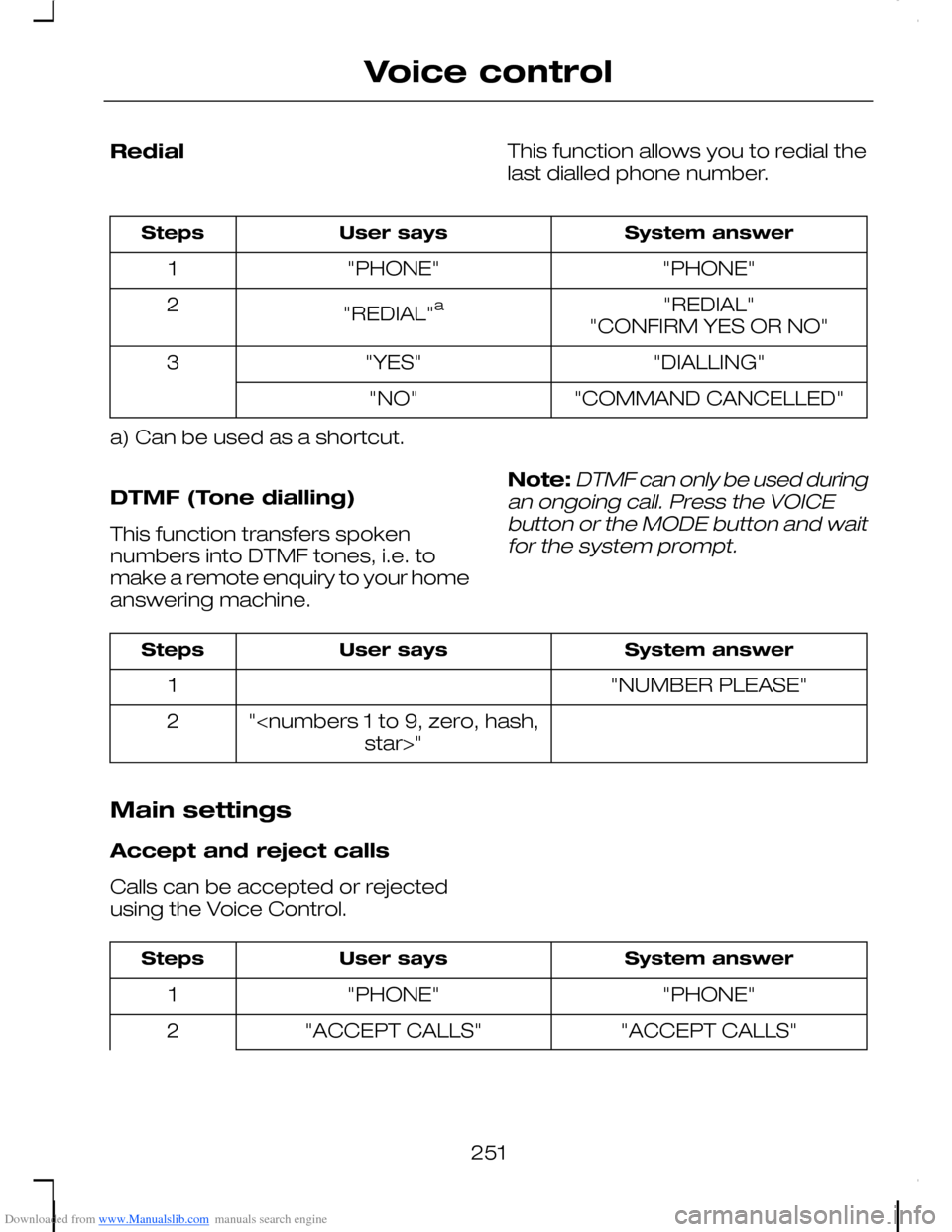

Downloaded from www.Manualslib.com manuals search engine RedialThis function allows you to redial thelast dialled phone number.
System answerUser saysSteps
"PHONE""PHONE"1
"REDIAL""REDIAL"a2"CONFIRM YES OR NO"
"DIALLING""YES"3
"COMMAND CANCELLED""NO"
a) Can be used as a shortcut.
DTMF (Tone dialling)
This function transfers spokennumbers into DTMF tones, i.e. tomake a remote enquiry to your homeanswering machine.
Note:DTMF can only be used duringan ongoing call. Press the VOICEbutton or the MODE button and waitfor the system prompt.
System answerUser saysSteps
"NUMBER PLEASE"1
""2
Main settings
Accept and reject calls
Calls can be accepted or rejectedusing the Voice Control.
System answerUser saysSteps
"PHONE""PHONE"1
"ACCEPT CALLS""ACCEPT CALLS"2
251
Voice control

Downloaded from www.Manualslib.com manuals search engine System answerUser saysSteps
"REJECT CALLS""REJECT CALLS"
NAVIGATION SYSTEM
COMMANDS
Please refer to your separateNavigation handbook for details ofthe command menus.
CLIMATE CONTROL
COMMANDS
Climate
The climate voice commandssupports the functionality of the fanspeed, temperature and modesettings. Not all functions areavailable on all vehicles.
Overview
The overview below shows theavailable voice commands foroperating your climate controlsystem. The following lists will givefurther information about thecomplete command menu.
"CLIMATE"
"HELP"
"FAN"a
"DEFROSTING/DEMISTING ON"a
"DEFROSTING/DEMISTING OFF"a
"TEMPERATURE"a
"AUTO MODE"a
a) Can be used as a shortcut. On vehicles fitted with an English languagemodule the "FAN" shortcut is not available.
252
Voice control

Downloaded from www.Manualslib.com manuals search engine FanThis function allows you to adjust thefan speed.
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"FAN SPEED PLEASE""‘FAN"a2
"FAN MINIMUM""MINIMUM"
3"FAN """
"FAN MAXIMUM""MAXIMUM"
a) Can be used as a shortcut. On vehicles fitted with an English languagemodule the "FAN" shortcut is not available.
Defrosting/Demisting
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"DEFROSTING/DEMISTING ON""DEFROSTING/DEMISTING
ON"a
2
"DEFROSTING/DEMISTINGOFF"
"DEFROSTING/DEMISTING
OFF"a
a) Can be used as a shortcut.
Temperature
This function allows you to adjust thetemperature.
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"TEMPERATURE PLEASE""TEMPERATURE"a2
253
Voice control

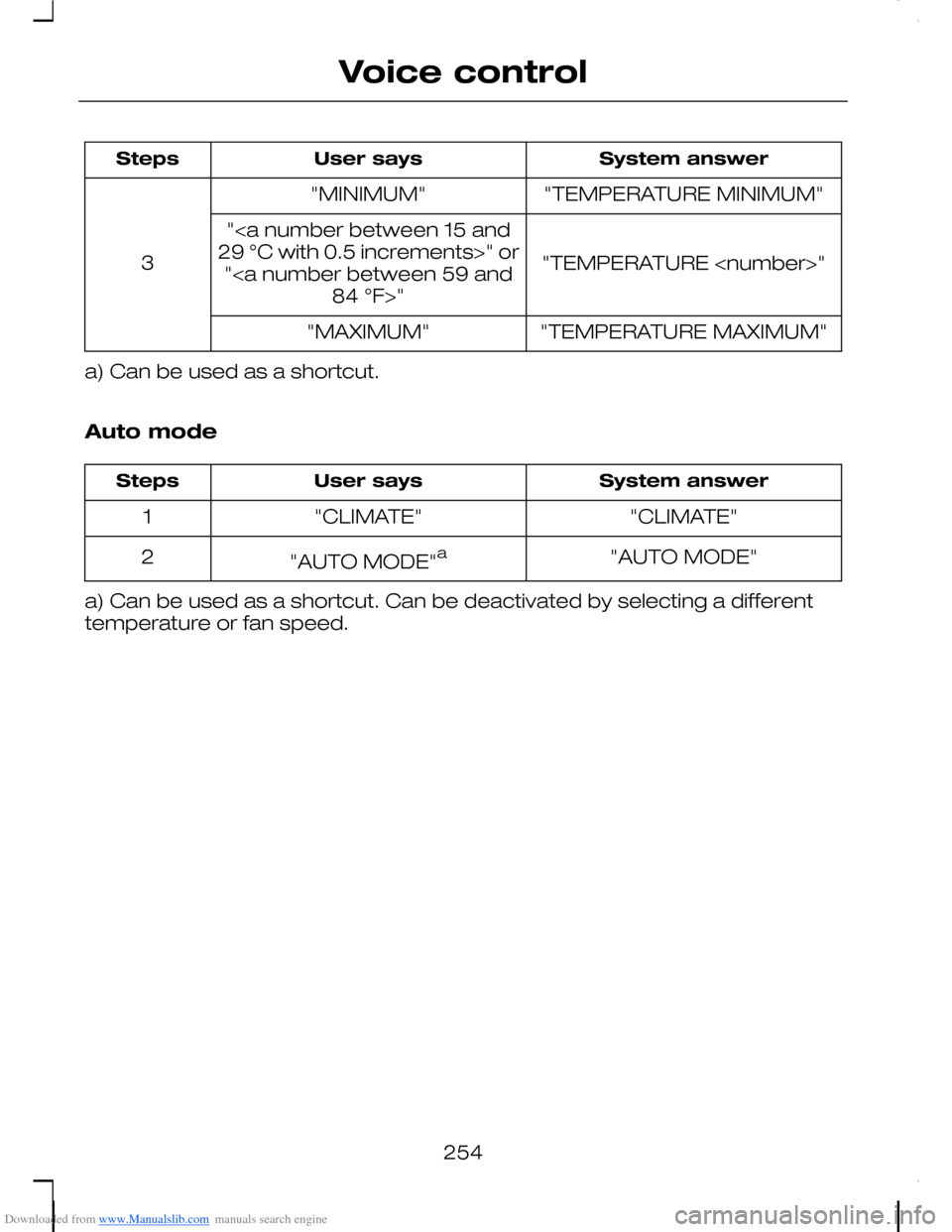

Downloaded from www.Manualslib.com manuals search engine System answerUser saysSteps
"TEMPERATURE MINIMUM""MINIMUM"
3"TEMPERATURE "
"" or""
"TEMPERATURE MAXIMUM""MAXIMUM"
a) Can be used as a shortcut.
Auto mode
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"AUTO MODE""AUTO MODE"a2
a) Can be used as a shortcut. Can be deactivated by selecting a differenttemperature or fan speed.
254
Voice control

Downloaded from www.Manualslib.com manuals search engine TYPE APPROVALS
Bluetooth/voice recognitionsystem - declaration ofconformity
We, the party responsible forcompliance, declare under our soleresponsibility that the HandsetIntegration product RX-1C is inconformity with the provisions of thefollowing Council Directive:1999/5/EC. A copy of the Declarationof Conformity can be found at:
www.nokia.com/phones/declaration_of_conformity
The Bluetooth word mark and logosare owned by the Bluetooth SIG, Inc.and any use of such marks by FordMotor Company is under license.Other trademarks and trade namesare those of their respective owners.Nokia Corporation Keilalahdentie 4,02150 Espoo, Finland
TYPE APPROVALS
Remote control
Type 1
If the type approval of your remotecontrol is inspected, refer to the tablebelow. It is recommended that youuse the remote control only in thecountries listed.
255
AppendicesE78380

Downloaded from www.Manualslib.com manuals search engine 256
AppendicesE78381

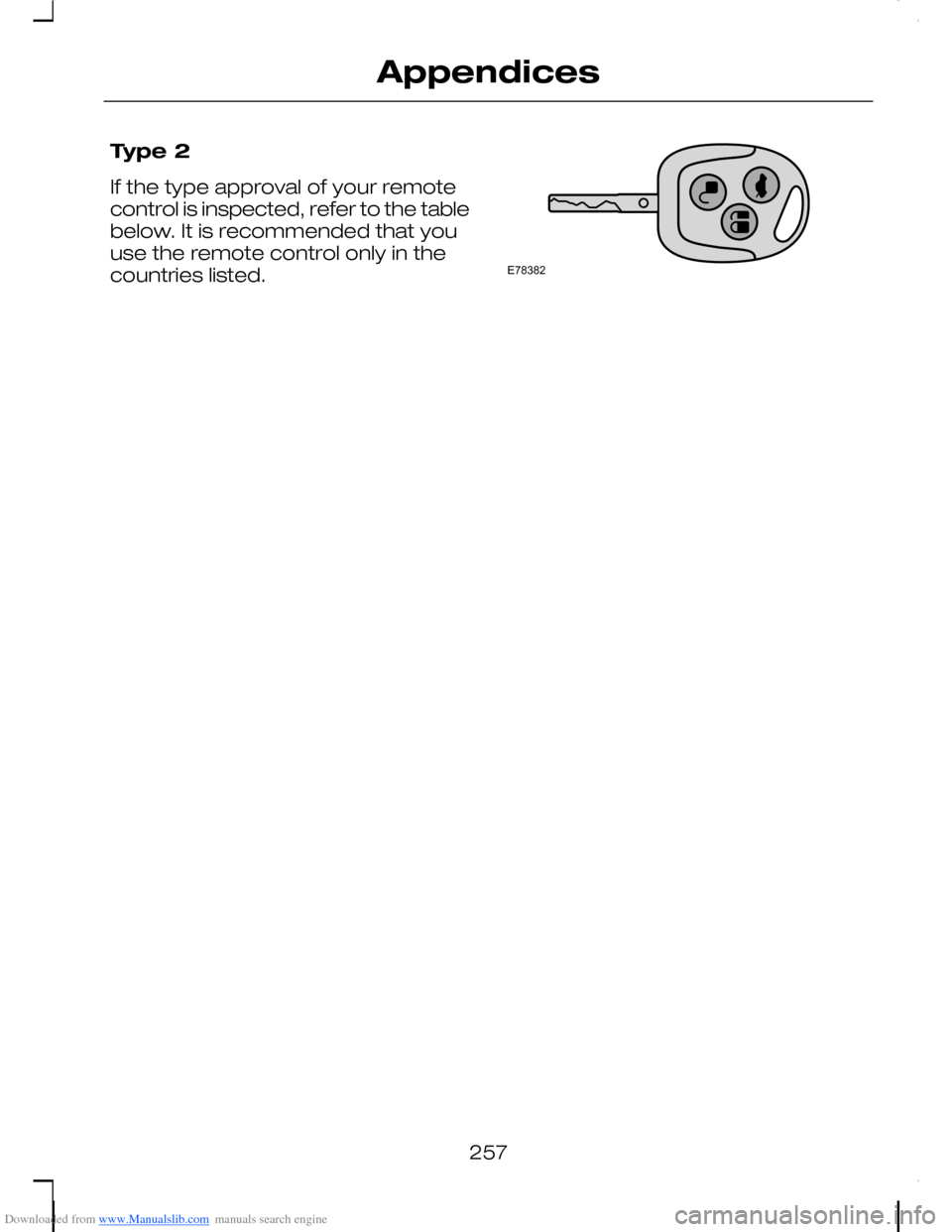

Downloaded from www.Manualslib.com manuals search engine Type 2
If the type approval of your remotecontrol is inspected, refer to the tablebelow. It is recommended that youuse the remote control only in thecountries listed.
257
AppendicesE78382

Downloaded from www.Manualslib.com manuals search engine 258
AppendicesE78383
