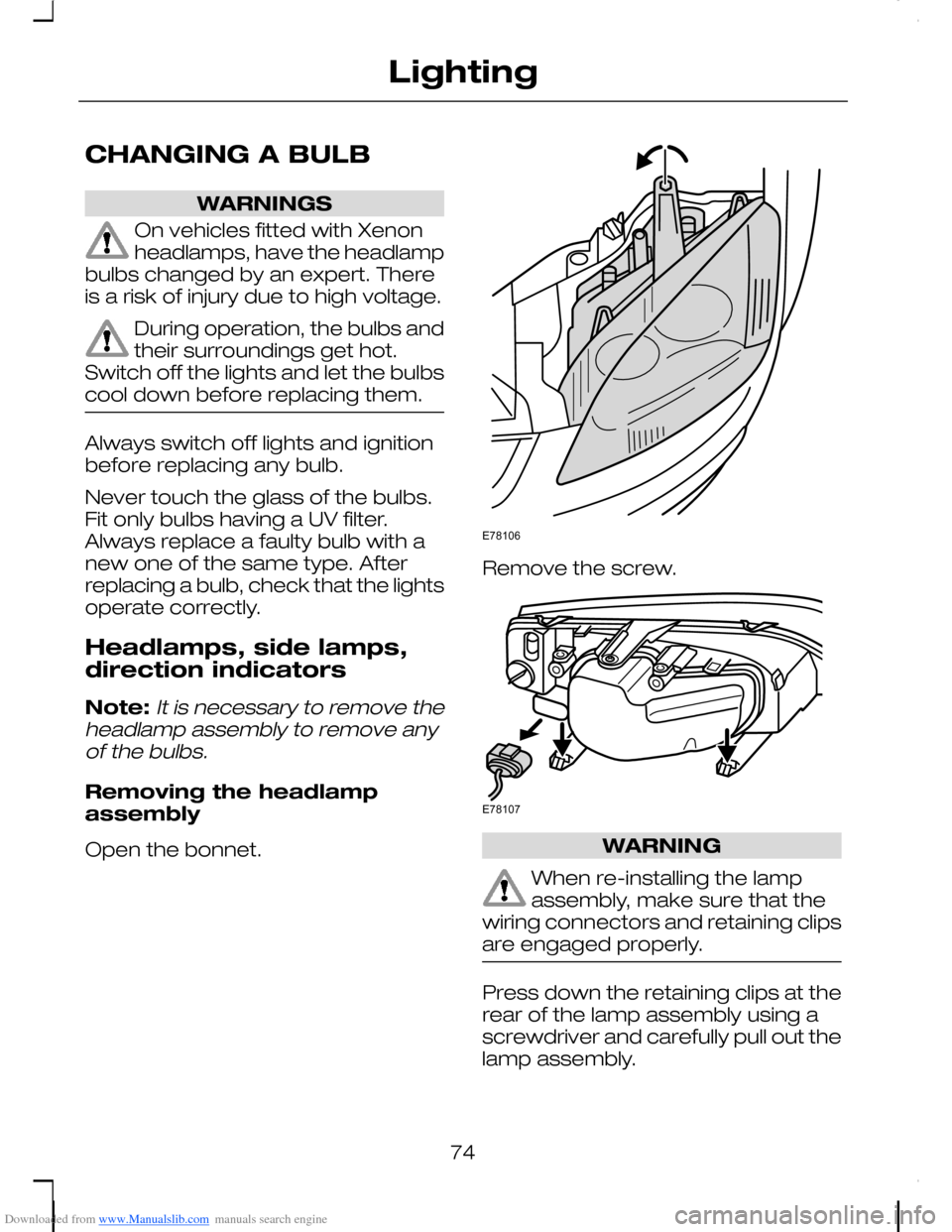

Downloaded from www.Manualslib.com manuals search engine CHANGING A BULB
WARNINGS
On vehicles fitted with Xenonheadlamps, have the headlampbulbs changed by an expert. Thereis a risk of injury due to high voltage.
During operation, the bulbs andtheir surroundings get hot.Switch off the lights and let the bulbscool down before replacing them.
Always switch off lights and ignitionbefore replacing any bulb.
Never touch the glass of the bulbs.Fit only bulbs having a UV filter.Always replace a faulty bulb with anew one of the same type. Afterreplacing a bulb, check that the lightsoperate correctly.
Headlamps, side lamps,direction indicators
Note:It is necessary to remove theheadlamp assembly to remove anyof the bulbs.
Removing the headlampassembly
Open the bonnet.
Remove the screw.
WARNING
When re-installing the lampassembly, make sure that thewiring connectors and retaining clipsare engaged properly.
Press down the retaining clips at therear of the lamp assembly using ascrewdriver and carefully pull out thelamp assembly.
74
LightingE78106 E78107

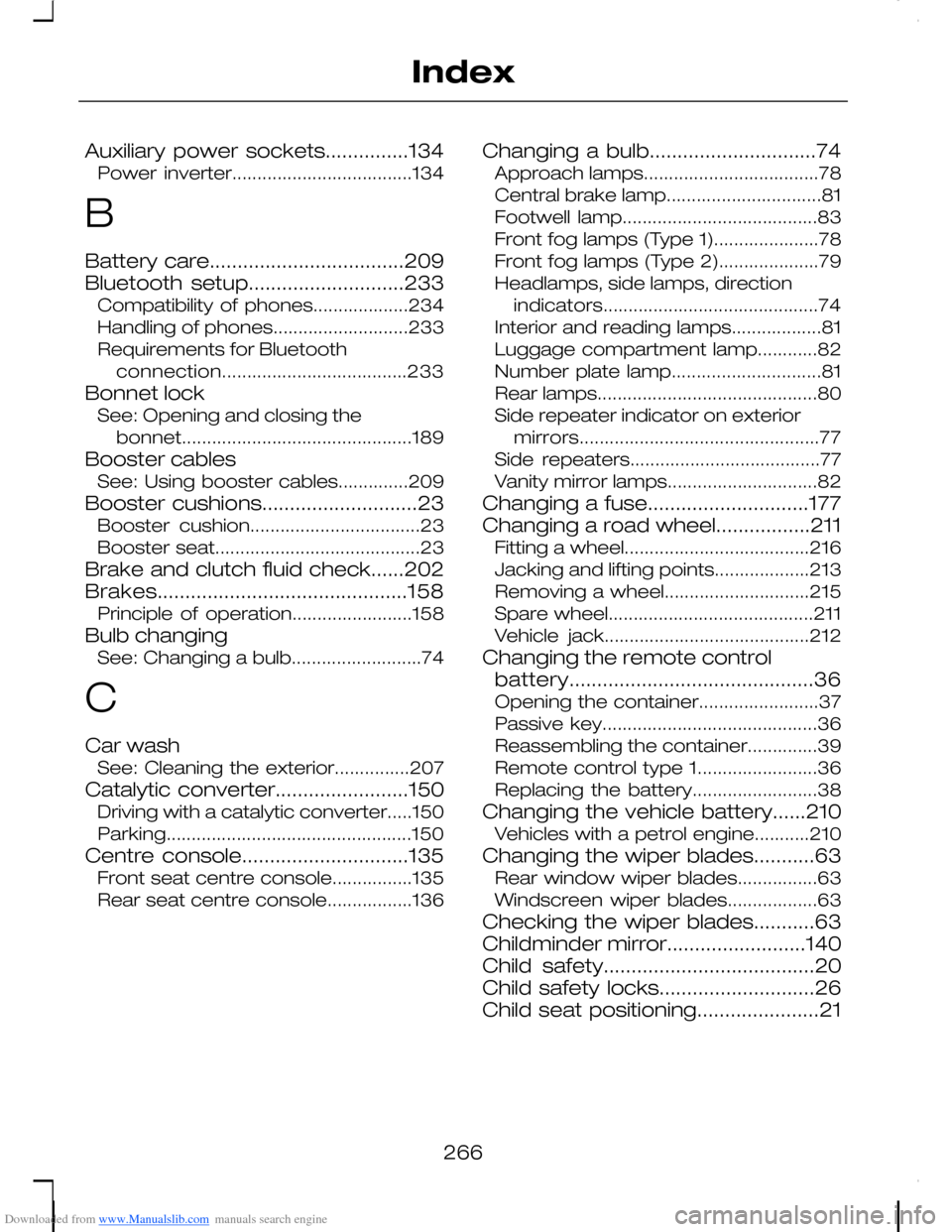

Downloaded from www.Manualslib.com manuals search engine Auxiliary power sockets...............134Power inverter....................................134
B
Battery care...................................209Bluetooth setup............................233Compatibility of phones...................234Handling of phones...........................233Requirements for Bluetoothconnection.....................................233
Bonnet lockSee: Opening and closing thebonnet..............................................189
Booster cablesSee: Using booster cables..............209
Booster cushions............................23Booster cushion..................................23Booster seat.........................................23
Brake and clutch fluid check......202Brakes.............................................158Principle of operation........................158
Bulb changingSee: Changing a bulb..........................74
C
Car washSee: Cleaning the exterior...............207
Catalytic converter........................150Driving with a catalytic converter.....150Parking.................................................150
Centre console..............................135Front seat centre console................135Rear seat centre console.................136
Changing a bulb..............................74Approach lamps...................................78Central brake lamp...............................81Footwell lamp.......................................83Front fog lamps (Type 1).....................78Front fog lamps (Type 2)....................79Headlamps, side lamps, directionindicators...........................................74Interior and reading lamps..................81Luggage compartment lamp............82Number plate lamp..............................81Rear lamps............................................80Side repeater indicator on exteriormirrors................................................77Side repeaters......................................77Vanity mirror lamps..............................82
Changing a fuse.............................177Changing a road wheel.................211Fitting a wheel.....................................216Jacking and lifting points...................213Removing a wheel.............................215Spare wheel.........................................211Vehicle jack.........................................212
Changing the remote controlbattery............................................36Opening the container........................37Passive key...........................................36Reassembling the container..............39Remote control type 1........................36Replacing the battery.........................38
Changing the vehicle battery......210Vehicles with a petrol engine...........210
Changing the wiper blades...........63Rear window wiper blades................63Windscreen wiper blades..................63
Checking the wiper blades...........63Childminder mirror.........................140Child safety......................................20Child safety locks............................26Child seat positioning......................21
266
Index

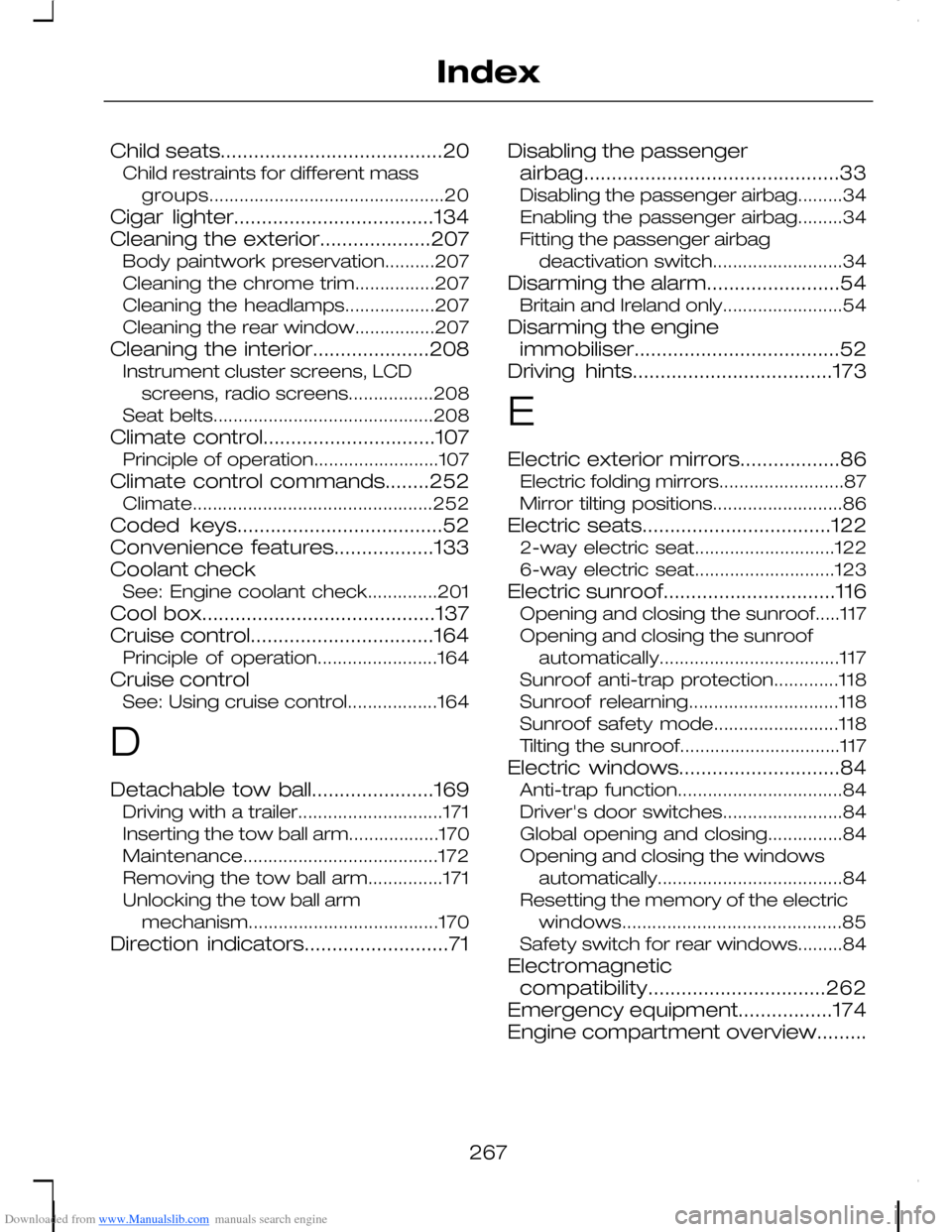

Downloaded from www.Manualslib.com manuals search engine Child seats........................................20Child restraints for different massgroups...............................................20
Cigar lighter....................................134Cleaning the exterior....................207Body paintwork preservation..........207Cleaning the chrome trim................207Cleaning the headlamps..................207Cleaning the rear window................207
Cleaning the interior.....................208Instrument cluster screens, LCDscreens, radio screens.................208Seat belts............................................208
Climate control...............................107Principle of operation.........................107
Climate control commands........252Climate................................................252
Coded keys.....................................52Convenience features..................133Coolant checkSee: Engine coolant check..............201
Cool box..........................................137Cruise control.................................164Principle of operation........................164
Cruise controlSee: Using cruise control..................164
D
Detachable tow ball......................169Driving with a trailer.............................171Inserting the tow ball arm..................170Maintenance.......................................172Removing the tow ball arm...............171Unlocking the tow ball armmechanism......................................170
Direction indicators..........................71
Disabling the passengerairbag..............................................33Disabling the passenger airbag.........34Enabling the passenger airbag.........34Fitting the passenger airbagdeactivation switch..........................34
Disarming the alarm........................54Britain and Ireland only........................54
Disarming the engineimmobiliser.....................................52Driving hints....................................173
E
Electric exterior mirrors..................86Electric folding mirrors.........................87Mirror tilting positions..........................86
Electric seats..................................1222-way electric seat............................1226-way electric seat............................123
Electric sunroof...............................116Opening and closing the sunroof.....117Opening and closing the sunroofautomatically....................................117Sunroof anti-trap protection.............118Sunroof relearning..............................118Sunroof safety mode.........................118Tilting the sunroof................................117
Electric windows.............................84Anti-trap function.................................84Driver's door switches........................84Global opening and closing...............84Opening and closing the windowsautomatically.....................................84Resetting the memory of the electricwindows............................................85Safety switch for rear windows.........84
Electromagneticcompatibility................................262Emergency equipment.................174Engine compartment overview.........
267
Index

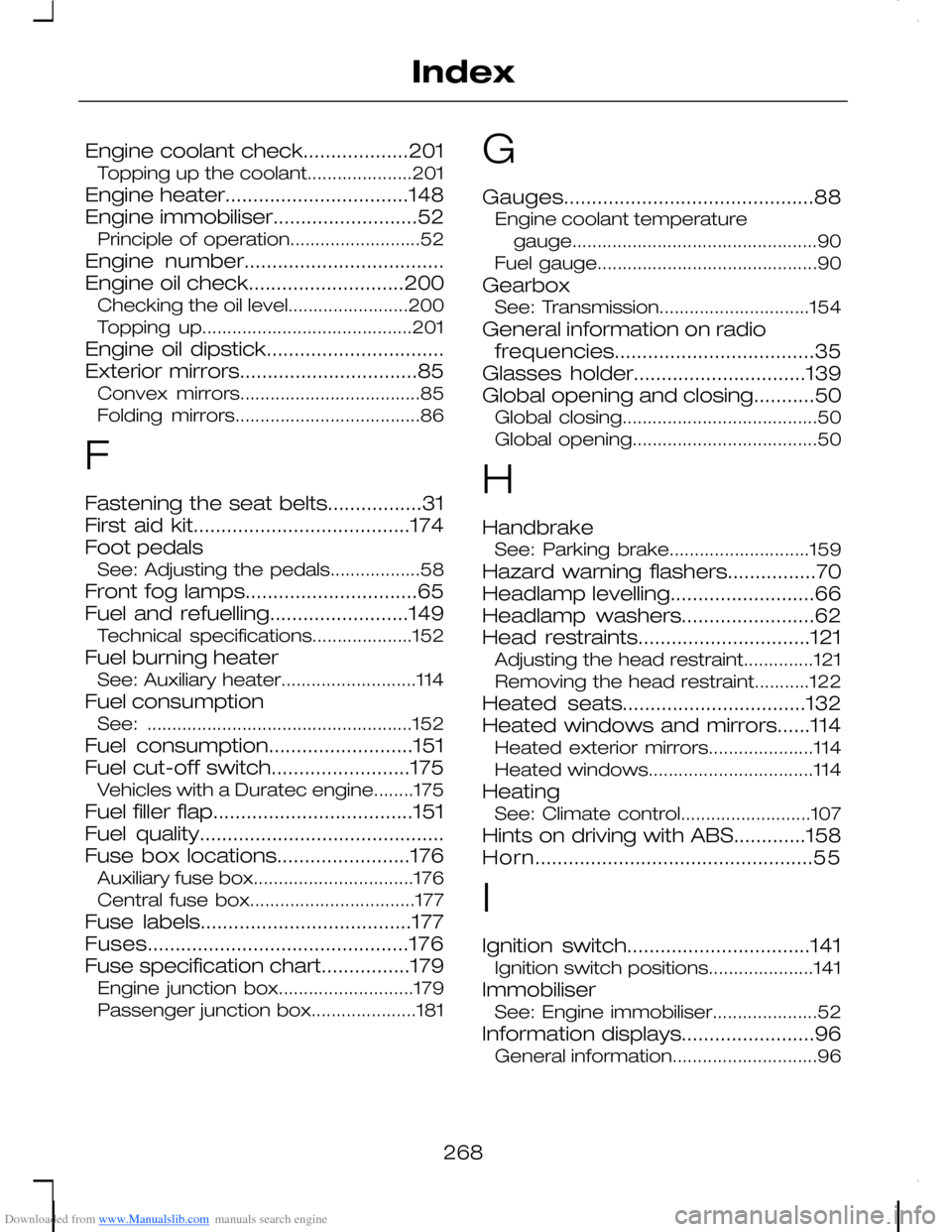

Downloaded from www.Manualslib.com manuals search engine Engine coolant check...................201Topping up the coolant.....................201
Engine heater.................................148Engine immobiliser..........................52Principle of operation..........................52
Engine number....................................Engine oil check............................200Checking the oil level........................200Topping up..........................................201
Engine oil dipstick................................Exterior mirrors................................85Convex mirrors....................................85Folding mirrors.....................................86
F
Fastening the seat belts.................31First aid kit.......................................174Foot pedalsSee: Adjusting the pedals..................58
Front fog lamps...............................65Fuel and refuelling.........................149Technical specifications....................152
Fuel burning heaterSee: Auxiliary heater...........................114
Fuel consumptionSee: .....................................................152
Fuel consumption..........................151Fuel cut-off switch.........................175Vehicles with a Duratec engine........175
Fuel filler flap....................................151Fuel quality............................................Fuse box locations........................176Auxiliary fuse box................................176Central fuse box.................................177
Fuse labels......................................177Fuses...............................................176Fuse specification chart................179Engine junction box...........................179Passenger junction box.....................181
G
Gauges.............................................88Engine coolant temperaturegauge.................................................90Fuel gauge............................................90
GearboxSee: Transmission..............................154
General information on radiofrequencies....................................35Glasses holder...............................139Global opening and closing...........50Global closing.......................................50Global opening.....................................50
H
HandbrakeSee: Parking brake............................159
Hazard warning flashers................70Headlamp levelling..........................66Headlamp washers........................62Head restraints...............................121Adjusting the head restraint..............121Removing the head restraint...........122
Heated seats.................................132Heated windows and mirrors......114Heated exterior mirrors.....................114Heated windows.................................114
HeatingSee: Climate control..........................107
Hints on driving with ABS.............158Horn..................................................55
I
Ignition switch.................................141Ignition switch positions.....................141
ImmobiliserSee: Engine immobiliser.....................52
Information displays........................96General information.............................96
268
Index
