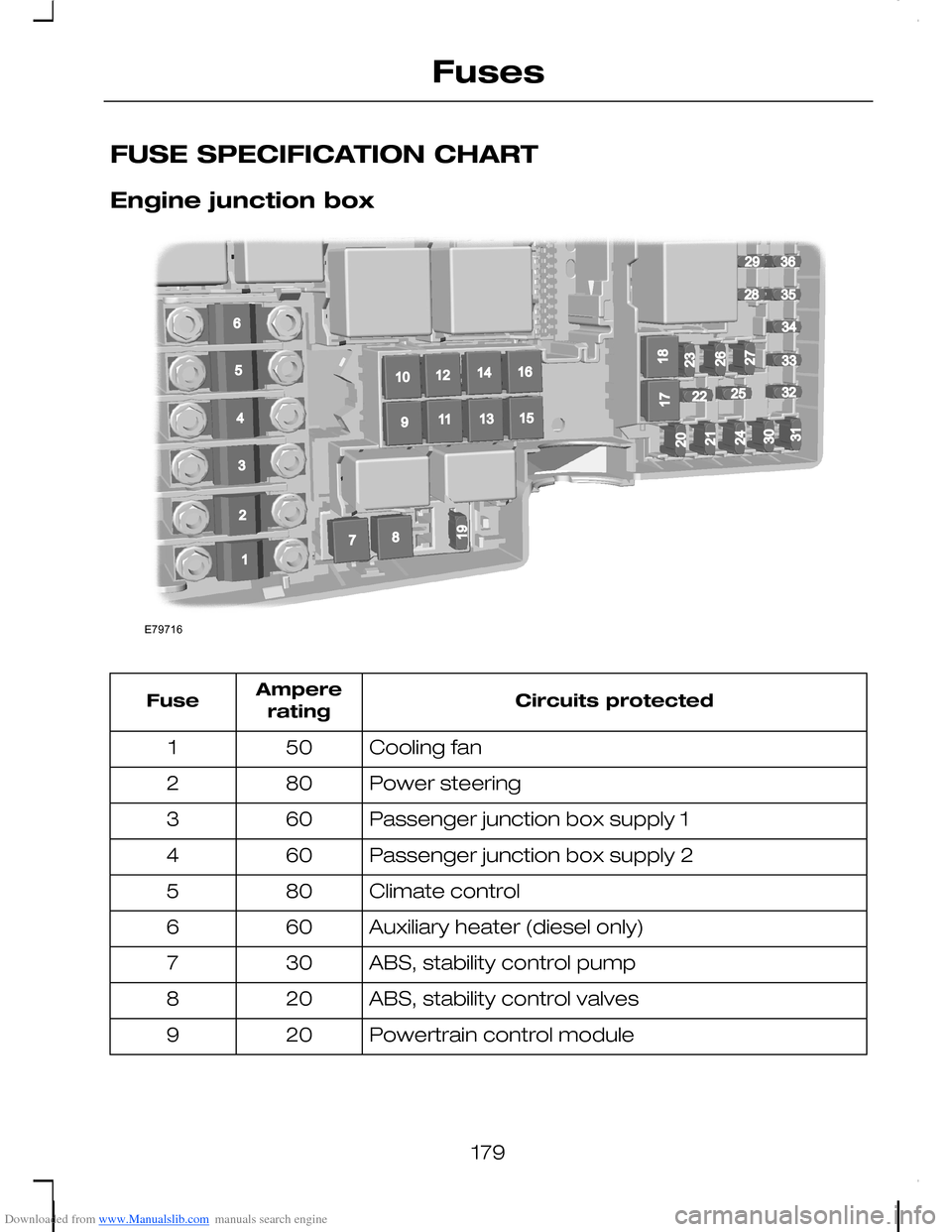

Downloaded from www.Manualslib.com manuals search engine FUSE SPECIFICATION CHART
Engine junction box
Circuits protectedAmpereratingFuse
Cooling fan501
Power steering802
Passenger junction box supply 1603
Passenger junction box supply 2604
Climate control805
Auxiliary heater (diesel only)606
ABS, stability control pump307
ABS, stability control valves208
Powertrain control module209
179
FusesE79716196781091211141316152936283435332225325432120171824213031232627

Downloaded from www.Manualslib.com manuals search engine Circuits protectedAmpereratingFuse

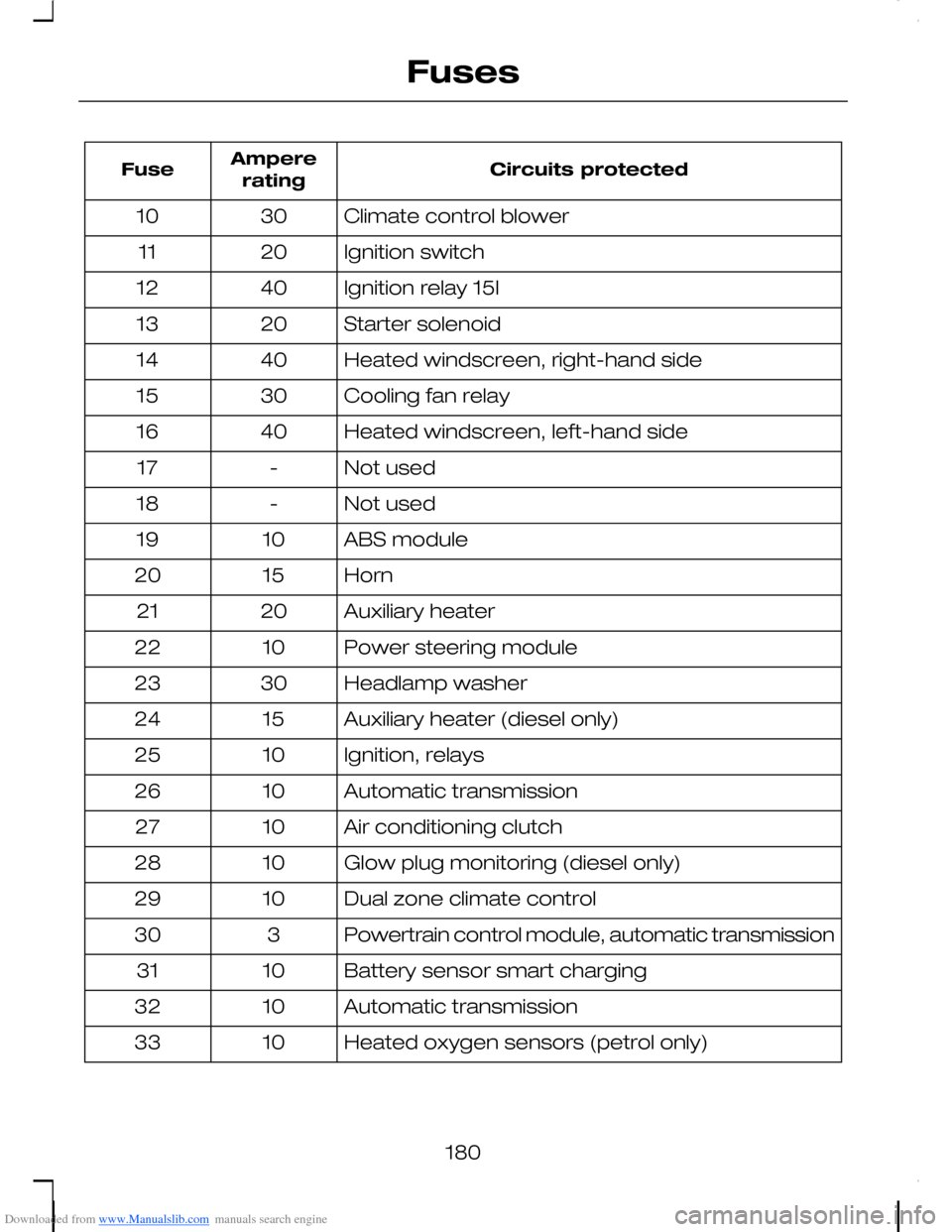

Climate control blower3010
Ignition switch2011
Ignition relay 15l4012
Starter solenoid2013
Heated windscreen, right-hand side4014
Cooling fan relay3015
Heated windscreen, left-hand side4016
Not used-17
Not used-18
ABS module1019
Horn1520
Auxiliary heater2021
Power steering module1022
Headlamp washer3023
Auxiliary heater (diesel only)1524
Ignition, relays1025
Automatic transmission1026
Air conditioning clutch1027
Glow plug monitoring (diesel only)1028
Dual zone climate control1029
Powertrain control module, automatic transmission330
Battery sensor smart charging1031
Automatic transmission1032
Heated oxygen sensors (petrol only)1033
180
Fuses

Downloaded from www.Manualslib.com manuals search engine Circuits protectedAmpereratingFuse

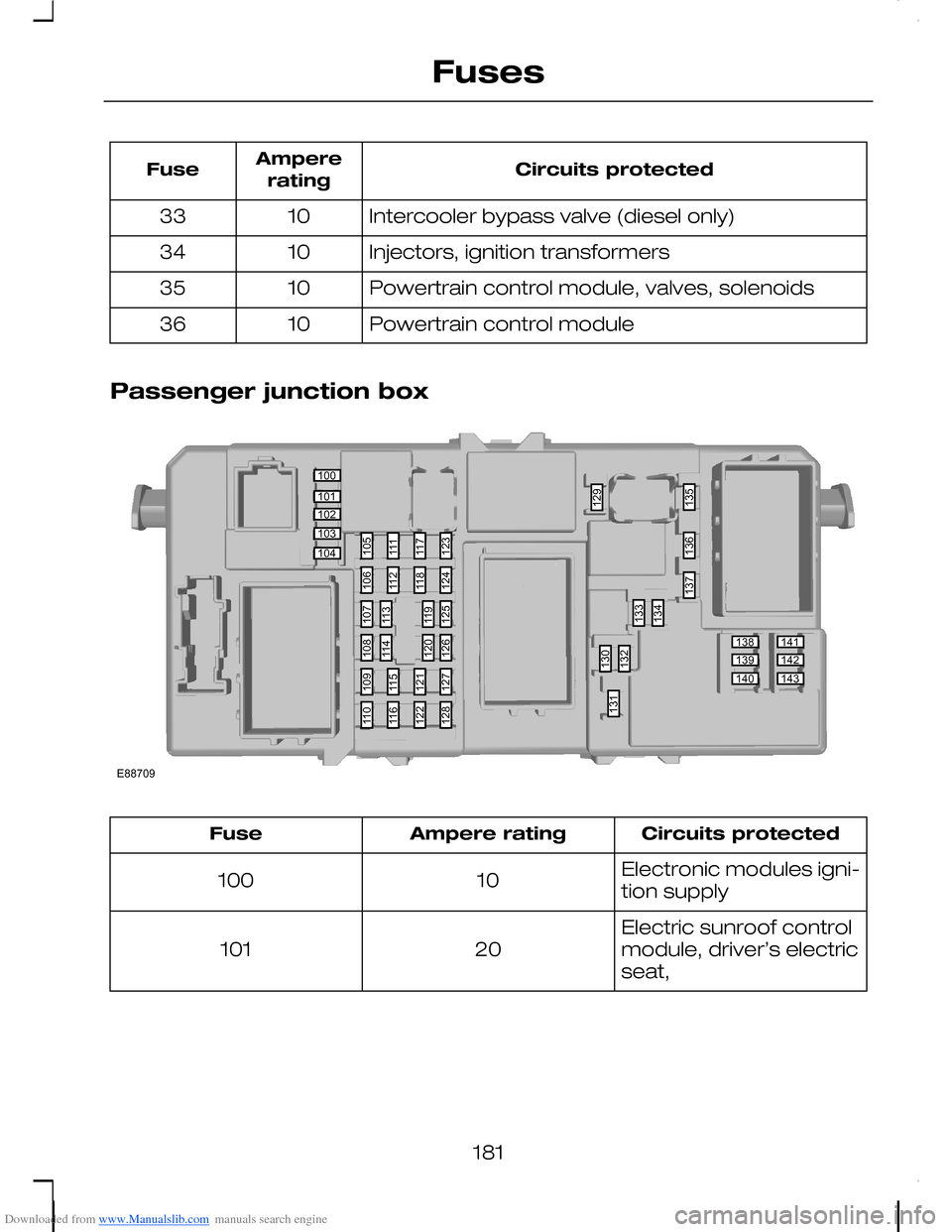

Intercooler bypass valve (diesel only)1033
Injectors, ignition transformers1034
Powertrain control module, valves, solenoids1035
Powertrain control module1036
Passenger junction box
Circuits protectedAmpere ratingFuse
Electronic modules igni-tion supply10100
Electric sunroof controlmodule, driver’s electricseat,20101
181
Fuses100101102103104138139140141142143105111117123130132133129134135136137131106112118124109115121127110116122128107113119125108114120126E88709

Downloaded from www.Manualslib.com manuals search engine Circuits protectedAmpere ratingFuse
Heater control, steeringcolumn, DPF, remotecontrol receiver, DVDplayer,
10102
Lighting control batterysupply10103
Battery saver, interiorlamps10104
Heated rear window25105
Not used-106
Instrument clusterbattery supply, on-boarddiagnostics10107
Accessory to cluster(audio and navigationunit)7.5108
Cigar lighter, rear auxil-iary power socket20109
Daytime running lampsignition supply to lightingcontrol switch10110
Fuel pump15111
Audio modules batterysupply15112
Daytime running lamps(parking lamps)10113
Instrument cluster igni-tion supply, engineimmobiliser10114
Lighting control ignitionsupply7.5115
182
Fuses

Downloaded from www.Manualslib.com manuals search engine Circuits protectedAmpere ratingFuse

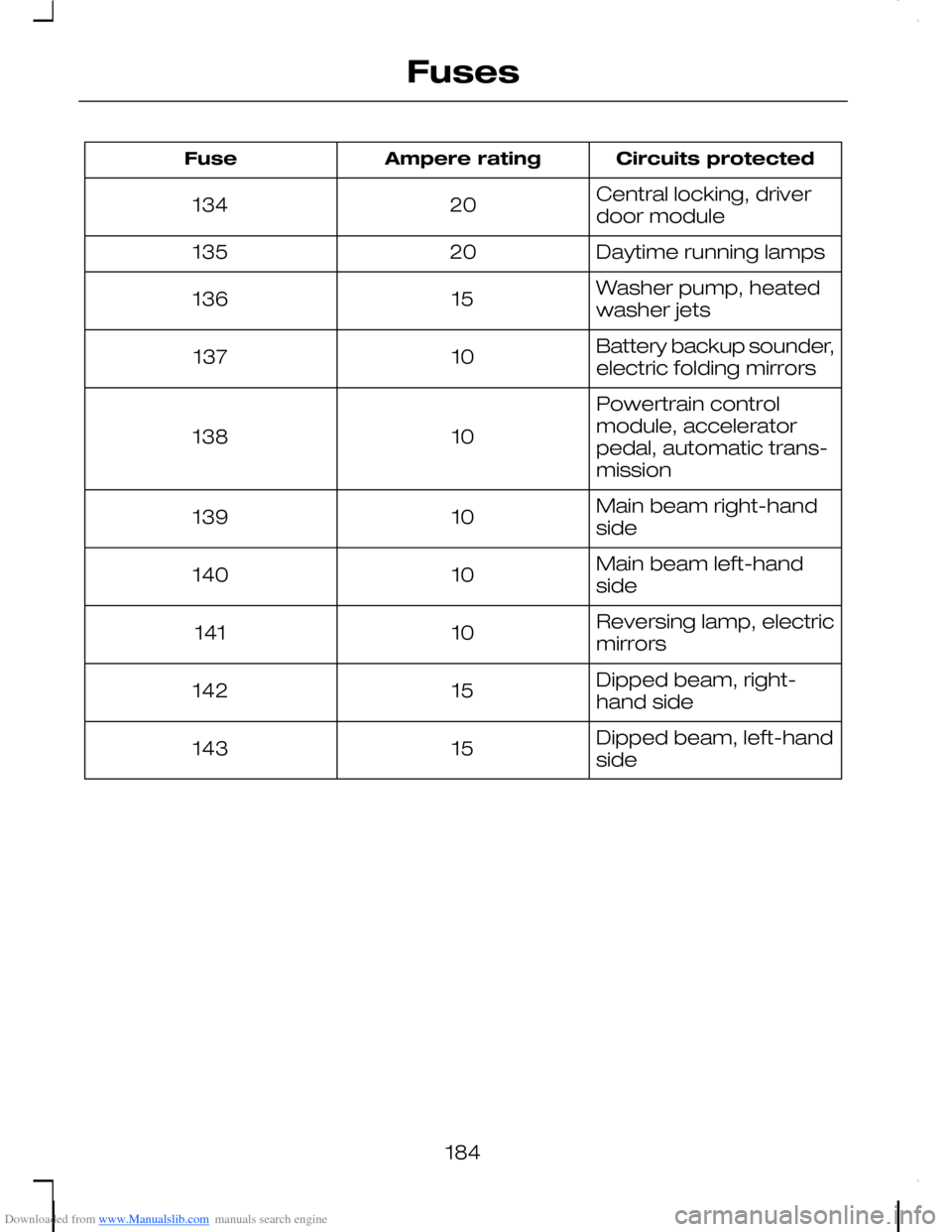

Central locking, driverdoor module20134
Daytime running lamps20135
Washer pump, heatedwasher jets15136
Battery backup sounder,electric folding mirrors10137
Powertrain controlmodule, acceleratorpedal, automatic trans-mission
10138
Main beam right-handside10139
Main beam left-handside10140
Reversing lamp, electricmirrors10141
Dipped beam, right-hand side15142
Dipped beam, left-handside15143
184
Fuses

Downloaded from www.Manualslib.com manuals search engine System answerUser saysSteps
"REJECT CALLS""REJECT CALLS"

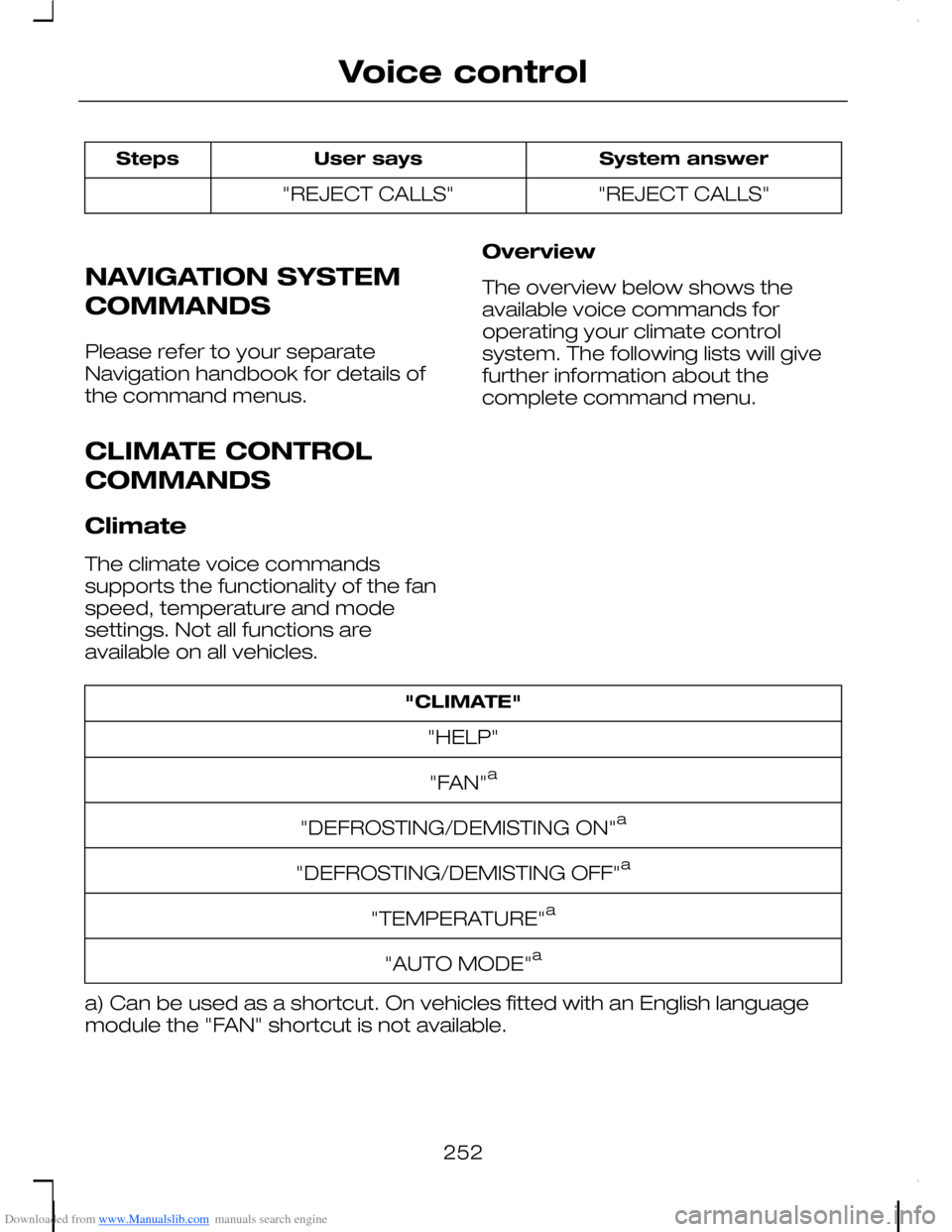

NAVIGATION SYSTEM
COMMANDS
Please refer to your separateNavigation handbook for details ofthe command menus.
CLIMATE CONTROL
COMMANDS
Climate
The climate voice commandssupports the functionality of the fanspeed, temperature and modesettings. Not all functions areavailable on all vehicles.
Overview
The overview below shows theavailable voice commands foroperating your climate controlsystem. The following lists will givefurther information about thecomplete command menu.
"CLIMATE"
"HELP"
"FAN"a
"DEFROSTING/DEMISTING ON"a
"DEFROSTING/DEMISTING OFF"a
"TEMPERATURE"a
"AUTO MODE"a
a) Can be used as a shortcut. On vehicles fitted with an English languagemodule the "FAN" shortcut is not available.
252
Voice control

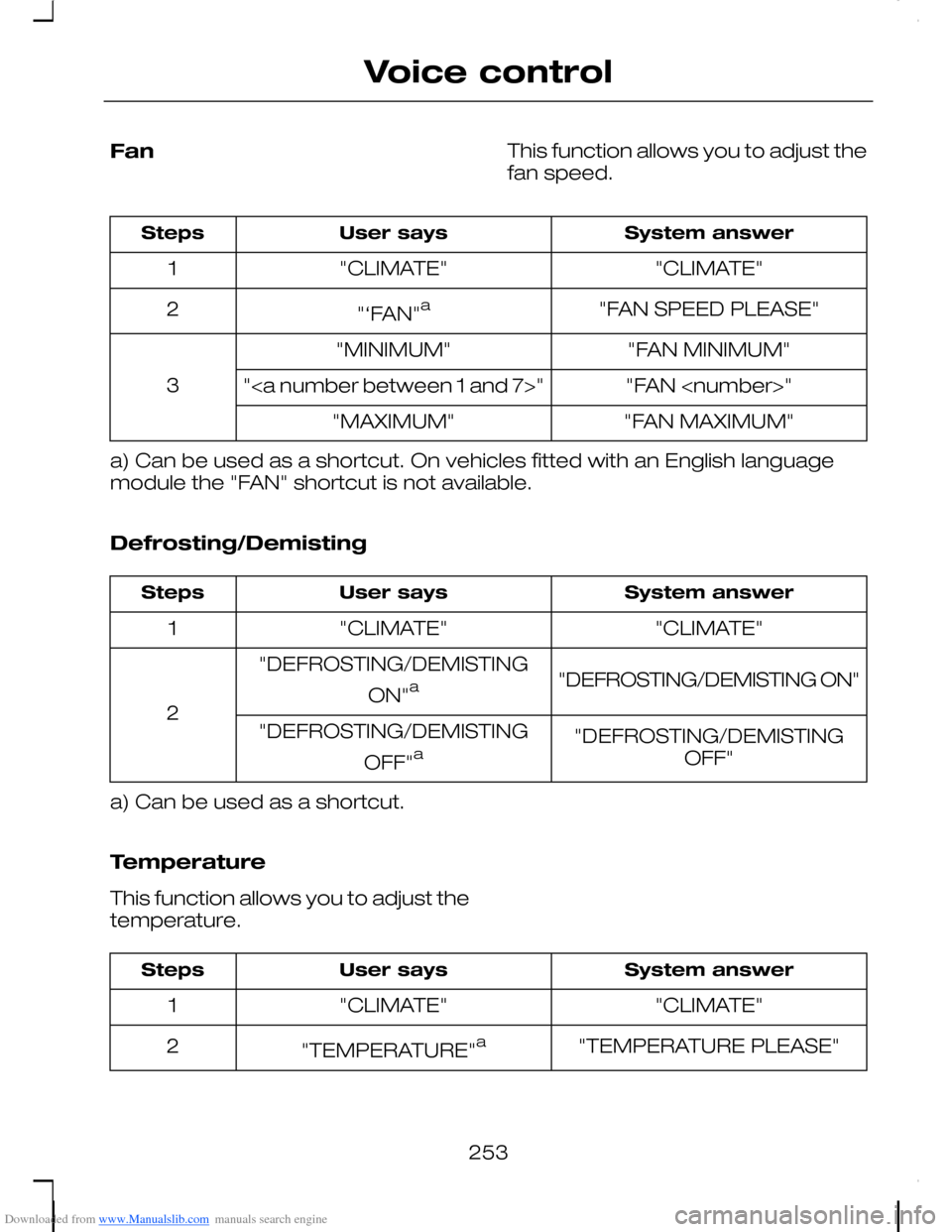

Downloaded from www.Manualslib.com manuals search engine FanThis function allows you to adjust thefan speed.
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"FAN SPEED PLEASE""‘FAN"a2
"FAN MINIMUM""MINIMUM"
3"FAN """
"FAN MAXIMUM""MAXIMUM"
a) Can be used as a shortcut. On vehicles fitted with an English languagemodule the "FAN" shortcut is not available.
Defrosting/Demisting
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"DEFROSTING/DEMISTING ON""DEFROSTING/DEMISTING
ON"a
2
"DEFROSTING/DEMISTINGOFF"
"DEFROSTING/DEMISTING
OFF"a
a) Can be used as a shortcut.
Temperature
This function allows you to adjust thetemperature.
System answerUser saysSteps
"CLIMATE""CLIMATE"1
"TEMPERATURE PLEASE""TEMPERATURE"a2
253
Voice control
