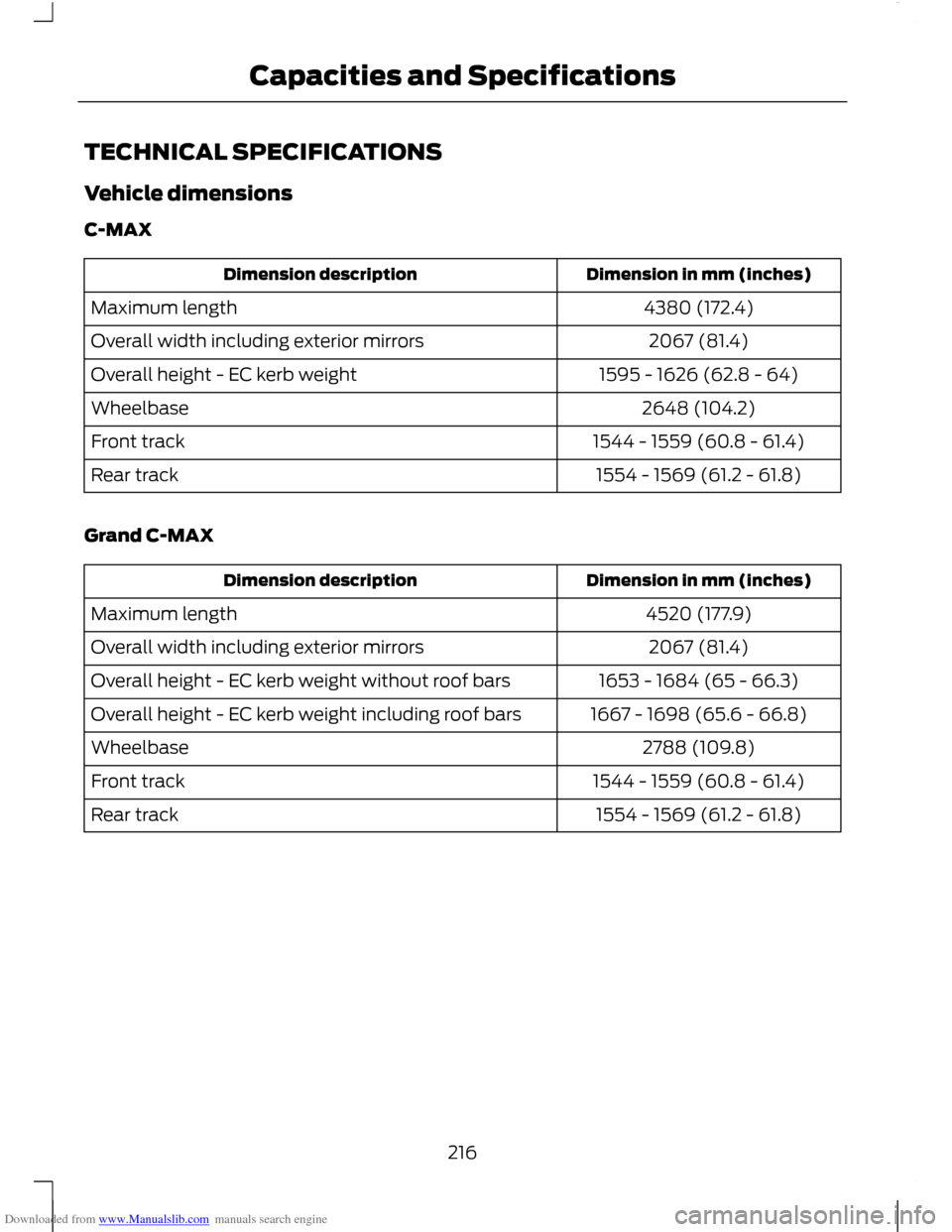

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle dimensions
C-MAX
Dimension in mm (inches)
Dimension description
4380 (172.4)
Maximum length
2067 (81.4)
Overall width including exterior mirrors
1595 - 1626 (62.8 - 64)
Overall height - EC kerb weight
2648 (104.2)
Wheelbase
1544 - 1559 (60.8 - 61.4)
Front track
1554 - 1569 (61.2 - 61.8)
Rear track
Grand C-MAX Dimension in mm (inches)
Dimension description
4520 (177.9)
Maximum length
2067 (81.4)
Overall width including exterior mirrors
1653 - 1684 (65 - 66.3)
Overall height - EC kerb weight without roof bars
1667 - 1698 (65.6 - 66.8)
Overall height - EC kerb weight including roof bars
2788 (109.8)
Wheelbase
1544 - 1559 (60.8 - 61.4)
Front track
1554 - 1569 (61.2 - 61.8)
Rear track
216
Capacities and Specifications

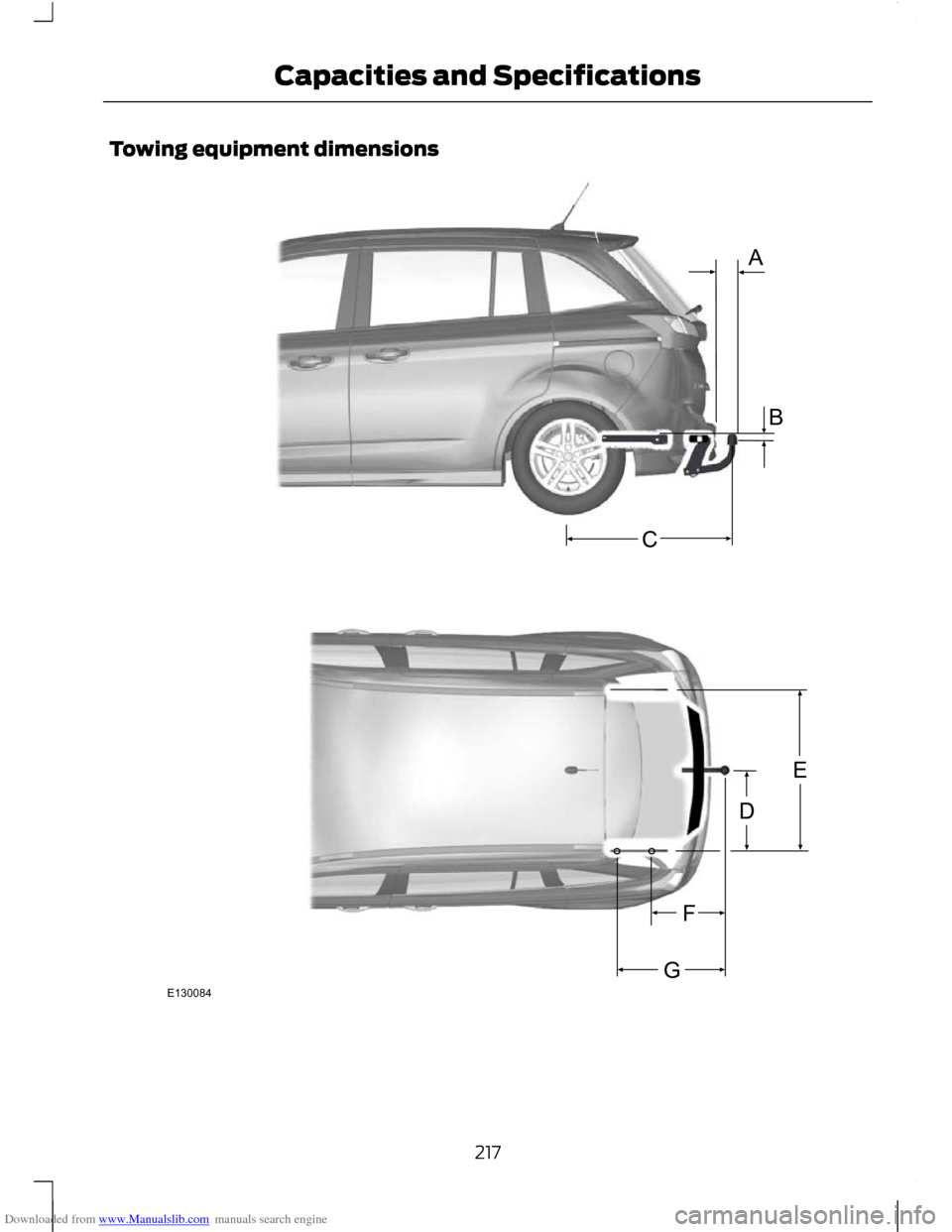

Downloaded from www.Manualslib.com manuals search engine Towing equipment dimensions
217
Capacities and SpecificationsABGFECDE130084
