jacking FORD C MAX 2011 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Note:
Vehicles with a tyre repair kit are not
equipped with a vehicle jack or a wheel
brace.
It is recommended to use a workshop type
hydraulic jack for changing between
summer and winter tyres.
Note: Use a jack with a minimum lifting
capacity of 1.5 tonnes and a lifting plate with
a minimum diameter of 80 millimetres (3.1
inches). Vehicles without tyre repair kit
Your vehicle jack, wheel brace, screw-in
towing eye and wheel trim remover are
located in the spare wheel well.

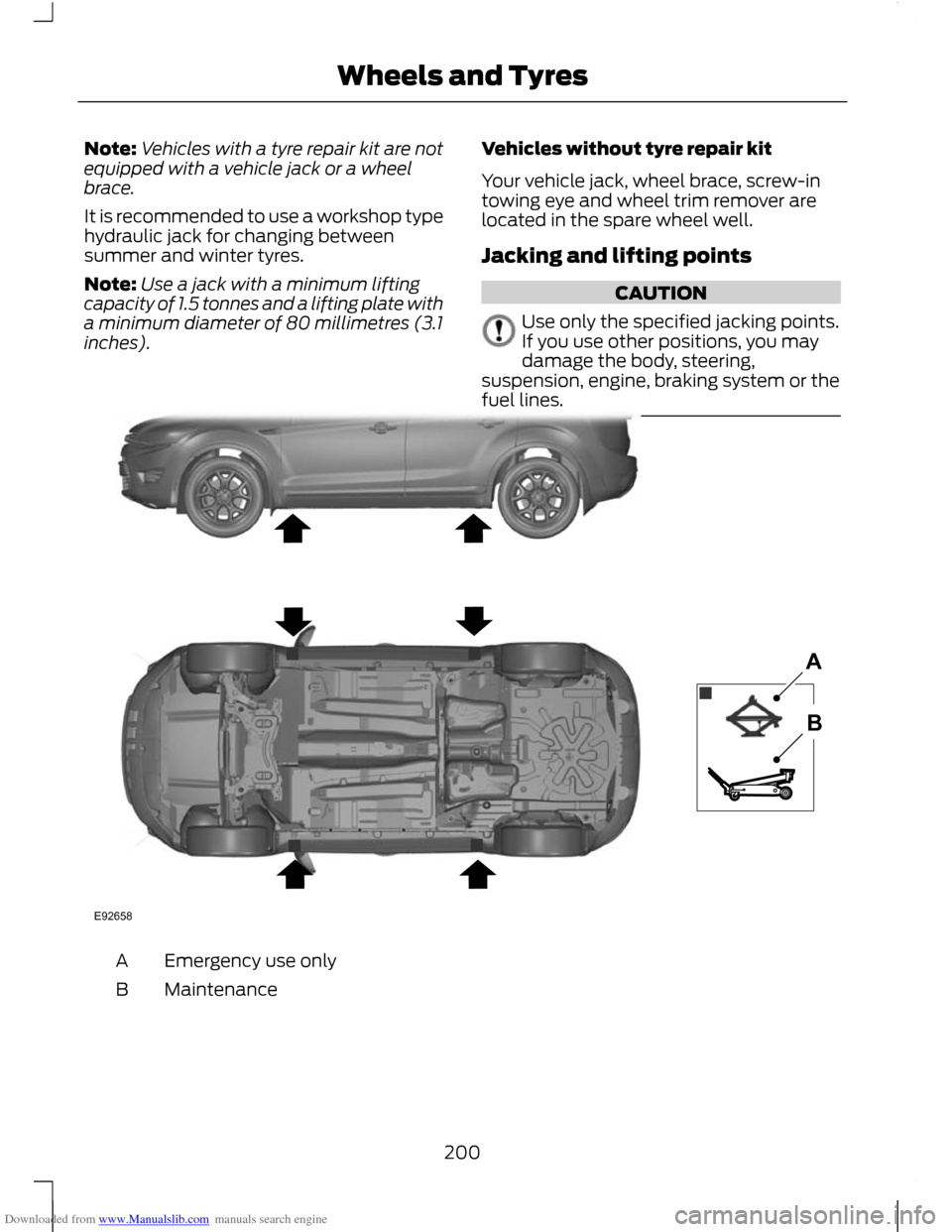

Jacking and lifting points CAUTION
Use only the specified jacking points.
If you use other positions, you may
damage the body, steering,
suspension, engine, braking system or the
fuel lines. Emergency use only
A
Maintenance
B
200
Wheels and TyresE92658AB

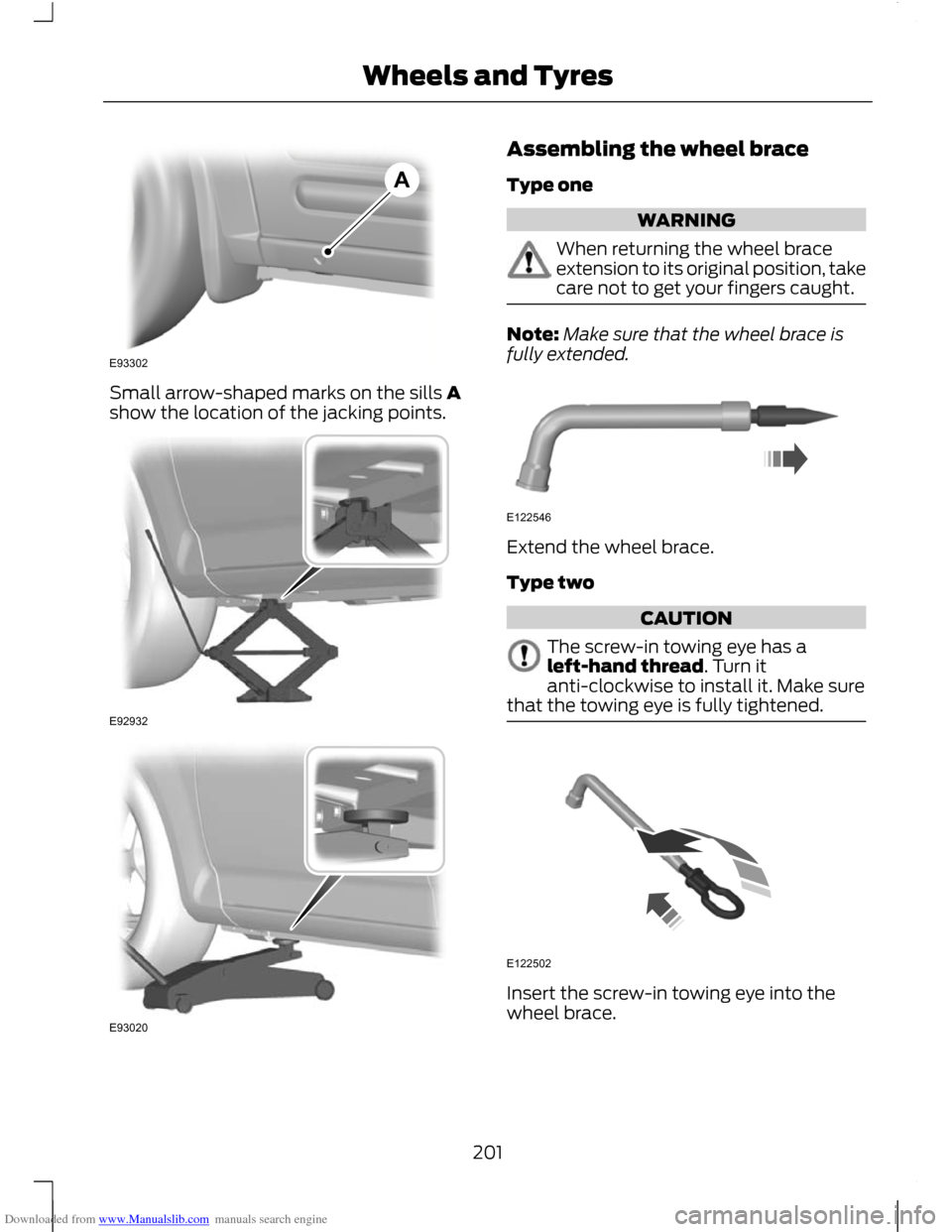

Downloaded from www.Manualslib.com manuals search engine Small arrow-shaped marks on the sills A
show the location of the jacking points. Assembling the wheel brace
Type one
WARNING
When returning the wheel brace
extension to its original position, take
care not to get your fingers caught.
Note:
Make sure that the wheel brace is
fully extended. Extend the wheel brace.
Type two
CAUTION
The screw-in towing eye has a
left-hand thread. Turn it
anti-clockwise to install it. Make sure
that the towing eye is fully tightened. Insert the screw-in towing eye into the
wheel brace.
201
Wheels and TyresE93302A E92932 E93020 E122546 E122502

Downloaded from www.Manualslib.com manuals search engine Removing the wheel trim

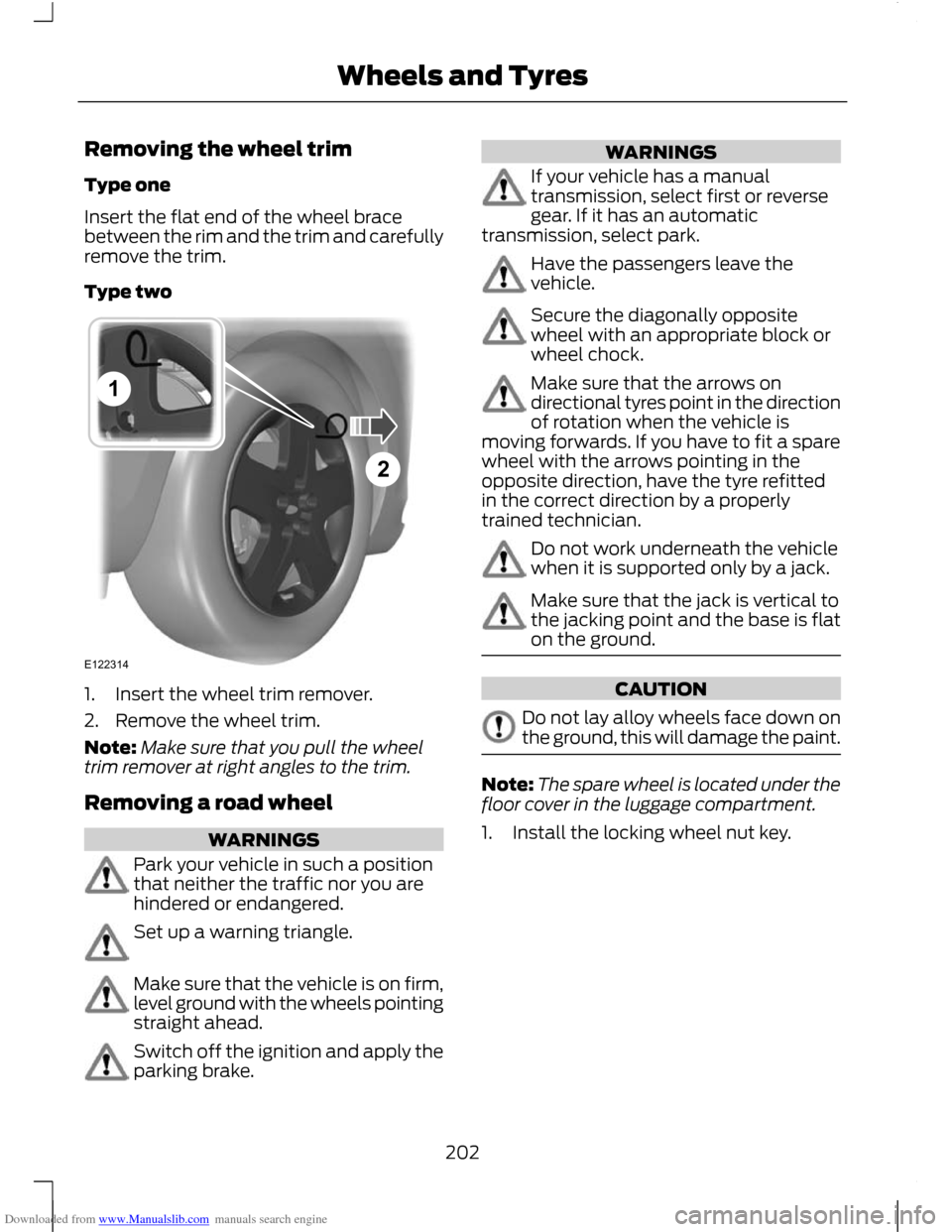

Type one
Insert the flat end of the wheel brace
between the rim and the trim and carefully
remove the trim.
Type two
1. Insert the wheel trim remover.
2. Remove the wheel trim.
Note:
Make sure that you pull the wheel
trim remover at right angles to the trim.
Removing a road wheel WARNINGS
Park your vehicle in such a position
that neither the traffic nor you are
hindered or endangered.
Set up a warning triangle.
Make sure that the vehicle is on firm,
level ground with the wheels pointing
straight ahead.
Switch off the ignition and apply the
parking brake. WARNINGS
If your vehicle has a manual
transmission, select first or reverse
gear. If it has an automatic
transmission, select park. Have the passengers leave the
vehicle.
Secure the diagonally opposite
wheel with an appropriate block or
wheel chock.
Make sure that the arrows on
directional tyres point in the direction
of rotation when the vehicle is
moving forwards. If you have to fit a spare
wheel with the arrows pointing in the
opposite direction, have the tyre refitted
in the correct direction by a properly
trained technician. Do not work underneath the vehicle
when it is supported only by a jack.
Make sure that the jack is vertical to
the jacking point and the base is flat
on the ground.
CAUTION
Do not lay alloy wheels face down on
the ground, this will damage the paint.
Note:
The spare wheel is located under the
floor cover in the luggage compartment.
1. Install the locking wheel nut key.
202
Wheels and TyresE12231421
