About This Manual...........................................7
Symbols Glossary.............................................7
Parts and Accessories.....................................7
At a Glance
At a Glance........................................................10
Child Safety
Child Seats.........................................................19
Booster Seats..................................................20
Child Seat Positioning...................................21
ISOFIX Anchor Points...................................24
Child Safety Locks..........................................25
Occupant protection
Principle of Operation...................................27
Fastening the seat belts..............................29
Seat belt height adjustment......................33
Seat belt reminder.........................................33
Using seat belts during pregnancy..........33
Disabling the passenger airbag................34
Keys and Remote Controls
General Information on Radio
Frequencies..................................................36
Programming the remote control............36
Changing the remote control battery............................................................36
Locks
Locking and Unlocking.................................39
Keyless Entry....................................................43
Global Opening and Closing......................45
Engine immobiliser
Principle of Operation...................................47
Coded keys........................................................47
Arming the engine immobiliser.................47
Disarming the engine immobiliser...........47 Alarm
Principle of Operation..................................48
Arming the alarm...........................................49
Disarming the alarm.....................................49
Steering Wheel
Adjusting the Steering Wheel...................50
Audio Control..................................................50
Voice Control.....................................................51
Wipers and Washers
Windscreen Wipers.......................................52
Autowipers........................................................52
Windscreen Washers....................................53
Rear Window Wiper and Washers...........53
Headlamp Washers......................................54
Checking the Wiper Blades........................54
Changing the Wiper Blades.......................54
Technical Specifications.............................56
Lighting
Lighting Control...............................................57
Autolamps........................................................58
Front Fog Lamps............................................58
Rear Fog Lamps.............................................58
Adjusting the Headlamps - Vehicles
With: Adaptive Front Lighting/Xenon
Headlamps...................................................59
Headlamp Levelling......................................59
Hazard Warning Flashers............................59
Direction Indicators.......................................60
Cornering Lamps...........................................60
Interior Lamps..................................................61
Removing a Headlamp................................62
Changing a Bulb.............................................62
Bulb Specification Chart.............................69
Windows and Mirrors
Power Windows...............................................71
1
Table of Contents

Downloaded from www.Manualslib.com manuals search engine Exterior Mirrors.................................................72
Electric exterior mirrors................................73
Auto-Dimming Mirror....................................74
Blind Spot Monitor.........................................74
Instrument Cluster
Gauges................................................................77
Warning Lamps and Indicators.................79
Audible Warnings and Indicators..............81
Information Displays
General Information......................................83
Trip Computer.................................................89
Personalised Settings..................................89
Information Messages.................................90
Climate Control
Principle of Operation................................100
Air Vents..........................................................100
Manual Climate Control.............................101
Automatic Climate Control......................103
Heated Windows and Mirrors..................105
Auxiliary Heater............................................106
Seats
Sitting in the Correct Position.................109
Manual Seats.................................................109
Head Restraints.............................................110
Power Seats......................................................111
Rear Seats........................................................112
Heated Seats.................................................120
Convenience features
Sun Shades......................................................121
Instrument Lighting Dimmer....................122
Clock..................................................................122
Cigar Lighter....................................................122
Auxiliary Power Points................................123
Cup Holders....................................................123
Storage compartments..............................124
Glasses Holder...............................................124
Childminder Mirror........................................125
Auxiliary input (AUX IN) socket...............125
USB port...........................................................125
Satellite Navigation Unit Holder.............126
Floor Mats........................................................126
Starting and Stopping the
Engine
General Information.....................................127
Ignition Switch................................................127
Steering Wheel Lock....................................127
Starting a Petrol Engine.............................128
Starting a Diesel Engine.............................128
Keyless Starting............................................129
Diesel Particulate Filter..............................130
Switching Off the Engine............................131
Engine Block Heater.....................................131
Start-Stop
Principle of Operation.................................133
Using start-stop............................................133
Eco Mode
Principle of Operation.................................135
Using Eco mode............................................135
Fuel and Refuelling
Safety Precautions......................................136
Fuel Quality - Petrol....................................136
Fuel Quality - Diesel....................................136
Catalytic Converter......................................136
Fuel filler flap..................................................137
Refuelling........................................................138
Fuel Consumption........................................138
Technical Specifications............................139
2
Table of Contents

Downloaded from www.Manualslib.com manuals search engine Instrument cluster. See Gauges (page 77). See Warning Lamps and
Indicators (page 79).
D
Left-hand drive vehicles with voice control - Information and entertainment
display control.
E
Left-hand drive vehicles without voice control - Audio control. See Audio
Control (page 50).
E
Right-hand drive vehicles with voice control - Information display control. See
Information Displays (page 83).
E
Right-hand drive vehicles without voice control - Audio control. See Audio
Control (page 50).
E
Wiper lever. See Wipers and Washers (page 52).
F
Information and entertainment display.
G
Audio unit. See Audio unit overview (page 220).
H
Door lock button. See Locking and Unlocking (page 39).
I
Hazard warning flasher switch. See Hazard Warning Flashers (page 59).
J
Power liftgate switch. See Locking and Unlocking (page 39).
K
Parking aid switch. See Parking Aids (page 148).
L
Active park assist switch. See Active Park Assist (page 152).
M
Start-stop switch. See Using start-stop (page 133).
N
Heated rear window switch. See Heated Windows and Mirrors (page 105).
O
Heated windscreen switch. See Heated Windows and Mirrors (page 105).
P
Climate controls. See Climate Control (page 100).
Q
Start button. See Keyless Starting (page 129).
R
Ignition switch. See Ignition Switch (page 127).
S
Audio control. See Audio Control (page 50). Voice control. See Voice Control
(page 51). Telephone control. See Telephone controls (page 238).
T
Steering wheel adjustment. See Adjusting the Steering Wheel (page 50).
U
Horn.
V
Cruise control switches. See Cruise Control (page 158). Speed limiter switches.
See Speed Limiter (page 160).
W
Lighting control. See Lighting Control (page 57). Front fog lamps. See Front
Fog Lamps (page 58). Rear fog lamp. See Rear Fog Lamps (page 58).
Headlamp levelling control. See Headlamp Levelling (page 59). Instrument
lighting dimmer. See Instrument Lighting Dimmer (page 122).
X
12At a Glance

Downloaded from www.Manualslib.com manuals search engine Power liftgate
WARNINGS
Do not operate the luggage
compartment lid unless it is free from
obstruction.
Careless opening and closing of the
luggage compartment lid can
override the protection function and
cause injuries. The luggage compartment lid can be
operated using the remote control, the
centre console switch, the luggage
compartment lid switch or the luggage
compartment lid release handle.
See Locking and Unlocking (page 39).
Keyless entry Passive locking and unlocking requires a
valid passive key to be located within one
of the three external detection ranges. Unlocking the vehicle Open any door.
Note:
A valid passive key must be located
within the detection range of that door.
One long flash of the direction indicators
confirms that all the doors and the luggage
compartment lid have been unlocked and
that the alarm has been disarmed.
Locking the vehicle Touch a front door handle lock sensor to
lock the vehicle.
See Keyless Entry (page 43).
Adjusting the steering wheel WARNING
Never adjust the steering wheel
when the vehicle is moving.
13At a GlanceE78276 E87384 E87384

Downloaded from www.Manualslib.com manuals search engine Keyless starting
Press the start button.
Stopping the engine when the vehicle
is moving
WARNING
Switching off the engine when the
vehicle is still moving will result in a
loss of brake and steering assistance.
The steering will not be locked, but higher
effort will be required. When the ignition is
switched off some electrical circuits,
warning lamps and indicators may also be
OFF. Press and hold the start button for two
seconds, or press three times within three
seconds.
Press the start button.
See Keyless Starting (page 129).
Diesel particulate filter (DPF) WARNING
Do not park or idle your vehicle over
dry leaves, dry grass or other
combustible materials. The DPF
regeneration process creates very high
exhaust gas temperatures and the exhaust
will radiate a considerable amount of heat
during and after DPF regeneration, and
after you have switched the engine off.
This is a potential fire hazard. See Diesel Particulate Filter (page 130).
Fuel filler flap Press the flap to open it. Open the flap fully
until it engages.
Insert the fuel nozzle up to and including
the first notch on the nozzle A. Keep it
resting on the cover of the fuel pipe
opening.
16 At a GlanceE85766 E86613 E139202AA

Downloaded from www.Manualslib.com manuals search engine WARNING
Position the seat belt correctly for
your safety and that of your unborn
child. Do not use only the lap strap
or the shoulder strap. Position the lap strap comfortably across
your hips and low beneath your pregnant
abdomen. Position the shoulder strap
between your breasts, above and to the
side of your pregnant abdomen.
DISABLING THE PASSENGER
AIRBAG
WARNING
Make sure that the passenger airbag
is disabled when using a rearward
facing child restraint on the front
passenger seat. Fitting the passenger airbag
deactivation switch
WARNING
If you need to fit a child restraint on
a seat protected by an operational
airbag in front of it, have a passenger
airbag deactivation switch fitted. Ask your
dealer for further information. Note:
The key switch is located at the end
of the instrument panel on the side of the
glove compartment. The airbag deactivation
lamp is located between the sun visors. If the airbag warning lamp illuminates or
flashes when you are driving, this indicates
a malfunction. See Warning Lamps and
Indicators (page 79). Remove the child
restraint and have the system checked
immediately.
Disabling the passenger airbag
Disabled
A
Enabled
B
Turn the switch to position A.
When you switch the ignition on, check that
the passenger airbag deactivation warning
lamp illuminates.
34
Occupant protectionE71313 E130110 ABE71312

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION ON
RADIO FREQUENCIES
CAUTIONS
The radio frequency used by your
remote control can also be used by
other short distance radio
transmissions (e.g. amateur radios,
medical equipment, wireless headphones,
remote controls and alarm systems). If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key. Check your vehicle is locked before
leaving it unattended. This will
safeguard against any potential
malicious frequency blocking. Note:
You could unlock the doors if you
press the buttons on the remote control
unintentionally.
The operating range between your remote
control and your vehicle varies depending
on the environment.
PROGRAMMING THE REMOTE
CONTROL
You can programme a maximum of eight
remote controls to use with your vehicle
(including any supplied with your vehicle).
Programming a new remote
control
1. Insert the key in the ignition.
2. Cycle the key from position 0 to II and
then back to 0 four times within six
seconds.
3. Leave the key in position 0 and press any button on the remote control
within 10 seconds. You will receive
confirmation via a chime or LED that
programming has been successful. Note:
Further remote controls may be
programmed at this stage.
4. Press any button on each additional remote control within 10 seconds of
each other.
Reprogramming the unlocking
function
Note: When you press the unlock button
either all the doors are unlocked or only the
driver ’s door is unlocked. Pressing the unlock
button again unlocks all the doors.
Press and hold the unlock and lock buttons
on the remote key simultaneously for at
least four seconds with the ignition off. The
direction indicators will flash twice to
confirm the change.
To return to the original unlocking function,
repeat the process.
CHANGING THE REMOTE
CONTROL BATTERY Make sure that you dispose of
old batteries in an
environmentally friendly way.
Seek advice from your local authority
regarding recycling.
Remote control with a folding key
blade 36
Keys and Remote ControlsE107998 E12880921

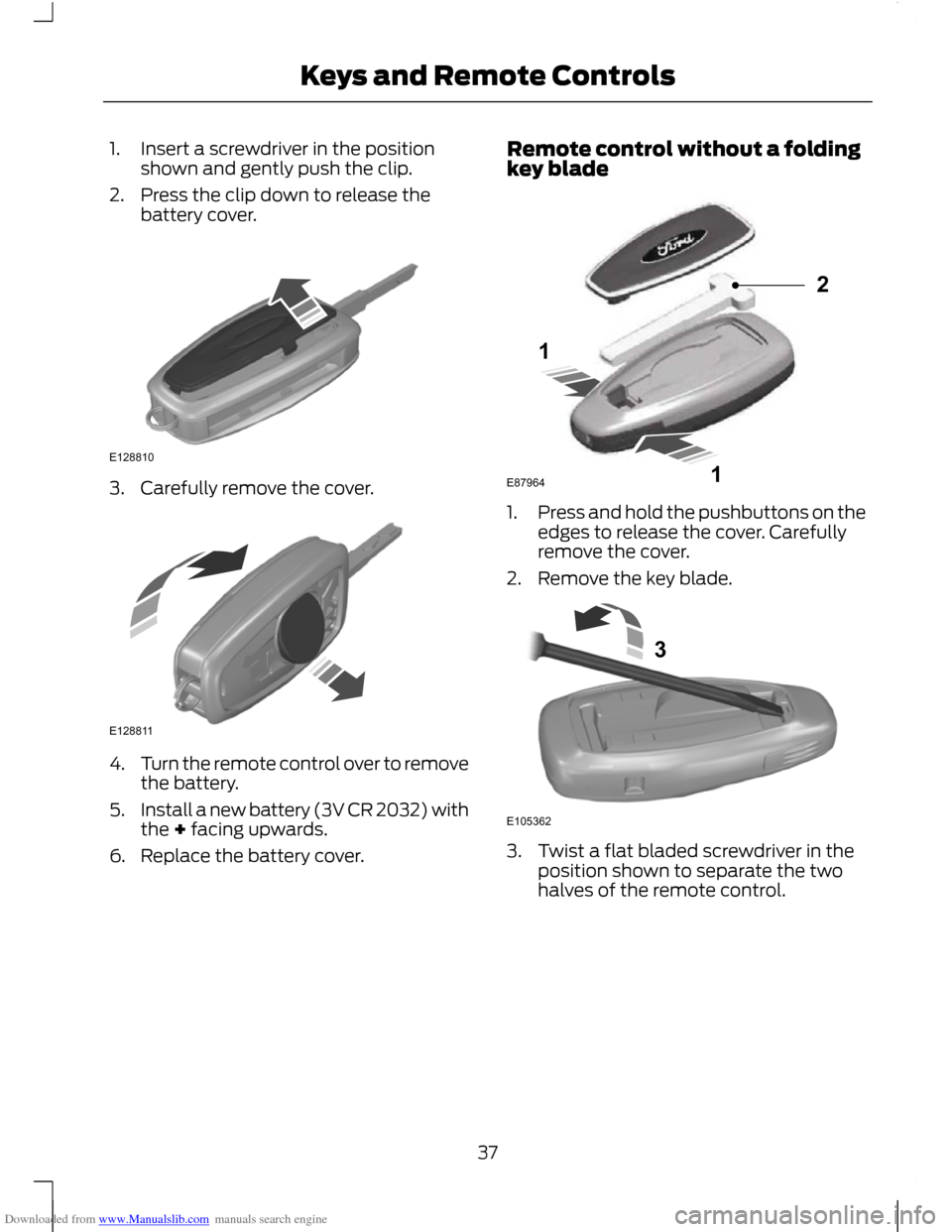

Downloaded from www.Manualslib.com manuals search engine 1. Insert a screwdriver in the position
shown and gently push the clip.
2. Press the clip down to release the battery cover. 3. Carefully remove the cover.
4.
Turn the remote control over to remove
the battery.
5. Install a new battery (3V CR 2032) with
the + facing upwards.
6. Replace the battery cover. Remote control without a folding
key blade
1.
Press and hold the pushbuttons on the
edges to release the cover. Carefully
remove the cover.
2. Remove the key blade. 3. Twist a flat bladed screwdriver in the
position shown to separate the two
halves of the remote control.
37
Keys and Remote ControlsE128810 E128811 121E87964 E1053623

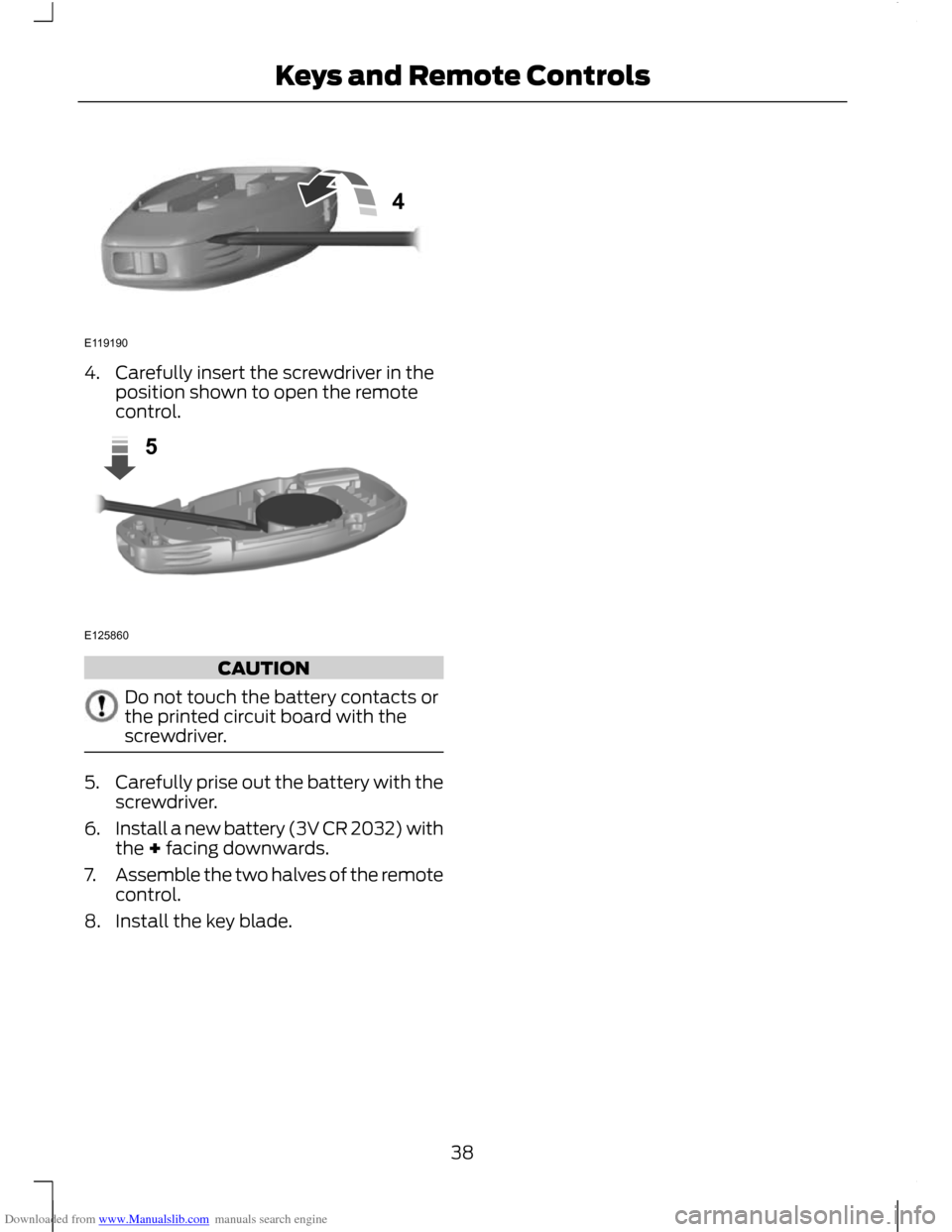

Downloaded from www.Manualslib.com manuals search engine 4. Carefully insert the screwdriver in the
position shown to open the remote
control. CAUTION
Do not touch the battery contacts or
the printed circuit board with the
screwdriver.
5.
Carefully prise out the battery with the
screwdriver.
6. Install a new battery (3V CR 2032) with
the + facing downwards.
7. Assemble the two halves of the remote
control.
8. Install the key blade.
38
Keys and Remote ControlsE1191904 E1258605

Downloaded from www.Manualslib.com manuals search engine LOCKING AND UNLOCKING
CAUTION
Check your vehicle is locked before
leaving it unattended.
Note:
Do not leave your keys in the vehicle.
Locking
Locking with the key
Turn the top of the key towards the front
of the vehicle.
Locking with the remote control
Note: The driver ’s door can be locked with
the key. This needs to be used if the remote
control is not functioning.
Note: Your vehicle can be locked with a rear
door open. The door will be locked when it
is closed. Press the button.
Double locking WARNING
Do not activate double locking when
persons or animals are inside the
vehicle. You will not be able to
unlock the doors from the inside if you have
double locked them. Note:
If you double lock your vehicle whilst
inside, switch the ignition on to return the
door locks to a single locked state.
Note: Your vehicle can be double locked
with a rear door open. The door will be
double locked when it is closed.
Double locking is a theft protection feature
that prevents someone from opening the
doors from the inside. Double locking with the key
Turn the key to the lock position twice
within three seconds.
Double locking with the remote control
Press the button twice within
three seconds.
Unlocking
Unlocking with the key
Turn the top of the key towards the rear of
the vehicle.
Unlocking with the remote control
Note: The driver ’s door can be unlocked
with the key. This needs to be used if the
remote control is not functioning.
Note: If the vehicle remains locked for
several weeks, the remote control will be
disabled. The vehicle must be unlocked and
the engine started using the key. Unlocking
and starting the vehicle once will enable the
remote control. Press the button.
Automatic relocking
The doors will relock automatically if you
do not open a door within 45 seconds of
unlocking the doors with the remote
control. The door locks and the alarm will
return to their previous state.
Reprogramming the unlocking function
The unlocking function may be
reprogrammed so that only the driver ’s
door is unlocked ( See Programming the
remote control (page 36). ).
39
Locks
