Alarm system
Your vehicle may be equipped with one of
the following alarm systems:
•
Perimeter alarm.
• Perimeter alarm with interior sensors.
• Category one alarm with interior
sensors and battery back-up sounder.
Perimeter alarm
The perimeter alarm is a deterrent against
unauthorised access to your vehicle
through the doors and the bonnet. It also
protects the audio unit.
Interior sensors WARNING
The sensors in the interior lamp unit
must not be covered up. Do not
activate the alarm with full guard if
any persons, animals or other moving
objects are inside the vehicle. The sensors act as a deterrent against
unauthorised intrusion by sensing any
movement within the vehicle. Battery back-up sounder
The battery back-up sounder is an extra
alarm system which will sound a siren
when the alarm is triggered. It is armed
directly when you lock the vehicle. The
sounder has its own battery and will sound
an alarm siren even if someone
disconnects the vehicle battery or the
battery back-up sounder itself.
Triggering the alarm
Once armed, the alarm is triggered in any
of the following ways:
•
If someone opens a door, the tailgate
or the bonnet without a valid key or
remote control.
• If someone removes the audio or
navigation system.
• If the ignition is turned to position I, II
or III without a valid key.
• If the interior sensors detect movement
within the vehicle.
• On vehicles with a battery back-up
sounder, if someone disconnects the
vehicle battery or the battery back-up
sounder itself.
If the alarm is triggered, the alarm horn will
sound for 30 seconds and the hazard
warning flasher will flash for five minutes.
Any further attempts to perform one of the
above will trigger the alarm again.
Full and reduced guard
Full guard
Full guard is the standard setting.
In full guard, the interior sensors are
activated when you arm the alarm.
Note: This may result in false alarms if
animals or moving objects are inside the
vehicle.
48
AlarmE129005

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Note:
The information display will remain
on for several minutes after you switch off
the ignition.
Various systems on your vehicle can be
controlled using the information display
controls on the steering column.
Corresponding information is displayed in
the information display.
For detailed instructions on navigation,
refer to the appropriate manual.
Device list
The icon changes to show the current
function in use. CD
Radio
Auxiliary input Phone
Settings
Controls
Press the up and down arrow buttons to
scroll through and highlight the options
within a menu.
Press the right arrow button to enter a
sub-menu.
Press the left arrow button to exit a menu.
Hold the left arrow button pressed at any
time to return to the main menu display
(escape button).
Press the OK button to choose and
confirm a setting.
Menu structure - information
display
All vehicles
You can access the menu using the
Information display control. For item
location: See At a Glance (page 10).
83
Information Displays

Downloaded from www.Manualslib.com manuals search engine 84
Information DisplaysTripComputerTripodometerDisttoemptyInstantfuelAveragefuelAveragespeedOutsideairAllvaluesTractionctrlHillstartassistBLISDisplayDriverassistDeflationdetectionSeatbeltsAutoStartStopAutolightrainDimmingAmbientlightLightingAutoManualSetHdlampdelayManual20seconds40seconds60secondsInformationSettingsBCAE130509FordEcoModeGearshiftingAnticipationSpeedFordEcoModeEnglishDeutschItalianoFrançaisEspañolTürkçePyccкийNederlandsPolskiPortuguêsSvenskaLanguageAlwaysonOndemandAlwaysoffNavigationinfo

Downloaded from www.Manualslib.com manuals search engine Menu structure - information and
entertainment display
You can access the menu using the
buttons on the audio or navigation unit.
85
Information DisplaysChimesConvenienceParkslotfoundWarningInformationAuxheaterParkheaterAlarmTime1Time2OnceHeatnowFullguardReducedAskonexitSystemcheckBCAE130510Measureunitl/100kmMiles/GallonTempunit°Celsius°Fahrenheit

Downloaded from www.Manualslib.com manuals search engine Vehicles with navigation system
87
Information DisplaysNavigationRouteRoutesectionslistBlocknextsectionDestinationinputUnblockrtsectnUnblockrtsectnEcoFastShortAlwaysaskLeisurelyNormalFastDriverActiveguidanceCity/postcodeStreetDistrictStartguidanceCountryTrafficTMCmessagesBlocknextsectionRoutesectionslistTAPointsofinterestNeardestinationAlongmotorwayPOIsnearaddressSearchbynamePOIsnearbyHomeaddressLastdestinationsChangeaddressStartguidanceRouteoptionsRouteTourplanningStoredtoursStorepositionNewtourFavouritesFavouritesA-ZBCAE130534

Downloaded from www.Manualslib.com manuals search engine 88
Information DisplaysCDSpecialfunctionsTrailerRoofboxEcosettingsMotorwayTunnelFerry/motorailTollSeasonalroadsDynamicTollstickerSeeseparatemenustructureRadioSeeseparatemenustructureAuxiliarySeeseparatemenustructurePhoneSeeseparatemenustructureMenuNavigationSysteminfoEnterpositionDemomodeGPSinfoDriverEcoSettingsDynamicMotorwayTunnelFerry/motorailTollSeasonalroadsRouteTollstickerRouteoptionsArrowsonmapNavtimedisplayMapheadingupBestcontrastMapcontentMapdisplayBCCBAE130535

Downloaded from www.Manualslib.com manuals search engine See Connectivity (page 257).
SATELLITE NAVIGATION UNIT
HOLDER
Adjusting the holder
1. Unlock. 2. Adjust the holder to the desired
position.
3. Lock.
Note: Make sure that the navigation unit
holder is locked in position.
FLOOR MATS WARNING
When using the floor mats, always
make sure the floor mat is properly
secured using the appropriate fixings
and positioned so that it does not interfere
with the operation of the pedals. 126
Convenience featuresE130070 E112711132

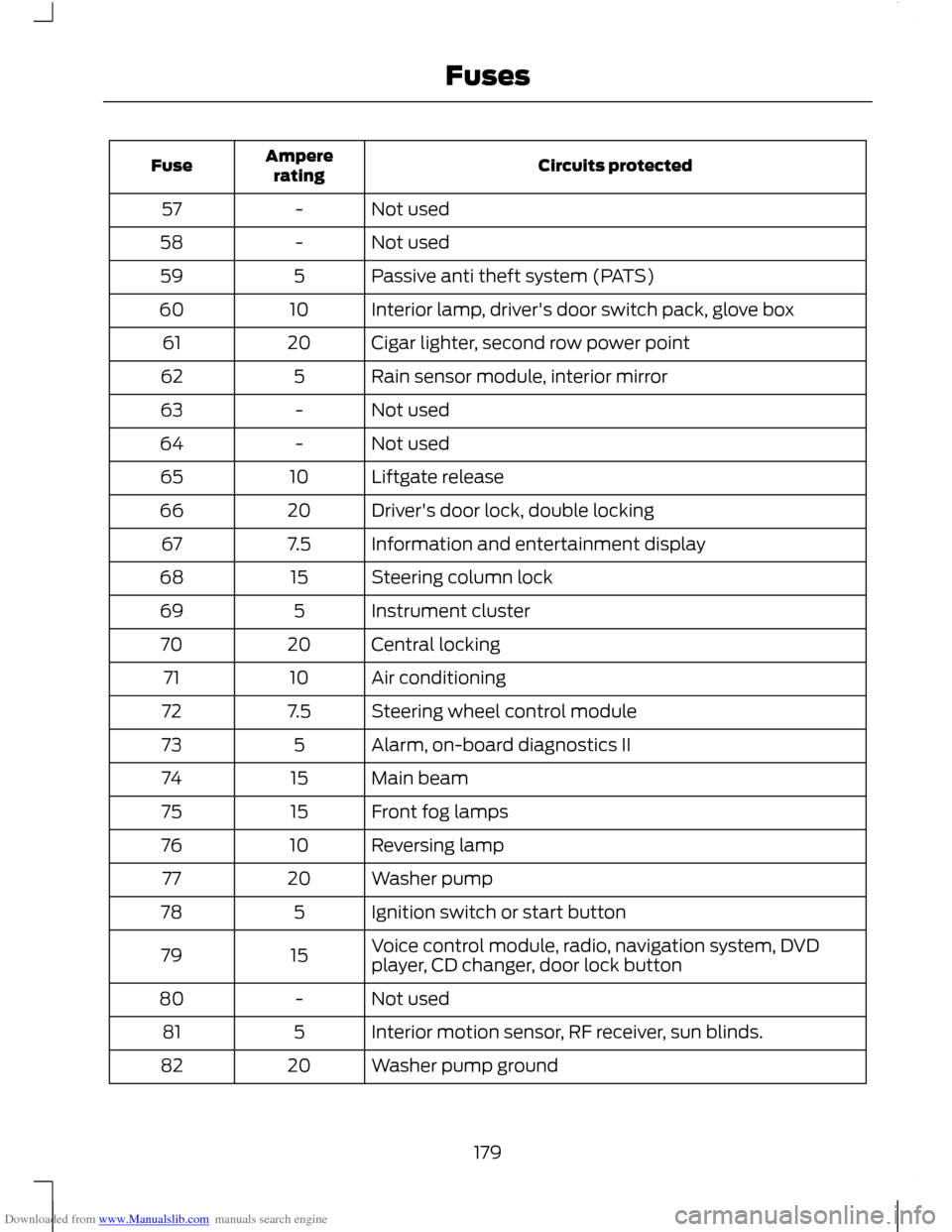

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Not used
-
57
Not used
-
58
Passive anti theft system (PATS)
5
59
Interior lamp, driver's door switch pack, glove box
10
60
Cigar lighter, second row power point
20
61
Rain sensor module, interior mirror
5
62
Not used
-
63
Not used
-
64
Liftgate release
10
65
Driver's door lock, double locking
20
66
Information and entertainment display
7.5
67
Steering column lock
15
68
Instrument cluster
5
69
Central locking
20
70
Air conditioning
10
71
Steering wheel control module
7.5
72
Alarm, on-board diagnostics II
5
73
Main beam
15
74
Front fog lamps
15
75
Reversing lamp
10
76
Washer pump
20
77
Ignition switch or start button
5
78
Voice control module, radio, navigation system, DVD
player, CD changer, door lock button
15
79
Not used
-
80
Interior motion sensor, RF receiver, sun blinds.
5
81
Washer pump ground
20
82
179
Fuses
