Manual Transmission...................................141
Automatic Transmission.............................141
Brakes
Principle of Operation.................................144
Hints on Driving With Anti-Lock
Brakes...........................................................144
Parking Brake.................................................144
Stability Control
Principle of Operation.................................145
Using Stability Control...............................145
Hill Start Assist
Principle of Operation................................146
Using hill start assist...................................146
Parking Aids
Principle of Operation................................148
Using the Parking Aid - Vehicles With: Rear Parking Aid.......................................148
Using the Parking Aid - Vehicles With: Front and Rear Parking Aid...................149
Active Park Assist
Principle of Operation.................................152
Using active park assist..............................152
Rear view camera
Principle of Operation.................................155
Using the Rear View Camera...................155
Cruise Control
Principle of Operation.................................158
Using Cruise Control....................................158
Speed Limiter
Principle of Operation................................160
Using the speed limiter..............................160 Load Carrying
General Information.....................................161
Luggage Anchor Points...............................161
Luggage Covers.............................................163
Rear Under Floor Storage..........................163
Cargo Nets......................................................163
Roof Racks and Load Carriers.................165
Towing
Towing a Trailer.............................................168
Retractable tow ball...................................168
Driving Hints
Running-In.......................................................172
Cold Weather Precautions.........................172
Driving Through Water................................172
Roadside Emergencies
First Aid Kit.......................................................173
Warning Triangle...........................................173
Emergency Exit..............................................173
Fuses
Fuse Box Locations......................................174
Changing a Fuse............................................174
Fuse Specification Chart............................175
Vehicle recovery
Towing Points................................................183
Towing the Vehicle on Four Wheels......183
Maintenance
General Information....................................185
Opening and Closing the Bonnet...........185
Under Bonnet Overview - 1.6L
Duratec-16V Ti-VCT (Sigma)..............187
Under Bonnet Overview - 1.6L Duratorq-TDCi (DV) Diesel..................188
Under Bonnet Overview - 2.0L Duratorq-TDCi (DW) Diesel................189
3
Table of Contents

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
Alarm system
Your vehicle may be equipped with one of
the following alarm systems:
•
Perimeter alarm.
• Perimeter alarm with interior sensors.
• Category one alarm with interior
sensors and battery back-up sounder.
Perimeter alarm
The perimeter alarm is a deterrent against
unauthorised access to your vehicle
through the doors and the bonnet. It also
protects the audio unit.
Interior sensors WARNING
The sensors in the interior lamp unit
must not be covered up. Do not
activate the alarm with full guard if
any persons, animals or other moving
objects are inside the vehicle. The sensors act as a deterrent against
unauthorised intrusion by sensing any
movement within the vehicle. Battery back-up sounder
The battery back-up sounder is an extra
alarm system which will sound a siren
when the alarm is triggered. It is armed
directly when you lock the vehicle. The
sounder has its own battery and will sound
an alarm siren even if someone
disconnects the vehicle battery or the
battery back-up sounder itself.
Triggering the alarm
Once armed, the alarm is triggered in any
of the following ways:
•
If someone opens a door, the tailgate
or the bonnet without a valid key or
remote control.
• If someone removes the audio or
navigation system.
• If the ignition is turned to position I, II
or III without a valid key.
• If the interior sensors detect movement
within the vehicle.
• On vehicles with a battery back-up
sounder, if someone disconnects the
vehicle battery or the battery back-up
sounder itself.
If the alarm is triggered, the alarm horn will
sound for 30 seconds and the hazard
warning flasher will flash for five minutes.
Any further attempts to perform one of the
above will trigger the alarm again.
Full and reduced guard
Full guard
Full guard is the standard setting.
In full guard, the interior sensors are
activated when you arm the alarm.
Note: This may result in false alarms if
animals or moving objects are inside the
vehicle.
48
AlarmE129005

Downloaded from www.Manualslib.com manuals search engine Ambient lighting illuminates several areas,
for example footwells, cup holders and
doors with a single colour and can be
switched on and off using the information
display menu. See General Information
(page 83).
Use the instrument lighting dimmer
switches to adjust to the desired
brightness. See Instrument Lighting
Dimmer (page 122).
REMOVING A HEADLAMP
WARNING
Have Xenon bulbs changed by a
trained technician. There is a risk of
electric shock.
1. Open the bonnet. See Opening and
Closing the Bonnet (page 185). 2. Remove the screws. 3. Pull the headlamp as far as possible
towards the centre of the vehicle to
disengage it from the lower fixing point.
4. Lift the outer side of the headlamp and
remove it. 5. Disconnect the electrical connector.
Note:
When fitting the headlamp, make
sure that you reconnect the electrical
connector properly.
Note: When fitting the headlamp, make
sure that you fully engage the headlamp in
the lower fixing point.
Note: When fitting the headlamp, make
sure that the screw is located in the
headlamp moulding before you install it.
CHANGING A BULB WARNINGS
Switch the lights and the ignition off.
Let the bulb cool down before
removing it.
Have Xenon bulbs changed by a
properly trained technician. There is
a risk of electric shock.
62
LightingE1301432243 E88875

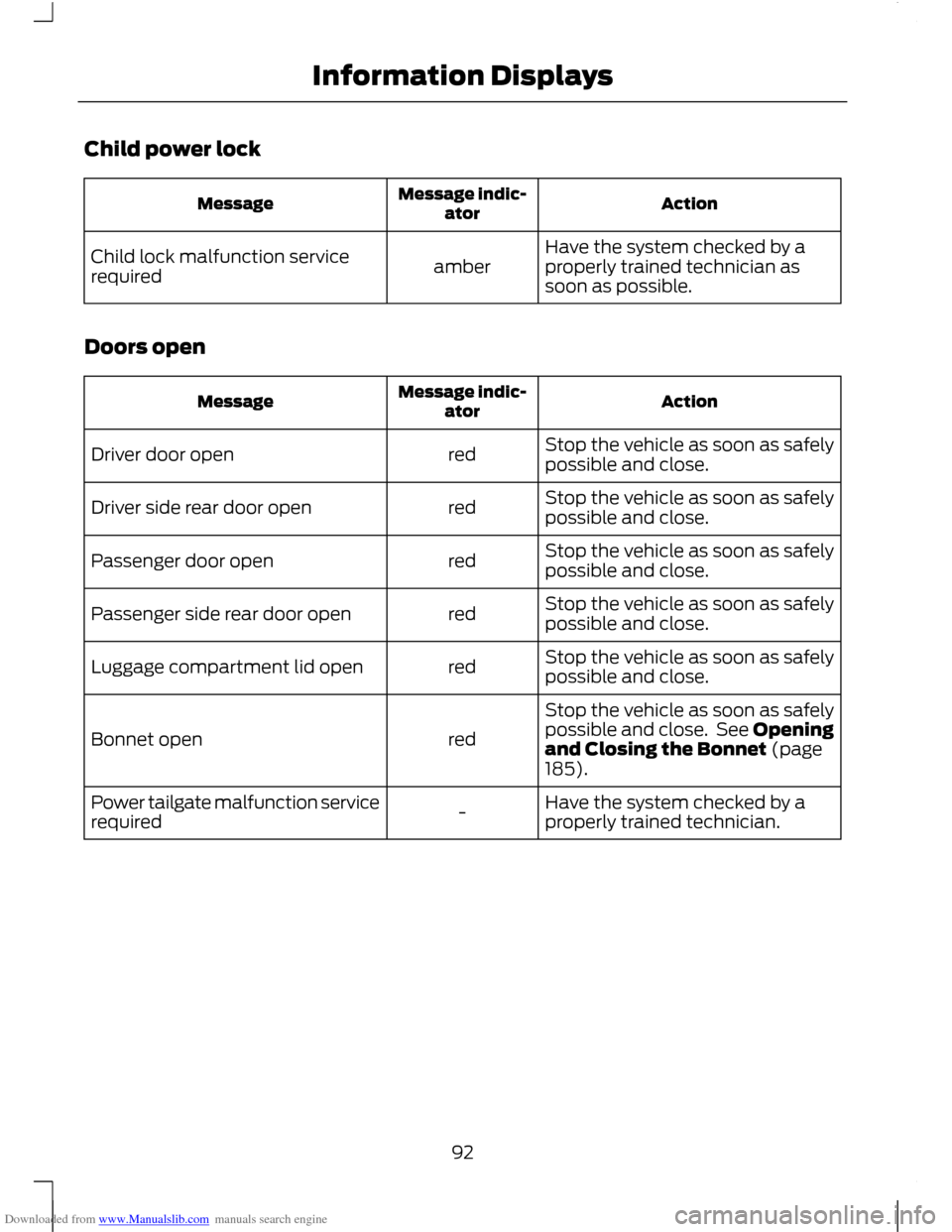

Downloaded from www.Manualslib.com manuals search engine Child power lock
Action
Message indic-
ator
Message
Have the system checked by a
properly trained technician as
soon as possible.
amber
Child lock malfunction service
required
Doors open Action
Message indic-
ator
Message
Stop the vehicle as soon as safely
possible and close.
red
Driver door open
Stop the vehicle as soon as safely
possible and close.
red
Driver side rear door open
Stop the vehicle as soon as safely
possible and close.
red
Passenger door open
Stop the vehicle as soon as safely
possible and close.
red
Passenger side rear door open
Stop the vehicle as soon as safely
possible and close.
red
Luggage compartment lid open
Stop the vehicle as soon as safely
possible and close. See Opening
and Closing the Bonnet (page
185).
red
Bonnet open
Have the system checked by a
properly trained technician.
-
Power tailgate malfunction service
required
92
Information Displays

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
CAUTION
For vehicles with Start-stop the
battery requirement is different. It
must be replaced by one of exactly
the same specification as the original. The system reduces fuel consumption and
CO2 emissions by shutting down the
engine when the vehicle is idling, for
example at traffic lights. The engine will
automatically restart when the driver
presses the clutch pedal or when required
by a vehicle system, for example to
recharge the battery.
To obtain maximum benefit from the
system, move the gear lever to the neutral
position and release the clutch pedal
during any stop of longer than three
seconds.
USING START-STOP
WARNINGS
The engine may restart
automatically if required by the
system. See Principle of Operation
(page 133). Switch the ignition off before
opening the bonnet or carrying out
any maintenance.
Always switch the ignition off before
leaving your vehicle, as the system
may have shut down the engine but
the ignition will still be live. Note:
The system only operates when the
engine is warm and the outside temperature
is between 0°C (32°F) and 30°C (86°F). Note:
If you stall the engine, and then
depress the clutch pedal within a couple of
seconds, the system will automatically
restart the engine.
Note: The Start-stop indicator will
illuminate green when the engine shuts
down. See Warning Lamps and Indicators
(page 79).
Note: The Start-stop indicator will flash
amber, requiring you to select neutral or
depress the clutch pedal. In conjunction a
message will be shown in the display.
Note: If the system detects a malfunction,
it is deactivated. Have the system checked
by a properly trained technician.
Note: If you have switched the system off,
the switch will be illuminated.
Note: The system is on by default. To
switch the system off, press the switch in
the instrument panel. The system will only
be de-activated for the current ignition
cycle. To turn it on, press the switch again.
For item location. See At a Glance (page
10). To stop the engine
1. Stop the vehicle.
2. Move the gear lever to the neutral
position.
3. Release the clutch pedal.
4. Release the accelerator pedal.
The system may not shut down the engine
under certain conditions, for example:
• To maintain the interior climate.
• Low battery voltage.
• The outside temperature is too low or
too high.
• The driver's door has been opened.
133
Start-Stop

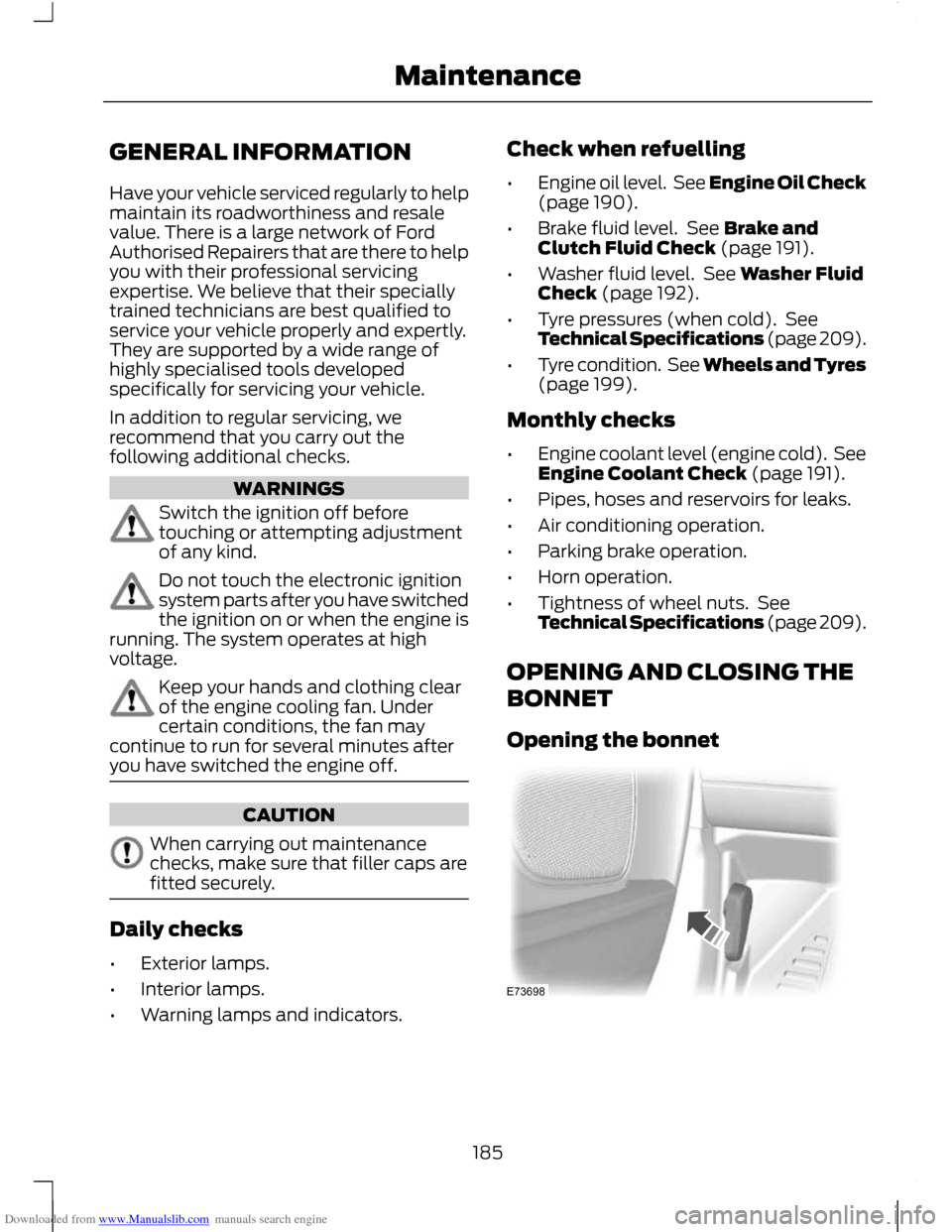

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of Ford
Authorised Repairers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialised tools developed
specifically for servicing your vehicle.
In addition to regular servicing, we
recommend that you carry out the
following additional checks.
WARNINGS
Switch the ignition off before
touching or attempting adjustment
of any kind.
Do not touch the electronic ignition
system parts after you have switched
the ignition on or when the engine is
running. The system operates at high
voltage. Keep your hands and clothing clear
of the engine cooling fan. Under
certain conditions, the fan may
continue to run for several minutes after
you have switched the engine off. CAUTION
When carrying out maintenance
checks, make sure that filler caps are
fitted securely.
Daily checks
•
Exterior lamps.
• Interior lamps.
• Warning lamps and indicators. Check when refuelling
•
Engine oil level. See Engine Oil Check
(page 190).
• Brake fluid level. See Brake and
Clutch Fluid Check (page 191).
• Washer fluid level. See Washer Fluid
Check (page 192).
• Tyre pressures (when cold). See
Technical Specifications (page 209).
• Tyre condition. See Wheels and Tyres
(page 199).
Monthly checks
• Engine coolant level (engine cold). See
Engine Coolant Check (page 191).
• Pipes, hoses and reservoirs for leaks.
• Air conditioning operation.
• Parking brake operation.
• Horn operation.
• Tightness of wheel nuts. See
Technical Specifications (page 209).
OPENING AND CLOSING THE
BONNET
Opening the bonnet 185
MaintenanceE73698

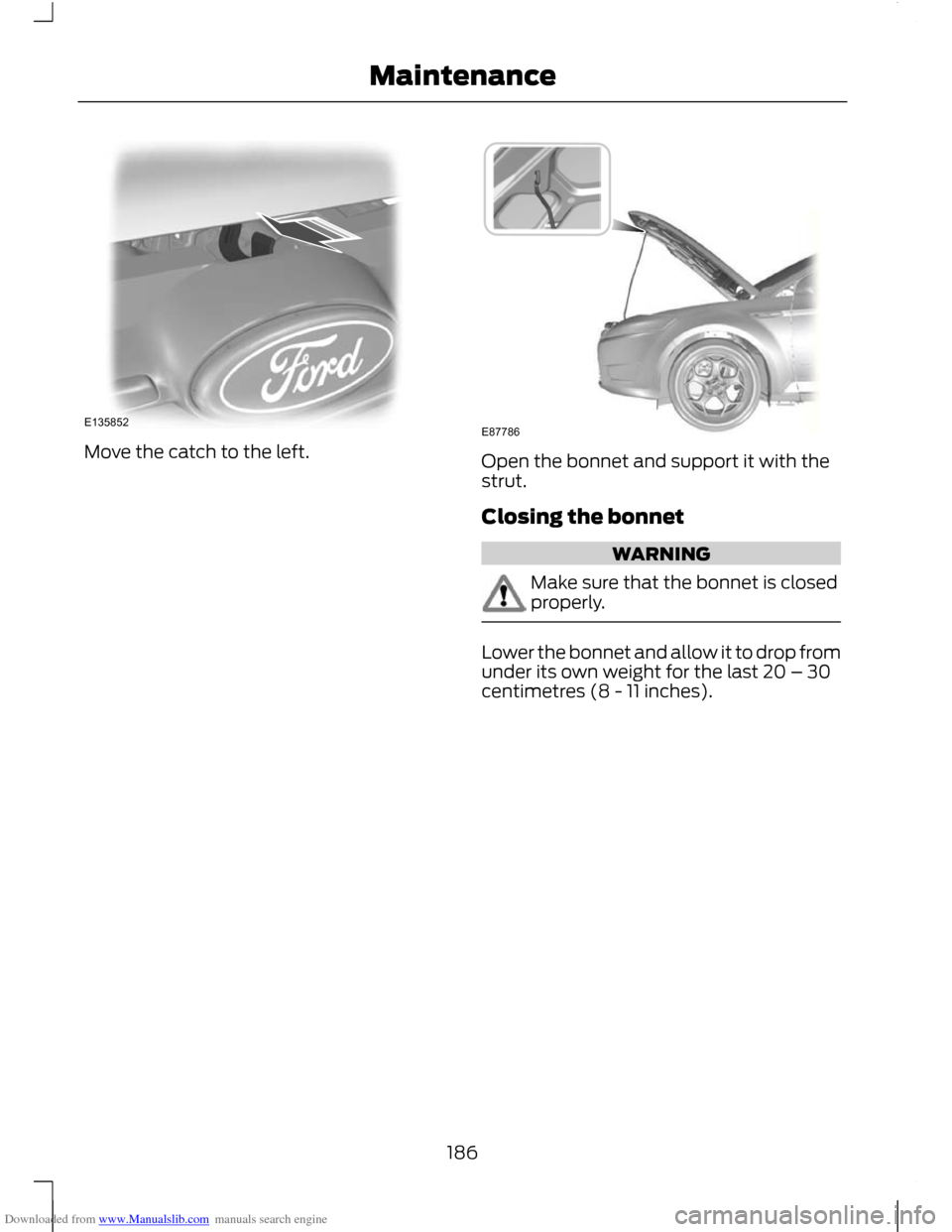

Downloaded from www.Manualslib.com manuals search engine Move the catch to the left.
Open the bonnet and support it with the
strut.
Closing the bonnet
WARNING
Make sure that the bonnet is closed
properly.
Lower the bonnet and allow it to drop from
under its own weight for the last 20 – 30
centimetres (8 - 11 inches).
186
MaintenanceE135852 E87786

Downloaded from www.Manualslib.com manuals search engine Auto-Dimming Mirror....................................74
Autolamps........................................................58
Automatic Climate Control......................103
Air distribution..................................................... 104
Blower..................................................................... 104
Mono mode.......................................................... 104
Recirculated air................................................... 105
Setting the temperature.................................. 104
Switching off the automatic climate control............................................................... 105
Switching the air conditioning on and off........................................................................\
105
To switch mono mode back on.................... 104
To switch mono mode off............................... 104
Windscreen defrosting and demisting.......................................................... 105
Automatic Transmission.............................141 Emergency park position release
lever..................................................................... 143
Hints on driving with an automatic transmission.................................................... 143
Manual shifting - Vehicles with a 5 speed transmission.................................................... 142
Selector lever positions..................................... 141
Sport mode and manual shifting - Vehicles with a 6 speed transmission..................... 142
Automatic volume control.......................230
Autostore control.........................................228
Autowipers........................................................52
Auxiliary Heater............................................106 Diesel auxiliary heater (depending on
country)............................................................ 108
Fuel operated heater (depending on country)............................................................ 108
Parking heater..................................................... 106
Auxiliary input (AUX IN) socket...............125
Auxiliary Power Points................................123 Power inverter...................................................... 123
B
Battery connection points........................198
Blind Spot Monitor.........................................74 Blind spot information system (BLIS)..........74
Detection errors..................................................... 76
System detection and alerts............................ 75
Turning the system on and off......................... 75
Using the system.................................................. 74Bluetooth setup............................................237
Handling of phones........................................... 237
Requirements for Bluetooth connection....................................................... 237
Bonnet Lock See: Opening and Closing the Bonnet.......185
Booster cables See: Jump-Starting the Vehicle..................... 197
Booster Seats..................................................20 Booster cushion (Group 3)................................ 21
Booster seat (Group 2)...................................... 20
Brake and Clutch Fluid Check...................191
Brakes...............................................................144 Principle of Operation....................................... 144
Bulb changing See: Changing a Bulb......................................... 62
Bulb Specification Chart.............................69
C
Capacities and Specifications.................216 Technical Specifications.................................. 216
Cargo Nets......................................................163 C-MAX.................................................................... 163
Grand C-MAX....................................................... 164
Luggage retention net...................................... 164
Car Wash See: Cleaning the Exterior............................... 195
Catalytic Converter......................................136 Driving with a catalytic converter.................136
Changing a Bulb.............................................62 Approach lamp..................................................... 65
Central high mounted brake lamp................68
Front fog lamps.................................................... 66
Headlamp............................................................... 63
Interior lamps........................................................ 69
Luggage compartment lamp, footwell lamp and tailgate lamp............................................ 69
Number plate lamp............................................. 69
Rear lamps............................................................. 66
Side lamp................................................................ 64
Side repeater......................................................... 65
Changing a Fuse............................................174
284
Index

Downloaded from www.Manualslib.com manuals search engine Opening and Closing the Bonnet...........185
Closing the bonnet............................................ 186
Opening the bonnet.......................................... 185
P
Parking Aids....................................................148 Principle of Operation....................................... 148
Parking Brake.................................................144
Parts and Accessories.....................................7 Look for the Ford logo on the following
parts ....................................................................... 8
Now you can be sure that your Ford parts are Ford parts....................................................... 7
Personalised Settings..................................89 Chime deactivation............................................. 90
Language setting................................................. 89
Measure units........................................................ 90
Temperature units............................................... 90
Power Door Locks See: Locking and Unlocking............................. 39
Power Seats......................................................111
Power Windows...............................................71 Anti-trap function.................................................. 71
Driver's door switches.......................................... 71
Global opening and closing............................... 71
Opening and closing the windows automatically..................................................... 71
Resetting the memory of the electric windows.............................................................. 72
Safety switch for rear windows........................ 71
Programming the remote control............36 Programming a new remote control............36
Reprogramming the unlocking
function............................................................... 36
R
Rear Fog Lamps.............................................58
Rear Seats........................................................112 Second row seats - C-MAX.............................. 112
Second row seats - Grand C-MAX.................117
Third row seats - Grand C-MAX..................... 119
Rear Under Floor Storage..........................163
Rear view camera.........................................155 Principle of Operation....................................... 155Rear Window Wiper and Washers...........53
Intermittent wipe.................................................. 53
Rear window washer.......................................... 54
Reverse gear wipe................................................ 54
Refuelling........................................................138
Regional mode (REG).................................231
Remote control battery See: Changing the remote control
battery................................................................. 36
Remote control programming See: Programming the remote control........36
Removing a Headlamp................................62
Repairing Minor Paint Damage...............196
Repeat compact disc tracks....................232 Type 1...................................................................... 232
Type 2 and 3......................................................... 232
Retractable tow ball...................................168 Driving with a trailer............................................ 171
Maintenance.......................................................... 171
Swivelling the tow ball in................................ 169
Swivelling the tow ball out.............................. 170
Road Safety...................................................262 Safety information............................................ 263
Roadside Emergencies...............................173
Roof Racks and Load Carriers.................165 Installing the crossbars.................................... 165
Roof rack................................................................ 165
Route displays...............................................276 Junction zoom..................................................... 276
Map display.......................................................... 276
Navigation display............................................. 276
Route options menu...................................275 Driver....................................................................... 275
Dynamic................................................................. 275
Eco settings.......................................................... 275
Ferry/motorail...................................................... 275
Motorway.............................................................. 275
Route....................................................................... 275
Seasonal roads................................................... 276
Toll........................................................................\
... 275
Toll sticker............................................................. 276
Running-In.......................................................172 Brakes and clutch................................................ 172
Engine...................................................................... 172
Tyres........................................................................\
. 172
289
Index
