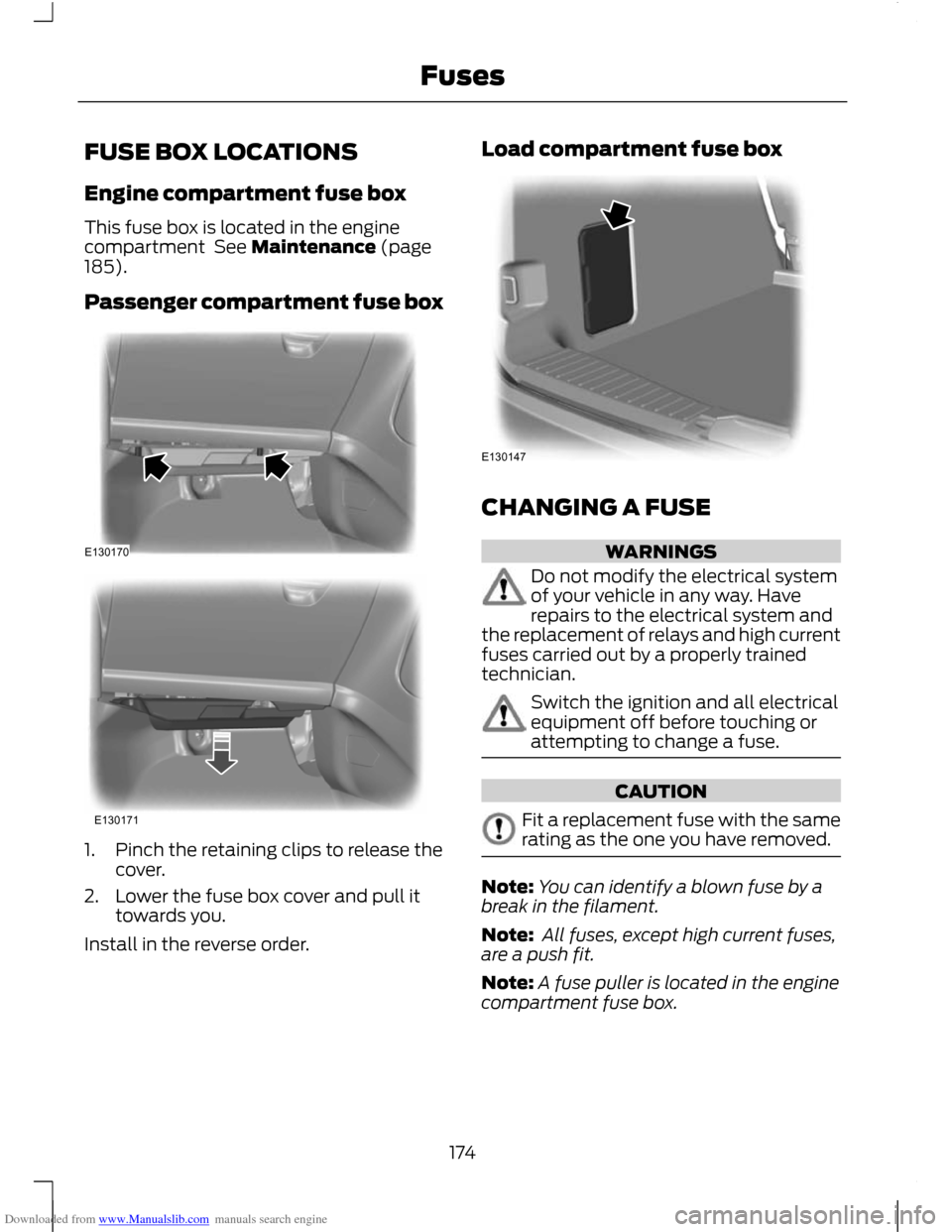

Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
Engine compartment fuse box
This fuse box is located in the engine
compartment See Maintenance (page
185).
Passenger compartment fuse box
1. Pinch the retaining clips to release the
cover.
2. Lower the fuse box cover and pull it towards you.
Install in the reverse order. Load compartment fuse box
CHANGING A FUSE
WARNINGS
Do not modify the electrical system
of your vehicle in any way. Have
repairs to the electrical system and
the replacement of relays and high current
fuses carried out by a properly trained
technician. Switch the ignition and all electrical
equipment off before touching or
attempting to change a fuse.
CAUTION
Fit a replacement fuse with the same
rating as the one you have removed.
Note:
You can identify a blown fuse by a
break in the filament.
Note: All fuses, except high current fuses,
are a push fit.
Note: A fuse puller is located in the engine
compartment fuse box.
174
FusesE130170 E130171 E130147

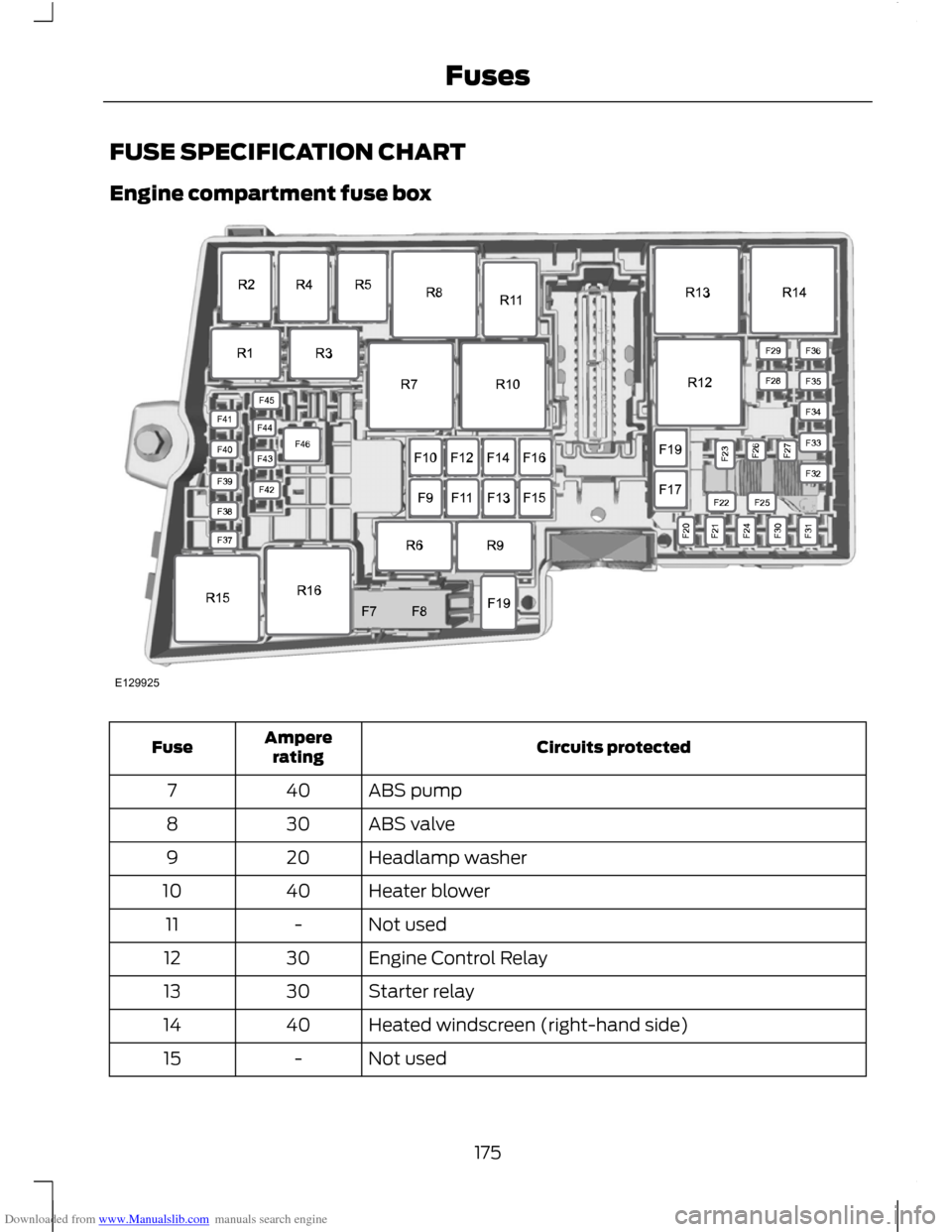

Downloaded from www.Manualslib.com manuals search engine FUSE SPECIFICATION CHART
Engine compartment fuse box
Circuits protected
Ampere
rating
Fuse
ABS pump
40
7
ABS valve
30
8
Headlamp washer
20
9
Heater blower
40
10
Not used
-
11
Engine Control Relay
30
12
Starter relay
30
13
Heated windscreen (right-hand side)
40
14
Not used
-
15
175
FusesE129925

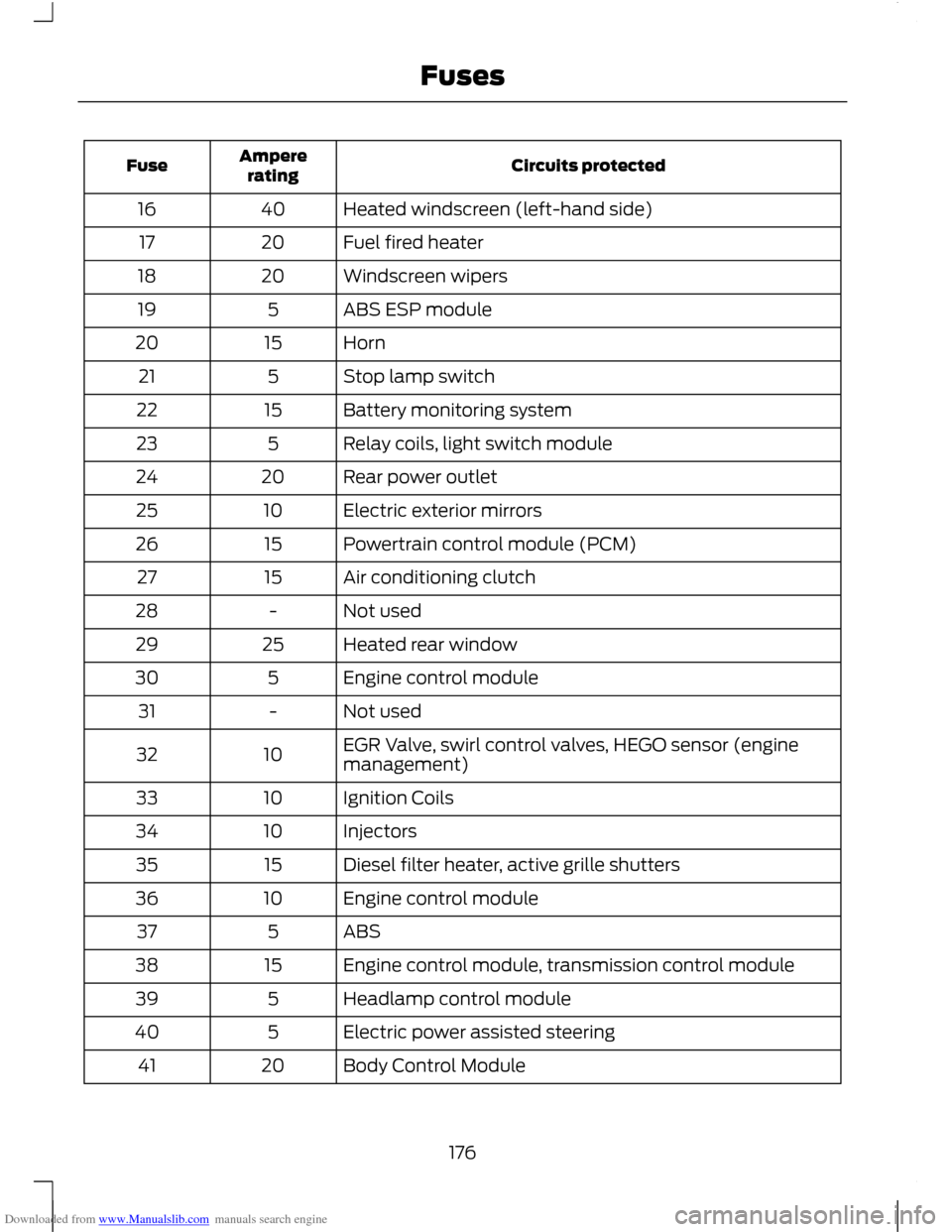

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Heated windscreen (left-hand side)
40
16
Fuel fired heater
20
17
Windscreen wipers
20
18
ABS ESP module
5
19
Horn
15
20
Stop lamp switch
5
21
Battery monitoring system
15
22
Relay coils, light switch module
5
23
Rear power outlet
20
24
Electric exterior mirrors
10
25
Powertrain control module (PCM)
15
26
Air conditioning clutch
15
27
Not used
-
28
Heated rear window
25
29
Engine control module
5
30
Not used
-
31
EGR Valve, swirl control valves, HEGO sensor (engine
management)
10
32
Ignition Coils
10
33
Injectors
10
34
Diesel filter heater, active grille shutters
15
35
Engine control module
10
36
ABS
5
37
Engine control module, transmission control module
15
38
Headlamp control module
5
39
Electric power assisted steering
5
40
Body Control Module
20
41
176
