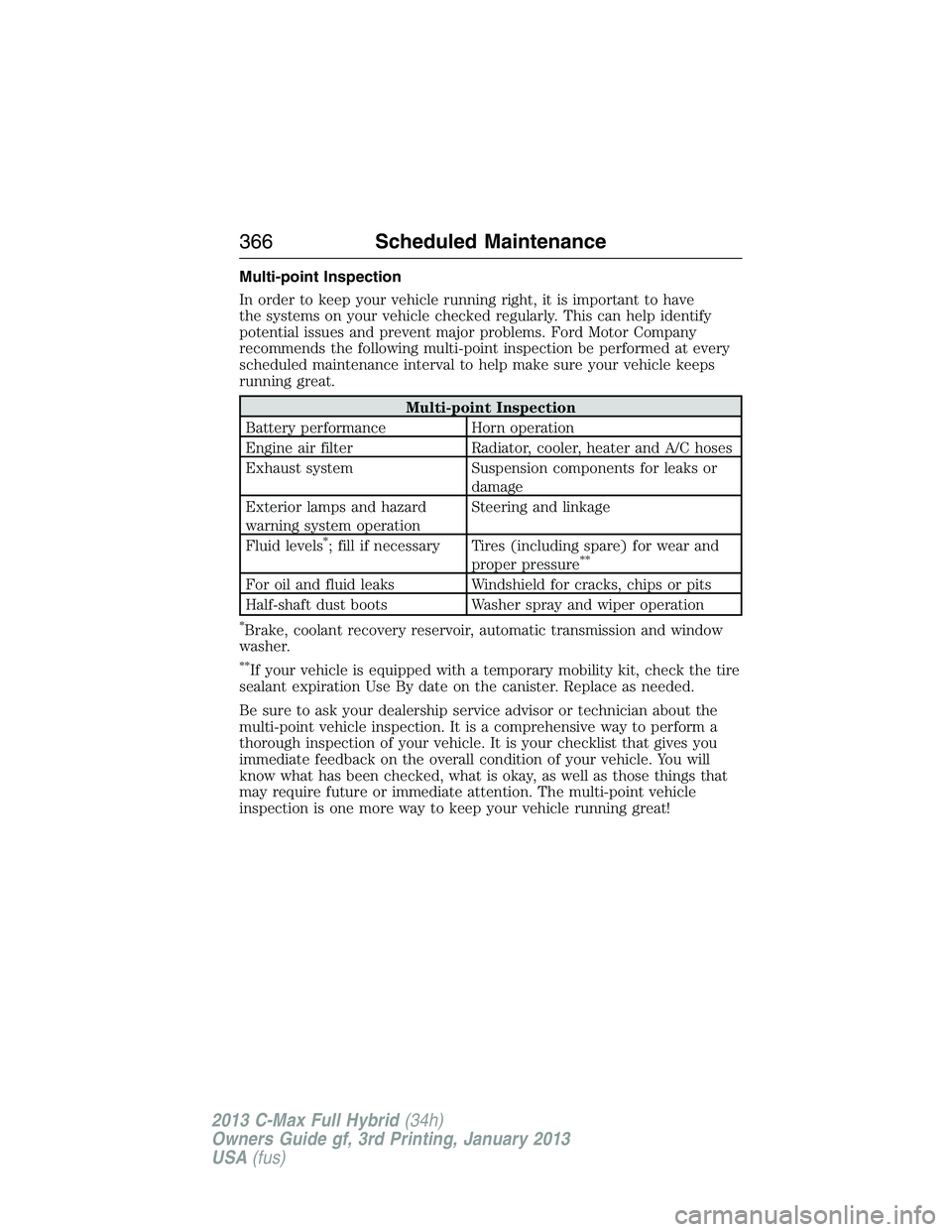

Multi-point Inspection
In order to keep your vehicle running right, it is important to have
the systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point Inspection
Battery performance Horn operation
Engine air filter Radiator, cooler, heater and A/C hoses
Exhaust system Suspension components for leaks or
damage
Exterior lamps and hazard
warning system operationSteering and linkage
Fluid levels
*; fill if necessary Tires (including spare) for wear and
proper pressure**
For oil and fluid leaks Windshield for cracks, chips or pits
Half-shaft dust boots Washer spray and wiper operation
*Brake, coolant recovery reservoir, automatic transmission and window
washer.
**If your vehicle is equipped with a temporary mobility kit, check the tire
sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It is a comprehensive way to perform a
thorough inspection of your vehicle. It is your checklist that gives you
immediate feedback on the overall condition of your vehicle. You will
know what has been checked, what is okay, as well as those things that
may require future or immediate attention. The multi-point vehicle
inspection is one more way to keep your vehicle running great!
366Scheduled Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

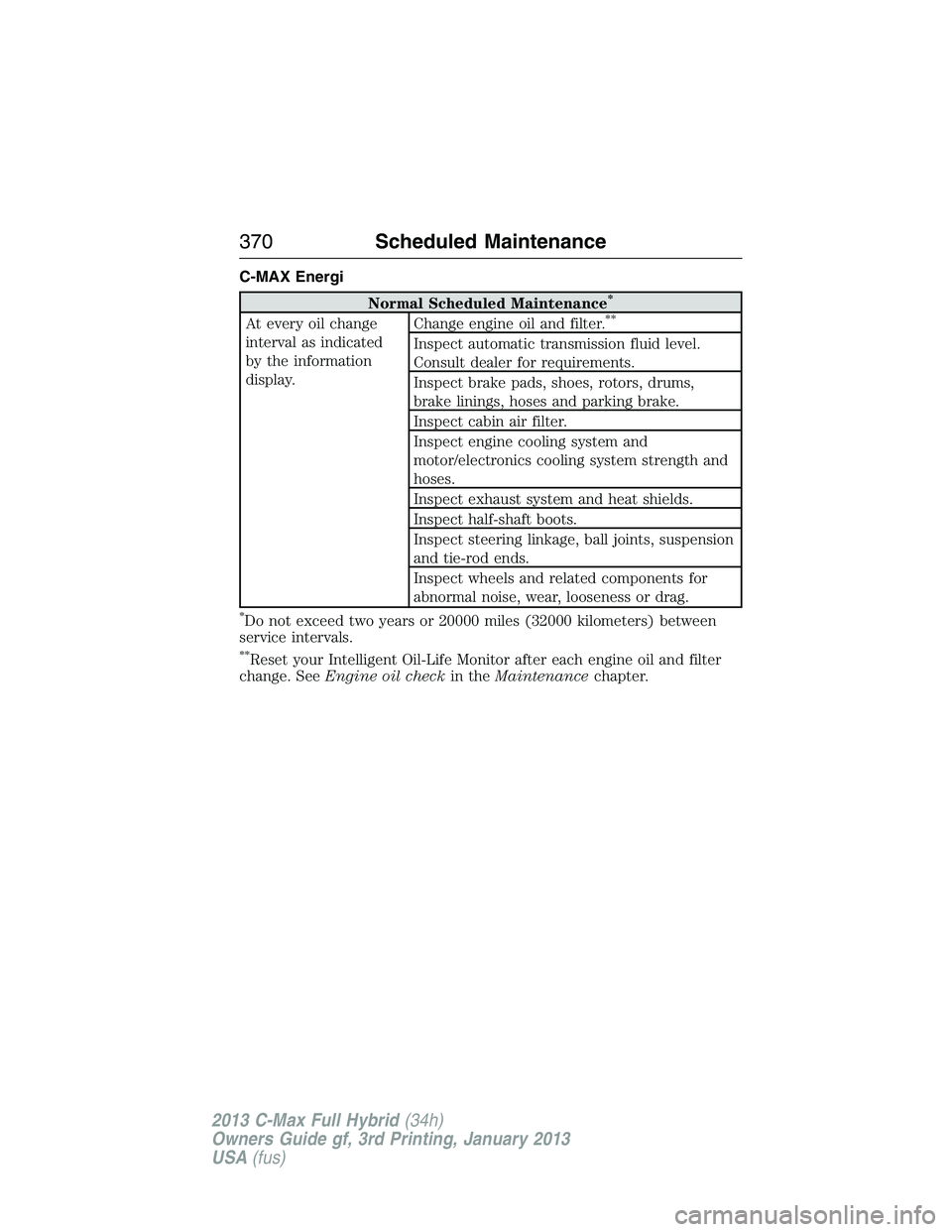

C-MAX Energi
Normal Scheduled Maintenance*
At every oil change
interval as indicated
by the information
display.Change engine oil and filter.**
Inspect automatic transmission fluid level.
Consult dealer for requirements.
Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect cabin air filter.
Inspect engine cooling system and
motor/electronics cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect half-shaft boots.
Inspect steering linkage, ball joints, suspension
and tie-rod ends.
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
*Do not exceed two years or 20000 miles (32000 kilometers) between
service intervals.
**Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. SeeEngine oil checkin theMaintenancechapter.
370Scheduled Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

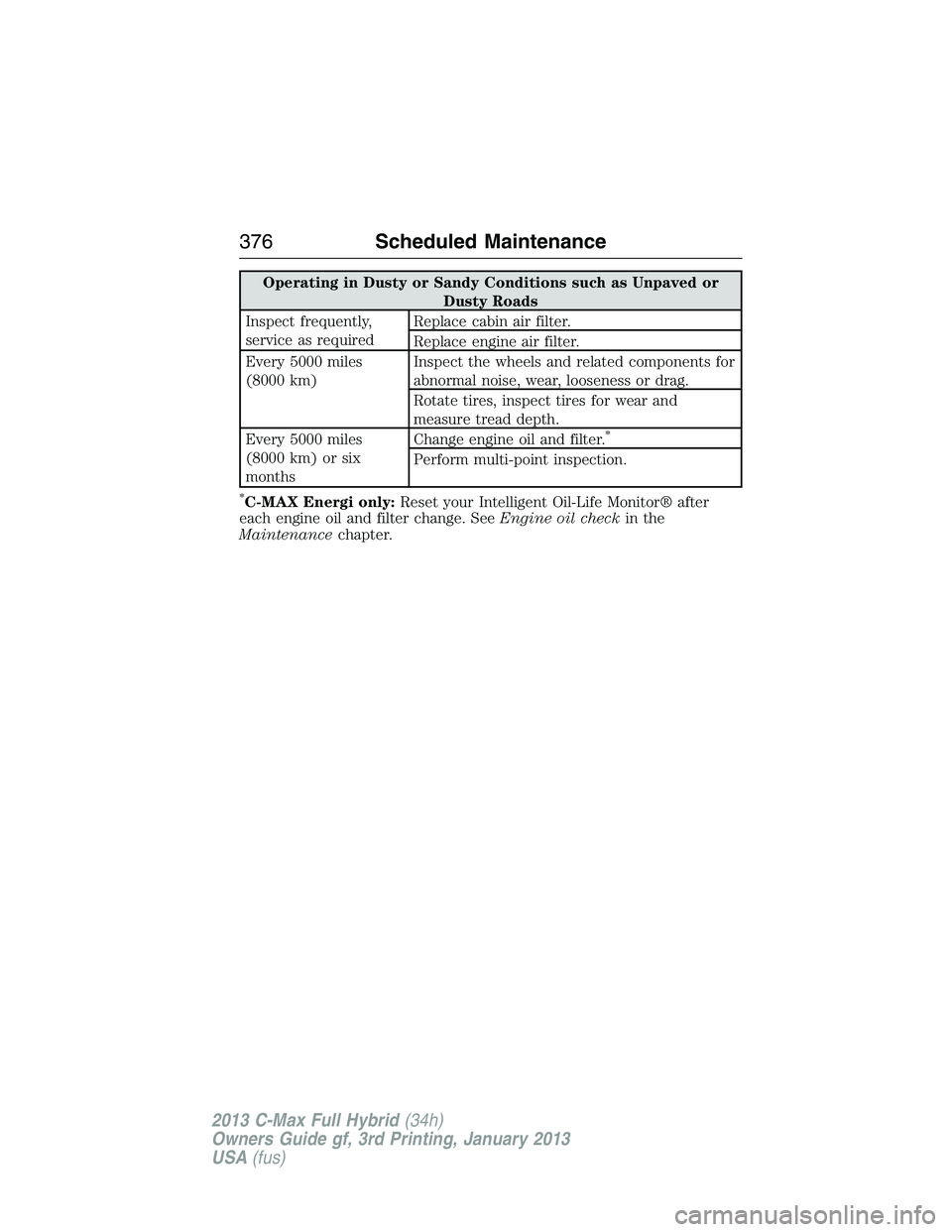

Operating in Dusty or Sandy Conditions such as Unpaved or
Dusty Roads
Inspect frequently,
service as requiredReplace cabin air filter.
Replace engine air filter.
Every 5000 miles
(8000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Rotate tires, inspect tires for wear and
measure tread depth.
Every 5000 miles
(8000 km) or six
monthsChange engine oil and filter.
*
Perform multi-point inspection.
*C-MAX Energi only:Reset your Intelligent Oil-Life Monitor® after
each engine oil and filter change. SeeEngine oil checkin the
Maintenancechapter.
376Scheduled Maintenance
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

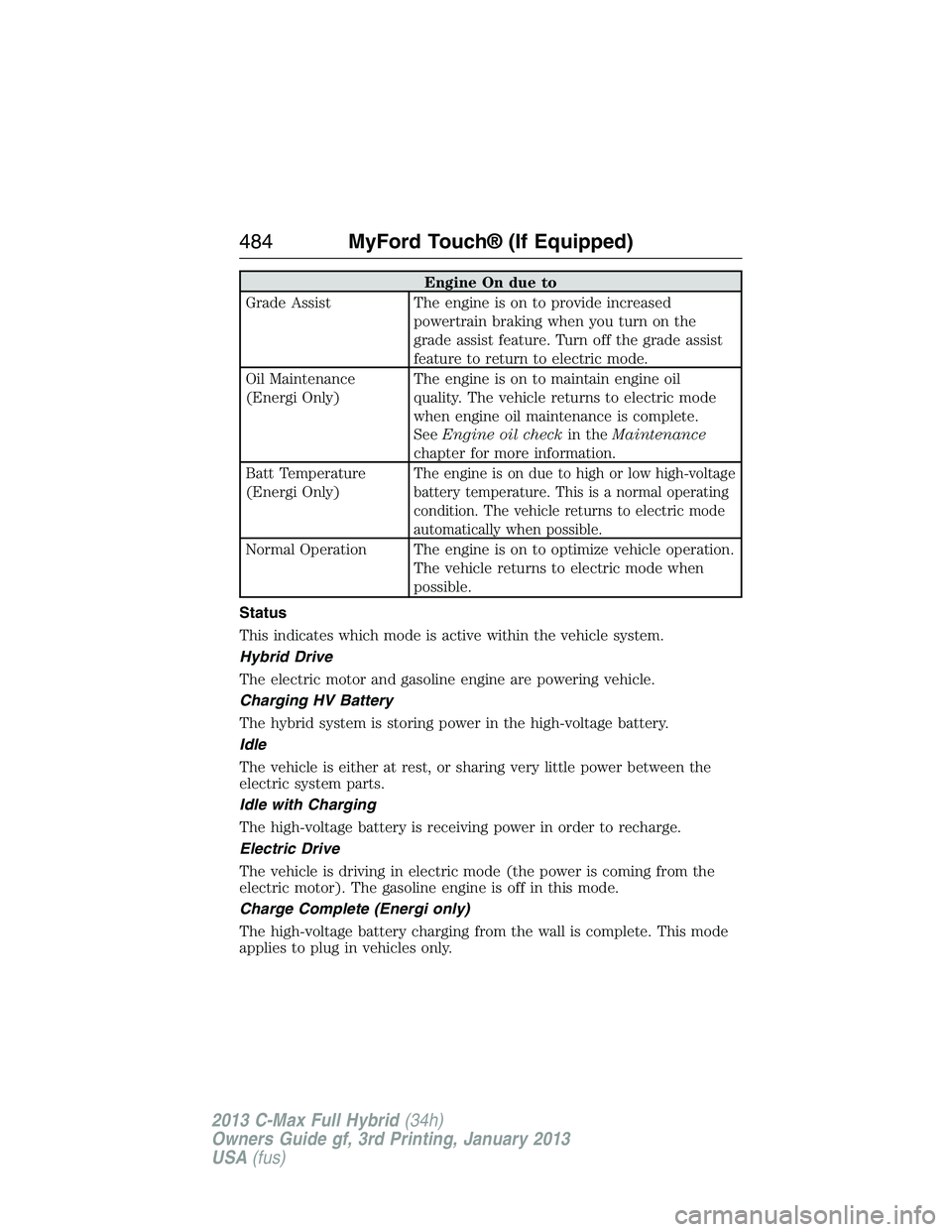

Engine On due to
Grade Assist The engine is on to provide increased
powertrain braking when you turn on the
grade assist feature. Turn off the grade assist
feature to return to electric mode.
Oil Maintenance
(Energi Only)The engine is on to maintain engine oil
quality. The vehicle returns to electric mode
when engine oil maintenance is complete.
SeeEngine oil checkin theMaintenance
chapter for more information.
Batt Temperature
(Energi Only)
The engine is on due to high or low high-voltage
battery temperature. This is a normal operating
condition. The vehicle returns to electric mode
automatically when possible.
Normal Operation The engine is on to optimize vehicle operation.
The vehicle returns to electric mode when
possible.
Status
This indicates which mode is active within the vehicle system.
Hybrid Drive
The electric motor and gasoline engine are powering vehicle.
Charging HV Battery
The hybrid system is storing power in the high-voltage battery.
Idle
The vehicle is either at rest, or sharing very little power between the
electric system parts.
Idle with Charging
The high-voltage battery is receiving power in order to recharge.
Electric Drive
The vehicle is driving in electric mode (the power is coming from the
electric motor). The gasoline engine is off in this mode.
Charge Complete (Energi only)
The high-voltage battery charging from the wall is complete. This mode
applies to plug in vehicles only.
484MyFord Touch® (If Equipped)
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

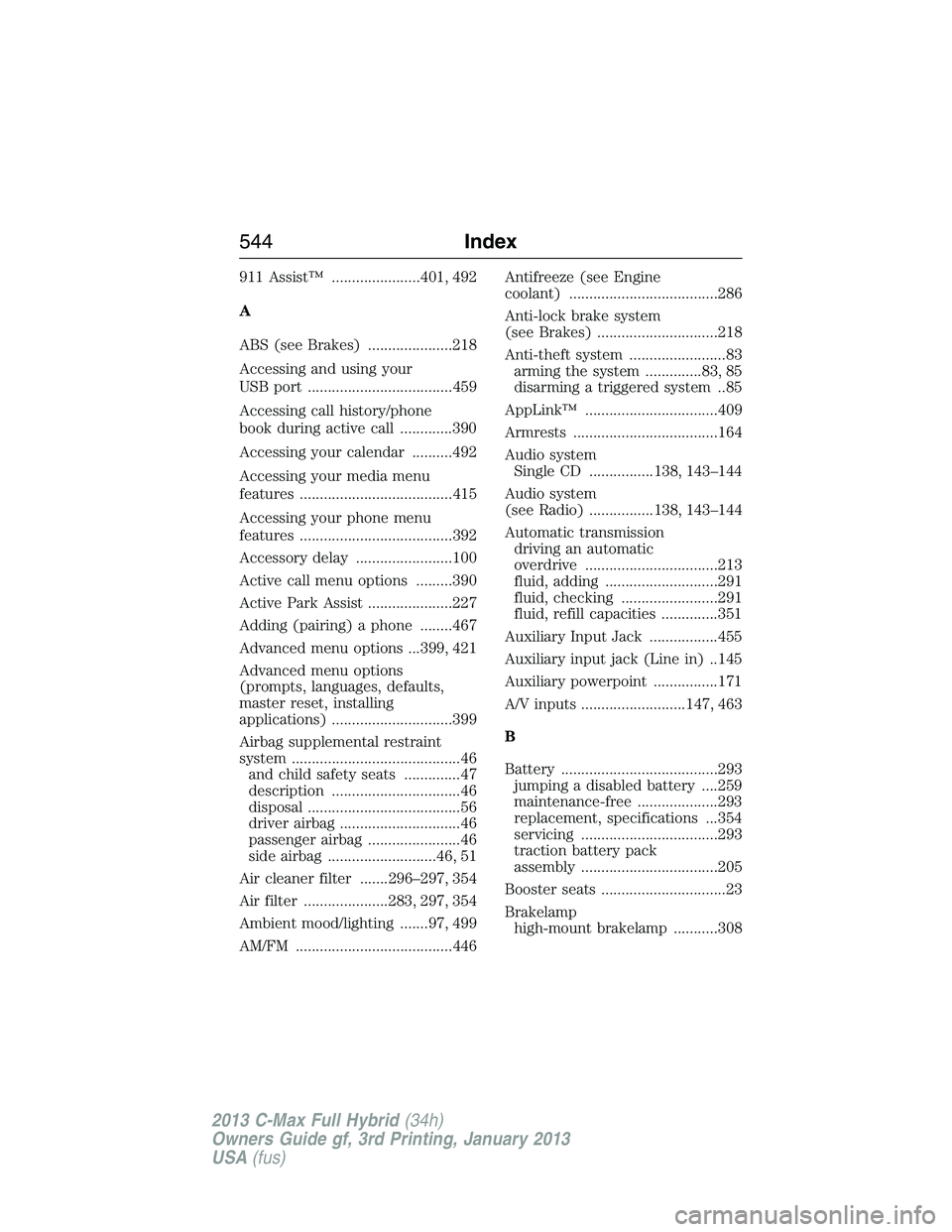

911 Assist™ ......................401, 492
A
ABS (see Brakes) .....................218
Accessing and using your
USB port ....................................459
Accessing call history/phone
book during active call .............390
Accessing your calendar ..........492
Accessing your media menu
features ......................................415
Accessing your phone menu
features ......................................392
Accessory delay ........................100
Active call menu options .........390
Active Park Assist .....................227
Adding (pairing) a phone ........467
Advanced menu options ...399, 421
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................399
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................56
driver airbag ..............................46
passenger airbag .......................46
side airbag ...........................46, 51
Air cleaner filter .......296–297, 354
Air filter .....................283, 297, 354
Ambient mood/lighting .......97, 499
AM/FM .......................................446Antifreeze (see Engine
coolant) .....................................286
Anti-lock brake system
(see Brakes) ..............................218
Anti-theft system ........................83
arming the system ..............83, 85
disarming a triggered system ..85
AppLink™ .................................409
Armrests ....................................164
Audio system
Single CD ................138, 143–144
Audio system
(see Radio) ................138, 143–144
Automatic transmission
driving an automatic
overdrive .................................213
fluid, adding ............................291
fluid, checking ........................291
fluid, refill capacities ..............351
Auxiliary Input Jack .................455
Auxiliary input jack (Line in) ..145
Auxiliary powerpoint ................171
A/V inputs ..........................147, 463
B
Battery .......................................293
jumping a disabled battery ....259
maintenance-free ....................293
replacement, specifications ...354
servicing ..................................293
traction battery pack
assembly ..................................205
Booster seats ...............................23
Brakelamp
high-mount brakelamp ...........308
544Index
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

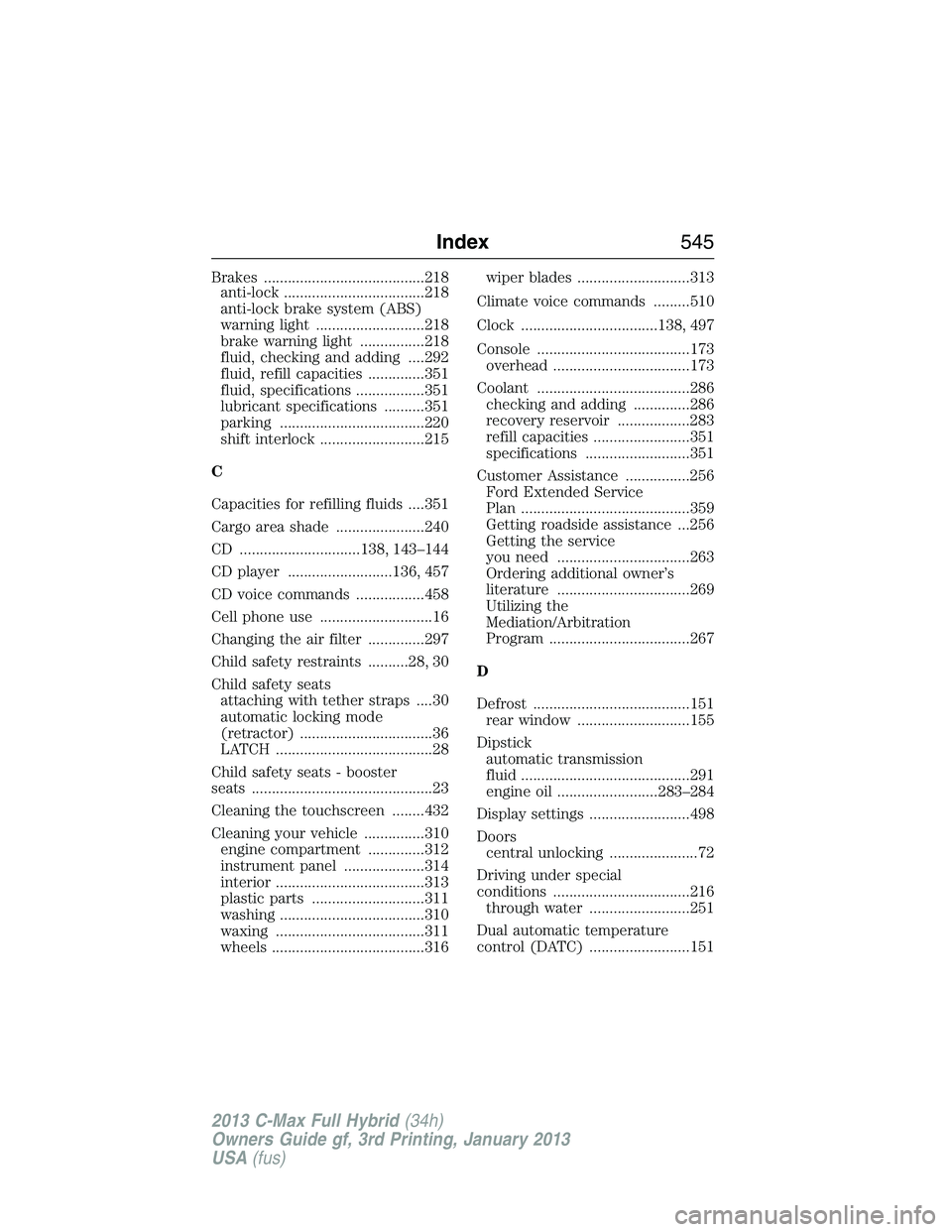

Brakes ........................................218
anti-lock ...................................218
anti-lock brake system (ABS)
warning light ...........................218
brake warning light ................218
fluid, checking and adding ....292
fluid, refill capacities ..............351
fluid, specifications .................351
lubricant specifications ..........351
parking ....................................220
shift interlock ..........................215
C
Capacities for refilling fluids ....351
Cargo area shade ......................240
CD ..............................138, 143–144
CD player ..........................136, 457
CD voice commands .................458
Cell phone use ............................16
Changing the air filter ..............297
Child safety restraints ..........28, 30
Child safety seats
attaching with tether straps ....30
automatic locking mode
(retractor) .................................36
LATCH .......................................28
Child safety seats - booster
seats .............................................23
Cleaning the touchscreen ........432
Cleaning your vehicle ...............310
engine compartment ..............312
instrument panel ....................314
interior .....................................313
plastic parts ............................311
washing ....................................310
waxing .....................................311
wheels ......................................316wiper blades ............................313
Climate voice commands .........510
Clock ..................................138, 497
Console ......................................173
overhead ..................................173
Coolant ......................................286
checking and adding ..............286
recovery reservoir ..................283
refill capacities ........................351
specifications ..........................351
Customer Assistance ................256
Ford Extended Service
Plan ..........................................359
Getting roadside assistance ...256
Getting the service
you need .................................263
Ordering additional owner’s
literature .................................269
Utilizing the
Mediation/Arbitration
Program ...................................267
D
Defrost .......................................151
rear window ............................155
Dipstick
automatic transmission
fluid ..........................................291
engine oil .........................283–284
Display settings .........................498
Doors
central unlocking ......................72
Driving under special
conditions ..................................216
through water .........................251
Dual automatic temperature
control (DATC) .........................151
Index545
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

E
Eco Mode ..................................182
Electronic message center .......114
Electronic stability control ......223
Emergencies, roadside
jump-starting ..........................259
running out of fuel .................198
Emergency brake
(see Parking brake) ..................220
Emission control system ..........201
End user license agreement ....524
Engine ........................283, 350–351
cleaning ...................................312
coolant .....................................286
fail-safe cooling .......................290
lubrication specifications .......351
refill capacities ........................351
service points ..........................283
Engine block heater .................180
Engine fan .................................283
Engine oil
checking and adding ..............284
dipstick ............................283–284
filter, specifications ................354
refill capacities ........................351
specifications ..........................351
Event data recording ..................12
Exhaust fumes ..........................179
F
Fail safe cooling ........................290
Fan, Engine Cooling .................283
Fleet MyKey programming ........66
Floor mats .................................252
Fluid capacities .........................351Fog lamps ....................................95
Forward and reverse sensing
system ........................................225
Fuel
cap ...........................................195
capacity ...................................351
choosing the right fuel ...........191
filler funnel .............................198
filling your vehicle
with fuel ..........................193, 195
filter, specifications ................292
fuel pump shut-off ..................258
octane rating ...........192, 350–351
quality ..............................191–192
running out of fuel .................198
safety information relating to
automotive fuels .....................190
Fuses ..........................271–272, 278
G
Garage door opener ..................166
Gas cap (see Fuel cap) ............195
Gauges .......................................106
H
Hazard flashers .........................257
HD Radio™ ...............................448
Headlamps
aiming ......................................300
bulb specifications ..................309
flash to pass ..............................92
high beam .................................92
replacing bulbs ...............302–303
Head restraints .........................158
Heated steering wheel ..............508
Heating ......................................151
Help ............................................507
546Index
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
