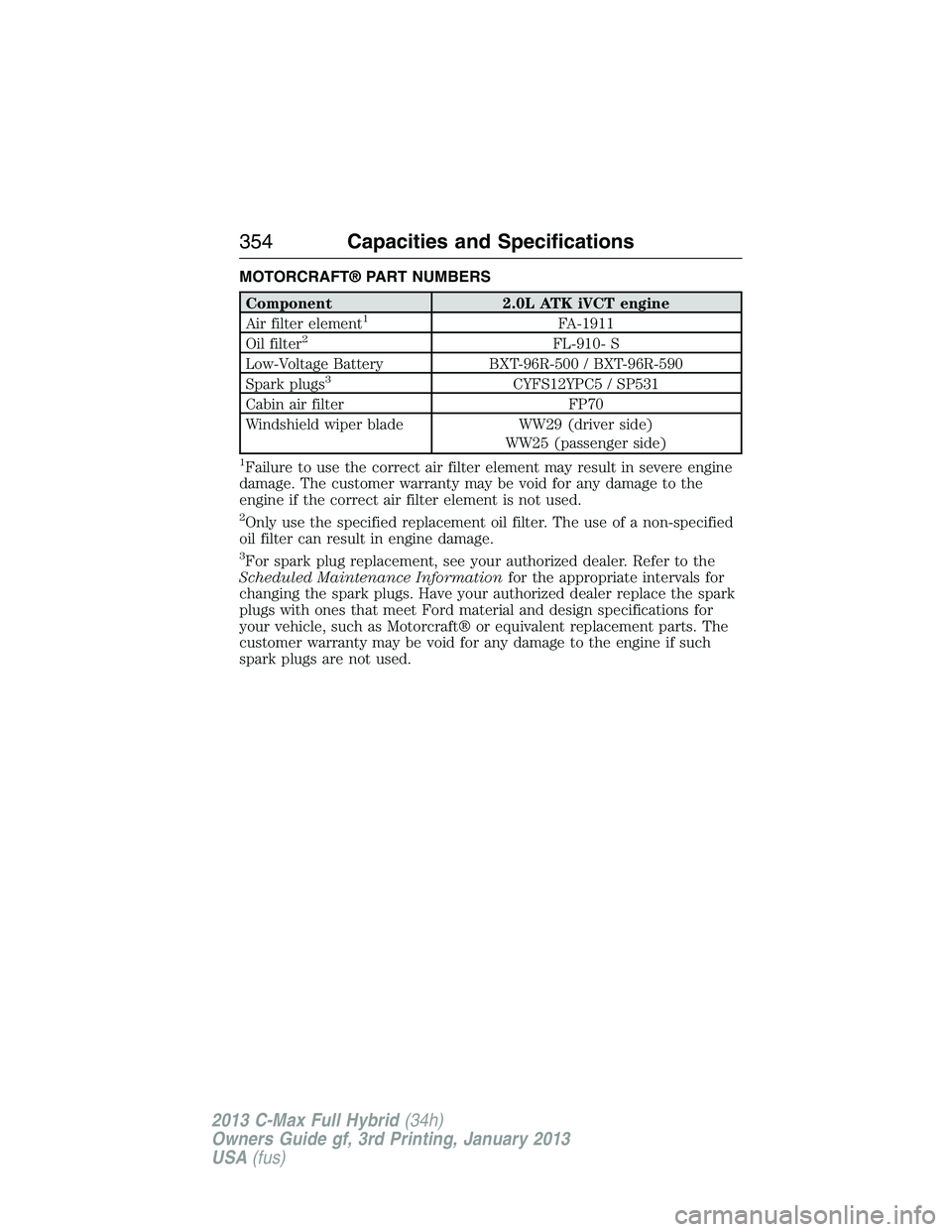

MOTORCRAFT® PART NUMBERS
Component 2.0L ATK iVCT engine
Air filter element1FA-1911
Oil filter2FL-910- S
Low-Voltage Battery BXT-96R-500 / BXT-96R-590
Spark plugs
3CYFS12YPC5 / SP531
Cabin air filter FP70
Windshield wiper blade WW29 (driver side)
WW25 (passenger side)
1Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
3For spark plug replacement, see your authorized dealer. Refer to the
Scheduled Maintenance Informationfor the appropriate intervals for
changing the spark plugs. Have your authorized dealer replace the spark
plugs with ones that meet Ford material and design specifications for
your vehicle, such as Motorcraft® or equivalent replacement parts. The
customer warranty may be void for any damage to the engine if such
spark plugs are not used.
354Capacities and Specifications
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

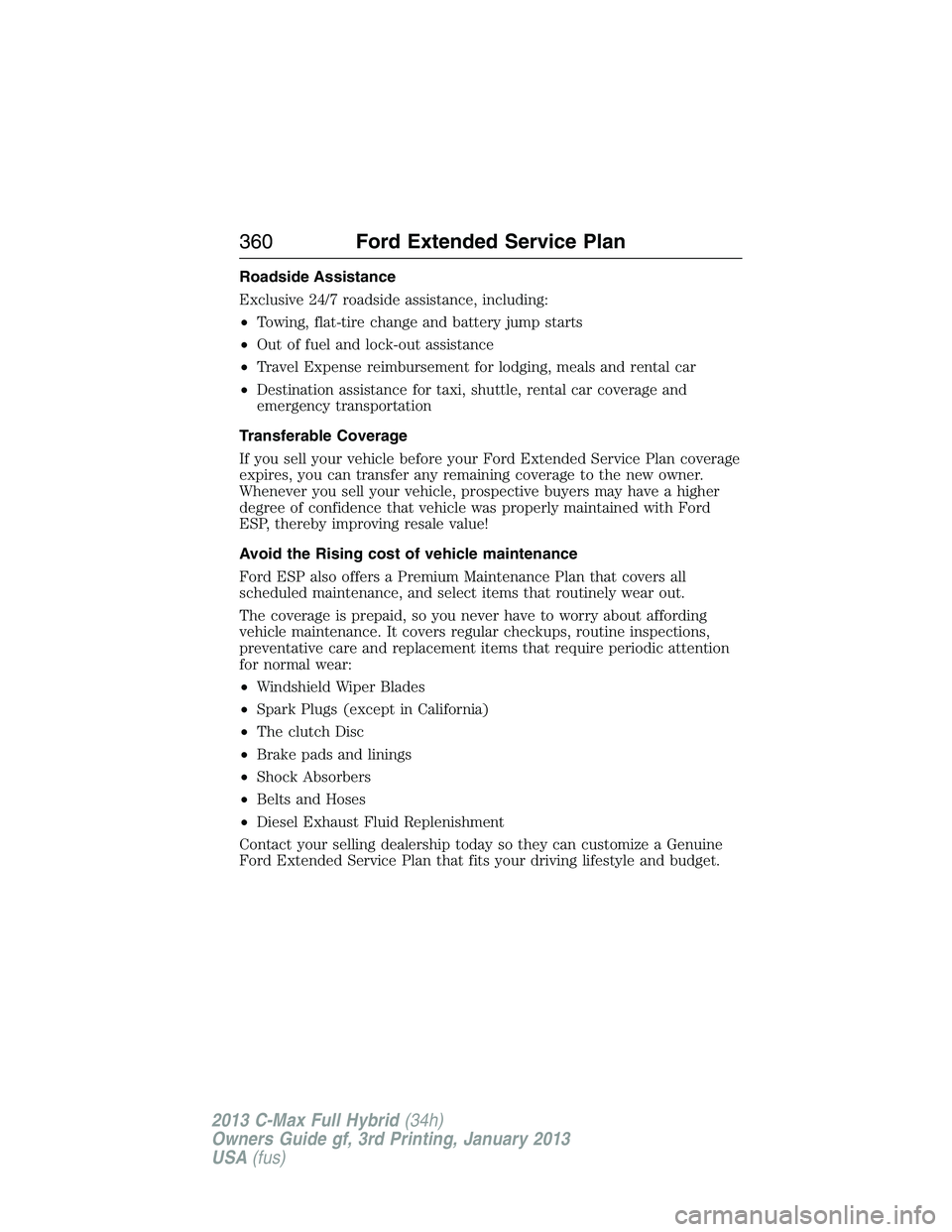

Roadside Assistance
Exclusive 24/7 roadside assistance, including:
•Towing, flat-tire change and battery jump starts
•Out of fuel and lock-out assistance
•Travel Expense reimbursement for lodging, meals and rental car
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation
Transferable Coverage
If you sell your vehicle before your Ford Extended Service Plan coverage
expires, you can transfer any remaining coverage to the new owner.
Whenever you sell your vehicle, prospective buyers may have a higher
degree of confidence that vehicle was properly maintained with Ford
ESP, thereby improving resale value!
Avoid the Rising cost of vehicle maintenance
Ford ESP also offers a Premium Maintenance Plan that covers all
scheduled maintenance, and select items that routinely wear out.
The coverage is prepaid, so you never have to worry about affording
vehicle maintenance. It covers regular checkups, routine inspections,
preventative care and replacement items that require periodic attention
for normal wear:
•Windshield Wiper Blades
•Spark Plugs (except in California)
•The clutch Disc
•Brake pads and linings
•Shock Absorbers
•Belts and Hoses
•Diesel Exhaust Fluid Replenishment
Contact your selling dealership today so they can customize a Genuine
Ford Extended Service Plan that fits your driving lifestyle and budget.
360Ford Extended Service Plan
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

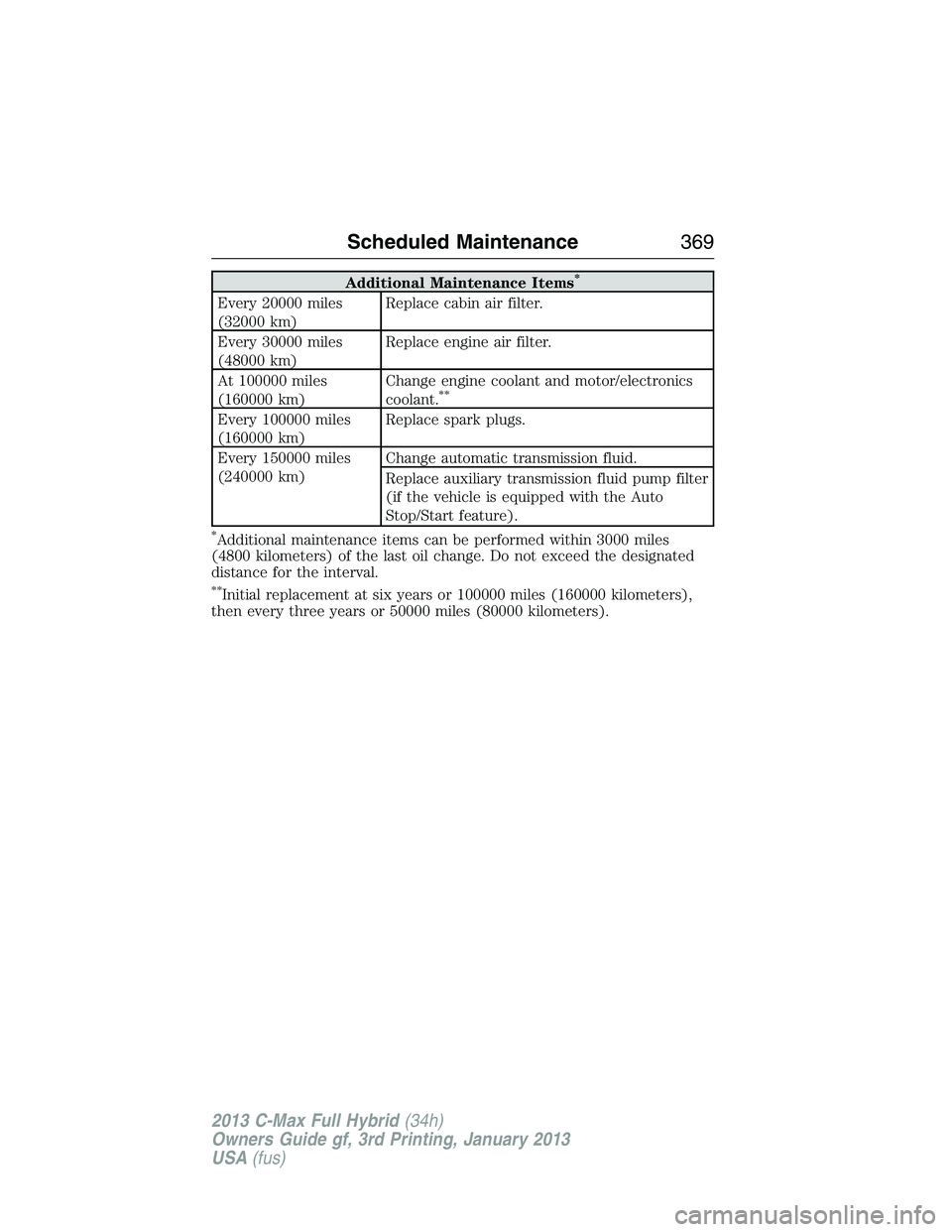

Additional Maintenance Items*
Every 20000 miles
(32000 km)Replace cabin air filter.
Every 30000 miles
(48000 km)Replace engine air filter.
At 100000 miles
(160000 km)Change engine coolant and motor/electronics
coolant.
**
Every 100000 miles
(160000 km)Replace spark plugs.
Every 150000 miles
(240000 km)Change automatic transmission fluid.
Replace auxiliary transmission fluid pump filter
(if the vehicle is equipped with the Auto
Stop/Start feature).
*Additional maintenance items can be performed within 3000 miles
(4800 kilometers) of the last oil change. Do not exceed the designated
distance for the interval.
**Initial replacement at six years or 100000 miles (160000 kilometers),
then every three years or 50000 miles (80000 kilometers).
Scheduled Maintenance369
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

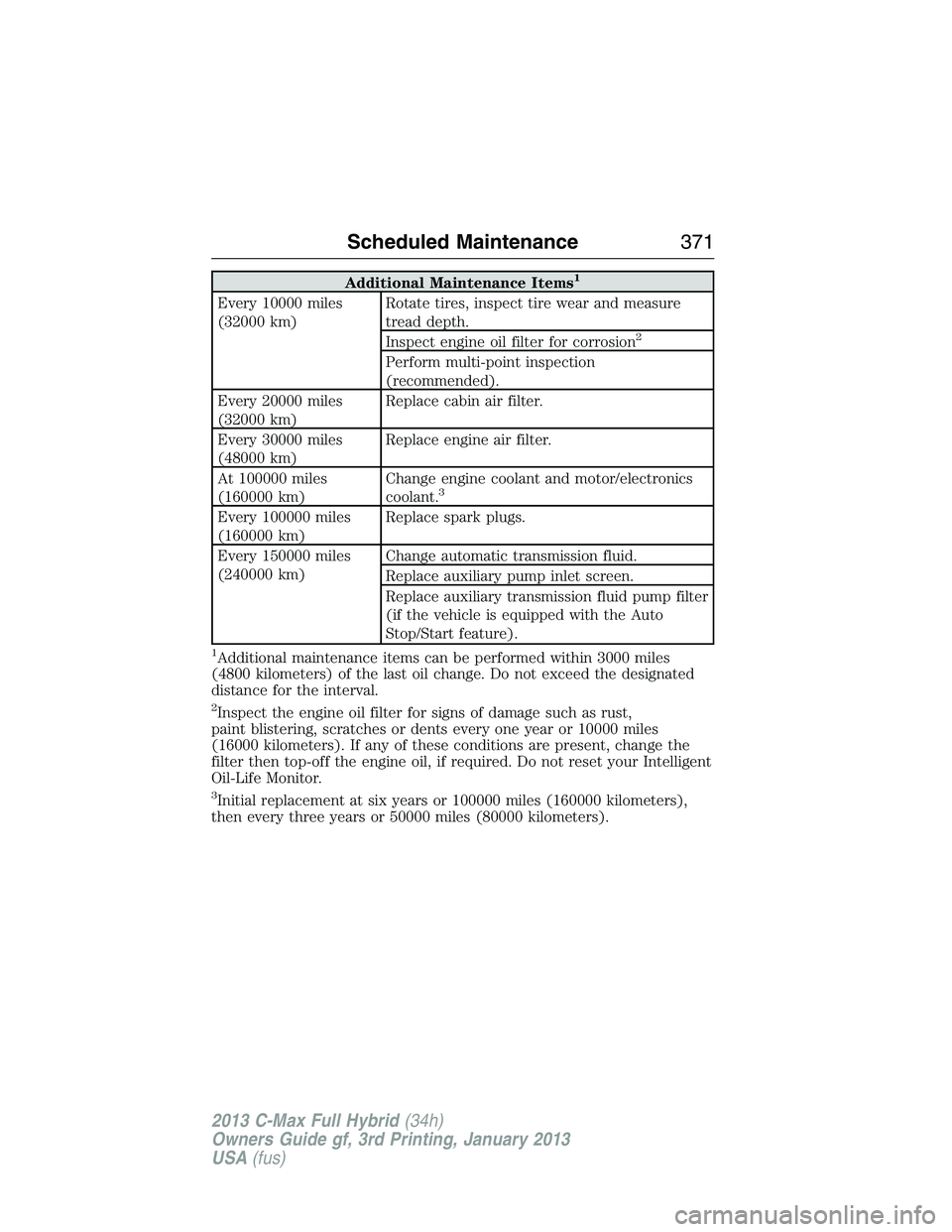

Additional Maintenance Items1
Every 10000 miles
(32000 km)Rotate tires, inspect tire wear and measure
tread depth.
Inspect engine oil filter for corrosion
2
Perform multi-point inspection
(recommended).
Every 20000 miles
(32000 km)Replace cabin air filter.
Every 30000 miles
(48000 km)Replace engine air filter.
At 100000 miles
(160000 km)Change engine coolant and motor/electronics
coolant.
3
Every 100000 miles
(160000 km)Replace spark plugs.
Every 150000 miles
(240000 km)Change automatic transmission fluid.
Replace auxiliary pump inlet screen.
Replace auxiliary transmission fluid pump filter
(if the vehicle is equipped with the Auto
Stop/Start feature).
1Additional maintenance items can be performed within 3000 miles
(4800 kilometers) of the last oil change. Do not exceed the designated
distance for the interval.
2Inspect the engine oil filter for signs of damage such as rust,
paint blistering, scratches or dents every one year or 10000 miles
(16000 kilometers). If any of these conditions are present, change the
filter then top-off the engine oil, if required. Do not reset your Intelligent
Oil-Life Monitor.
3Initial replacement at six years or 100000 miles (160000 kilometers),
then every three years or 50000 miles (80000 kilometers).
Scheduled Maintenance371
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Perform the services shown in the following tables when specified or
within 3000 miles (4800 kilometers) of the OIL CHANGE REQUIRED
message appearing in the information display.
Example #1:The OIL CHANGE REQUIRED message comes
on at 28751 miles (46270 kilometers); perform the 30000 mile
(48000 kilometer) automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on,
but the odometer reads 30000 miles (48000 kilometers); perform the
engine air filter replacement. (i.e., Intelligent Oil-Life Monitor® was reset
at 25000 miles [40000 kilometers].)
Extensive Idling or Low-speed Driving for Long Distances as in
Heavy Commercial Use (i.e., Delivery, Taxi, Patrol Car or
Livery)
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredReplace cabin air filter.
Replace engine air filter.
Every 60000 miles
(96000 km)Replace spark plugs.
Scheduled Maintenance375
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
