mirror FORD C MAX 2014 2.G Quick Reference Guide

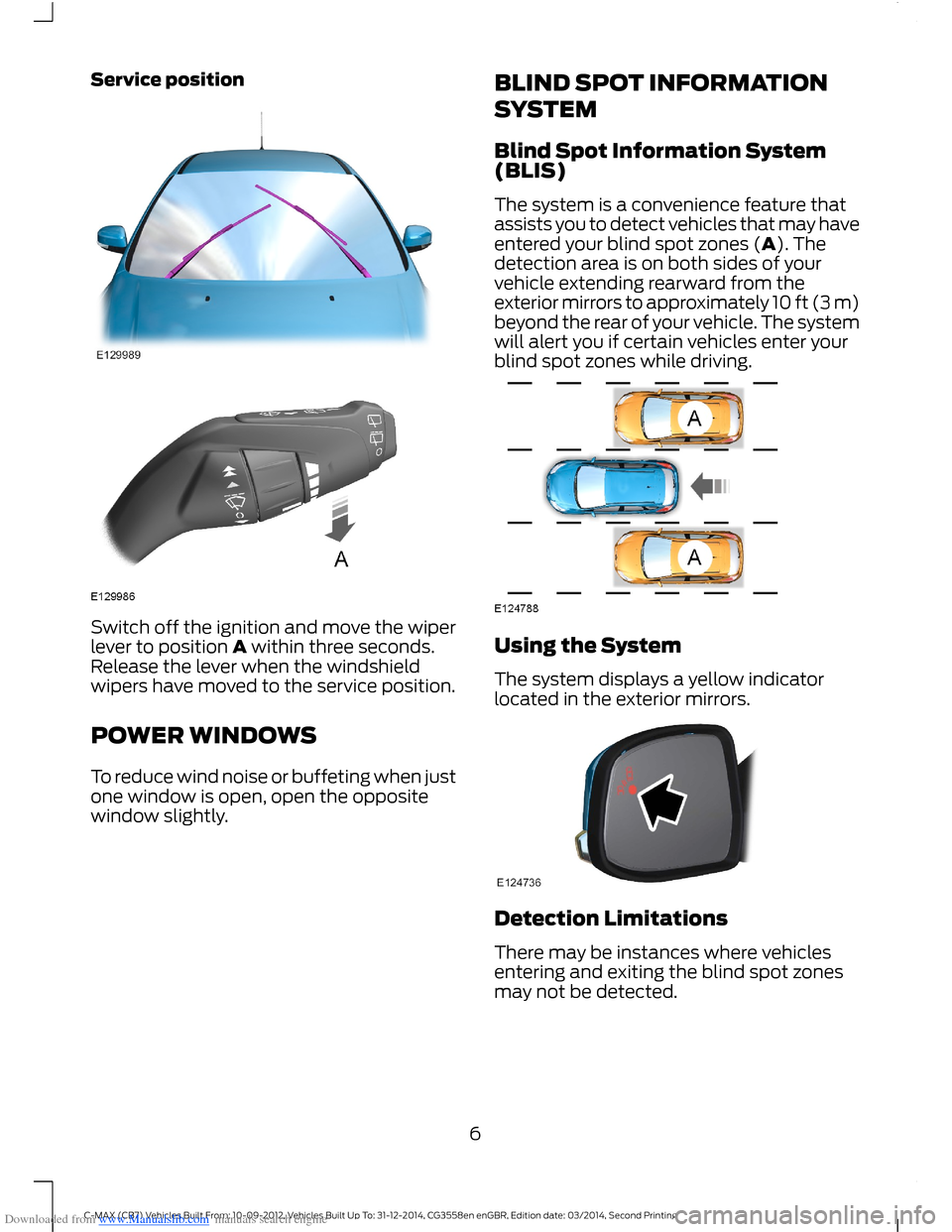

Downloaded from www.Manualslib.com manuals search engine Service position
Switch off the ignition and move the wiperlever to position A within three seconds.Release the lever when the windshieldwipers have moved to the service position.
POWER WINDOWS
To reduce wind noise or buffeting when justone window is open, open the oppositewindow slightly.
BLIND SPOT INFORMATION
SYSTEM
Blind Spot Information System(BLIS)
The system is a convenience feature thatassists you to detect vehicles that may haveentered your blind spot zones (A). Thedetection area is on both sides of yourvehicle extending rearward from theexterior mirrors to approximately 10 ft (3 m)beyond the rear of your vehicle. The systemwill alert you if certain vehicles enter yourblind spot zones while driving.
Using the System
The system displays a yellow indicatorlocated in the exterior mirrors.
Detection Limitations
There may be instances where vehiclesentering and exiting the blind spot zonesmay not be detected.
6C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing
