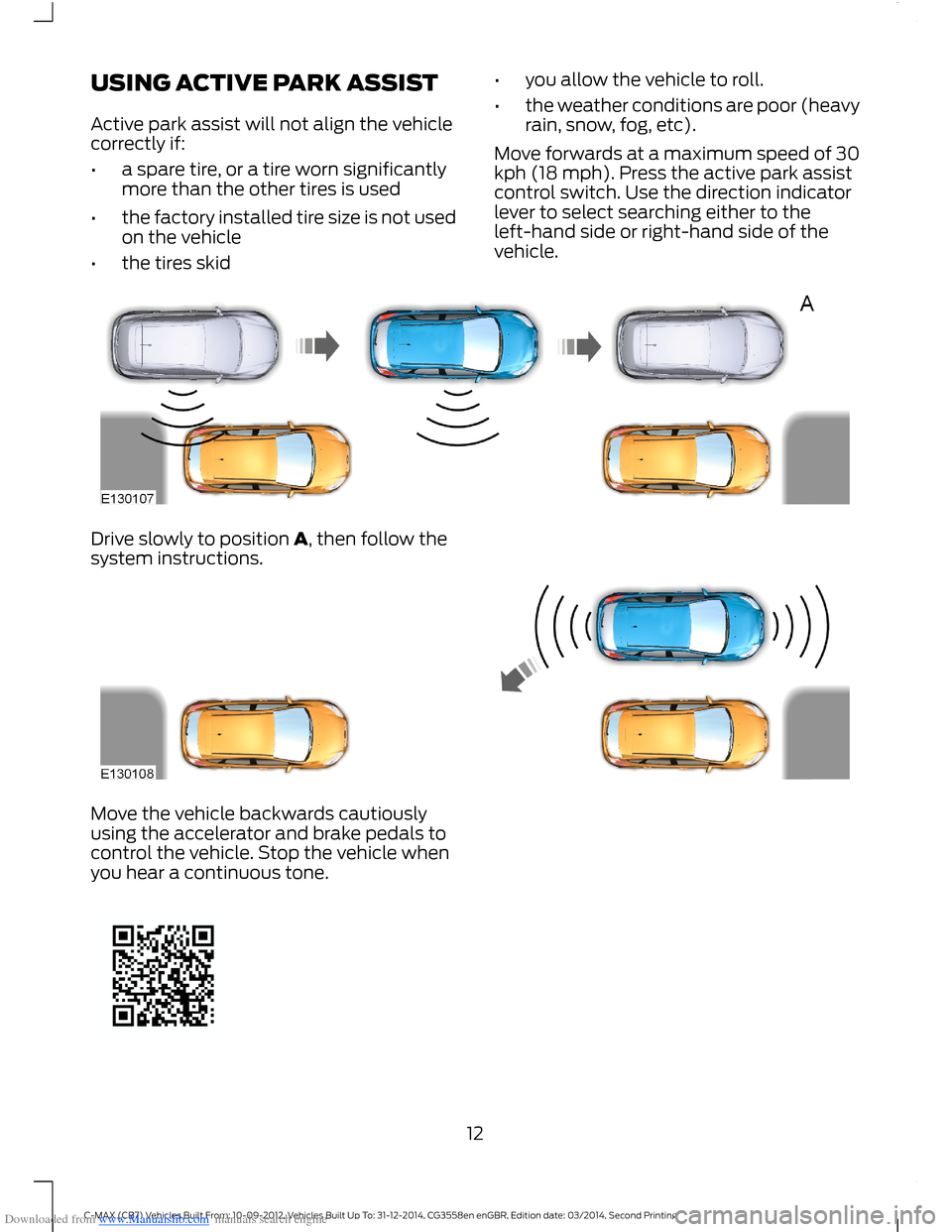

Downloaded from www.Manualslib.com manuals search engine USING ACTIVE PARK ASSIST
Active park assist will not align the vehiclecorrectly if:
•a spare tire, or a tire worn significantlymore than the other tires is used
•the factory installed tire size is not usedon the vehicle
•the tires skid
•you allow the vehicle to roll.
•the weather conditions are poor (heavyrain, snow, fog, etc).
Move forwards at a maximum speed of 30kph (18 mph). Press the active park assistcontrol switch. Use the direction indicatorlever to select searching either to theleft-hand side or right-hand side of thevehicle.
Drive slowly to position A, then follow thesystem instructions.
Move the vehicle backwards cautiouslyusing the accelerator and brake pedals tocontrol the vehicle. Stop the vehicle whenyou hear a continuous tone.
12C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine USING CRUISE CONTROL
Switching cruise control on and off
Setting a speed
Press the SET+ switch or the SET- switchto store and maintain your current speed.The cruise control indicator will illuminate.
Changing the set speed
AccelerateA
DecelerateB
Canceling the set speed
Press the brake pedal or pull the CANswitch.
Resuming the set speed
Pull the RES switch.
ECONOMICAL DRIVING
The following will help to improve fuelconsumption.
Check your tire pressures regularly tooptimize fuel economy.
Gear Shifting
Use the highest drivable gear appropriatefor the road conditions.
Anticipation
Adjust your vehicle speed and the distanceto other vehicles without the need for heavybraking or acceleration.
Efficient Speed
Higher speeds use more fuel. Reduce yourcruising speed on open roads.
TEMPORARY MOBILITY KIT
WARNING
For all warnings and cautions, referto your Owner's Manual.
Your vehicle may not have a spare tire. Inthis case it will have an emergency tirerepair kit that can be used to repair one flattire.
Tire repair kit location
The tire repair kit is located in the sparewheel well.
13C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing
