Warranty on Replacement Parts
Genuine Ford and Motorcraft replacement
parts are the only replacement parts that
benefit from a Ford Warranty. Damage
caused to your vehicle as a result of the
failure of non-Ford parts may not be
covered by the Ford Warranty. For
additional information, refer to the terms
and conditions of the Ford Warranty.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is
covered and what is not covered by your
vehicle
’s New Vehicle Limited Warranty,
refer to the Warranty Manual that is
provided to you along with your Owner ’s
Manual.
Special Instructions
For your added safety, your vehicle is fitted
with sophisticated electronic controls. WARNINGS
You risk death or serious injury to
yourself and others if you do not
follow the instruction highlighted by
the warning symbol. Failure to follow the
specific warnings and instructions could
result in personal injury. Front seat mounted rear-facing child
or infant seats should NEVER be
placed in front of an active
passenger airbag. On-board Diagnostics (OBD-II)
Your vehicle
’s On-board Diagnostics
(OBD-II) system has a data port for
diagnostics, repair and reprogramming
services with diagnostic scan tools.
Installing a non-Ford-approved
aftermarket OBD plug-in device that uses
the port during normal driving, for example remote insurance company monitoring,
remote vehicle diagnostics, telematics or
engine reprogramming, may cause
interference or damage to vehicle systems.
We do not recommend or endorse the use
of any non-Ford-approved aftermarket
OBD plug-in devices. The vehicle Warranty
may not cover damage caused by any
non-Ford-approved aftermarket OBD
plug-in device.
Notice to Owners of Pickup Trucks
and Utility Type Vehicles
WARNING
Utility vehicles have a significantly
higher rollover rate than other types
of vehicles.
Before you drive your vehicle, please read
this Owner
’s Guide carefully. Your vehicle
is not a passenger car. As with other
vehicles of this type, failure to operate this
vehicle correctly may result in loss of
vehicle control, vehicle rollover, personal
injury or death.
Using Your Vehicle With a
Snowplow
Do not use this vehicle for
snowplowing.
Your vehicle is not equipped with a
snowplowing package.
Using Your Vehicle as an
Ambulance
Do not use this vehicle as an
ambulance.
Your vehicle is not equipped with the Ford
Ambulance Preparation Package.
12
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Introduction

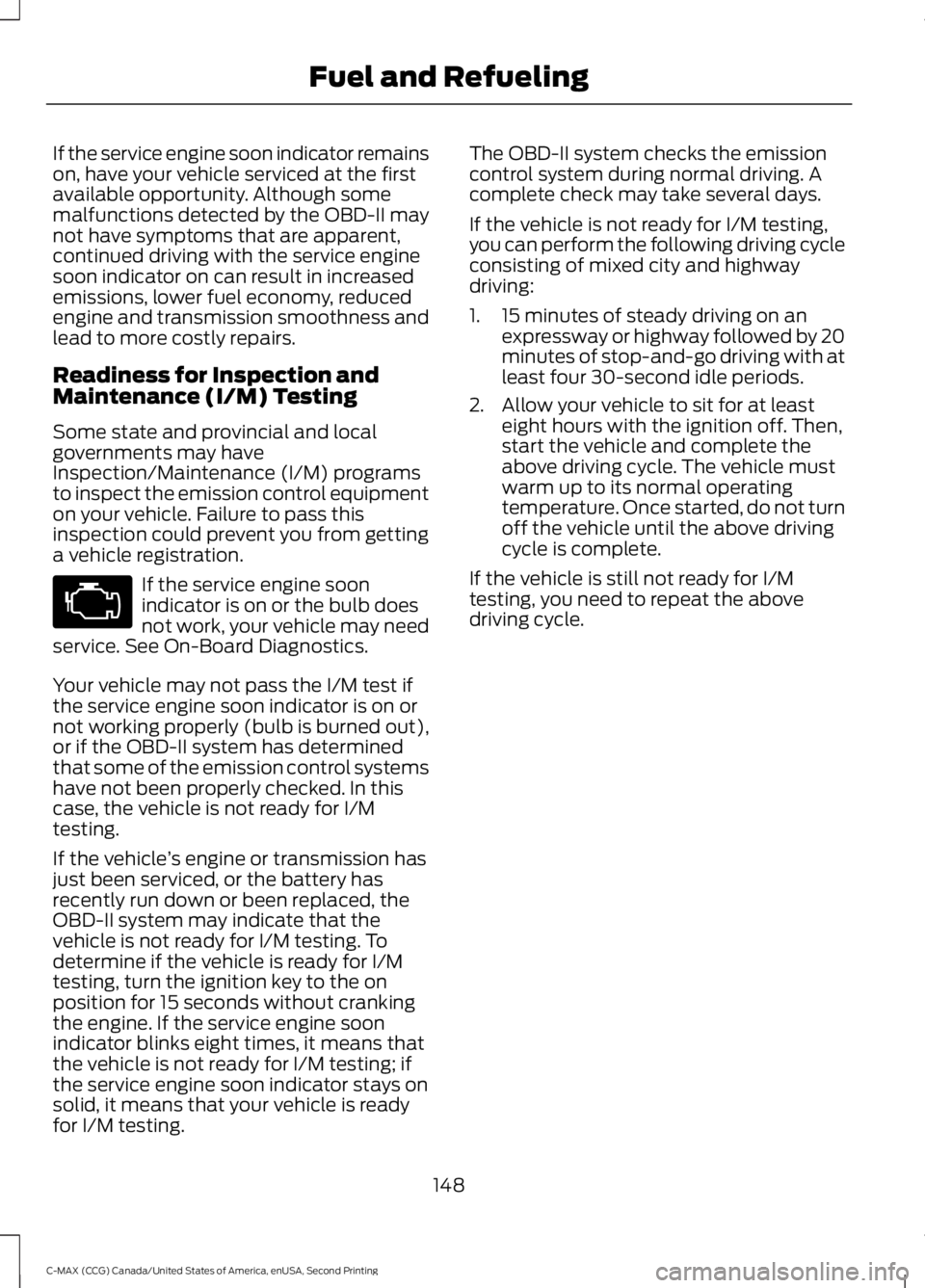

If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness and
lead to more costly repairs.
Readiness for Inspection and
Maintenance (I/M) Testing
Some state and provincial and local
governments may have
Inspection/Maintenance (I/M) programs
to inspect the emission control equipment
on your vehicle. Failure to pass this
inspection could prevent you from getting
a vehicle registration.
If the service engine soon
indicator is on or the bulb does
not work, your vehicle may need
service. See On-Board Diagnostics.
Your vehicle may not pass the I/M test if
the service engine soon indicator is on or
not working properly (bulb is burned out),
or if the OBD-II system has determined
that some of the emission control systems
have not been properly checked. In this
case, the vehicle is not ready for I/M
testing.
If the vehicle ’s engine or transmission has
just been serviced, or the battery has
recently run down or been replaced, the
OBD-II system may indicate that the
vehicle is not ready for I/M testing. To
determine if the vehicle is ready for I/M
testing, turn the ignition key to the on
position for 15 seconds without cranking
the engine. If the service engine soon
indicator blinks eight times, it means that
the vehicle is not ready for I/M testing; if
the service engine soon indicator stays on
solid, it means that your vehicle is ready
for I/M testing. The OBD-II system checks the emission
control system during normal driving. A
complete check may take several days.
If the vehicle is not ready for I/M testing,
you can perform the following driving cycle
consisting of mixed city and highway
driving:
1. 15 minutes of steady driving on an
expressway or highway followed by 20
minutes of stop-and-go driving with at
least four 30-second idle periods.
2. Allow your vehicle to sit for at least eight hours with the ignition off. Then,
start the vehicle and complete the
above driving cycle. The vehicle must
warm up to its normal operating
temperature. Once started, do not turn
off the vehicle until the above driving
cycle is complete.
If the vehicle is still not ready for I/M
testing, you need to repeat the above
driving cycle.
148
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Fuel and Refueling

Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply.
20A
F56
Not used.
—
F57
Not used (spare).
5A
F58
Passive anti-theft system.
5A
F59
Interior light.
10A
F60
Driver door switch pack.
Glove box illumination.
Overhead console switch bank.
Cigar lighter.
20A
F61
Second row power point.
Autowiper module.
5A
F62
Autodimming rear view mirror.
Not used (spare).
10A
F63
Not used.
—
F64
Liftgate release.
10A
F65
Driver door unlock supply.
20A
F66
Cell phone passport (C-MAX Energi).
7.5A
F67
Multi-function display.
GPS module.
Sync.
Not used (spare).
15A
F68
Instrument cluster.
5A
F69
Central lock and unlock supply.
20A
F70
Climate control module.
7.5A
F71
Steering wheel module.
7.5A
F72
Data link connector.
7.5A
F73
OBD II supply.
Headlamp supply.
15A
F74
Fog lamp supply.
15A
F75
Reversing lamp supply.
10A
F76
208
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Fuses

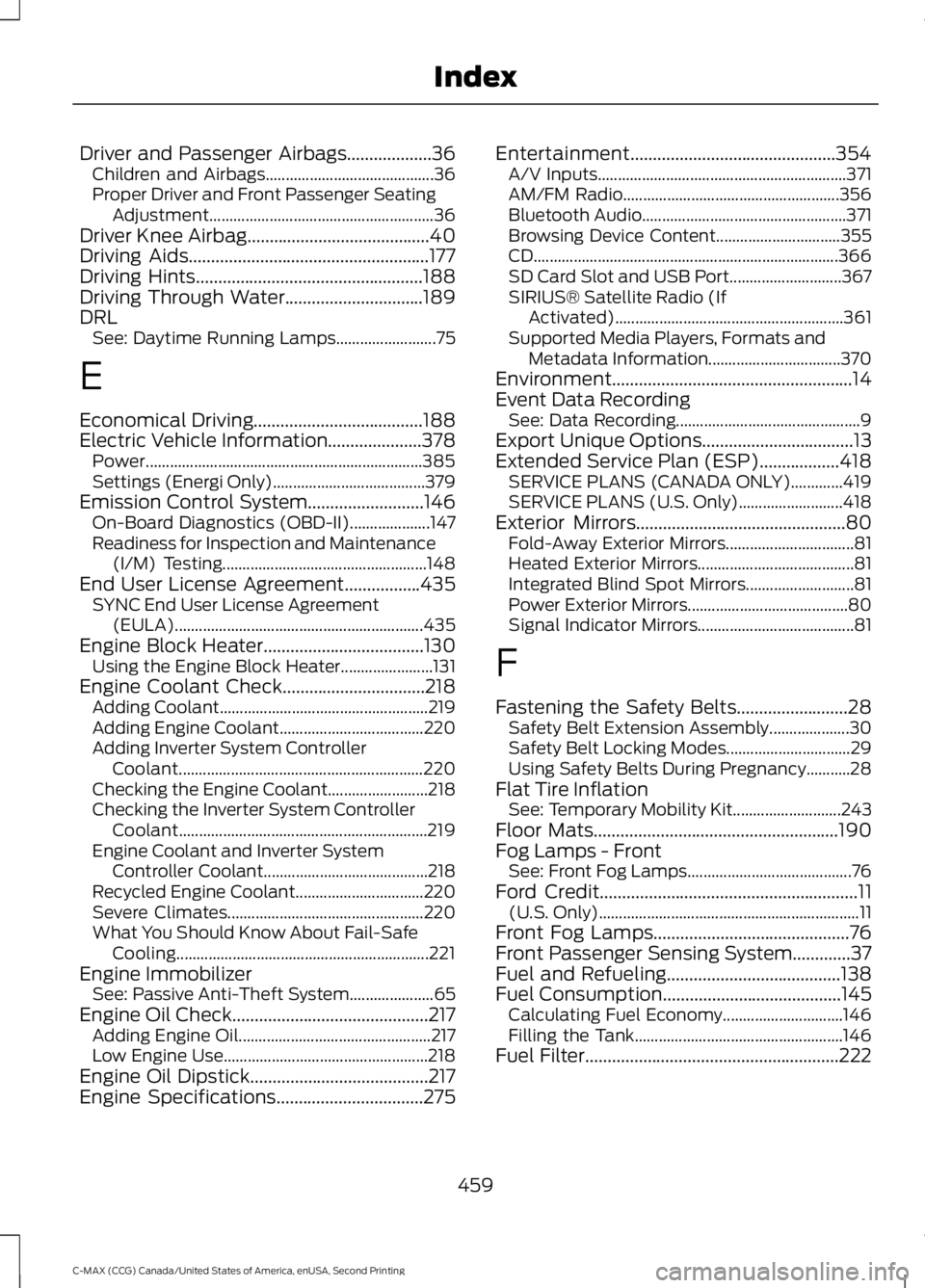

Driver and Passenger Airbags...................36
Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 36
Driver Knee Airbag.........................................40
Driving Aids......................................................177
Driving Hints...................................................188
Driving Through Water...............................189
DRL See: Daytime Running Lamps......................... 75
E
Economical Driving......................................188
Electric Vehicle Information.....................378 Power..................................................................... 385
Settings (Energi Only)...................................... 379
Emission Control System..........................146 On-Board Diagnostics (OBD-II).................... 147
Readiness for Inspection and Maintenance (I/M) Testing................................................... 148
End User License Agreement
.................435
SYNC End User License Agreement
(EULA).............................................................. 435
Engine Block Heater
....................................130
Using the Engine Block Heater....................... 131
Engine Coolant Check
................................218
Adding Coolant.................................................... 219
Adding Engine Coolant.................................... 220
Adding Inverter System Controller Coolant............................................................. 220
Checking the Engine Coolant......................... 218
Checking the Inverter System Controller Coolant.............................................................. 219
Engine Coolant and Inverter System Controller Coolant......................................... 218
Recycled Engine Coolant................................ 220
Severe Climates................................................. 220
What You Should Know About Fail-Safe Cooling............................................................... 221
Engine Immobilizer See: Passive Anti-Theft System..................... 65
Engine Oil Check............................................217 Adding Engine Oil................................................ 217
Low Engine Use................................................... 218
Engine Oil Dipstick
........................................217
Engine Specifications.................................275 Entertainment..............................................354
A/V Inputs.............................................................. 371
AM/FM Radio...................................................... 356
Bluetooth Audio................................................... 371
Browsing Device Content............................... 355
CD........................................................................\
.... 366
SD Card Slot and USB Port............................ 367
SIRIUS® Satellite Radio (If Activated)......................................................... 361
Supported Media Players, Formats and Metadata Information................................. 370
Environment......................................................14
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP)..................418 SERVICE PLANS (CANADA ONLY).............419
SERVICE PLANS (U.S. Only).......................... 418
Exterior Mirrors
...............................................80
Fold-Away Exterior Mirrors................................ 81
Heated Exterior Mirrors....................................... 81
Integrated Blind Spot Mirrors........................... 81
Power Exterior Mirrors........................................ 80
Signal Indicator Mirrors....................................... 81
F
Fastening the Safety Belts
.........................28
Safety Belt Extension Assembly.................... 30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Flat Tire Inflation See: Temporary Mobility Kit........................... 243
Floor Mats
.......................................................190
Fog Lamps - Front See: Front Fog Lamps......................................... 76
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Fog Lamps............................................76
Front Passenger Sensing System.............37
Fuel and Refueling
.......................................138
Fuel Consumption........................................145
Calculating Fuel Economy.............................. 146
Filling the Tank.................................................... 146
Fuel Filter
.........................................................222
459
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Index

Special Notices................................................12
New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 12
On-board Diagnostics (OBD-II)....................... 12
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............12
Using Your Vehicle With a Snowplow............12
Special Operating Conditions Scheduled Maintenance..............................................426
Exceptions............................................................ 427
Speed Control See: Cruise Control............................................. 175
Stability Control............................................164
Principle of Operation....................................... 164
Starter Switch See: Ignition Switch............................................ 127
Starting a Gasoline Engine.......................128 Guarding Against Exhaust Fumes...............130
Important Ventilating Information..............130
Switching Off the Vehicle When It Is
Moving............................................................... 130
Switching Off the Vehicle When It Is Stationary......................................................... 129
Vehicles with an Ignition Key.......................... 128
Vehicles with Keyless Start............................. 128
Starting and Stopping the Engine..........127 General Information........................................... 127
Steering
.............................................................177
Electric Power Steering..................................... 177
Steering Wheel
................................................67
Storage Compartments.............................126
Sun Shades......................................................82
Bounce-Back......................................................... 83
Opening and Closing the Sun Shade...........83
Sun Shade Relearning........................................ 83
Sun Visors
.........................................................82
Illuminated Vanity Mirror................................... 82
Supplementary Restraints System.........35 Principle of Operation......................................... 35
Symbols Glossary
.............................................7
SYNC™ Applications and Services.......312 911 Assist................................................................ 312
SYNC AppLink..................................................... 318
SYNC Services: Traffic, Directions & Information (TDI) (If Equipped, Unites
States Only)..................................................... 316
Vehicle Health Report....................................... 314SYNC™............................................................297
General Information.......................................... 297
SYNC™ Troubleshooting..........................327
T
Tailgate See: Manual Liftgate.......................................... 60
See: Power Liftgate.............................................. 61
Technical Specifications See: Capacities and Specifications.............275
Temporary Mobility Kit..............................243 (Type 2)................................................................. 248
First Stage: Inflating the Tire with Sealing Compound and Air....................................... 250
First Stage: Reinflating the Tire with Sealing Compound and Air....................................... 245
General Information......................................... 244
Second Stage: Checking Tire Pressure........................................................... 246
Tips for Use of the Kit...................................... 244
What to Do after the Tire has Been Sealed................................................................ 247
What to Do After the Tire has Been Sealed............................................................... 253
What to Do When a Tire Is Punctured........................................................ 245
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................200
Tire Care
..........................................................255
Glossary of Tire Terminology........................ 256
Information About Uniform Tire Quality Grading............................................................. 255
Information Contained on the Tire Sidewall............................................................ 257
Temperature A B C............................................ 256
Traction AA A B C............................................... 255
Treadwear............................................................. 255
Tire Inflation When Punctured See: Temporary Mobility Kit........................... 243
Tire Pressure Monitoring System...........270 Changing Tires With a Tire Pressure
Monitoring System......................................... 271
Understanding Your Tire Pressure Monitoring System ........................................ 271
Tire Repair Kit See: Temporary Mobility Kit........................... 243
464
C-MAX (CCG) Canada/United States of America, enUSA, Second Printing Index
