development we validate these parts
deliver the intended level of protection as
a whole system. A great way to know for
sure you are getting this level of protection
is to use genuine Ford replacement
collision parts.
Warranty on Replacement Parts
Genuine Ford and Motorcraft replacement
parts are the only replacement parts that
benefit from a Ford Warranty. Damage
caused to your vehicle as a result of the
failure of non-Ford parts may not be
covered by the Ford Warranty. For
additional information, refer to the terms
and conditions of the Ford Warranty.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is
covered and what is not covered by your
vehicle
’s New Vehicle Limited Warranty,
refer to the Warranty Manual that is
provided to you along with your Owner ’s
Manual.
Special Instructions
For your added safety, your vehicle is fitted
with sophisticated electronic controls. WARNINGS
You risk death or serious injury to
yourself and others if you do not
follow the instruction highlighted by
the warning symbol. Failure to follow the
specific warnings and instructions could
result in personal injury. Front seat mounted rear-facing child
or infant seats should NEVER be
placed in front of an active
passenger airbag. On-board Diagnostics (OBD-II)
Your vehicle
’s On-board Diagnostics
(OBD-II) system has a data port for
diagnostics, repair and reprogramming
services with diagnostic scan tools.
Installing a non-Ford-approved
aftermarket OBD plug-in device that uses
the port during normal driving, for example
remote insurance company monitoring,
remote vehicle diagnostics, telematics or
engine reprogramming, may cause
interference or damage to vehicle systems.
We do not recommend or endorse the use
of any non-Ford-approved aftermarket
OBD plug-in devices. The vehicle Warranty
may not cover damage caused by any
non-Ford-approved aftermarket OBD
plug-in device.
MOBILE COMMUNICATIONS
EQUIPMENT
Using mobile communications equipment
is becoming increasingly important in the
conduct of business and personal affairs.
However, you must not compromise your
own or others’ safety when using such
equipment. Mobile communications can
enhance personal safety and security when
appropriately used, particularly in
emergency situations. Safety must be
paramount when using mobile
communications equipment to avoid
negating these benefits. Mobile
communication equipment includes, but
is not limited to, cellular phones, pagers,
portable email devices, text messaging
devices and portable two-way radios.
12
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Introduction

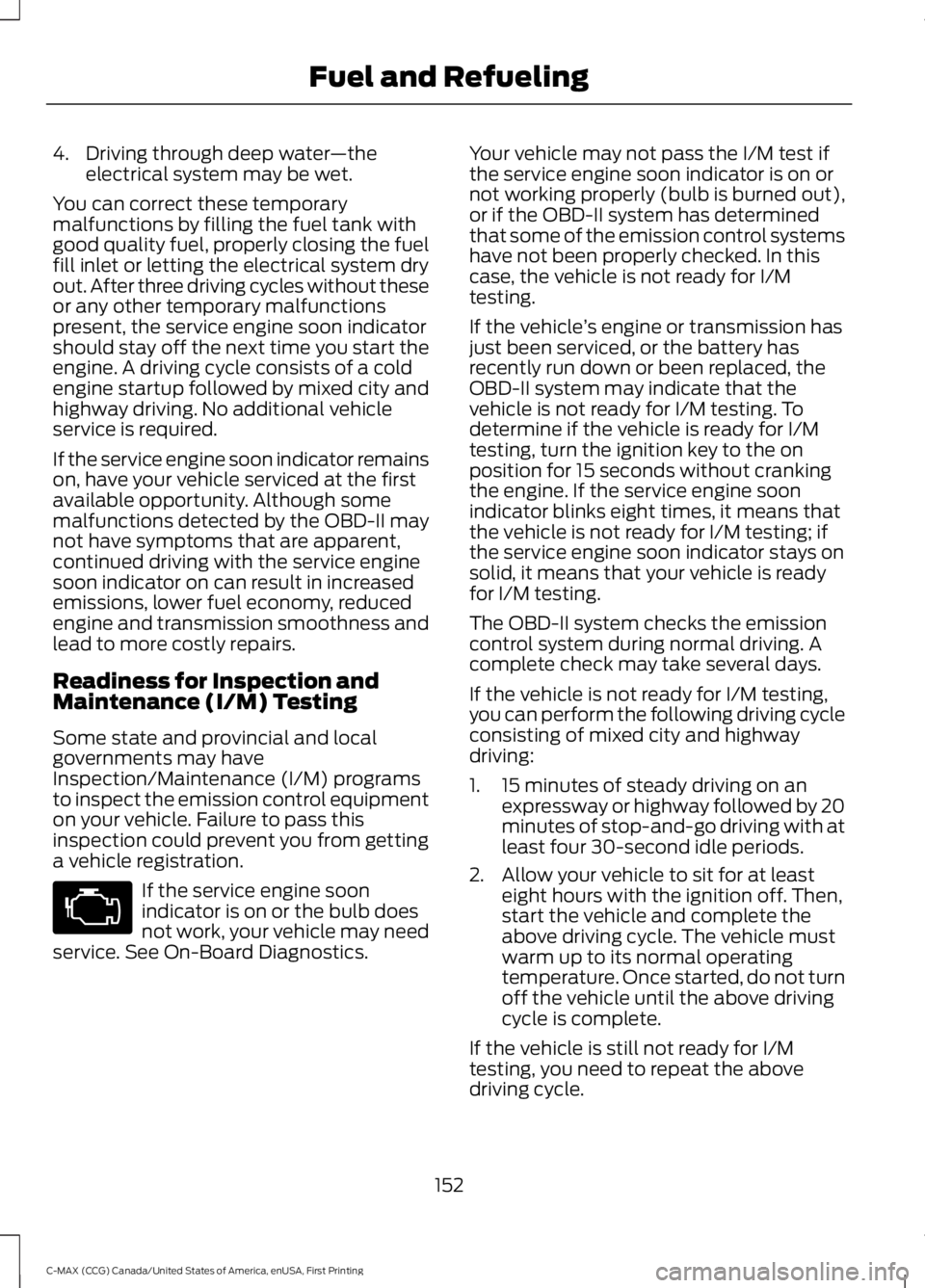

4. Driving through deep water
—the
electrical system may be wet.
You can correct these temporary
malfunctions by filling the fuel tank with
good quality fuel, properly closing the fuel
fill inlet or letting the electrical system dry
out. After three driving cycles without these
or any other temporary malfunctions
present, the service engine soon indicator
should stay off the next time you start the
engine. A driving cycle consists of a cold
engine startup followed by mixed city and
highway driving. No additional vehicle
service is required.
If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness and
lead to more costly repairs.
Readiness for Inspection and
Maintenance (I/M) Testing
Some state and provincial and local
governments may have
Inspection/Maintenance (I/M) programs
to inspect the emission control equipment
on your vehicle. Failure to pass this
inspection could prevent you from getting
a vehicle registration. If the service engine soon
indicator is on or the bulb does
not work, your vehicle may need
service. See On-Board Diagnostics. Your vehicle may not pass the I/M test if
the service engine soon indicator is on or
not working properly (bulb is burned out),
or if the OBD-II system has determined
that some of the emission control systems
have not been properly checked. In this
case, the vehicle is not ready for I/M
testing.
If the vehicle
’s engine or transmission has
just been serviced, or the battery has
recently run down or been replaced, the
OBD-II system may indicate that the
vehicle is not ready for I/M testing. To
determine if the vehicle is ready for I/M
testing, turn the ignition key to the on
position for 15 seconds without cranking
the engine. If the service engine soon
indicator blinks eight times, it means that
the vehicle is not ready for I/M testing; if
the service engine soon indicator stays on
solid, it means that your vehicle is ready
for I/M testing.
The OBD-II system checks the emission
control system during normal driving. A
complete check may take several days.
If the vehicle is not ready for I/M testing,
you can perform the following driving cycle
consisting of mixed city and highway
driving:
1. 15 minutes of steady driving on an expressway or highway followed by 20
minutes of stop-and-go driving with at
least four 30-second idle periods.
2. Allow your vehicle to sit for at least eight hours with the ignition off. Then,
start the vehicle and complete the
above driving cycle. The vehicle must
warm up to its normal operating
temperature. Once started, do not turn
off the vehicle until the above driving
cycle is complete.
If the vehicle is still not ready for I/M
testing, you need to repeat the above
driving cycle.
152
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Fuel and Refueling

Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply.
20A
F56
Not used.
—
F57
Not used (spare).
5A
F58
Passive anti-theft system.
5A
F59
Interior light.
10A
F60
Driver door switch pack.
Glove box illumination.
Overhead console switch bank.
Cigar lighter.
20A
F61
Second row power point.
Autowiper module.
5A
F62
Autodimming rear view mirror.
Not used (spare).
10A
F63
Not used.
—
F64
Liftgate release.
10A
F65
Driver door unlock supply.
20A
F66
Cell phone passport (C-MAX Energi).
7.5A
F67
Multi-function display.
GPS module.
Sync.
Not used (spare).
15A
F68
Instrument cluster.
5A
F69
Central lock and unlock supply.
20A
F70
Climate control module.
7.5A
F71
Steering wheel module.
7.5A
F72
Data link connector.
7.5A
F73
OBD II supply.
Headlamp supply.
15A
F74
Fog lamp supply.
15A
F75
Reversing lamp supply.
10A
F76
213
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Fuses

Driver and Passenger Airbags...................36
Children and Airbags.......................................... 36
Proper Driver and Front Passenger Seating Adjustment........................................................ 36
Driver Knee Airbag.........................................40
Driving Aids......................................................181
Driving Hints...................................................192
Driving Through Water................................193
DRL See: Daytime Running Lamps.......................... 77
E
Economical Driving......................................192
EcoSelect.........................................................142
Emission Control System
..........................150
On-Board Diagnostics (OBD-II)..................... 151
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 152
End User License Agreement.................366 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 366
Engine Block Heater.....................................132 Using the Engine Block Heater...................... 133
Engine Coolant Check
................................223
Adding Coolant................................................... 224
Adding Engine Coolant.................................... 225
Adding Inverter System Controller Coolant............................................................. 225
Checking the Engine Coolant........................ 223
Checking the Inverter System Controller Coolant............................................................. 224
Engine Coolant and Inverter System Controller Coolant........................................ 223
Recycled Engine Coolant................................ 225
Severe Climates.................................................. 225
What You Should Know About Fail-Safe Cooling.............................................................. 226
Engine Immobilizer See: Passive Anti-Theft System..................... 65
Engine Oil Check
..........................................222
Adding Engine Oil............................................... 222
Low Engine Use.................................................. 223
Engine Oil Dipstick
.......................................222
Engine Specifications.................................276
Environment......................................................14
Event Data Recording See: Data Recording.............................................. 9Export Unique Options..................................13
Extended Service Plan (ESP).................346
EXTENDED SERVICE PLAN (CANADA
ONLY)................................................................ 347
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 346
Exterior Mirrors
.................................................81
Fold-Away Exterior Mirrors............................... 82
Heated Exterior Mirrors...................................... 82
Integrated Blind Spot Mirrors.......................... 82
Power Exterior Mirrors......................................... 81
Signal Indicator Mirrors...................................... 82
F
Fastening the Seatbelts..............................28 Safety Belt Extension Assembly.................... 30
Safety Belt Locking Modes............................... 29
Using Safety Belts During Pregnancy...........28
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................249
Floor Mats.......................................................194
Fog Lamps - Front See: Front Fog Lamps......................................... 77
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Fog Lamps.............................................77
Front Parking Aid............................................171
Front Passenger Sensing System.............37
Fuel and Refueling.......................................143
Fuel Consumption
.......................................150
Calculating Fuel Economy.............................. 150
Filling the Tank.................................................... 150
Fuel Filler Funnel Location........................145
Fuel Filter.........................................................227
Fuel Quality....................................................144 Choosing the Right Fuel................................... 144
Fuel Freshness Mode........................................ 144
Fuel Shutoff
...................................................196
Fuses................................................................209
Fuse Specification Chart
..........................209
Luggage Compartment Fuse Panel............214
Passenger Compartment Fuse Panel.........212
Power Distribution Box................................... 209
Pre-Fuse Box....................................................... 209
385
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index

Repairing Minor Paint Damage..............245
Replacement Parts
Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................50
Reporting Safety Defects (Canada Only)..............................................................207
Reporting Safety Defects (U.S. Only)..............................................................207
Roadside Assistance...................................195 Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 195
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................196
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 196
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 195
Vehicles Sold in the United States: Using Roadside Assistance.................................... 195
Roadside Emergencies...............................195
Running-In See: Breaking-In.................................................. 192
Running Out of Fuel.....................................145 Adding Fuel From a Portable Fuel
Container.......................................................... 145
Filling a Portable Fuel Container.................. 145
S
Safety Canopy ™
............................................40
Safety Precautions.......................................143
Satellite Radio..............................................294
Satellite Radio Electronic Serial Number
(ESN)................................................................ 295
Satellite Radio Reception Factors..............294
SIRIUS® Satellite Radio Service.................294
Troubleshooting................................................. 295
Scheduled Maintenance Record...........356
Scheduled Maintenance..........................348
Seatbelt Height Adjustment.....................30
Seatbelt Reminder
..........................................31
Belt-Minder™......................................................... 31Seatbelts............................................................27
Principle of Operation......................................... 27
Seatbelt Warning Lamp and Indicator Chime................................................................31
Conditions of operation...................................... 31
Seats...................................................................113
Security..............................................................65
Side Airbags.....................................................39
Sitting in the Correct Position...................113
Snow Chains See: Using Snow Chains................................. 270
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
On-board Diagnostics (OBD-II)....................... 12
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance..............................................354
Exceptions............................................................ 355
Speed Control See: Cruise Control............................................. 179
Stability Control
............................................168
Principle of Operation...................................... 168
Starter Switch See: Ignition Switch........................................... 129
Starting a Gasoline Engine.......................130 Guarding Against Exhaust Fumes................132
Important Ventilating Information...............132
Switching Off the Vehicle When It Is
Moving................................................................ 132
Switching Off the Vehicle When It Is Stationary.......................................................... 131
Vehicles with an Ignition Key......................... 130
Vehicles with Keyless Start............................ 130
Starting and Stopping the Engine..........129 General Information.......................................... 129
Steering
.............................................................181
Electric Power Steering..................................... 181
Steering Wheel
................................................67
Storage Compartments.............................128
Sun Shades
......................................................84
Bounce-Back......................................................... 84
Opening and Closing the Sun Shade...........84
Sun Shade Relearning....................................... 84
Sun Visors
.........................................................83
Illuminated Vanity Mirror................................... 83
Supplementary Restraints System.........35 Principle of Operation......................................... 35
Symbols Glossary
.............................................7
389
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index
