Page 3 of 552
MyKey 66
Settings, MyKey.......................................66
Creating.............................................67
Clearing.............................................68
System status.........................................68
Remote start, MyKey...................................69
Troubleshooting, MyKey.................................70
Locks 72
Locking and unlocking..................................72
Security 83
SecuriLock® passive anti-theft system.......................83
Steering Wheel 86
Adjusting the steering wheel..............................86
Steering wheel controls.................................87
Wipers and Washers 89
Windshield wipers.....................................89
Autowipers ..........................................90
Windshield washers....................................91
Rear-window wiper and washer............................91
Lighting 92
Lighting control.......................................92
Autolamps...........................................93
Instrument lighting dimmer...............................93
Headlamp exit delay....................................94
Daytime running lamps..................................94
Front fog lamps.......................................95
Directionindicators ....................................95
Interior lamps........................................95
Ambient lighting.......................................97
2Table of Contents
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 13 of 552
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. Additionally, when your vehicle is in for service or repair,
Ford Motor Company, Ford of Canada, and service and repair facilities
may access or share among them data for vehicle improvement purposes.
For U.S. only (if equipped), if you choose to use the SYNC® Vehicle
Health Report, you consent that certain diagnostic information may also
be accessed electronically by Ford Motor Company and Ford authorized
service facilities, and that the diagnostic information may be used for any
purpose. See theSYNC®chapter for more information.
Event Data Recording
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger safety belts were
buckled/fastened;
•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal;
•How fast the vehicle was travelling;
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
12Introduction
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 87 of 552

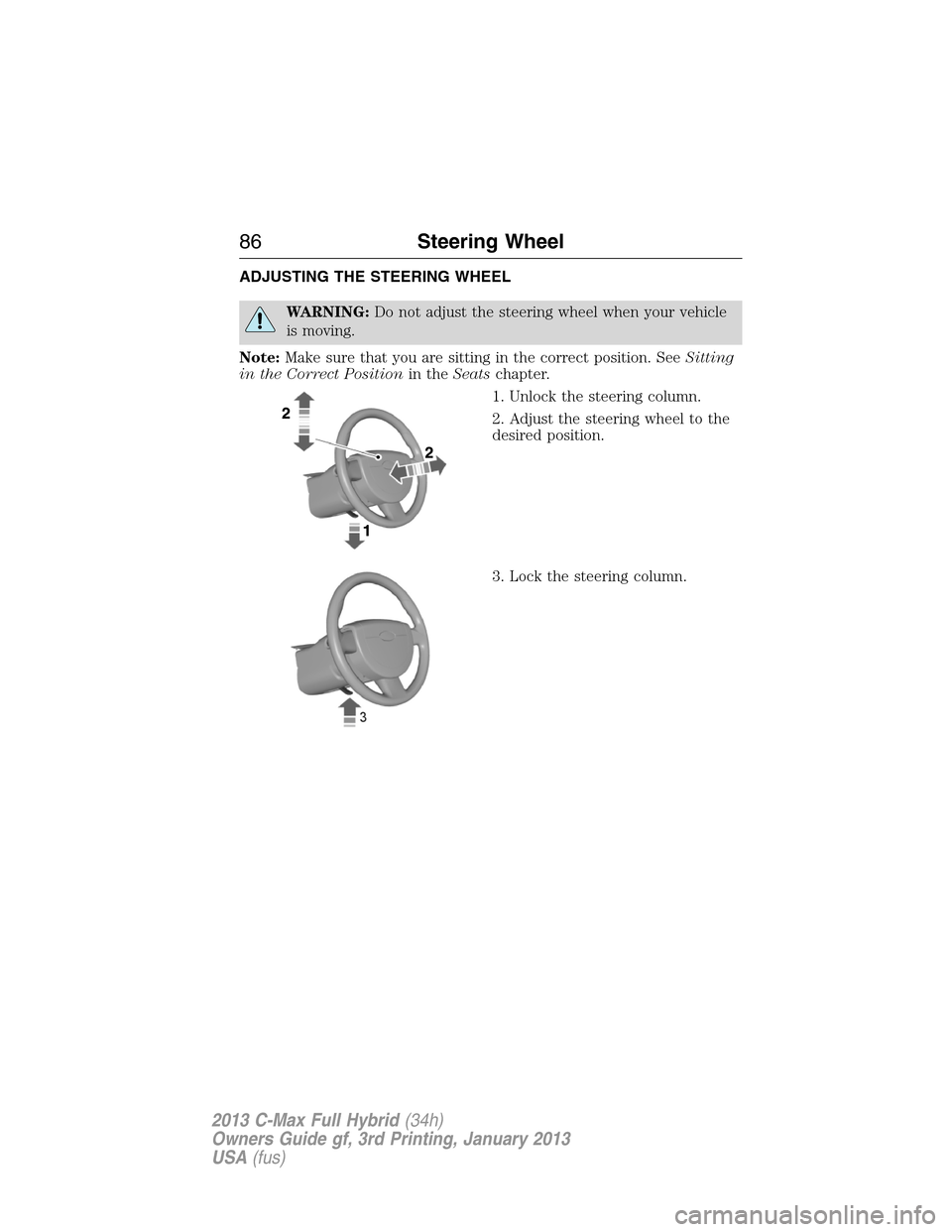

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. SeeSitting
in the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
86Steering Wheel
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 88 of 552

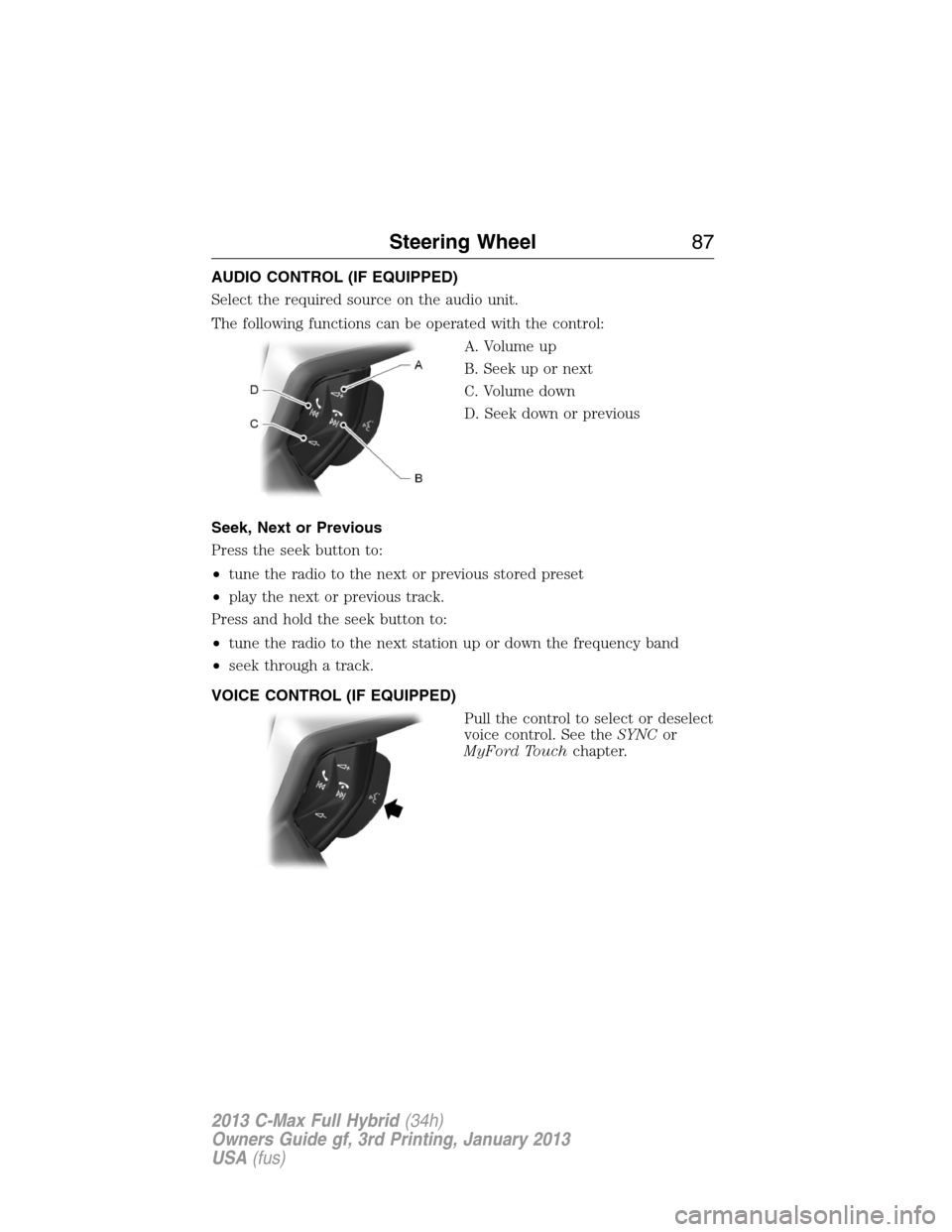

AUDIO CONTROL (IF EQUIPPED)
Select the required source on the audio unit.
The following functions can be operated with the control:
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
VOICE CONTROL (IF EQUIPPED)
Pull the control to select or deselect
voice control. See theSYNCor
MyFord Touchchapter.
Steering Wheel87
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 89 of 552
CRUISE CONTROL
See theCruise Controlchapter.
INFORMATION DISPLAY CONTROL
Use the arrows on the left side
of the steering wheel to navigate
the information display. See the
Information Displayschapter for
more information.
Multimedia Controls (If Equipped)
Use the arrows on the right side of steering
wheel to navigate through the available menus.
PressOKto make a selection.
88Steering Wheel
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 108 of 552

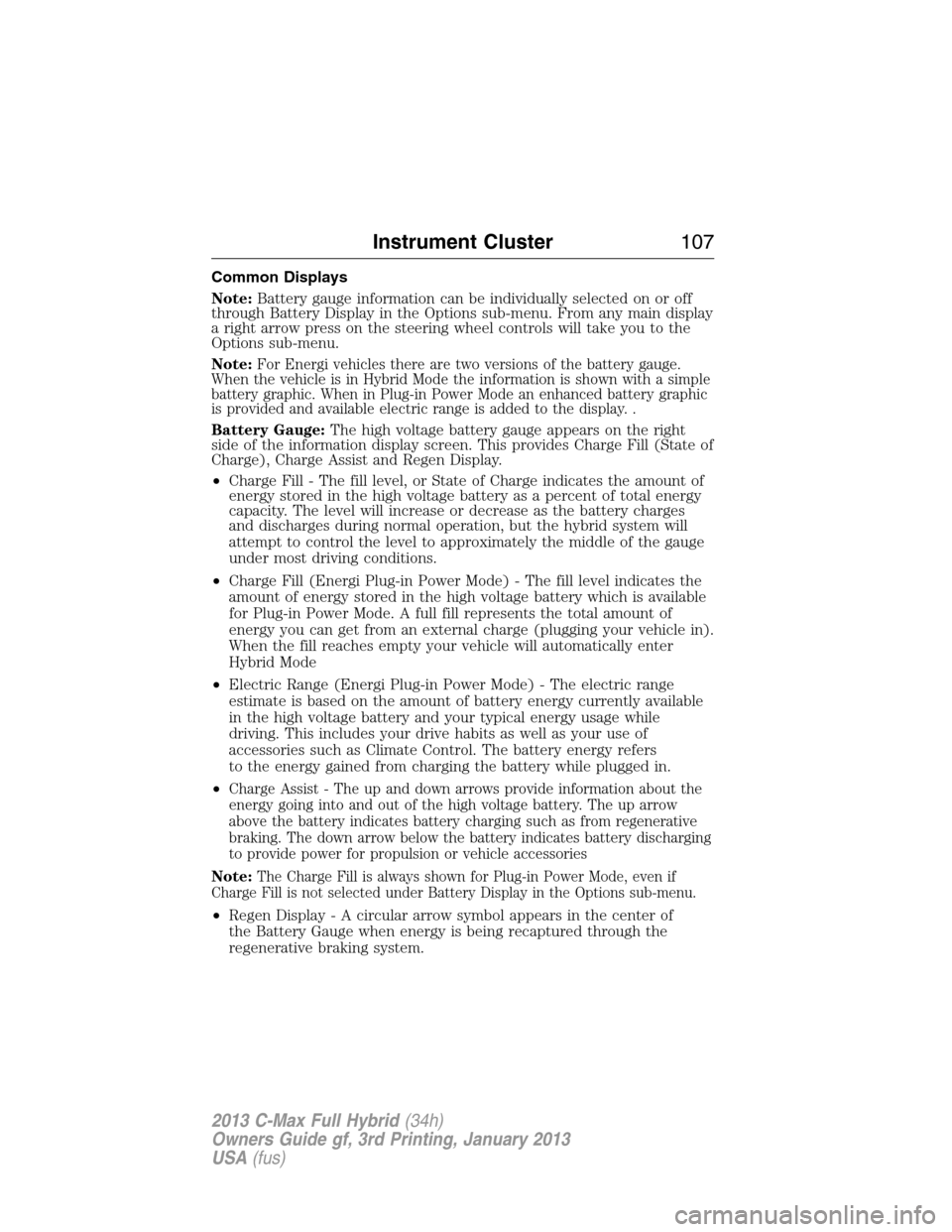

Common Displays
Note:Battery gauge information can be individually selected on or off
through Battery Display in the Options sub-menu. From any main display
a right arrow press on the steering wheel controls will take you to the
Options sub-menu.
Note:
For Energi vehicles there are two versions of the battery gauge.
When the vehicle is in Hybrid Mode the information is shown with a simple
battery graphic. When in Plug-in Power Mode an enhanced battery graphic
is provided and available electric range is added to the display. .
Battery Gauge:The high voltage battery gauge appears on the right
side of the information display screen. This provides Charge Fill (State of
Charge), Charge Assist and Regen Display.
•Charge Fill - The fill level, or State of Charge indicates the amount of
energy stored in the high voltage battery as a percent of total energy
capacity. The level will increase or decrease as the battery charges
and discharges during normal operation, but the hybrid system will
attempt to control the level to approximately the middle of the gauge
under most driving conditions.
•Charge Fill (Energi Plug-in Power Mode) - The fill level indicates the
amount of energy stored in the high voltage battery which is available
for Plug-in Power Mode. A full fill represents the total amount of
energy you can get from an external charge (plugging your vehicle in).
When the fill reaches empty your vehicle will automatically enter
Hybrid Mode
•Electric Range (Energi Plug-in Power Mode) - The electric range
estimate is based on the amount of battery energy currently available
in the high voltage battery and your typical energy usage while
driving. This includes your drive habits as well as your use of
accessories such as Climate Control. The battery energy refers
to the energy gained from charging the battery while plugged in.
•
Charge Assist - The up and down arrows provide information about the
energy going into and out of the high voltage battery. The up arrow
above the battery indicates battery charging such as from regenerative
braking. The down arrow below the battery indicates battery discharging
to provide power for propulsion or vehicle accessories
Note:The Charge Fill is always shown for Plug-in Power Mode, even if
Charge Fill is not selected under Battery Display in the Options sub-menu.
•Regen Display-Acircular arrow symbol appears in the center of
the Battery Gauge when energy is being recaptured through the
regenerative braking system.
Instrument Cluster107
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 109 of 552

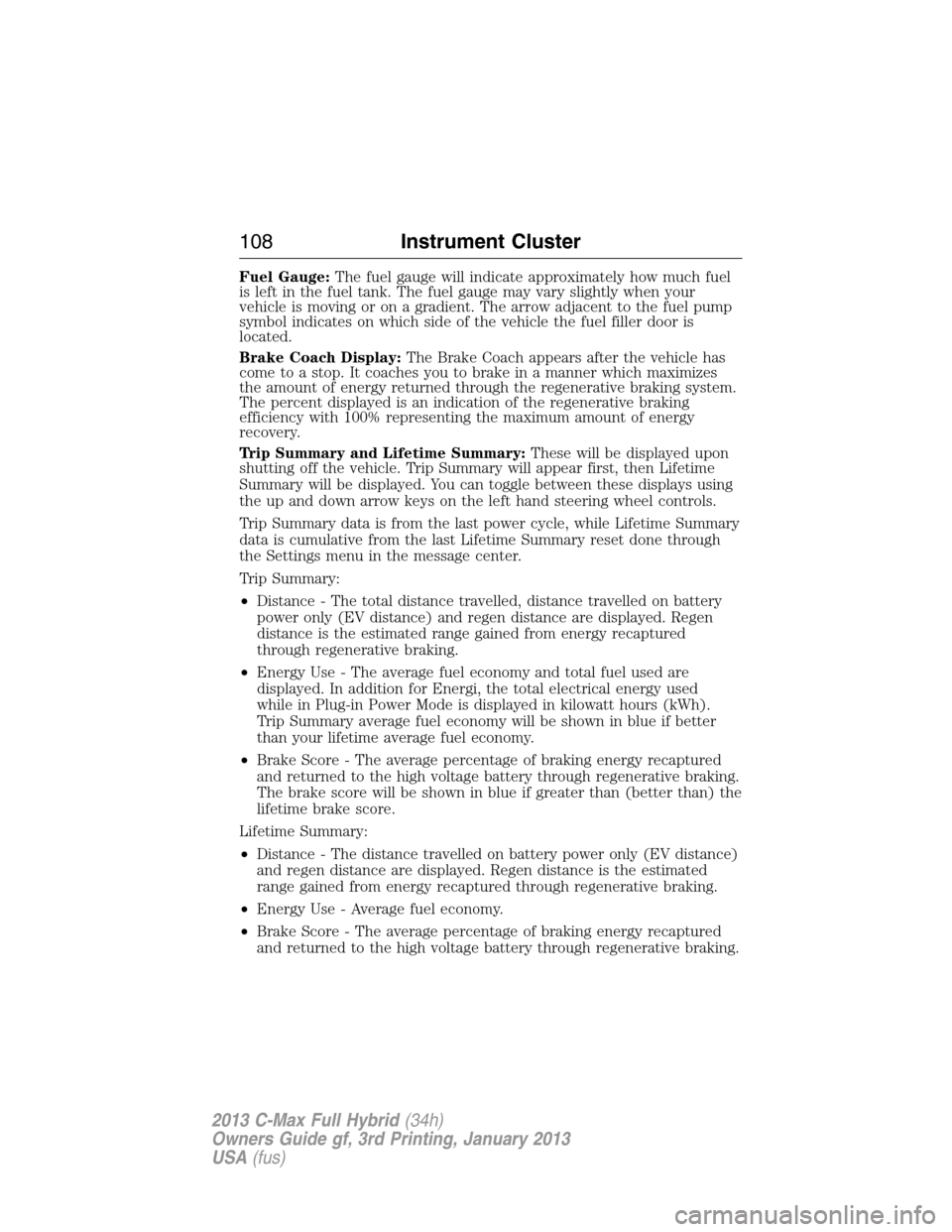

Fuel Gauge:The fuel gauge will indicate approximately how much fuel
is left in the fuel tank. The fuel gauge may vary slightly when your
vehicle is moving or on a gradient. The arrow adjacent to the fuel pump
symbol indicates on which side of the vehicle the fuel filler door is
located.
Brake Coach Display:The Brake Coach appears after the vehicle has
come to a stop. It coaches you to brake in a manner which maximizes
the amount of energy returned through the regenerative braking system.
The percent displayed is an indication of the regenerative braking
efficiency with 100% representing the maximum amount of energy
recovery.
Trip Summary and Lifetime Summary:These will be displayed upon
shutting off the vehicle. Trip Summary will appear first, then Lifetime
Summary will be displayed. You can toggle between these displays using
the up and down arrow keys on the left hand steering wheel controls.
Trip Summary data is from the last power cycle, while Lifetime Summary
data is cumulative from the last Lifetime Summary reset done through
the Settings menu in the message center.
Trip Summary:
•Distance - The total distance travelled, distance travelled on battery
power only (EV distance) and regen distance are displayed. Regen
distance is the estimated range gained from energy recaptured
through regenerative braking.
•Energy Use - The average fuel economy and total fuel used are
displayed. In addition for Energi, the total electrical energy used
while in Plug-in Power Mode is displayed in kilowatt hours (kWh).
Trip Summary average fuel economy will be shown in blue if better
than your lifetime average fuel economy.
•Brake Score - The average percentage of braking energy recaptured
and returned to the high voltage battery through regenerative braking.
The brake score will be shown in blue if greater than (better than) the
lifetime brake score.
Lifetime Summary:
•Distance - The distance travelled on battery power only (EV distance)
and regen distance are displayed. Regen distance is the estimated
range gained from energy recaptured through regenerative braking.
•Energy Use - Average fuel economy.
•Brake Score - The average percentage of braking energy recaptured
and returned to the high voltage battery through regenerative braking.
108Instrument Cluster
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 115 of 552

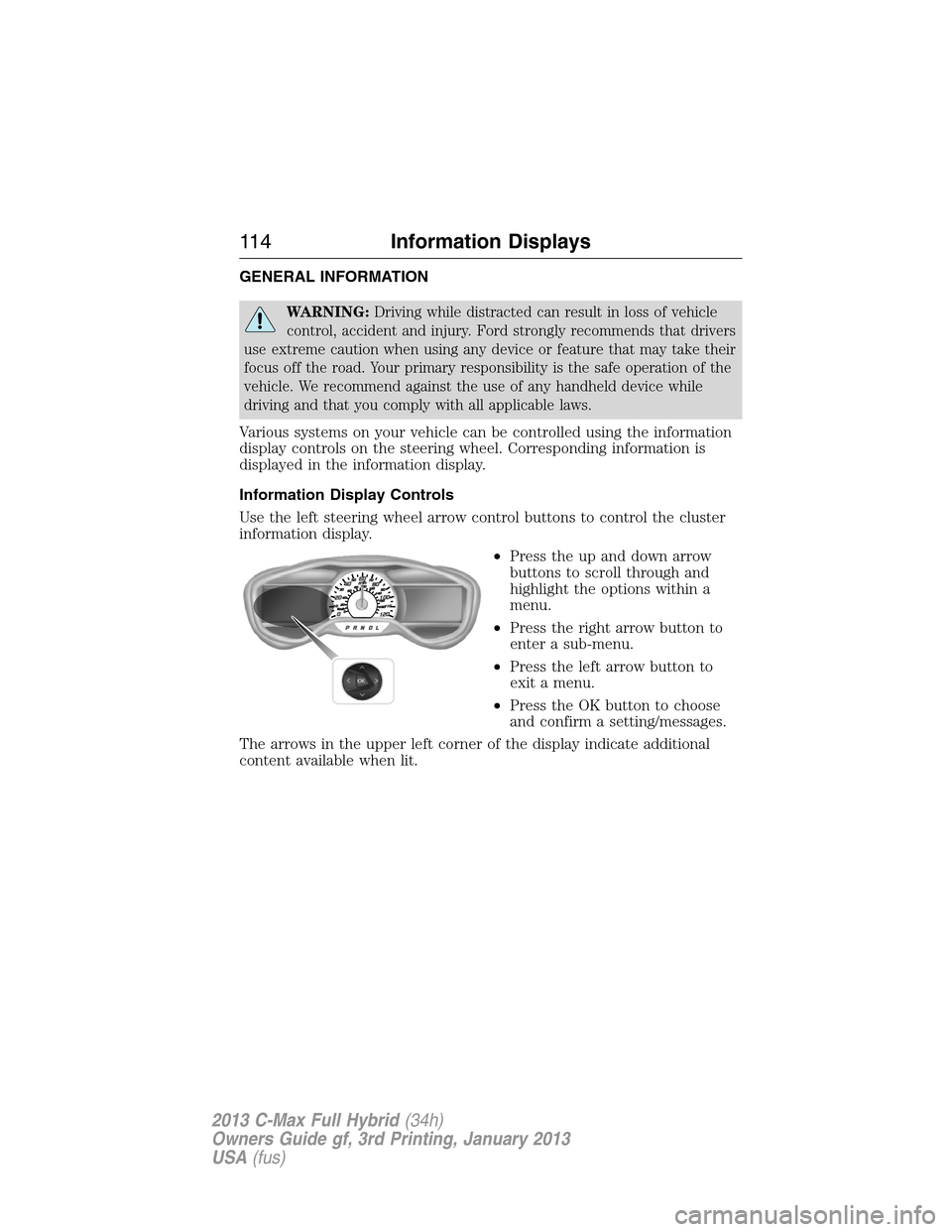

GENERAL INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers
use extreme caution when using any device or feature that may take their
focus off the road. Your primary responsibility is the safe operation of the
vehicle. We recommend against the use of any handheld device while
driving and that you comply with all applicable laws.
Various systems on your vehicle can be controlled using the information
display controls on the steering wheel. Corresponding information is
displayed in the information display.
Information Display Controls
Use the left steering wheel arrow control buttons to control the cluster
information display.
•Press the up and down arrow
buttons to scroll through and
highlight the options within a
menu.
•Press the right arrow button to
enter a sub-menu.
•Press the left arrow button to
exit a menu.
•Press the OK button to choose
and confirm a setting/messages.
The arrows in the upper left corner of the display indicate additional
content available when lit.
11 4Information Displays
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 119 of 552

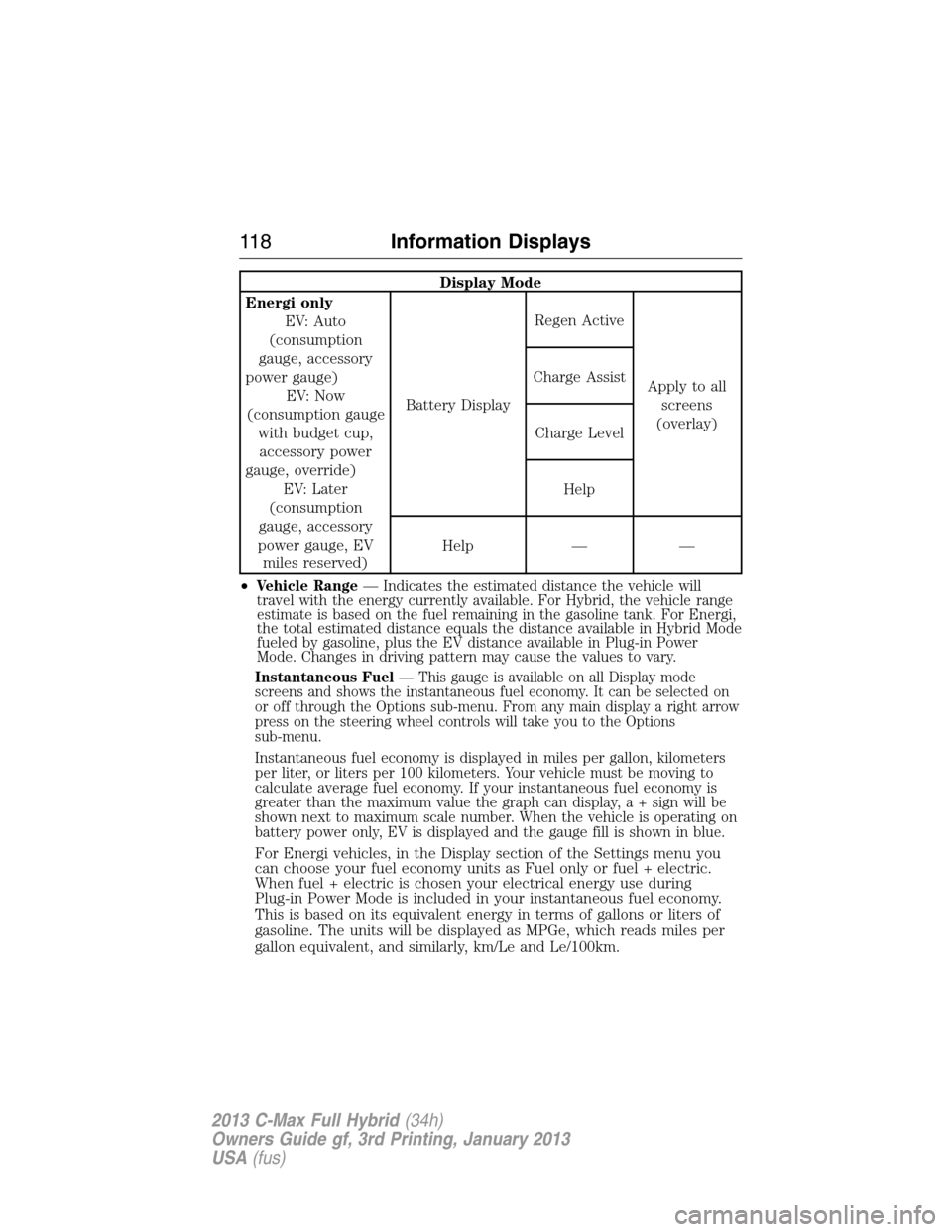

Display Mode
Energi only
EV: Auto
(consumption
gauge, accessory
power gauge)
EV: Now
(consumption gauge
with budget cup,
accessory power
gauge, override)
EV: Later
(consumption
gauge, accessory
power gauge, EV
miles reserved)Battery DisplayRegen Active
Apply to all
screens
(overlay) Charge Assist
Charge Level
Help
Help — —
•
Vehicle Range— Indicates the estimated distance the vehicle will
travel with the energy currently available. For Hybrid, the vehicle range
estimate is based on the fuel remaining in the gasoline tank. For Energi,
the total estimated distance equals the distance available in Hybrid Mode
fueled by gasoline, plus the EV distance available in Plug-in Power
Mode. Changes in driving pattern may cause the values to vary.
Instantaneous Fuel— This gauge is available on all Display mode
screens and shows the instantaneous fuel economy. It can be selected on
or off through the Options sub-menu. From any main display a right arrow
press on the steering wheel controls will take you to the Options
sub-menu.
Instantaneous fuel economy is displayed in miles per gallon, kilometers
per liter, or liters per 100 kilometers. Your vehicle must be moving to
calculate average fuel economy. If your instantaneous fuel economy is
greater than the maximum value the graph can display,a+signwillbe
shown next to maximum scale number. When the vehicle is operating on
battery power only, EV is displayed and the gauge fill is shown in blue.
For Energi vehicles, in the Display section of the Settings menu you
can choose your fuel economy units as Fuel only or fuel + electric.
When fuel + electric is chosen your electrical energy use during
Plug-in Power Mode is included in your instantaneous fuel economy.
This is based on its equivalent energy in terms of gallons or liters of
gasoline. The units will be displayed as MPGe, which reads miles per
gallon equivalent, and similarly, km/Le and Le/100km.
11 8Information Displays
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 136 of 552
Power Steering Message Action / Description
Power Steering Assist Fault The power steering system has
disabled power steering assist due
to a system error. See your
authorized dealer.
Remote Start Message Action / Description
Remote Start Active Displayed when the remote start
system is active.
Transmission Message Action / Description
Shift to Park Displayed as a reminder to shift to
park.
Tire Pressure Monitoring System
(TPMS) MessageAction / Description
LOW Tire Pressure Displays when one or more tires
on your vehicle have low tire
pressure. Refer toInflating Your
Tiresin theTires, Wheels and
Loadingchapter.
Tire Pressure Monitor Fault Displays when the tire pressure
monitoring system is
malfunctioning. If the warning
stays on or continues to come on,
contact your authorized dealer.
Tire Pressure Sensor Fault Displays when a tire pressure
sensor is malfunctioning, or your
spare tire is in use. For more
information on how the system
operates under these conditions,
refer toUnderstanding Your Tire
Pressure Monitoring System
(TPMS)in theTires, Wheels and
Loadingchapter. If the warning
stays on or continues to come on,
contact your authorized dealer.
Information Displays135
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
