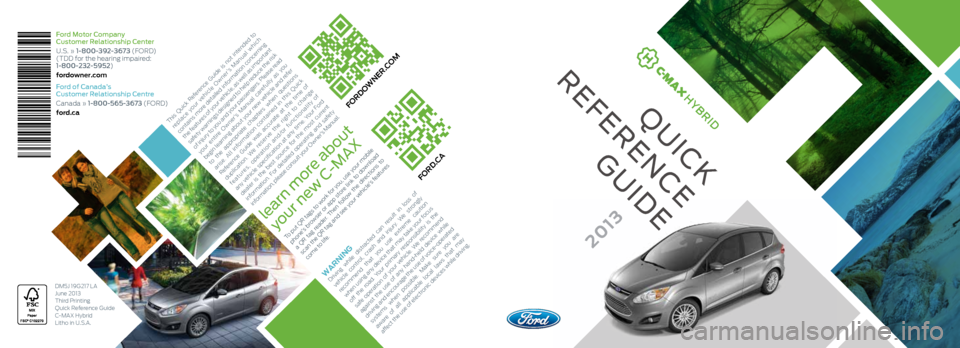

FORD C MAX HYBRID 2013 2.G Quick Reference Guide

Ford Motor Company
Customer Relationship Center
U.S. » 1-800-392-3673 (FORD)
(TDD for the hearing impaired:
1-800-232-5952)
fordowner.com
Ford of Canada’s
Customer Relationship Centre
Canada » 1-800-565-3673 (FORD)
ford.ca
Quick
RefeRence
Guide
2013
H YB RID
E N ER G I
P ant one 36 9C
Ele ctric ation C olo r S pectr\fm
Pant one 77 1\b C
EL ECTRICEL ECTRICP ant one 6 39 C
HYB RID EN ER G IP ant one 36 9C
Ele ctric ation C olor S pectr\fm
P ant one 77 1\b C
EL ECTRICEL ECTRICP ant one 639 C
EN ER G I
Ele ctri ca tio n C olo r S pectr\fm
Pant one 77 1\bC
EL ECTRICEL ECTRICP ant one 6 39 C
EN ER G I
Ele ctri ca tio n C olo r S pectr\fm
P ant one 77 1\bC
EL ECTRICEL ECTRICP ant one 6 39 C
EN ER G IP ant one 77 1\bC
EL ECT RICE L ECT RICP ant one 6 39 C
EN ER G IP ant one 77 1\bC
EL ECT RICE L ECT RICP ant one 6 39 C
DM5J 19G217 LA
June 2013
Third Printing
Quick Reference Guide
C-MAX Hybrid
Litho in U.S.A.
This Quick Reference Guide is not intended to
replace your vehicle Owner’s Manual which
contains more detailed information concerning
the features of your vehicle, as well as important
safety warnings designed to help reduce the risk
of injury to you and your passengers. Please read
your entire Owner’s Manual carefully as you
begin learning about your new vehicle and refer
to the appropriate chapters when questions
arise. All information contained in this Quick
Reference Guide was accurate at the time of
duplication. We reserve the right to change
features, operation and/or functionality of
any vehicle specification at any time. Your Ford
dealer is the best source for the most current
information. For detailed operating and safety
information, please consult your Owner’s Manual.
WarningDriving while distracted can result in loss of
vehicle control, crash and injury. We strongly
recommend that you use extreme caution
when using any device that may take your focus
off the road. Your primary responsibility is the
safe operation of your vehicle. We recommend
against the use of any hand-held device while
driving and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while driving.
learn more about
your new c -MAX
ford.ca
fordo wner.com
To put QR tags to work for you, use your mobile
phone’s browser or app store link to download
a QR tag reader. Then follow the directions to
scan the QR tag and see your vehicle’s features
come to life.

quick tips 4
hybrid features 5
instrument panel 6 –7
getting started with
your SYnc system 8–9
commonly used
voice commands 10
SYnc with Myford Touch 11–13
function 14
convenience 15
comfort 16–17
parking aids 18
essential information 19
2

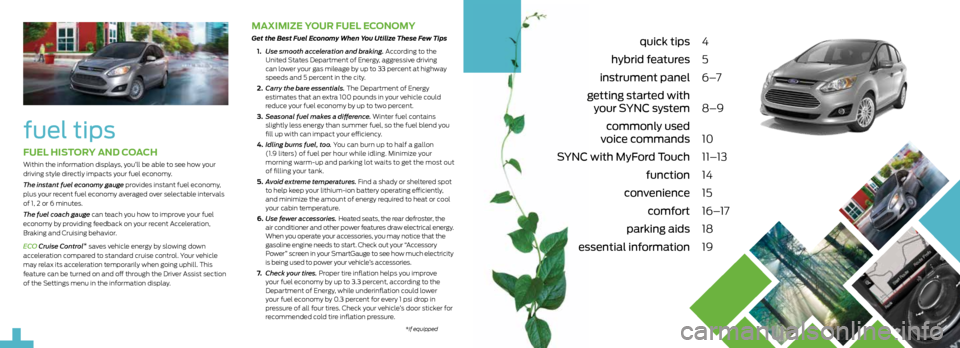

fuel tips
MaxiMize your Fuel e conoMy
Get the Best Fuel Economy When You Utilize These Few Tips
1. Use smooth acceleration and braking. According to the
United States Department of Energy, aggressive driving
can lower your gas mileage by up to 33 percent at highway
speeds and 5 percent in the city.
2. Carry the bare essentials. The Department of Energy
estimates that an extra 100 pounds in your vehicle could
reduce your fuel economy by up to two percent.
3. Seasonal fuel makes a difference. Winter fuel contains
slightly less energy than summer fuel, so the fuel blend you
fill up with can impact your efficiency.
4. Idling burns fuel, too. You can burn up to half a gallon
(1.9 liters) of fuel per hour while idling. Minimize your
morning warm-up and parking lot waits to get the most out
of filling your tank.
5. Avoid extreme temperatures. Find a shady or sheltered spot
to help keep your lithium-ion battery operating efficiently,
and minimize the amount of energy required to heat or cool
your cabin temperature.
6. Use fewer accessories. Heated seats, the rear defroster, the
air conditioner and other power features draw electrical energy.
When you operate your accessories, you may notice that the
gasoline engine needs to start. Check out your “Accessory
Power” screen in your SmartGauge to see how much electricity
is being used to power your vehicle’s accessories.
7. Check your tires. Proper tire inflation helps you improve
your fuel economy by up to 3.3 percent, according to the
Department of Energy, while underinflation could lower
your fuel economy by 0.3 percent for every 1 psi drop in
pressure of all four tires. Check your vehicle’s door sticker for
recommended cold tire inflation pressure.
*if equipped
Fuel history and coach
Within the information displays, you’ll be able to see how your
driving style directly impacts your fuel economy.
The instant fuel economy gauge provides instant fuel economy,
plus your recent fuel economy averaged over selectable intervals
of 1, 2 or 6 minutes.
The fuel coach gauge can teach you how to improve your fuel
economy by providing feedback on your recent Acceleration,
Braking and Cruising behavior.
ECO Cruise Control *
saves vehicle energy by slowing down
acceleration compared to standard cruise control. Your vehicle
may relax its acceleration temporarily when going uphill. This
feature can be turned on and off through the Driver Assist section
of the Settings menu in the information display.

sMart poWer-split architecture
City Driving: In stop and go driving and at low speeds, the electric
motor provides the necessary power. The gas engine kicks in only
to recharge the battery or when more power is needed.
Accelerating: Step on the accelerator pedal and get all the
responsiveness of a traditional gasoline engine.
Cruising/Highway Driving: Due to greater power demands at
highway speeds, your vehicle will use the gasoline engine more
frequently than it will while driving at city traffic speeds. This
is normal.
Braking: For added efficiency, the energy created by friction
during braking is recycled to the battery.
Stopped: To save energy, the gasoline engine will shut off
and the electric motor will stop drawing current.
hybrid features
*if equipped5
silent Key s tart (sKs)
When you turn the ignition on, your engine may not sound
like it has started because your hybrid-electric vehicle is
equipped with silent key start. This fuel-saving feature
allows your vehicle to be ready to drive without requiring
your gas engine to be running. Instead of listening for
a traditional gasoline-powered engine sound, look for
the ‘ready to drive’ indicator light
in your instrument
cluster. When the light illuminates, your vehicle has been
successfully started and is ready to drive.

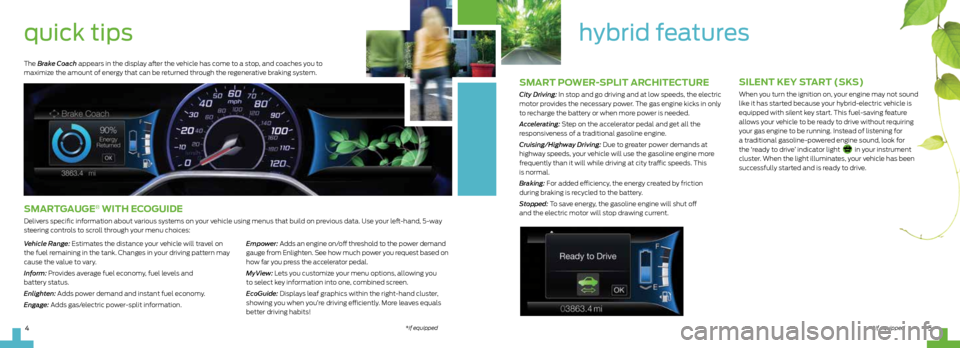

quick tips
sMart gauge® With e coguide
Delivers specific information about various systems on your vehicle using menus that build on previous data. Use your left-hand, 5-way
steering controls to scroll through your menu choices:
Vehicle Range: Estimates the distance your vehicle will travel on
the fuel remaining in the tank. Changes in your driving pattern may
cause the value to vary.
Inform: Provides average fuel economy, fuel levels and
battery status.
Enlighten: Adds power demand and instant fuel economy.
Engage: Adds gas/electric power-split information. Empower: Adds an engine on/off threshold to the power demand
gauge from Enlighten. See how much power you request based on
how far you press the accelerator pedal.
MyView: Lets you customize your menu options, allowing you
to select key information into one, combined screen.
EcoGuide: Displays leaf graphics within the right-hand cluster,
showing you when you’re driving efficiently. More leaves equals
better driving habits!
The Brake Coach appears in the display after the vehicle has come to a stop, and coaches you to
maximize the amount of energy that can be returned through the regenerative braking system.
*if equipped4

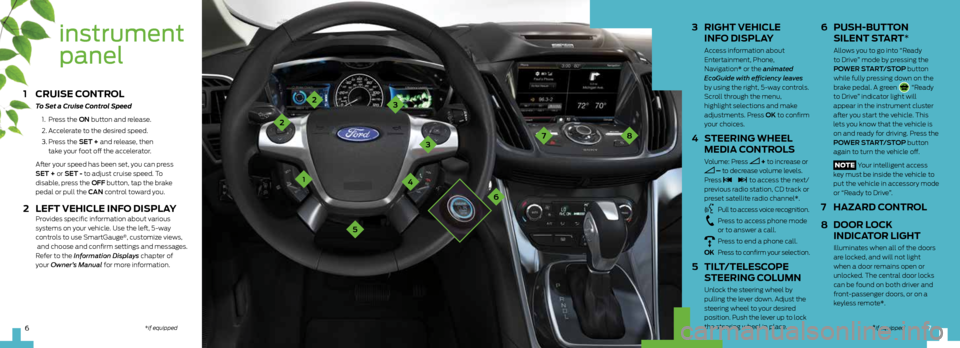

instrument
panel
78
6
4
32
2
3 right Vehicle
inF o display
Access information about
Entertainment, Phone,
Navigation* or the animated
EcoGuide with efficiency leaves
by using the right, 5-way controls.
Scroll through the menu,
highlight selections and make
adjustments. Press oK to confirm
your choices.
4 s teering Wheel
Media c ontrols
Volume: Press + to increase or – to decrease volume levels.
Press to access the next/
previous radio station, CD track or
preset satellite radio channel*.
Pull to access voice recognition.
Press to access phone mode
or to answer a call.
Press to end a phone call.
oK Press to confirm your selection.
5 tilt/telescope
s teering c oluMn
Unlock the steering wheel by
pulling the lever down. Adjust the
steering wheel to your desired
position. Push the lever up to lock
the steering wheel in place.
6 push-Button
silent s tart
*
Allows you to go into “Ready
to Drive” mode by pressing the
Power ST arT/ST oP button
while fully pressing down on the
brake pedal. A green
“Ready
to Drive” indicator light will
appear in the instrument cluster
after you start the vehicle. This
lets you know that the vehicle is
on and ready for driving. Press the
P ower ST arT/ST oP button
again to turn the vehicle off.
Note Your intelligent access
key must be inside the vehicle to
put the vehicle in accessory mode
or “Ready to Drive”.
7 hazard c ontrol
8 door locK indicator light
Illuminates when all of the doors
are locked, and will not light
when a door remains open or
unlocked. The central door locks
can be found on both driver and
front-passenger doors, or on a
keyless remote*.
1 cruise c ontrol
To Set a Cruise Control Speed
1. Press the on button and release.
2. Accelerate to the desired speed.
3. Press the SeT + and release, then
take your foot off the accelerator.
After your speed has been set, you can press
SeT + or SeT - to adjust cruise speed. To
disable, press the off button, tap the brake
pedal or pull the can control toward you.
2 leFt Vehicle inF o displayProvides specific information about various
systems on your vehicle. Use the left, 5-way
controls to use SmartGauge
®, customize views,
and choose and confirm settings and messages.
Refer to the Information Displays chapter of
your Owner’s Manual for more information.
*if equipped *
if equipped
1
5
3
7
6

getting started with your
SYnc
®
system
pairing y our phone With sync
In order to use many of the features of SYNC, you must
first pair and connect your phone with SYNC.
To Pair Your Phone for the First Time
1. Make sure that your vehicle is in P (Park) and both your ignition and radio are turned on.
2. Press the
button. When the display indicates no phone paired, press oK.
3. When Find SYNC appears in the display, press oK.
4. Put your phone into Bluetooth discovery mode. See your phone’s manual, if necessary .
5. When promoted on your phone’s display, enter the six-digit PIN provided by SYNC in the
radio display .
6. The display indicates when the pairing is successful.
Note The System May Prompt You to
» Set your phone as the primary/favorite (the primary phone will receive messages
and voicemail).
» Download your phone book (this is required to use the full set of voice commands).
» Turn on 911 Assist
®.
tips
» Make sure you accept SYNC’s request to access your phone.
» To pair subsequent phones, please refer to Pairing Subsequent Phones in the SYNC
chapter of your Owner’s Manual.
» If you are experiencing pairing problems, try performing a clean pairing by deleting
your services from SYNC, deleting the SYNC connection from your phone, and then
repeating the Pairing Your Phone with SYNC process.
Why do i need a sync
oWner account?
A SYNC owner account is required for
Vehicle Health Report activation and the
ability to view your reports online. You’ll also
be able to take advantage of all of SYNC’s
Services and personalization features,
such as saving your Favorites and Points
of Interest (POI). You’ll receive the latest
software updates that add new places,
directions and information; and if you have
questions, you’ll get free customer support.
Create your account by visiting the website
or calling the toll-free number for more
information. See the Commonly Used
Voice Commands page of this guide for
more details.
u sing My phone
With sync
Note Enter your phone book contacts
with both first and last names to increase
SYNC’s ability to select the correct contact.
Remember to say the contact name exactly
as it is listed in your phone book.
Making a Phone Call
Use SYNC to make a phone call to anyone
in your phone book by pulling the voice
control
and when prompted, give
a voice command. For a list of voice
commands, say “What can I say?”.
For example, you could say “Call Jake Smith
at home”. SYNC repeats the command
back to you and dials the number.
Note You can make phone calls by
pulling the voice control
and when
prompted, give the voice command “Dial”,
then verbally say the phone number.
Answering Incoming Calls
Whenever you have an incoming call, you
will be able to see the name and number of
the person calling in the display. Press the
button to answer an incoming call. You
can hang up at any time by pressing and
holding the
button.
Do Not Disturb Mode
This feature blocks incoming calls and text
messages, and saves them for later. You
still have access to outgoing calls when this
feature is active. Say the voice command
“Do not disturb on” to enable and “Do not
disturb off” to disable.
u sing sync to
a ccess digital Media
Plug in your USB media devices, such as
phones and MP3 players, and use SYNC to
play all of your favorite music.
Using Voice Commands to Play Music
1. Plug your media player into your
USB port.
2. Pull the voice control
. When
prompted, say “USB”, then follow-up
by saying one of the voice commands.
For a list of voice commands, say
“What can I say?”.
SYnc is a Hands-free,
Voice Recognition System
used for entertainment,
information and
c ommunication.
sync . say the W ord.
Before You Get Started
1. Set up your owner account at
Syncmyride.com (U.S.) or
Syncmyride.ca (Canada).
Register by following the on-screen
instructions. After registering you
can see which services you may be
eligible for.
2. SYNC uses a wireless connection
called
Bluetooth® to communicate
with your phone. Turn Bluetooth
mode on in your phone’s menu
options. This lets your phone find
SYNC. If you need more details on
setting up your phone with SYNC,
visit Syncmyride.com (U.S.) or
Syncmyride.ca (Canada), or your
phone manufacturer’s website.
9
8

SYnc
®
with Myford Touch
®*
getting started, understanding
sync With MyF ord touch
Use the four-corner, four-color touchscreen to explore and interact with your vehicle.
The touchscreen works the same way as traditional controls, knobs and buttons do.
Press the various corners on your touchscreen firmly and accurately to personalize the
many features and settings of your vehicle. The system provides easy interaction with
your cellular phone, multimedia entertainment, climate controls and navigation system.
Hybrid Screen Information
Press the “road and leaf” icon to access
features specific to your hybrid vehicle.
» The Power Settings display shows you
where your vehicle power is coming from
and where it is being used.
GeNeRAL tips
» Press the home icon
at any time to
return to your home screen.
» For additional support, refer to your
Owner’s Manual, visit the website or call
the toll-free number. See the Commonly
Used Voice Commands page of this guide
for more details.
a reV olutionary W ay to connect With your Vehicle.
11
10*if equipped

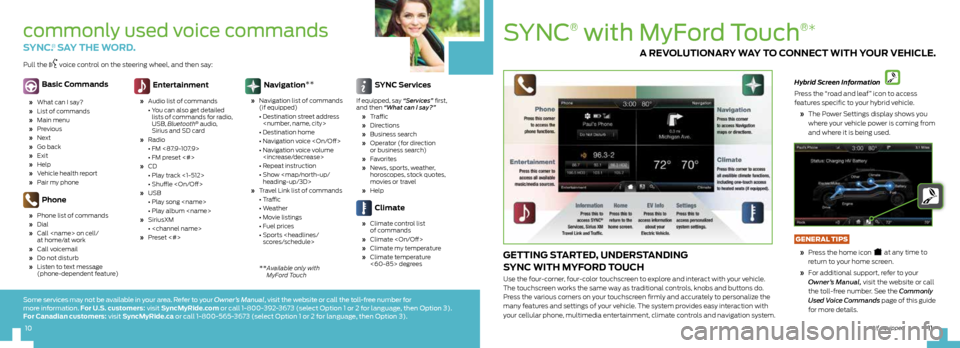

commonly used voice commands
sync .® say the Word.
Basic c ommands
» What can I say?
» List of commands
» Main menu
» Previous
» Next
» Go back
» Exit
» Help
» Vehicle health report
» Pair my phone
phone
» Phone list of commands
» Dial
» Call on cell/
at home/at work
» Call voicemail
» Do not disturb
» Listen to text message
(phone-dependent feature)
entertainment
» Audio list of commands
• You can also get detailed
lists of commands for radio,
USB, Bluetooth
® audio,
Sirius and SD card
» Radio
• FM <87.9-107.9>
• FM preset <#>
» CD
• Play track <1-512>
• Shuffle
» USB
• Play song
• Play album
» SiriusXM
•
» Preset <#>
navigation **
»
Navigation list of commands
(if equipped)
• Destination street address

• Destination home
• Navigation voice
• Navigation voice volume

• Repeat instruction
• Show

cliMate
SYNC with MyFord Touch controls the
temperature, airflow direction, fan speed,
and activates other climate features for
you and your passenger. To use voice
commands to operate climate, say a voice
command like “Climate temperature 72
degrees” and MyFord Touch will make
that adjustment.
Set Your Temperature
» Touch the lower-right, blue Climate
corner on the touchscreen.
» Set your exact, desired temperature
by using the + or – buttons.
entertainMent
No matter how you store your music, SYNC
makes it yours to enjoy when you’re behind
the wheel. Just press the lower-left, red
corner of the touchscreen. From here, you
can easily go between AM/FM, Sirius and
other media sources.
Set Your Radio Presets
» Touch the Entertainment corner on
the touchscreen.
» Touch FM.
» Touch Direct Tune.
» Enter the desired station and
touch Enter.
» Touch Presets and then touch and
hold one of the memory preset buttons
to save it. The sound will mute briefly
and return once the station is saved.
Bring in Your Own Music
Gain access to any audio source by voice
and even control how each operates,
like changing radio stations, CD tracks or
music on one of the following devices:









» USB
» Bluetooth
® Streaming
» SD Card
» A/V In
Refer to the MyFord Touch chapter in
your Owner’s Manual, visit the website
or call the toll-free number for more
information. See the Commonly Used
Voice Commands page of this guide
for more details.
get in touch using your F our-corner touchscreen
Phone, navigation, climate and entertainment are the four main features of SYnc with
Myford Touch. each feature has its own corner represented by its own color.
13
12
SYnc
®
with Myford Touch
®* continued
phone
Voice-control
your phone
for hands-free
calling with
your phone
securely put
away. With SYNC, you won’t even need to
know the phone number. Just say the name
of the person you want from your contacts.
Your Phone Connects You with Many Other
Features and SYNC Services*
» Connect to SYNC Services* for traffic,
directions, business searches and
information favorites.
» Connect to Operator Assist to help
locate a listing or destination.
» Call for a Vehicle Health Report.
» Connects directly to a 911 Operator in
the event of an accident (feature must
be set to ON prior to an incident).
» Transfer calls seamlessly from SYNC
to phone as you get in or out of
your vehicle.
Refer to the SYNC chapter of your
Owner’s Manual for complete details.
na Vigation*
Get started
with your
navigation
system by
pressing the
upper-right,
green corner. The available voice-activated
navigation system includes:
» SiriusXM Traffic
» SiriusXM Travel Link
» GPS (Global Positioning
System) technology
» 3-D mapping
» Turn-by-turn navigation
Refer to the MyFord Touch chapter of your
Owner’s Manual for complete details.
tips
» Save your favorite locations by
touching Save to Favorites.
» Change your map views from
Direction Headed, North Up or 3D. Set a Destination
Set a destination on your touchscreen by
using a street address, a city center, a place
on the map or a Point of Interest (POI).
The easiest way, however, is by voice.
1.
Pull the voice control
.
When prompted, say “Destination
street address”.
2. The system will ask you to say the full
address and will display an example
on-screen.
3. You can then speak the address
naturally, such as: “One two three Main
Street, Anytown”.
You can also use the touchscreen to enter a
destination and narrow your choices by city
or street as you type.
You can choose from up to three different
types of routes:
» fastest: Uses the fastest moving
roads possible.
» Shortest: Uses the shortest
distance possible.
» eco (ecor oute): Uses the most
fuel-efficient route.
*if equipped

14

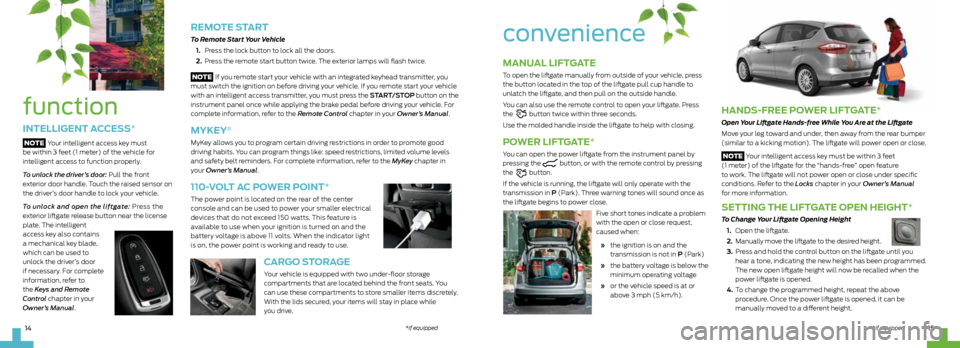

hands-Free poWer liFtgate*
Open Your Liftgate Hands-free While You Are at the Liftgate
Move your leg toward and under, then away from the rear bumper
(similar to a kicking motion). The liftgate will power open or close.
Note Your intelligent access key must be within 3 feet
(1 meter) of the liftgate for the “hands-free” open feature
to work. The liftgate will not power open or close under specific
conditions. Refer to the Locks chapter in your Owner’s Manual
for more information.
setting the liFtgate open height*
To Change Your Liftgate Opening Height
1. Open the liftgate.
2. Manually move the liftgate to the desired height.
3. Press and hold the control button on the liftgate until you
hear a tone, indicating the new height has been programmed.
The new open liftgate height will now be recalled when the
power liftgate is opened.
4. To change the programmed height, repeat the above
procedure. Once the power liftgate is opened, it can be
manually moved to a different height.
Manual liFtgate
To open the liftgate manually from outside of your vehicle, press
the button located in the top of the liftgate pull cup handle to
unlatch the liftgate, and then pull on the outside handle.
You can also use the remote control to open your liftgate. Press
the
button twice within three seconds.
Use the molded handle inside the liftgate to help with closing.
p o Wer liFtgate*
You can open the power liftgate from the instrument panel by
pressing the button, or with the remote control by pressing
the button.
If the vehicle is running, the liftgate will only operate with the
transmission in P (Park). Three warning tones will sound once as
the liftgate begins to power close. Five short tones indicate a problem
with the open or close request,
caused when:
» the ignition is on and the
transmission is not in P (Park)
» the battery voltage is below the
minimum operating voltage
» or the vehicle speed is at or
above 3 mph (5 km/h).
convenience
*if equipped15
function
intelligent a ccess*
Note Your intelligent access key must
be within 3 feet (1 meter) of the vehicle for
intelligent access to function properly.
To unlock the driver’s door: Pull the front
exterior door handle. Touch the raised sensor on
the driver’s door handle to lock your vehicle.
To unlock and open the liftgate: Press the
exterior liftgate release button near the license
plate. The intelligent
access key also contains
a mechanical key blade,
which can be used to
unlock the driver’s door
if necessary. For complete
information, refer to
the Keys and Remote
Control chapter in your
Owner’s Manual.
reMote start
To Remote Start Your Vehicle
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash twice.
Note If you remote start your vehicle with an integrated keyhead transmitter, you
must switch the ignition on before driving your vehicle. If you remote start your vehicle
with an intelligent access transmitter, you must press the ST arT/ST oP button on the
instrument panel once while applying the brake pedal before driving your vehicle. For
complete information, refer to the Remote Control chapter in your Owner’s Manual.
MyKey®
MyKey allows you to program certain driving restrictions in order to promote good
driving habits. You can program things like: speed restrictions, limited volume levels
and safety belt reminders. For complete information, refer to the MyKey chapter in
your Owner’s Manual.
110- Volt ac po Wer point*
The power point is located on the rear of the center
console and can be used to power your smaller electrical
devices that do not exceed 150 watts. This feature is
available to use when your ignition is turned on and the
battery voltage is above 11 volts. When the indicator light
is on, the power point is working and ready to use.
c argo s torage
Your vehicle is equipped with two under-floor storage
compartments that are located behind the front seats. You
can use these compartments to store smaller items discretely.
With the lids secured, your items will stay in place while
you drive.
*if equipped

Folding the rear
seatB acK
To Fold the Rear Seat Back
1. Fold the outboard head restraints and
lower the center head restraint.
2. Pull the lever up to fold the
seatback forward.
3. To unfold the seatback, simply pull
up on the seatback to raise it to the
upright position.

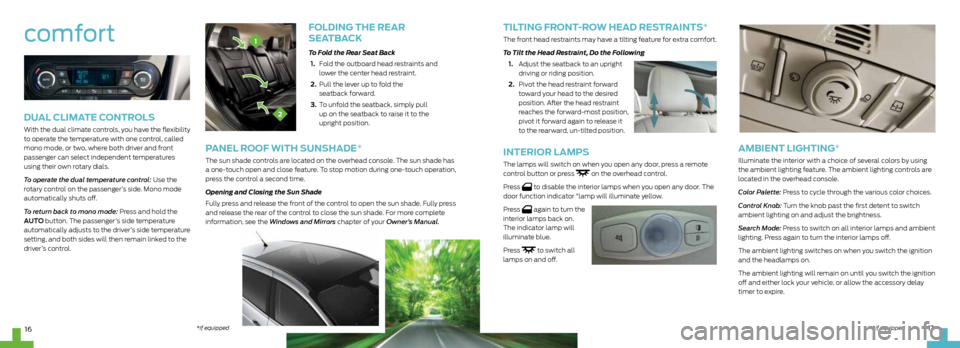

comfort
dual cliMate controls
With the dual climate controls, you have the flexibility
to operate the temperature with one control, called
mono mode, or two, where both driver and front
passenger can select independent temperatures
using their own rotary dials.
To operate the dual temperature control: Use the
rotary control on the passenger’s side. Mono mode
automatically shuts off.
To return back to mono mode: Press and hold the
aUTo button. The passenger’s side temperature
automatically adjusts to the driver’s side temperature
setting, and both sides will then remain linked to the
driver’s control.
2
1
panel rooF With sunshade*
The sun shade controls are located on the overhead console. The sun shade has
a one-touch open and close feature. To stop motion during one-touch operation,
press the control a second time.
Opening and Closing the Sun Shade
Fully press and release the front of the control to open the sun shade. Fully press
and release the rear of the control to close the sun shade. For more complete
information, see the Windows and Mirrors chapter of your Owner’s Manual.
tilting Front-ro W head restraints*
The front head restraints may have a tilting feature for extra comfort.
To Tilt the Head Restraint, Do the Following
1. Adjust the seatback to an upright
driving or riding position.
2. Pivot the head restraint forward
toward your head to the desired
position. After the head restraint
reaches the forward-most position,
pivot it forward again to release it
to the rearward, un-tilted position.
aMBient lighting*
Illuminate the interior with a choice of several colors by using
the ambient lighting feature. The ambient lighting controls are
located in the overhead console.
Color Palette: Press to cycle through the various color choices.
Control Knob: Turn the knob past the first detent to switch
ambient lighting on and adjust the brightness.
Search Mode: Press to switch on all interior lamps and ambient
lighting. Press again to turn the interior lamps off.
The ambient lighting switches on when you switch the ignition
and the headlamps on.
The ambient lighting will remain on until you switch the ignition
off and either lock your vehicle, or allow the accessory delay
timer to expire.
17
16
*if equipped
*if equipped
interior laMps
The lamps will switch on when you open any door, press a remote
control button or press on the overhead control.
Press
to disable the interior lamps when you open any door. The
door function indicator “lamp will illuminate yellow.
Press
again to turn the
interior lamps back on.
The indicator lamp will
illuminate blue.
Press
to switch all
lamps on and off.

essential
information
tire MoBility Kit
C-MAX Hybrid is equipped with a tire
mobility kit that is located under the
front passenger seat. It consists of an
air compressor to reinflate the tire and a
sealing compound in a canister that will
seal most punctures caused by nails or
similar objects. See the Wheels and Tires
section of your Owner’s Manual for
more details.
Fuel t anK capacity/
Fuel inF o
C-MAX Hybrid has a 13.5 gallon (51.1L) fuel
tank capacity in addition to its high-voltage
battery system. Use only UnLeaded fuel or
UnLeaded fuel blended with a maximum
of 15% ethanol. Do not use ethanol
E20 - E85
(E85), diesel, fuel-methanol, leaded fuel
or any other fuel because it could damage
or impair the emission control system.
easy Fuel® systeM
With this system, you simply open the fuel
door, insert the nozzle and begin fueling.
It is self-sealing and therefore protected
against dust, dirt, water, snow and ice. Wait
10 seconds from the time the refueling
nozzle is shut-off until you remove the
nozzle from the vehicle to allow residual
fuel in the nozzle to drain into the tank.
Note When refilling with a portable
container, only use the funnel that comes
with your vehicle. Do not use aftermarket
funnels as they will not work with the
Easy Fuel
system and may cause damage.
Extra funnels can be purchased from your
authorized dealer.
r oadside a ssistance
Your new Ford vehicle comes with
the assurance and support of 24-hour
emergency roadside assistance. To receive
roadside assistance in the United States,
call 1-800-241-3673. In Canada,
call 1-800-665-2006.
toWing your Vehicle
Towing your vehicle behind another vehicle
(such as an RV) may be limited. Refer to
Towing the Vehicle on Four Wheels in the
Towing chapter of the Owner’s Manual.
tire pressure
Monitoring s ysteM
Your vehicle illuminates a low tire pressure
warning light in your instrument
cluster when one or more of your tires
are significantly underinflated. If this
happens, stop and check your tires as soon
as possible. Inflate them to the proper
pressure. Refer to the Inflating Your Tires
section in the Wheels and Tires chapter of
your Owner’s Manual for more information.

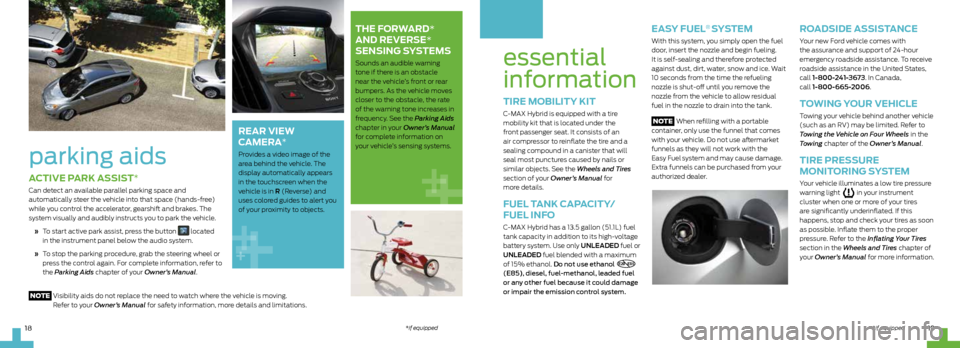

a ctiVe parK assist*
Can detect an available parallel parking space and
automatically steer the vehicle into that space (hands-free)
while you control the accelerator, gearshift and brakes. The
system visually and audibly instructs you to park the vehicle.
» To start active park assist, press the button
located
in the instrument panel below the audio system.
» To stop the parking procedure, grab the steering wheel or
press the control again. For complete information, refer to
the Parking Aids chapter of your Owner’s Manual.
parking aids
the For Ward*
and reVerse*
sensing s ysteMs
Sounds an audible warning
tone if there is an obstacle
near the vehicle’s front or rear
bumpers. As the vehicle moves
closer to the obstacle, the rate
of the warning tone increases in
frequency. See the Parking Aids
chapter in your Owner’s Manual
for complete information on
your vehicle’s sensing systems.
rear VieW
caMera
*
Provides a video image of the
area behind the vehicle. The
display automatically appears
in the touchscreen when the
vehicle is in r (Reverse) and
uses colored guides to alert you
of your proximity to objects.
Note Visibility aids do not replace the need to watch where the vehicle is moving.
Refer to your Owner’s Manual for safety information, more details and limitations.
19
18
*if equipped *if equipped
