In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated seats do not
automatically turn on.
In cold weather, the system is set to 72°F
(22°C). The heated seats are set to high
(if available, and selected to AUTO in the
information display). The rear defroster
and heated mirrors automatically turn on.
Last Settings
You can set the climate control to operate
using the last climate control settings
through the information display setting:
Remote Start > Climate Control >
Heater
–A/C > Last Settings. The climate
control system automatically uses the
settings last selected before you turned
off the engine.
Heated and Cooled Devices
The climate control system controls other
heated and cooled devices inside the
vehicle. You can switch these devices on
(if available, and selected to AUTO in the
information displays) during remote start.
Heated devices usually switch on during
cold weather, and cooled devices during
hot weather.
109
C-MAX (CCG) Climate Control

HomeLink Wireless Control
System (If Equipped)
WARNING
Do not use the system with any
garage door opener that does not
have the safety stop and reverse
feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death. Note:
Make sure that the garage door and
security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.
Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.
Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the function
button codes later in this section.
Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the function
button codes later in this section. The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
that is integrated into the driver
’s sun visor.
The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. As well as being programmed for
garage doors, the system transmitter can
be programmed to operate entry gate
operators, security systems, entry door
locks and home or office lighting.
Additional system information can be
found online at www.homelink.com or by
calling the toll-free help line on
1-800-355-3515.
In-vehicle programming
This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.
Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal. 1.
With your vehicle parked outside of the
garage, turn your ignition to the
on
position, but do not start your vehicle.
2. Hold your hand-held garage door transmitter 1– 3 inches (2–8
centimeters) away from the HomeLink
button you want to program.
117
C-MAX (CCG) Universal Garage Door OpenerE142657 E142658

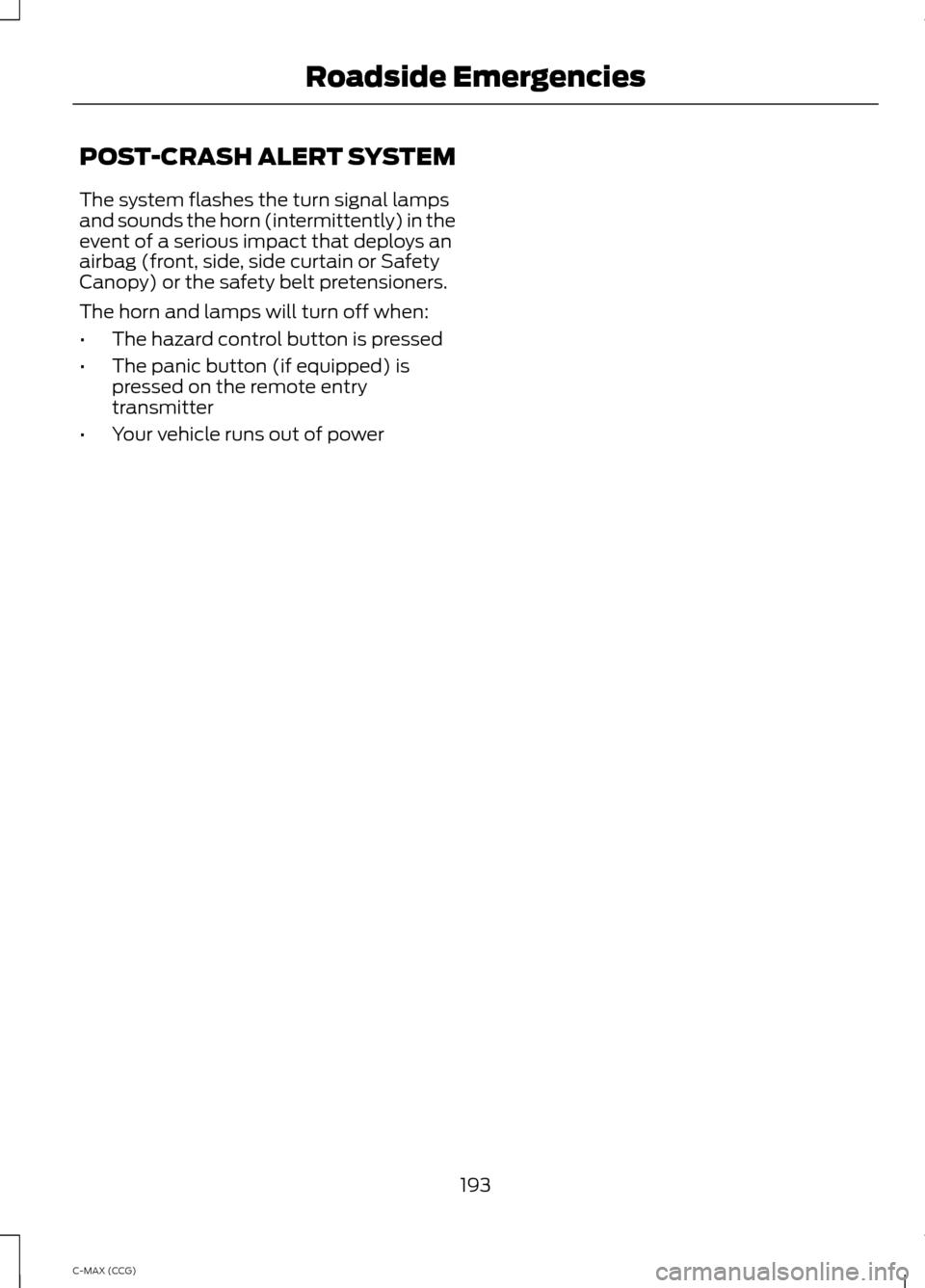

POST-CRASH ALERT SYSTEM
The system flashes the turn signal lamps
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front, side, side curtain or Safety
Canopy) or the safety belt pretensioners.
The horn and lamps will turn off when:
•
The hazard control button is pressed
• The panic button (if equipped) is
pressed on the remote entry
transmitter
• Your vehicle runs out of power
193
C-MAX (CCG) Roadside Emergencies

Protected components
Fuse amp rating
Fuse or relay number
Interior light, Driver door switch pack, Glove
box illumination, Overhead console switch
bank
10A
F60
Cigar lighter, Second row power point
20A
F61
Autowipers module, Auto-dimming rear
view mirror
5A
F62
Not used (spare)
10A
F63
Not used
—
F64
Liftgate release
10A
F65
Driver door unlock supply
20A
F66
Cell phone passport (C-MAX Energi), Multi-
function display, GPS module, SYNC
7.5A
F67
Not used (spare)
15A
F68
Instrument cluster
5A
F69
Central lock and unlock supply
20A
F70
Heating control head (manual air condi-
tioner), Climate control module
10A
F71
Steering wheel module
7.5A
F72
Data link connector, OBD II supply
7.5A
F73
Headlamp supply
15A
F74
Fog lamp supply
15A
F75
Reversing lamp supply
10A
F76
Washer pump
20A
F77
Ignition switch, Start button
5A
F78
Radio, Hazard light switch
15A
F79
Not used (spare)
20A
F80
Power sun shade, Remote receiver antenna
5A
F81
Washer pump ground
20A
F82
Central locking ground
20A
F83
204
C-MAX (CCG) Fuses

Information Messages.................................98
AdvanceTrac®...................................................... 98
Alarm........................................................................\
99
Battery and Charging System (High Voltage).............................................................. 99
Doors........................................................................\
99
Fuel........................................................................\
.. 100
Hill Start Assist................................................... 100
Keys and Intelligent Access........................... 100
Maintenance......................................................... 101
MyKey...................................................................... 102
Park Aid.................................................................. 103
Park Brake............................................................. 103
Power Steering.................................................... 103
Remote Start....................................................... 103
Tire Pressure Monitoring System.................104
Transmission........................................................ 104
Installing Child Seats.....................................15 Child Seats............................................................... 15
Using Lap and Shoulder Belts.......................... 16
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 18
Using Tether Straps............................................. 20
Instrument Cluster
.........................................81
Instrument Lighting Dimmer......................72 Vehicles With Front Fog Lamps...................... 72
Vehicles Without Front Fog Lamps...............72
Interior Lamps
..................................................73
Front Interior Lamp ............................................. 74
Rear Interior Lamp................................................ 74
Interior Mirror
....................................................79
Auto-Dimming Mirror.......................................... 79
Introduction.........................................................7
J
Jump-Starting the Vehicle........................188 Connecting the Jumper Cables..................... 189
Jump Starting...................................................... 190
Preparing Your Vehicle..................................... 188
Removing the Jumper Cables....................... 190
K
Keyless Starting.............................................124 Ignition Modes..................................................... 125
Keys and Remote Controls.........................43 L
Lighting Control................................................71
Headlamp Flasher................................................. 71
High Beams.............................................................. 71
Lighting................................................................71
Load Carrying
..................................................174
Load Limit........................................................175
Vehicle Loading.................................................... 175
Locking and Unlocking.................................55 Activating Intelligent Access .......................... 56
Autolock................................................................... 57
Battery Saver......................................................... 58
Illuminated Entry.................................................. 58
Illuminated Exit..................................................... 58
Mechanical Key..................................................... 56
Opening a Rear Door from Inside.................. 56
Power Door Locks................................................ 55
Remote Control.................................................... 55
Smart Unlocks For Integrated Keyhead Transmitter......................................................... 57
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 57
Locks...................................................................55
Luggage Covers
..............................................174
Removing the Shade......................................... 174
M
Maintenance.................................................209 General Information......................................... 209
Manual Liftgate
..............................................59
Closing the Liftgate............................................. 59
Opening the Liftgate........................................... 59
Manual Seats
..................................................112
Adjusting the Height of the Driver's
Seat...................................................................... 113
Lumbar Adjustment (If Equipped)...............113
Moving the Seat Backward and Forward............................................................... 112
Recline Adjustment............................................ 113
Media Hub......................................................286
Message Center See: Information Displays................................ 88
Mirrors See: Heated Windows and Mirrors...............107
See: Windows and Mirrors................................ 76
Mobile Communications Equipment
.......12
439
C-MAX (CCG) Index

Remote Control..............................................43
Car Finder................................................................ 47
Integrated Keyhead Transmitters .................43
Intelligent Access Key........................................ 44
Remote Start (C-MAX Energi Only)..............47
Replacing the Battery......................................... 45
Sounding a Panic Alarm.................................... 47
Remote Start.................................................108
Automatic Settings........................................... 108
Heated and Cooled Devices........................... 109
Last Settings........................................................ 109
Removing a Headlamp
..............................222
Repairing Minor Paint Damage..............236
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................48
Reporting Safety Defects (Canada Only)
..............................................................199
Reporting Safety Defects (U.S. Only)..............................................................198
Roadside Assistance...................................187 Vehicles Sold In Canada : Getting Roadside
Assistance........................................................ 187
Vehicles Sold In Canada : Using Roadside Assistance........................................................ 187
Vehicles Sold In The U.S.: Getting Roadside Assistance........................................................ 187
Vehicles Sold In The U.S. : Using Roadside Assistance........................................................ 187
Roadside Emergencies
...............................187
Running-In See: Breaking-In.................................................. 184
Running Out of Fuel.....................................137 Refilling With a Portable Fuel
Container........................................................... 137
S
Safety Belt Height Adjustment.................29
Safety Belt Minder.........................................30 Belt-Minder®......................................................... 30
Safety Belts......................................................26 Principle of Operation........................................ 26Safety Belt Warning Lamp and Indicator
Chime..............................................................30
Conditions of operation..................................... 30
Safety Canopy ™
............................................39
Safety Precautions.......................................135
Satellite Radio..............................................282 Satellite Radio Electronic Serial Number
(ESN)................................................................ 283
Satellite Radio Reception Factors...............283
SIRIUS® Satellite Radio Service.................. 283
Troubleshooting................................................. 284
Scheduled Maintenance Record
............427
Scheduled Maintenance............................417
Seats..................................................................110
Security..............................................................63
Settings...........................................................330 Clock........................................................................\
331
Display..................................................................... 331
Settings.................................................................. 333
Sound..................................................................... 332
Vehicle.................................................................... 332
Side Airbags
.....................................................38
Sitting in the Correct Position...................110
Snow Chains See: Using Snow Chains................................. 259
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 12
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............12
Using Your Vehicle With a Snowplow............12
Special Operating Conditions Scheduled Maintenance..............................................424
Exceptions............................................................ 426
Speed Control See: Cruise Control.............................................. 171
Stability Control...........................................160 Principle of Operation...................................... 160
Starter Switch See: Ignition Switch........................................... 124
441
C-MAX (CCG) Index

U
Under Hood Overview - 2.0L
Hybrid.............................................................210
Unique Driving Characteristics................129
Universal Garage Door Opener.................117 HomeLink Wireless Control System.............117
USB Port.........................................................285
Using Cruise Control.....................................171
ECO Cruise Control............................................. 172
Switching Cruise Control Off........................... 171
Switching Cruise Control On............................ 171
Using MyKey With Remote Start Systems
...........................................................51
Using Snow Chains.....................................259
Using Stability Control................................161 AdvanceTrac® with Roll Stability Control ™
(RSC®)............................................................... 161
Using SYNC™ With Your Media Player
............................................................308
Accessing Your Play Menu............................... 312
Connecting Your Digital Media Player to the USB Port.......................................................... 308
Media Menu Features....................................... 310
Media Voice Commands................................ 308
System Settings.................................................. 314
What's Playing?................................................ 308
Using SYNC™ With Your Phone
.............291
Accessing Features through the Phone
Menu.................................................................. 295
Accessing Your Phone Settings................... 298
Making Calls........................................................ 294
Pairing a Phone for the First Time...............292
Pairing Subsequent Phones.......................... 292
Phone Options during an Active Call.........294
Phone Voice Commands................................ 292
Receiving Calls................................................... 294
System Settings................................................. 299
Text Messaging................................................... 297
Using Traction Control................................159 Switching the System Off Using a
Switch................................................................ 159
Switching the System Off Using the Information Display Controls.................... 159
System Indicator Lights and Messages.......................................................... 159Using Voice Recognition
...........................289
Initiating a Voice Session................................ 289
System Interaction and Feedback..............290
Utilizing the Mediation/Arbitration Program (Canada Only).........................196
V
Vehicle Care...................................................232 General Information.......................................... 232
Vehicle Certification Label.......................267
Vehicle Identification Number................267
Vehicle Storage
............................................236
Battery.................................................................... 237
Body........................................................................\
236
Brakes..................................................................... 237
Cooling system.................................................... 237
Engine..................................................................... 237
Fuel system.......................................................... 237
General.................................................................. 236
Miscellaneous...................................................... 237
Removing Vehicle From Storage.................. 237
Tires........................................................................\
. 237
Ventilation See: Climate Control......................................... 105
VIN See: Vehicle Identification Number............267
Voice Control...................................................66
443
C-MAX (CCG) Index
