Page 4 of 447

Windshield Washers.....................................69
Rear Window Wiper and Washers...........70
Lighting
Lighting Control................................................71
Autolamps..........................................................71
Instrument Lighting Dimmer......................72
Headlamp Exit Delay.....................................73
Daytime Running Lamps.............................73
Front Fog Lamps.............................................73
Direction Indicators
........................................73
Interior Lamps..................................................73
Ambient Lighting
............................................75
Windows and Mirrors
Power Windows
..............................................76
Global Opening
................................................77
Exterior Mirrors
.................................................77
Interior Mirror
....................................................79
Sun Visors
.........................................................79
Sun Shades
......................................................79
Instrument Cluster
Gauges................................................................81
Warning Lamps and Indicators.................83
Audible Warnings and Indicators.............87
Information Displays
General Information
.....................................88
Information Messages
.................................98
Climate Control
Automatic Climate Control......................105
Hints on Controlling the Interior Climate
.........................................................107
Heated Windows and Mirrors
..................107
Cabin Air Filter
...............................................108
Remote Start
.................................................108 Seats
Sitting in the Correct Position...................110
Head Restraints.............................................110
Manual Seats
..................................................112
Power Seats.....................................................113
Rear Seats........................................................115
Heated Seats...................................................115
Rear Seat Armrest
.........................................116
Universal Garage Door Opener
Universal Garage Door Opener.................117
Auxiliary Power Points
Auxiliary Power Points.................................121
Storage Compartments
Center Console..............................................123
Overhead Console
........................................123
Starting and Stopping the Engine
General Information
....................................124
Ignition Switch
...............................................124
Keyless Starting.............................................124
Starting a Gasoline Engine
........................125
Engine Block Heater.....................................127
Unique Driving Character- istics
Hybrid Electric Vehicle
................................129
Fuel and Refueling
Safety Precautions
.......................................135
Fuel Quality.....................................................136
Running Out of Fuel
.....................................137
Refueling..........................................................138
Fuel Consumption........................................142
Emission Control System..........................143
2
C-MAX (CCG) Table of Contents
Page 10 of 447

Battery
Battery acid
Brake fluid - non petroleum
based
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant
Engine coolant temperature Engine oil
Explosive gas
Fan warning
Fasten safety belt
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windshield
Interior luggage compartment
release
Jack
Keep out of reach of children
Lighting control
8
C-MAX (CCG) Introduction E71340 E91392 E161353
Page 74 of 447

When the headlamp switch is in the
Autolamps position, the windshield wiper
activated exterior lamps will turn on within
10 seconds when you switch the
windshield wipers on. The exterior lamps
will turn off approximately 60 seconds
after you switch the windshield wipers off.
This feature does not turn on the exterior
lamps:
•
during a mist wipe
• while the wipers are on to clear washer
fluid during a wash condition
• if the wipers are in automatic or
intermittent modes.
Note: If you have autolamps and
autowipers switched on the low beam
headlamps will turn on automatically when
the windshield wipers operate continuously.
Note: You may have to manually switch
the headlamps on in severe weather
conditions.
Note: If you have autolamps switched on
you can only switch the high beam
headlamps on once the system has turned
the headlamps on.
INSTRUMENT LIGHTING
DIMMER
Note: If you disconnect the battery or it
becomes discharged, the illuminated
components will switch to the maximum
setting. Vehicles With Front Fog Lamps
Press repeatedly or press and hold until
the desired level is reached.
Vehicles Without Front Fog Lamps
Press repeatedly or press and
hold to dim.
A
Press repeatedly or press and
hold to brighten.
B
72
C-MAX (CCG) LightingE132712 AB
E165366
Page 75 of 447

HEADLAMP EXIT DELAY
After you switch the ignition off, you can
switch the headlamps on by pulling the
direction indicator lever toward you. You
will hear a short tone. The headlamps will
switch off automatically after three
minutes with any door open or 30 seconds
after the last door has been closed. You
can cancel this feature by pulling the
direction indicator toward you again or
switching the ignition on.
DAYTIME RUNNING LAMPS (IF
EQUIPPED) WARNING
Always remember to switch your
headlamps on in low light situations
or during inclement weather. The
system does not activate the tail lamps
and may not provide adequate lighting
during these conditions. Failure to activate
your headlamps under these conditions
may result in a collision. The system switches the headlamps on
with a reduced output in daylight
conditions.
To switch the system on:
1. Switch the ignition on.
2. Switch the lighting control to the off,
or parking lamp position.
3. Disengage the parking brake.
4. Make sure the transmission selector lever is not in position P. FRONT FOG LAMPS
Press the control to switch the fog lamps
on or off.
You can switch the fog lamps on when the
lighting control is in any position except
Off and the high beams are not on.
DIRECTION INDICATORS
Push the lever up or down to use the
direction indicators.
Note:
Tap the lever up or down to make the
direction indicators flash three times to
indicate a lane change.
INTERIOR LAMPS
The lamps will switch on when one of the
following conditions have been met:
73
C-MAX (CCG) LightingE142453 E162681
Page 87 of 447

EV Later
Lights when you select this
feature on. See Hybrid Electric
Vehicle (page 129).
Fasten Safety Belt It will light and a tone will sound
to remind you to fasten your
safety belt. See
Safety Belt
Minder (page 30).
Front Airbag If it fails to light when you start
your vehicle, continues to flash
or remains on, this indicates a
malfunction. Have the system checked by
an authorized dealer.
Front Fog Lamps
(If Equipped) Lights when you switch the front
fog lamps on.
High Beam Lights when you switch the high
beam headlamps on. It will flash
when you use the headlamp
flasher.
Liftgate Ajar Lights when the liftgate is not
completely closed.
Low Battery
(If Equipped) Lights when the battery level is
low. You may also see a
message suggesting you reduce
your usage of the climate system. Low Fuel Level Lights when the fuel level is low
or the fuel tank is nearly empty.
Refuel as soon as possible.
Low Tire Pressure Warning Lights when your tire pressure is
low. If the lamp remains on with
the engine running or when
driving, check your tire pressure
as soon as possible.
It also lights momentarily when you switch
on the ignition to confirm the lamp is
functional. If it does not light when you
switch on the ignition, or begins to flash at
any time, have the system checked by an
authorized dealer.
Overdrive Cancel and Grade Assist
(If Equipped) Lights when the overdrive
function in the transmission
turns off and the grade assist
turns on.
Parking Lamps Lights when you switch the
parking lamps on.
Powertrain Fault Lights when the system detects
a powertrain or high-voltage
charge system fault. If the
indicator stays on or continues to come on,
contact an authorized dealer as soon as
possible.
85
C-MAX (CCG) Instrument ClusterE151263 E162453 E144691 E162456
Page 206 of 447

Protected components
Fuse amp rating
Fuse or relay number
Interior light, Driver door switch pack, Glove
box illumination, Overhead console switch
bank
10A
F60
Cigar lighter, Second row power point
20A
F61
Autowipers module, Auto-dimming rear
view mirror
5A
F62
Not used (spare)
10A
F63
Not used
—
F64
Liftgate release
10A
F65
Driver door unlock supply
20A
F66
Cell phone passport (C-MAX Energi), Multi-
function display, GPS module, SYNC
7.5A
F67
Not used (spare)
15A
F68
Instrument cluster
5A
F69
Central lock and unlock supply
20A
F70
Heating control head (manual air condi-
tioner), Climate control module
10A
F71
Steering wheel module
7.5A
F72
Data link connector, OBD II supply
7.5A
F73
Headlamp supply
15A
F74
Fog lamp supply
15A
F75
Reversing lamp supply
10A
F76
Washer pump
20A
F77
Ignition switch, Start button
5A
F78
Radio, Hazard light switch
15A
F79
Not used (spare)
20A
F80
Power sun shade, Remote receiver antenna
5A
F81
Washer pump ground
20A
F82
Central locking ground
20A
F83
204
C-MAX (CCG) Fuses

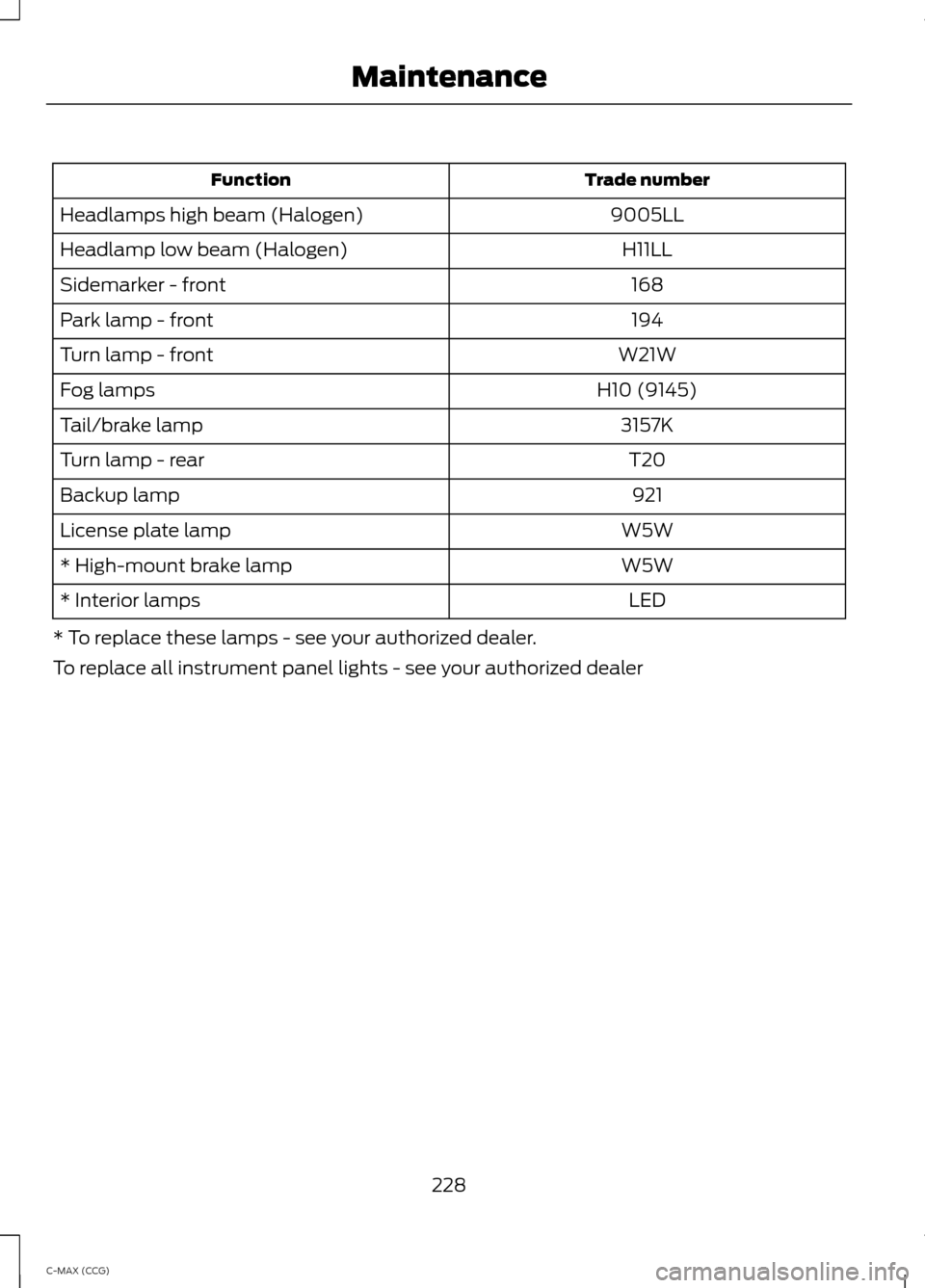

Page 230 of 447

Trade number
Function
9005LL
Headlamps high beam (Halogen)
H11LL
Headlamp low beam (Halogen)
168
Sidemarker - front
194
Park lamp - front
W21W
Turn lamp - front
H10 (9145)
Fog lamps
3157K
Tail/brake lamp
T20
Turn lamp - rear
921
Backup lamp
W5W
License plate lamp
W5W
* High-mount brake lamp
LED
* Interior lamps
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
228
C-MAX (CCG) Maintenance
Page 441 of 447

Information Messages.................................98
AdvanceTrac®...................................................... 98
Alarm........................................................................\
99
Battery and Charging System (High Voltage).............................................................. 99
Doors........................................................................\
99
Fuel........................................................................\
.. 100
Hill Start Assist................................................... 100
Keys and Intelligent Access........................... 100
Maintenance......................................................... 101
MyKey...................................................................... 102
Park Aid.................................................................. 103
Park Brake............................................................. 103
Power Steering.................................................... 103
Remote Start....................................................... 103
Tire Pressure Monitoring System.................104
Transmission........................................................ 104
Installing Child Seats.....................................15 Child Seats............................................................... 15
Using Lap and Shoulder Belts.......................... 16
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 18
Using Tether Straps............................................. 20
Instrument Cluster
.........................................81
Instrument Lighting Dimmer......................72 Vehicles With Front Fog Lamps...................... 72
Vehicles Without Front Fog Lamps...............72
Interior Lamps
..................................................73
Front Interior Lamp ............................................. 74
Rear Interior Lamp................................................ 74
Interior Mirror
....................................................79
Auto-Dimming Mirror.......................................... 79
Introduction.........................................................7
J
Jump-Starting the Vehicle........................188 Connecting the Jumper Cables..................... 189
Jump Starting...................................................... 190
Preparing Your Vehicle..................................... 188
Removing the Jumper Cables....................... 190
K
Keyless Starting.............................................124 Ignition Modes..................................................... 125
Keys and Remote Controls.........................43 L
Lighting Control................................................71
Headlamp Flasher................................................. 71
High Beams.............................................................. 71
Lighting................................................................71
Load Carrying
..................................................174
Load Limit........................................................175
Vehicle Loading.................................................... 175
Locking and Unlocking.................................55 Activating Intelligent Access .......................... 56
Autolock................................................................... 57
Battery Saver......................................................... 58
Illuminated Entry.................................................. 58
Illuminated Exit..................................................... 58
Mechanical Key..................................................... 56
Opening a Rear Door from Inside.................. 56
Power Door Locks................................................ 55
Remote Control.................................................... 55
Smart Unlocks For Integrated Keyhead Transmitter......................................................... 57
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 57
Locks...................................................................55
Luggage Covers
..............................................174
Removing the Shade......................................... 174
M
Maintenance.................................................209 General Information......................................... 209
Manual Liftgate
..............................................59
Closing the Liftgate............................................. 59
Opening the Liftgate........................................... 59
Manual Seats
..................................................112
Adjusting the Height of the Driver's
Seat...................................................................... 113
Lumbar Adjustment (If Equipped)...............113
Moving the Seat Backward and Forward............................................................... 112
Recline Adjustment............................................ 113
Media Hub......................................................286
Message Center See: Information Displays................................ 88
Mirrors See: Heated Windows and Mirrors...............107
See: Windows and Mirrors................................ 76
Mobile Communications Equipment
.......12
439
C-MAX (CCG) Index
