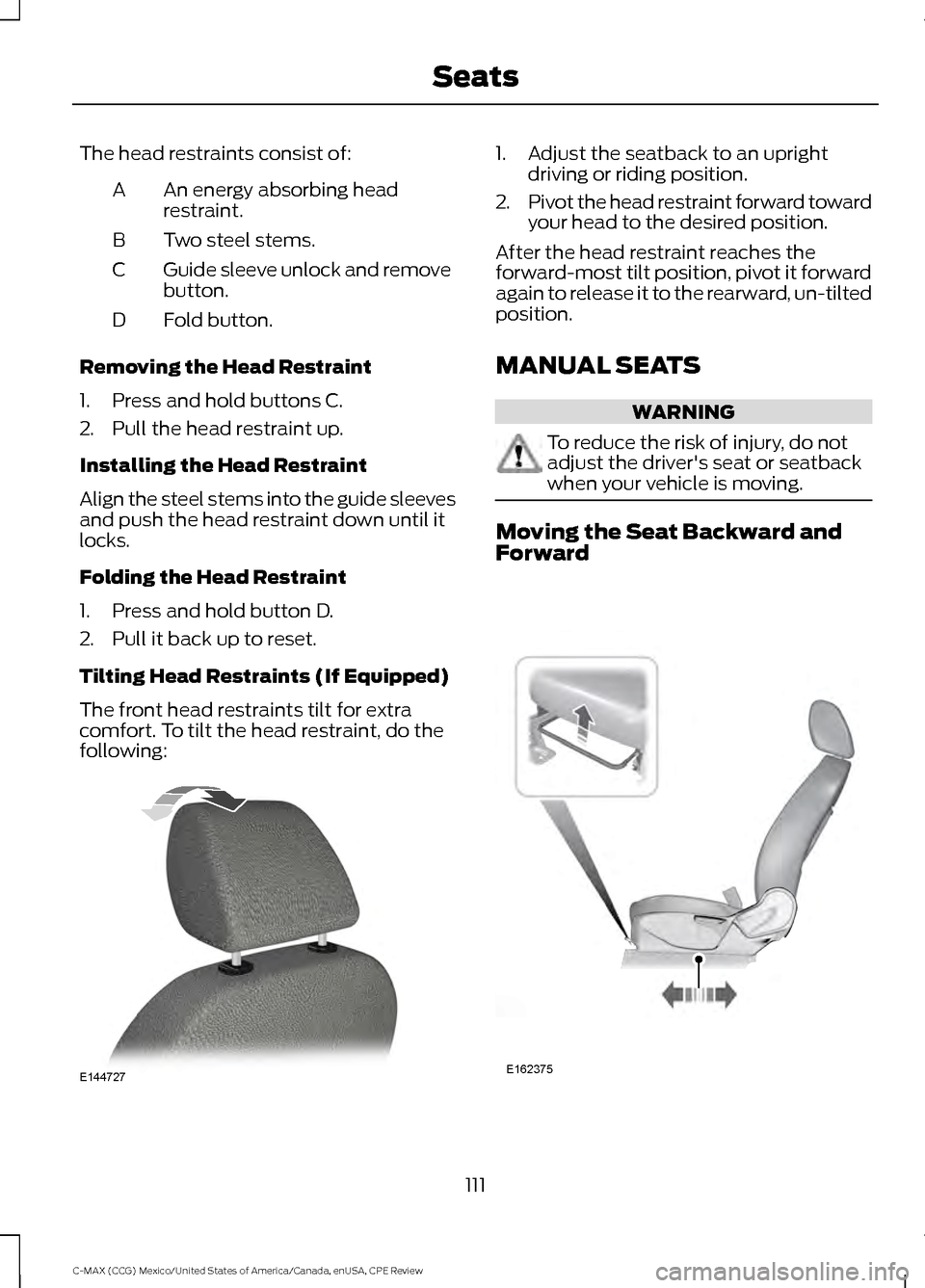

The head restraints consist of:
An energy absorbing head
restraint.
A
Two steel stems.
B
Guide sleeve unlock and remove
button.
C
Fold button.
D
Removing the Head Restraint
1. Press and hold buttons C.
2. Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.
Folding the Head Restraint
1. Press and hold button D.
2. Pull it back up to reset.
Tilting Head Restraints (If Equipped)
The front head restraints tilt for extra
comfort. To tilt the head restraint, do the
following: 1. Adjust the seatback to an upright
driving or riding position.
2. Pivot the head restraint forward toward
your head to the desired position.
After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.
MANUAL SEATS WARNING
To reduce the risk of injury, do not
adjust the driver's seat or seatback
when your vehicle is moving.
Moving the Seat Backward and
Forward
111
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review SeatsE144727 E162375
Page 117 of 455
REAR SEATS
Folding the Seatback (If
Equipped)
1. With the seat empty, press the button
on the outboard side of each rear
outboard headrest to fold them. Make
sure the rear center headrest is in the
full down position.
2. Pull the lever up on the outboard side of the seat to fold the seat.
Unfolding the Seatback
Rotate the seatback upward until the seat
back latches to return the seat to the
upright position. HEATED SEATS (If Equipped) WARNING
People who are unable to feel pain
to their skin because of advanced
age, chronic illness, diabetes, spinal
cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.
Do not puncture the seat with pins, needles
or other pointed objects. This may damage
the heating element which may cause the
heated seat to overheat. An overheated
seat may cause serious personal injury. Do not do the following:
•
Place heavy objects on the seat.
• Operate the heated seat if water or any
other liquid is spilled on the seat. Allow
the seat to dry thoroughly.
• Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge. Adjust the control to the desired heat
setting.
114
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review SeatsE155554 E138653
Page 118 of 455
REAR SEAT ARMREST (If Equipped)
Fold the armrest down to use the armrest
and cupholder.
115
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review SeatsE138656
Page 149 of 455

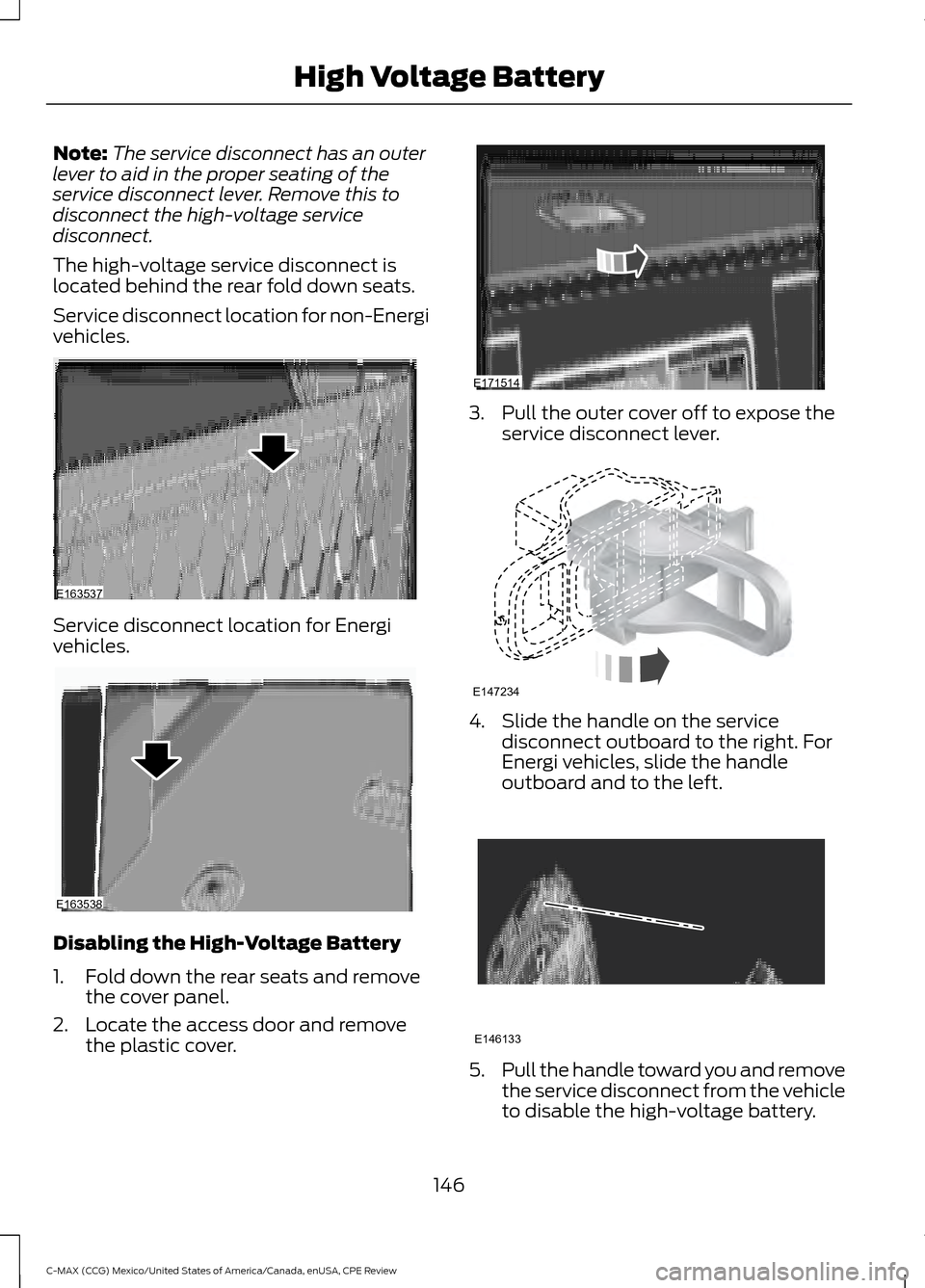

Note:
The service disconnect has an outer
lever to aid in the proper seating of the
service disconnect lever. Remove this to
disconnect the high-voltage service
disconnect.
The high-voltage service disconnect is
located behind the rear fold down seats.
Service disconnect location for non-Energi
vehicles. Service disconnect location for Energi
vehicles.
Disabling the High-Voltage Battery
1. Fold down the rear seats and remove
the cover panel.
2. Locate the access door and remove the plastic cover. 3. Pull the outer cover off to expose the
service disconnect lever. 4. Slide the handle on the service
disconnect outboard to the right. For
Energi vehicles, slide the handle
outboard and to the left. 5.
Pull the handle toward you and remove
the service disconnect from the vehicle
to disable the high-voltage battery.
146
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review High Voltage BatteryE163537 E163538 E171514 E147234 E146133
Page 451 of 455
Manual Seats...................................................111
Adjusting the Height of the Driver's
Seat...................................................................... 112
Lumbar Adjustment (If Equipped)...............112
Moving the Seat Backward and Forward............................................................... 111
Recline Adjustment............................................. 112
Media Hub......................................................287
Message Center See: Information Displays................................ 88
Mirrors See: Heated Windows and Mirrors...............107
See: Windows and Mirrors................................ 76
Mobile Communications Equipment
.......12
Motorcraft Parts...........................................267
MyFord Touch ™............................................327
General Information.......................................... 327
MyFord Touch ™ Troubleshooting.........401
MyKey Troubleshooting
...............................53
MyKey ™.............................................................49
Principle of Operation........................................ 49
N
Navigation......................................................392 cityseekr................................................................ 394
Map Mode............................................................ 396
Navigation Map Updates............................... 399
Navigation Voice Commands....................... 399
Point of Interest (POI) Categories..............393
Quick-touch Buttons....................................... 398
Setting a Destination....................................... 392
Setting Your Navigation Preferences.........395
Normal Scheduled Maintenance
..........430
Intelligent Oil-Life Monitor® (C-MAX Energi
Plug-in Hybrid Only).................................... 430
Normal Maintenance Intervals...................... 431
O
Oil Check See: Engine Oil Check....................................... 213
Opening and Closing the Hood
.............209
Ordering Additional Owner's Literature......................................................198
Obtaining a French Owner ’s Manual..........198
Overhead Console
........................................122 P
Parking Aid.......................................................161
Front Sensing System....................................... 162
Rear Sensing System......................................... 161
Parking Aids
.....................................................161
Parking Brake.................................................156
Passive Anti-Theft System.........................62 SecuriLock®........................................................... 62
PATS See: Passive Anti-Theft System..................... 62
Perchlorate.........................................................11
Personal Safety System ™
..........................33
How Does the Personal Safety System
Work?................................................................... 33
Phone...............................................................364 Making Calls........................................................ 365
Pairing Subsequent Phones.......................... 365
Pairing Your Phone for the First Time................................................................... 365
Phone Menu Options....................................... 366
Phone Settings................................................... 367
Phone Voice Commands............................... 368
Receiving Calls................................................... 366
Text Messaging.................................................. 366
Post-Crash Alert System
...........................193
Power Door Locks See: Locking and Unlocking............................. 54
Power Liftgate.................................................59 Obstacle Detection.............................................. 61
Opening and Closing the Liftgate.................. 59
Setting the Liftgate Open Height.................... 61
Power Seats
.....................................................112
Power Lumbar....................................................... 113
Power Steering Fluid Check......................218
Power Windows..............................................76 Accessory Delay..................................................... 77
Bounce-Back.......................................................... 76
One-Touch Down................................................. 76
One-Touch Up....................................................... 76
Window Lock.......................................................... 76
R
Rear Seat Armrest.........................................115
Rear Seats........................................................114 Folding the Seatback (If Equipped).............114
Unfolding the Seatback.................................... 114
