traction control FORD C MAX HYBRID 2016 2.G User Guide

J.

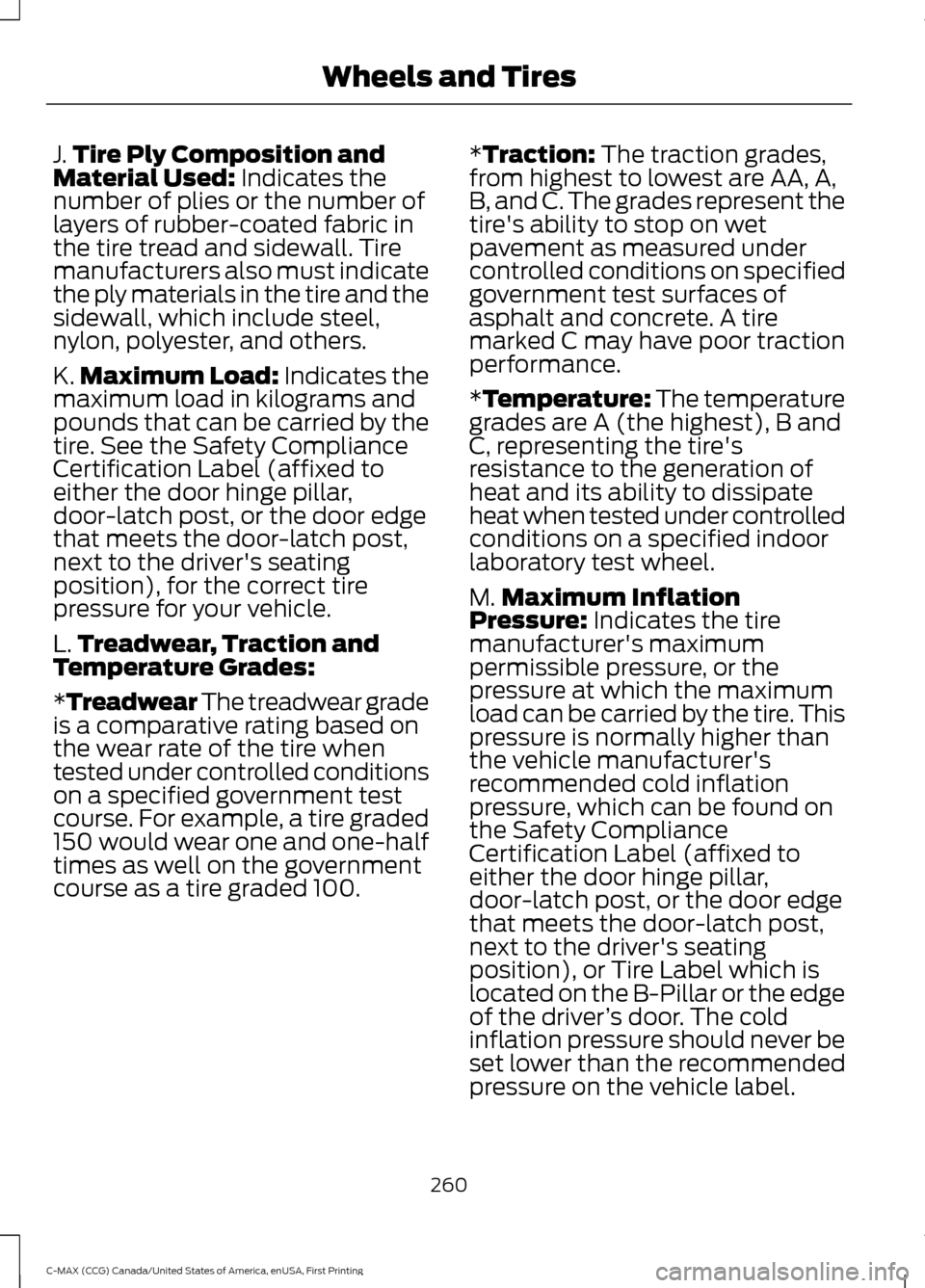

Tire Ply Composition and
Material Used: Indicates the
number of plies or the number of
layers of rubber-coated fabric in
the tire tread and sidewall. Tire
manufacturers also must indicate
the ply materials in the tire and the
sidewall, which include steel,
nylon, polyester, and others.
K. Maximum Load: Indicates the
maximum load in kilograms and
pounds that can be carried by the
tire. See the Safety Compliance
Certification Label (affixed to
either the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver's seating
position), for the correct tire
pressure for your vehicle.
L. Treadwear, Traction and
Temperature Grades:
*Treadwear The treadwear grade
is a comparative rating based on
the wear rate of the tire when
tested under controlled conditions
on a specified government test
course. For example, a tire graded
150 would wear one and one-half
times as well on the government
course as a tire graded 100. *Traction: The traction grades,
from highest to lowest are AA, A,
B, and C. The grades represent the
tire's ability to stop on wet
pavement as measured under
controlled conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.
*
Temperature: The temperature
grades are A (the highest), B and
C, representing the tire's
resistance to the generation of
heat and its ability to dissipate
heat when tested under controlled
conditions on a specified indoor
laboratory test wheel.
M. Maximum Inflation
Pressure:
Indicates the tire
manufacturer's maximum
permissible pressure, or the
pressure at which the maximum
load can be carried by the tire. This
pressure is normally higher than
the vehicle manufacturer's
recommended cold inflation
pressure, which can be found on
the Safety Compliance
Certification Label (affixed to
either the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver's seating
position), or Tire Label which is
located on the B-Pillar or the edge
of the driver ’s door. The cold
inflation pressure should never be
set lower than the recommended
pressure on the vehicle label.
260
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Wheels and Tires

Directional tires
Sometimes irregular tire wear can
be corrected by rotating the tires.
USING SNOW CHAINS
WARNING
Snow tires must be the same size,
load index, speed rating as those
originally provided by Ford. Use of
any tire or wheel not recommended by
Ford can affect the safety and
performance of your vehicle, which could
result in an increased risk of loss of vehicle
control, vehicle rollover, personal injury and
death. Additionally, the use of
non-recommended tires and wheels could
cause steering, suspension, axle, transfer
case or power transfer unit failure. The tires on your vehicle have all-weather
treads to provide traction in rain and snow.
Snow chains have not been approved for
use on your vehicle.
Consult your authorized dealer for
information on other Ford Motor Company
approved methods of traction control. TIRE PRESSURE MONITORING
SYSTEM WARNING
The tire pressure monitoring system
is not a substitute for manually
checking tire pressure. The tire
pressure should be checked periodically
(at least monthly) using a tire gauge, see
Inflating your tires in this chapter. Failure
to properly maintain your tire pressure
could increase the risk of tire failure, loss
of control, vehicle rollover and personal
injury. Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated
to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle ’s handling and stopping ability.
270
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Wheels and TiresE70415

TRADEMARKS: This EULA does not grant
you any rights in connection with any
trademarks or service marks of FORD
MOTOR COMPANY, its affiliates, and third
party software and service providers.
PRODUCT SUPPORT: Please refer to
FORD MOTOR COMPANY instructions
provided in the documentation for the
DEVICES product support, such as the
vehicle owner guide.
Should you have any questions concerning
this EULA, or if you desire to contact FORD
MOTOR COMPANY for any other reason,
please refer to the address provided in the
documentation for the DEVICES.
No Liability for Certain Damages:
EXCEPT AS PROHIBITED BY LAW, FORD
MOTOR COMPANY, ANY THIRD PARTY
SOFTWARE OR SERVICES SUPPLIERS,
AND THEIR AFFILIATES SHALL HAVE NO
LIABILITY FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THE SOFTWARE. THIS
LIMITATION SHALL APPLY EVEN IF ANY
REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. THERE ARE NO WARRANTIES
OTHER THAN THOSE THAT MAY BE
EXPRESSLY PROVIDED FOR YOUR NEW
VEHICLE.
SYNC® Automotive Important Safety
Information Read and follow
instructions:
• Before using your SYNC® system, read
and follow all instructions and safety
information provided in this end user
manual ("Owner Guide".) Not
following precautions found in the
Owner Guide can lead to an accident
or other serious injuries. General Operation
•
Voice Command Control
: Certain
functions within the SYNC® system
may be accomplished using voice
commands. Using voice commands
while driving helps you to operate the
system without removing your hands
from the wheel or eyes from the road.
• Prolonged Views of Screen:
Do not
access any function requiring a
prolonged view of the screen while you
are driving. Pull over in a safe and legal
manner before attempting to access a
function of the system requiring
prolonged attention.
• Volume Setting:
Do not raise the
volume excessively. Keep the volume
at a level where you can still hear
outside traffic and emergency signals
while driving. Driving while unable to
hear these sounds could cause an
accident.
• Navigation Features:
Any navigation
features included in the system are
intended to provide turn by turn
instructions to get you to a desired
destination. Please make certain all
persons using this system carefully
read and follow instructions and safety
information fully.
• Distraction Hazard:
Any navigation
features may require manual
(non-verbal) setup. Attempting to
perform such set-up or insert data
while driving can distract your attention
and could cause an accident or other
serious injury. Stop the vehicle in a safe
and legal manner before attempting
these operations.
• Let Your Judgment Prevail:
Any
navigation features are provided only
as an aid. Make your driving decisions
based on your observations of local
conditions and existing traffic
regulations. Any such feature is not a
369
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Appendices

SYNC™ Applications and Services.......315
911 Assist................................................................ 315
SYNC Services: Traffic, Directions & Information (TDI) (If Equipped, United
States Only)..................................................... 319
Vehicle Health Report (If Equipped, United States Only)..................................................... 317
SYNC™ AppLink ™
......................................323
SYNC Mobile Apps............................................ 323
SYNC™............................................................297 General Information.......................................... 297
SYNC™ Troubleshooting
.........................335
T
Tailgate See: Manual Liftgate.......................................... 60
See: Power Liftgate.............................................. 61
Technical Specifications See: Capacities and Specifications............276
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................204
Tire Care
..........................................................255
Glossary of Tire Terminology......................... 257
Information About Uniform Tire Quality Grading............................................................. 255
Information Contained on the Tire Sidewall........................................................... 258
Temperature A B C............................................ 256
Traction AA A B C.............................................. 256
Treadwear............................................................ 256
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................249
Tire Pressure Monitoring System...........270 Changing Tires With a Tire Pressure
Monitoring System......................................... 271
Understanding Your Tire Pressure Monitoring System ........................................ 271
Tire Repair Kit See: Tire Sealant and Inflator Kit.................249 Tire Sealant and Inflator Kit
....................249
First Stage: Inflating the Tire with Sealing
Compound and Air........................................ 251
General Information......................................... 250
Second Stage: Checking Tire Pressure............................................................ 253
Tips for Use of the Kit...................................... 250
What to Do After the Tire has Been Sealed............................................................... 253
What to Do When a Tire Is Punctured........251
Tires See: Wheels and Tires..................................... 249
Towing a Trailer.............................................190
Towing the Vehicle on Four Wheels..........................................................190
Emergency Towing............................................ 190
Recreational Towing........................................... 191
Towing..............................................................190
Traction Control
.............................................167
Principle of Operation....................................... 167
Transmission Code Designation
............279
Transmission...................................................161
Transmission See: Transmission............................................... 161
Transporting the Vehicle
...........................190
U
Under Hood Overview - Hybrid Electric Vehicle (HEV).............................................219
Under Hood Overview - Plug-In Hybrid Electric Vehicle (PHEV)...........................221
Unique Driving Characteristics................135
Universal Garage Door Opener.................121 HomeLink Wireless Control System.............121
USB Port.........................................................296
Using Cruise Control
....................................179
Switching Cruise Control Off......................... 180
Switching Cruise Control On........................... 179
Using MyKey With Remote Start Systems..........................................................54
Using Snow Chains.....................................270
Using Stability Control
...............................169
390
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index

Using SYNC™ With Your Media
Player.............................................................325
Accessing Your Play Menu............................. 330
Connecting Your Digital Media Player to the USB Port........................................................... 325
Media Menu Features...................................... 328
Media Voice Commands................................. 327
System Settings................................................. 332
What's Playing?................................................. 326
Using SYNC™ With Your Phone............302
Accessing Features Through the Phone
Menu................................................................. 306
Accessing Your Phone Settings...................... 311
Making a Call...................................................... 305
Pairing a Cell Phone for the First Time................................................................... 302
Pairing Subsequent Cell Phones.................303
Phone Options during an Active Call.........305
Phone Voice Commands................................ 303
Receiving Calls................................................... 305
System Settings.................................................. 312
Text Messaging.................................................. 309
Using Traction Control
................................167
Switching the System Off................................ 167
System Indicator Lights and Messages.......................................................... 167
Using a Switch..................................................... 167
Using the Information Display Controls............................................................. 167
Using Voice Recognition
...........................299
Initiating a Voice Session................................ 299
System Interaction and Feedback.............300
Utilizing the Mediation/Arbitration Program (Canada Only)........................205
V
Vehicle Care
....................................................241
General Information.......................................... 241
Vehicle Certification Label
.......................279
Vehicle Identification Number................278 Vehicle Storage............................................246
12V Battery............................................................ 247
Body........................................................................\
246
Brakes..................................................................... 247
Cooling System................................................... 247
Engine.................................................................... 246
Fuel System.......................................................... 247
General.................................................................. 246
Miscellaneous...................................................... 247
Removing Vehicle From Storage.................. 247
Tires........................................................................\
. 247
Ventilation See: Climate Control......................................... 108
VIN See: Vehicle Identification Number............278
Voice Control
...................................................68
391
C-MAX (CCG) Canada/United States of America, enUSA, First Printing Index
