Page 198 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual Avoid these actions because they reduce
your fuel economy:
•
Avoid sudden or hard accelerations and
decelerations. Accelerate and slow
down in a smooth, moderate fashion.
• Avoid revving the engin

Page 201 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle.
Canadian customers who require roadside
assistance,

Page 202 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual Note:
When you try to restart your vehicle
after a fuel shutoff, the vehicle makes sure
that the electrical system is safe to restart.
Once your vehicle determines that the
electrical system is safe,

Page 203 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual 1.
Connect the positive (+) jumper cable
to the positive (+) prong (A) of the
discharged battery.
2. Connect the other end of the positive (+) cable to the positive (+) terminal
of the assisting batte

Page 204 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual 1. Remove the jumper cable from the
negative prong.
2. Remove the jumper cable on the negative (-) terminal of the booster
vehicles battery.
3. Remove the jumper cable from the positive (+) terminal

Page 205 of 497

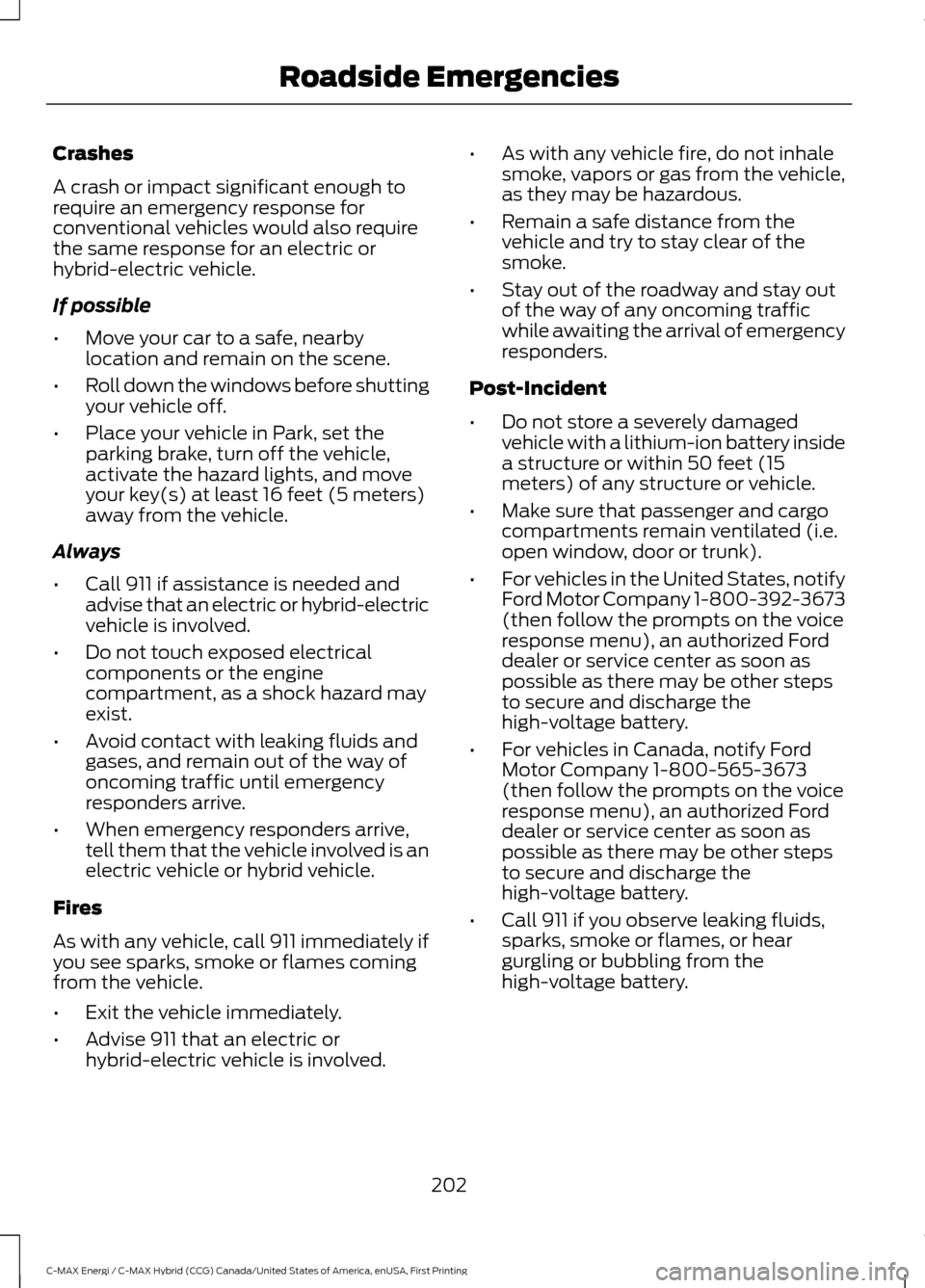

FORD C MAX HYBRID 2017 2.G Repair Manual Crashes
A crash or impact significant enough to
require an emergency response for
conventional vehicles would also require
the same response for an electric or
hybrid-electric vehicle.
If possible
•

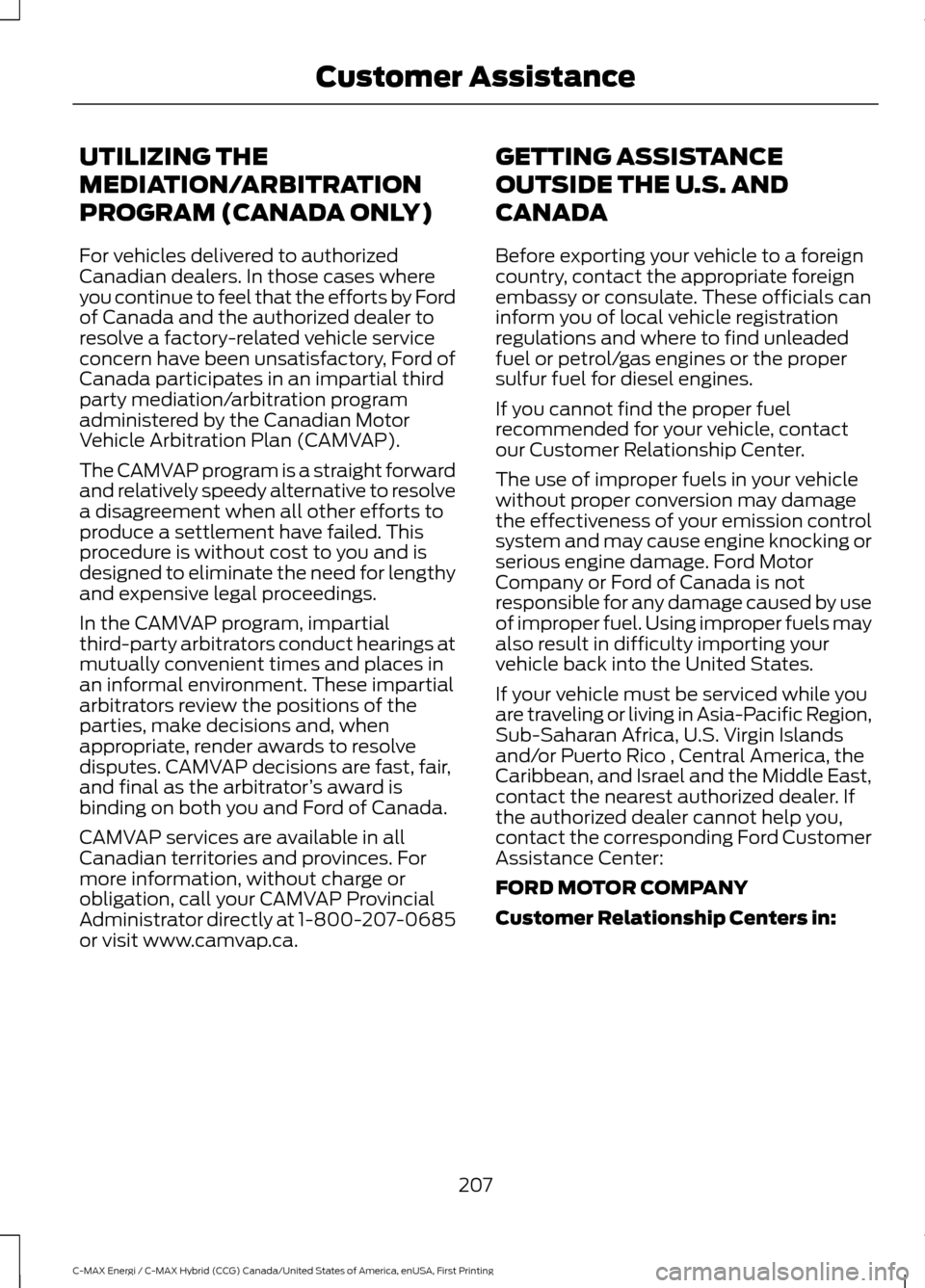

Page 210 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual UTILIZING THE
MEDIATION/ARBITRATION
PROGRAM (CANADA ONLY)
For vehicles delivered to authorized
Canadian dealers. In those cases where
you continue to feel that the efforts by Ford
of Canada and the au

Page 214 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual FUSE SPECIFICATION CHART
Pre-Fuse Box
Your vehicle has a pre-fuse box attached
to the power distribution box. There is a
second pre-fuse box attached to the
12-volt battery terminal in the rear of you

Page 215 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual Protected components
Fuse amp rating
Fuse or relay number
Cooling fan module.
50A Midi
F1
Electric water pump.
50A Midi
F2
Body control module supply 1.
50A Midi
F3
Body control module supply 2.
50A M

Page 216 of 497

FORD C MAX HYBRID 2017 2.G Repair Manual Protected components
Fuse amp rating
Fuse or relay number
Engine control module 15.
5A 1
F23
Powertrain control module 15.
Transmission oil pump 15.
Relay coils.
5A 1
F24
Light switch module.
Motor el
