2. Slightly rotate the wiper blade.
3. Disengage the wiper blade from the
wiper arm.
4. Remove the wiper blade.
5. Install in the reverse order.
Note: Make sure that the wiper blade locks
into place.

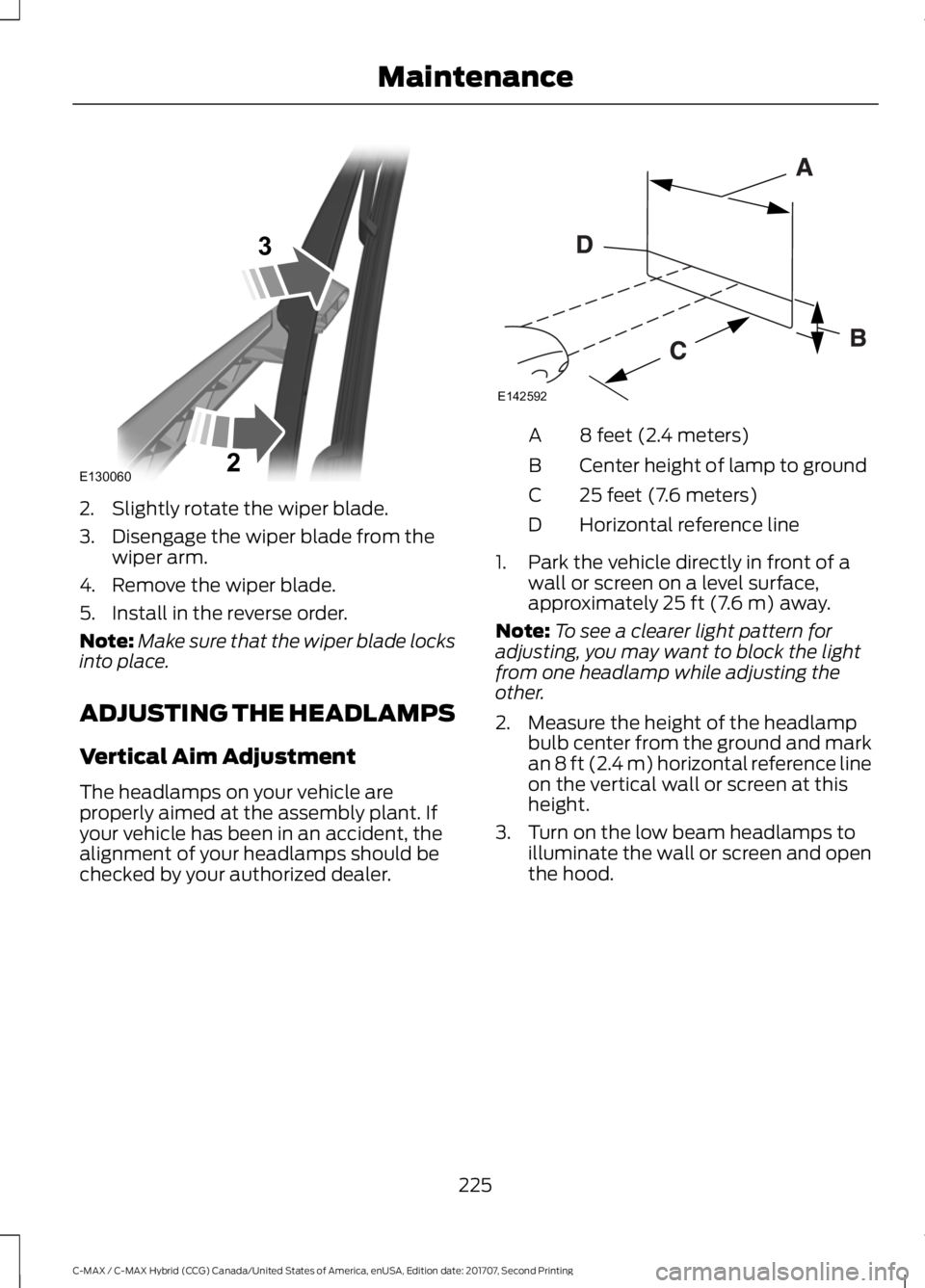

ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, the
alignment of your headlamps should be
checked by your authorized dealer. 8 feet (2.4 meters)
A
Center height of lamp to ground
B
25 feet (7.6 meters)
C
Horizontal reference line
D
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 ft (7.6 m) away.
Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.
2. Measure the height of the headlamp bulb center from the ground and mark
an
8 ft (2.4 m) horizontal reference line
on the vertical wall or screen at this
height.
3. Turn on the low beam headlamps to illuminate the wall or screen and open
the hood.
225
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing MaintenanceE130060
3
2 E142592

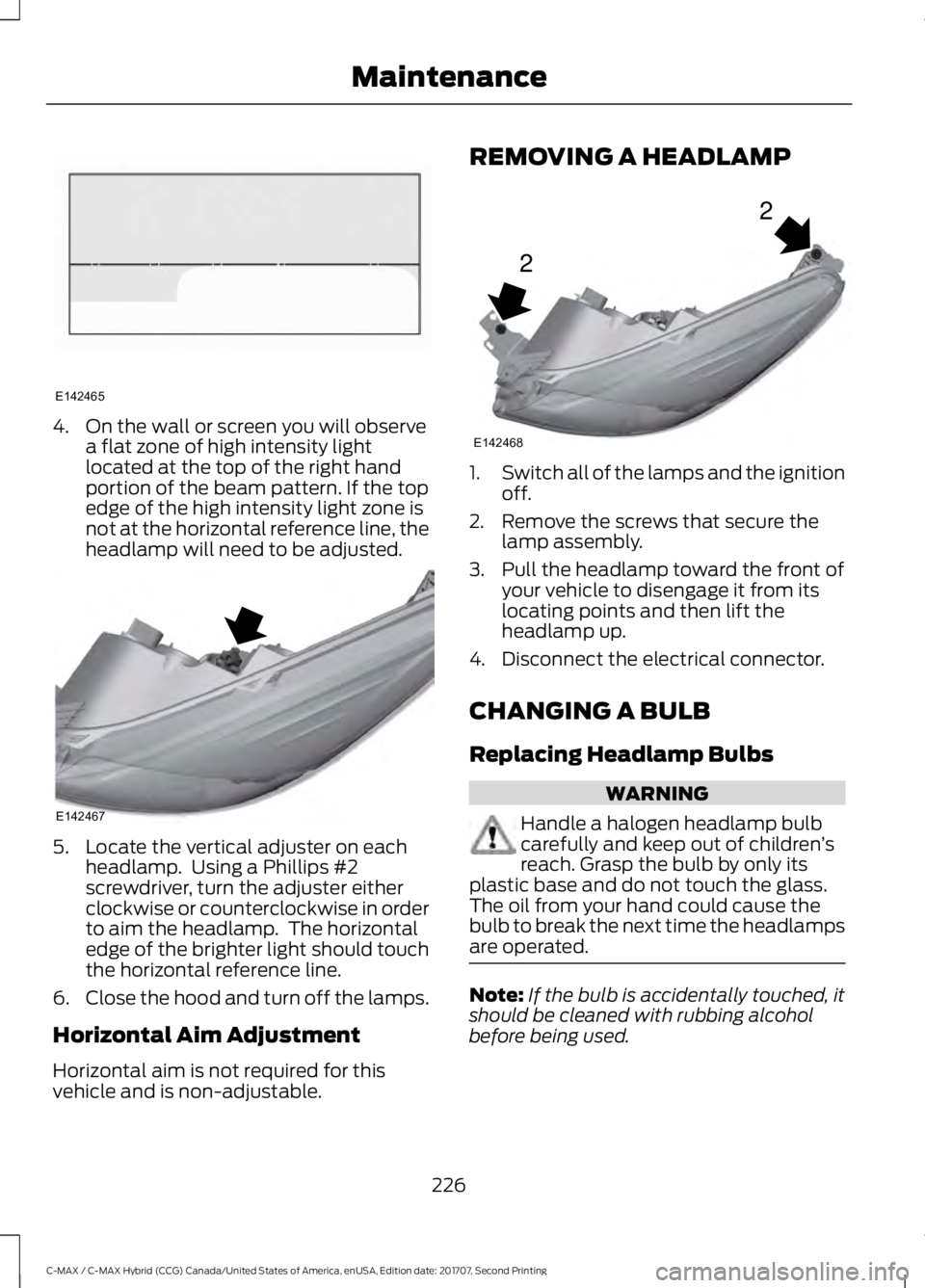

4. On the wall or screen you will observe
a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line, the
headlamp will need to be adjusted. 5. Locate the vertical adjuster on each
headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to aim the headlamp. The horizontal
edge of the brighter light should touch
the horizontal reference line.
6. Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this
vehicle and is non-adjustable. REMOVING A HEADLAMP
1.
Switch all of the lamps and the ignition
off.
2. Remove the screws that secure the lamp assembly.
3. Pull the headlamp toward the front of your vehicle to disengage it from its
locating points and then lift the
headlamp up.
4. Disconnect the electrical connector.
CHANGING A BULB
Replacing Headlamp Bulbs WARNING
Handle a halogen headlamp bulb
carefully and keep out of children
’s
reach. Grasp the bulb by only its
plastic base and do not touch the glass.
The oil from your hand could cause the
bulb to break the next time the headlamps
are operated. Note:
If the bulb is accidentally touched, it
should be cleaned with rubbing alcohol
before being used.
226
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing MaintenanceE142465 E142467 2
2
E142468

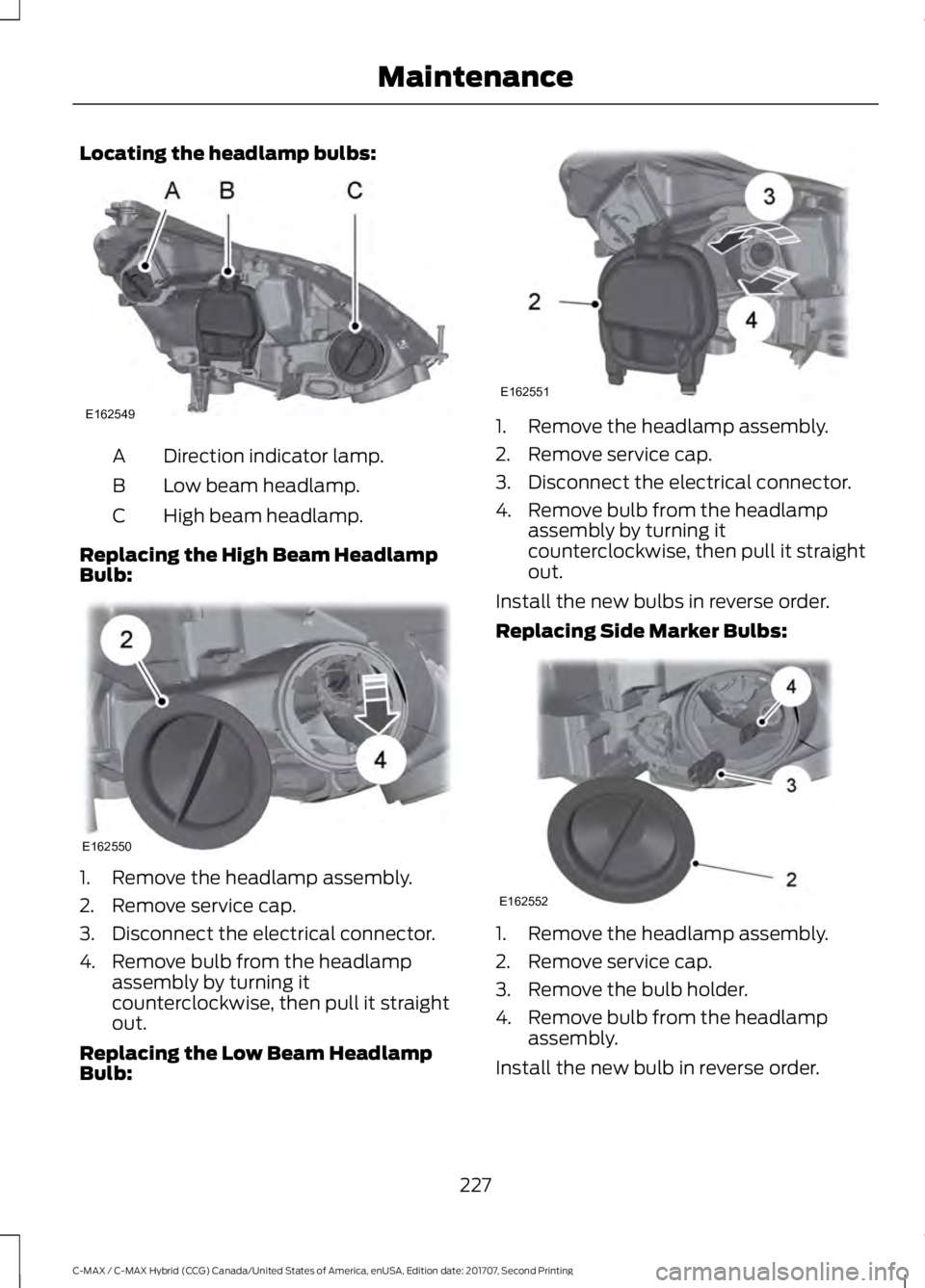

Locating the headlamp bulbs:
Direction indicator lamp.
A
Low beam headlamp.
B
High beam headlamp.
C
Replacing the High Beam Headlamp
Bulb: 1. Remove the headlamp assembly.
2. Remove service cap.
3. Disconnect the electrical connector.
4. Remove bulb from the headlamp
assembly by turning it
counterclockwise, then pull it straight
out.
Replacing the Low Beam Headlamp
Bulb: 1. Remove the headlamp assembly.
2. Remove service cap.
3. Disconnect the electrical connector.
4. Remove bulb from the headlamp
assembly by turning it
counterclockwise, then pull it straight
out.
Install the new bulbs in reverse order.
Replacing Side Marker Bulbs: 1. Remove the headlamp assembly.
2. Remove service cap.
3. Remove the bulb holder.
4. Remove bulb from the headlamp
assembly.
Install the new bulb in reverse order.
227
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing MaintenanceE162549 E162550 E162551 E162552

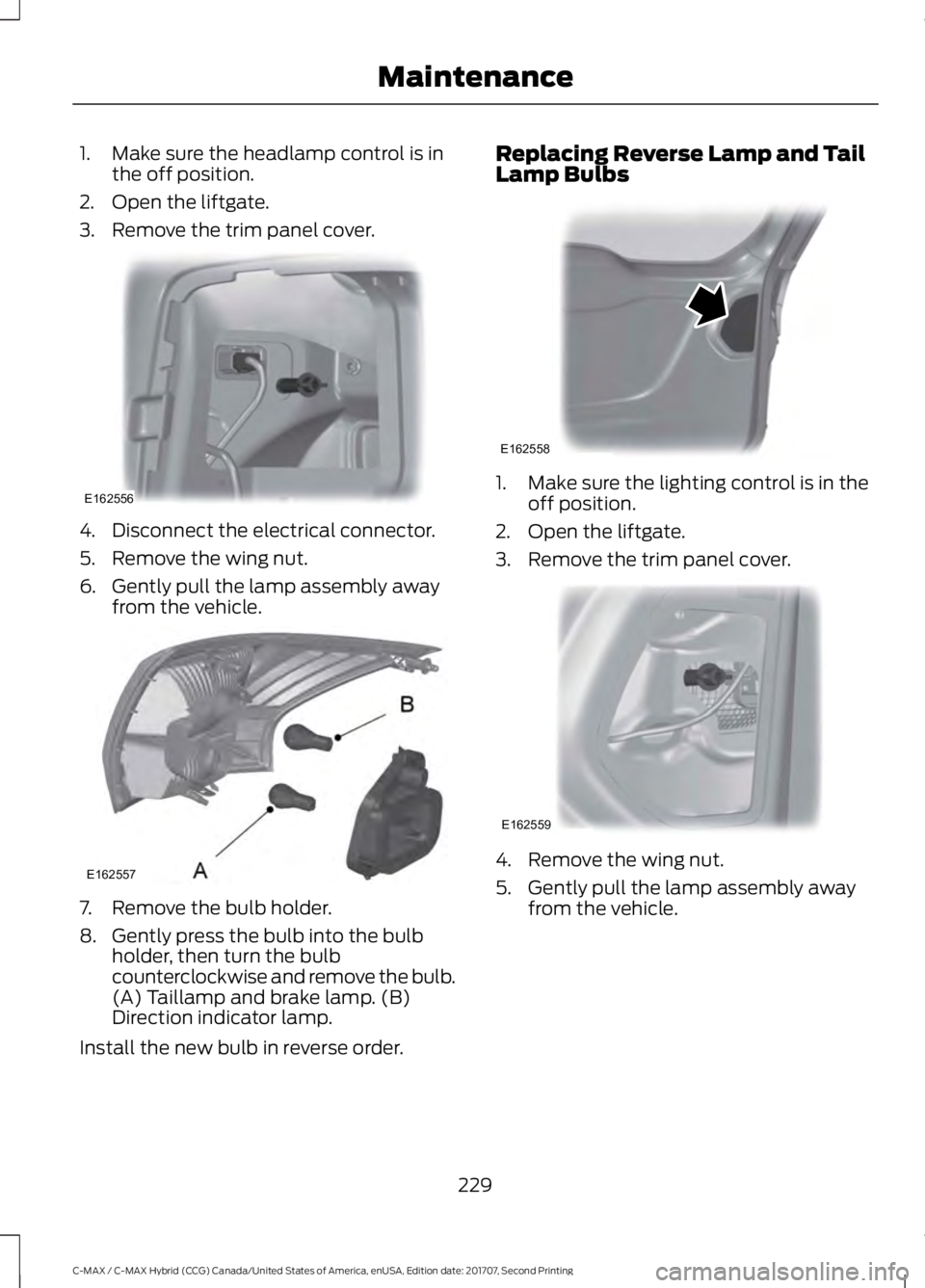

1. Make sure the headlamp control is in
the off position.
2. Open the liftgate.
3. Remove the trim panel cover. 4. Disconnect the electrical connector.
5. Remove the wing nut.
6. Gently pull the lamp assembly away
from the vehicle. 7. Remove the bulb holder.
8. Gently press the bulb into the bulb
holder, then turn the bulb
counterclockwise and remove the bulb.
(A) Taillamp and brake lamp. (B)
Direction indicator lamp.
Install the new bulb in reverse order. Replacing Reverse Lamp and Tail
Lamp Bulbs
1. Make sure the lighting control is in the
off position.
2. Open the liftgate.
3. Remove the trim panel cover. 4. Remove the wing nut.
5. Gently pull the lamp assembly away
from the vehicle.
229
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing MaintenanceE162556 E162557 E162558 E162559

5. Gently pull the lamp assembly away
from the vehicle. 6. Remove the bulb holder.
7. Remove the bulb.

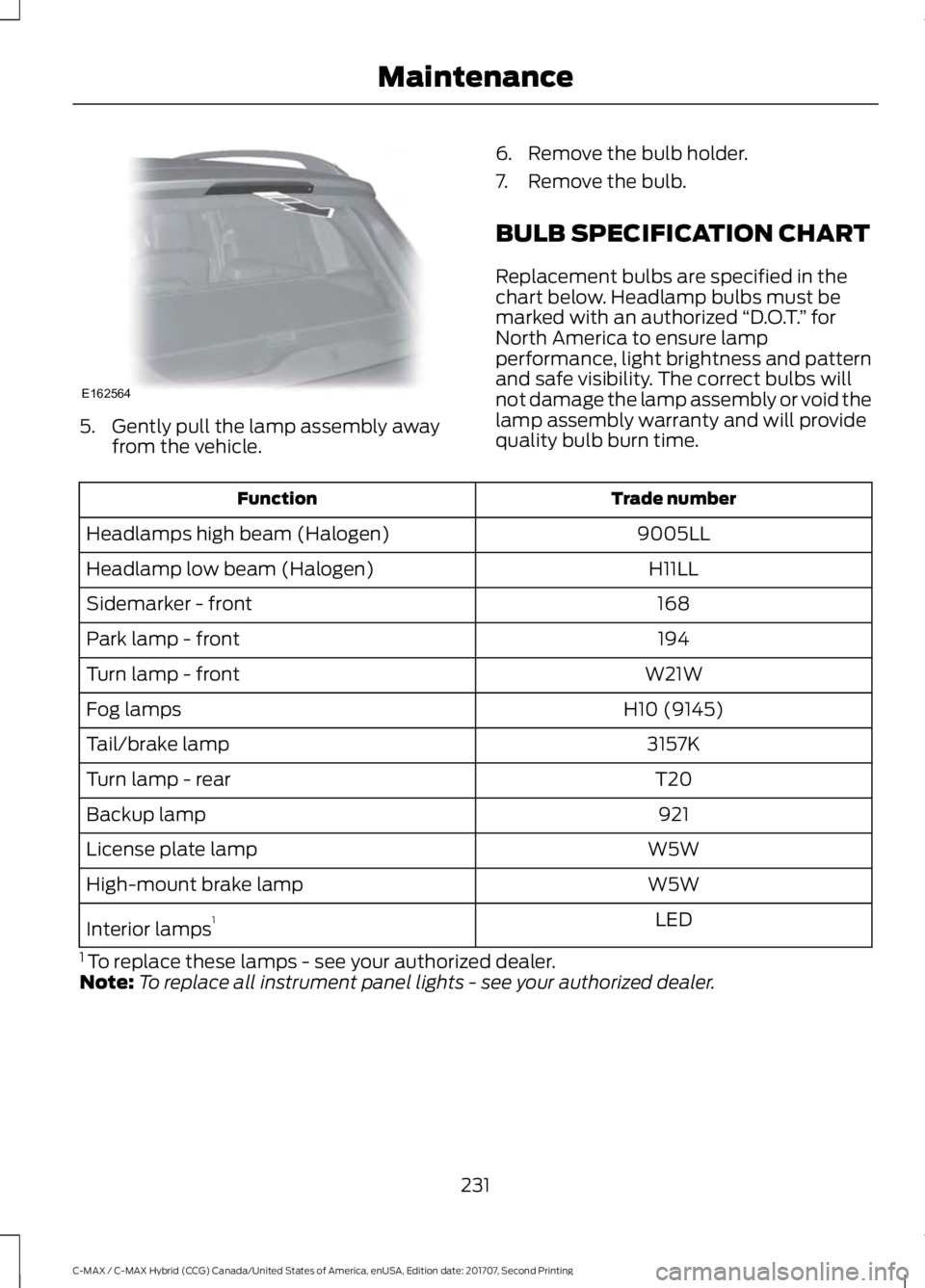

BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized
“D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time. Trade number
Function
9005LL
Headlamps high beam (Halogen)
H11LL
Headlamp low beam (Halogen)
168
Sidemarker - front
194
Park lamp - front
W21W
Turn lamp - front
H10 (9145)
Fog lamps
3157K
Tail/brake lamp
T20
Turn lamp - rear
921
Backup lamp
W5W
License plate lamp
W5W
High-mount brake lamp
LED
Interior lamps 1
1 To replace these lamps - see your authorized dealer.
Note: To replace all instrument panel lights - see your authorized dealer.
231
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing MaintenanceE162564

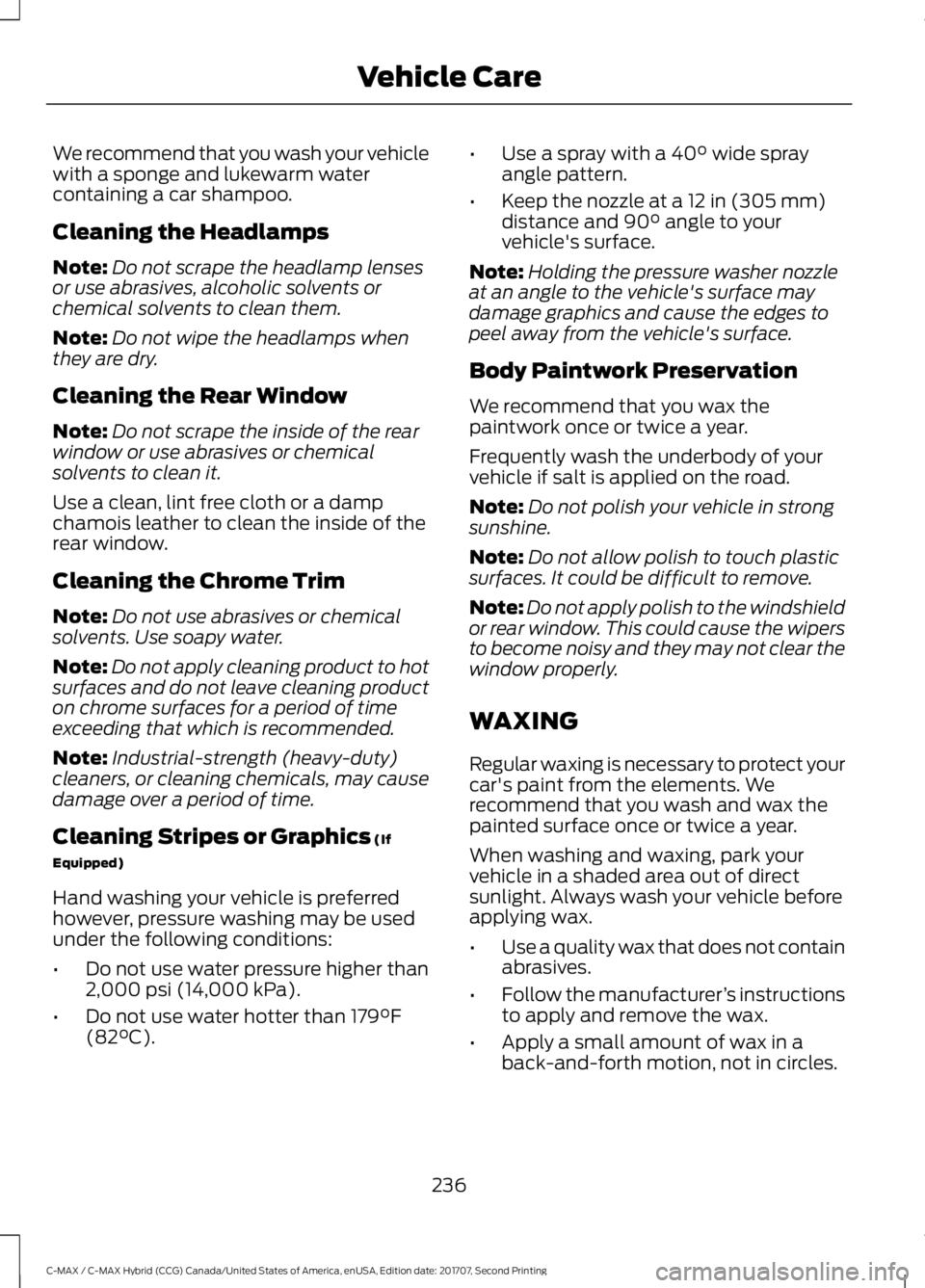

We recommend that you wash your vehicle
with a sponge and lukewarm water
containing a car shampoo.
Cleaning the Headlamps
Note:
Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.
Note: Do not wipe the headlamps when
they are dry.
Cleaning the Rear Window
Note: Do not scrape the inside of the rear
window or use abrasives or chemical
solvents to clean it.
Use a clean, lint free cloth or a damp
chamois leather to clean the inside of the
rear window.
Cleaning the Chrome Trim
Note: Do not use abrasives or chemical
solvents. Use soapy water.
Note: Do not apply cleaning product to hot
surfaces and do not leave cleaning product
on chrome surfaces for a period of time
exceeding that which is recommended.
Note: Industrial-strength (heavy-duty)
cleaners, or cleaning chemicals, may cause
damage over a period of time.
Cleaning Stripes or Graphics (If
Equipped)
Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:
• Do not use water pressure higher than
2,000 psi (14,000 kPa)
.
• Do not use water hotter than
179°F
(82°C). •
Use a spray with a
40° wide spray
angle pattern.
• Keep the nozzle at a
12 in (305 mm)
distance and 90° angle to your
vehicle's surface.
Note: Holding the pressure washer nozzle
at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.
Body Paintwork Preservation
We recommend that you wax the
paintwork once or twice a year.
Frequently wash the underbody of your
vehicle if salt is applied on the road.
Note: Do not polish your vehicle in strong
sunshine.
Note: Do not allow polish to touch plastic
surfaces. It could be difficult to remove.
Note: Do not apply polish to the windshield
or rear window. This could cause the wipers
to become noisy and they may not clear the
window properly.
WAXING
Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.
When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight. Always wash your vehicle before
applying wax.
• Use a quality wax that does not contain
abrasives.
• Follow the manufacturer ’s instructions
to apply and remove the wax.
• Apply a small amount of wax in a
back-and-forth motion, not in circles.
236
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Vehicle Care

A
A/C
See: Climate Control......................................... 106
About This Manual...........................................7
ABS See: Brakes............................................................ 153
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 154
Accessories......................................................411 Exterior style.......................................................... 411
Interior style........................................................... 411
Lifestyle................................................................... 411
Peace of mind....................................................... 411
Accessories See: Replacement Parts
Recommendation............................................ 12
Active Park Assist..........................................161 Automatic Steering into Parking
Space................................................................. 163
Deactivating the Park Assist Feature..........163
Troubleshooting the System.......................... 164
Using Active Park Assist................................... 162
Adjusting the Headlamps.........................225 Horizontal Aim Adjustment........................... 226
Vertical Aim Adjustment................................. 225
Adjusting the Steering Wheel...................68
Airbag Disposal
..............................................46
Air Conditioning See: Climate Control......................................... 106
Air Filter See: Changing the Engine Air Filter.............232
Alarm See: Anti-Theft Alarm......................................... 67
Ambient Lighting
............................................78
Anti-Theft Alarm............................................67
Arming the Alarm................................................. 67
Disarming the Alarm........................................... 67
Appendices....................................................433
Apps.................................................................380 ........................................................................\
.......... 380
SiriusXM Traffic and Travel Link................... 382
At a Glance........................................................16
Audible Warnings and Indicators............90 Automatic Transmission Warning
Chime................................................................... 91
Engine On Warning Chime............................... 90Headlamps On Warning Chime.......................
91
Key in Ignition Warning Chime........................ 90
Keyless Warning Alert ....................................... 90
Parking Brake On Warning Chime................... 91
Audio Control..................................................68 Seek, Next or Previous....................................... 69
Audio System.................................................277 General Information.......................................... 277
Audio Unit - Vehicles With: AM/FM/CD/ Satellite Radio...........................................282
Menu Structure.................................................. 284
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Touchscreen Display
.................280
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................278
Audio Unit - Vehicles With: Sony Audio System..........................................................287
Autolamps.........................................................75 Windshield Wiper Activated
Headlamps......................................................... 75
Automatic Climate Control
......................106
Smart Zone........................................................... 107
Automatic Engine Shutdown...................129
Automatic Transmission...........................150 Brake-Shift Interlock Override........................ 151
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 152
Understanding the Shift Positions of your Automatic Transmission............................ 150
Automatic Transmission Fluid Check
............................................................220
Autowipers.........................................................71 Autowipers Settings............................................ 72
Auxiliary Power Points
................................122
110 Volt AC Power Point.................................... 122
12 Volt DC Power Point...................................... 122
Locations................................................................ 122
B
Battery See: Changing the 12V Battery...................... 222
Blind Spot Information System...............170 Switching the System Off and On.................171
System Errors......................................................... 171
Using the Blind Spot Information System............................................................... 170
463
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Index

BLIS
See: Blind Spot Information System...........170
Body Styling Kits..........................................243
Bonnet Lock See: Opening and Closing the Hood............212
Booster Seats..................................................25 Types of Booster Seats...................................... 26
Brake Fluid Check
.........................................221
Brakes...............................................................153
General Information.......................................... 153
Breaking-In......................................................183
Bulb Specification Chart............................231
C
Cabin Air Filter...............................................109
California Proposition 65..............................11
Capacities and Specifications
................274
Specifications...................................................... 274
Car Wash See: Cleaning the Exterior.............................. 235
Catalytic Converter......................................144 On-Board Diagnostics (OBD-II).................... 145
Readiness for Inspection and Maintenance (I/M) Testing................................................... 145
Center Console
..............................................124
Changing a Bulb...........................................226
Replacing Fog, Park and Direction Indicator
Bulbs.................................................................. 228
Replacing Headlamp Bulbs........................... 226
Replacing License Plate Lamp Bulb..........230
Replacing Reverse Lamp and Tail Lamp Bulbs.................................................................. 229
Replacing Tail, Brake and Direction Indicator Bulbs............................................... 228
Replacing the Center High Mounted Brake Lamp Bulbs..................................................... 230
Changing a Fuse...........................................210 Fuses....................................................................... 210
Changing the 12V Battery..........................222
Changing the Engine Air Filter.................232 Air Cleaner Assembly Components............232
Installing the Engine Air Filter
Element............................................................ 233
Removing the Engine Air Filter Element............................................................ 233Changing the Wiper Blades.....................223
Changing the Rear Window Wiper
Blade
.................................................................. 224
Changing the Windshield Wiper Blades................................................................ 224
Service Position.................................................. 223
Checking MyKey System Status...............55 MyKey Distance.................................................... 55
Number of Admin Keys...................................... 55
Number of MyKeys.............................................. 55
Checking the Wiper Blades......................223
Child Restraint and Seatbelt Maintenance.................................................35
Child Restraint Positioning
..........................27
Child Safety.......................................................18
General Information............................................. 18
Child Safety Locks.........................................28 Left-Hand Side...................................................... 29
Right-Hand Side................................................... 29
Cleaning Leather Seats
.............................240
Cleaning Products.......................................235
Materials................................................................ 235
Cleaning the Engine
....................................237
Cleaning the Exterior..................................235
Body Paintwork Preservation........................ 236
Cleaning Stripes or Graphics......................... 236
Cleaning the Chrome Trim............................. 236
Cleaning the Headlamps................................ 236
Cleaning the Rear Window............................ 236
Cleaning the Instrument Panel and Instrument Cluster Lens.........................239
Cleaning the Interior...................................238 Fabric, Carpets, Cloth Seats, Headliners
and Floor Mats............................................... 238
Instrument Cluster Screens, LCD Screens and Radio Screens....................................... 239
Leather Interior................................................... 238
Rear Windows..................................................... 239
Seatbelts............................................................... 238
Storage Compartments, Cup Holders and Ashtrays............................................................ 239
Suede Micro Fiber Fabric................................ 238
Cleaning the Wheels
..................................240
Cleaning the Windows and Wiper Blades............................................................237
Clearing All MyKeys.......................................53
Climate Control
............................................106
464
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Index

Event Data Recording
See: Data Recording.............................................. 9
Export Unique Options..................................13
Exterior Mirrors...............................................80
Blind Spot Information System...................... 82
Fold-Away Exterior Mirrors................................ 81
Heated Exterior Mirrors....................................... 81
Integrated Blind Spot Mirrors........................... 81
Power Exterior Mirrors........................................ 80
Puddle Lamps........................................................ 81
Signal Indicator Mirrors....................................... 81
F
Fastening the Seatbelts
................................31
Seatbelt Locking Modes.................................... 32
Using Seatbelts During Pregnancy.................31
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................244
Floor Mats
.......................................................184
Fog Lamps - Front See: Front Fog Lamps......................................... 77
Ford Credit
..........................................................11
US Only...................................................................... 11
Ford Protect....................................................413 Ford Protect Extended Service Plan
(CANADA ONLY)........................................... 414
Ford Protect Extended Service Plans (U.S. Only)................................................................... 413
Front Fog Lamps.............................................77
Front Parking Aid..........................................160 Obstacle Distance Indicator............................ 161
Front Passenger Sensing System............40
Fuel and Refueling.......................................136
Fuel Consumption
.........................................141
Fuel Economy....................................................... 141
Fuel Filler Funnel Location........................137
Fuel Filter
..........................................................221
Fuel Quality.....................................................136 Choosing the Right Fuel................................... 136
Fuel Shutoff....................................................187
Fuses.................................................................201
Fuse Specification Chart...........................201 Luggage Compartment Fuse Panel............207
Passenger Compartment Fuse
Panel................................................................. 204
Power Distribution Box..................................... 201
Pre-Fuse Box........................................................ 201G
Garage Door Opener
See: Universal Garage Door Opener............118
Gauges...............................................................85 Left Information Display.................................... 85
Right Information Display................................. 86
Gearbox See: Transmission.............................................. 150
General Information on Radio Frequencies...................................................47
Intelligent Access.................................................. 47
General Maintenance Information........415 Multi-point Inspection....................................... 417
Owner Checks and Services.......................... 416
Protecting Your Investment............................ 415
Why Maintain Your Vehicle?.......................... 415
Why Maintain Your Vehicle at Your Dealership?...................................................... 415
Getting Assistance Outside the U.S. and Canada..........................................................197
Getting the Services You Need...............194 Away From Home.............................................. 194
Global Opening
..............................................80
Opening the Windows....................................... 80
H
Handbrake See: Parking Brake............................................. 154
Hazard Flashers.............................................187
Headlamp Adjusting See: Adjusting the Headlamps..................... 225
Headlamp Exit Delay....................................76
Headlamp Removal See: Removing a Headlamp.......................... 226
Headrest See: Head Restraints........................................... 111
Head Restraints
...............................................111
Adjusting the Head Restraint.......................... 112
Heated Seats
...................................................117
Heated Windows and Mirrors..................108 Heated Exterior Mirrors.................................... 109
Heated Rear Window....................................... 109
Heating See: Climate Control......................................... 106
466
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Index

L
Liftgate...............................................................62
Lighting Control...............................................74
Headlamp Flasher................................................ 75
Headlamp High Beam........................................ 74
Lighting...............................................................74 General Information............................................ 74
Load Carrying
..................................................175
Load Limit........................................................176 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 180
Vehicle Loading - with and without a Trailer.................................................................. 176
Load Retaining Fixtures
..............................176
Luggage Anchor Points..................................... 176
Locking and Unlocking
.................................57
Activating Intelligent Access........................... 58
Autolock.................................................................. 60
Battery Saver.......................................................... 61
Illuminated Entry................................................. 60
Illuminated Exit..................................................... 60
Mechanical Key..................................................... 58
Opening a Rear Door from Inside.................. 58
Power Door Locks................................................. 57
Remote Control..................................................... 57
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 59
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 59
Luggage Covers..............................................175 Removing the Shade......................................... 175
M
Maintenance...................................................212 General Information........................................... 212
Manual Liftgate
...............................................62
Closing the Liftgate............................................. 62
Opening the Liftgate........................................... 62
Manual Seats
..................................................113
Moving the Seat Backward and
Forward.............................................................. 113
Recline Adjustment............................................ 114
Message Center See: Information Displays................................. 92Mirrors
See: Heated Windows and Mirrors..............108
See: Windows and Mirrors................................ 79
Mobile Communications Equipment.......13
Motorcraft Parts............................................271
MyKey Troubleshooting...............................55
MyKey ™
.............................................................52
Principle of Operation......................................... 52
N
Navigation
......................................................368
cityseeker.............................................................. 375
Destination Mode.............................................. 370
Map Mode............................................................ 369
Navigation Map Updates................................ 376
Navigation Menu................................................ 373
SiriusXM Traffic and Travel Link................... 376
SYNC AppLink..................................................... 375
Waypoints............................................................. 374
Normal Scheduled Maintenance...........418 Intelligent Oil-Life Monitor™......................... 418
Normal Maintenance Intervals..................... 419
O
Oil Change Indicator Reset.......................216 Resetting the Oil Life Monitoring
System............................................................... 216
Oil Check See: Engine Oil Check....................................... 215
Opening and Closing the Hood...............212 Closing the Hood ................................................. 213
Opening the Hood.............................................. 212
Ordering Additional Owner's Literature......................................................198
Obtaining a French Owner ’s Manual..........199
Overhead Console........................................124
P
Parking Aids....................................................159 Principle of Operation....................................... 159
Parking Brake
.................................................154
Passive Anti-Theft System........................66 SecuriLock®........................................................... 66
PATS See: Passive Anti-Theft System.................... 66
468
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Index
