FORD CONTOUR 1996 2.G Owners Manual

204
*
[SV06625(ALL)05/95]
NOTE: If you spill any fuel on the body of your vehicle,
clean it off immediately. The fuel may dull or soften
the paint if you do not wash it off.
[SV06650(ALL)05/95]3.
Replace the fuel cap completely when you are finished. Turn
it clockwise until it is tight. It will click when it is fully
tightened.
*
[SV06675(ALL)05/95]4.
Push the fuel door closed.
*
[SV06690(ALL)06/95]
If you lose the fuel cap, replace it with an authorized Motorcraft
or equivalent part.
%*
[SV06700(ALL)05/95]
RWARNING
If you do not use the proper fuel cap, the pressure in the
fuel tank can damage the fuel system or cause it to work
improperly in a collision.
*
[SV06750(ALL)05/95]
NOTE: If you replace your fuel cap with an aftermarket fuel
filler cap, the customer warranty may be void for any
damage to the fuel tank and/or fuel system.
%*
[SV07500(ALL)05/95]
Choosing the Right Fuel
*
[SV07600(ALL)05/95]
Use only UNLEADED FUEL in your vehicle. Using leaded fuel
is prohibited by federal law. Your warranty may not apply if
your vehicle is damaged because you used the wrong fuel.
*
[SV07625(ALL)05/95]
Using a high-quality fuel makes your vehicle more responsive
and maintain its good fuel economy and emissions. It should
not be necessary to add any aftermarket products to your fuel
tank if you continue to use a high-quality fuel.
*
[SV07700(ALL)05/95]
Octane recommendations
*
[SV07750(ALL)05/95]
Your engine is designed to use regular fuel with an octane
rating of 87. In most cases it is not necessary to use a fuel with
an octane rating higher than 87. At service stations, the octane
rating is displayed in a label on the pumps.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
205
*
[SV07800(ALL)06/95]
6 pica art:0040193-A
Typical octane rating label
*
[SV07850(ALL)06/95]
Using a fuel with a lower octane rating can cause persistent and
heavy knocking, which can damage the engine.
*
[SV07900(ALL)05/95]
Do not be concerned if your vehicle sometimes knocks lightly
when you drive up a hill or when you accelerate. However, see
your dealer or a qualified service technician if persistent heavy
knocking occurs because this can damage the engine.
*
[SV09450(ALL)05/95]
If your vehicle has problems with starting, rough idle or
hesitation problems when the engine is cold, it may be caused
by fuel with low volatility. Try a different brand of fuel. If the
condition persists, see your dealer or a qualified service
technician.
*
[SV09875(ALL)05/95]
Gasolines for clean air
*
[SV09900(ALL)06/95]
Fuels in certain areas of the country are required to contain
oxygenates to improve air quality. Common oxygenates are
ethanol or grain alcohol (blended at no more than 10%),
methanol or wood alcohol (blended at no more than 5% with
cosolvents and additives), and MTBE or methyl tertiary butyl
ether (blended at no more than 15%).
*
[SV09950(ALL)05/95]
Reformulated fuel is also required in certain areas of the U.S.
These fuels are designed to further reduce the emissions from
your vehicle.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

206
*
[SV10000(ALL)06/95]
Generally, you should not experience difficulties operating your
vehicle on fuels containing oxygenates. We encourage you to
use these fuels.
*
[SV10185(ALL)06/95]
Safety Information Relating to Automotive Fuels
*
[SV10195(ALL)05/95]
RWARNING
Automotive fuels can cause serious injury or death if
misused or mishandled.
*
[SV10300(ALL)05/95]
n
Turn vehicle off when refueling
*
[SV10400(ALL)05/95]
n
Do not smoke when refueling. Fuels are extremely
flammable.
*
[SV10500(ALL)05/95]
n
Do not siphon any fuel by mouth.
*
[SV10600(ALL)05/95]
RWARNING
Gasoline or gasoline blended with methanol can cause
blindness and possible death when swallowed. If any
fuel is swallowed, call a physician or poison control
center immediately.
*
[SV10700(ALL)05/95]
n
Avoid breathing vapors while refueling.
*
[SV10800(ALL)05/95]
n
If fuel is splashed on the skin, wash with soap and water.
*
[SV10900(ALL)05/95]
n
If fuel is splashed in the eyes, remove contact lenses (if
worn), flush with water for 15 minutes, and seek medical
attention.
*
[SV11000(ALL)05/95]
Gasoline and gasoline blends may contain small amounts of
carcinogens, such as benzene. Long-term exposure to unleaded
gasoline vapors has caused cancer in laboratory animals.
*
[SV11100(ALL)05/95]
If you are taking the medication ªAntabuseº or other forms of
disulfiram for the treatment of alcoholism, vapor or skin contact
with a gasoline-methanol blend may cause the same kind of
adverse reaction as drinking an alcoholic beverage. In sensitive
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
207 individuals, serious personal injury or sickness could result.
Consult a physician promptly if you experience an adverse
reaction.
%*
[SV11300(ALL)05/95]
Running Out of Fuel
*
[SV11325(ALL)05/95]
NOTE: Avoid running out of fuel because this situation may
have an adverse effect on modern powertrain
components.
*
[SV11550(ALL)05/95]
You may need to crank the engine several times before the fuel
system starts to pump fuel from the tank to the engine.
*
[SV11580(ALL)01/95]
RWARNING
Never pour fuel in the throttle body or attempt to start
the engine with the air cleaner removed. Doing so could
result in fire and personal injury.
%*
[SV11600(ALL)05/95]
Fuel Economy
*
[SV11700(ALL)05/95]
Fuel economy is an estimate of the efficiency of your vehicle
and can be calculated as Miles Per Gallon (MPG) or Liters Per
100 Kilometers (L/100K).
*
[SV11725(ALL)05/95]
Do not calculate fuel economy during your vehicle's break-in
period. This would not be an accurate estimate of how much
fuel your vehicle will normally use.
*
[SV11750(ALL)05/95]
To calculate fuel economy:
*
[SV11850(ALL)06/95]1.
Fill the tank completely and record the initial odometer
reading.
*
[SV11950(ALL)05/95]2.
Every time you buy fuel record the amount (in gallons or
liters) purchased.
*
[SV12150(ALL)05/95]3.
After at least three to five tankfuls, fill the fuel tank and
record the final odometer reading.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

208
*
[SV12200(ALL)05/95]4.
Use these equations to calculate your fuel economy:
*
[SV12250(ALL)05/95]
n
English: MPGU(total miles driven)V(gallons used)
*
[SV12275(ALL)05/95]
n
Metric: L/100kU(liters used)V(100 kilometers)
%*
[SV12300(ALL)05/95]
Comparisons With EPA Fuel Economy Estimates
*
[SV12400(ALL)05/95]
EPA fuel economy figures are obtained from laboratory tests
under simulated road conditions and may not reflect the actual
conditions you experience or your style of driving. The EPA
fuel economy estimate is not a guarantee that you will achieve
the fuel economy shown.
*
[SV12610(ALL)05/95]
The following decrease fuel economy:
*
[SV12615(ALL)05/95]
n
Lack of regular, scheduled maintenance
*
[SV12625(ALL)05/95]
n
Rapid acceleration and excessive speed
*
[SV12630(ALL)05/95]
n
Driving with your foot on the brake
*
[SV12635(ALL)05/95]
n
Sudden stops
*
[SV12640(ALL)05/95]
n
Extended engine idling
*
[SV12645(ALL)05/95]
n
Using speed control in hilly terrain
*
[SV12650(ALL)05/95]
n
Extended use of the A/C, defroster, rear window defroster
and other accessories
*
[SV12655(ALL)05/95]
n
Underinflated tires
*
[SV12660(ALL)05/95]
n
Heavy loads
*
[SV12665(ALL)05/95]
n
Aftermarket add-ons such as bike, ski or luggage racks, bug
deflectors, etc.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
209
*
[SV13510(ALL)02/95]
Self-Service Pointers
*
[SV13520(ALL)01/95]
If you choose to do your own fueling, you should also perform
a few simple maintenance routines. This extra effort will save
you additional money and contribute to the driving efficiency of
your vehicle.
*
[SV13530(ALL)01/95]
The following procedures require only a tire gauge, a rag, an oil
can spout and windshield washer fluid.
*
[SV13540(ALL)01/95]
n
Check the engine oil at every refueling stop
*
[SV13550(ALL)01/95]
n
Clean the windshield, outside mirrors and headlights
*
[SV13560(ALL)01/95]
n
Check windshield washer fluid
*
[SV13570(ALL)02/95]
n
Check tires for excessive wear or worn edges
*
[SV13580(ALL)01/95]
n
Check the tire pressure at least monthly
*
[SV13600(ALL)03/95]
Engine Oil Recommendations
*
[SV13610(ALL)05/95]
We recommend using Motorcraft oil or an equivalent oil
meeting Ford Specification ESE-M2C153-E and displaying the
American Petroleum Institute CERTIFICATION MARK on the
front of the container.
*
[SV13650(ALL)05/94]
10-1/2 pica
art:0001314-A
The API Certification Mark
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

210
*
[SV13670(ALL)01/95]
Neveruse:
*
[SV13680(ALL)01/95]
n
ªNon-Detergentº oils
*
[SV13690(ALL)04/95]
n
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[SV13700(ALL)01/95]
n
Additional engine oil additives, oil treatments or engine
treatments
[SV13710(ALL)04/95]
Engine oils with anSAE 5W-30viscosity arePREFERREDfor
your vehicle. They provide the best engine performance, fuel
economy and engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[SV13770(ALL)03/95]
Synthetic engine oils which are CERTIFIED and of the preferred
viscosity may be used in your engine. The engine oil and oil
filter must still be changed according to the maintenance
schedule.
*
[SV13775(ALL)01/95]
Checking and Adding Engine Oil
*
[SV13800(ALL)03/95]
Since the proper amount of engine oil is important for safe
engine operation, check the oil using the dipstick each time you
put fuel in your vehicle. Remember the engine must be off, the
oil must be warm and the vehicle must be parked on level
ground.
*
[SV13900(ALL)04/95]
Checking the engine oil level:
*
[SV14000(ALL)02/95]1.
Turn the engine off after it has warmed up and allow a few
minutes for the engine oil to drain back into the oil pan.
*
[SV14050(ALL)05/94]2.
Set the parking brake fully and make sure that the gearshift
is securely latched in P (Park) (automatic transaxle) or
1 (First) (manual transaxle).
*
[SV14100(ALL)02/95]3.
Open the hood. Protect yourself from engine heat.
*
[SV14200(ALL)03/95]4.
Locate the engine oil dipstick (highlighted in yellow) and
carefully pull it out of the engine.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
211
*
[SV14300(ALL)01/95]5.
Wipe the dipstick clean and put it back into position, making
sure it is fully seated.
[SV14350(ALL)05/94]
6 pica art:0001305-A
Engine oil dipstick (2.0L engine)
[SV14400(ALL)05/94]
6 pica art:0001245-A
Engine oil dipstick (2.5L engine)
[SV14450(ALL)05/94]6.
2.0L engine:Carefully, pull the dipstick out again. If the oil
level is below the lower notch, add engine oil as necessary.
If the oil level is beyond the upper notch, engine damage
and/or high oil comsumption may occur and some oil must
be removed from the engine.
[SV14500(ALL)05/95]
2.5L engine:Carefully, pull the dipstick out again. If the oil
level is below the MIN line, add engine oil as necessary. If
the oil level is above the letter M in MAX, engine damage
and/or high oil consumption may occur and some oil must
be removed from the engine.
*
[SV14600(ALL)01/95]7.
Put the dipstick back in and make sure it is fully seated.
*
[SV14800(ALL)01/95]
It may be necessary to add some oil between oil changes. Make
sure you use a CERTIFIED engine oil of the preferred viscosity.
Your vehicle's warranty coverage may not apply if engine
damage is caused by the use of improper engine oil.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

212
*
[SV15000(ALL)03/95]
Add engine oil through the oil filler cap highlighted in yellow.
To add oil, remove the filler cap and use a funnel to pour oil
into the opening. Be careful not to overfill the engine. Recheck
the oil level after you finish adding oil.
*
[SV15200(O )05/95]
Nearly all engines will consume engine oil. As a result, it may
be necessary to add some oil between oil changes.
*
[SV16300(ALL)06/95]
Changing the Engine Oil and the Oil Filter
[SV16400(ALL)03/95]
Change the engine oil and oil filter per the following, whichever
occurs first.
[SV16500(ALL)05/95]
twelve pica
chart:0001472-A*
[SV16600(ALL)04/95]
Refer to the Maintenance Schedule and Record Booklet for
additional information.
%*
[SV16700(ALL)04/95]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996

Servicing Your Contour
213
*
[SV17275(ALL)06/95]
RWARNING
Continuous contact with USED motor oil has caused
cancer in laboratory mice.
*
[SV17290(ALL)05/95]
Protect your skin by washing with soap and water.
*
[SV17300(ALL)03/95]
Engine Coolant
%*
[SV17320(ALL)03/95]
Checking the Engine Coolant
*
[SV17350(ALL)01/95]
NOTE: Be sure to read and understandPrecautions When
Servicing Your Vehicleat the beginning of this chapter.
*
[SV17400(ALL)05/95]
RWARNING
The cooling fan is automatic and may come on at any
time. Always disconnect the negative terminal of the
battery before working near the fan.
[SV17720(ALL)05/95]
13-1/2 pica
art:0000336-D

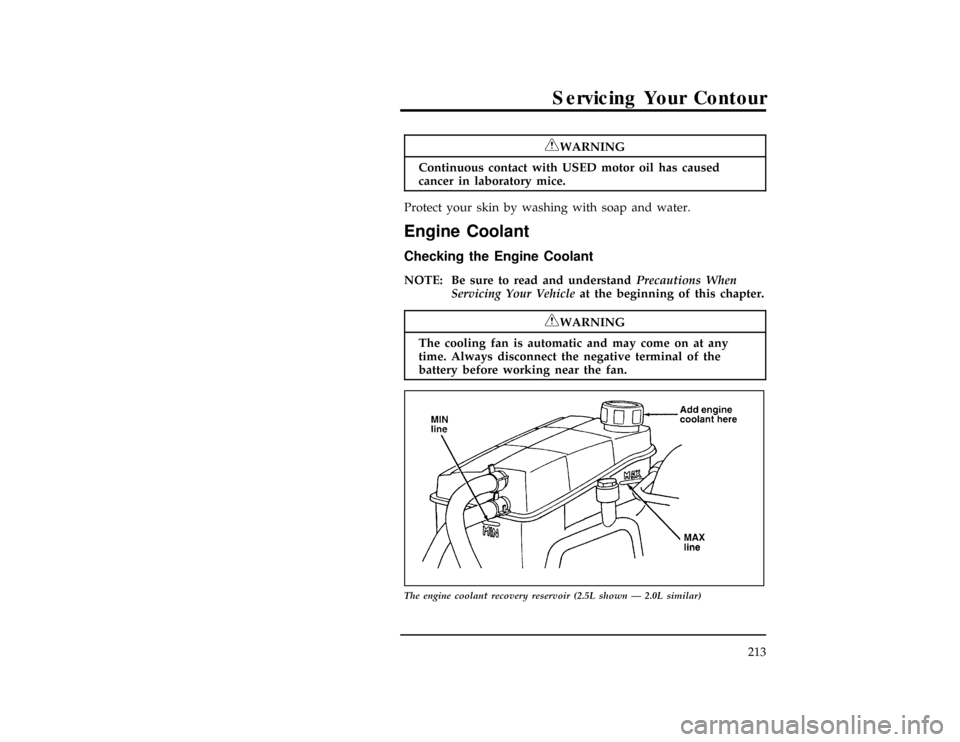

The engine coolant recovery reservoir (2.5L shown Ð 2.0L similar)
File:cdsvo.ex
Update:Thu Jan 25 12:09:28 1996
