Roadside Emergencies
151
*
[ER01300(ALL)01/96]4.
Turn the ignition key to the ON position for a few seconds,
then turn it to the OFF position.
*
[ER01400(ALL)03/96]5.
Check under the vehicle again for leaking fuel.If you see or
smell fuel, do not start your vehicle again.If you do not
see or smell fuel, you can try to start your vehicle again.
% [ER01900(ALL)12/95]
Fuses, Circuit Breakers and Relays
[ER02000(ALL)12/95]
Fuses, circuit breakers, and relays protect your vehicle's
electrical system from overloading. If electrical parts in your
vehicle are not working, the system may have been overloaded
and blown a fuse or relay, or tripped a circuit breaker. Before
you replace or repair any electrical parts, check the appropriate
circuit protector.
[ER02100(ALL)12/95]
The following charts tell you which circuit protector protects
each electrical part of your vehicle. If a fuse blows or a circuit
breaker opens a circuit, all the parts of your vehicle that use the
circuit will not work.
*
[ER02200(ALL)01/96]
Once you have determined which fuses or circuit breakers to
check, follow the procedures underChecking and replacing fuses
orChecking and replacing circuit breakerslater in this chapter.
*
[ER02300(ALL)12/95]
RWARNING
Always remove the key from the ignition before working
on or replacing fuses.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

152
% [ER02400(ALL)12/95]
The Power Distribution Box Fuses and Relays
[ER02500(ALL)12/95]
10-1/2 pica
art:0001227-A

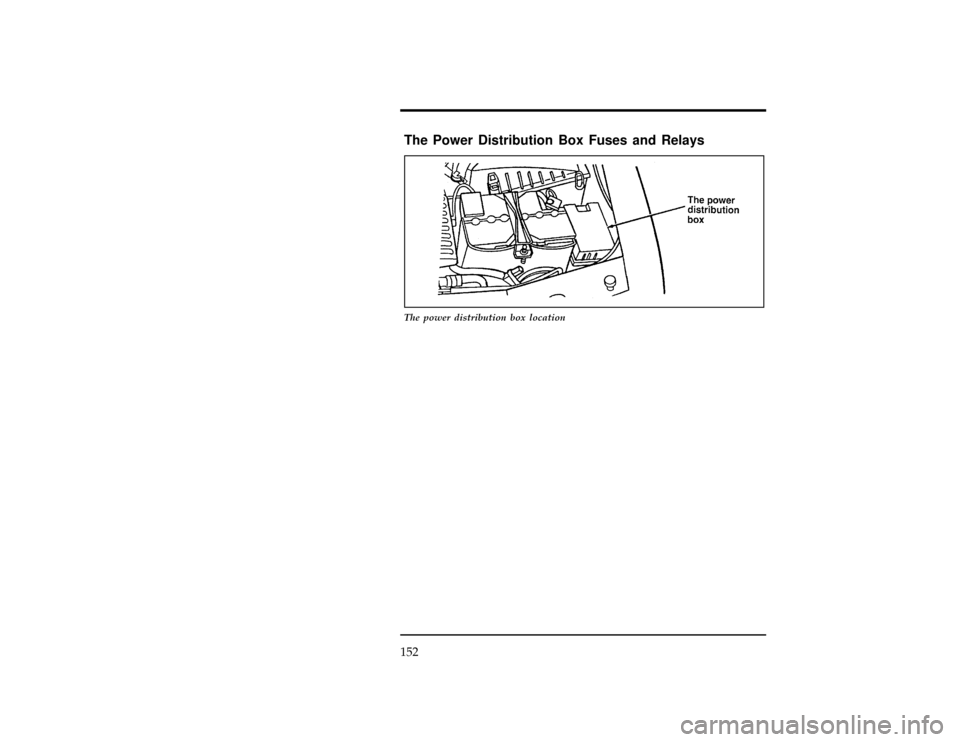

The power distribution box location
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

Roadside Emergencies
153
[ER02600(ALL)12/95]
24 pica art:0001228-A

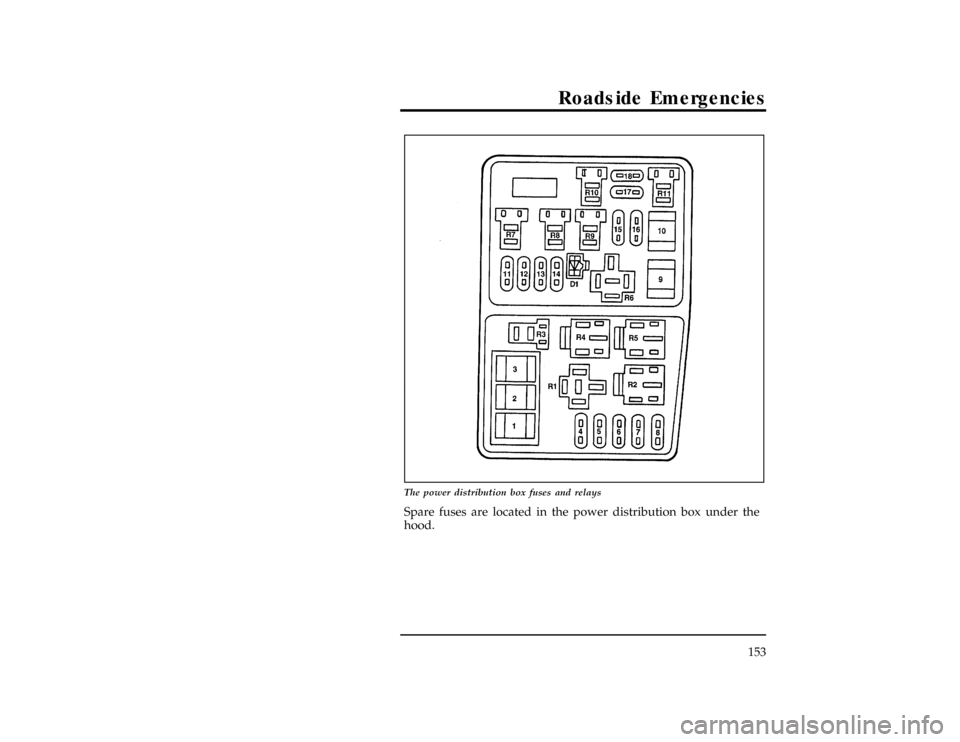

The power distribution box fuses and relays
[ER02700(ALL)12/95]
Spare fuses are located in the power distribution box under the
hood.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

156
%*
[ER03000(ALL)12/95]
The Instrument Panel Fuses, Circuit Breakers and
Relays
[ER03100(ALL)12/95]
The instrument panel fuse panel is underneath the instrument
panel on the left side. To open it, reach under the instrument
panel and push the release button to the right of the fuse panel.
[ER03150(O )12/95]
13-1/2 pica
art:0000377-B

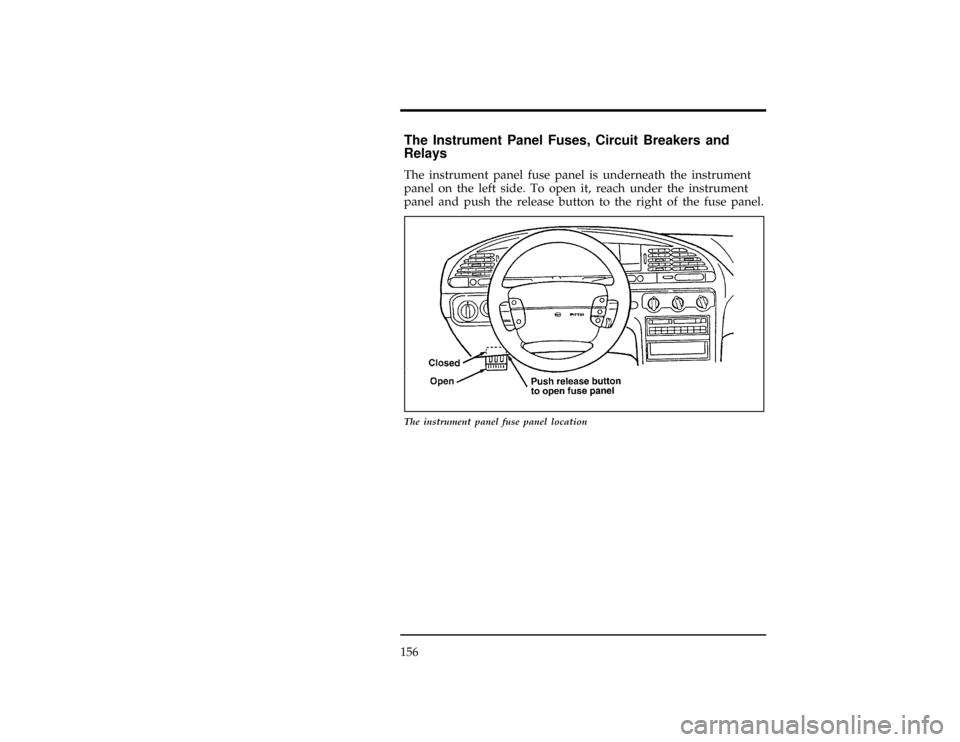

The instrument panel fuse panel location
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

Roadside Emergencies
159
[ER03500(ALL)12/95]
Relays Outside the Fuse Boxes
[ER03600(ALL)12/95]

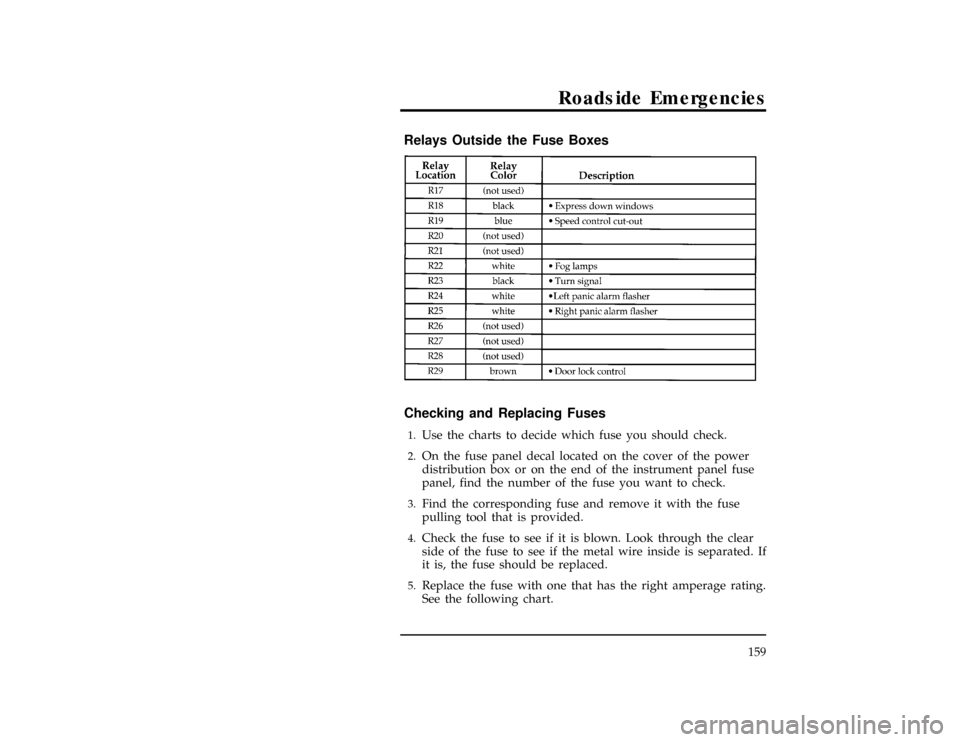

sixteen pica
chart:0001229-A%*
[ER03700(ALL)01/96]
Checking and Replacing Fuses
[ER03800(ALL)12/95]1.
Use the charts to decide which fuse you should check.
[ER03900(ALL)12/95]2.
On the fuse panel decal located on the cover of the power
distribution box or on the end of the instrument panel fuse
panel, find the number of the fuse you want to check.
[ER04000(ALL)12/95]3.
Find the corresponding fuse and remove it with the fuse
pulling tool that is provided.
[ER04100(ALL)12/95]4.
Check the fuse to see if it is blown. Look through the clear
side of the fuse to see if the metal wire inside is separated. If
it is, the fuse should be replaced.
[ER04200(ALL)12/95]5.
Replace the fuse with one that has the right amperage rating.
See the following chart.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

276
E
Electrical system
circuit breakers................... 160
fuses......................151, 159
relays....................... 151
Electronic radio with cassette (see Electronic
sound system).................. 38
Electronic sound system
antenna....................... 44
tuning the radio................. 25,39
warranty and service information............ 45
Electronic stereo cassette radio (see Electronic
sound system).................. 38
Electronic stereo radio (see Electronic sound system).... 38
Emergencies, roadside
assistance..................... 237
battery acid spills................169, 199
fuel........................ 213
jump-starting.................... 169
towing....................... 174
Emergency brake (parking brake)............ 128
Emission control system................ 216
catalytic converter.................. 216
emissions warranty................ 3,216
Engine
check engine warning light.............. 18
does not start..................120, 149
fuel injected engine, starting...........117±118
fuel pump shut-off switch.............. 149
preparing to start.................. 117
refill capacities................... 230
service points.................... 181
starting...................... 118
starting after a collision............... 149
storing your vehicle................. 233
Engine block heater.................. 122
Engine coolant.................... 191
