mirror FORD CONTOUR 1998 2.G Owners Manual

4
Instrumentation
Page 30
Turn signal/high beam
Page 6
Instrument clusterPage 29
Hazard flasher
control
Page 31
Windshield
wiper/washer
control
Page 132
Hood release
Page 17
Headlamp control/
Foglamp control*Page 28
Tilt steering
wheel leverPage 27
Ignition switch
Page 32
Speed control*
Page 29
Horn Page 19
Rear window
defroster control*
Page 20
Power mirrors*
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
Res
Set
Acc
CoastOff
On
NORMALEF 1
/
2
UNLEADED FUEL ONLY
BRAKE000123
000010 20 3040506070
80
90
100
110
120
130MPH
20 406055
80120 100
140
160
180
20012
03
x 1000
4
5
6
7
8
MIRRORS
CDW IIA2Instrum_en C 5/15/97 8:42 PM Page 4

Controls and features
17
MIRRORS
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY
12
03
x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
INSTRUMENT PANEL
CONTROLS
Headlamp control
Lamps off.
Turn one position clockwise:
Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps on.
Turn two positions clockwise:
Headlamps on.
CDW IIA2Instrum_en C 5/15/97 8:43 PM Page 17

Controls and features
20Power mirrors (if equipped)

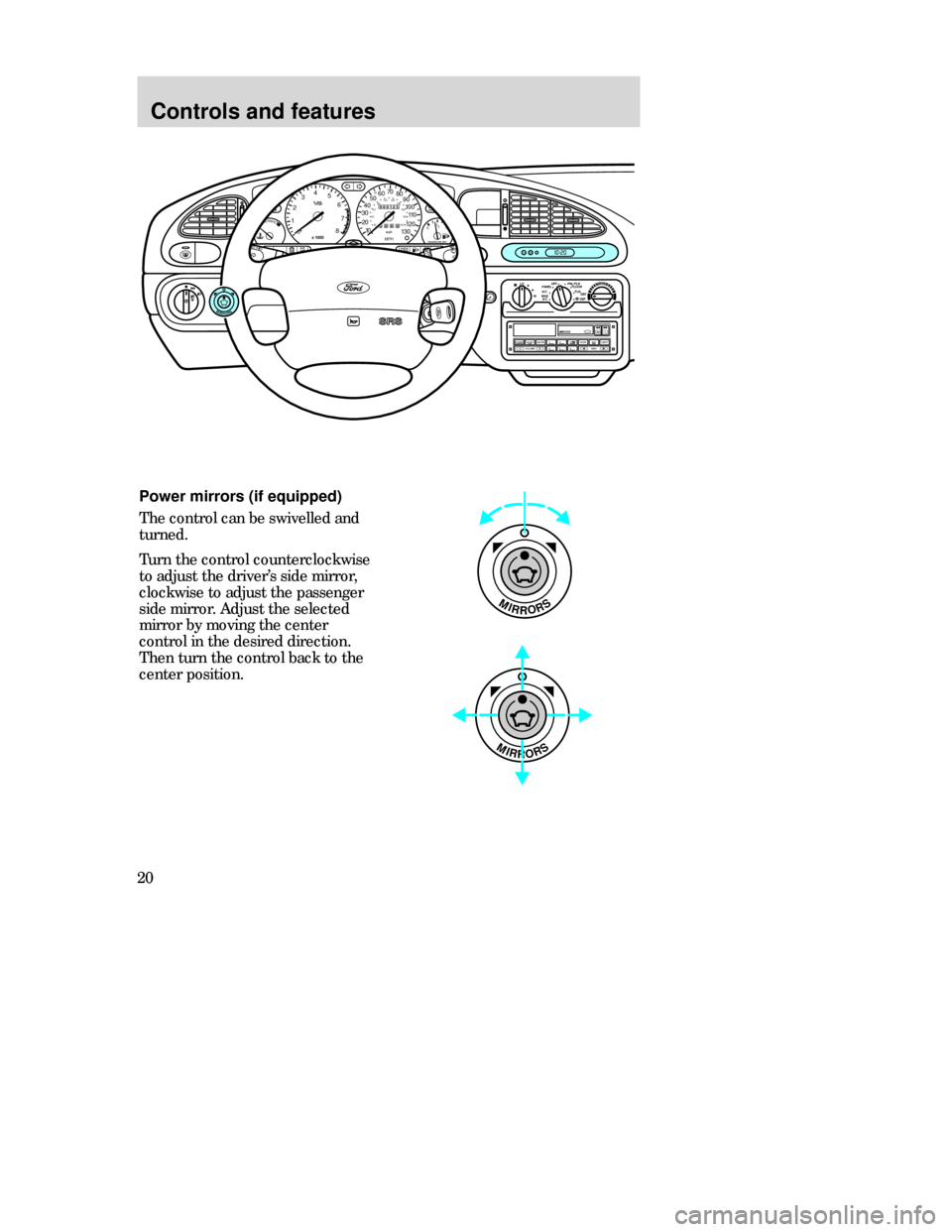

The control can be swivelled and
turned.
Turn the control counterclockwise
to adjust the driver’s side mirror,
clockwise to adjust the passenger
side mirror. Adjust the selected
mirror by moving the center
control in the desired direction.
Then turn the control back to the
center position.
MIRRORS
MIRRORS
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY
12
03
x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CDW IIIC3Controls en C 5/15/97 8:44 PM Page 20

Controls and features
22Climate controls
Vents

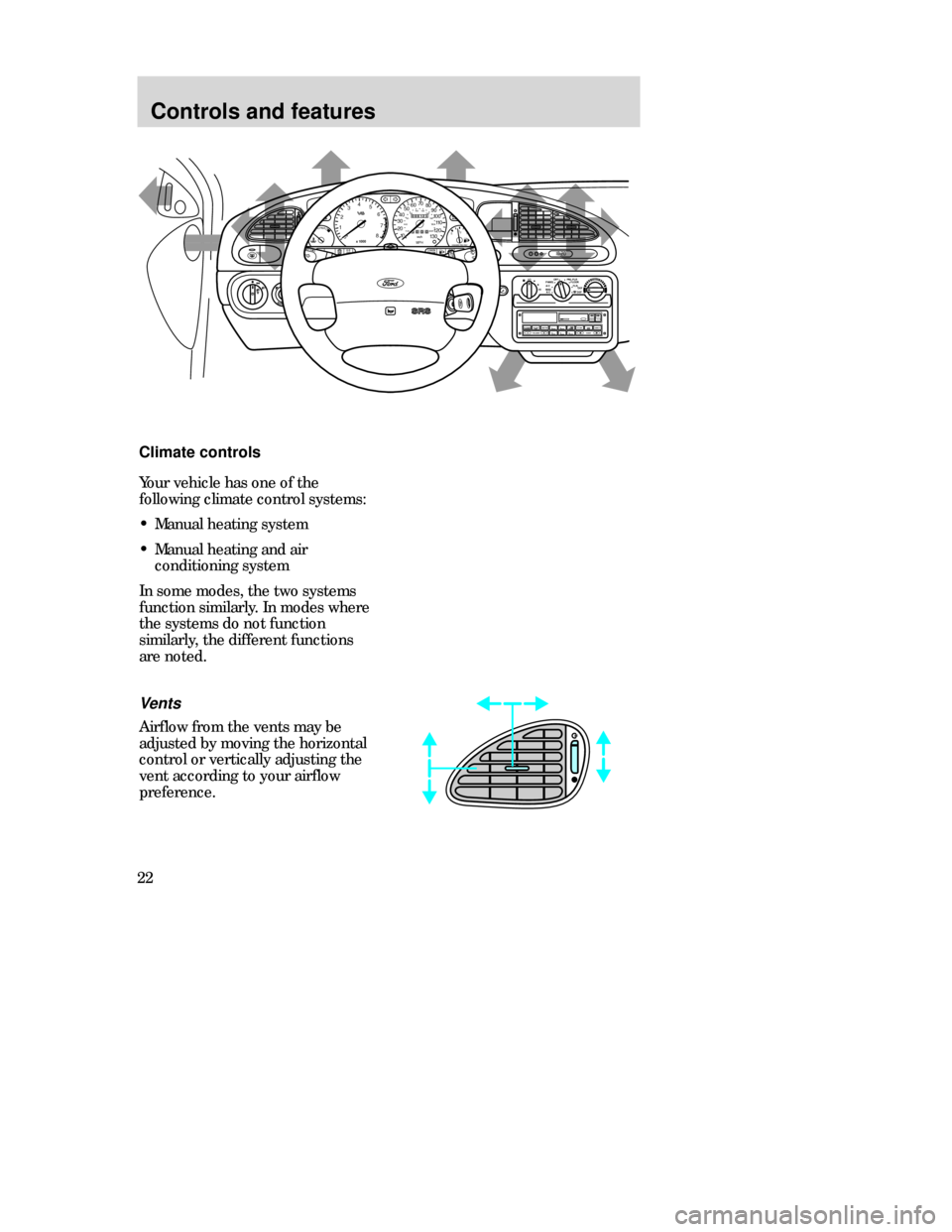

Airflow from the vents may be
adjusted by moving the horizontal
control or vertically adjusting the
vent according to your airflow
preference.
Your vehicle has one of the
following climate control systems:
•Manual heating system
•Manual heating and air
conditioning system
In some modes, the two systems
function similarly. In modes where
the systems do not function
similarly, the different functions
are noted.
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY
12
03x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CDW IIIC3Controls en C 5/15/97 8:44 PM Page 22

Controls and features
28Tilt steering

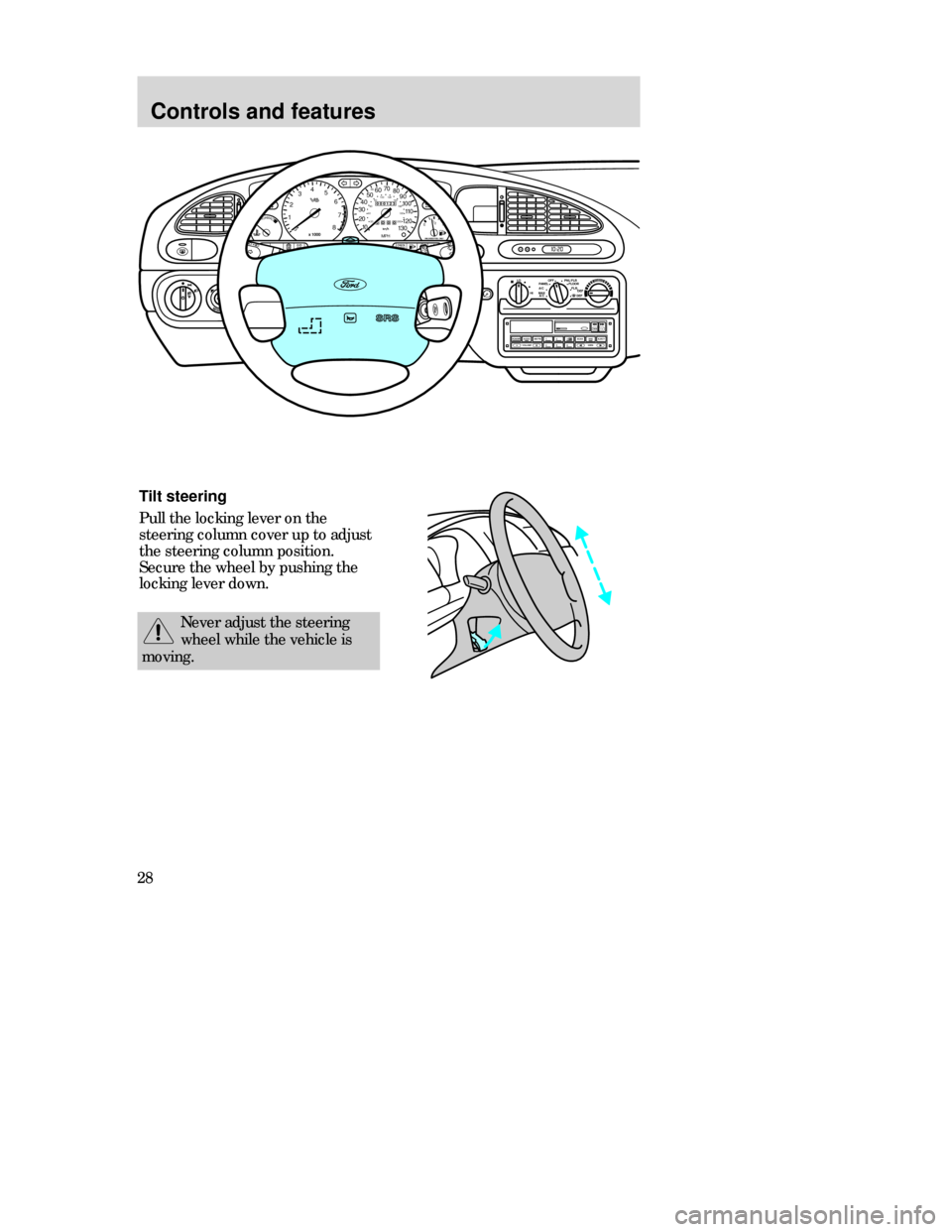

Pull the locking lever on the
steering column cover up to adjust
the steering column position.
Secure the wheel by pushing the
locking lever down.
Never adjust the steering
wheel while the vehicle is
moving.
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY
12
03
x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CDW IIIC3Controls en C 5/15/97 8:44 PM Page 28

Controls and features
30Multi-function switch
The turn signal functions are
available only with the ignition
switch on.

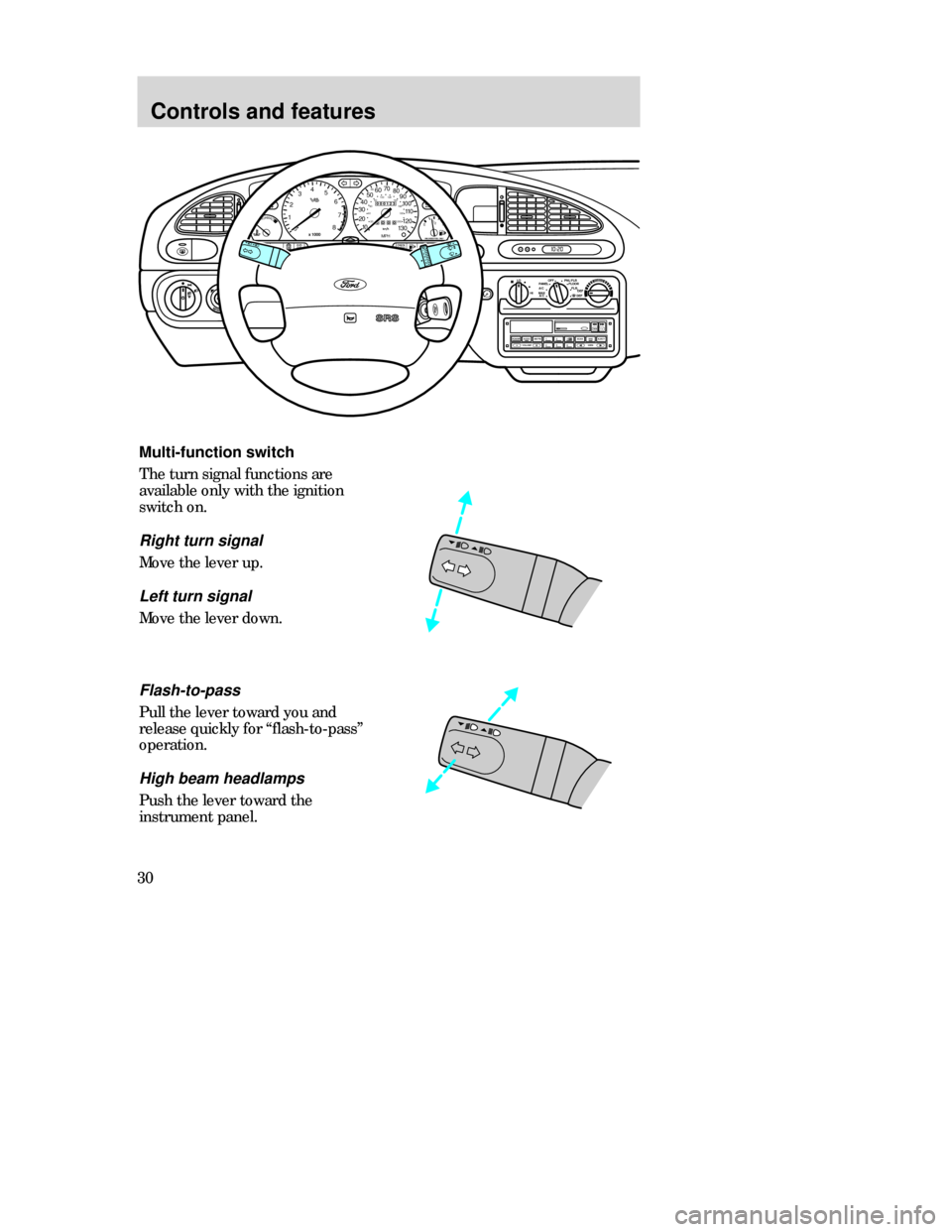

Right turn signal
Move the lever up.
Left turn signal
Move the lever down.
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY
12
03
x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
Flash-to-pass
Pull the lever toward you and
release quickly for “flash-to-pass”
operation.
High beam headlamps
Push the lever toward the
instrument panel.
CDW IIIC3Controls en C 5/15/97 8:44 PM Page 30

Controls and features
32

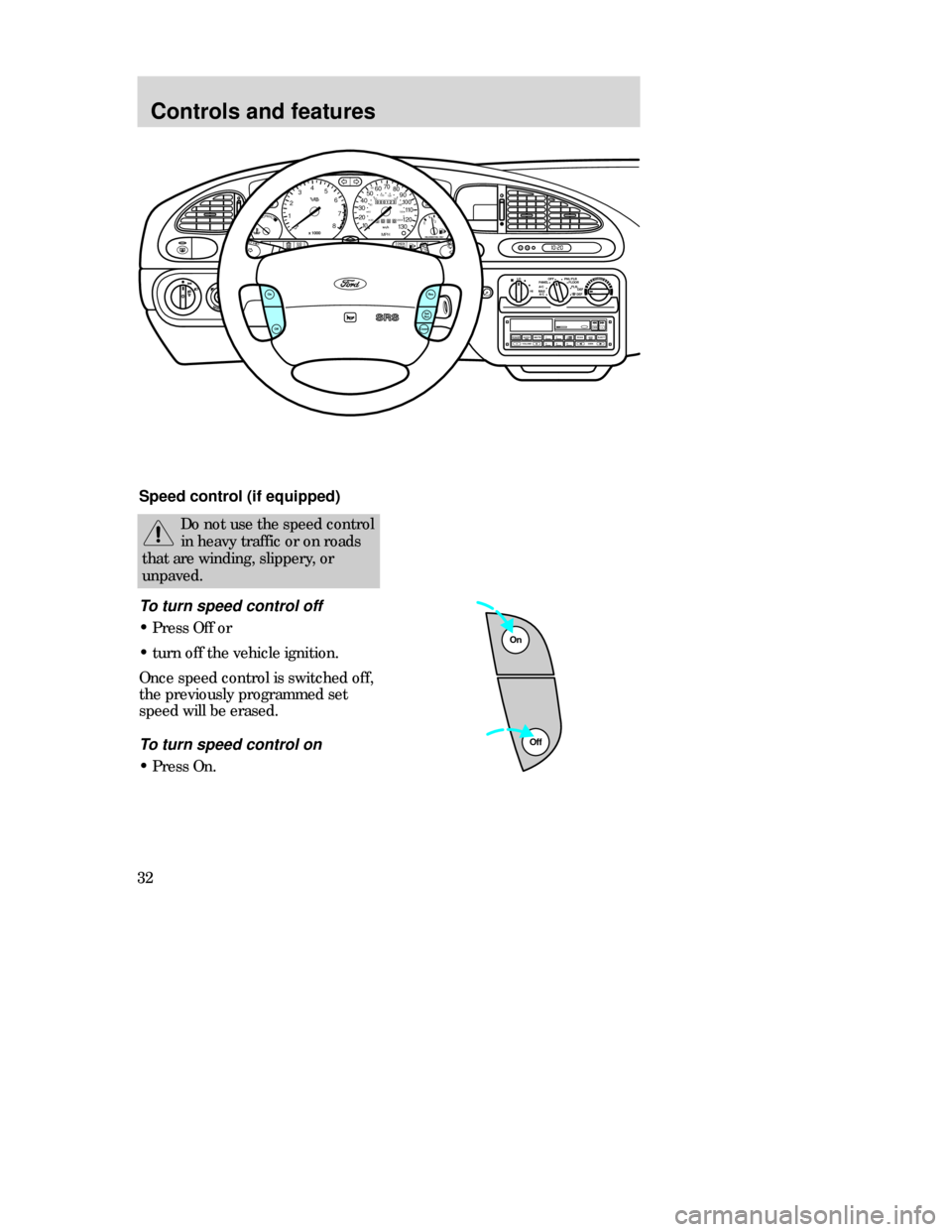

Do not use the speed control
in heavy traffic or on roads
that are winding, slippery, or
unpaved.
Off
On
Speed control (if equipped)
To turn speed control off
•Press Off or
•turn off the vehicle ignition.
Once speed control is switched off,
the previously programmed set
speed will be erased.
To turn speed control on
•Press On.
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY
12
03
x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORSRes
Set
AccCoastOff
On
CDW IIIC3Controls en C 5/15/97 8:44 PM Page 32

Seating and safety restraints
58Important supplemental
restraint system (SRS)
precautions

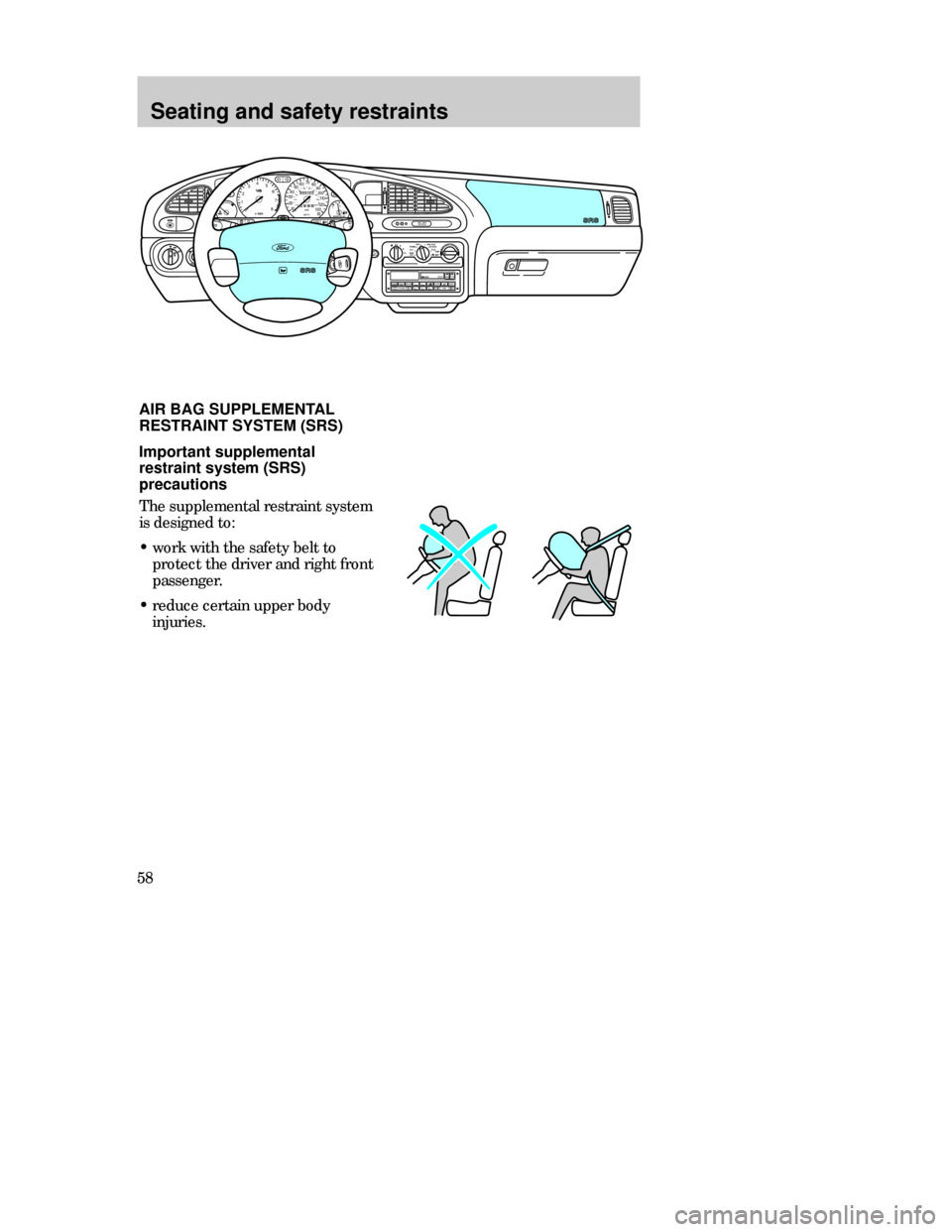

The supplemental restraint system
is designed to:
•work with the safety belt to
protect the driver and right front
passenger.
•reduce certain upper body
injuries.
AIR BAG SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
MIRRORS
HM:
I0 20
OFF LOPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWERAUDIOAM/FM
SCAN
SEEK 312645ANSSIDE1-2EJECTVOLUME
000123000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY12
03x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
CDW IIID Seat en C 5/15/97 8:48 PM Page 58

Roadside emergencies
117
Passenger compartment fuse panel (below instrument panel)
FuseAmpere
ratingColorCircuits protected
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38—
C10
40
7.5
15
15
20
7.5
15
30
30
7.5
7.5
7.5
7.5
7.5
7.5
10
30
——
black
orange
brown
light blue
light blue
yellow
brown
light blue
light green
light green
brown
brown
brown
brown
brown
brown
red
light green
–Not used
Wiper motors (circuit breaker)
Power windows
ABS module
Backup lamps
Brake lamps
Door locks
Main light
Cigar lighter
Electric seats
Rear window defrost
Engine management system
Instrument panel illumination
Radio
Parking lamps - driver’s side
Interior lighting/electric mirror
adjustment/clock
Parking lamps - passenger’s side
Air bag
Heater blower motor
Not used
CDW IVC1-6Roads en C 5/15/97 8:53 PM Page 117

Maintenance and care
132Opening the hood

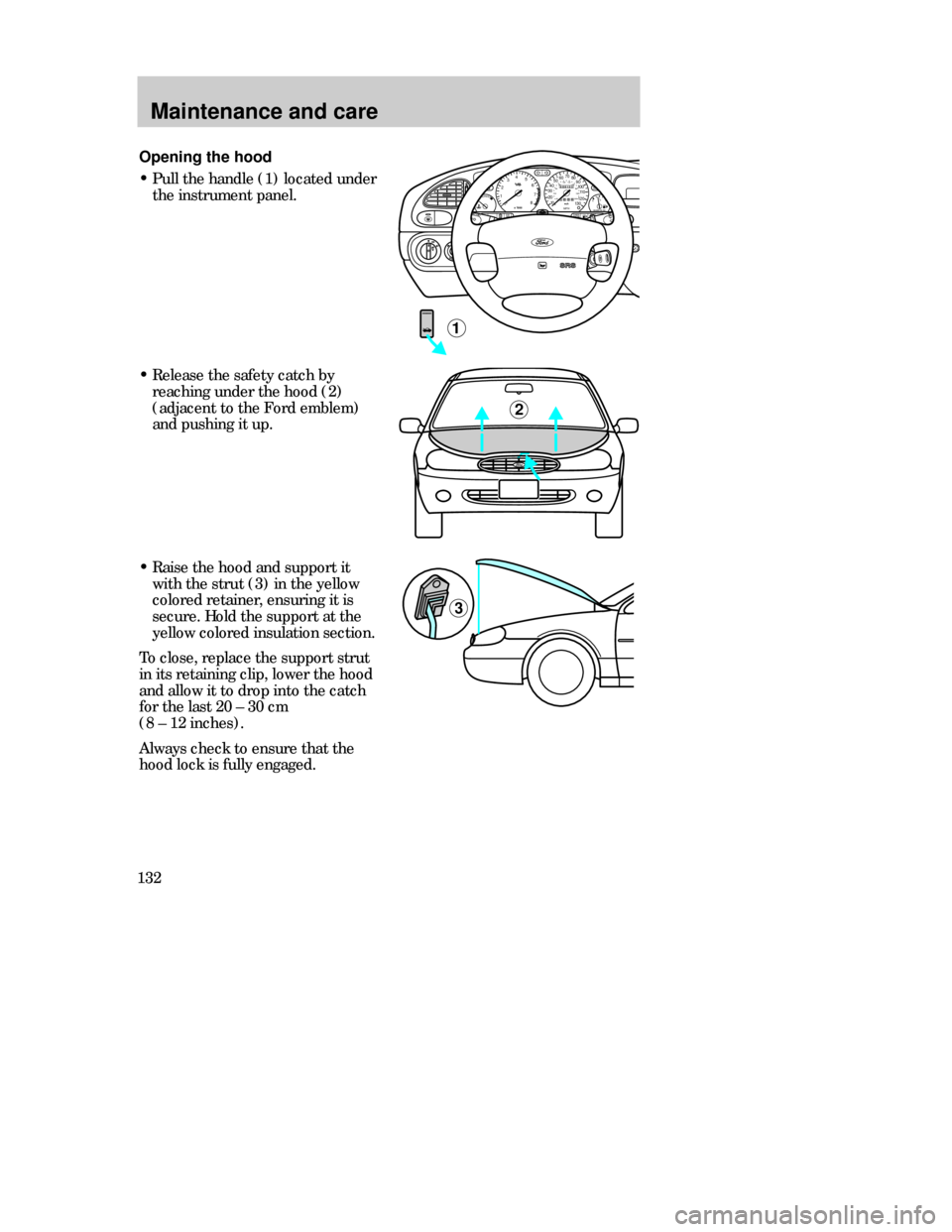

•Pull the handle (1) located under
the instrument panel.
000123000010 20 3040506070
80
90
100
110
120
130MPH20 406055
80120 100
140
160
180
200EF 1
/
2UNLEADED FUEL ONLY12
03x 1000
4
5
6
7
8
NORMALBRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
1
•Release the safety catch by
reaching under the hood (2)
(adjacent to the Ford emblem)
and pushing it up.
2
3
•Raise the hood and support it
with the strut (3) in the yellow
colored retainer, ensuring it is
secure. Hold the support at the
yellow colored insulation section.
To close, replace the support strut
in its retaining clip, lower the hood
and allow it to drop into the catch
for the last 20 – 30 cm
(8 – 12 inches).
Always check to ensure that the
hood lock is fully engaged.
CDW VA1-19Maint en C 5/15/97 8:56 PM Page 132
