Maintenance and care
175

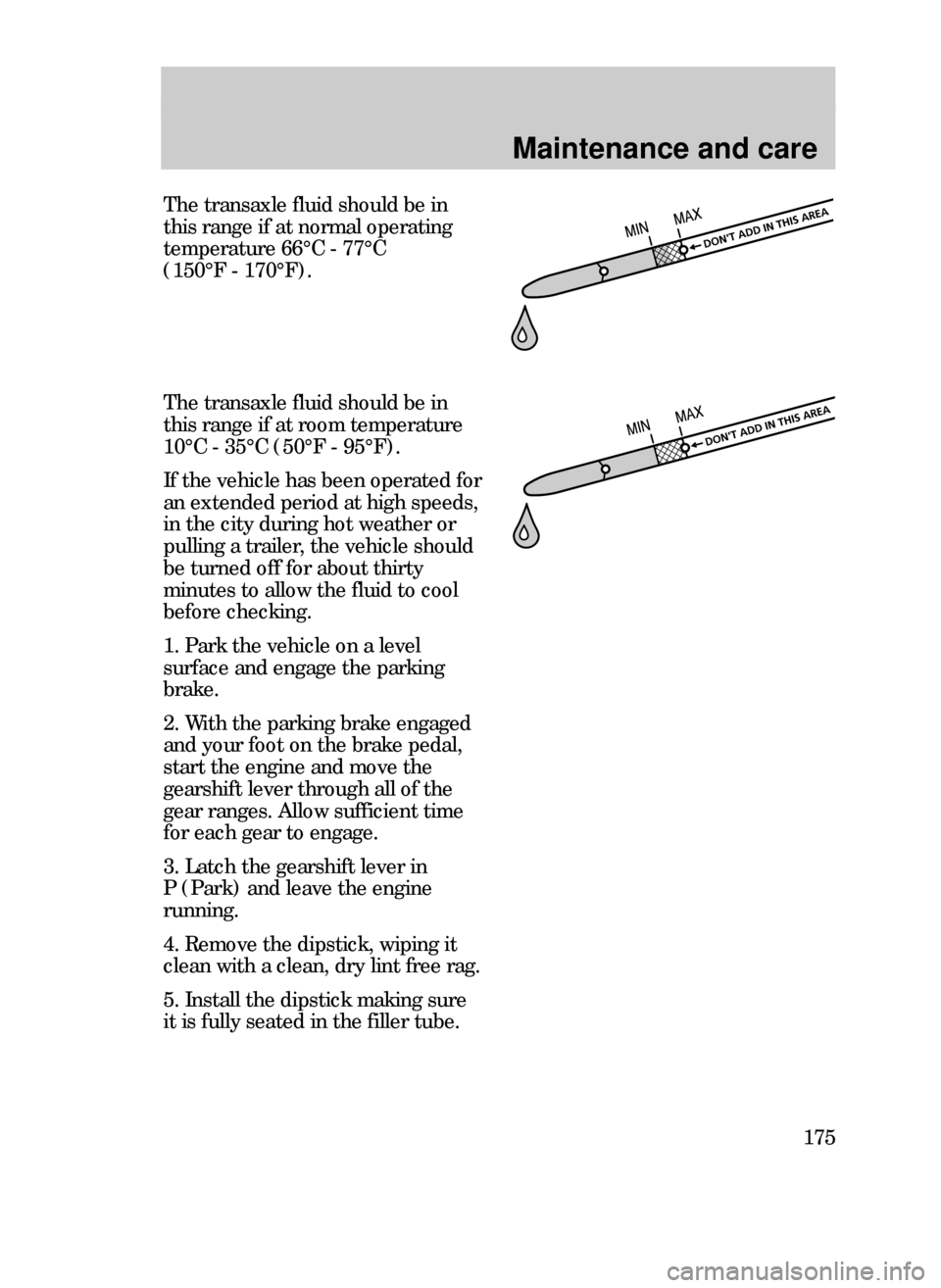

The transaxle fluid should be in
this range if at normal operating
temperature 66¡C - 77¡C
(150¡F - 170¡F).
The transaxle fluid should be in
this range if at room temperature
10¡C - 35¡C (50¡F - 95¡F).
If the vehicle has been operated for
an extended period at high speeds,
in the city during hot weather or
pulling a trailer, the vehicle should
be turned off for about thirty
minutes to allow the fluid to cool
before checking.
1. Park the vehicle on a level
surface and engage the parking
brake.
2. With the parking brake engaged
and your foot on the brake pedal,
start the engine and move the
gearshift lever through all of the
gear ranges. Allow sufficient time
for each gear to engage.
3. Latch the gearshift lever in
P (Park) and leave the engine
running.
4. Remove the dipstick, wiping it
clean with a clean, dry lint free rag.
5. Install the dipstick making sure
it is fully seated in the filler tube.
31CMCen 3/25/99 3:45 PM Page 175

Maintenance and care
191
Observe the following guidelines
when handling automotive fuel:
¥ Extinguish all smoking materials
and any open flames before fueling
your vehicle.
¥ Always turn off the vehicle before
fueling.
¥ Make sure the fuel cap is
correctly fitted after fueling. Failure
to do so may cause the on board
diagnostic system to illuminate the
CHECK ENGINE light.
¥ Automotive fuels can be harmful
or fatal if swallowed. If fuel is
swallowed, call a physician
immediately, even if no symptoms
are immediately apparent. The
toxic effects of fuel may not be
visible for hours.
¥ Fuels can also be harmful if
absorbed through the skin. If fuel is
splashed on the skin, promptly
remove contaminated clothing and
wash skin thoroughly with soap and
water.
¥ If fuel is splashed in the eyes,
remove contact lenses (if worn),
flush with water for 15 minutes and
seek medical attention.
¥ Be particularly careful if you are
taking ÒAntabuseÓ or other forms of
disulfiram for the treatment of
alcoholism. Breathing gasoline
vapors or skin contact could cause
an adverse reaction. Consult a
physician immediately.
31CMCen 3/25/99 3:45 PM Page 191

Maintenance and care
194
The fuel system may be
under pressure. If the fuel
filler cap is venting vapor or if you
hear a hissing sound, wait until it
stops before completely removing
the fuel filler cap. Otherwise fuel
may spray out and injure you or
others.
Fuel filler cap
If the Òcheck engineÓ indicator
comes on and stays on when you
start the engine, the fuel filler cap
may not be properly installed. Turn
off the engine, remove the fuel
filler cap and reinstall it being
careful to align the cap properly.
If you must replace the fuel
filler cap, replace it with an
authorized Motorcraft part.
The customer warranty may be
void for any damage to the fuel
tank or fuel system if an
authorized Motorcraft fuel
filler cap is not used.
Cleaner air
Ford approves the use of gasolines
to improve air quality, including
reformulated gasolines that contain
oxygenates such as a maximum of
10% ethanol or 15% MTBE. There
should be no more than 5%
methanol with cosolvents and
additives to protect the fuel
system.
31CMCen 3/25/99 3:45 PM Page 194

Maintenance and care
197
BRAKE
O/D
OFFTRACTION
CONTROL
Alternative design
Alternative design
Watch for fluid leaks, strange
odors, smoke, loss of oil pressure,
engine overheating, illumination of
the charging systemwarning light
or the check enginewarning light.
These events could indicate that
the emission control system is not
working properly.
Exhaust leaks may result in
entry of harmful and
potentially lethal fumes into the
passenger compartment.
Do not park, idle or drive
your vehicle in dry grass or
other dry ground cover. The
emission system heats up the
engine compartment and exhaust
system, which can start a fire.
31CMCen 3/25/99 3:45 PM Page 197

Maintenance and care
198
Do not make any unauthorized
changes to your vehicle or engine.
By law, vehicle owners and anyone
who manufactures, repairs,
services, sells, leases, trades
vehicles, or supervises a fleet of
vehicles are not permitted to
intentionally remove an emission
control device or prevent it from
working. Information about your
vehicle's emission system is on the
Vehicle Emission Control
Information Decal located under
the hood. This decal identifies
engine displacement and gives
some tune up specifications.
Please consult your ÒWarranty
GuideÒ for complete emission
warranty information.
Readiness for
inspection/maintenance (I/M)
testing
In some localities, it may be a legal
requirement to pass an I/M test of
the on-board diagnostic (OBD-II)
system. If your check enginelight
is on, refer to the description in the
Instrument Cluster Lights and
Chimessection of the
Instrumentation chapter. Your
vehicle may not pass the I/M test
with the check engine light on.
31CMCen 3/25/99 3:45 PM Page 198

Maintenance and care
215
Cleaning the interior fabric
Remove dust and loose dirt with a
whisk broom or a vacuum cleaner.
Remove fresh spots immediately.
Follow the directions that come
with the cleaner.
Cleaning leather seats
(if equipped)
For routine cleaning, wipe the
surface with a soft, damp cloth. For
more thorough cleaning, wipe the
surface with a leather and vinyl
cleaner or a mild soap.
Cleaning the instrument panel
OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
000123000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CLOCK
H C
Clean the instrument panel with a
damp cloth, then dry with a dry
cloth.
Any cleaner or polish that
increases the gloss of the upper
portion of the instrument panel
should be avoided. The dull finish
in this area is to help protect the
driver from undesirable windshield
reflection.
31CMCen 3/25/99 3:45 PM Page 215

Index
236
APage
Accessory position on
the ignition . . . . . . . . . . . . . . . . . .52
Additives, engine oil . . . . . . . . .165
Air bag supplemental
restraint system
and child safety seats . . . . . . . .84
description . . . . . . . . . . . . . . . . .83
disposal . . . . . . . . . . . . . . . . . . .88
indicator light . . . . . . . . . . .13, 87
operation . . . . . . . . . . . . . . . . . .85
wearing safety belts . . . . . . . . .83
Air conditioning
(see Climate control system)
Alarm, activating panic . . . . . . . .67
Antenna, radio
(see Audio sytem) . . . . . . . . . . . .51
Anti-lock brake system (ABS) .112
Anti-theft system (see Passive
Anti-Theft System) . . . . . . . . . . .69
Antifreeze (see Engine coolant)
Audio system . . . . . . . . . . . . . . . .32
Automatic transaxle
driving with . . . . . . . . . . . . . . .119
fluid, adding . . . . . . . . . . . . . . .174
fluid, checking . . . . . . . . . . . . .174
fluid, refill capacities . . . . . . . .218
fluid, specification . . . . . . . . . .219
B
Backing up . . . . . . . . . . . . .119, 125
Battery
charging system warning light . .7
jumping a disabled battery . . .150
proper disposal, recycling . . . .178
replacement, specifications . .217
servicing . . . . . . . . . . . . . . . . . .176
BPage
Brake fluid
checking and adding . . . . . . . .168
specifications . . . . . . . . . . . . . .219
Brake-shift interlock . . . . . . . . .118
Brakelamps
(see Bulb replacement)
Brakes
anti-lock brake system (ABS) 112
brake warning light . . . . . . . . . .14
fluid, checking and adding . . .168
fluid, refill capacities . . . . . . . .218
fluid, specification . . . . . . . . . .219
parking . . . . . . . . . . . . . . . . . . .114
Built-in child seat
folding up the seat . . . . . . . . . .98
inspection after a collision . . . .98
interlock safety feature . . . . . . .94
operation . . . . . . . . . . . . . . . . . .93
retractors . . . . . . . . . . . . . . . . . .97
Break-in period . . . . . . . . . . . . . . .2
Bulbs, replacing
foglamps . . . . . . . . . . . . . . . . .202
headlamps . . . . . . . . . . . . . . . .200
high-mounted brake lamp . . . .204
license plate lamp . . . . . . . . . .203
rear lamps . . . . . . . . . . . . . . . .203
specifications . . . . . . . . . . . . . .206
C
Cabin air filter . . . . . . . . . . .31, 180
Capacities for refilling fluids . . .218
Carbon monoxyde in exhaust . .197
Catalytic converter . . . . . . . . . .196
Chains, tires . . . . . . . . . . . . . . . .188
Changing a tire . . . . . . . . . . . . .146
Charging system warning light . . .7
4CInden 3/25/99 3:55 PM Page 236

237
Index
CPage
Child safety restraints
built-in child seat . . . . . . . . . . .93
child safety seats . . . . . . . . . . . .99
children and safety belts . . .89, 91
Child safety seats
and air bags . . . . . . . . . . . . . . . .84
attaching with tether straps . .102
automatic locking mode . . . . . .77
Childproof safety locks . . . . . . . .63
Chimes . . . . . . . . . . . . . . . . . . . . .17
Circuit breakers . . . . . . . . . . . . .139
Cleaning your vehicle
engine compartment . . . . . . . .213
exterior lamps . . . . . . . . . . . . .214
fabric . . . . . . . . . . . . . . . . . . . .215
instrument panel . . . . . . . . . . .215
plastic exterior parts . . . . . . . .214
safety belts . . . . . . . . . . . . . . .216
wheels . . . . . . . . . . . . . . . . . . .212
wiper blades . . . . . . . . . . . . . .214
Climate control system
air conditioning . . . . . . . . . . . . .27
controlling airflow . . . . . . . . . . .24
defrosting . . . . . . . . . . . . . . . . . .30
temperature . . . . . . . . . . . . . . . .25
vents . . . . . . . . . . . . . . . . . . . . . .24
Clock . . . . . . . . . . . . . . . . . . . . . .43
Clutch
operation . . . . . . . . . . . . . . . . .123
recommended shift speeds . . .124
Cold engine starting . . . . . . . . .110
Controls
instrument panel . . . . . . . . . . . .18
power seats . . . . . . . . . . . . . . . .73
steering column . . . . . . . . . . . . .53
Customer assistance . . . . . . . . .223DPage
Daytime running lights . . . . . . . .21
Defects, reporting . . . . . . . . . . .235
Defrost
rear window . . . . . . . . . . . . . . . .22
windshield . . . . . . . . . . . . . . . . .30
Dipstick, engine oil . . . . . . . . . .163
Door mounted controls . . . . . . . .62
Driving under special conditions
heavy load . . . . . . . . . . . . . . . .129
towing a trailer . . . . . . . . . . . .130
E
Electrical system
fuses . . . . . . . . . . . . . . . . . . . . .139
Emergencies, roadside
fuel pump shut-off switch . . . .137
jump starting . . . . . . . . . . . . . .150
towing . . . . . . . . . . . . . . . . . . .156
Emergency brake (see Parking
brake)
Emission control system . . . . . .196
Engine
check engine warning light . . . .10
fuel pump shut-off switch . . . .137
lubricant specifications . . . . . .219
preparing to start . . . . . . . . . .107
refill capacities . . . . . . . . . . . .218
starting . . . . . . . . . . . . . . . . . . .110
Engine block heater . . . . . . . . .111
Engine coolant
checking and adding . . . . . . . .167
disposal . . . . . . . . . . . . . . . . . .171
low coolant warning light . . . . . .9
refilll capacities . . . . . . . . . . . .218
specifications . . . . . . . . . . . . . .219
Engine fan . . . . . . . . . . . . . . . . .159
4CInden 3/25/99 3:55 PM Page 237

Index
238
EPage
Engine oil
changing oil and filter . . . . . . .165
checking and adding . . . . . . . .165
dipstick . . . . . . . . . . . . . . . . . .163
disposal . . . . . . . . . . . . . . . . . .167
engine oil pressure
warning light . . . . . . . . . . . . . . .16
filter specifications . . . . . . . . .217
refill capacities . . . . . . . . . . . .218
specifications . . . . . . . . . . . . . .219
Exhaust fumes . . . . . . . . . .106, 197
F
Fan (see Engine fan)
Flasher, hazard . . . . . . . . . .54, 137
Flashing the lights . . . . . . . . . . . .55
Floor mats . . . . . . . . . . . . . . . . . .65
Fluid refill capacities . . . . . . . . .218
Foglamps . . . . . . . . . . . . . . .21, 202
Fuel
calculating fuel economy . . . .195
capacity . . . . . . . . . . . . . . . . . .218
choosing the right fuel . . . . . .192
consumption . . . . . . . . . . . . . .136
fuel gauge . . . . . . . . . . . . . . . . .19
low fuel warning light . . . . . . . .13
octane rating . . . . . . . . . . . . . .193
quality . . . . . . . . . . . . . . . . . . .193
running out of fuel . . . . . . . . .196
safety information relating
to automotive fuels . . . . . . . . .190
Fuel pump shut-off switch . . . .137
Fuse panels
engine compartment . . . . . . . .140
instrument panel . . . . . . . . . . .142
FPage
Fuses
charts . . . . . . . . . . . . . . . .141, 144
checking and replacing . . . . . .139
G
Gas mileage (see Fuel)
Gauges
engine coolant temperature . . .18
fuel . . . . . . . . . . . . . . . . . . . . . . .19
odometer . . . . . . . . . . . . . . . . . .19
speedometer . . . . . . . . . . . . . . .19
trip odometer . . . . . . . . . . . . . .19
GAWR
(Gross Axle Weight Rating) . . .127
Gearshift . . . . . . . . . . . . . .117, 123
GVWR
(Gross Vehicle Weight Rating) .127
H
Hazard flashers . . . . . . . . . .54, 137
Head restraints . . . . . . . . . . . . . .72
Headlamps
aiming . . . . . . . . . . . . . . . . . . .207
bulb specifications . . . . . . . . .206
daytime running light . . . . . . . .21
flashing . . . . . . . . . . . . . . . . . . .55
high beam . . . . . . . . . . . . . . . . .55
replacing bulbs . . . . . . . . . . . .200
turning on and off . . . . . . . . . . .20
warning chime . . . . . . . . . . . . . .17
High beams
indicator light . . . . . . . . . . . . . . .7
operation . . . . . . . . . . . . . . . . . .55
4CInden 3/25/99 3:55 PM Page 238

Index
239
HPage
High-mount brakelamp . . . . . . .204
Hood
latch location . . . . . . . . . . . . . .162
release lever . . . . . . . . . . . . . .162
Horn . . . . . . . . . . . . . . . . . . . . . . .54
I
Identification Number, Vehicle
(VIN) . . . . . . . . . . . . . . . . . . . . .222
Idle, relearning . . . . . . . . . . . . .179
Idle, speed . . . . . . . . . . . . .179, 220
Ignition
chime . . . . . . . . . . . . . . . . . . . . .17
positions on the ignition . . . . . .52
Instrument cluster . . . . . . . . . . . . .6
Instrument panel
cleaning . . . . . . . . . . . . . . . . . .215
lighting up the panel . . . . . . . . .23
Integrated child seat (see Built-in
child seat)
Intermittent wipers . . . . . . . . . . .56
Introduction . . . . . . . . . . . . . . . . . .2
J
Jack
positioning . . . . . . . . . . . . . . . .148
storage . . . . . . . . . . . . . . . . . . .147
Jump starting your vehicle
attaching cables . . . . . . . . . . . .151
disconnecting cables . . . . . . . .154
K
Keys
key in ignition warning chime .17
positions of the ignition . . . . . .52
LPage
Lamps
bulb replacement specification
chart . . . . . . . . . . . . . . . . . . . . .206
daytime running light system . .21
flashing the lamps . . . . . . . . . . .55
foglamps . . . . . . . . . . . . . .21, 202
hazard flashers . . . . . . . . .54, 137
headlamps . . . . . . . . . . . . . . . . .20
high beams . . . . . . . . . . . . . . . . .55
high-mounted brake lamp . . . .204
instrument panel, dimming . . .22
interior lamps . . . . . . . . . . . . . .60
reading lamps . . . . . . . . . . . . . .61
replacing bulbs . . . . . . . . . . . .200
rear lamps . . . . . . . . . . . . . . . .203
Lights, warning and indicator
air bag . . . . . . . . . . . . . . . . . . . .13
anti-lock brakes (ABS) . . . . . . .15
brake . . . . . . . . . . . . . . . . . . . . .14
charging system . . . . . . . . . . . . .7
check engine . . . . . . . . . . . . . . .10
engine oil pressure . . . . . . . . . .16
high beam . . . . . . . . . . . . . . . . . .7
low coolant . . . . . . . . . . . . . . . . .9
low fuel . . . . . . . . . . . . . . . . . . .13
overdrive off . . . . . . . . . . . . . . . .9
safety belt . . . . . . . . . . . . . . . . . .7
testing the warning lights . . . . .17
turn signal indicator . . . . . . . . . .6
Load limits . . . . . . . . . . . . . . . . .127
Lubricant specifications . . . . . .219
Luggage compartment . . . . . . . .64
4CInden 3/25/99 3:55 PM Page 239
