FORD CROWN VICTORIA 1996 1.G Owners Manual

108
%*
[IP47300( ALL)03/95]
Clock
[IP47451( GV)05/94]
quarter page art:0011295-B
The digital clock
[IP47500( ALL)05/95]
1. To set the hour, press and hold the
H button. When the desired hour appears,
release the button.
[IP47600( ALL)05/95]
2. To set the minutes, press and hold the
M button. When the desired minute appears,
release the button.
%*
[IP49400( ALL)04/95]
Cleaning the Instrument Panel Lens
*
[IP49500( ALL)04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or any abrasive cleaner to clean the
lens as these may cause scratches.
File:rcipv.ex
Update:Wed Jan 31 10:22:47 1996

109
Steering Column Controls
*
[SC00200( ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
%
*
[SC00300( ALL)01/95]
The Turn Signal Lever
*
[SC00400( ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
[SC00500( ALL)03/95]
q
operate the turn signals
*
[SC00600( ALL)01/95]
q
turn the high beams on/off
*
[SC00700( ALL)01/95]
q
flash the lights
*
[SC00800( ALL)01/95]
q
turn the windshield wipers and washer
on/off
[SC00900( GV)06/94]
q
turn the cornering lamps on
[SC01900( ALL)02/95]
one third page art:0011292-A
The turn signal lever
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

110 %
*
[SC02100( ALL)01/95]
Turn Signals
*
[SC02201( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC02301( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[SC02401( ALL)03/95]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
[SC02600( GV)07/93]
If your vehicle is equipped with cornering
lamps, they will automatically light on either the
right or left side (depending on the direction of
the turn), when the headlamps are ON.
%*
[SC02700( ALL)03/95]
High Beams
*
[SC02800( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC02900( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
%*
[SC03200( ALL)05/95]
Flashing the Lights
*
[SC03300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

111
%*
[SC03500( ALL)03/95]
Windshield Wipers and Washer
*
[SC03600( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[SC03750( ALL)01/95]
Rotate the end of the lever away from you to
activate the wipers. The first seven detents are
interval wipe positions, the eighth detent is the
LO position and the ninth detent is the HI
position.
*
[SC03800( ALL)01/95]
To turn the wipers off, turn the knob toward
you to the OFF position.
%*
[SC04100( ALL)03/95]
Variable Interval Wipers
*
[SC04205( ALL)01/95]
In addition to two speed wipers, your vehicle
has wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
or more often in heavier rain.
[SC04700( ALL)02/95]
one third page art:0011293-A
The variable interval wiper on the turn signal lever
*
[SC04900( ALL)03/94]
To set the interval wipers, turn the knob at the
end of the turn signal lever toward or away
from you until the wipers are going at the
desired interval.
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

112
*
[SC05300( ALL)04/95]
Windshield Washer
*
[SC05401( ALL)01/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if the wipers were OFF) or
returning to HI, LO, or the interval setting
selected.
*
[SC05500( ALL)03/95]
If the washer does not work, check the washer
fluid level and fill it if it is low. See theServicing
Your Crown Victoriachapter. If there is enough
fluid, consult your nearest Ford or
Lincoln-Mercury dealer.
*
[SC05600( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[SC05700( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05800( ALL)04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

113
%*
[SC05810( ALL)03/95]
Hazard Flasher
[SC05820( ALL)05/95]
To alert other drivers to hazardous situations,
push in the hazard flasher on the top of the
steering column. The same switch turns the
flashers off.
*
[SC05830( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
[SC05860( BCGV)08/93]
one third page art:0010216-B
The control switch for the hazard flashers
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

114
%*
[SC05900( ALL)01/95]
Horn
*
[SC06000( ALL)04/95]
To sound the horn, push the center pad area of
the steering wheel.
[SC06900( GV)10/94]
half page art:0010086-F
The horn on the steering wheel
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

115
%*
[SC07300( ALL)01/95]
Tilt Steering
*
[SC07400( ALL)05/95]
RWARNING
Never adjust the steering wheel when the
vehicle is moving.
[SC07850( GV)11/92]
half page art:0010459-D
The lever to tilt the steering wheel
*
[SC08000( ALL)04/95]
To change the position of the steering wheel,
pull the release lever on the column toward you.
Tip the steering wheel to the desired position.
Release the lever to lock the steering wheel in
place.
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

116
%*
[SC08600( ALL)03/91]
Speed Control (If equipped)
*
[SC08800( ALL)03/95]
If your vehicle has speed control, you can
automatically maintain a constant speed at or
above 30 mph (50 km/h).
*
[SC08900( ALL)05/95]
Use of radio transmitting equipment that is not
Federal Communications Commission (FCC) or
in Canada the Canadian Radio and
Telecommunications Commission (CRTC)
approved may cause the speed control to
malfunction. Therefore, use only properly
installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
[SC09150( BCGV)12/94]
NOTE: When driving in hilly terrain, at high
elevations, or when pulling a trailer, it
may be desirable to drive with the
transmission in the Overdrive off
mode. This can be done by depressing
the Transmission Control Switch on
the transmission gear selection lever.
Driving in this mode prevents the
transmission from shifting excessively
when ascending grades, and helps
maintain speed when going down
steep hills.
*
[SC09200( ALL)03/95]
NOTE: Do not shift to N (Neutral) when using
the speed control. This will cause the
engine to overspeed.
[SC09250( ALL)12/94]
When driving uphill, especially with a heavy
load, significant speed drops may occur. If the
speed drops more than 10 mph (16 km/h) the
automatic speed control will, by design, be
suspended. Some vehicles may require
temporary resumption of manual speed control
while ascending steep grades in order to
maintain the selected speed.
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996

117 [SC09900( GV)05/94]
half page art:0010096-D

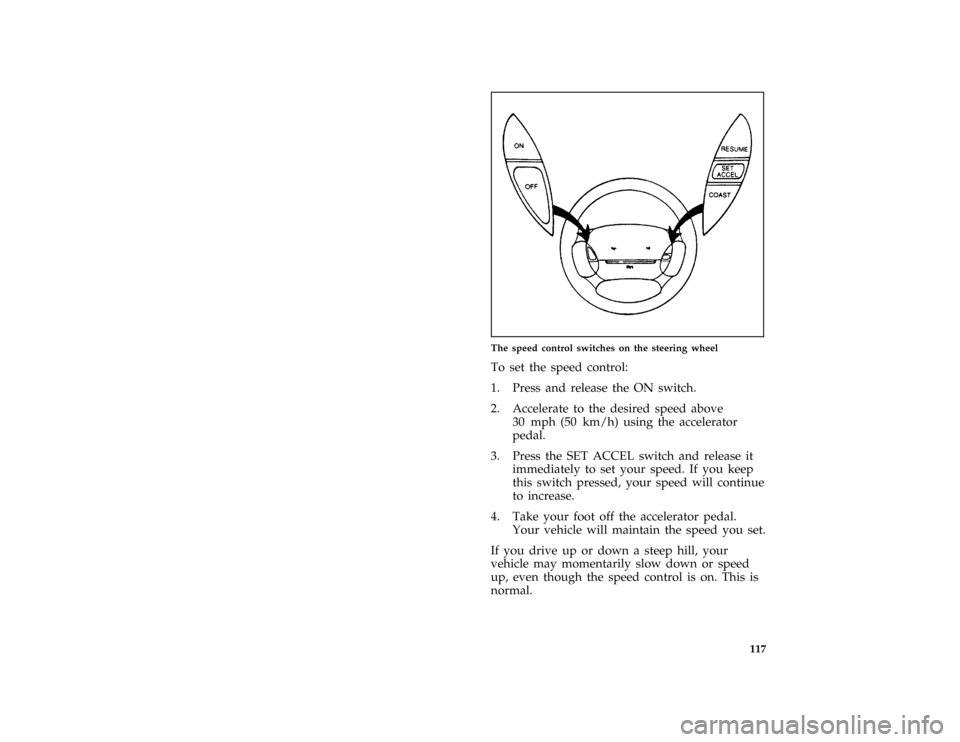

The speed control switches on the steering wheel
*
[SC10100( ALL)03/95]
To set the speed control:
*
[SC10300( ALL)03/95]
1. Press and release the ON switch.
*
[SC10400( ALL)04/95]
2. Accelerate to the desired speed above
30 mph (50 km/h) using the accelerator
pedal.
*
[SC10800( ALL)03/95]
3. Press the SET ACCEL switch and release it
immediately to set your speed. If you keep
this switch pressed, your speed will continue
to increase.
*
[SC10900( ALL)03/95]
4. Take your foot off the accelerator pedal.
Your vehicle will maintain the speed you set.
*
[SC11000( ALL)01/95]
If you drive up or down a steep hill, your
vehicle may momentarily slow down or speed
up, even though the speed control is on. This is
normal.
File:rcscv.ex
Update:Wed Jan 31 10:23:43 1996
