8
*
[SR02700( ALL)03/95]
RWARNING
Never wear the shoulder belt under the
arm. Never swing it around the neck over
the inside shoulder. Never use a single
belt for more than one person or across
more than one seating position. Each
seating position in your vehicle has a
specific safety belt assembly which is
made up of one buckle and one tongue
that are designed to be used as a pair.
Failure to follow these precautions could
increase the risk and/or severity of injury
in a collision.
*
[SR02801( ALL)01/95]
RWARNING
Never drive or ride with a twisted or
jammed safety belt. If you cannot untwist
or unjam the safety belt, see the nearest
qualified technician immediately.
*
[SR02901( ALL)05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR03001( ALL)05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR03200( ALL)05/95]
Lock the doors of your vehicle before driving to
lessen the risk of the door coming open in a
collision.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 12 of 342
9
[SR03700( ALL)05/95]
Combination Lap and Shoulder
Belts
*
[SR03800( ALL)01/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap and shoulder belt
locks and helps reduce your forward movement.
*
[SR04100( ALL)05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR04400( ALL)06/93]
To fasten the belt,pull the lap/shoulder belt
from the retractor so that the shoulder portion of
the belt crosses your shoulder and chest. Be sure
the belt is not twisted. If it is, remove the twist.
Insert the belt tongue into the proper buckle
until you hear a snap and feel it latch. Make
sure the tongue is securely fastened in the
buckle.
*
[SR04550( BCGV)01/95]
quarter page art:0010018-B
Fastening the front seat combination lap and shoulder belt
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 13 of 342
10 [SR04600( BCGV)03/95]
one third page art:0010502-AFastening the rear seat combination lap and shoulder belt
*
[SR04675( ALL)05/95]
NOTE: Be sure to read and understand
Important Safety Belt Informationat
the beginning of this chapter.
% [SR04676( GV)03/95]
Safety Belts for All Passenger Outboard
Seating Positions
[SR04679( GV)03/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
front and rear outboard passenger seats.
*
[SR04682( ALL)05/95]
Dual locking mode retractors operate in two
ways:
*
[SR04683( ALL)03/95]
Vehicle sensitive (emergency) locking mode
[SR04684( ALL)03/95]
In this operating mode, the shoulder belt
retractor will allow the occupant freedom of
movement, locking tight only on hard braking,
hard cornering or impacts of approximately
5 mph (8 km/h) or more. The retractor can also
be made to lock by pulling/jerking on the belt.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 14 of 342
11 %
*
[SR04685( ALL)04/95]
Automatic locking mode
[SR04686( ALL)03/95]
In this operating mode, the shoulder belt
retractor will be automatically locked and remain
locked when the combination lap/shoulder
safety belt is buckled, and does not allow the
occupant freedom of movement. This mode
provides the following:
[SR04687( ALL)03/95]
q
A tight lap/shoulder belt fit on the occupant.
[SR04688( ALL)03/95]
q
Child seat or infant carrier installation
restraint.
*
[SR04689( ALL)05/95]
RWARNING
Never install a rear-facing child seat or
infant carrier in the right front passenger
seat.
*
[SR04690( ALL)03/95]
This modemust be usedwhen installing a child
safety seat on the front passenger seat and rear
outboard seats where dual locking retractors are
provided.
*
[SR04691( ALL)04/95]
To switch the retractor from the emergency
locking mode to the automatic locking mode,
perform the following steps:
*
[SR04692( ALL)03/95]
1. Buckle the lap/shoulder combination belt.
*
[SR04693( ALL)03/95]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted, and when allowed to retract, a
clicking sound will be heard. At this time,
the belt retractor is in the automatic locking
mode (child restraint mode).
*
[SR04694( ALL)05/95]
3. A clicking sound will contnue to be heard as
the belt is allowed to retract.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 15 of 342
12 [SR04695( ALL)03/95]NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch back to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
%*
[SR04795( GV)05/95]
Shoulder Belt Height Adjustment
*
[SR04800( GV)04/95]
Driver and right front passenger
*
[SR04900( GV)01/95]
You can adjust the shoulder belt height to one of
five (5) positions. To adjust, pinch the release
button (see Figures 1 and 2) and slide it up or
down until the belt rests across the middle of
your shoulder. Release the button and make sure
the adjuster is firmly in one of the five (5)
positions.
*
[SR04940( GV)02/95]
RWARNING
If the shoulder belt is off your shoulder
or on your upper arm, there is a greater
risk of severe injury in a collision.
[SR04950( GV)12/94]
BE SURE THE BELT IS PROPERLY
POSITIONED ON YOUR SHOULDER EACH
TIME YOU USE THE BELT.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 16 of 342
13 [SR05200( GV)06/93]

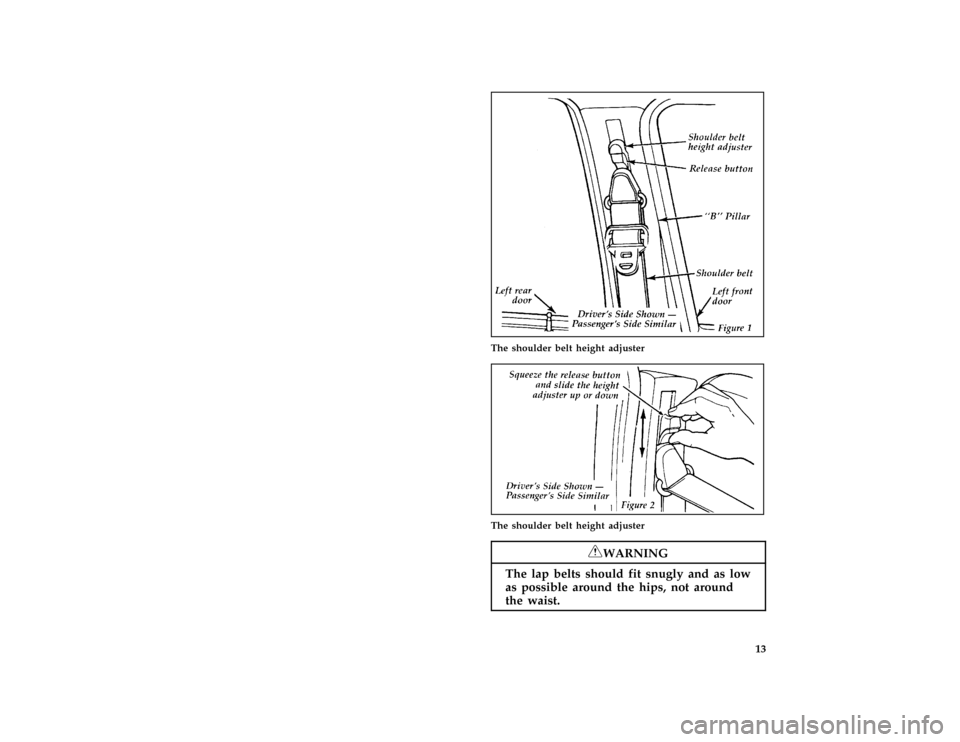

half page art:0010701-A
The shoulder belt height adjuster
[SR05300( GV)11/92]
one third page art:0010702-A
The shoulder belt height adjuster
*
[SR05400( ALL)05/95]
RWARNING
The lap belts should fit snugly and as low
as possible around the hips, not around
the waist.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 17 of 342
14
*
[SR05500( BCGV)03/95]
RWARNING
All front and rear seat outboard
occupants (including pregnant women)
should wear lap and shoulder belts, for
optimum protection in a collision.
*
[SR05600( ALL)05/95]
RWARNING
Failure to follow these precautions could
increase the risk and/or severity of injury
in a collision. 1) Use the shoulder belt on
the outside shoulder only. Never wear the
shoulder belt under the arm. 2) Never
swing it around your neck over the inside
shoulder. 3) Never use a single belt for
more than one person.
[SR05800( ALL)05/95]
To unfasten all the belts:
[SR06000( GV)06/93]
1. Push the release button in the center of the
buckle. This allows the tongue to unlatch
from the buckle.
[SR06300( GV)06/93]

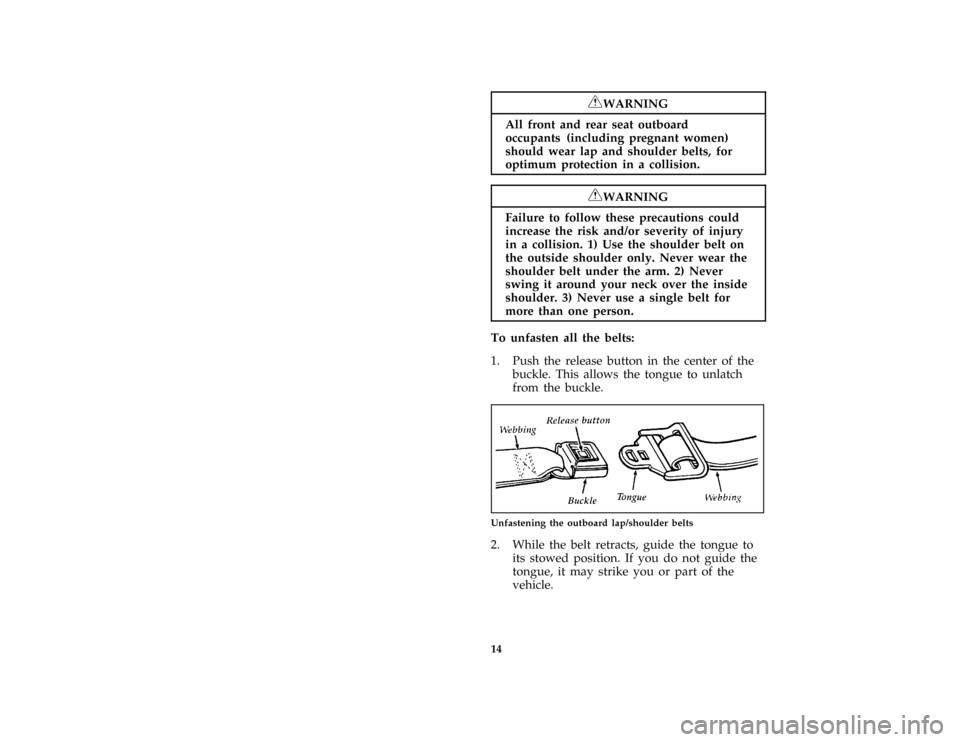

quarter page art:0011166-A
Unfastening the outboard lap/shoulder belts
*
[SR06600( ALL)03/95]
2. While the belt retracts, guide the tongue to
its stowed position. If you do not guide the
tongue, it may strike you or part of the
vehicle.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 18 of 342
15 [SR09400]
Lap Belts Ð Center Seating
Position
*
[SR09500( GV)05/95]
The lap belts in the center of the front and rear
seats do not adjust automatically. You must
adjust them to fit snugly and as low as possible
around your hips. Do not wear them around
your waist.
*
[SR09701( BCGV)05/95]
Pull the belt across your hips andinsert the
tongue into the correct buckleon your seat
until you hear a snap and feel it lock. Make sure
the buckle is securely fastened.
%*
[SR09801( BCGV)05/95]
If you need to lengthen the belt, unfasten it and
tip the belt tongue at a right angle to the belt.
Pull the belt tongue over your lap until it
reaches the buckle.
*
[SR09901( BCGV)05/95]
If you need to shorten the belt, pull on the loose
end of the webbing until the belt fits snugly.
*
[SR10300( BCGV)05/95]
To unfasten the belt,push the release button on
the buckle. This allows the tongue to unlatch
from the buckle.
[SR10500( GV)11/92]
Because the center lap belts do not have
retractors, they should be shortened and fastened
when not in use.
[SR10600( GV)11/92]

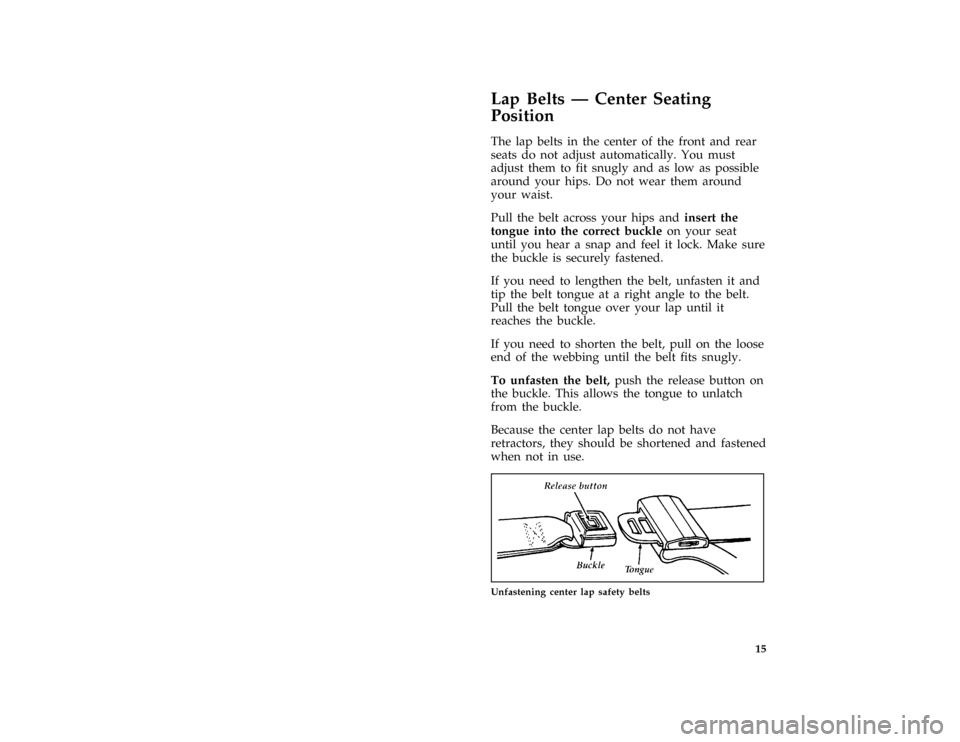

quarter page art:0010022-A
Unfastening center lap safety belts
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 19 of 342
16 %
*
[SR17500( ALL)05/95]
Safety Belt Extension Assembly
*
[SR17600( ALL)05/95]
For some people, the safety belt may be too
short even when it is fully extended. You can
add about eight inches (20 cm) to the belt length
with a safety belt extension assembly (part
number 611C22). Safety belt extensions are
available at no cost from your dealer.
*
[SR17700( ALL)05/95]
RWARNING
Failure to follow these instructions will
affect the performance of the safety belts
and increase the risk of personal injury.
*
[SR17705( ALL)05/95]
Use only extensions manufactured by the same
supplier as the safety belt. Manufacturer
identification is located at the end of the
webbing on the label. Also, use the safety belt
extension only if the safety belt is too short for
you when fully extended. Do not use extension
to change the fit of the shoulder belt across the
torso.
[SR17710( ALL)05/95]Safety Belt Maintenance
*
[SR17720(ALL )05/95]
Check the safety belt systems periodically to
make sure that they work properly and are not
damaged.
%*
[SR17730( ALL)05/95]
All safety belt assemblies, including retractors,
buckles, front seat belt buckle support assemblies
(slide bar) (if equipped), child safety seat tether
bracket assemblies (if equipped), and attaching
hardware, should be inspected after any
collision. Ford recommends that all safety belt
assemblies used in vehicles involved in a
collision be replaced. However, if the collision
was minor and a qualified technician finds that
the belts do not show damage and continue to
operate properly, they do not need to be
replaced. Safety belt assemblies not in use
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
Page 20 of 342
17
during a collision should also be inspected and
replaced if either damage or improper operation
is noted.
%*
[SR17740( ALL)05/95]
Cleaning the Safety Belts
*
[SR17780( ALL)05/95]
Clean the safety belts with any mild soap
solution that is recommended for cleaning
upholstery or carpets. Do not bleach or dye the
belt webbing because this may weaken it.
*
[SR17800( ALL)04/95]
Air Bag Supplemental Restraint
System (SRS)
*
[SR18200( ALL)04/95]
The driver and right front passenger air bags are
Supplemental Restraint Systems (SRS), provided
at these seating positions in addition to the
lap/shoulder belt, and are designed to
supplement the protection provided to properly
belted occupants in moderate to severe frontal
collisions. The supplemental air bag system does
not provide restraint to the lower body.
*
[SR18400( ALL)02/95]
The Importance of Wearing Safety Belts
*
[SR18425( ALL)11/93]
RWARNING

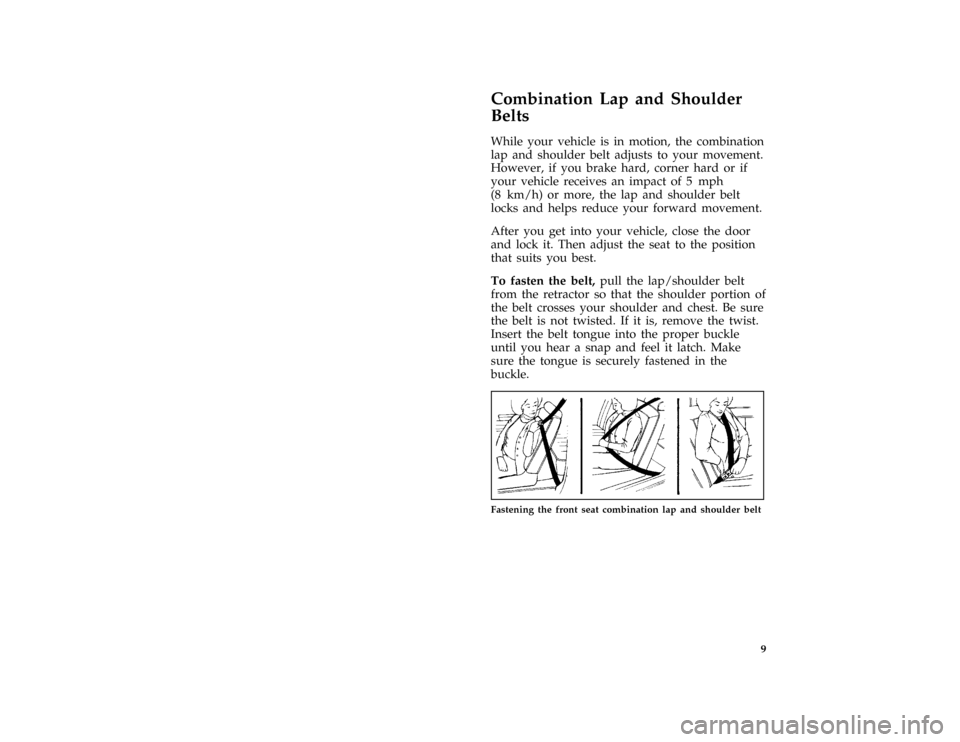

Safety belts must be worn by all vehicle
occupants to be properly restrained and
help reduce the risk of injury in a
collision.
*
[SR18450( ALL)05/95]
RWARNING
All occupants of the vehicle, including the
driver, should always wear their safety
belts, even when an air bag Supplemental
Restraint System is provided.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
