FORD CROWN VICTORIA 1996 1.G Owner's Manual

18
*
[SR18500( ALL)01/95]
There are four very important reasons to use
safety belts even with an air bag system. Use
your safety belts to:
*
[SR18600( ALL)01/95]
q
help keep you in the proper position (away
from the air bag) when it inflates
*
[SR18700( ALL)01/95]
q
reduce the risk of harm in rollover, side or
rear impact collisions, because an air bag is
not designed to inflate in such situations
*
[SR18800( ALL)01/95]
q
reduce the risk of harm in frontal collisions
that are not severe enough to activate the
supplemental air bag
*
[SR18900( ALL)01/95]
q
reduce the risk of being thrown from your
vehicle
%*
[SR19100( ALL)01/95]
The Importance of Being Properly Seated
*
[SR19200( ALL)05/95]
In a collision, the air bag must inflate extremely
fast to help provide additional protection for
you. In order to do this, the air bag must inflate
with considerable force. If you are not seated in
a normal riding position with your back against
the seatback, the air bag may not protect you
properly and could possibly hurt you as it
inflates.
*
[SR19230( ALL)05/95]
RWARNING
If a passenger is not properly seated and
restrained, an inflating air bag could cause
serious injury.
*
[SR19235( ALL)05/95]
RWARNING
Rear-facing infant seats should never be
placed in the front seat.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

19 [SR19240( ALL)06/09]
In rear-facing infant seats, the infant's head is
closer to the air bag. The force of the rapidly
inflating air bag could push the top of the
rear-facing seat against the vehicle seatback,
center console (if so equipped), or center
armrests (if so equipped). REAR-FACING
INFANT SEATS MUST ALWAYS BE SECURED
IN THE REAR SEAT, and other child safety
seats and infant seats should be secured in the
rear seat whenever possible.
*
[SR19260( ALL)05/95]
Your vehicle is equipped with a right front
passenger air bag. Air bags deploy with great
force, faster than the blink of an eye. Front
passengers, especially children and small adults,
must never sit on the front edge of the seat,
stand near the glove compartment of the
instrument panel, or lean over near the air bag
cover when the vehicle is moving. All occupants
should sit with their backs against the seatback,
move the seat to the most rearward position if
possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should
use child or infant seats.
%*
[SR19300( ALL)05/95]
RWARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. NEVER
SECURE REAR-FACING INFANT SEATS
IN THE FRONT SEAT.
*
[SR19325( GV)05/95]
THE FORCE OF THE RAPIDLY INFLATING
PASSENGER AIR BAG COULD PUSH THE TOP
OF THE REAR-FACING SEAT AGAINST THE
VEHICLE SEATBACK, ARMRESTS OR
CONSOLE. REAR-FACING INFANT SEATS
MUST ALWAYS BE SECURED IN THE REAR
SEAT.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

20
*
[SR19400( ALL)05/95]
RWARNING
Do not place objects or mount equipment
on or near the air bag cover on the
steering wheel or in front seat areas that
may come in contact with a deploying air
bag. Failure to follow this instruction may
increase the risk of personal injury in the
event of a collision.
*
[SR19405( ALL)05/95]
For additional important safety information on
the proper use of seat belts, child seats, and
infant seats, please read the other sections of this
part of the Owner Guide, especially sections
entitledSafety Belts for ChildrenandSafety Seats
for Children.
*
[SR19410( ALL)05/95]
For further information about the proper
mounting of equipment in the front seat of this
vehicle, please refer to Ford's brochure entitled
Some Important Information About Air Bag
Supplemental Restraint Systemwhich can be
obtained by calling Helm Inc. at 1-800-782-4356.
Ask for brochure FPS-8602.
%*
[SR19500( ALL)01/95]
How the Air Bag Supplemental Restraint
System Operates
[SR19650( ALL)05/95]
The driver air bag is in the center of the steering
wheel. The right front passenger seat air bag is
in the upper right hand section of the
instrument panel ledge above the glove
compartment. Both air bags are designed to stay
out of sight until they are activated.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

21 [SR20200( GV)10/94]
half page art:0010671-G

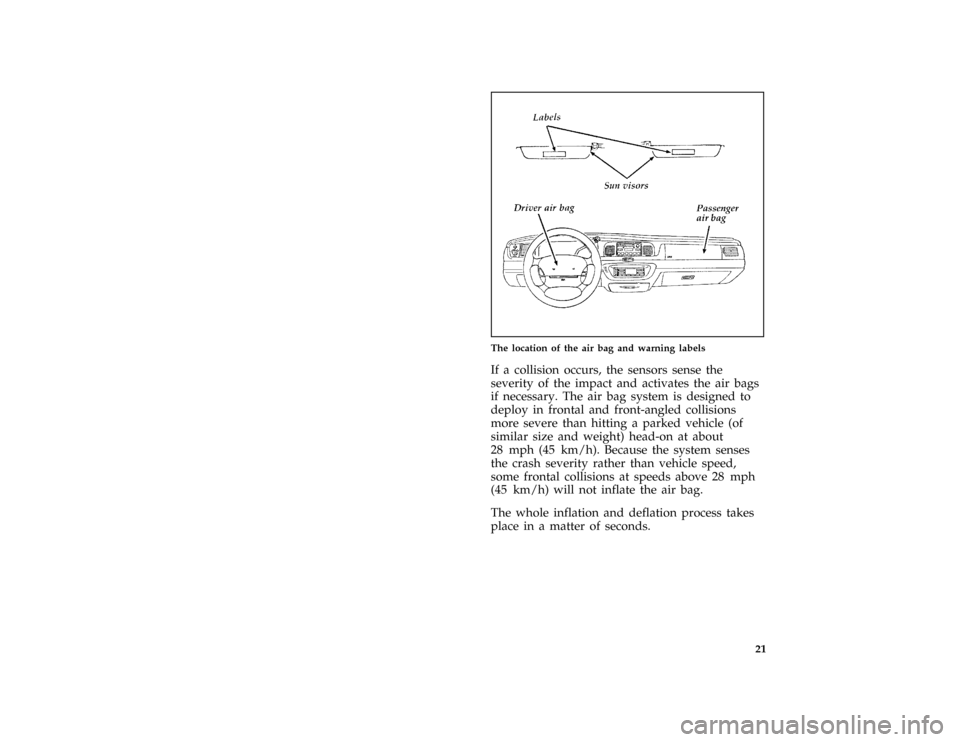

The location of the air bag and warning labels
*
[SR20800( ALL)05/95]
If a collision occurs, the sensors sense the
severity of the impact and activates the air bags
if necessary. The air bag system is designed to
deploy in frontal and front-angled collisions
more severe than hitting a parked vehicle (of
similar size and weight) head-on at about
28 mph (45 km/h). Because the system senses
the crash severity rather than vehicle speed,
some frontal collisions at speeds above 28 mph
(45 km/h) will not inflate the air bag.
*
[SR20930( ALL)05/95]
The whole inflation and deflation process takes
place in a matter of seconds.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

22
*
[SR20960( ALL)05/95]
RWARNING
Air bag system components get hot after
inflation. Do not touch them after
inflation.
*
[SR21110( ALL)03/93]
half page art:0011063-A

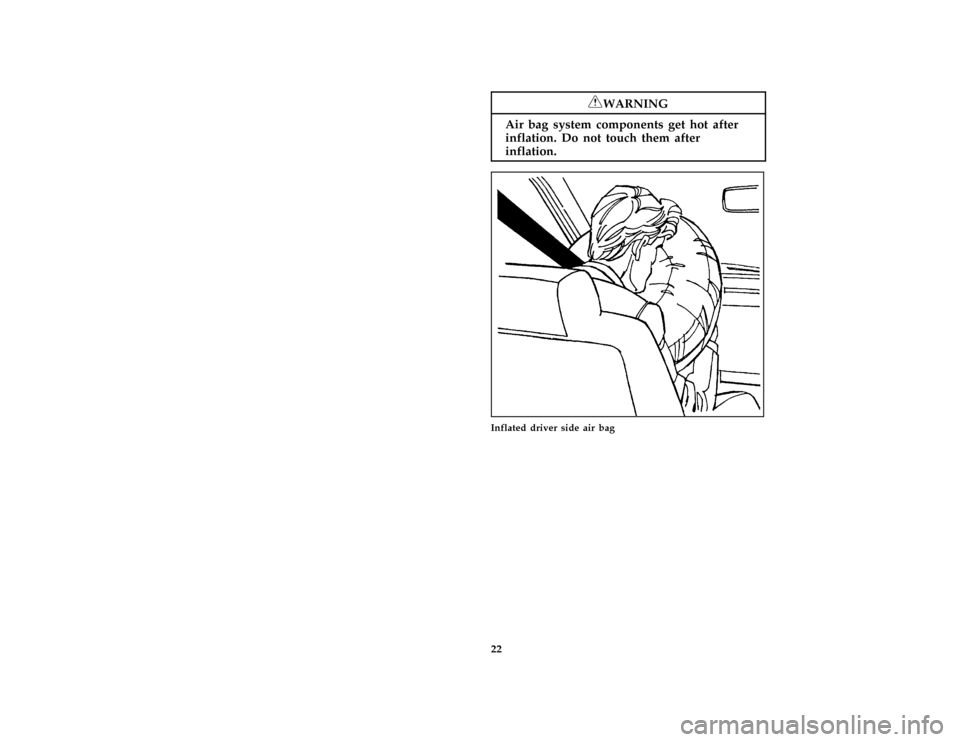

Inflated driver side air bag
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

23 [SR21130( ALL)10/94]
half page art:0011064-A

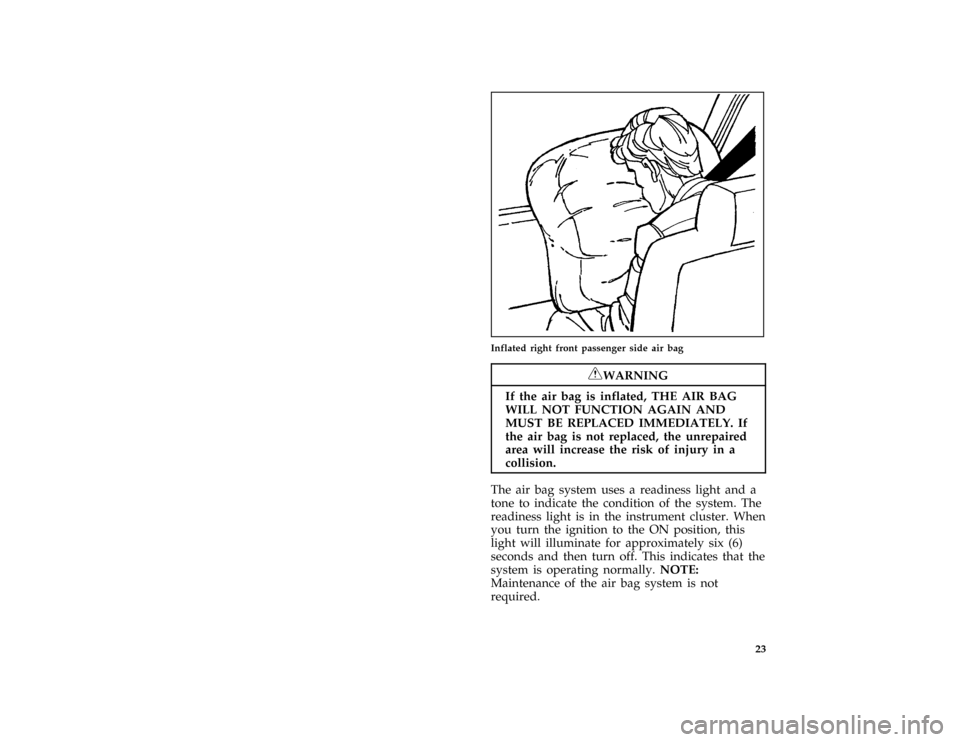

Inflated right front passenger side air bag
*
[SR22200( ALL)05/95]
RWARNING
If the air bag is inflated, THE AIR BAG
WILL NOT FUNCTION AGAIN AND
MUST BE REPLACED IMMEDIATELY. If
the air bag is not replaced, the unrepaired
area will increase the risk of injury in a
collision.
*
[SR22210( ALL)05/95]
The air bag system uses a readiness light and a
tone to indicate the condition of the system. The
readiness light is in the instrument cluster. When
you turn the ignition to the ON position, this
light will illuminate for approximately six (6)
seconds and then turn off. This indicates that the
system is operating normally.NOTE:
Maintenance of the air bag system is not
required.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

24 %
*
[SR22220( ALL)05/95]
A problem with the system is indicated by one
or more of the following:
[SR22225( ALL)05/95]
q
the readiness light will either flash or stay lit,
or
[SR22230( ALL)05/95]
q
it will not light immediately after the ignition
is turned on, or
[SR22240( ALL)05/95]
q
a group of five beeps will be heard.
*
[SR22250( ALL)05/95]
If any of these things happen, have the air bag
system serviced at your Ford or Lincoln-Mercury
dealer immediately. Unless serviced, the air bag
supplemental restraint system may not function
properly in the event of a collision.
*
[SR22260( ALL)05/95]
RWARNING
Do not attempt to service, repair, or
modify the Air Bag Supplemental
Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
%*
[SR22300( ALL)05/95]
Disposal of air bags or air bag equipped
vehicles
*
[SR22400( ALL)05/95]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer. Air bagsMUSTbe disposed of by
qualified personnel.
%
*
[SR23500( ALL)05/95]
Safety Restraints for Children
*
[SR23600( ALL)02/95]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

25
*
[SR23700( ALL)05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR23800( ALL)05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR23900( ALL)05/95]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SR24000( ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR24100( ALL)05/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

26
*
[SR24200( ALL)05/95]
RWARNING
Never leave a child unattended in your
vehicle.
%*
[SR24250( ALL)05/95]
RWARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. NEVER
SECURE REAR-FACING INFANT SEATS
IN THE FRONT SEAT.
%*
[SR25100( ALL)01/95]
Safety Seats for Children
*
[SR25200( ALL)05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
% [SR25225( ALL)04/95]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps see your Ford
or Lincoln-Mercury dealer.
*
[SR25250( ALL)02/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996

27
*
[SR25275( ALL)05/95]
Children weighing less than 40 lbs. (18 kg)
should use child or infant seats. Forward facing
child seats must have the passenger seat moved
as far back from the instrument panel as
possible.
%*
[SR25300( ALL)05/95]
RWARNING
REAR-FACING INFANT SEATS SHOULD
NEVER BE USED IN THE FRONT SEAT.
REAR-FACING INFANT SEATS MUST
ALWAYS BE PLACED IN THE REAR
SEAT. Failure to follow these instructions
could result in serious injury.
*
[SR25350( ALL)05/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SR25400( ALL)05/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SR25500( ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:rcsrv.ex
Update:Wed Jan 31 10:17:50 1996
