FORD CROWN VICTORIA 2011 2.G Owners Manual

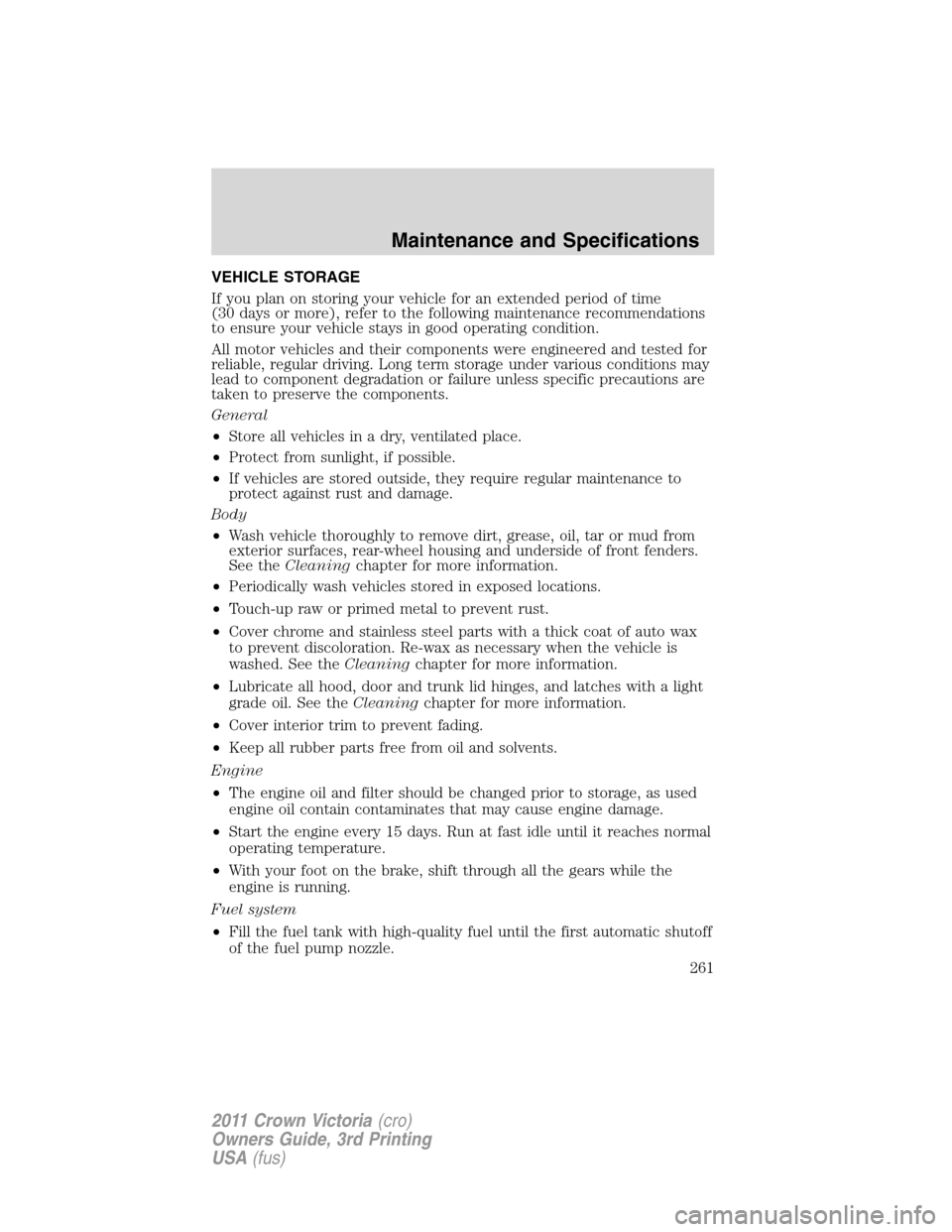

VEHICLE STORAGE
If you plan on storing your vehicle for an extended period of time
(30 days or more), refer to the following maintenance recommendations
to ensure your vehicle stays in good operating condition.
All motor vehicles and their components were engineered and tested for
reliable, regular driving. Long term storage under various conditions may
lead to component degradation or failure unless specific precautions are
taken to preserve the components.
General
•Store all vehicles in a dry, ventilated place.
•Protect from sunlight, if possible.
•If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See theCleaningchapter for more information.
•Periodically wash vehicles stored in exposed locations.
•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Maintenance and Specifications
261
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

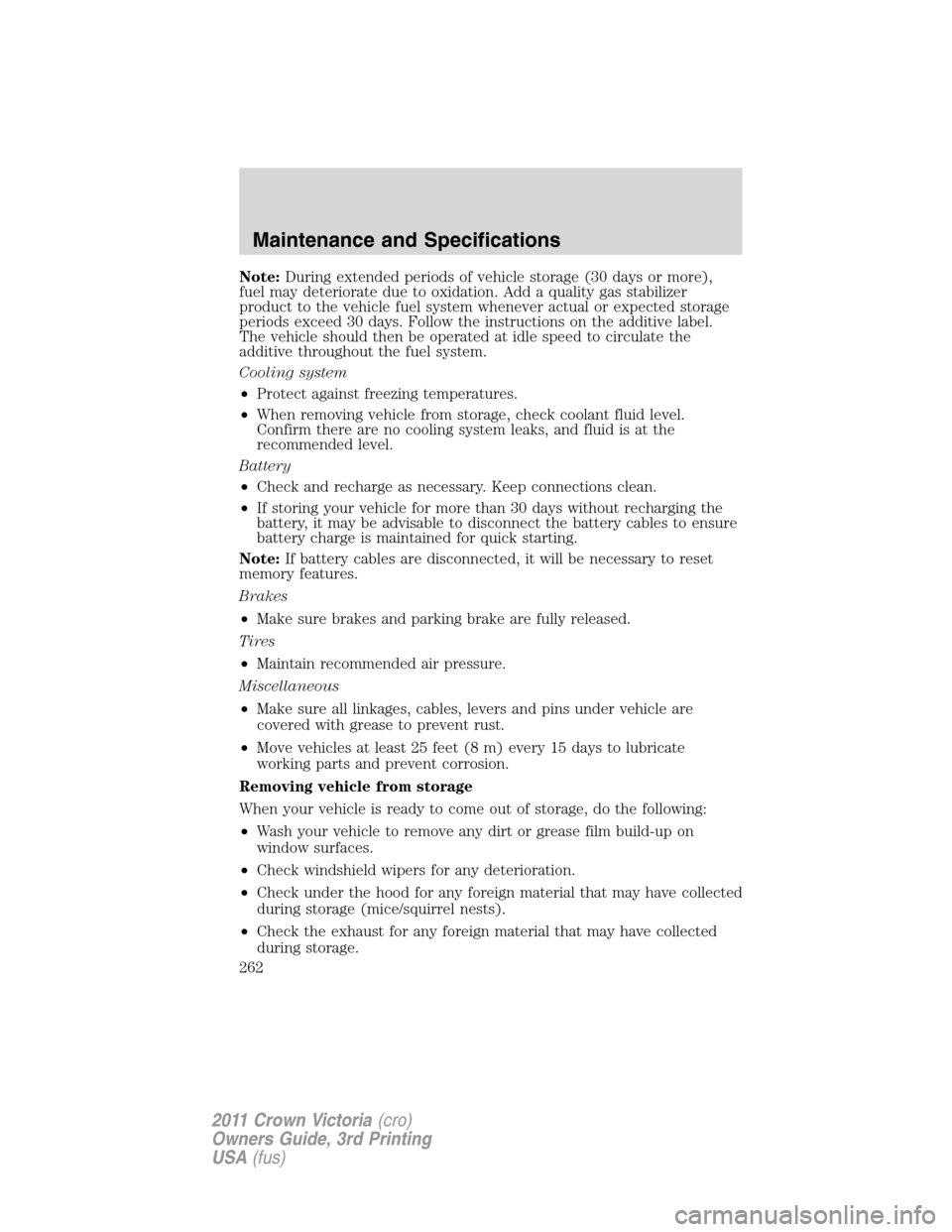

Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
Maintenance and Specifications
262
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

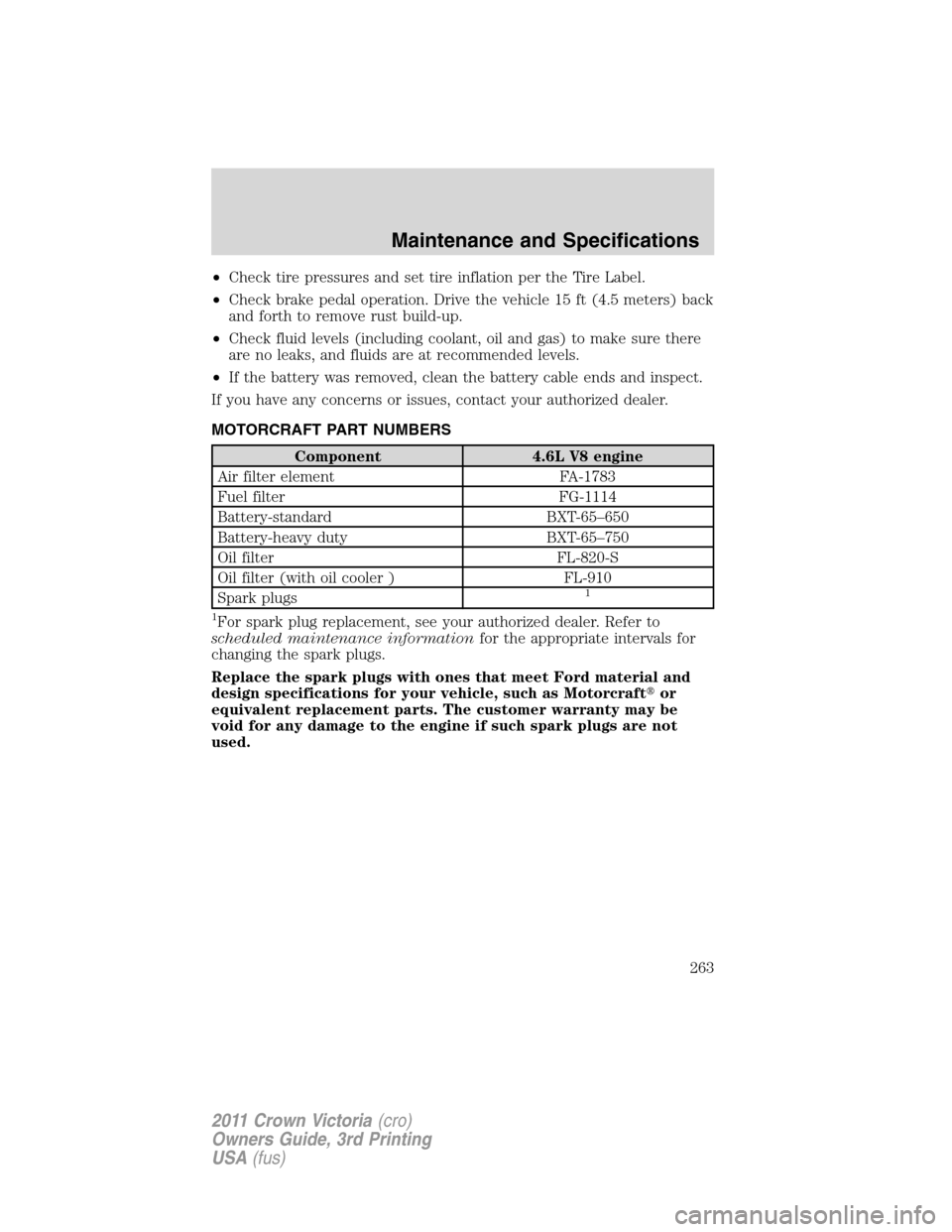

•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build-up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 4.6L V8 engine
Air filter element FA-1783
Fuel filter FG-1114
Battery-standard BXT-65–650
Battery-heavy duty BXT-65–750
Oil filter FL-820-S
Oil filter (with oil cooler ) FL-910
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
263
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

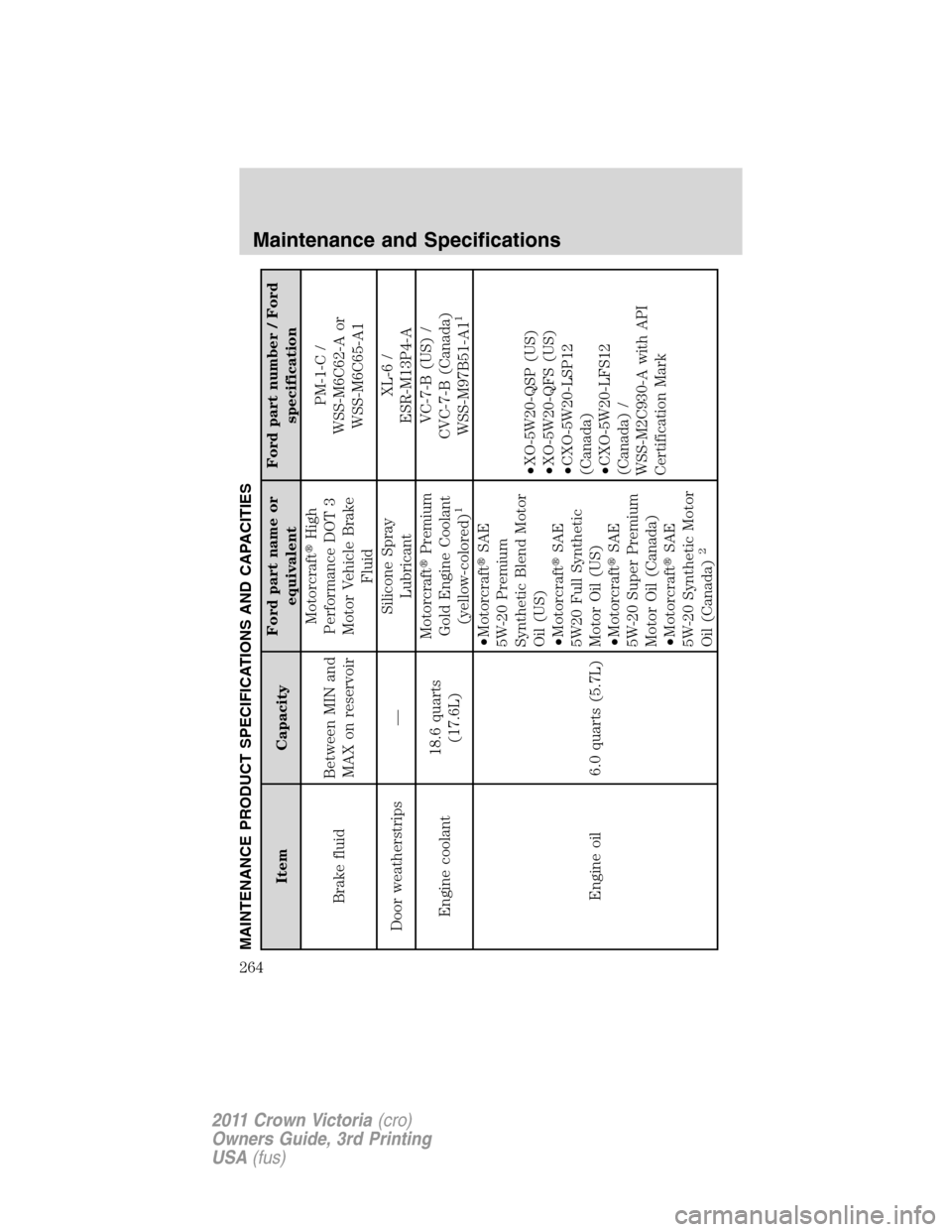

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number / Ford
specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips —Silicone Spray
LubricantXL-6 /
ESR-M13P4-A
Engine coolant18.6 quarts
(17.6L)MotorcraftPremium
Gold Engine Coolant
(yellow-colored)
1
VC-7-B (US) /
CVC-7-B (Canada)
WSS-M97B51-A1
1
Engine oil 6.0 quarts (5.7L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Maintenance and Specifications
264
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Hinges, latches,
striker plates, fuel
filler door hinge and
seat tracks—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinders —Motorcraft
Penetrating and Lock
LubricantXL-1 /
None
Power steering fluidBetween MIN and
MAX on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic
transmission fluid
(4R75E)13.9 quarts
(13.2L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Rear axle fluid
5
5.0 pints (2.4L)
6,7
MotorcraftSAE
80W-90 Premium Rear
Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid
(Police)
5
MotorcraftSAE
75W-140 Synthetic
Rear Axle LubricantXY-75W140- QL /
WSL-M2C192-A
Maintenance and Specifications
265
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank19.0 gallons
(71.9L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range. Police or Handling Package refill
capacity- 12.8 quarts (12.1L).4Use of any fluid other than the recommended fluid may cause transmission damage. Refer to
scheduled maintenance informationto determine the correct service interval.5Rear axles are considered lubricated for life when the vehicle is used for normal service. For
severe duty requirements, seeExceptions and/or Special Operating Conditionsinscheduled
maintenance information.6Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to
14 mm) below the bottom of the filler hole.7Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok rear axles.
Maintenance and Specifications
266
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

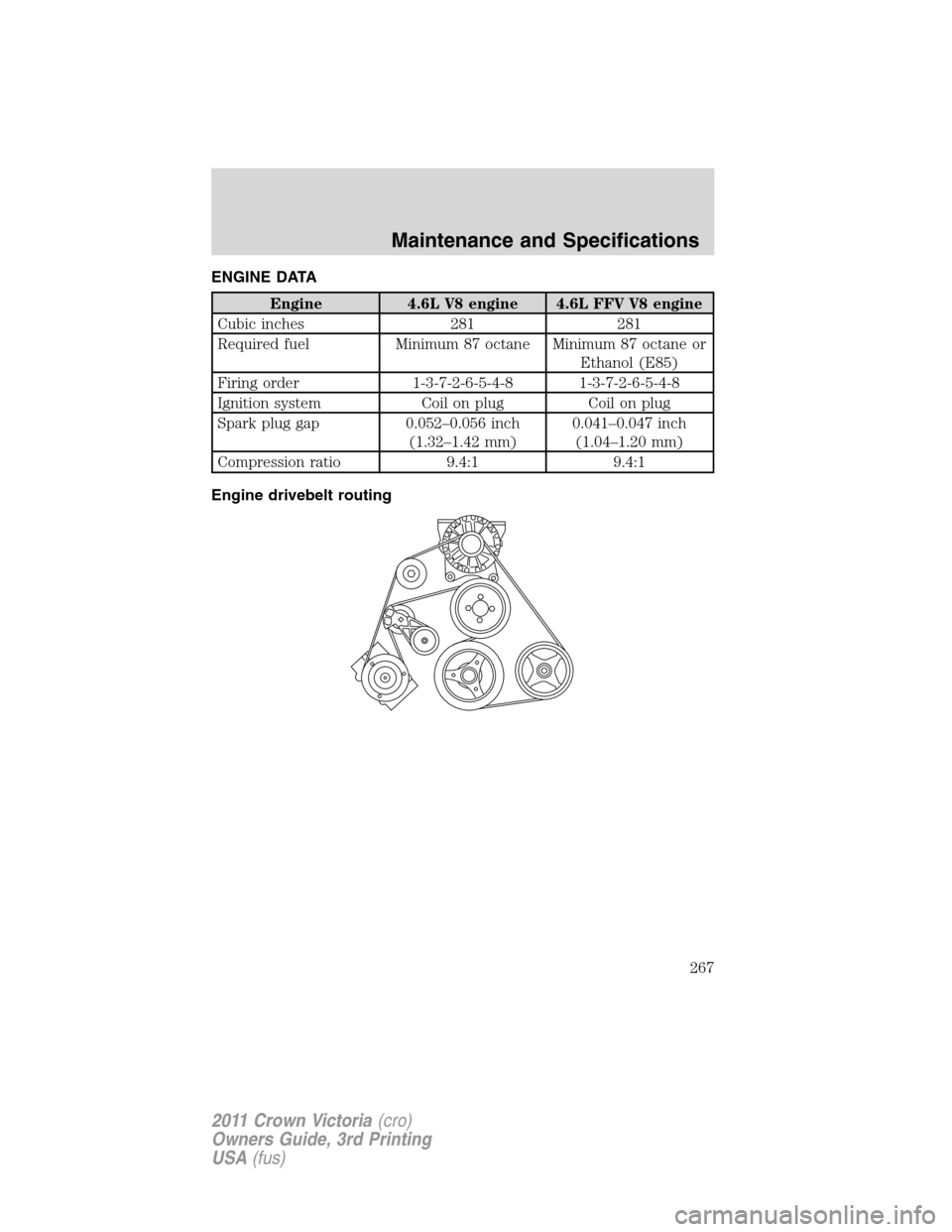

ENGINE DATA
Engine 4.6L V8 engine 4.6L FFV V8 engine
Cubic inches 281 281
Required fuel Minimum 87 octane Minimum 87 octane or
Ethanol (E85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
Engine drivebelt routing
Maintenance and Specifications
267
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

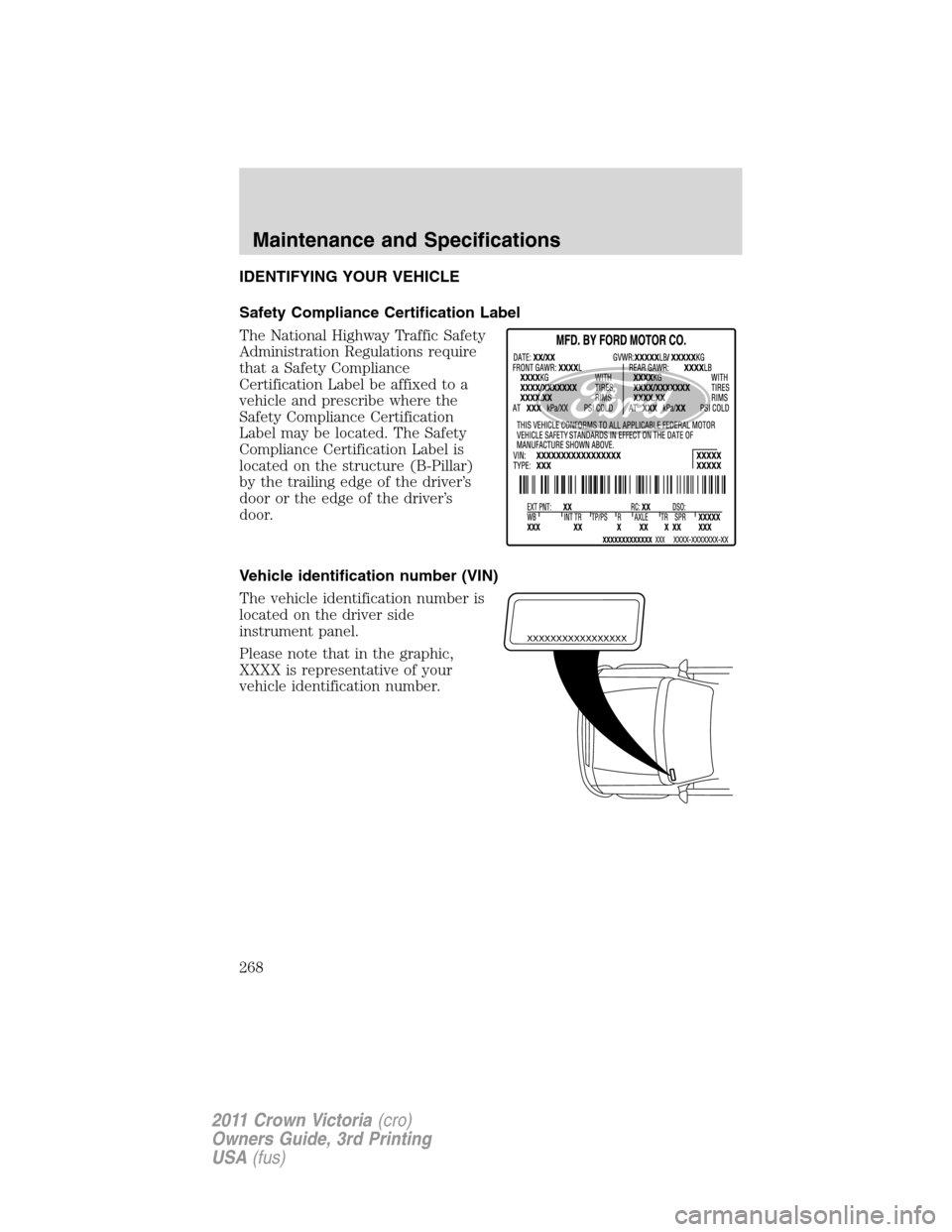

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
268
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

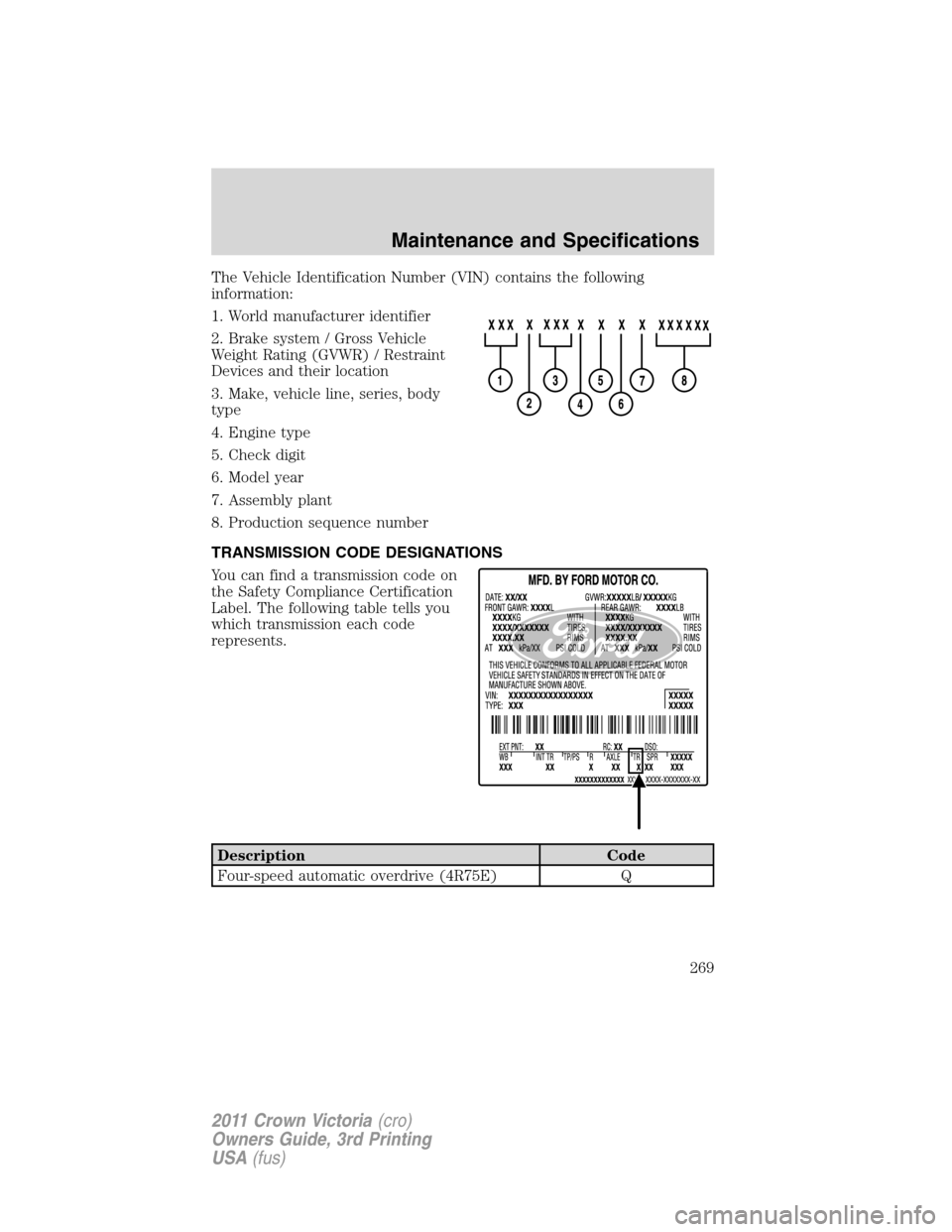

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
Maintenance and Specifications
269
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

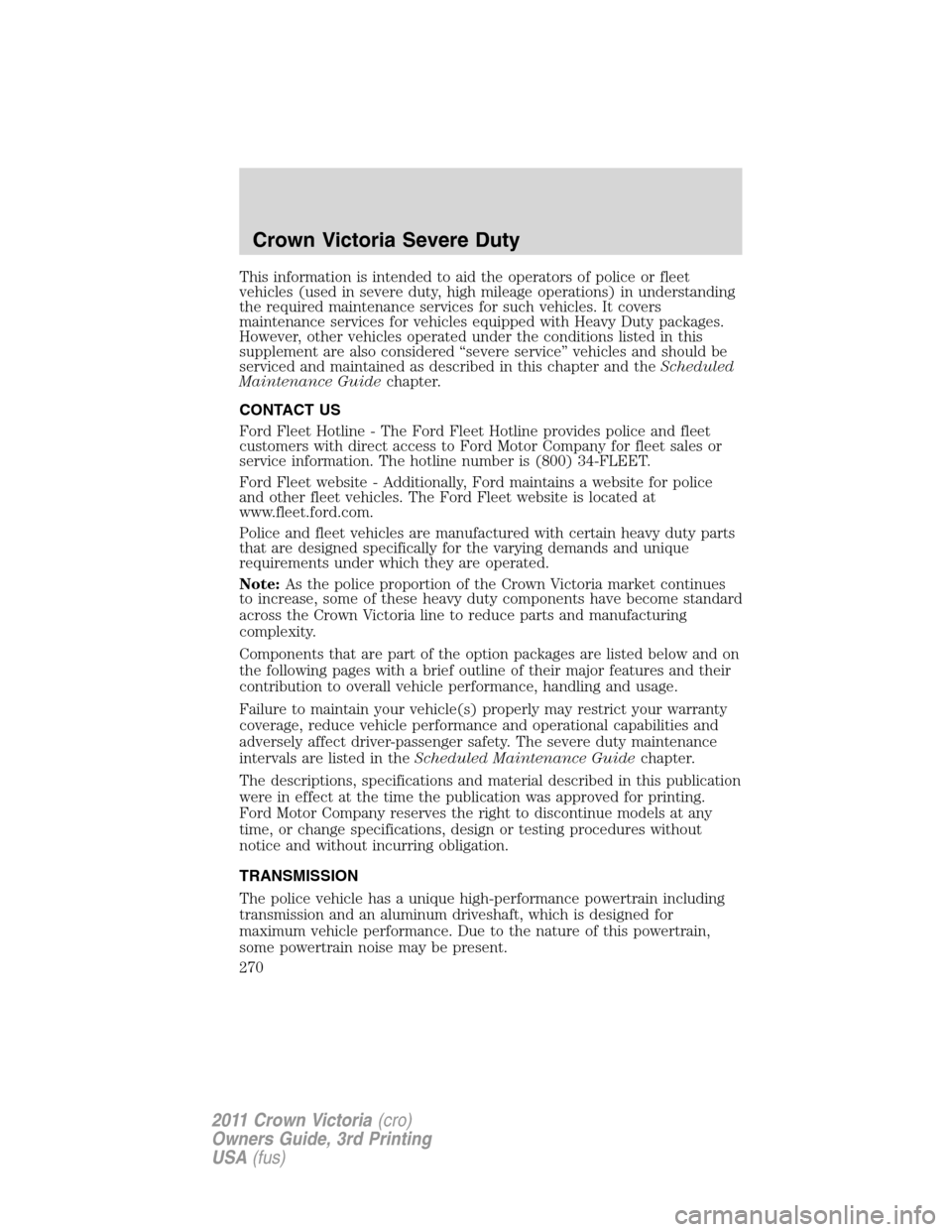

This information is intended to aid the operators of police or fleet
vehicles (used in severe duty, high mileage operations) in understanding
the required maintenance services for such vehicles. It covers
maintenance services for vehicles equipped with Heavy Duty packages.
However, other vehicles operated under the conditions listed in this
supplement are also considered “severe service” vehicles and should be
serviced and maintained as described in this chapter and theScheduled
Maintenance Guidechapter.
CONTACT US
Ford Fleet Hotline - The Ford Fleet Hotline provides police and fleet
customers with direct access to Ford Motor Company for fleet sales or
service information. The hotline number is (800) 34-FLEET.
Ford Fleet website - Additionally, Ford maintains a website for police
and other fleet vehicles. The Ford Fleet website is located at
www.fleet.ford.com.
Police and fleet vehicles are manufactured with certain heavy duty parts
that are designed specifically for the varying demands and unique
requirements under which they are operated.
Note:As the police proportion of the Crown Victoria market continues
to increase, some of these heavy duty components have become standard
across the Crown Victoria line to reduce parts and manufacturing
complexity.
Components that are part of the option packages are listed below and on
the following pages with a brief outline of their major features and their
contribution to overall vehicle performance, handling and usage.
Failure to maintain your vehicle(s) properly may restrict your warranty
coverage, reduce vehicle performance and operational capabilities and
adversely affect driver-passenger safety. The severe duty maintenance
intervals are listed in theScheduled Maintenance Guidechapter.
The descriptions, specifications and material described in this publication
were in effect at the time the publication was approved for printing.
Ford Motor Company reserves the right to discontinue models at any
time, or change specifications, design or testing procedures without
notice and without incurring obligation.
TRANSMISSION
The police vehicle has a unique high-performance powertrain including
transmission and an aluminum driveshaft, which is designed for
maximum vehicle performance. Due to the nature of this powertrain,
some powertrain noise may be present.
Crown Victoria Severe Duty
270
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
