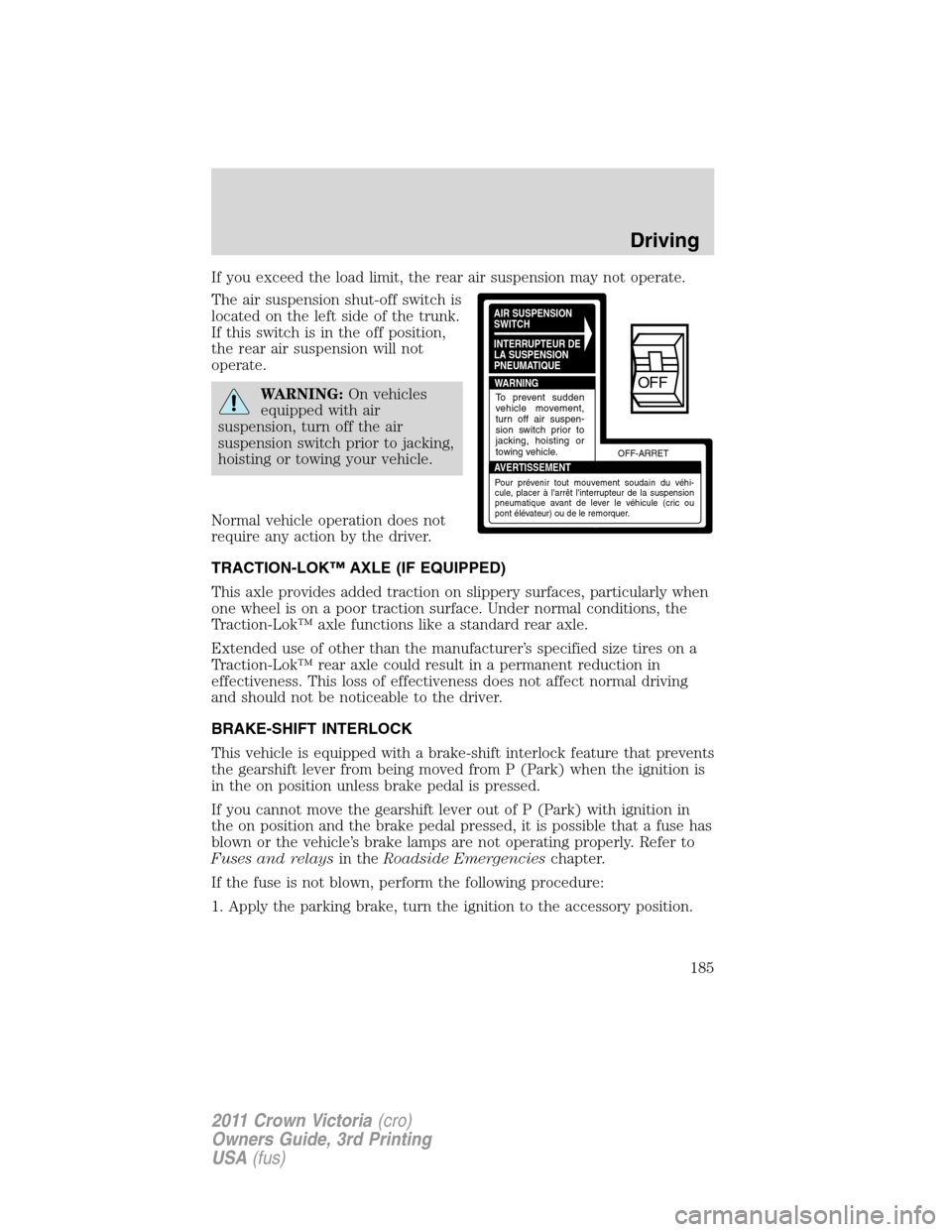

If you exceed the load limit, the rear air suspension may not operate.
The air suspension shut-off switch is
located on the left side of the trunk.
If this switch is in the off position,
the rear air suspension will not
operate.
WARNING:On vehicles
equipped with air
suspension, turn off the air
suspension switch prior to jacking,
hoisting or towing your vehicle.
Normal vehicle operation does not
require any action by the driver.
TRACTION-LOK™ AXLE (IF EQUIPPED)
This axle provides added traction on slippery surfaces, particularly when
one wheel is on a poor traction surface. Under normal conditions, the
Traction-Lok™ axle functions like a standard rear axle.
Extended use of other than the manufacturer’s specified size tires on a
Traction-Lok™ rear axle could result in a permanent reduction in
effectiveness. This loss of effectiveness does not affect normal driving
and should not be noticeable to the driver.
BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake, turn the ignition to the accessory position.
AIR SUSPENSION
SWITCH
INTERRUPTEUR DE
LA SUSPENSION
PNEUMATIQUE
WARNING
AVERTISSEMENTOFF-ARRET
To prevent sudden
vehicle movement,
turn off air suspen-
sion switch prior to
jacking, hoisting or
towing vehicle.
Pour prévenir tout mouvement soudain du véhi-
cule, placer à l'arrêt l'interrupteur de la suspension
pneumatique avant de lever le véhicule (cric ou
pont élévateur) ou de le remorquer.
OFF
Driving
185
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 274 of 333
Taxi

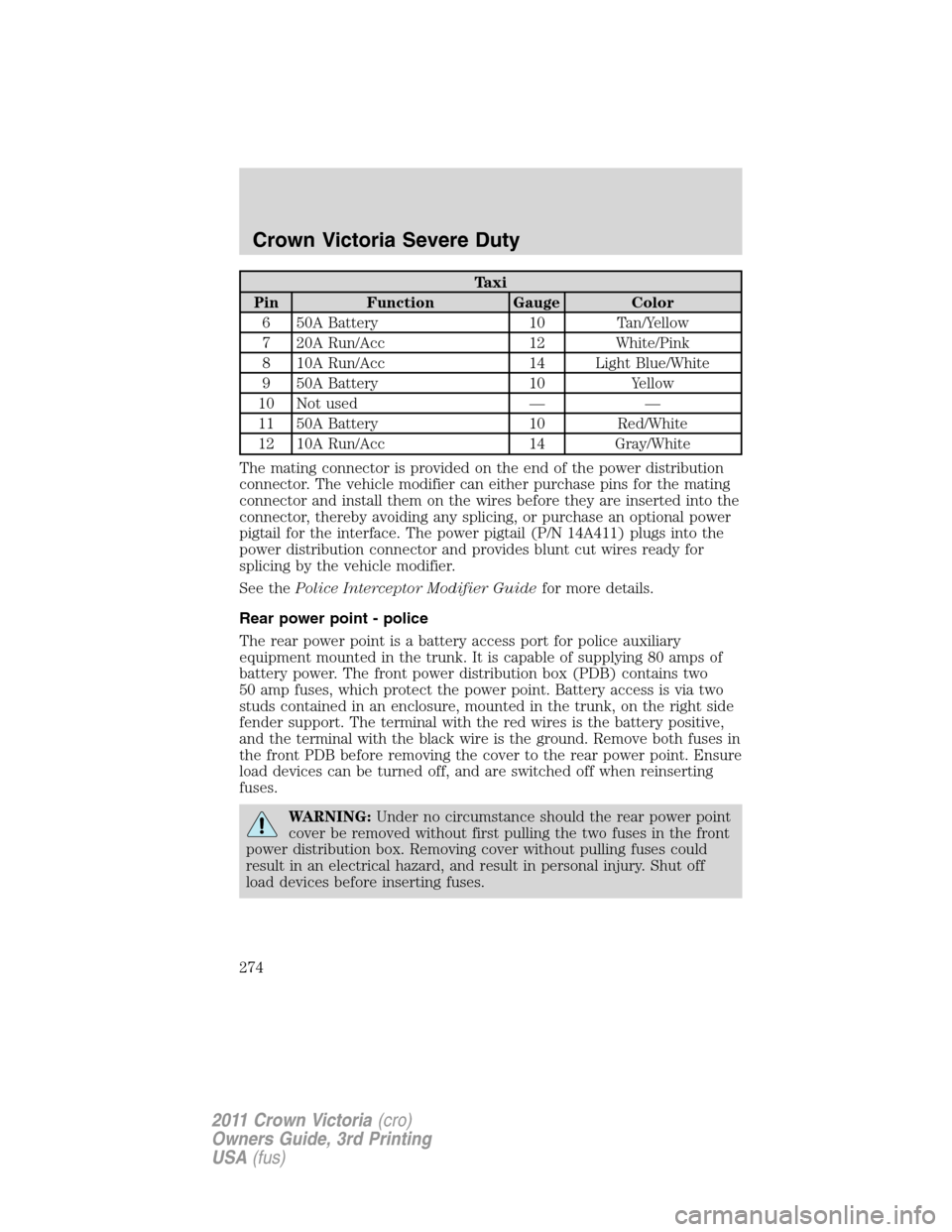

Pin Function Gauge Color
6 50A Battery 10 Tan/Yellow
7 20A Run/Acc 12 White/Pink
8 10A Run/Acc 14 Light Blue/White
9 50A Battery 10 Yellow
10 Not used — —
11 50A Battery 10 Red/White
12 10A Run/Acc 14 Gray/White
The mating connector is provided on the end of the power distribution
connector. The vehicle modifier can either purchase pins for the mating
connector and install them on the wires before they are inserted into the
connector, thereby avoiding any splicing, or purchase an optional power
pigtail for the interface. The power pigtail (P/N 14A411) plugs into the
power distribution connector and provides blunt cut wires ready for
splicing by the vehicle modifier.
See thePolice Interceptor Modifier Guidefor more details.
Rear power point - police
The rear power point is a battery access port for police auxiliary
equipment mounted in the trunk. It is capable of supplying 80 amps of
battery power. The front power distribution box (PDB) contains two
50 amp fuses, which protect the power point. Battery access is via two
studs contained in an enclosure, mounted in the trunk, on the right side
fender support. The terminal with the red wires is the battery positive,
and the terminal with the black wire is the ground. Remove both fuses in
the front PDB before removing the cover to the rear power point. Ensure
load devices can be turned off, and are switched off when reinserting
fuses.
WARNING:Under no circumstance should the rear power point
cover be removed without first pulling the two fuses in the front
power distribution box. Removing cover without pulling fuses could
result in an electrical hazard, and result in personal injury. Shut off
load devices before inserting fuses.
Crown Victoria Severe Duty
274
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 286 of 333

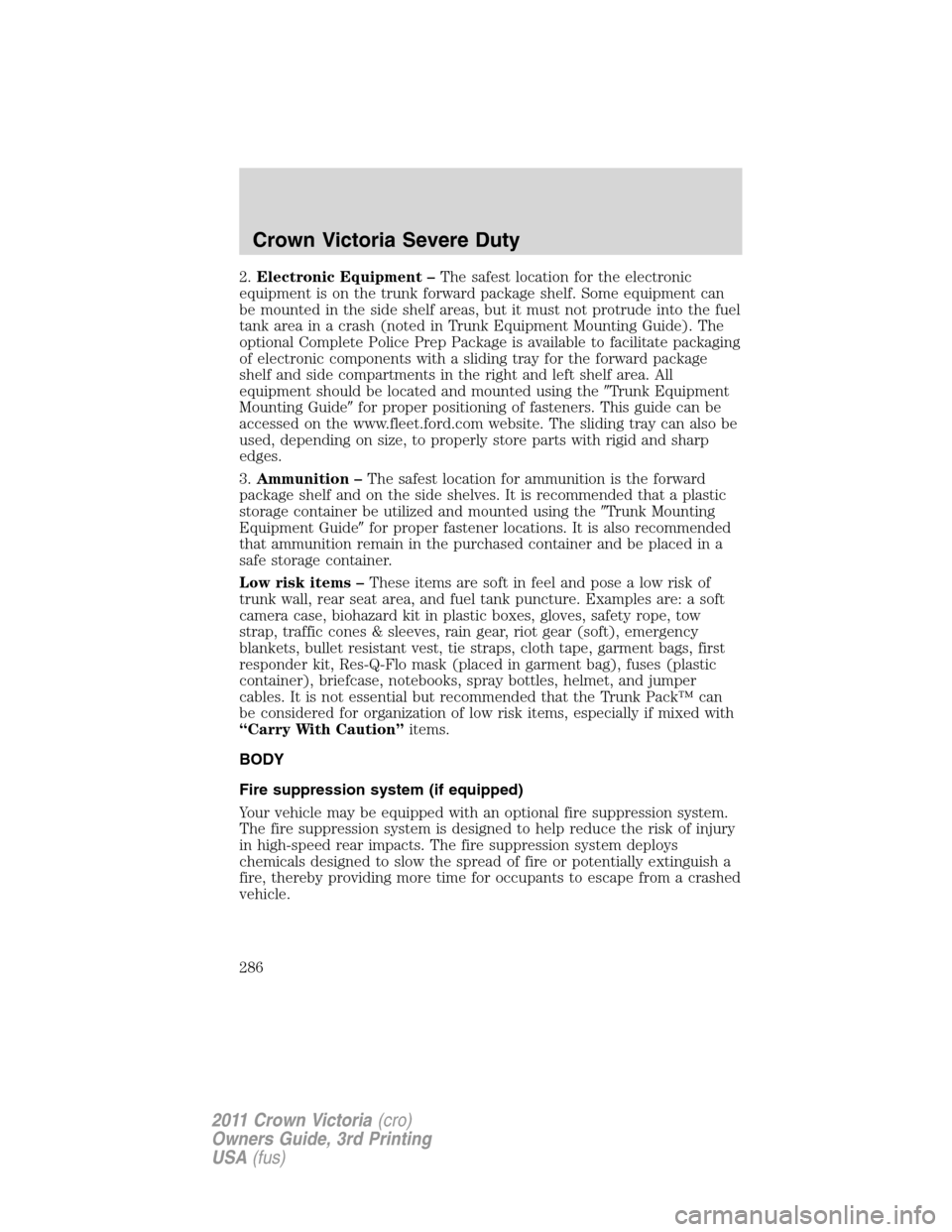

2.Electronic Equipment –The safest location for the electronic
equipment is on the trunk forward package shelf. Some equipment can
be mounted in the side shelf areas, but it must not protrude into the fuel
tank area in a crash (noted in Trunk Equipment Mounting Guide). The
optional Complete Police Prep Package is available to facilitate packaging
of electronic components with a sliding tray for the forward package
shelf and side compartments in the right and left shelf area. All
equipment should be located and mounted using theTrunk Equipment
Mounting Guidefor proper positioning of fasteners. This guide can be
accessed on the www.fleet.ford.com website. The sliding tray can also be
used, depending on size, to properly store parts with rigid and sharp
edges.
3.Ammunition –The safest location for ammunition is the forward
package shelf and on the side shelves. It is recommended that a plastic
storage container be utilized and mounted using theTrunk Mounting
Equipment Guidefor proper fastener locations. It is also recommended
that ammunition remain in the purchased container and be placed in a
safe storage container.
Low risk items –These items are soft in feel and pose a low risk of
trunk wall, rear seat area, and fuel tank puncture. Examples are: a soft
camera case, biohazard kit in plastic boxes, gloves, safety rope, tow
strap, traffic cones & sleeves, rain gear, riot gear (soft), emergency
blankets, bullet resistant vest, tie straps, cloth tape, garment bags, first
responder kit, Res-Q-Flo mask (placed in garment bag), fuses (plastic
container), briefcase, notebooks, spray bottles, helmet, and jumper
cables. It is not essential but recommended that the Trunk Pack™ can
be considered for organization of low risk items, especially if mixed with
“Carry With Caution”items.
BODY
Fire suppression system (if equipped)
Your vehicle may be equipped with an optional fire suppression system.
The fire suppression system is designed to help reduce the risk of injury
in high-speed rear impacts. The fire suppression system deploys
chemicals designed to slow the spread of fire or potentially extinguish a
fire, thereby providing more time for occupants to escape from a crashed
vehicle.
Crown Victoria Severe Duty
286
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
Page 332 of 333

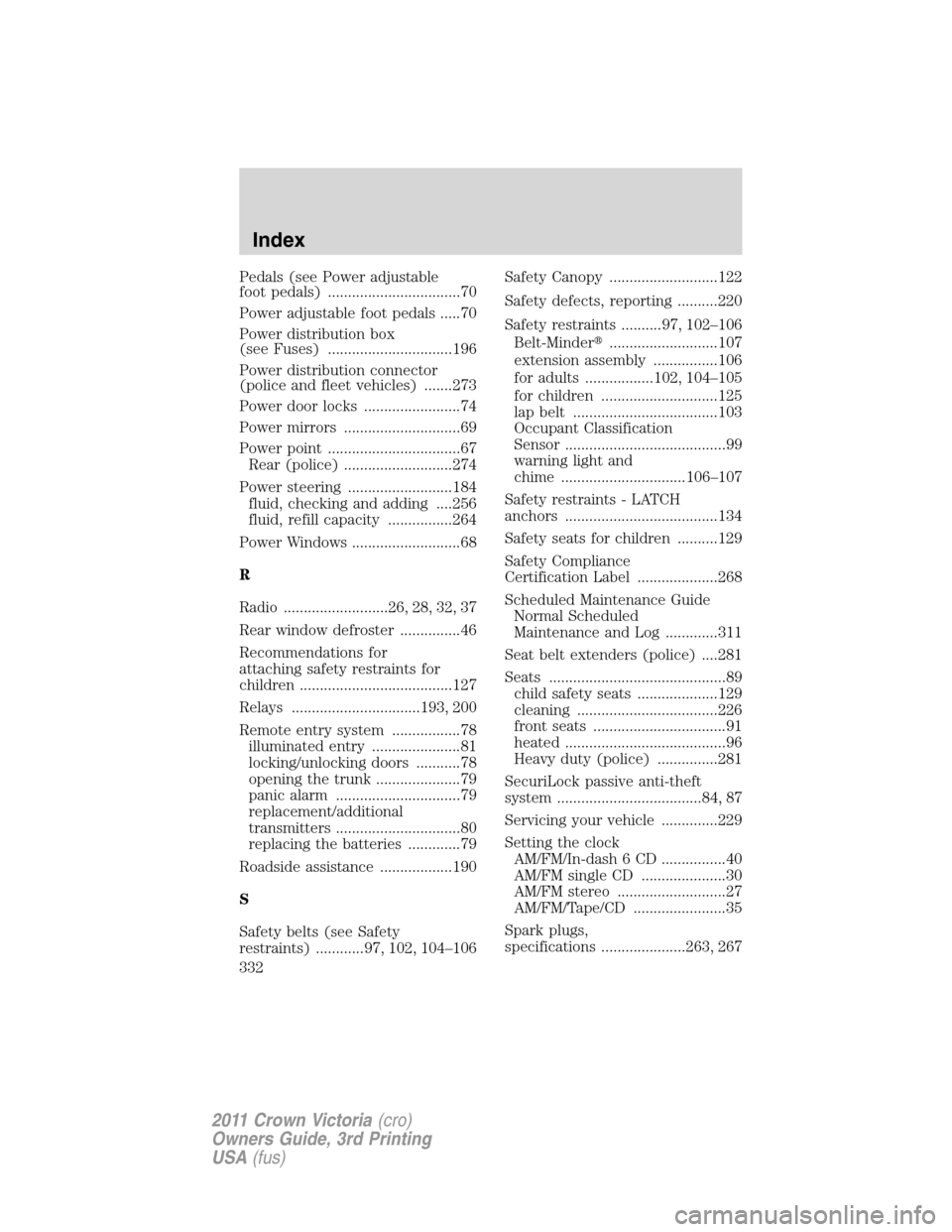

Pedals (see Power adjustable
foot pedals) .................................70
Power adjustable foot pedals .....70
Power distribution box
(see Fuses) ...............................196
Power distribution connector
(police and fleet vehicles) .......273
Power door locks ........................74
Power mirrors .............................69
Power point .................................67
Rear (police) ...........................274
Power steering ..........................184
fluid, checking and adding ....256
fluid, refill capacity ................264
Power Windows ...........................68
R
Radio ..........................26, 28, 32, 37
Rear window defroster ...............46
Recommendations for
attaching safety restraints for
children ......................................127
Relays ................................193, 200
Remote entry system .................78
illuminated entry ......................81
locking/unlocking doors ...........78
opening the trunk .....................79
panic alarm ...............................79
replacement/additional
transmitters ...............................80
replacing the batteries .............79
Roadside assistance ..................190
S
Safety belts (see Safety
restraints) ............97, 102, 104–106Safety Canopy ...........................122
Safety defects, reporting ..........220
Safety restraints ..........97, 102–106
Belt-Minder...........................107
extension assembly ................106
for adults .................102, 104–105
for children .............................125
lap belt ....................................103
Occupant Classification
Sensor ........................................99
warning light and
chime ...............................106–107
Safety restraints - LATCH
anchors ......................................134
Safety seats for children ..........129
Safety Compliance
Certification Label ....................268
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............311
Seat belt extenders (police) ....281
Seats ............................................89
child safety seats ....................129
cleaning ...................................226
front seats .................................91
heated ........................................96
Heavy duty (police) ...............281
SecuriLock passive anti-theft
system ....................................84, 87
Servicing your vehicle ..............229
Setting the clock
AM/FM/In-dash 6 CD ................40
AM/FM single CD .....................30
AM/FM stereo ...........................27
AM/FM/Tape/CD .......................35
Spark plugs,
specifications .....................263, 267
