tire pressure FORD CROWN VICTORIA 2011 2.G Owners Manual

FORD CROWN VICTORIA 2011 2.G Owners Manual CROWN VICTORIA 2011 2.G FORD FORD https://www.carmanualsonline.info/img/11/4787/w960_4787-0.png FORD CROWN VICTORIA 2011 2.G Owners Manual

Page 2 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual Seating and Safety Restraints 89
Seating 89
Safety restraints 97
Airbags 112
Child restraints 125
Tires, Wheels and Loading 143
Tire information 143
Tire inflation 145
Tire Pressure Monitoring System

Page 11 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
D

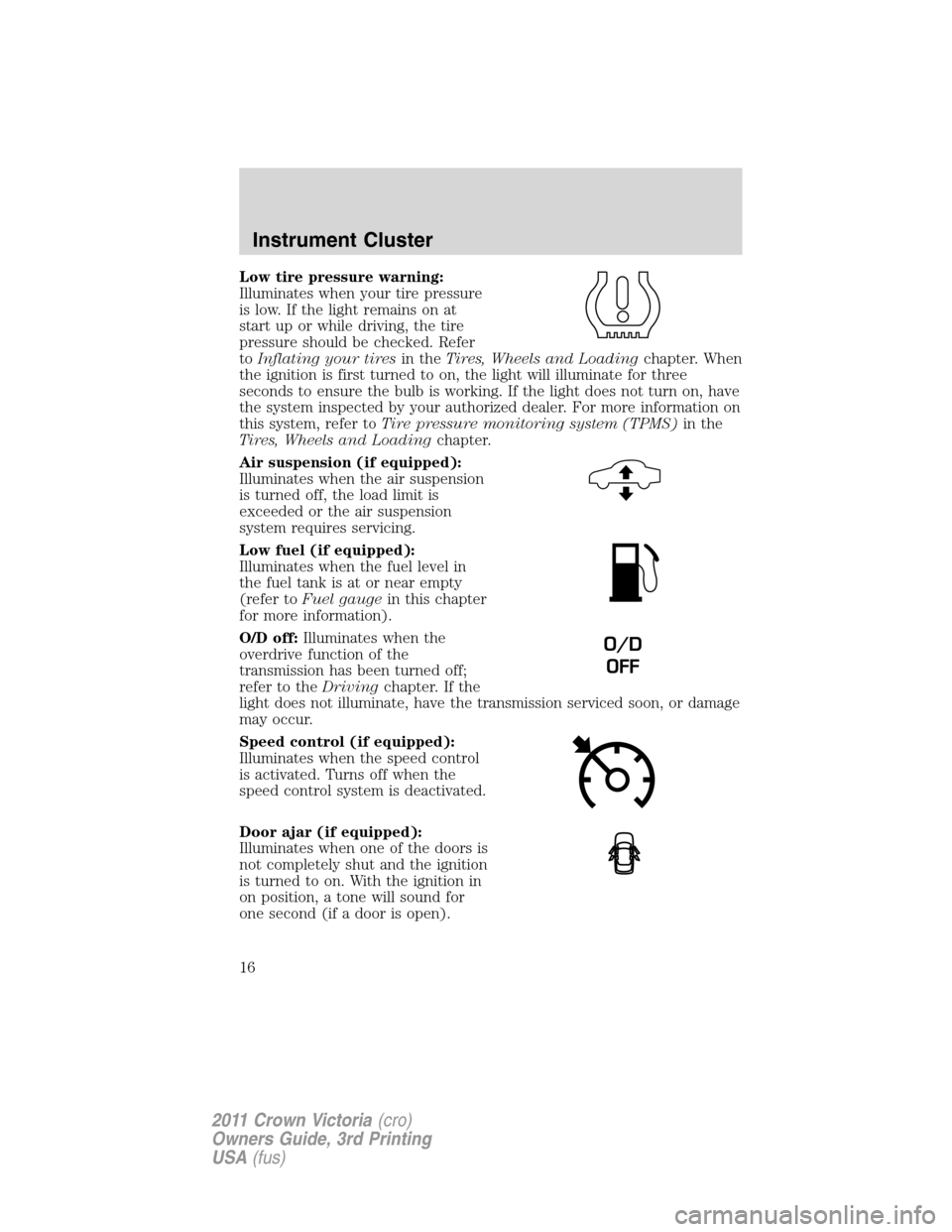

Page 16 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual Low tire pressure warning:
Illuminates when your tire pressure
is low. If the light remains on at
start up or while driving, the tire
pressure should be checked. Refer
toInflating your tiresin theTire

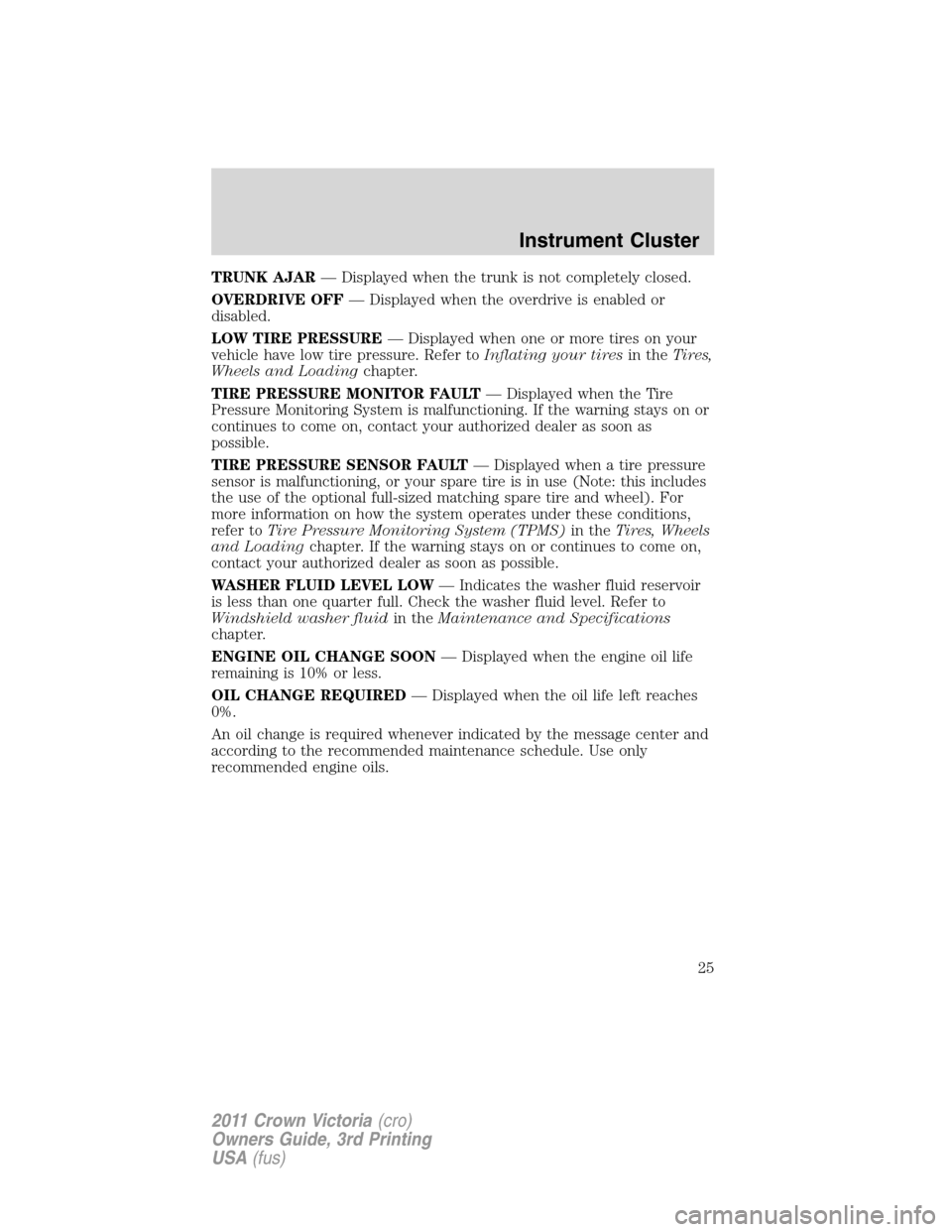

Page 25 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual TRUNK AJAR— Displayed when the trunk is not completely closed.
OVERDRIVE OFF— Displayed when the overdrive is enabled or
disabled.
LOW TIRE PRESSURE— Displayed when one or more tires on your
veh

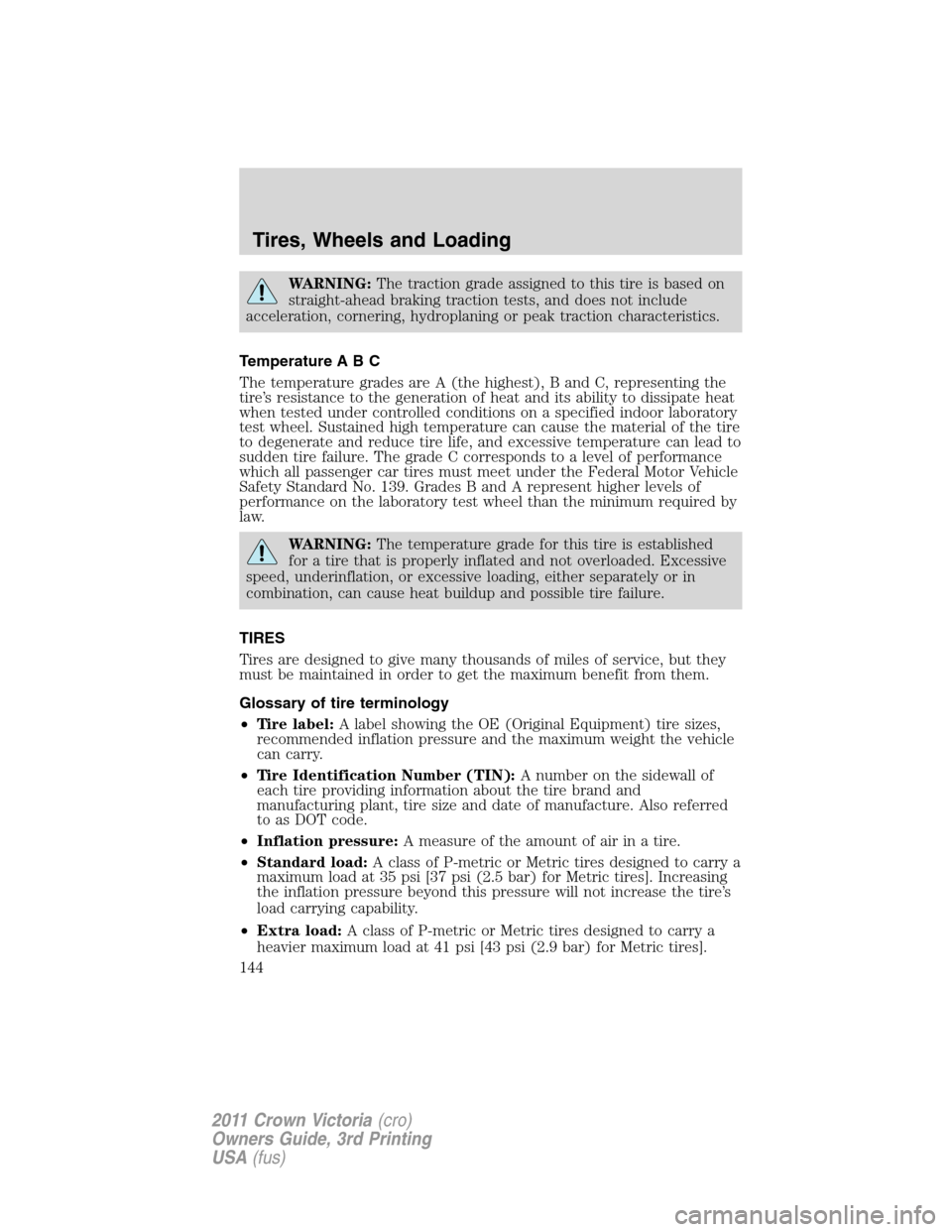

Page 144 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual WARNING:The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not include
acceleration, cornering, hydroplaning or peak traction characteristics.
Tempera

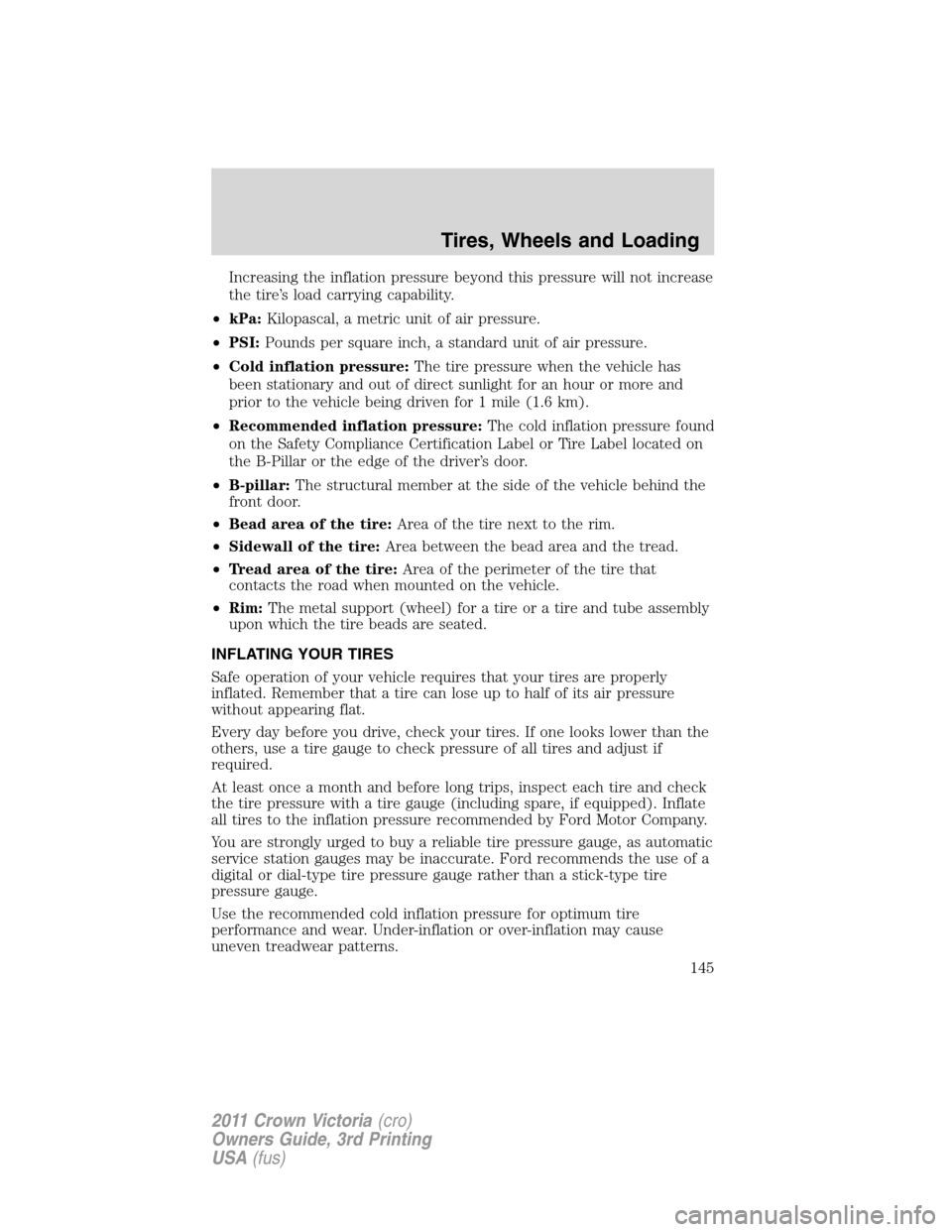

Page 145 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual Increasing the inflation pressure beyond this pressure will not increase
the tire’s load carrying capability.
•kPa:Kilopascal, a metric unit of air pressure.
•PSI:Pounds per square inch, a stand

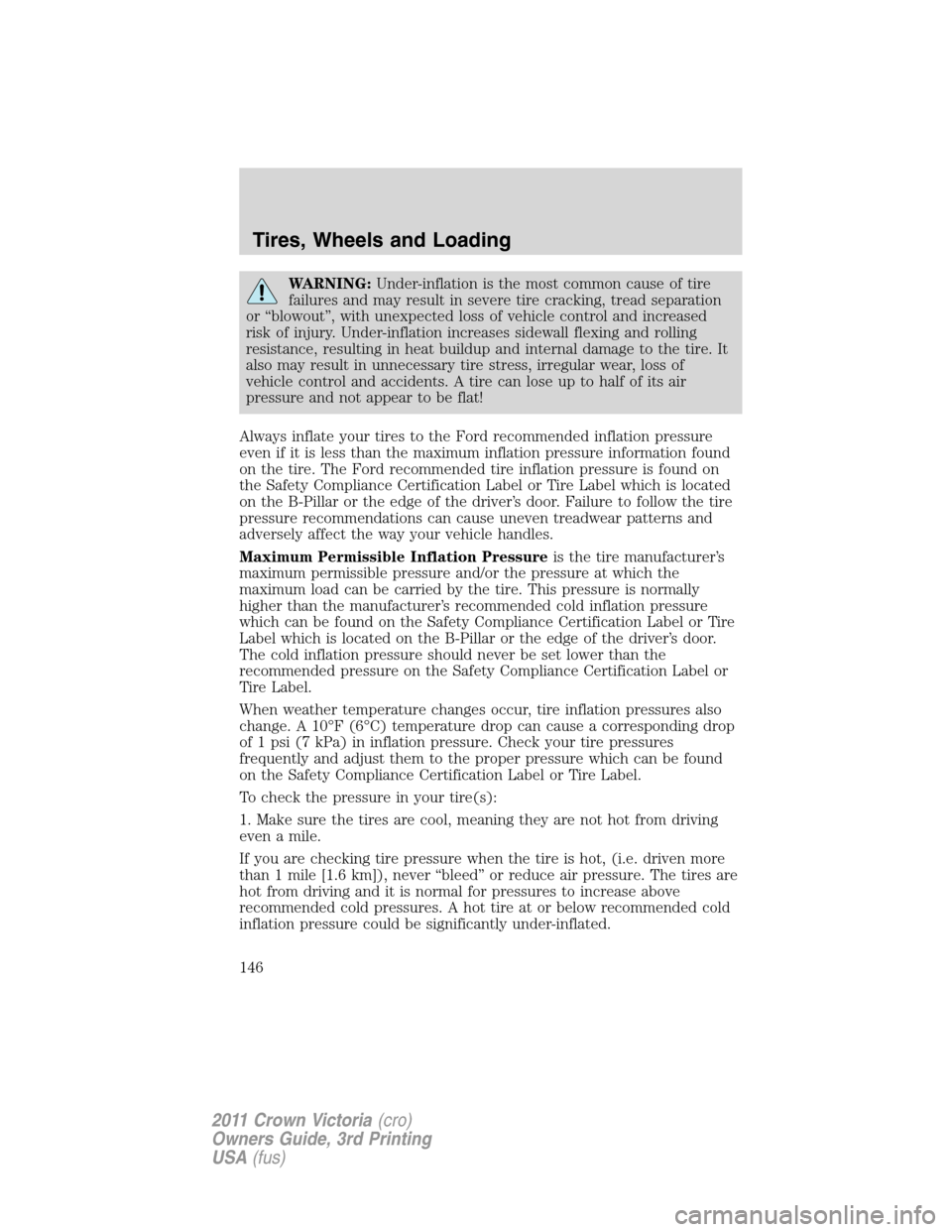

Page 146 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual WARNING:Under-inflation is the most common cause of tire
failures and may result in severe tire cracking, tread separation
or “blowout”, with unexpected loss of vehicle control and increased
risk

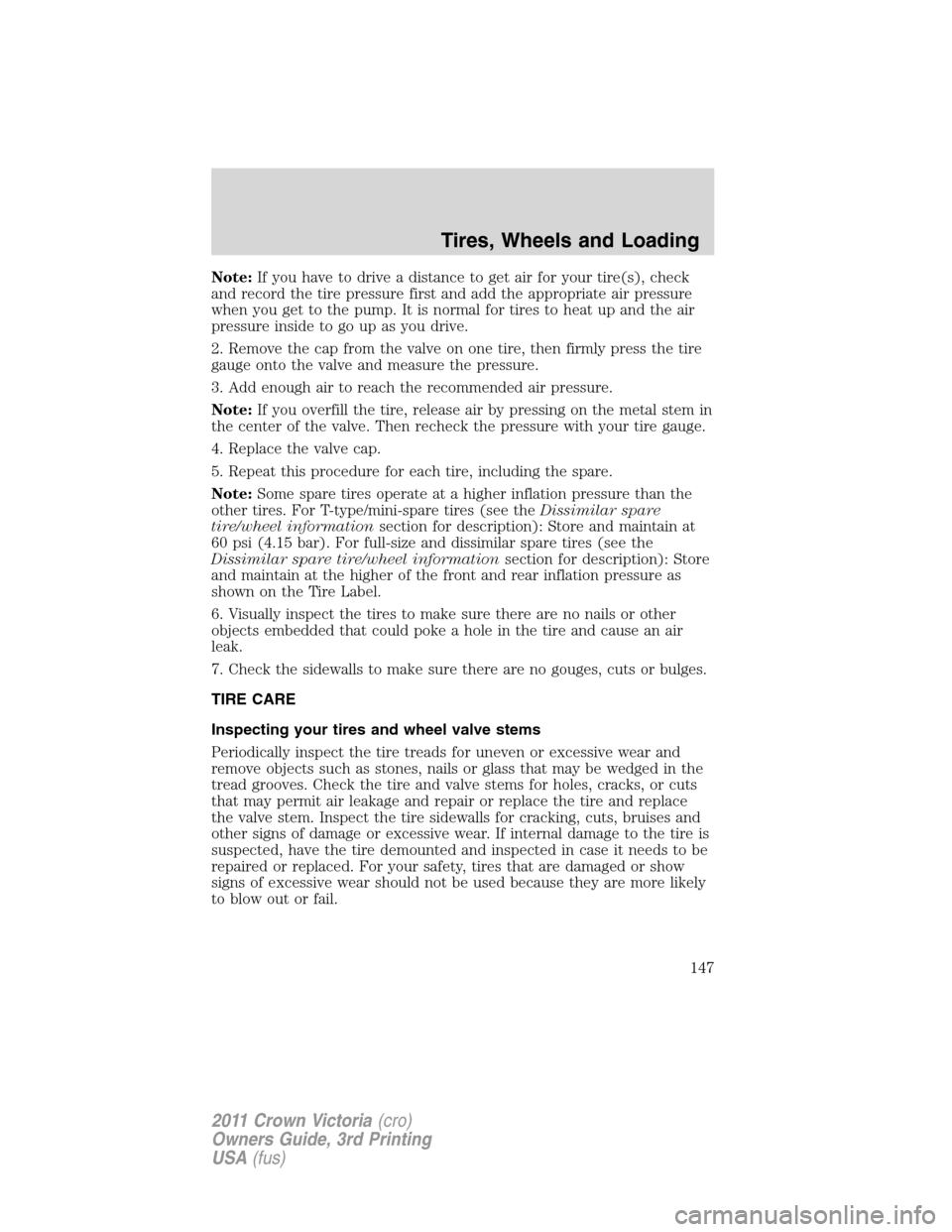

Page 147 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual Note:If you have to drive a distance to get air for your tire(s), check
and record the tire pressure first and add the appropriate air pressure
when you get to the pump. It is normal for tires to heat

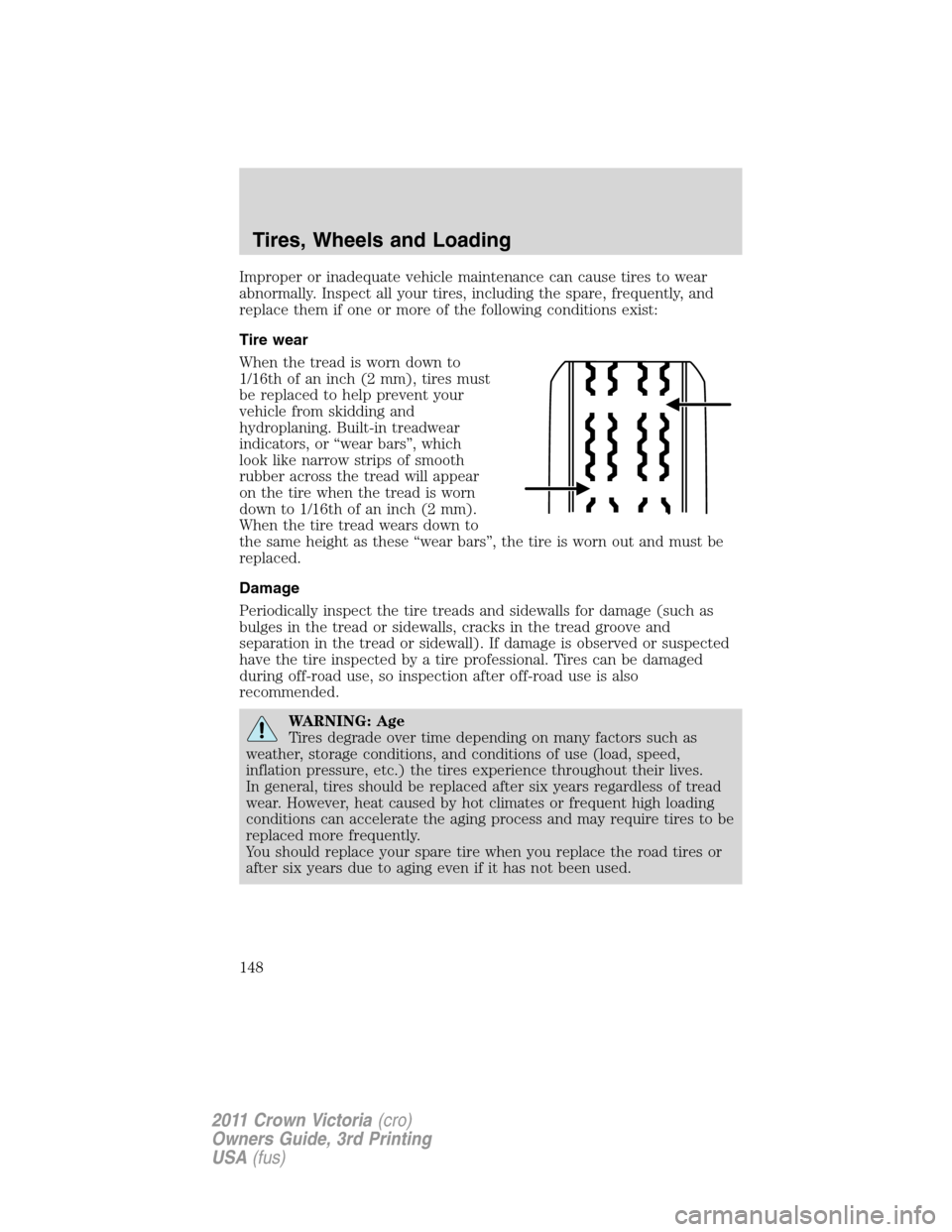

Page 148 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual Improper or inadequate vehicle maintenance can cause tires to wear
abnormally. Inspect all your tires, including the spare, frequently, and
replace them if one or more of the following conditions exis

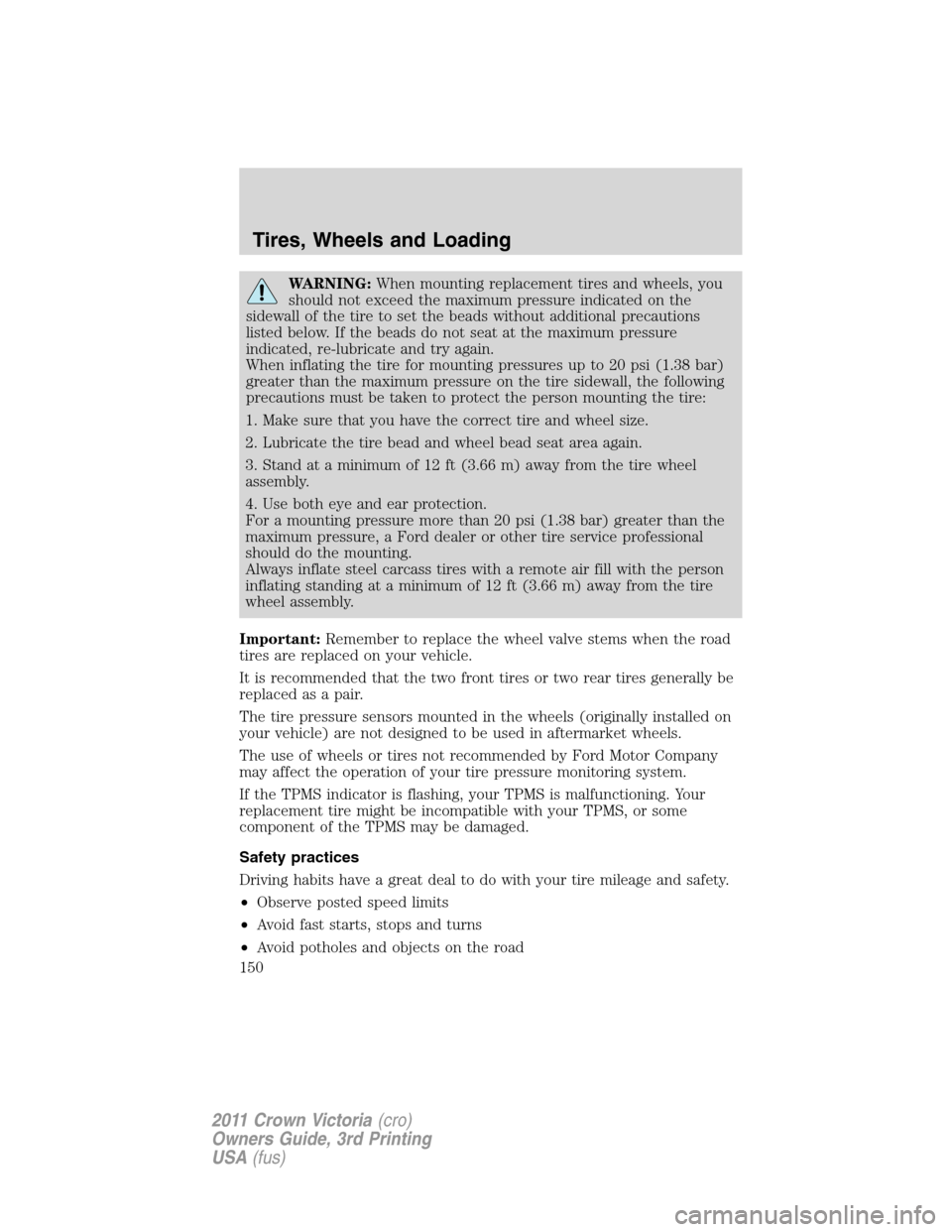

Page 150 of 333

FORD CROWN VICTORIA 2011 2.G Owners Manual WARNING:When mounting replacement tires and wheels, you
should not exceed the maximum pressure indicated on the
sidewall of the tire to set the beads without additional precautions
listed below. If th
