alarm FORD E-150 2006 Owners Manual

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11
ProCarManuals.com

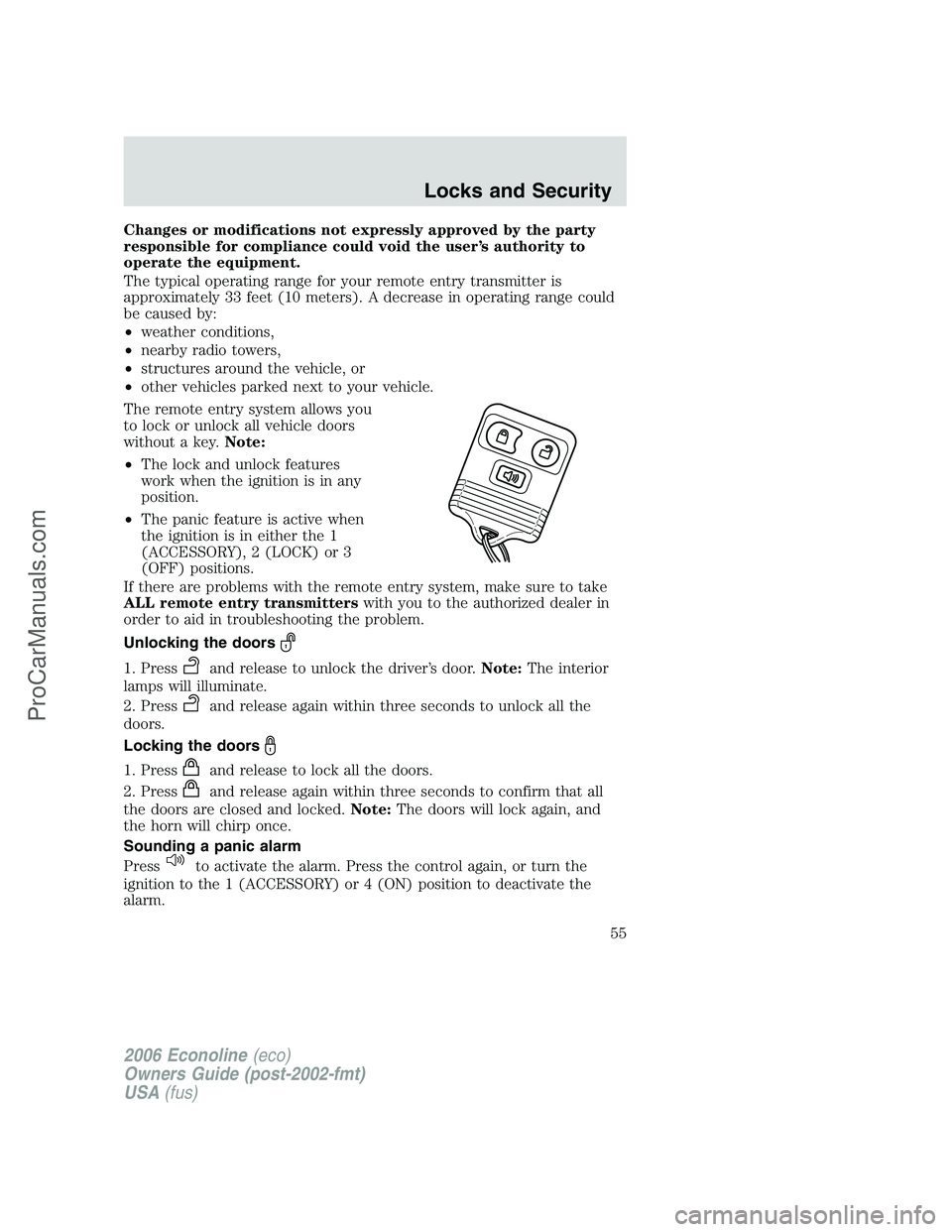

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The remote entry system allows you
to lock or unlock all vehicle doors
without a key.Note:
•The lock and unlock features
work when the ignition is in any
position.
•The panic feature is active when
the ignition is in either the 1
(ACCESSORY), 2 (LOCK) or 3
(OFF) positions.
If there are problems with the remote entry system, make sure to take
ALL remote entry transmitterswith you to the authorized dealer in
order to aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within three seconds to unlock all the
doors.
Locking the doors
1. Pressand release to lock all the doors.
2. Press
and release again within three seconds to confirm that all
the doors are closed and locked.Note:The doors will lock again, and
the horn will chirp once.
Sounding a panic alarm
Press
to activate the alarm. Press the control again, or turn the
ignition to the 1 (ACCESSORY) or 4 (ON) position to deactivate the
alarm.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
55
ProCarManuals.com

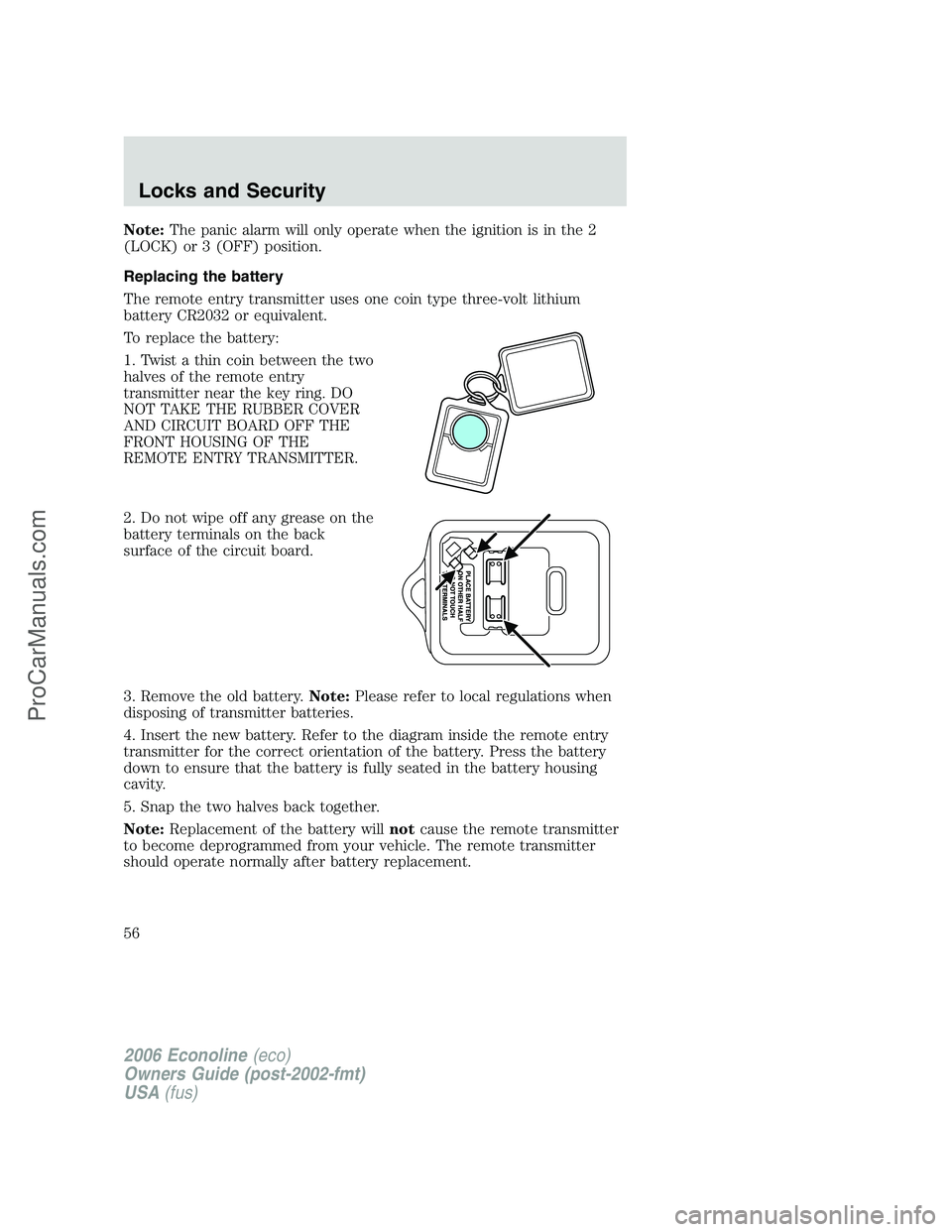

Note:The panic alarm will only operate when the ignition is in the 2
(LOCK) or 3 (OFF) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.Note:Please refer to local regulations when
disposing of transmitter batteries.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.
5. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
56
ProCarManuals.com

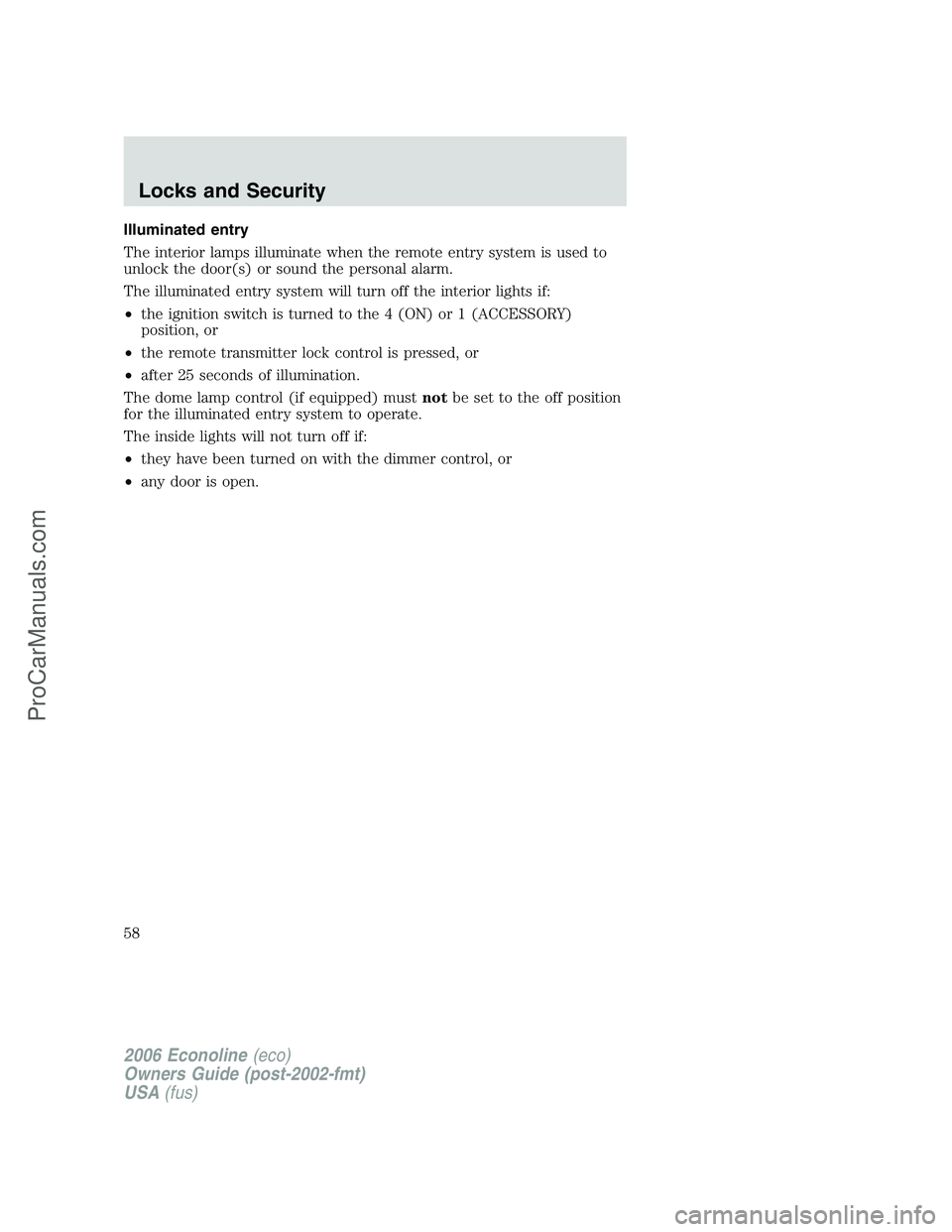

Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 4 (ON) or 1 (ACCESSORY)
position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
58
ProCarManuals.com

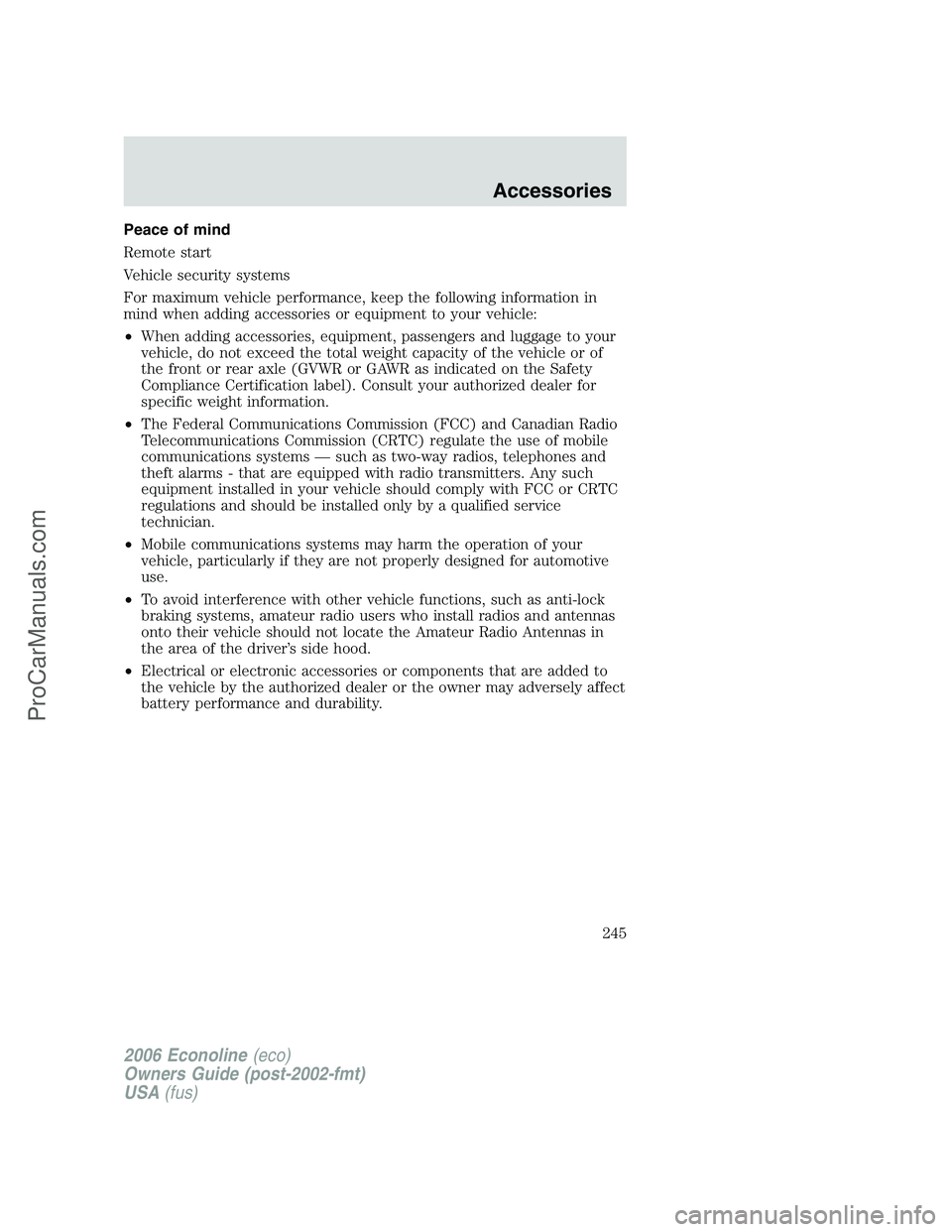

Peace of mind
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
245
ProCarManuals.com

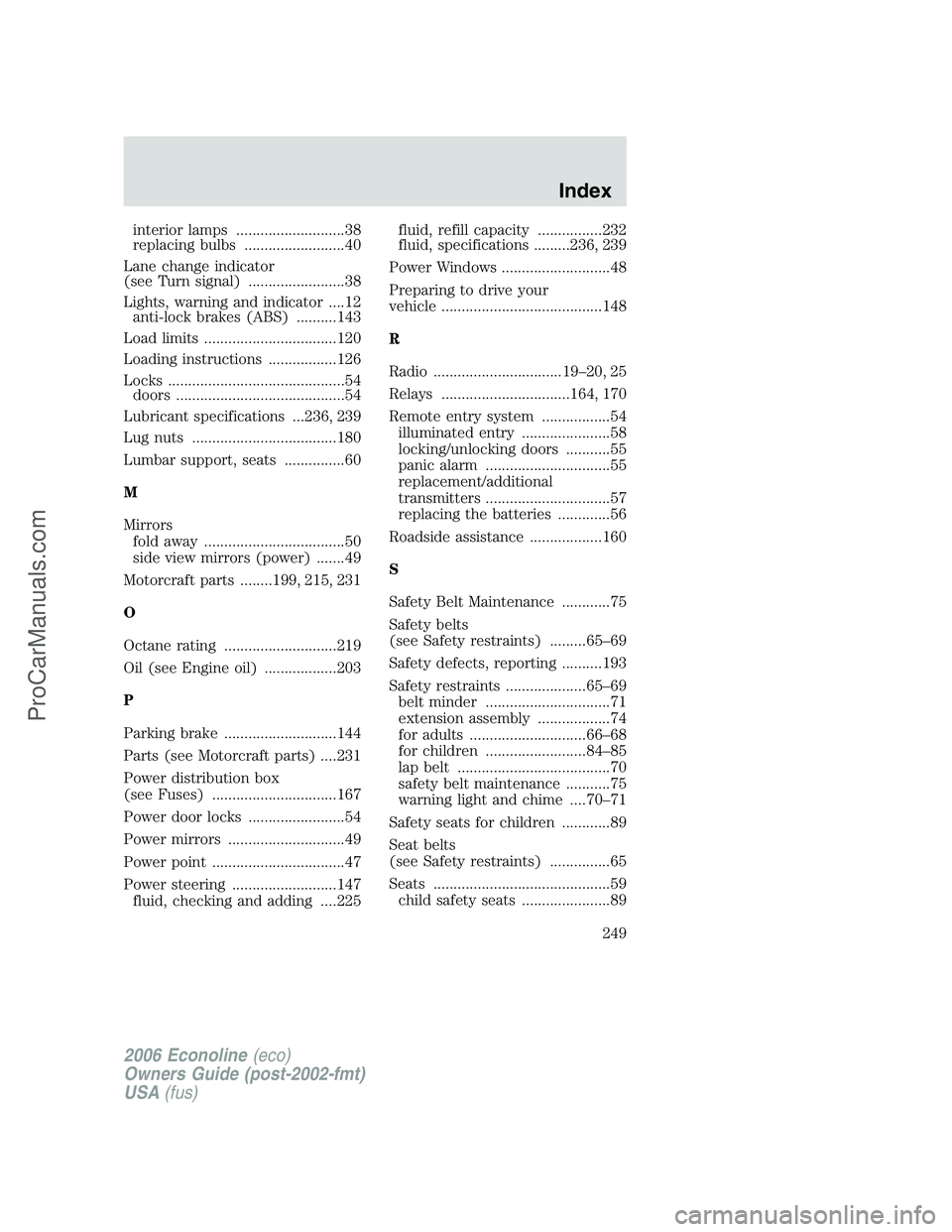

interior lamps ...........................38
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........143
Load limits .................................120
Loading instructions .................126
Locks ............................................54
doors ..........................................54
Lubricant specifications ...236, 239
Lug nuts ....................................180
Lumbar support, seats ...............60
M
Mirrors
fold away ...................................50
side view mirrors (power) .......49
Motorcraft parts ........199, 215, 231
O
Octane rating ............................219
Oil (see Engine oil) ..................203
P
Parking brake ............................144
Parts (see Motorcraft parts) ....231
Power distribution box
(see Fuses) ...............................167
Power door locks ........................54
Power mirrors .............................49
Power point .................................47
Power steering ..........................147
fluid, checking and adding ....225fluid, refill capacity ................232
fluid, specifications .........236, 239
Power Windows ...........................48
Preparing to drive your
vehicle ........................................148
R
Radio ................................19–20, 25
Relays ................................164, 170
Remote entry system .................54
illuminated entry ......................58
locking/unlocking doors ...........55
panic alarm ...............................55
replacement/additional
transmitters ...............................57
replacing the batteries .............56
Roadside assistance ..................160
S
Safety Belt Maintenance ............75
Safety belts
(see Safety restraints) .........65–69
Safety defects, reporting ..........193
Safety restraints ....................65–69
belt minder ...............................71
extension assembly ..................74
for adults .............................66–68
for children .........................84–85
lap belt ......................................70
safety belt maintenance ...........75
warning light and chime ....70–71
Safety seats for children ............89
Seat belts
(see Safety restraints) ...............65
Seats ............................................59
child safety seats ......................89
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
249
