checking oil FORD E-350 2003 Owners Manual

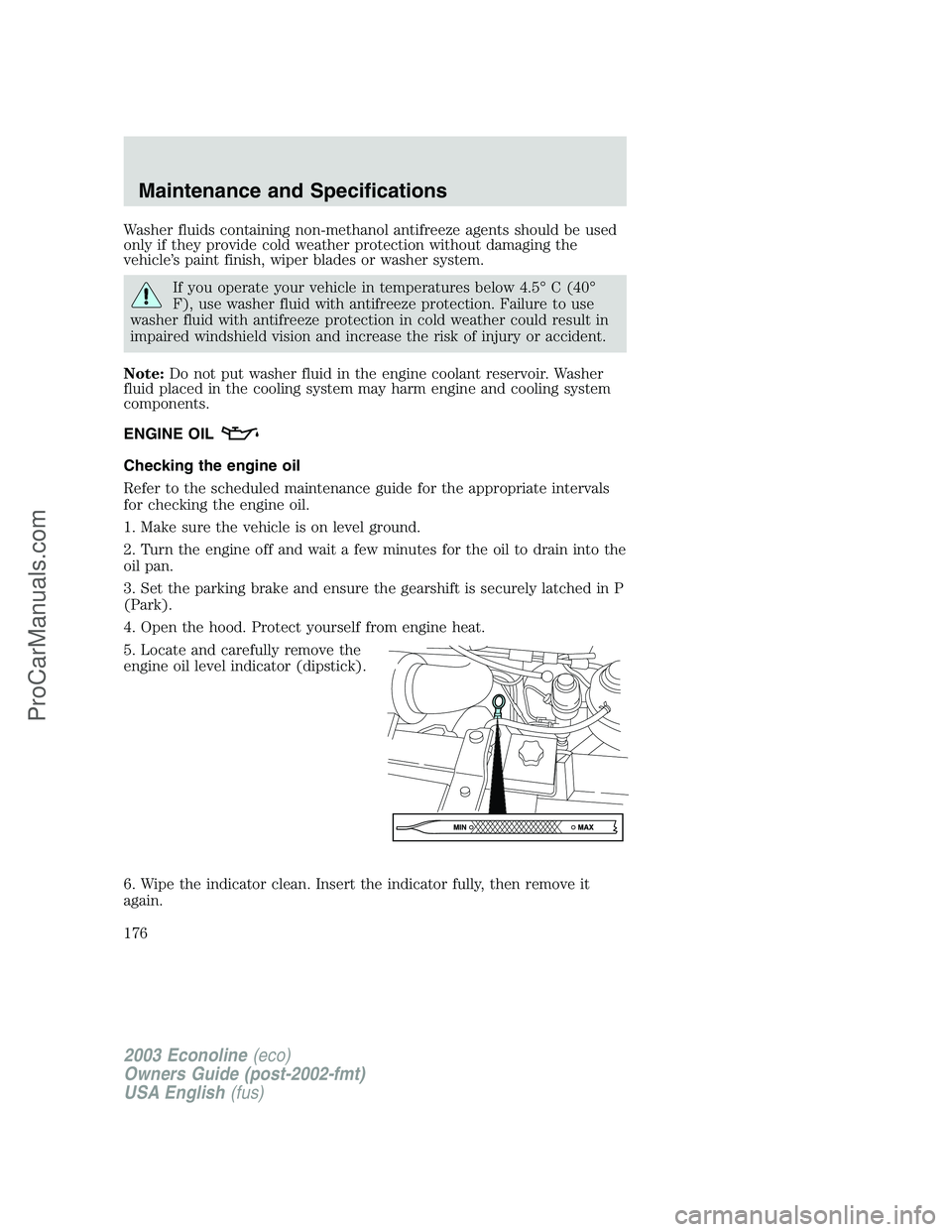

Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures below 4.5°C (40°
F), use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
ENGINE OIL
Checking the engine oil
Refer to the scheduled maintenance guide for the appropriate intervals
for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the
engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
176
ProCarManuals.com

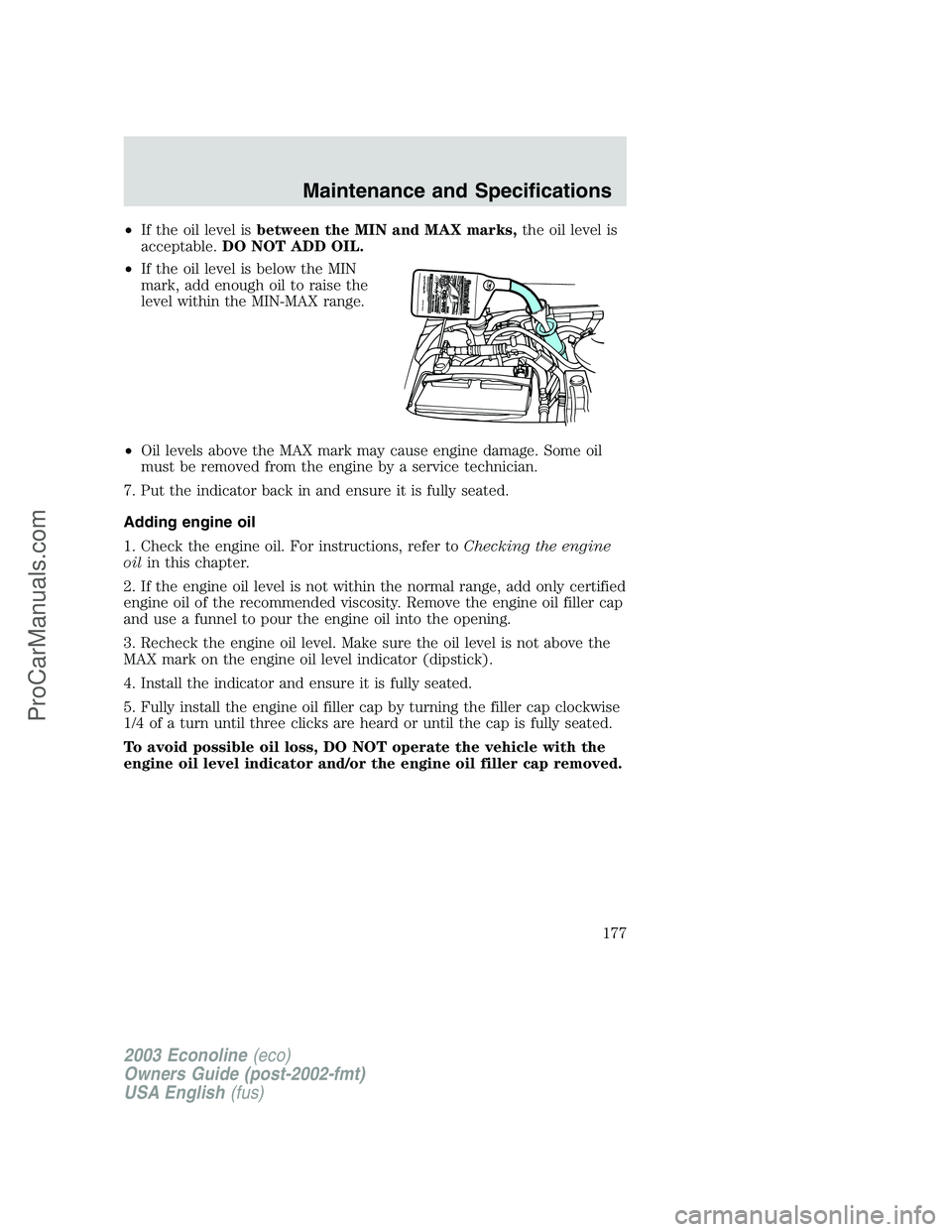

•If the oil level isbetween the MIN and MAX marks,the oil level is
acceptable.DO NOT ADD OIL.
•If the oil level is below the MIN
mark, add enough oil to raise the
level within the MIN-MAX range.
•Oil levels above the MAX mark may cause engine damage. Some oil
must be removed from the engine by a service technician.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until three clicks are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
177
ProCarManuals.com

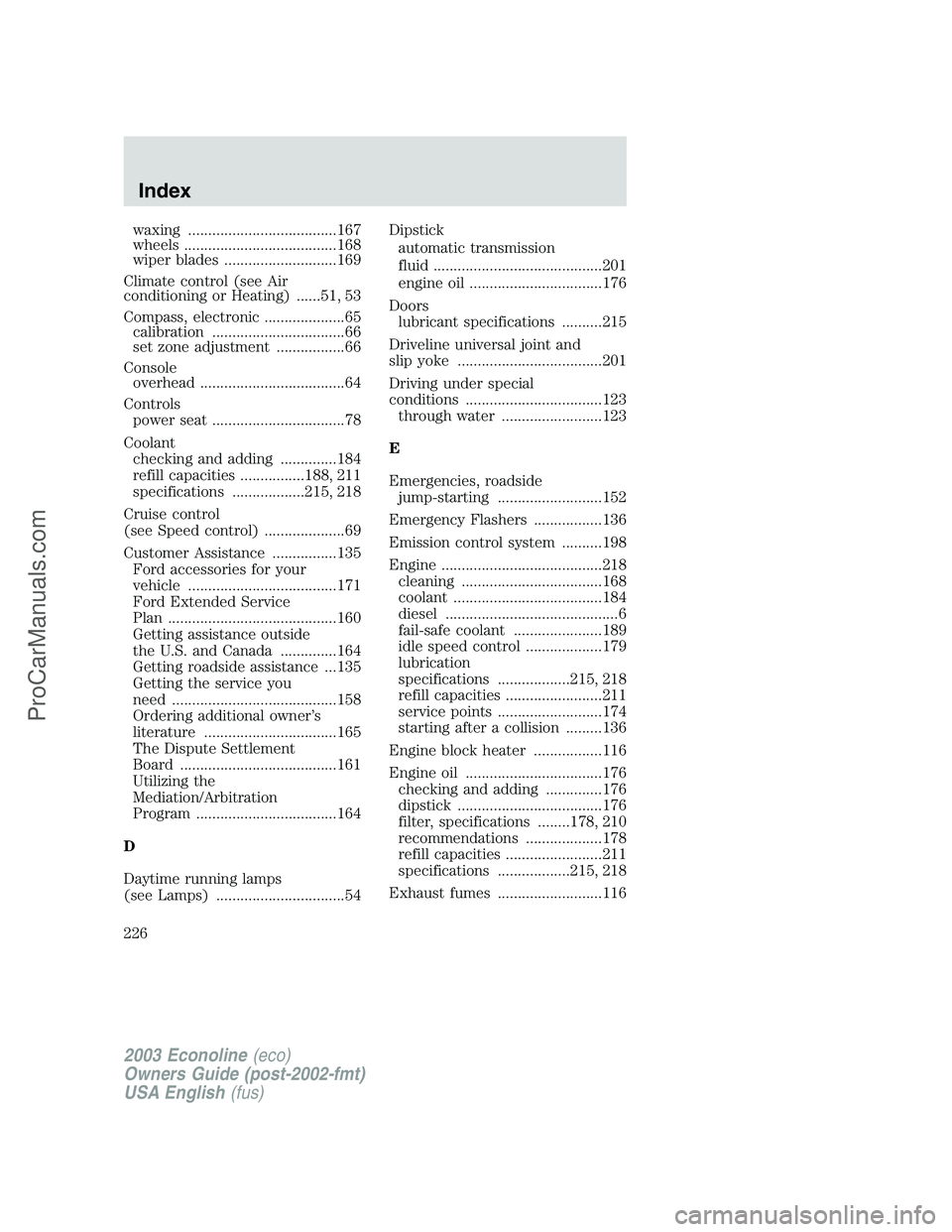

waxing .....................................167
wheels ......................................168
wiper blades ............................169
Climate control (see Air
conditioning or Heating) ......51, 53
Compass, electronic ....................65
calibration .................................66
set zone adjustment .................66
Console
overhead ....................................64
Controls
power seat .................................78
Coolant
checking and adding ..............184
refill capacities ................188, 211
specifications ..................215, 218
Cruise control
(see Speed control) ....................69
Customer Assistance ................135
Ford accessories for your
vehicle .....................................171
Ford Extended Service
Plan ..........................................160
Getting assistance outside
the U.S. and Canada ..............164
Getting roadside assistance ...135
Getting the service you
need .........................................158
Ordering additional owner’s
literature .................................165
The Dispute Settlement
Board .......................................161
Utilizing the
Mediation/Arbitration
Program ...................................164
D
Daytime running lamps
(see Lamps) ................................54Dipstick
automatic transmission
fluid ..........................................201
engine oil .................................176
Doors
lubricant specifications ..........215
Driveline universal joint and
slip yoke ....................................201
Driving under special
conditions ..................................123
through water .........................123
E
Emergencies, roadside
jump-starting ..........................152
Emergency Flashers .................136
Emission control system ..........198
Engine ........................................218
cleaning ...................................168
coolant .....................................184
diesel ...........................................6
fail-safe coolant ......................189
idle speed control ...................179
lubrication
specifications ..................215, 218
refill capacities ........................211
service points ..........................174
starting after a collision .........136
Engine block heater .................116
Engine oil ..................................176
checking and adding ..............176
dipstick ....................................176
filter, specifications ........178, 210
recommendations ...................178
refill capacities ........................211
specifications ..................215, 218
Exhaust fumes ..........................116
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
226
ProCarManuals.com

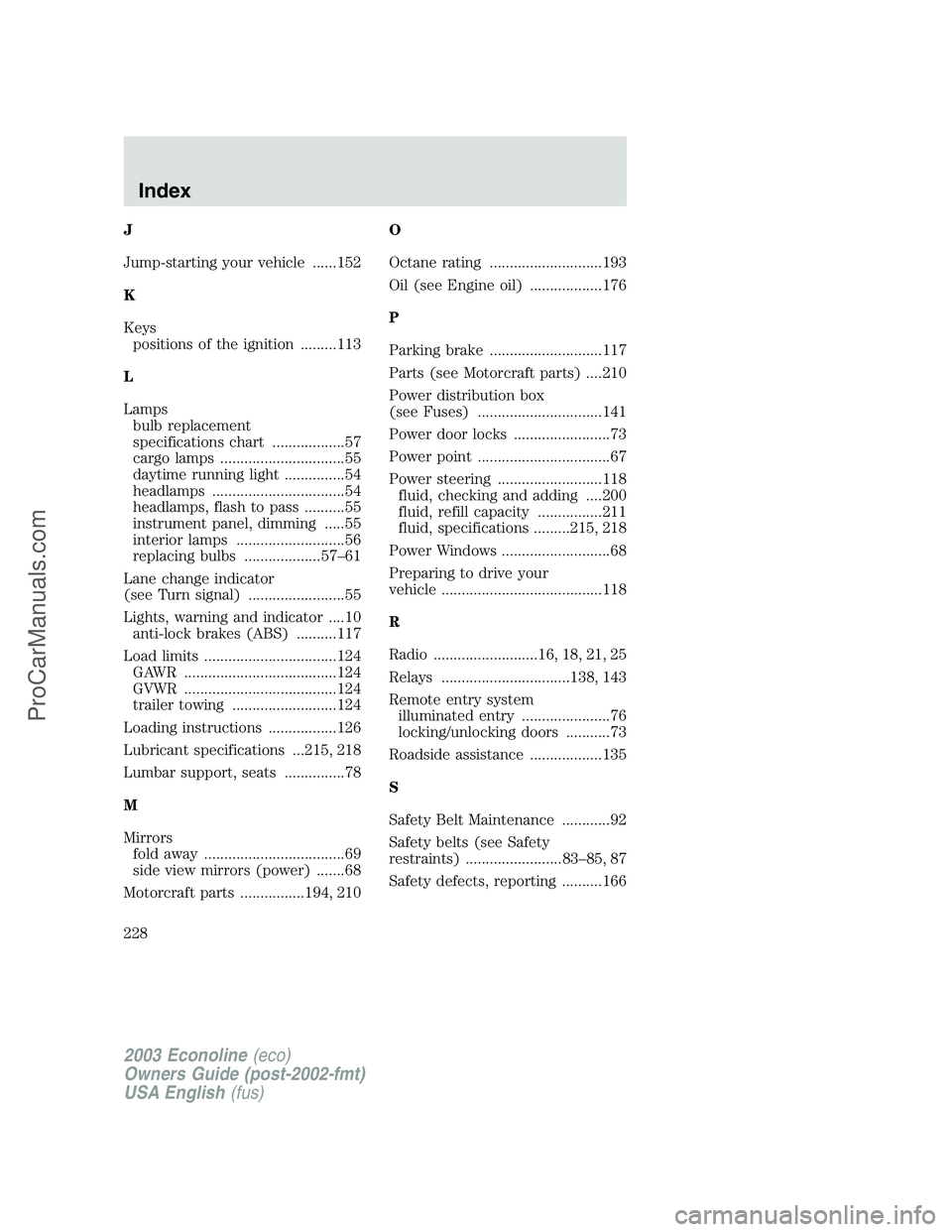

J
Jump-starting your vehicle ......152
K
Keys
positions of the ignition .........113
L
Lamps
bulb replacement
specifications chart ..................57
cargo lamps ...............................55
daytime running light ...............54
headlamps .................................54
headlamps, flash to pass ..........55
instrument panel, dimming .....55
interior lamps ...........................56
replacing bulbs ...................57–61
Lane change indicator
(see Turn signal) ........................55
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........117
Load limits .................................124
GAWR ......................................124
GVWR ......................................124
trailer towing ..........................124
Loading instructions .................126
Lubricant specifications ...215, 218
Lumbar support, seats ...............78
M
Mirrors
fold away ...................................69
side view mirrors (power) .......68
Motorcraft parts ................194, 210O
Octane rating ............................193
Oil (see Engine oil) ..................176
P
Parking brake ............................117
Parts (see Motorcraft parts) ....210
Power distribution box
(see Fuses) ...............................141
Power door locks ........................73
Power point .................................67
Power steering ..........................118
fluid, checking and adding ....200
fluid, refill capacity ................211
fluid, specifications .........215, 218
Power Windows ...........................68
Preparing to drive your
vehicle ........................................118
R
Radio ..........................16, 18, 21, 25
Relays ................................138, 143
Remote entry system
illuminated entry ......................76
locking/unlocking doors ...........73
Roadside assistance ..................135
S
Safety Belt Maintenance ............92
Safety belts (see Safety
restraints) ........................83–85, 87
Safety defects, reporting ..........166
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
228
ProCarManuals.com
