compression ratio FORD E-350 2010 Owners Manual

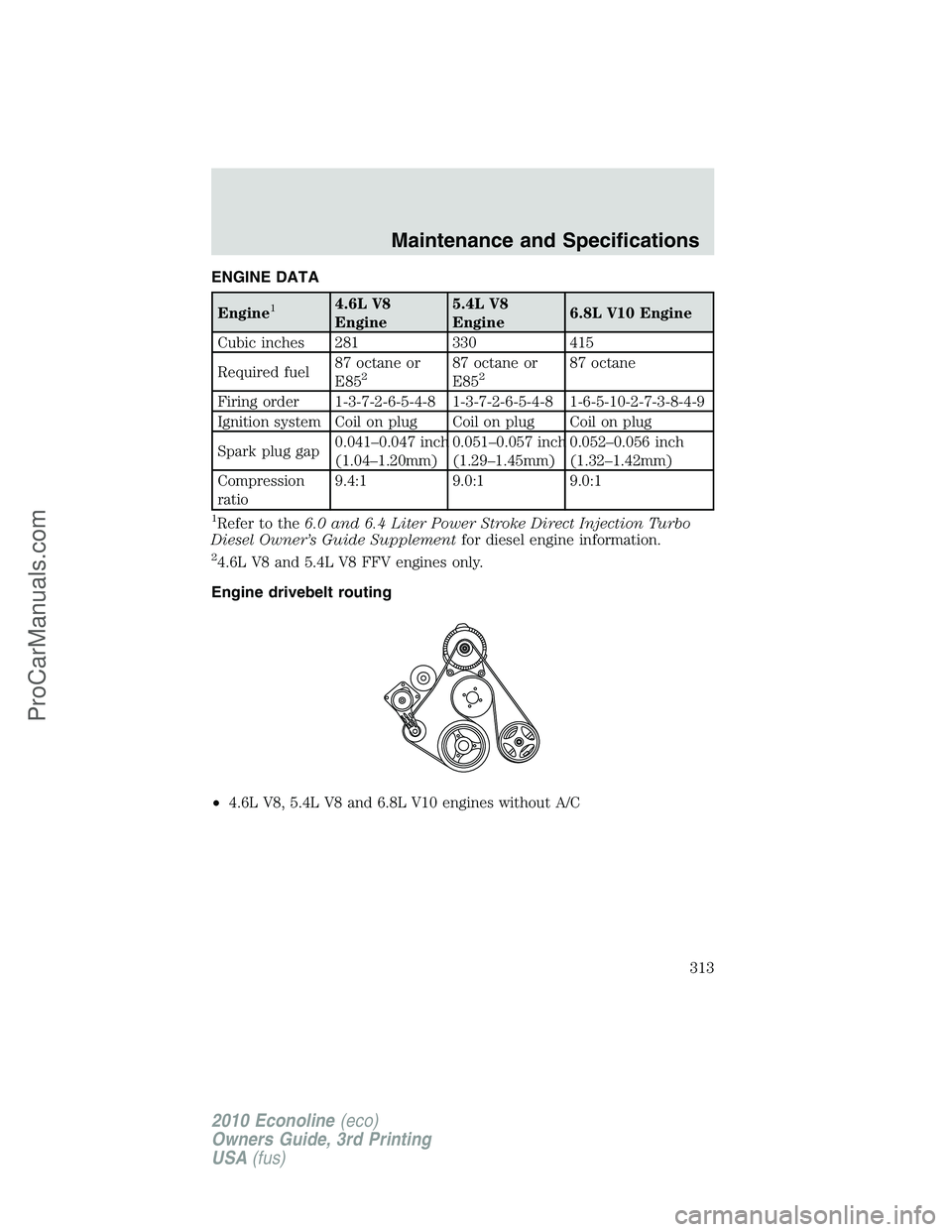

ENGINE DATA
Engine14.6L V8
Engine5.4L V8
Engine6.8L V10 Engine
Cubic inches 281 330 415
Required fuel87 octane or
E85
287 octane or
E85287 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.041–0.047 inch
(1.04–1.20mm)0.051–0.057 inch
(1.29–1.45mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
1Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor diesel engine information.
24.6L V8 and 5.4L V8 FFV engines only.
Engine drivebelt routing
•4.6L V8, 5.4L V8 and 6.8L V10 engines without A/C
Maintenance and Specifications
313
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
