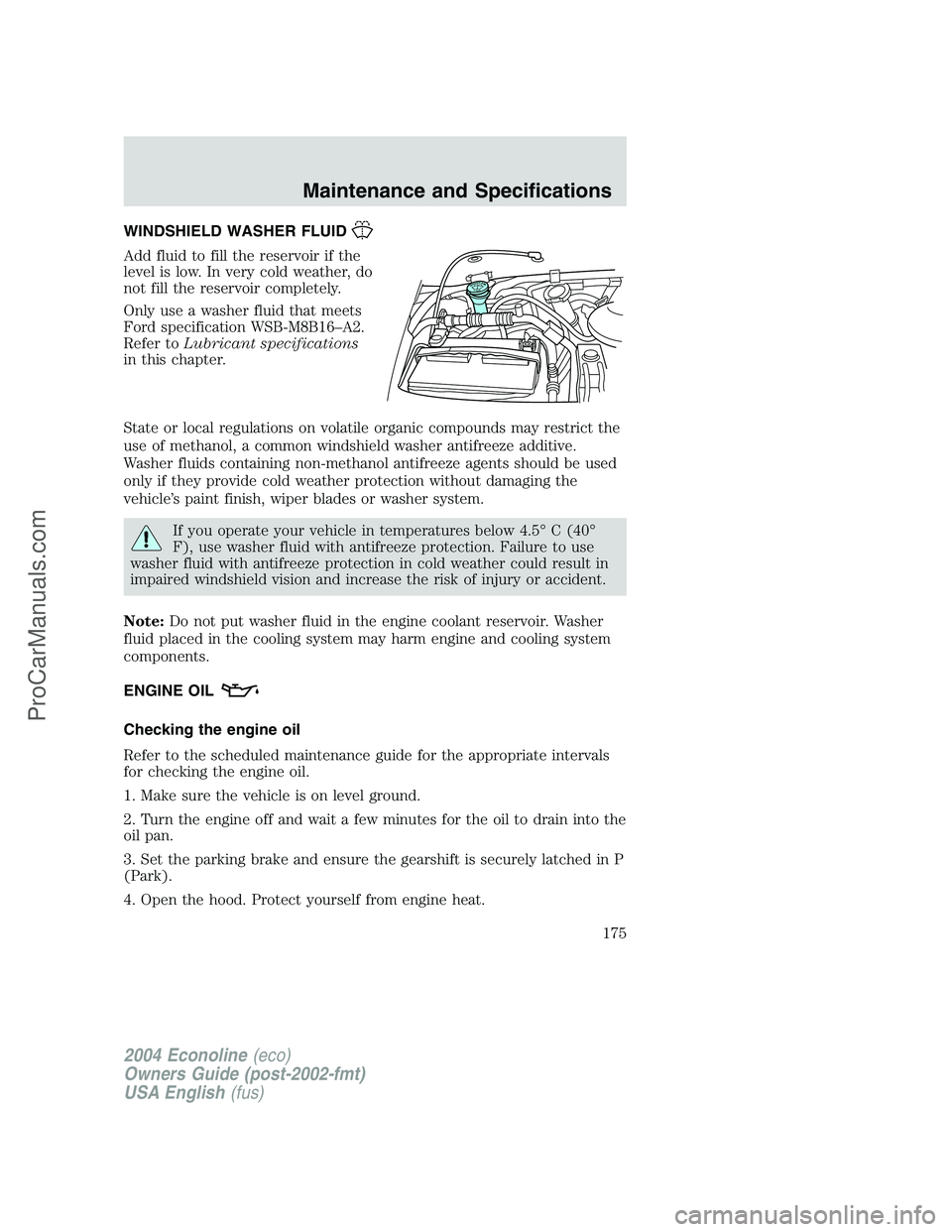

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16–A2.
Refer toLubricant specifications
in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures below 4.5°C (40°
F), use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
ENGINE OIL
Checking the engine oil
Refer to the scheduled maintenance guide for the appropriate intervals
for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
175
ProCarManuals.com

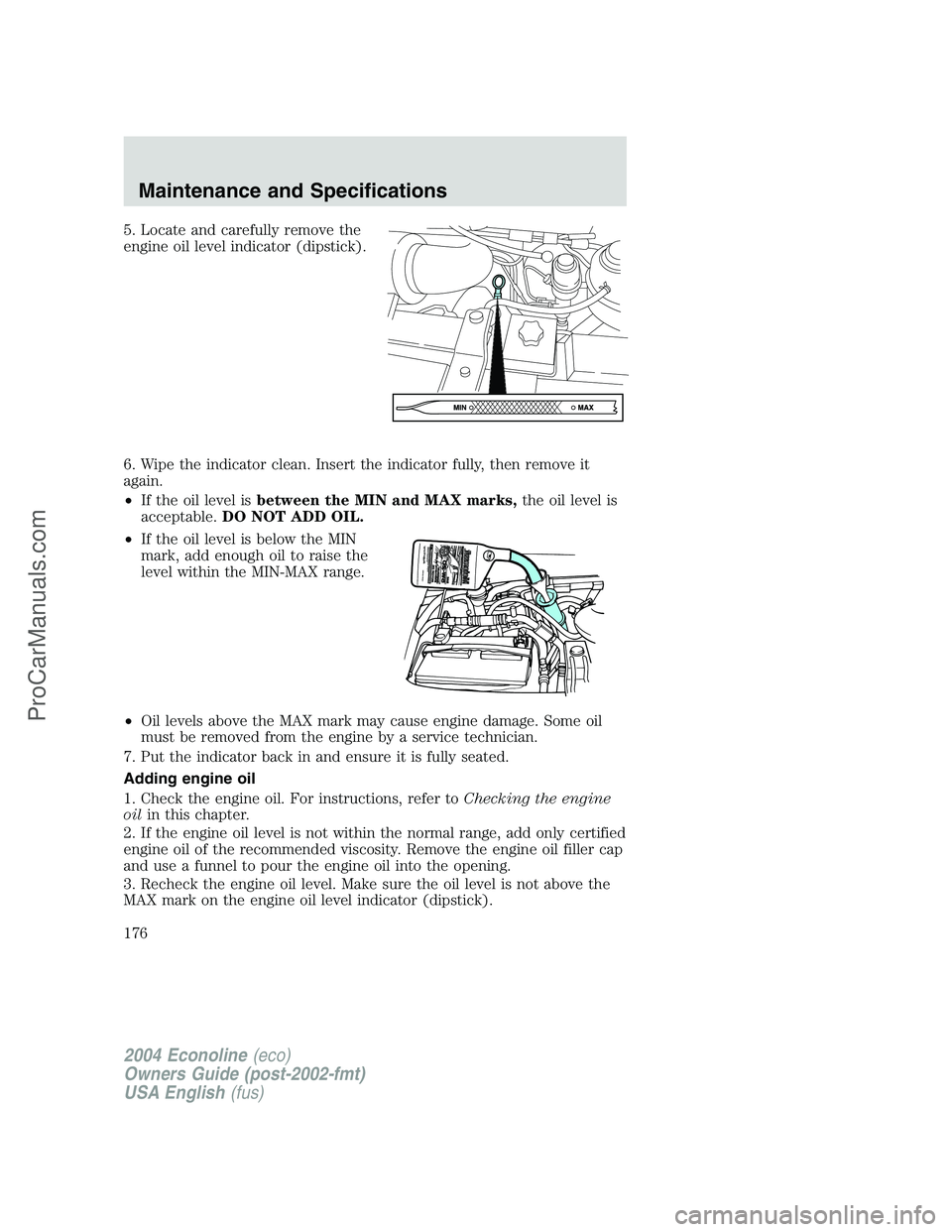

5. Locate and carefully remove the
engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
•If the oil level isbetween the MIN and MAX marks,the oil level is
acceptable.DO NOT ADD OIL.
•If the oil level is below the MIN
mark, add enough oil to raise the
level within the MIN-MAX range.
•Oil levels above the MAX mark may cause engine damage. Some oil
must be removed from the engine by a service technician.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark on the engine oil level indicator (dipstick).
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
176
ProCarManuals.com

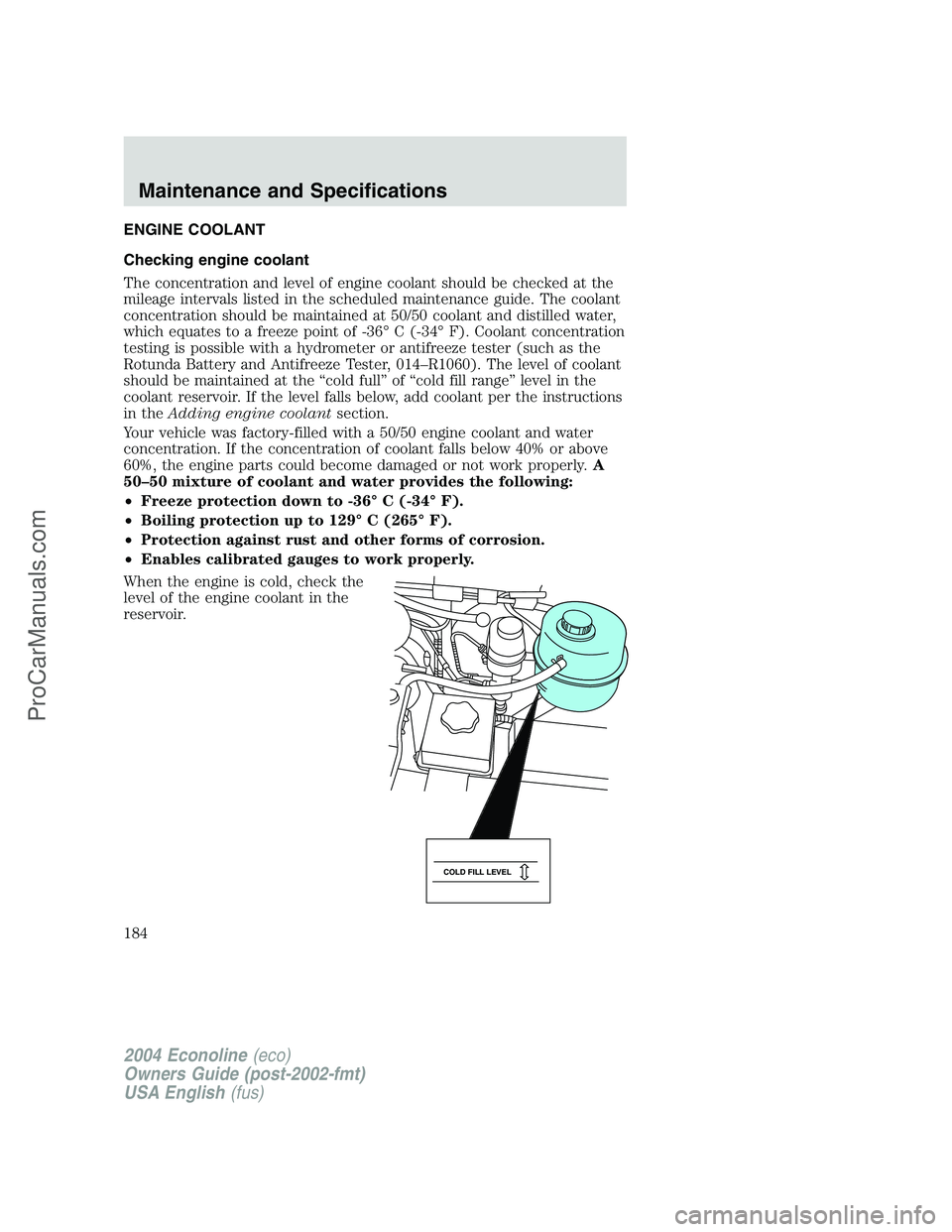

ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in the scheduled maintenance guide. The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -36°C (-34°F). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the“cold full”of“cold fill range”level in the
coolant reservoir. If the level falls below, add coolant per the instructions
in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -36°C (-34°F).
•Boiling protection up to 129°C (265°F).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
When the engine is cold, check the
level of the engine coolant in the
reservoir.
COLD FILL LEVEL
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
184
ProCarManuals.com

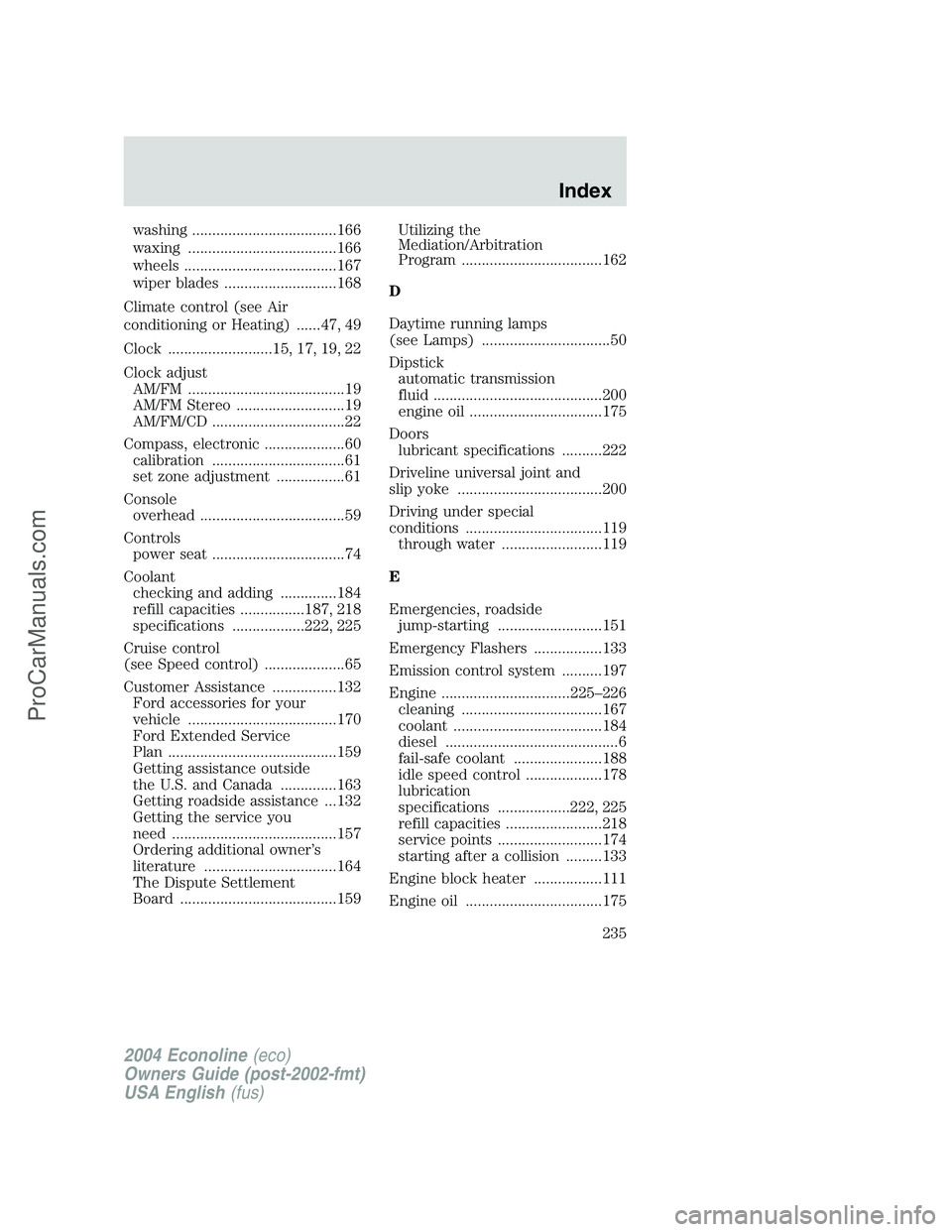

washing ....................................166
waxing .....................................166
wheels ......................................167
wiper blades ............................168
Climate control (see Air
conditioning or Heating) ......47, 49
Clock ..........................15, 17, 19, 22
Clock adjust
AM/FM .......................................19
AM/FM Stereo ...........................19
AM/FM/CD .................................22
Compass, electronic ....................60
calibration .................................61
set zone adjustment .................61
Console
overhead ....................................59
Controls
power seat .................................74
Coolant
checking and adding ..............184
refill capacities ................187, 218
specifications ..................222, 225
Cruise control
(see Speed control) ....................65
Customer Assistance ................132
Ford accessories for your
vehicle .....................................170
Ford Extended Service
Plan ..........................................159
Getting assistance outside
the U.S. and Canada ..............163
Getting roadside assistance ...132
Getting the service you
need .........................................157
Ordering additional owner’s
literature .................................164
The Dispute Settlement
Board .......................................159Utilizing the
Mediation/Arbitration
Program ...................................162
D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission
fluid ..........................................200
engine oil .................................175
Doors
lubricant specifications ..........222
Driveline universal joint and
slip yoke ....................................200
Driving under special
conditions ..................................119
through water .........................119
E
Emergencies, roadside
jump-starting ..........................151
Emergency Flashers .................133
Emission control system ..........197
Engine ................................225–226
cleaning ...................................167
coolant .....................................184
diesel ...........................................6
fail-safe coolant ......................188
idle speed control ...................178
lubrication
specifications ..................222, 225
refill capacities ........................218
service points ..........................174
starting after a collision .........133
Engine block heater .................111
Engine oil ..................................175
2004 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
235
ProCarManuals.com

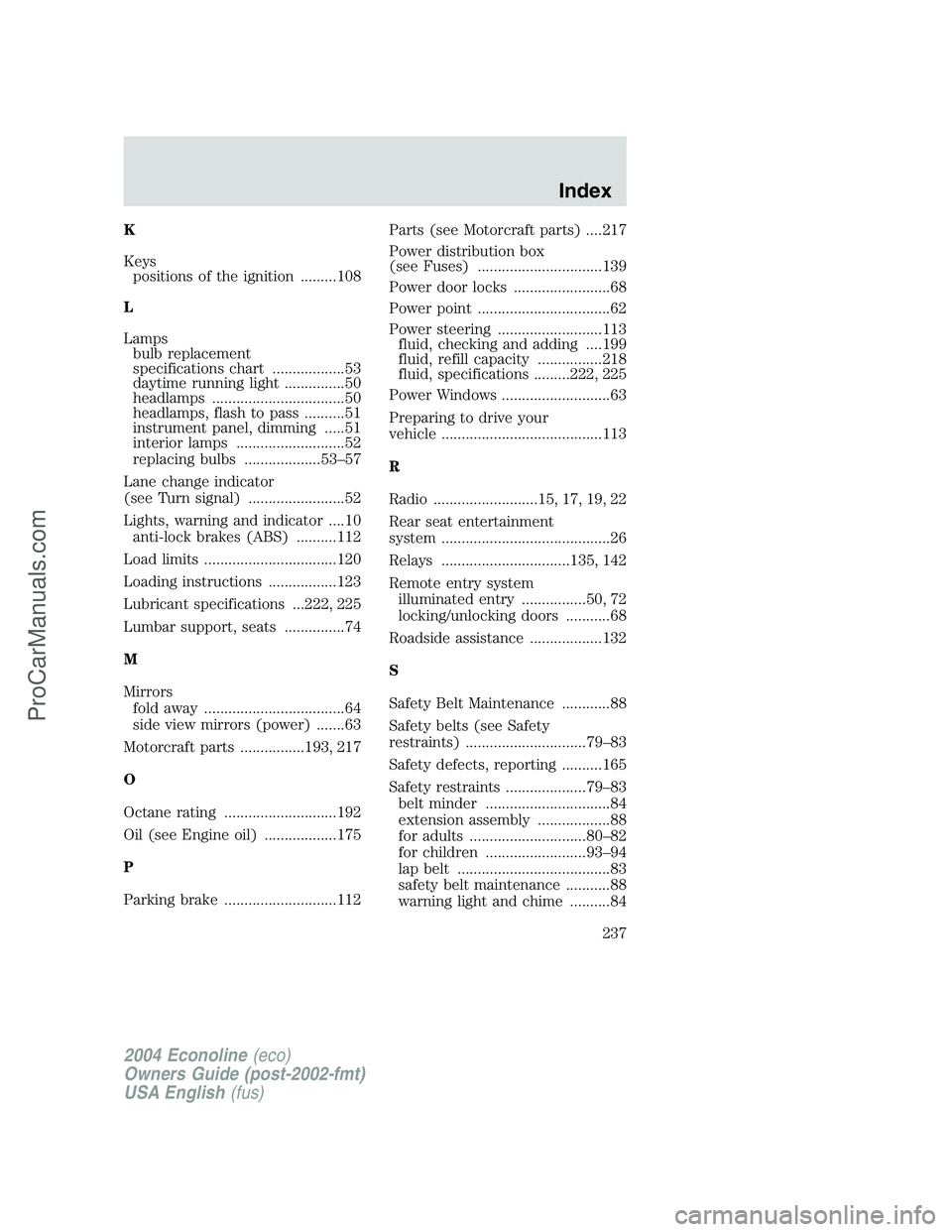

K
